Lamp Woman carrying light 3D print model

Pierre Le Faguays (1892-1935) French avant-garde sculptor whose work largely influenced the development of the Art Deco style of the 1920s and early 1930s. He became famous for the originality of the images of his sculptures of dancers, many of which continued the style of Tanagra statues.

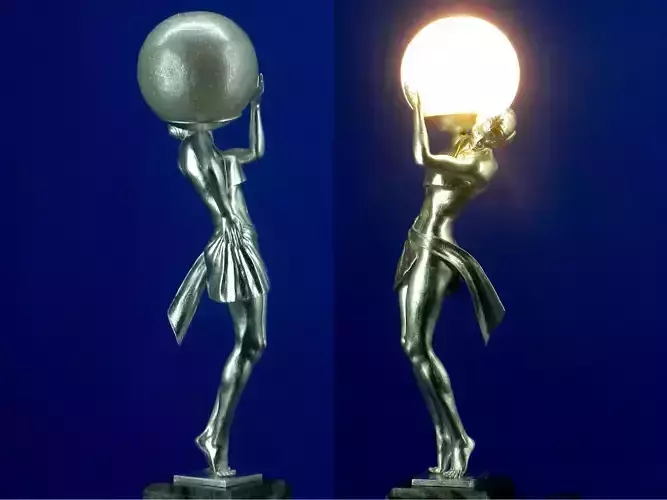

One of his works - a table lamp, a girl carrying a luminous ball, became the basis for the creation of this table lamp.

This sculptural light was specially designed for printing on a simple FDM printer, and can be easily made at home (the whole manufacturing process is shown in the video at the bottom of this page). The luminaire is equipped with a 3 ... 3.5 W, 12 V LED lamp with a G4 base.

Lamp dimensions:

• Height 253 mm
• Width 108 mm
• Depth 113 mm

The lamp was finished with acrylic paints and a silver leaf coating, a colorless glossy acrylic varnish.

The post-processing, painting and assembly process of this lamp I showed in the video:

Project page: https://3dladnik.wixsite.com/workshop/ad-lamp8

• Art Deco Lamp 8 parts were printed on a Lad-1.0 FDM printer with a 0.4 mm nozzle, layer height 0.1 mm for figurine parts and 0.2 mm for other parts.
• ​Lamp Shades were printed from clear plastic in a single perimeter and no fill mode.

Plastic consumption (including supports) 316 grams:

• ADL8-FigurineB 79 grams,
• ADL8-FigurineT 74 grams,

• ADL8-Sheets 7 grams,

• ​ADL8-Lamp 18 grams,

• ​ADL8-Pedestal-1-2 45 grams,

• ADL8-Pedestal-3 72 grams,

• ADL8-Pedestal-4 13 grams,

• ADL8-LampShade 8 grams.

​
