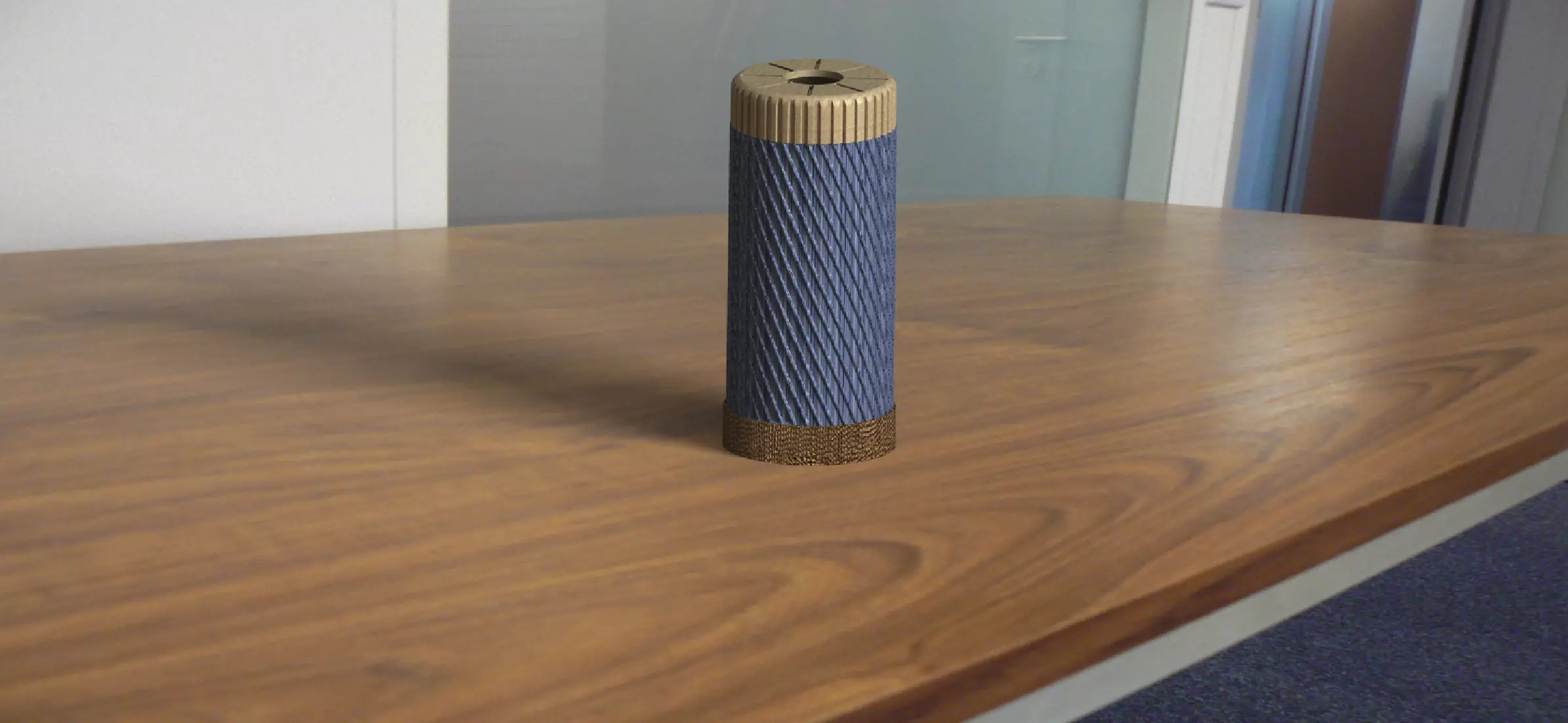

Hand-held okra machine 3D print model

This machine is specially designed for use in pastry making, and okra can be made with its star-shaped head that works as a mold (extrusion method).This device consists of three parts:

• The main part is its body or tank, which has a thread and pitch for power transmission (like a screw).
  • The second part is the handle, which, like the main body, has a thread to engage with the threads of the main body and moves the food inside the tank.
  • The third part is the head, which performs the work of the mold to shape the materials during exit.

The working mechanism is to convert torsional force into linear force.The approximate dimensions of the whole work are 110x110x250 mm.
