DESCRIPTION

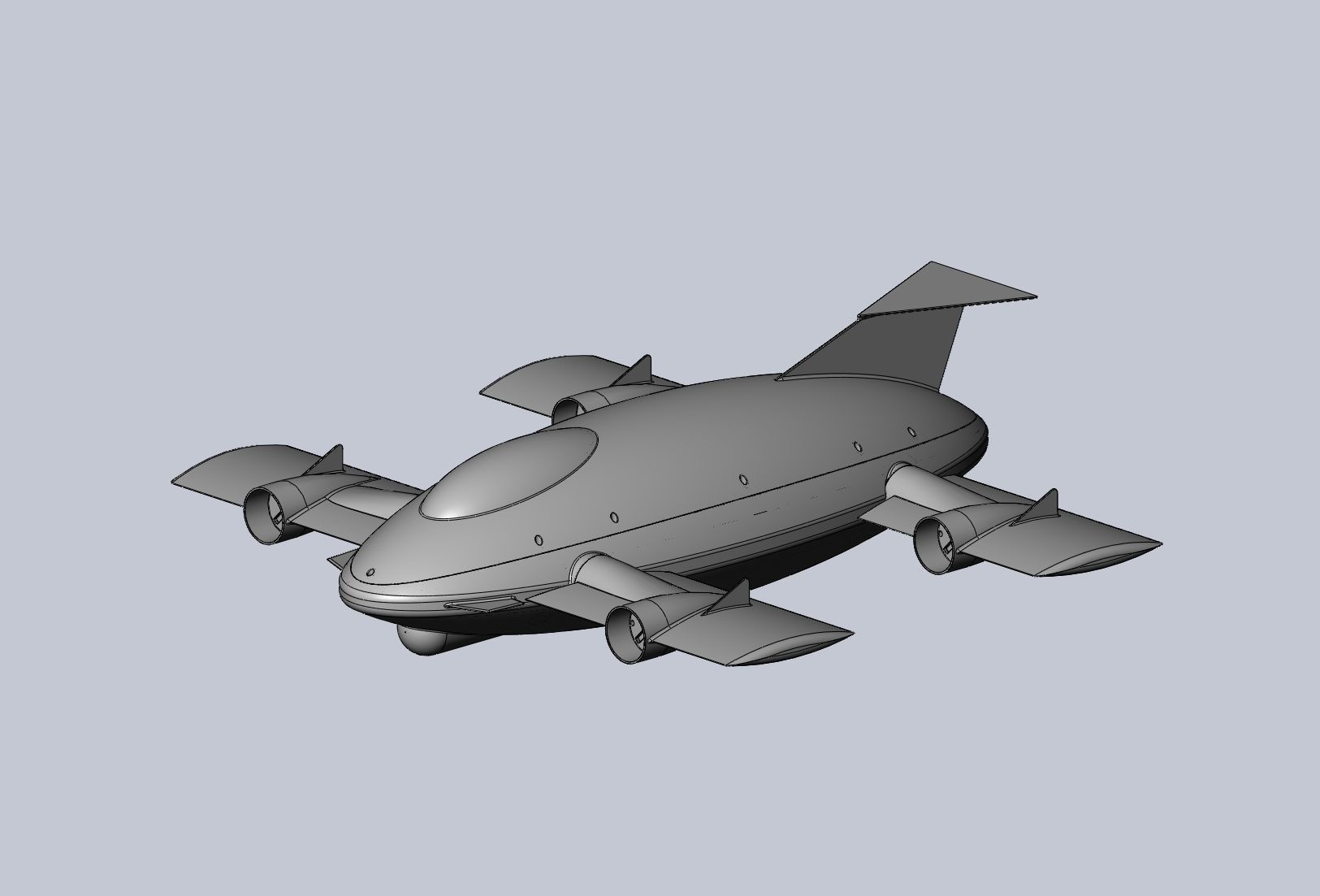

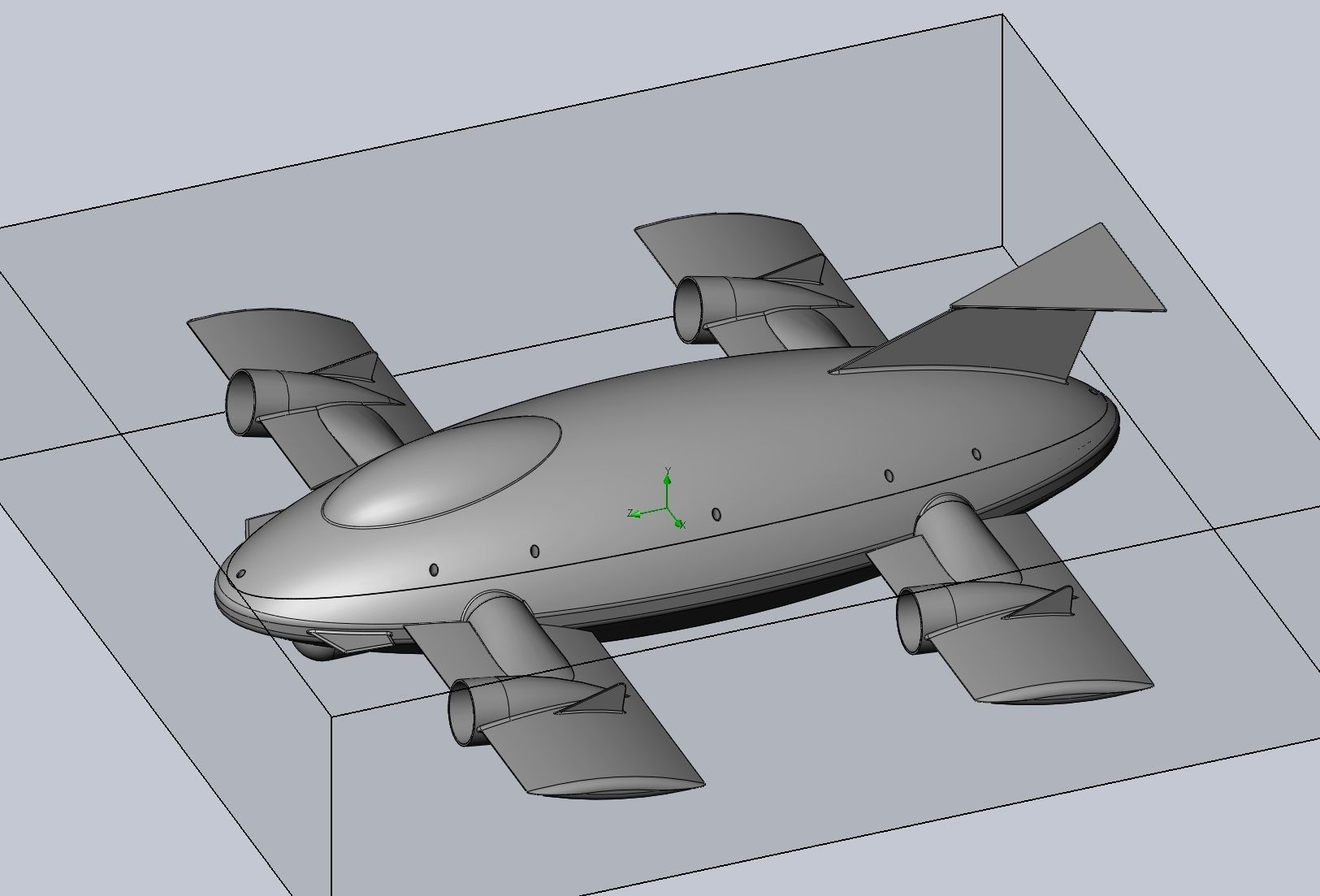

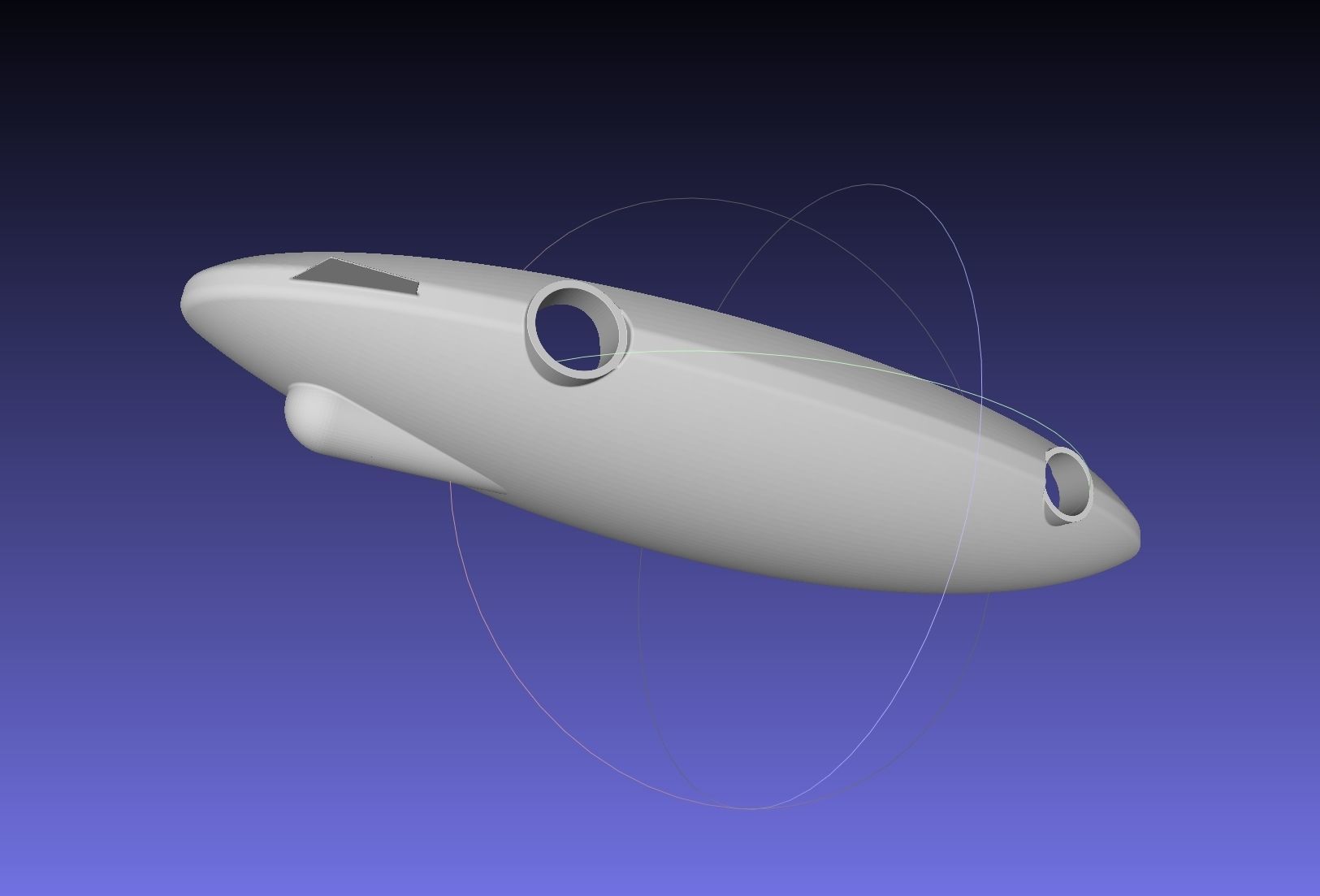

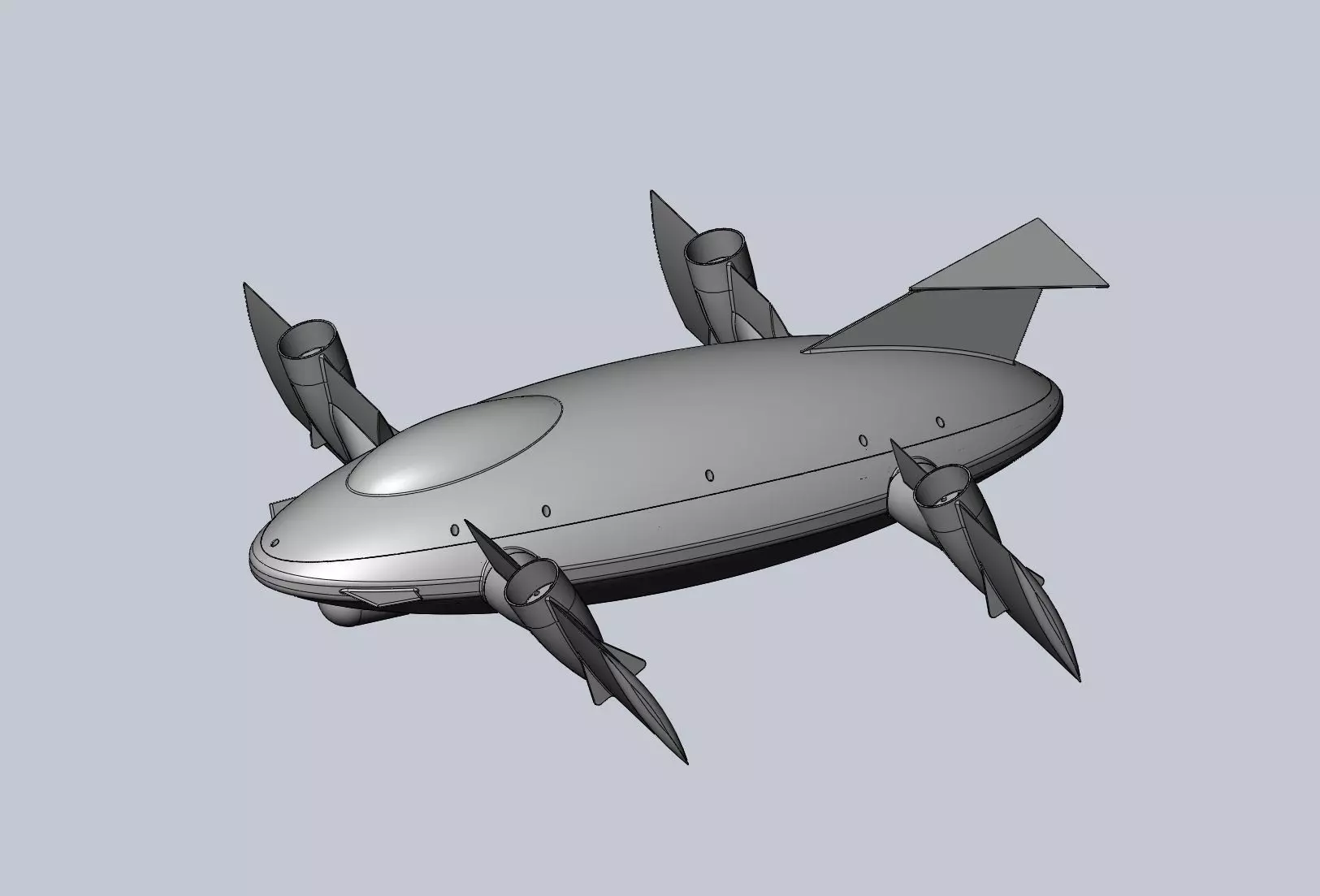

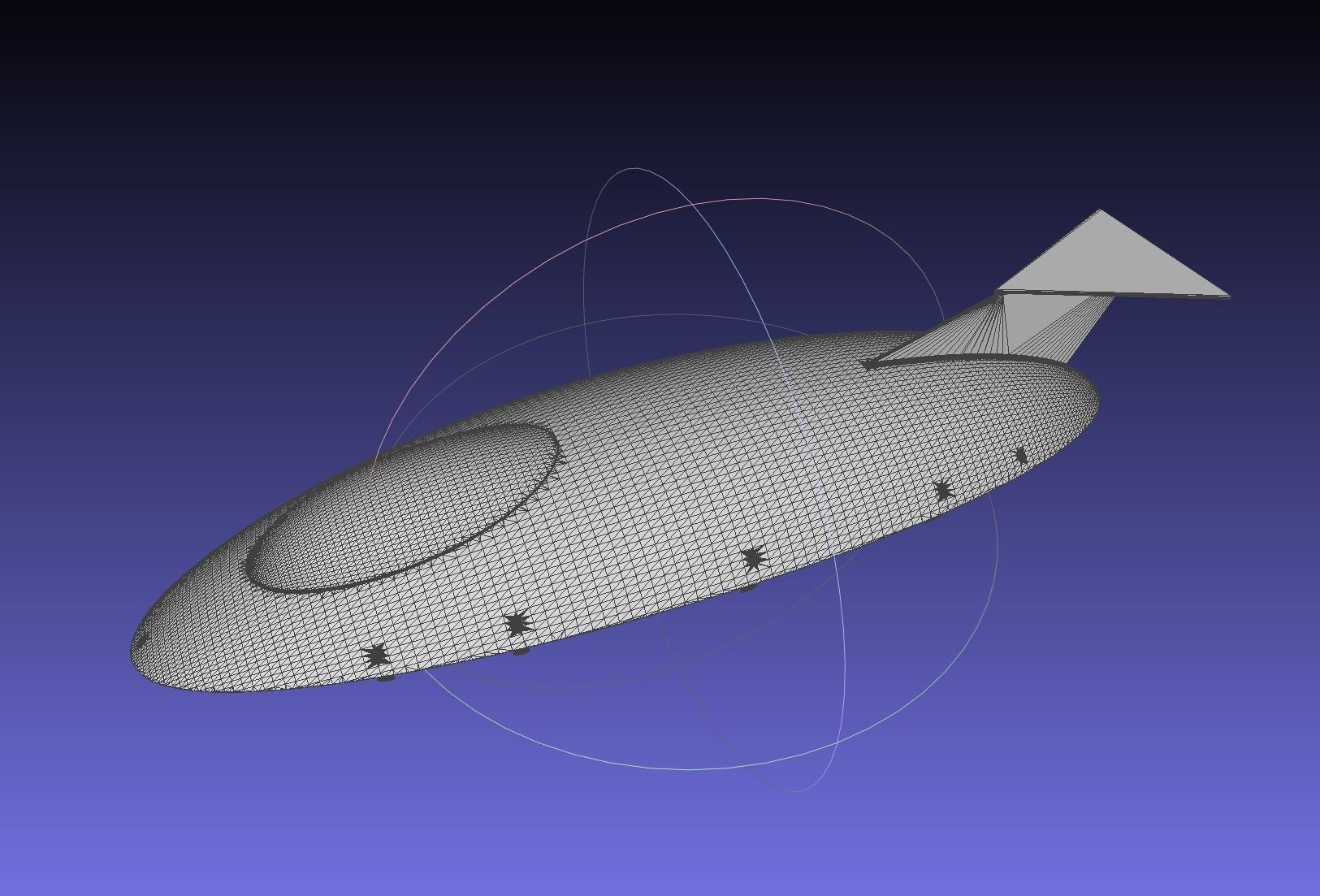

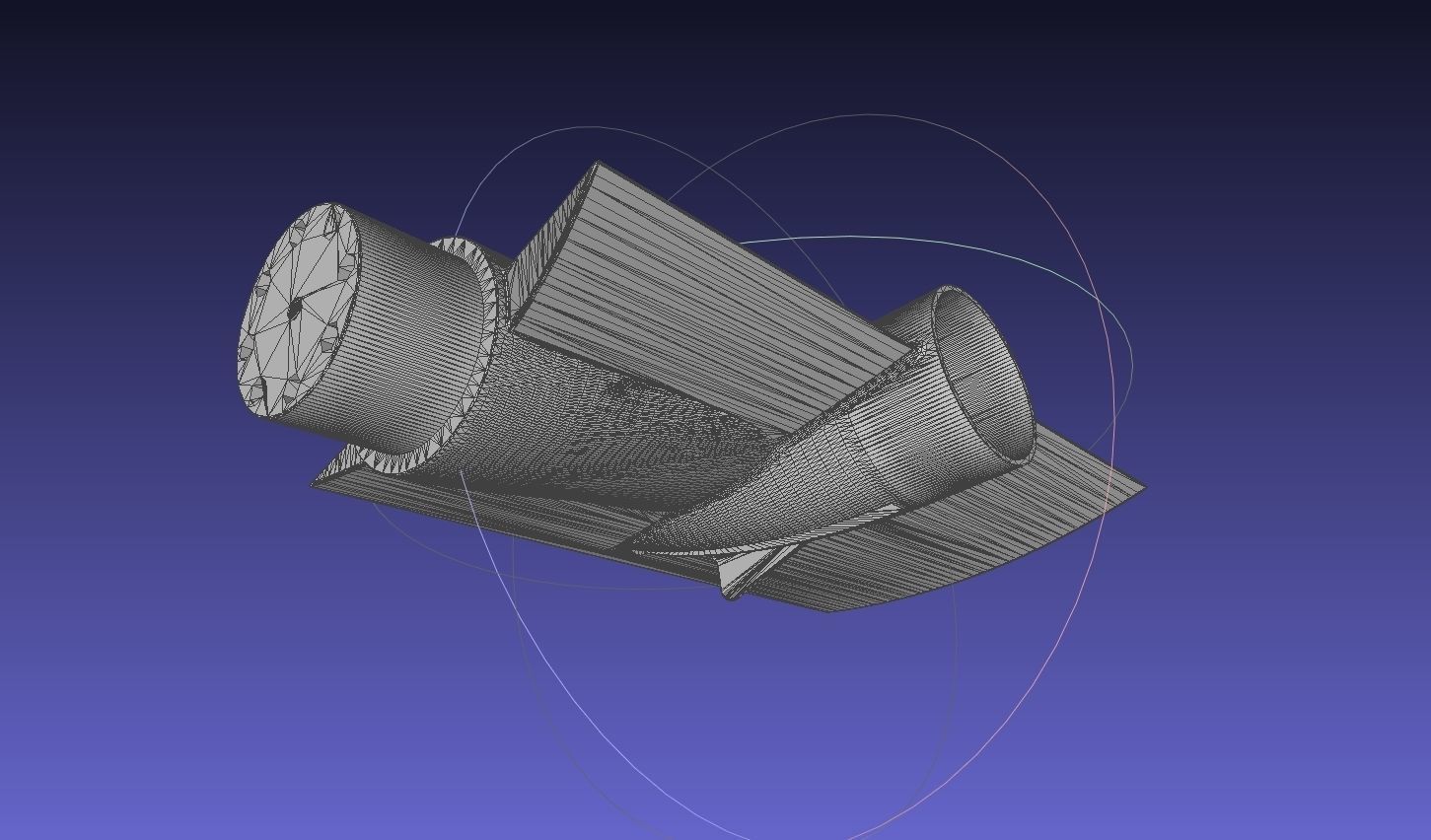

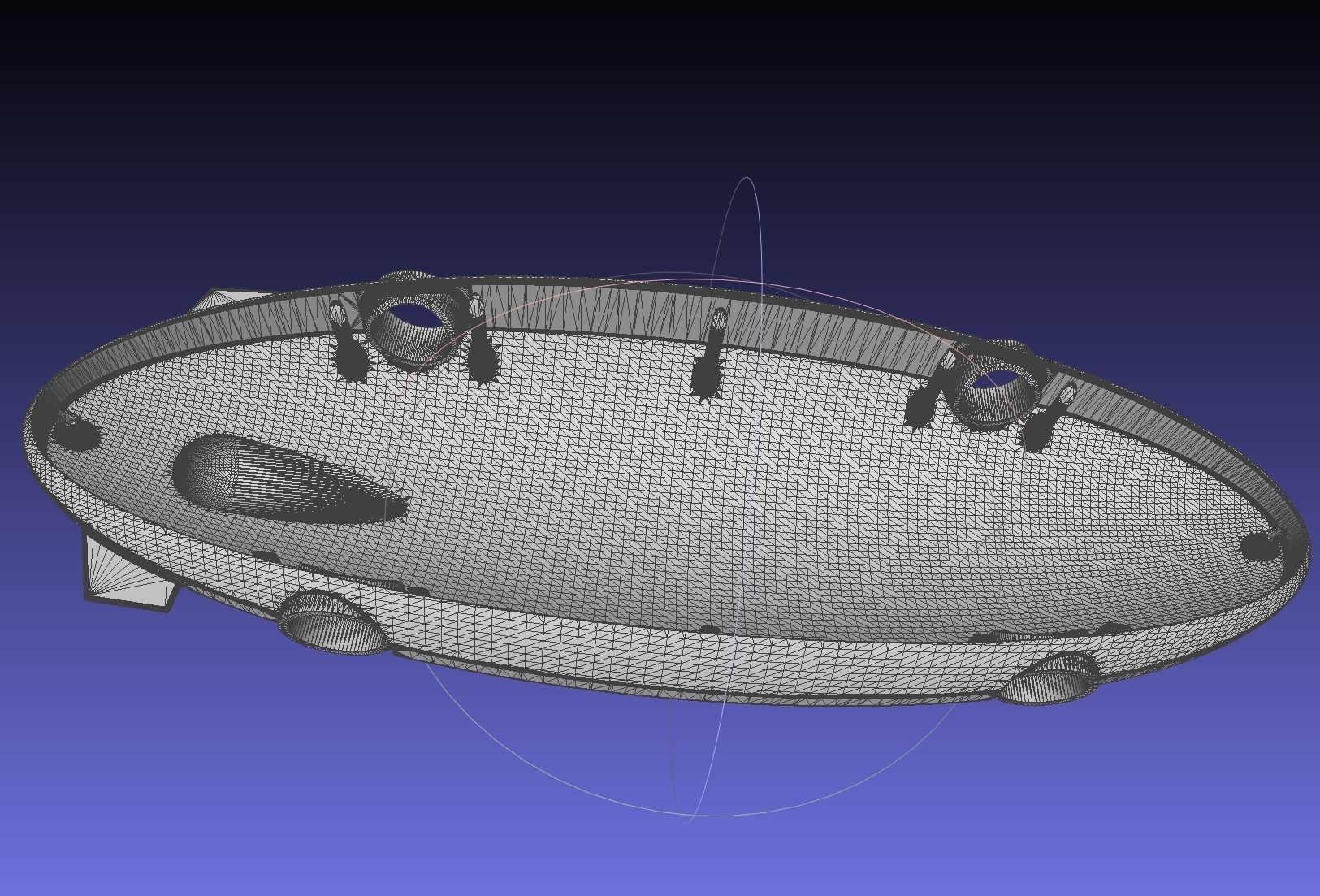

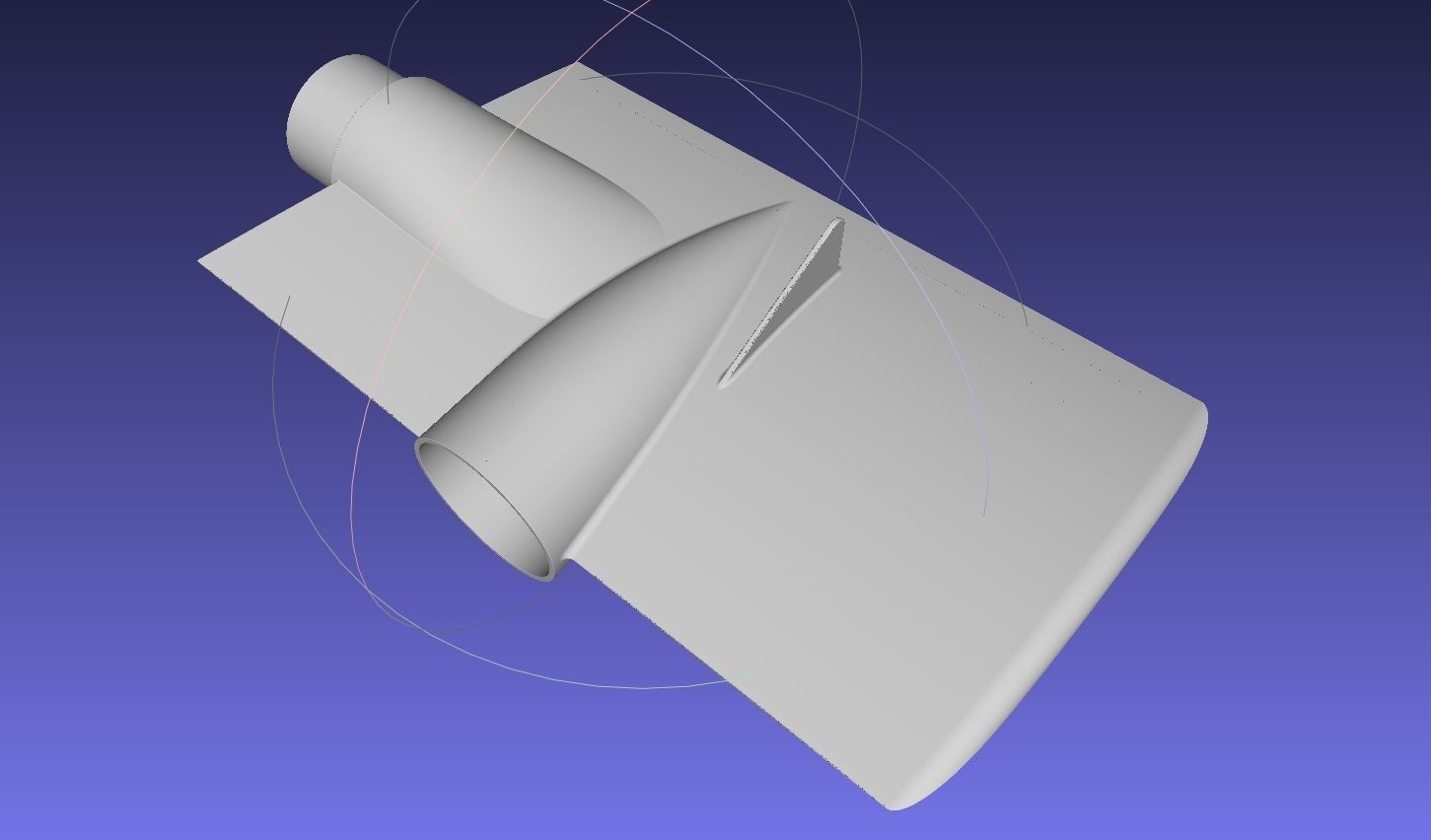

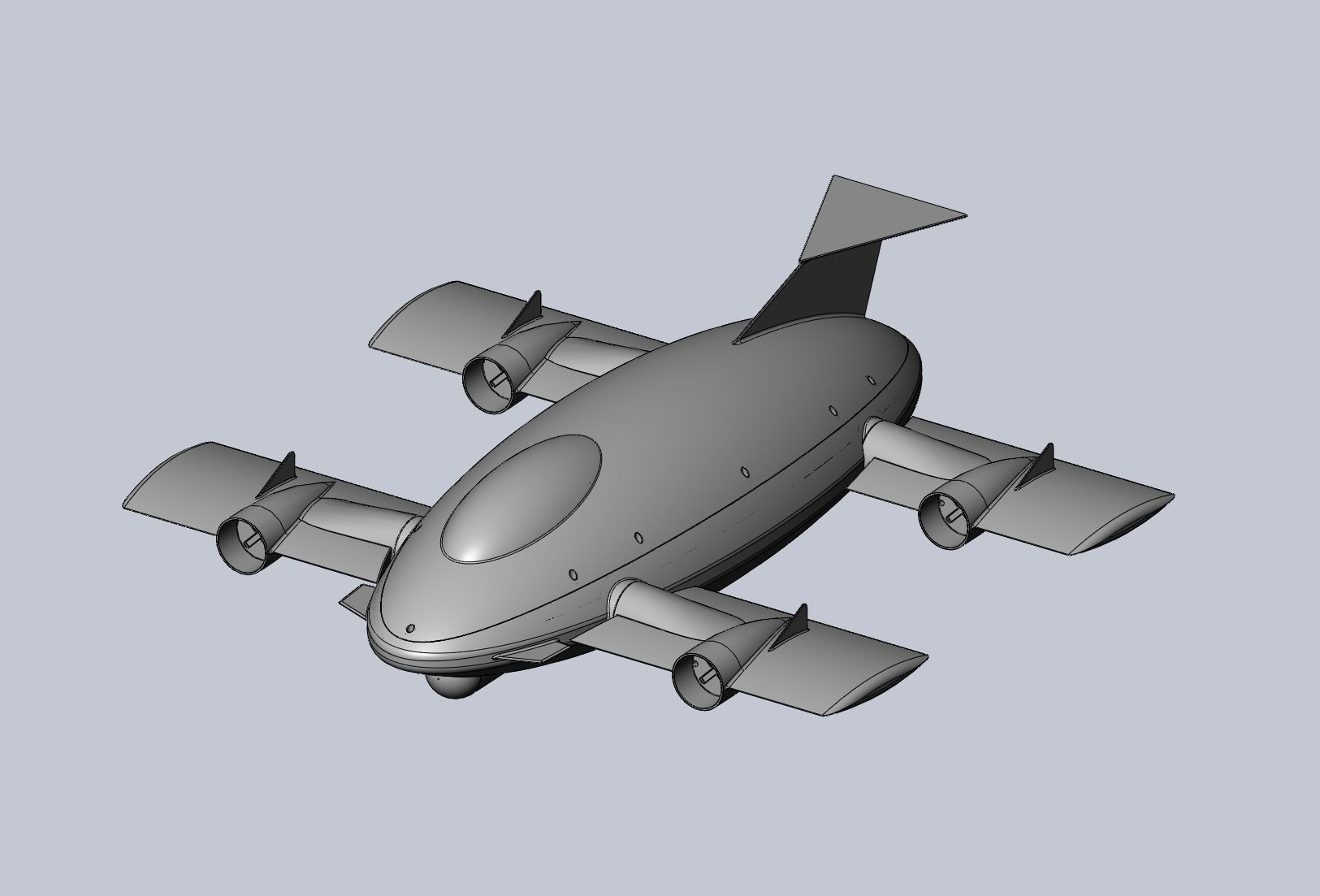

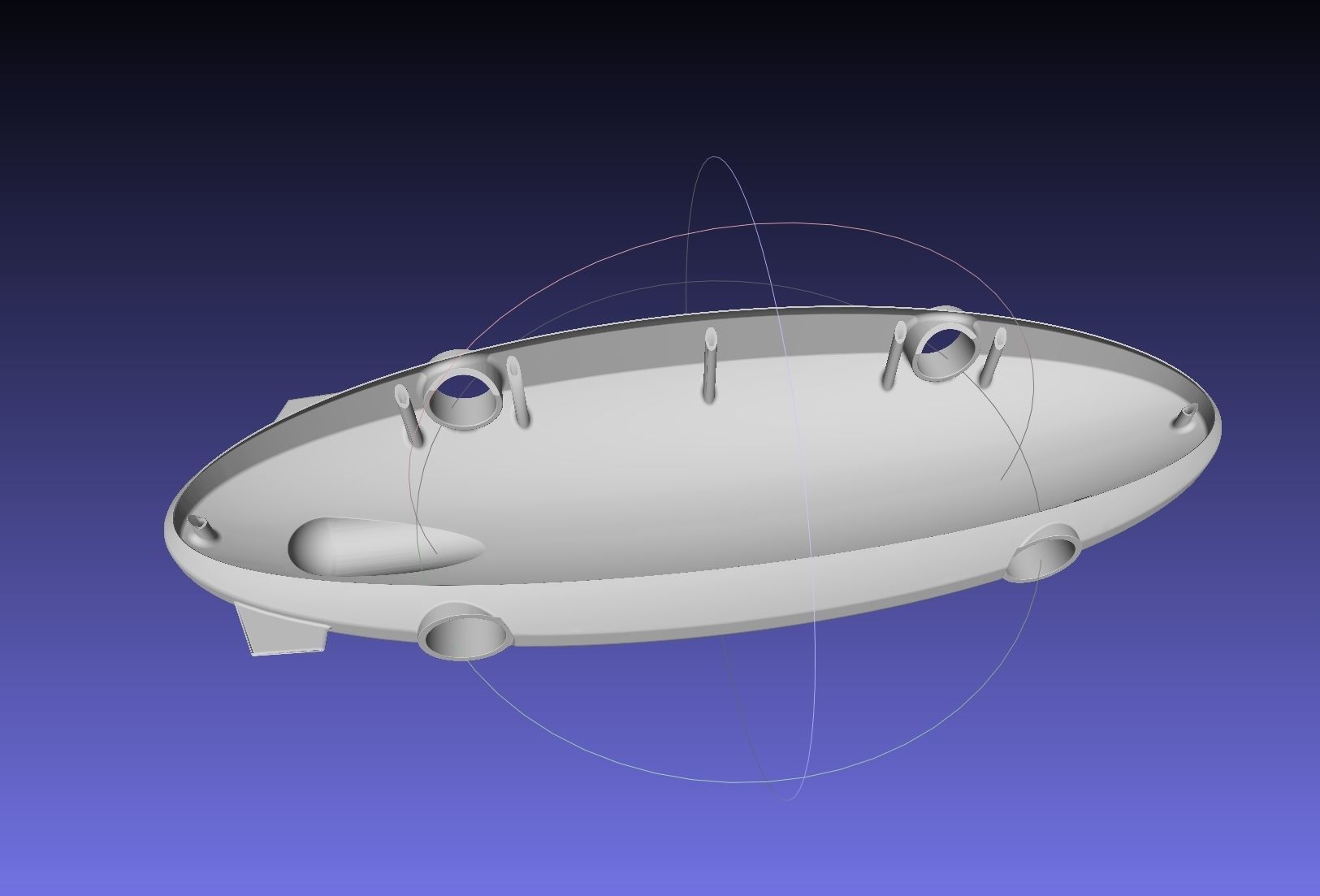

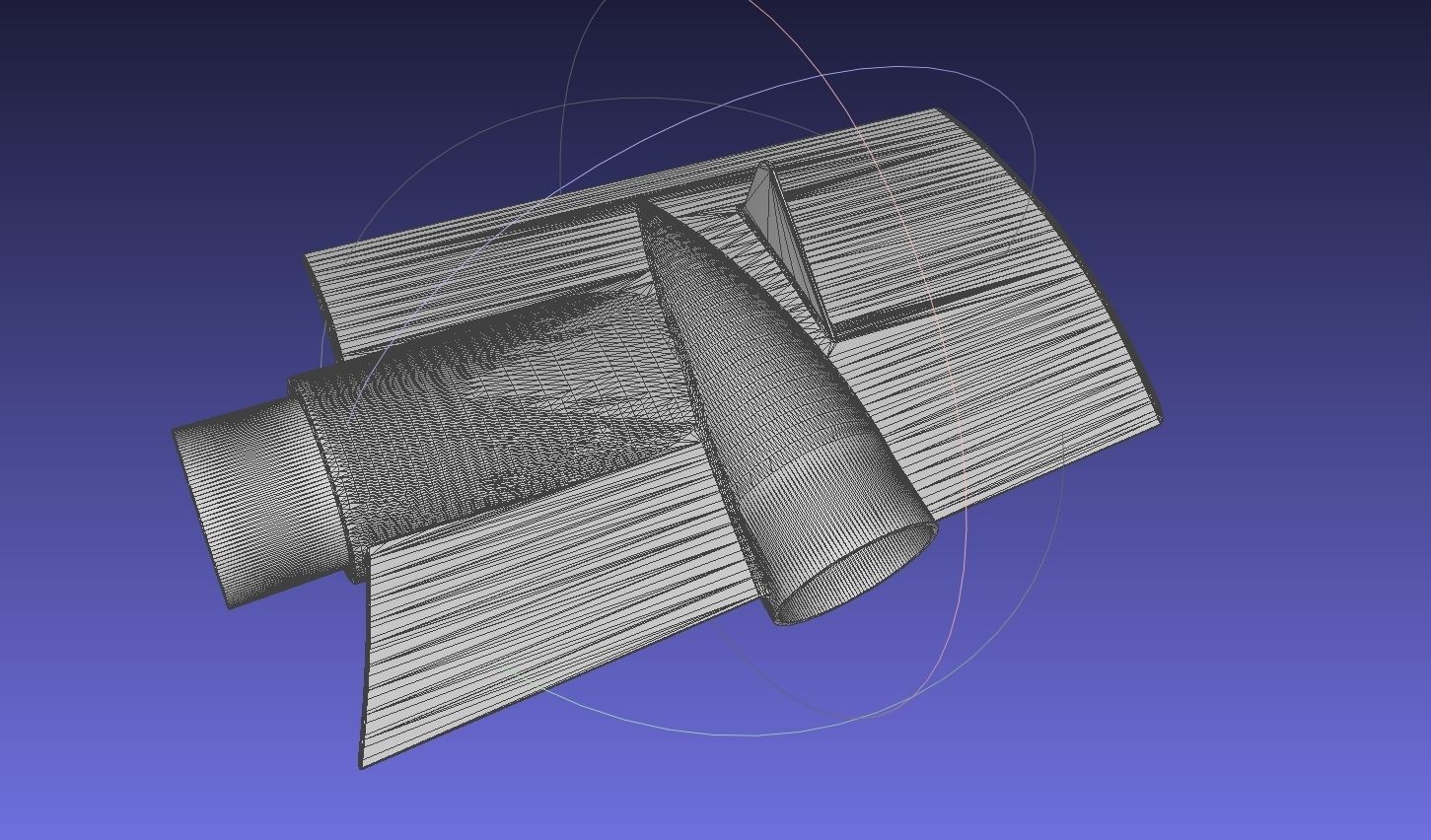

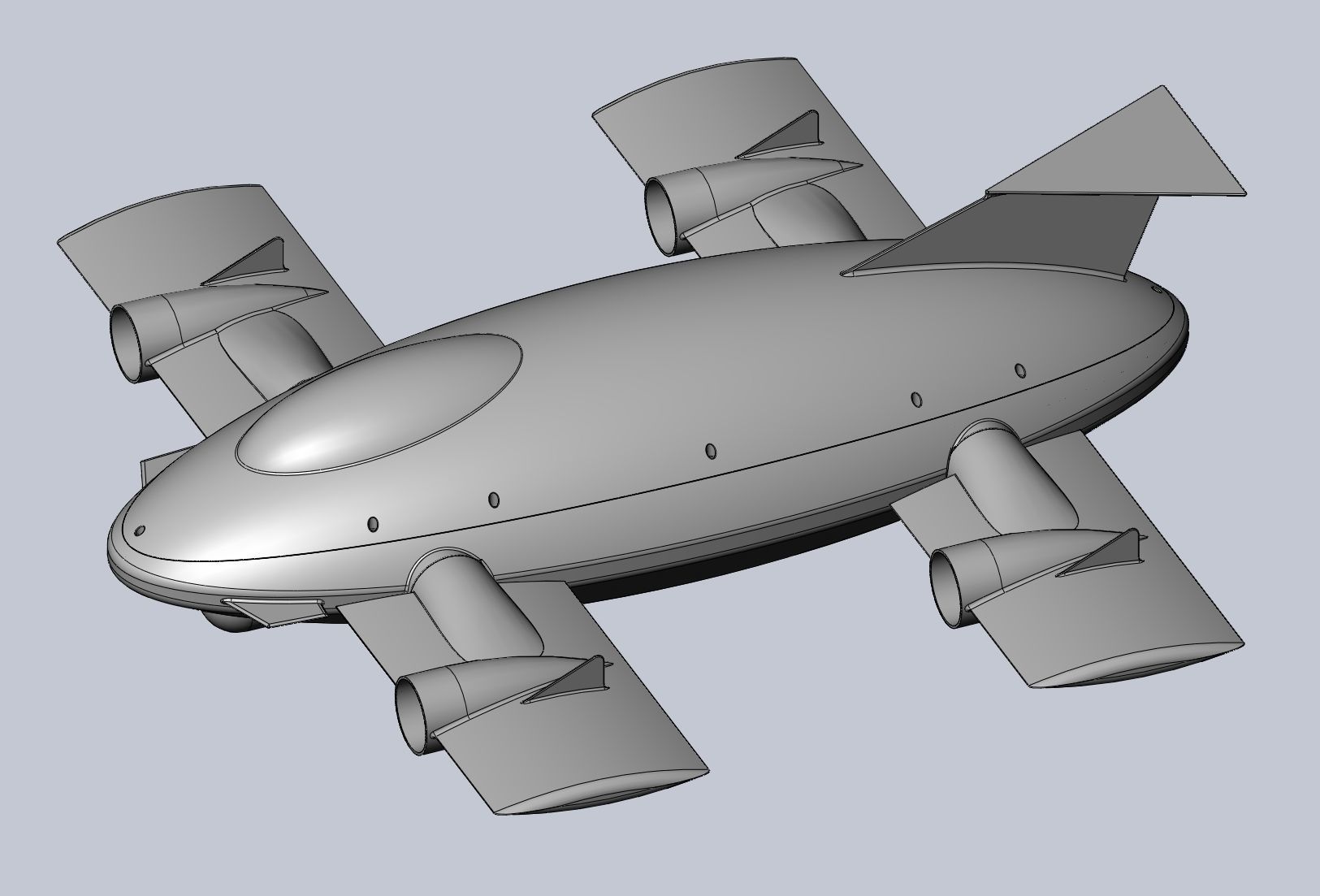

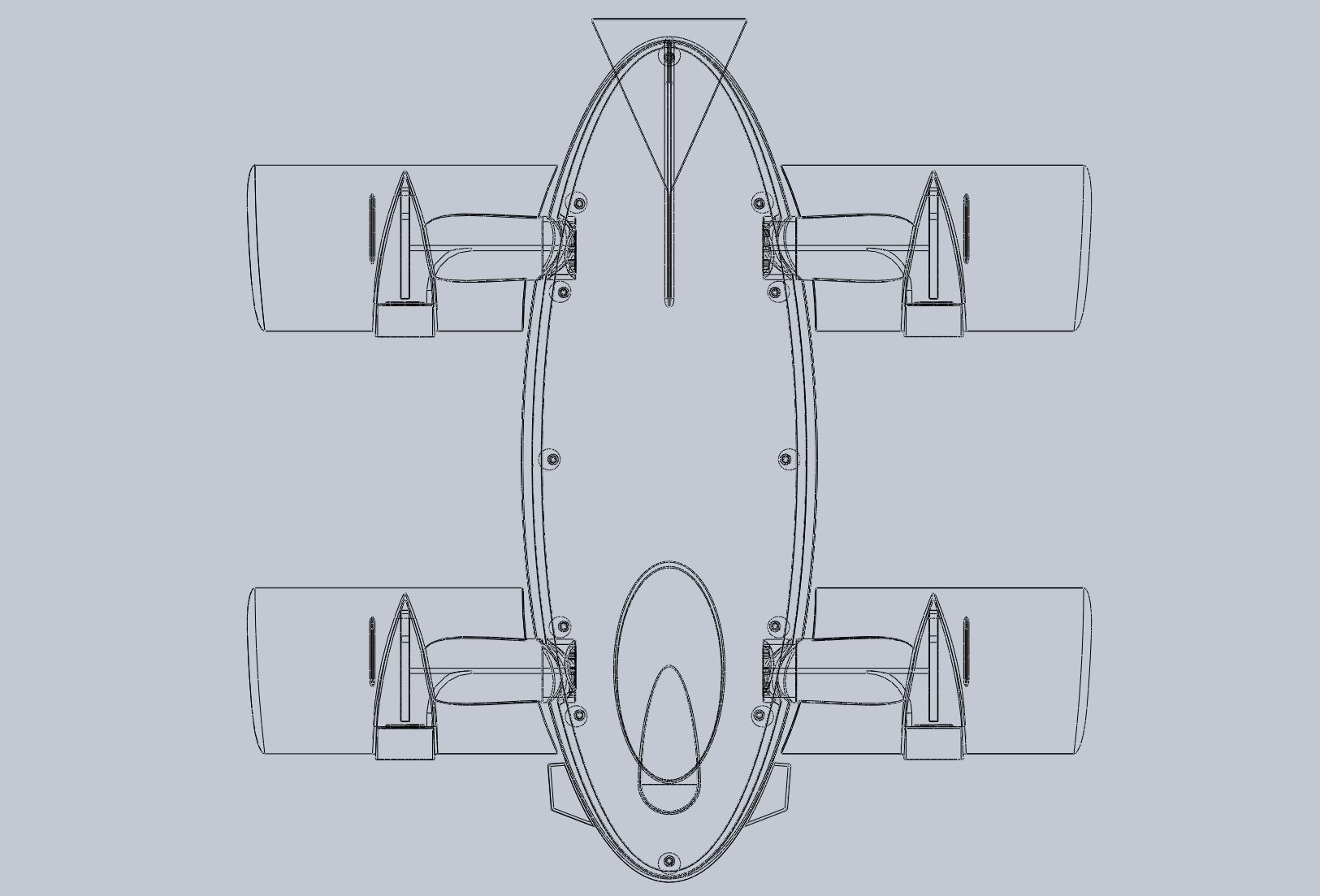

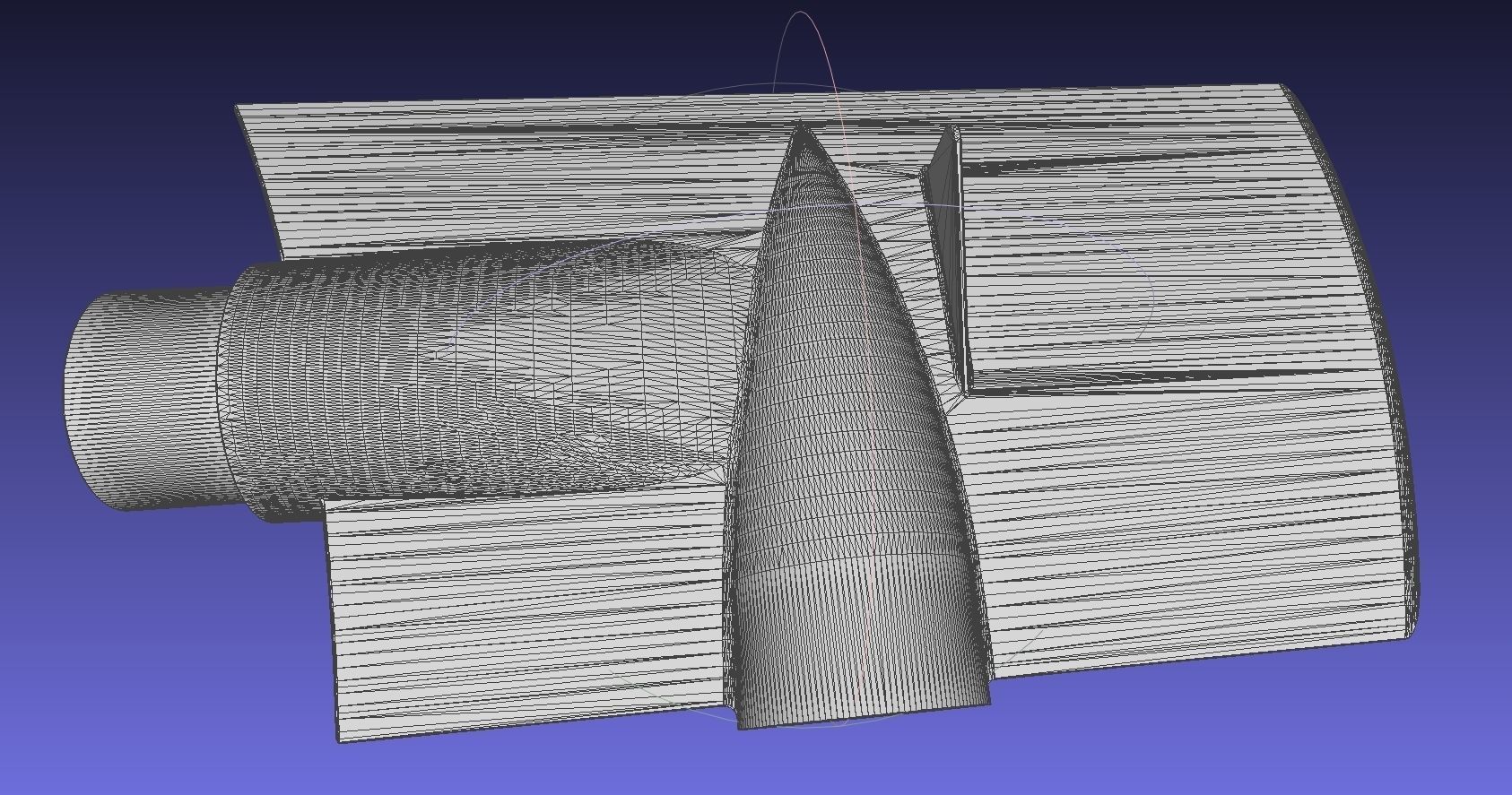

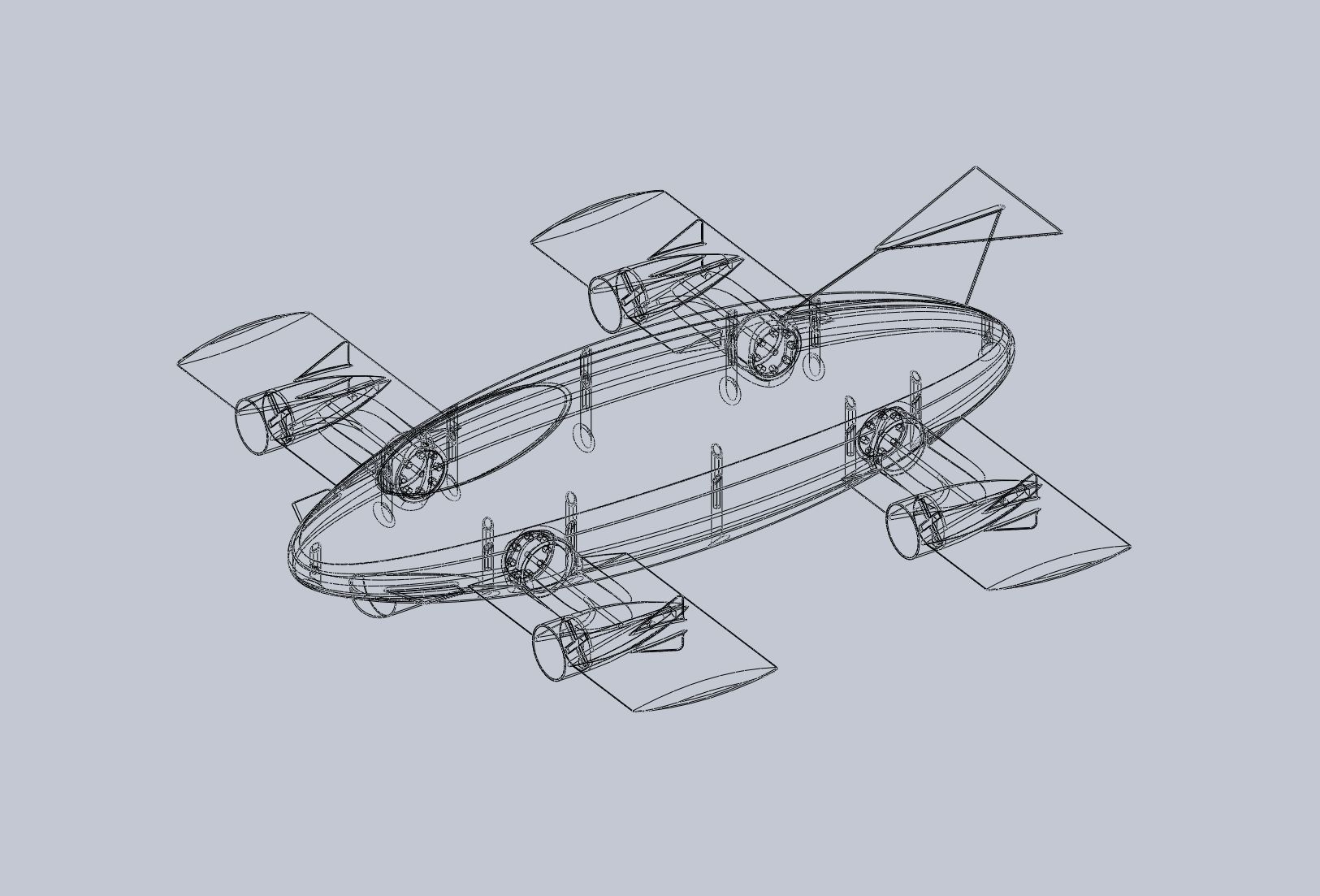

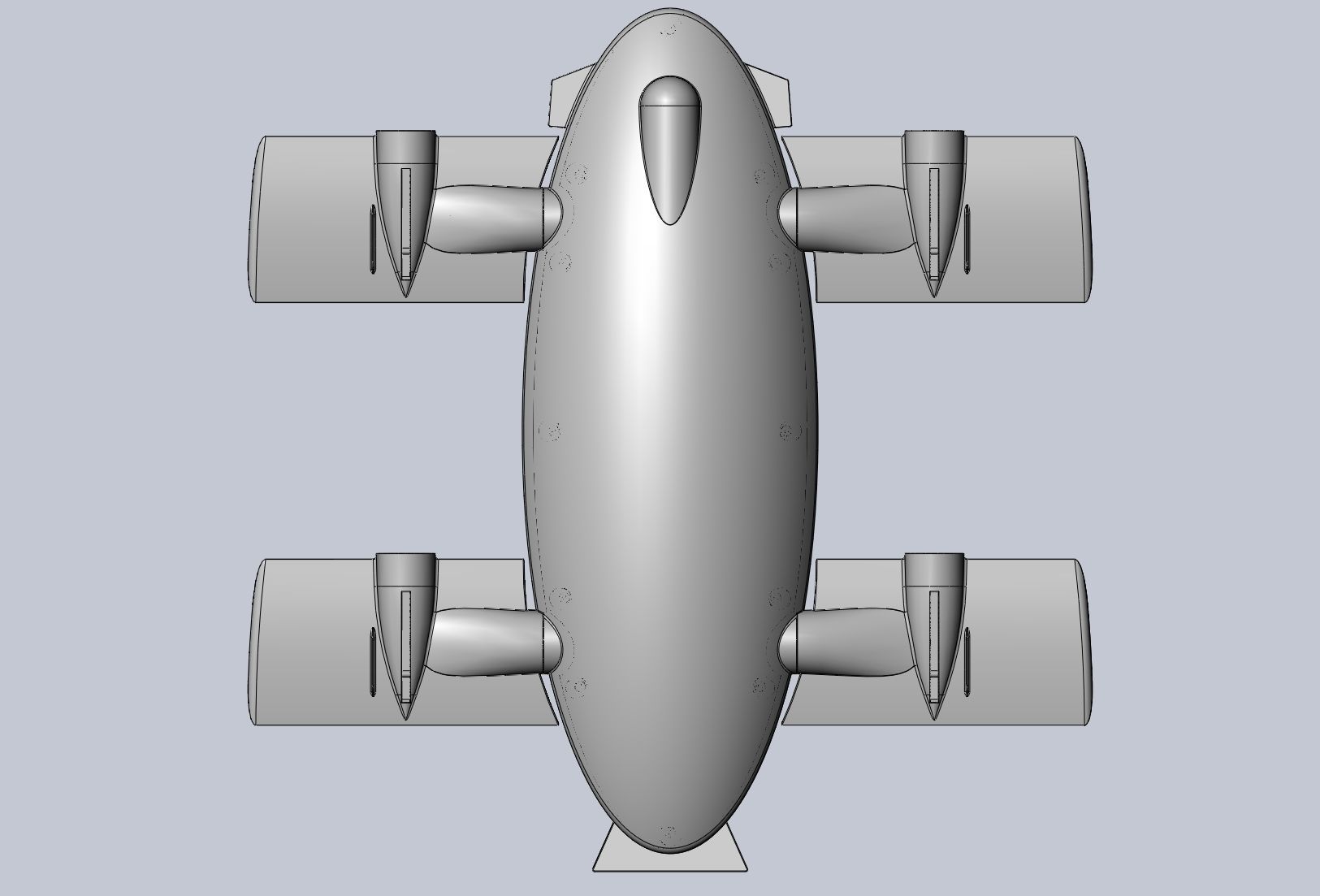

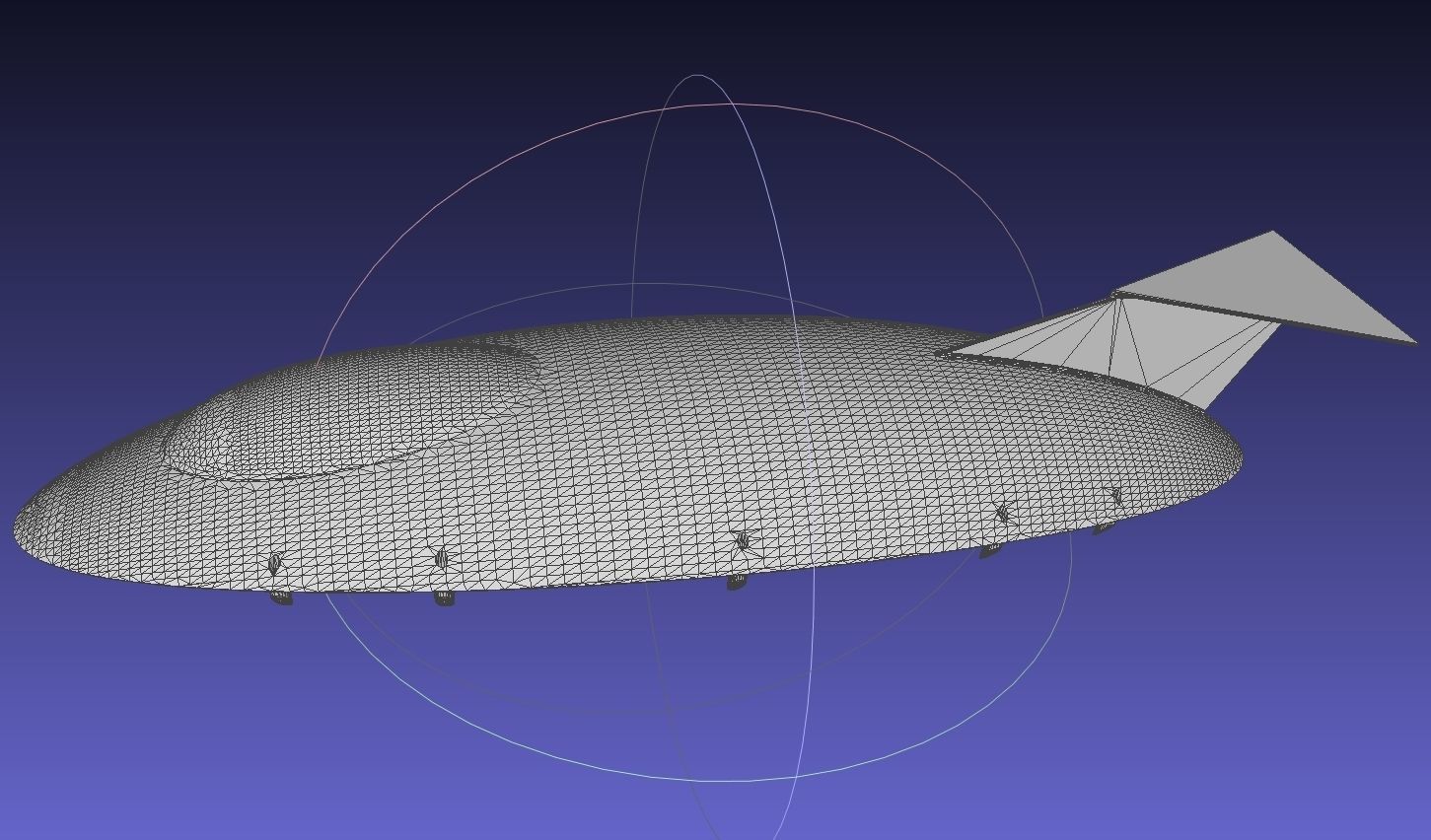

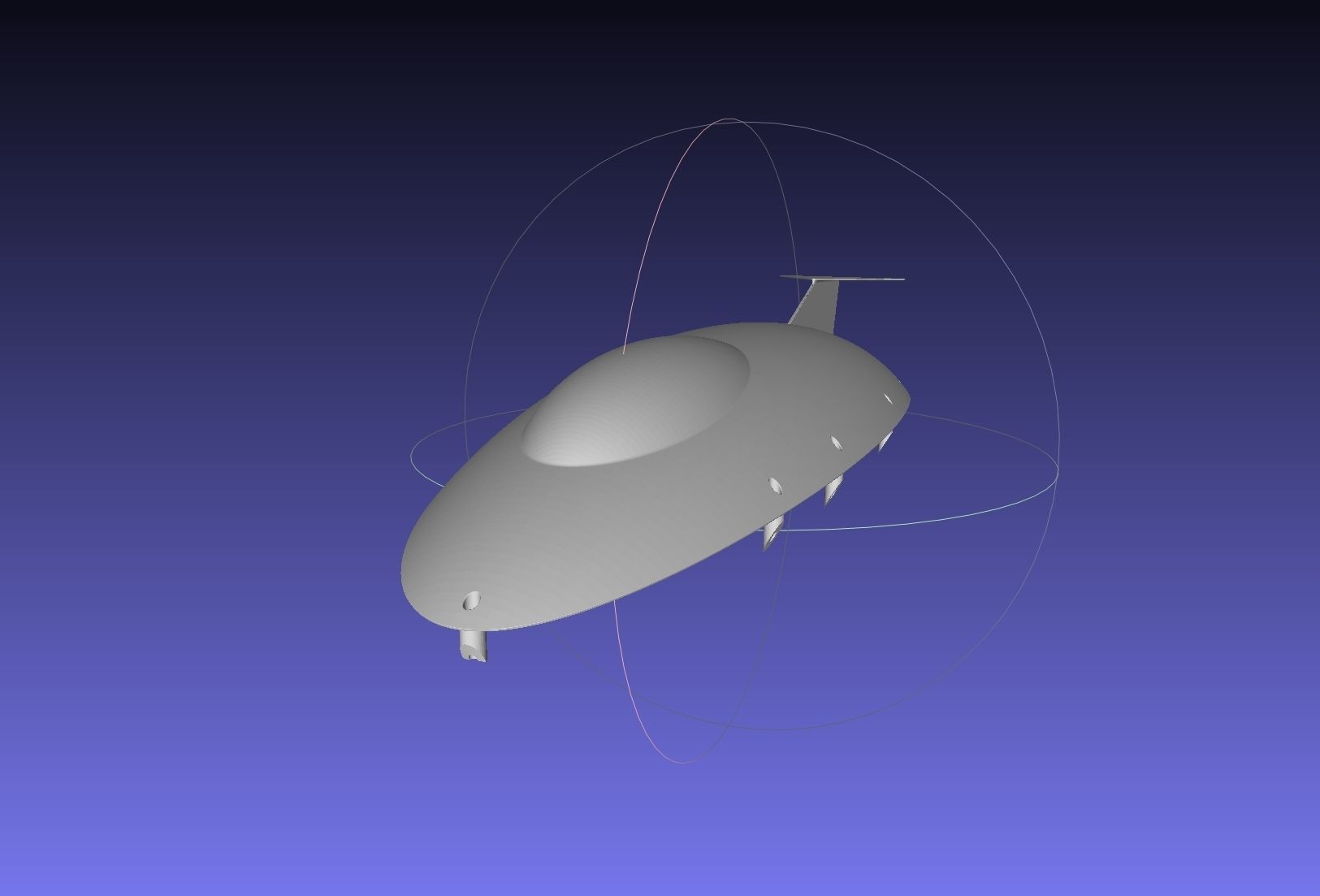

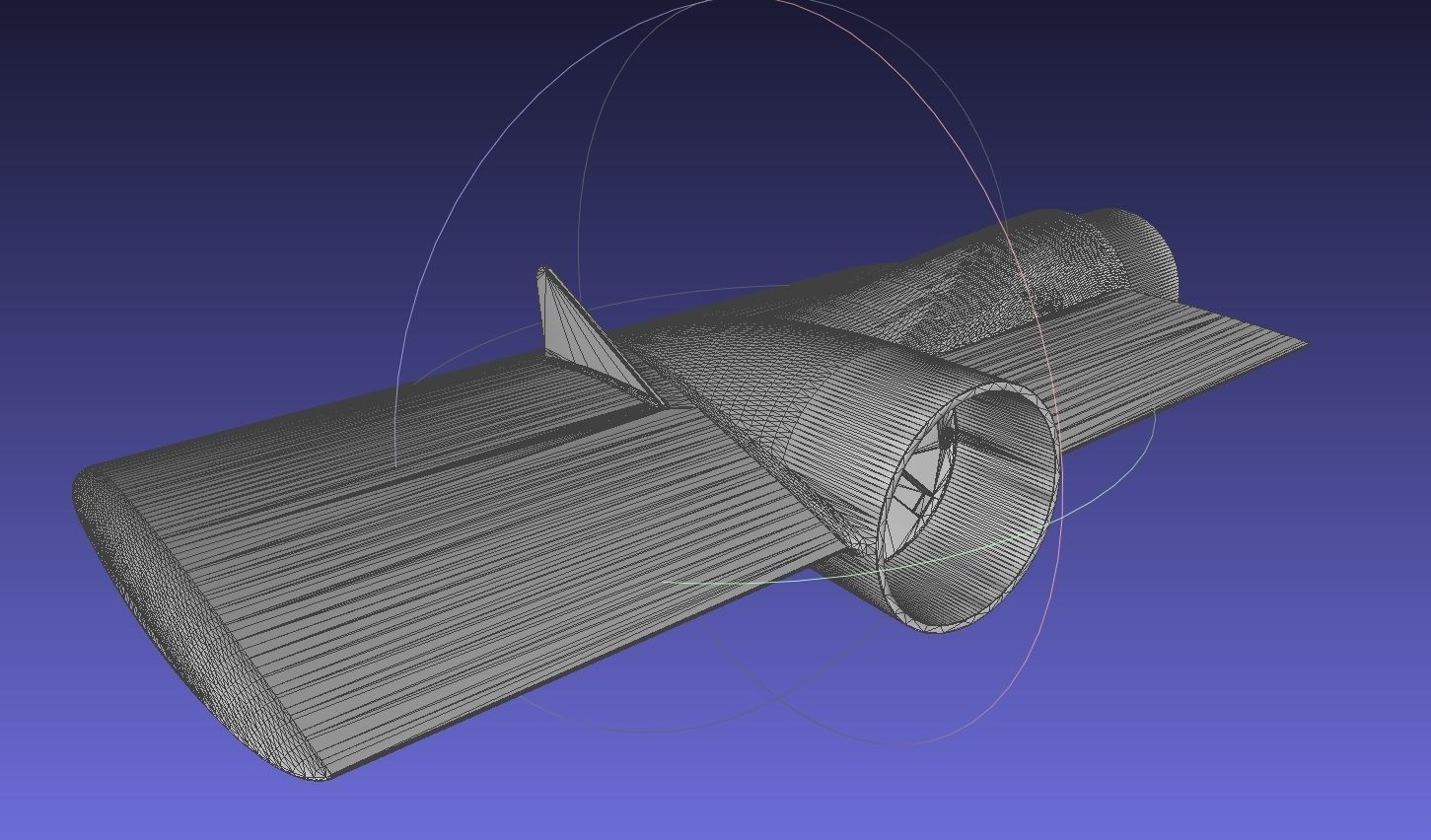

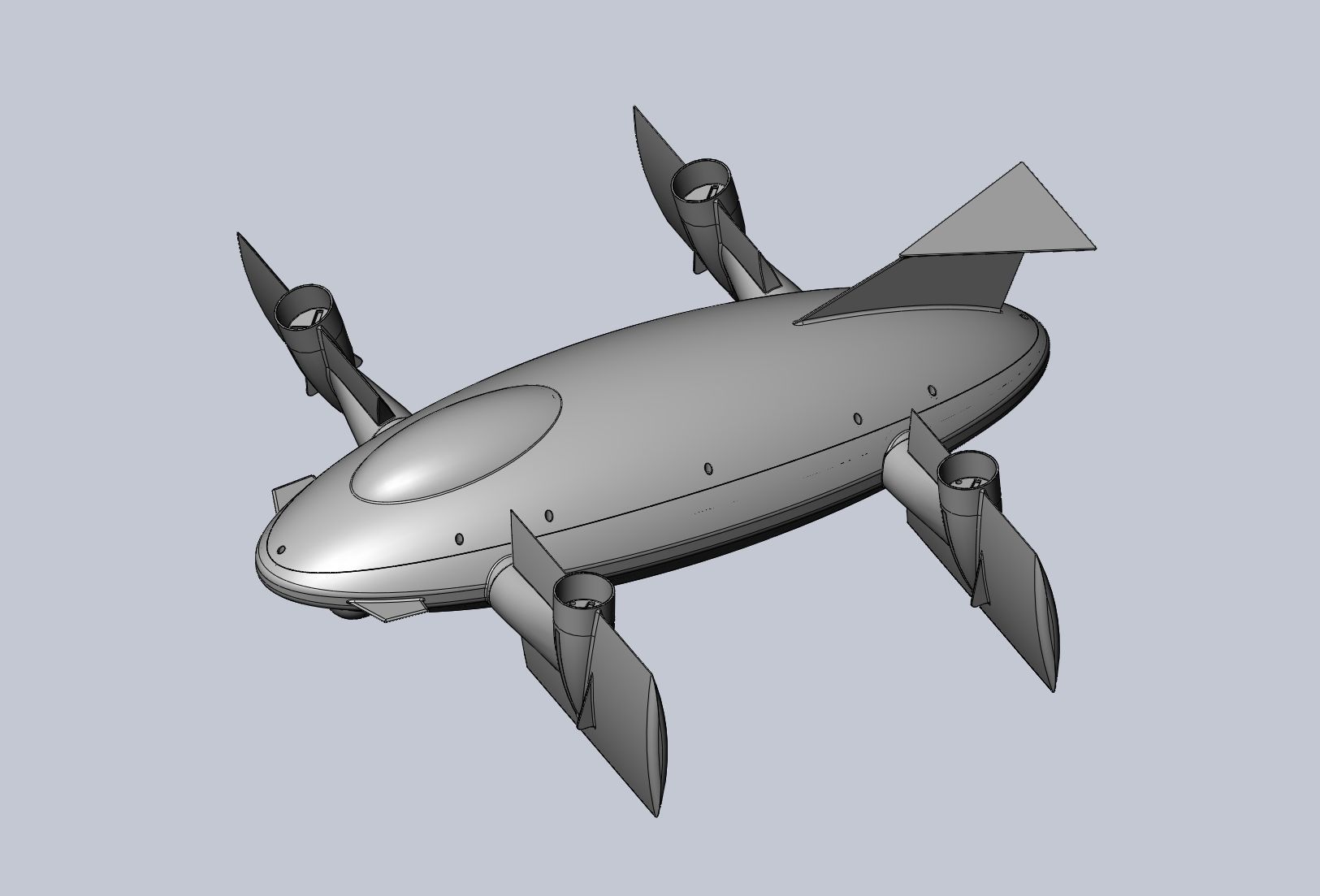

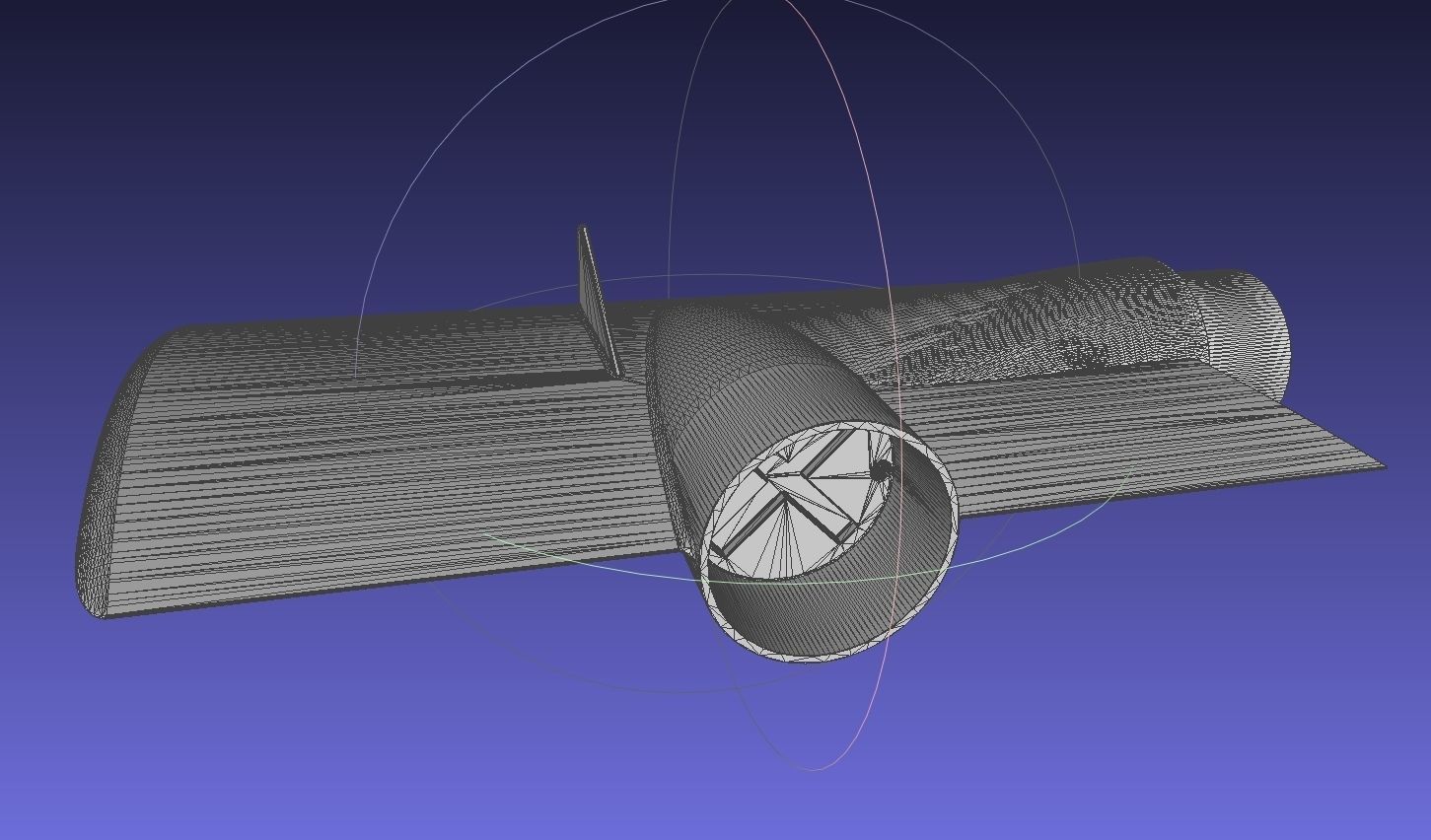

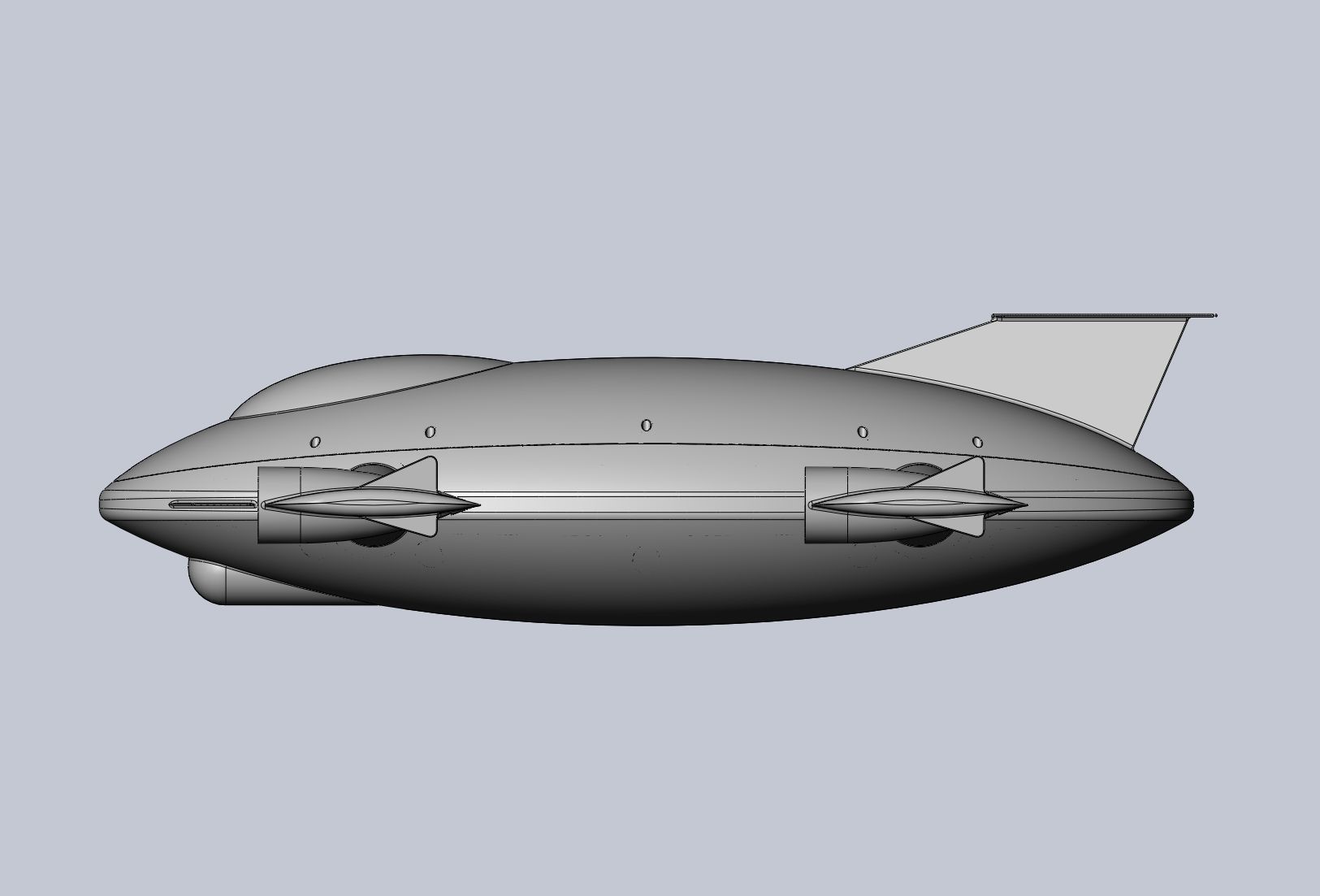

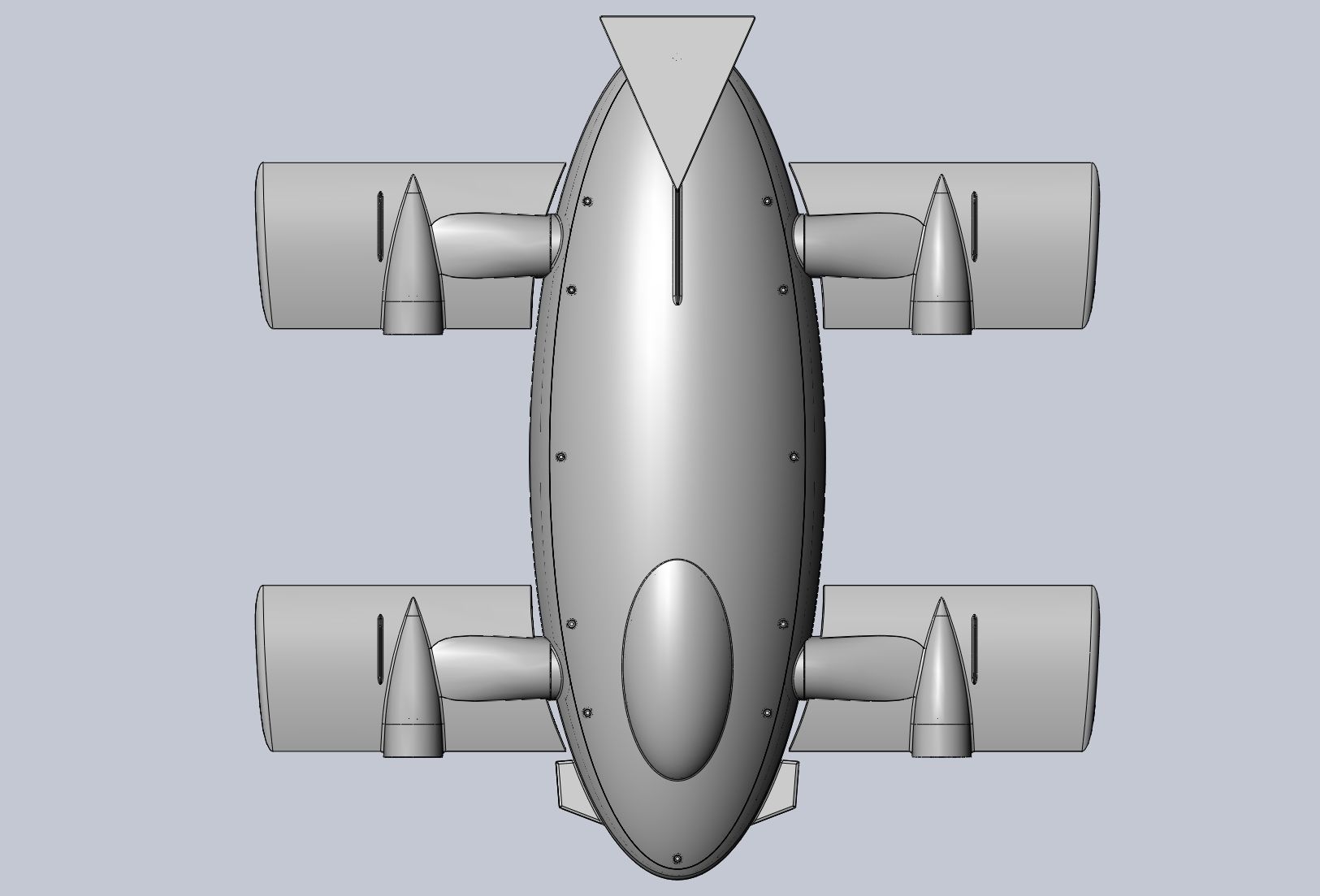

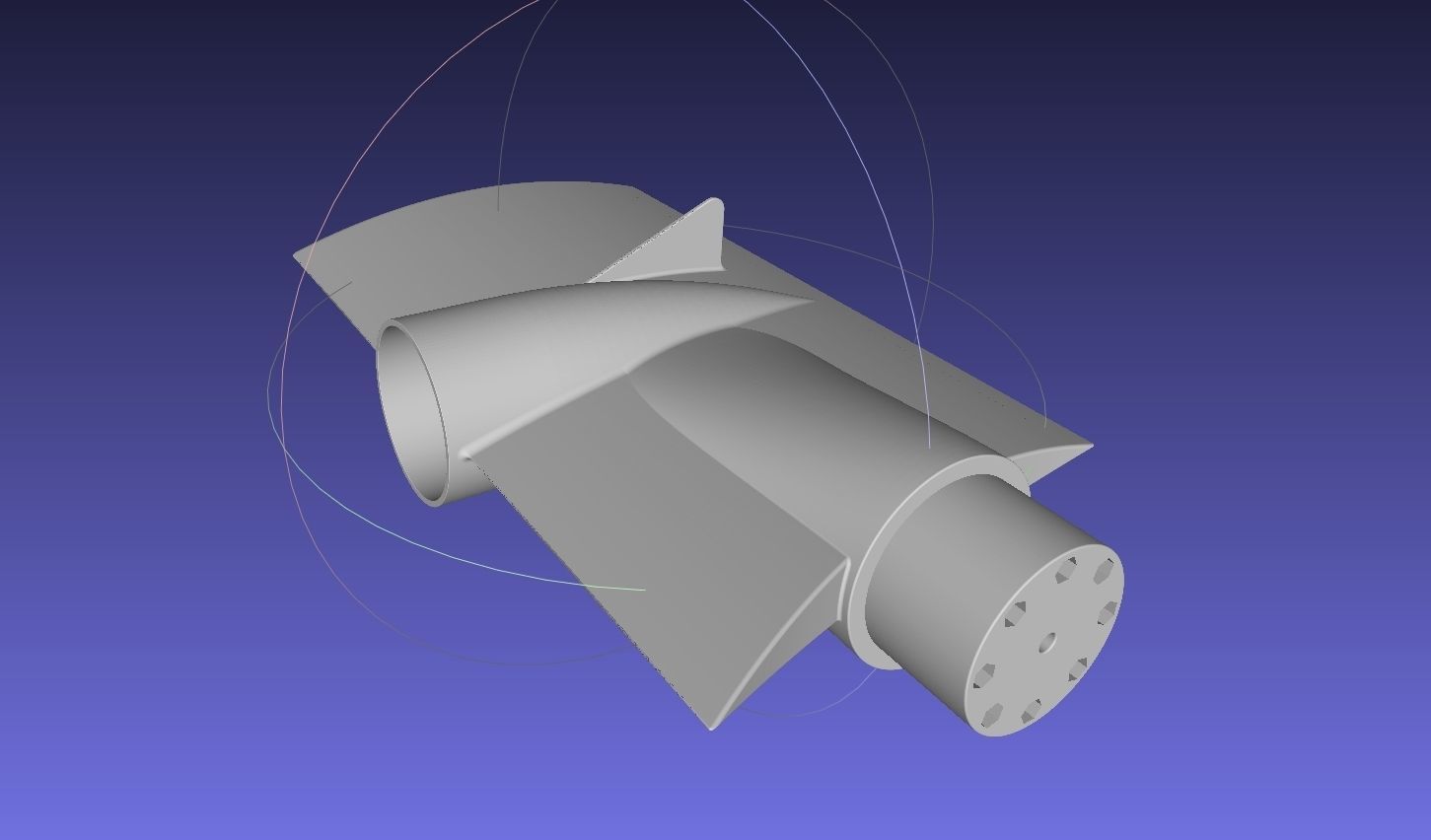

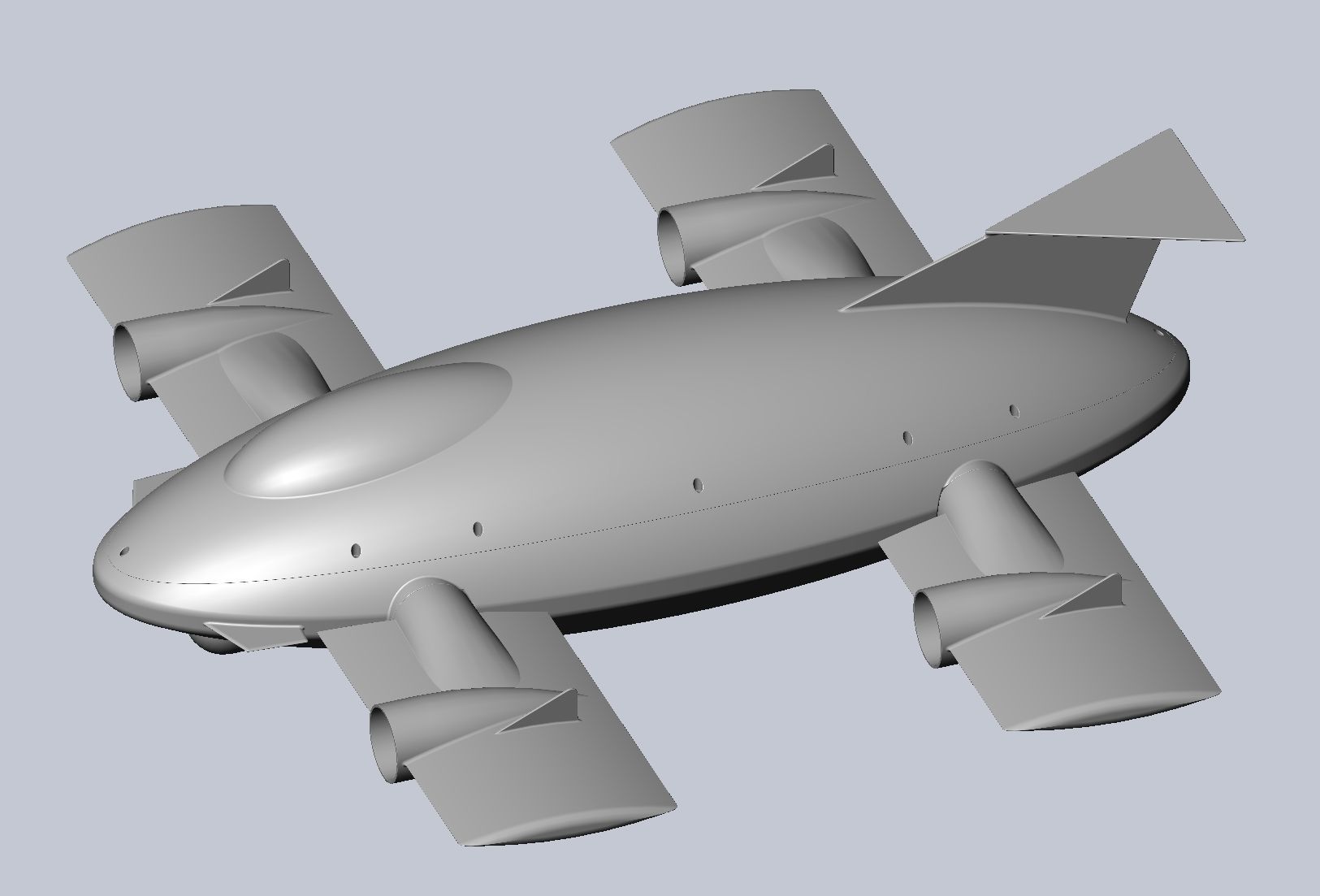

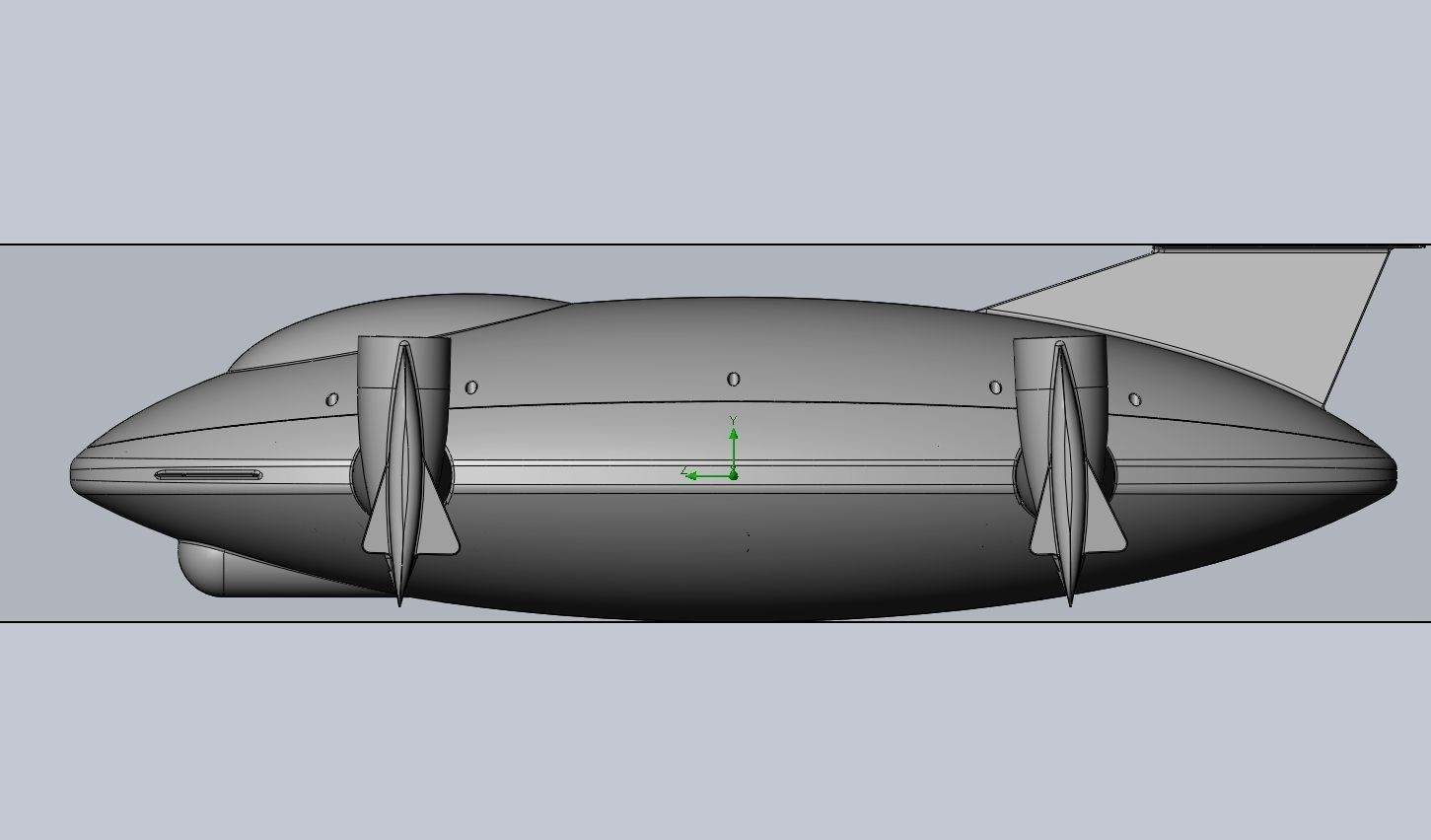

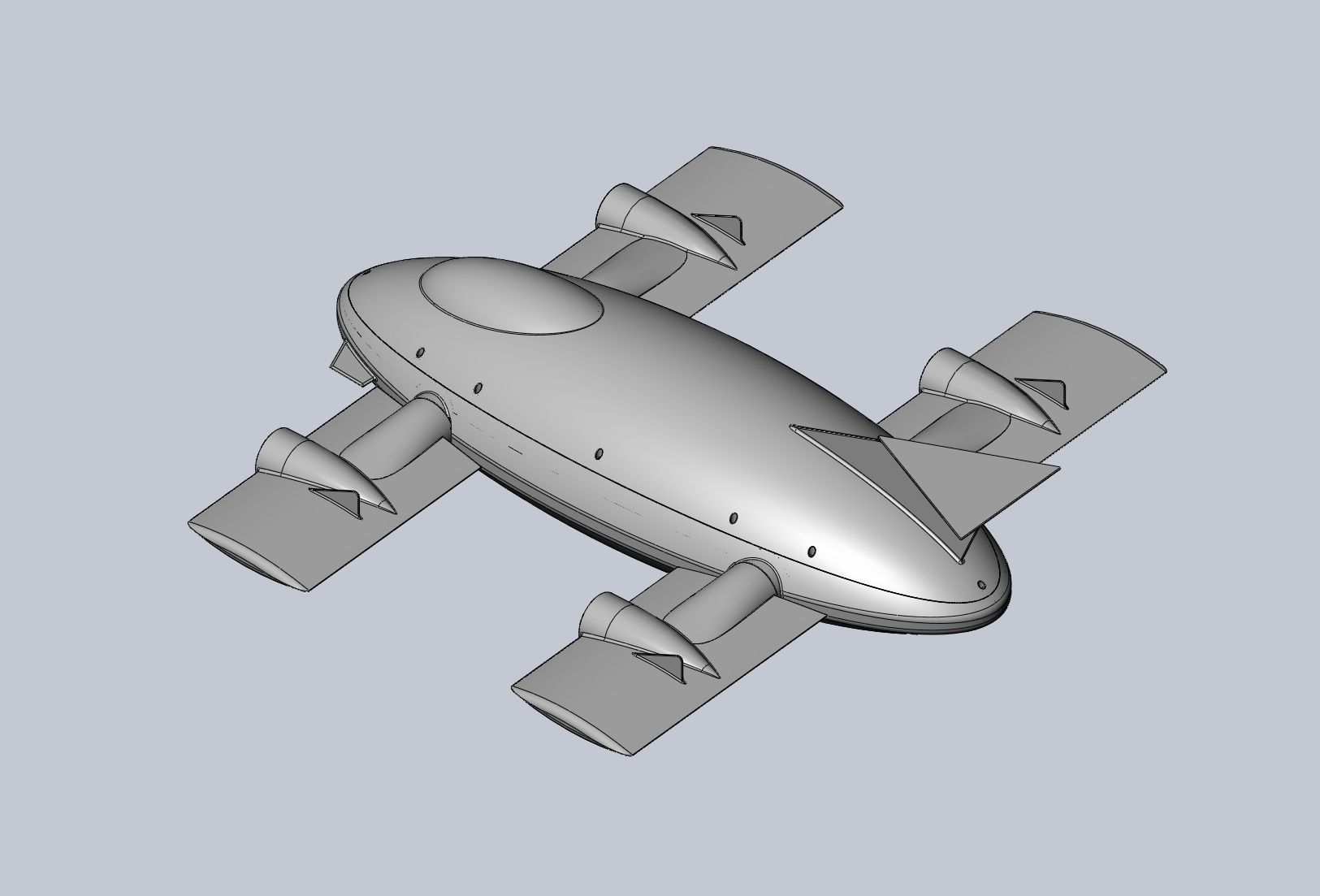

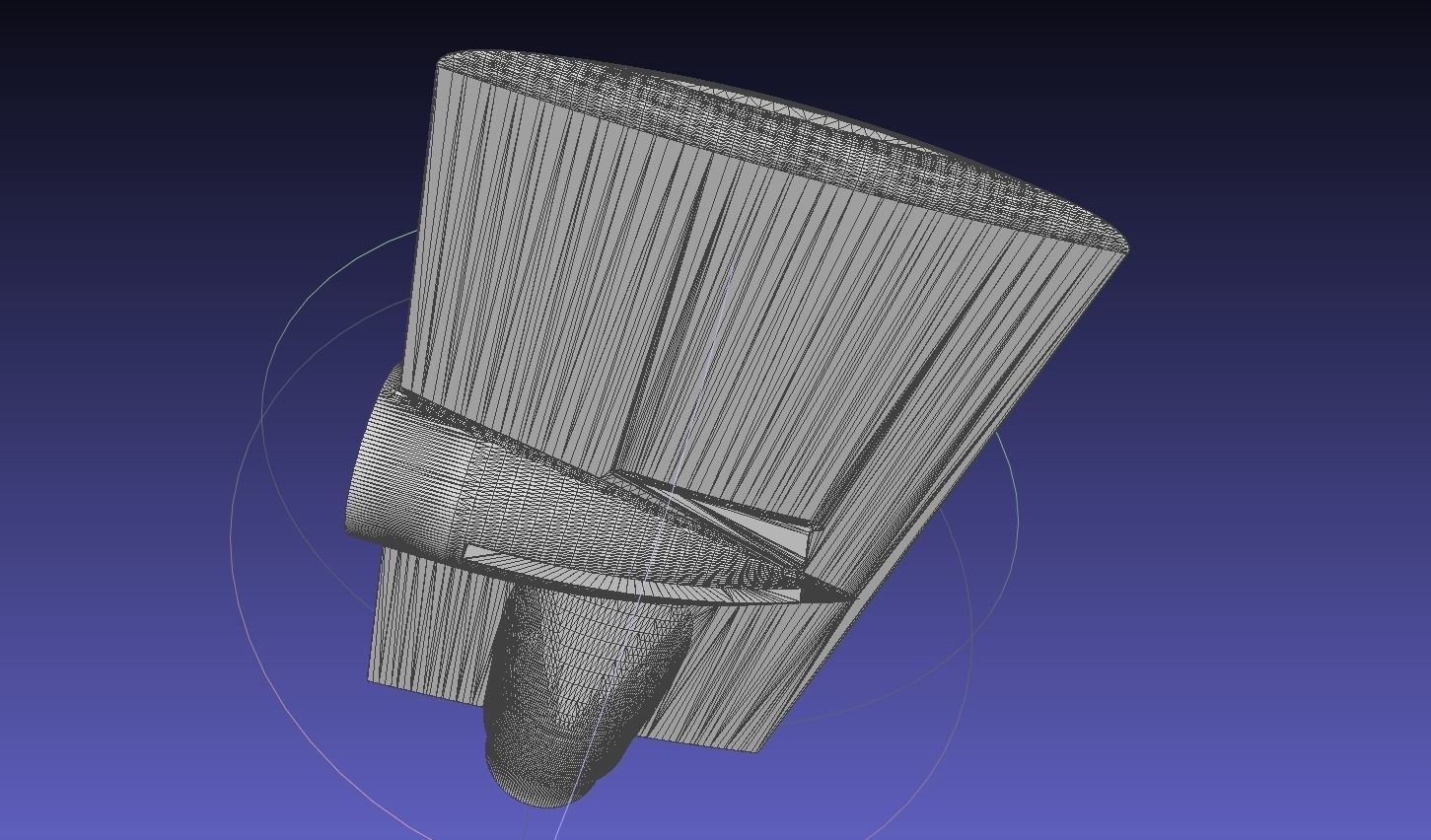

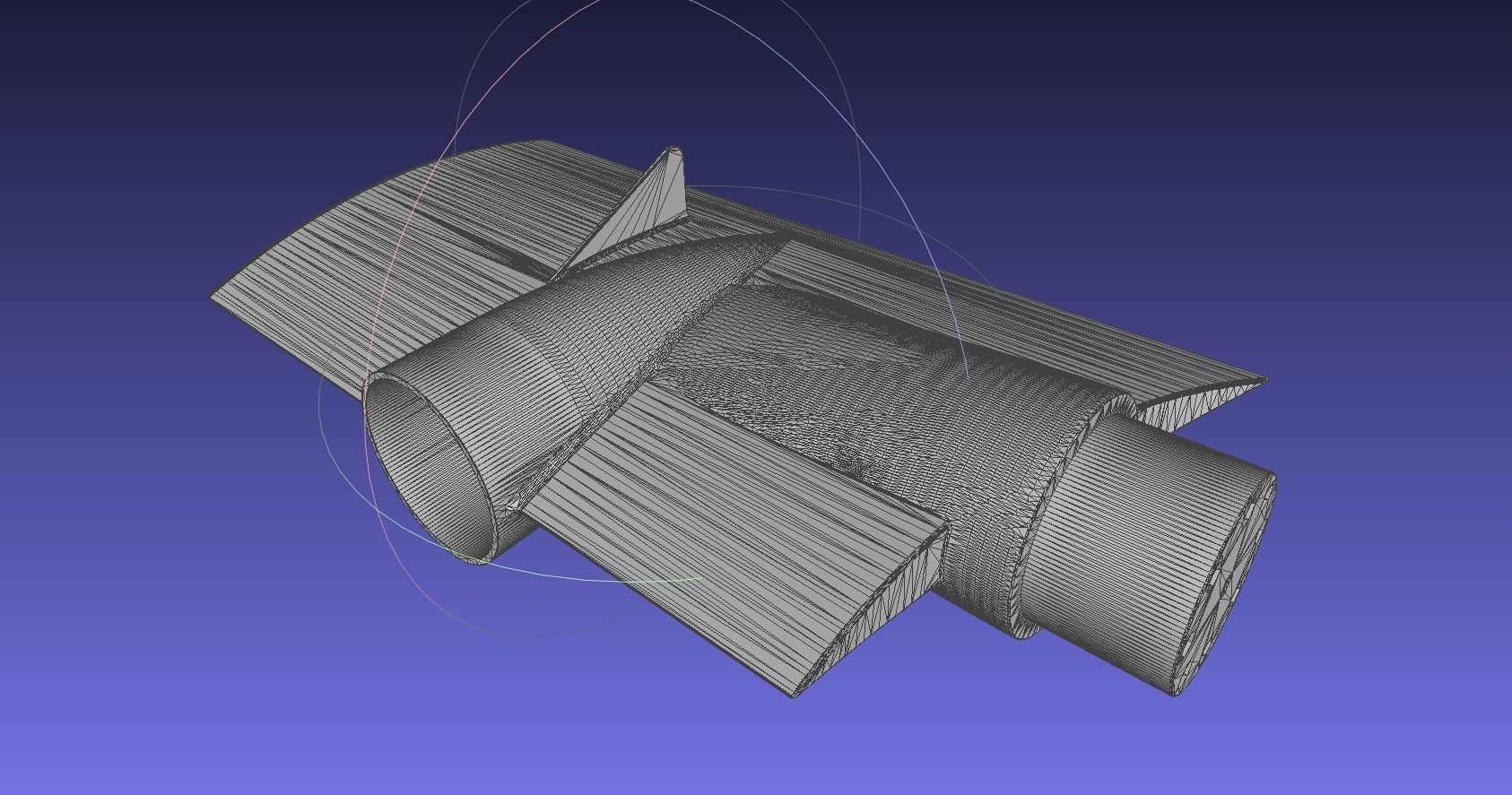

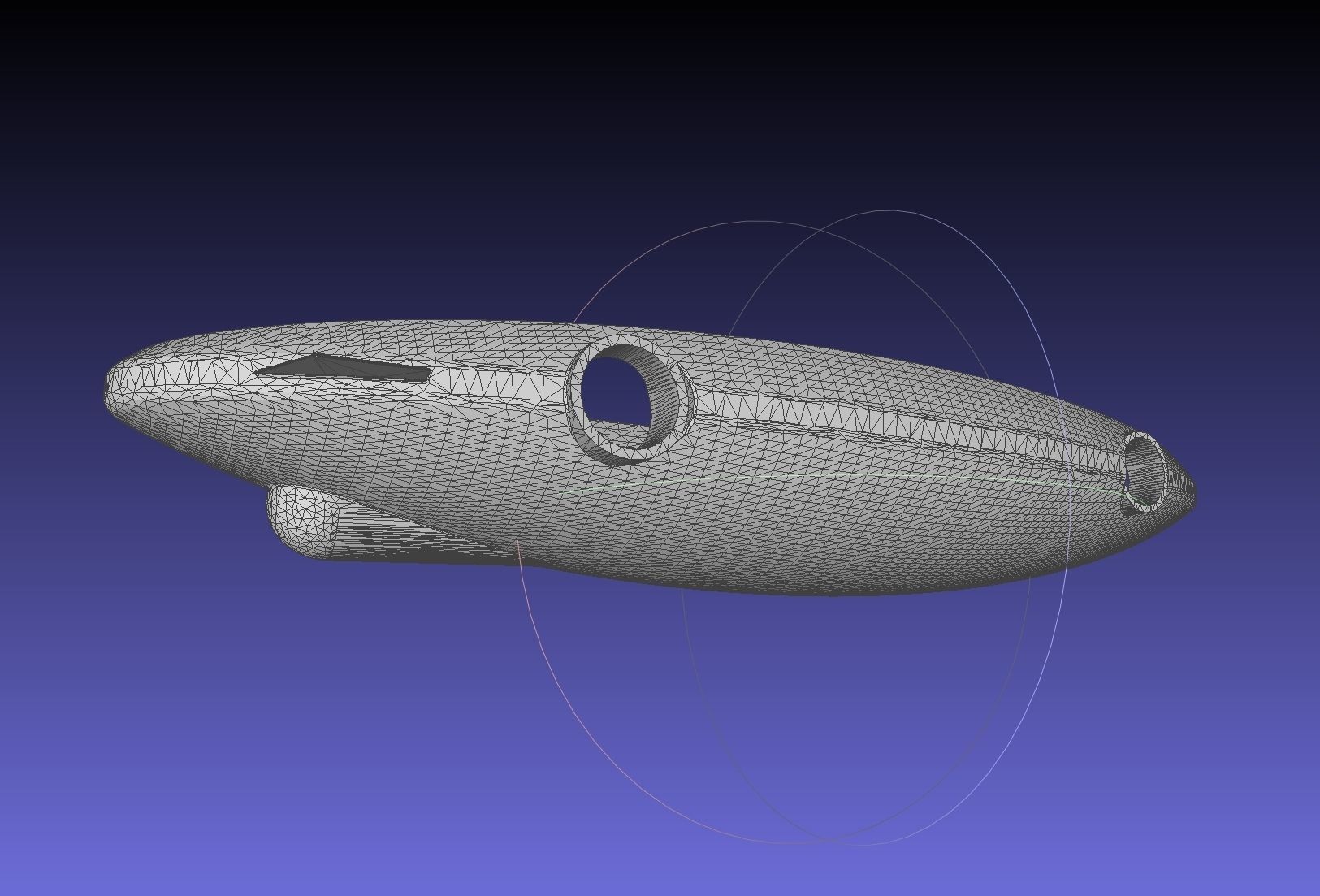

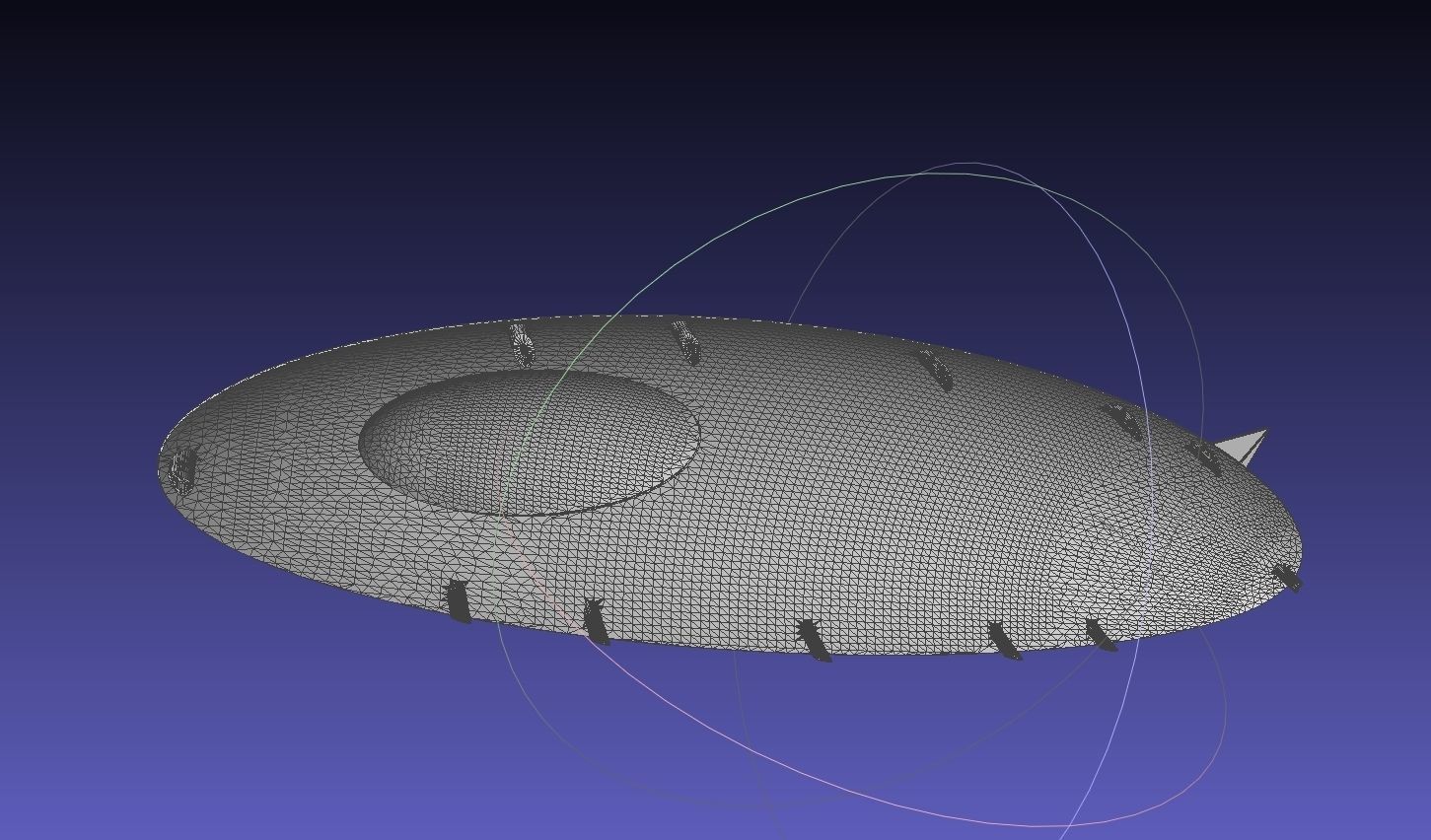

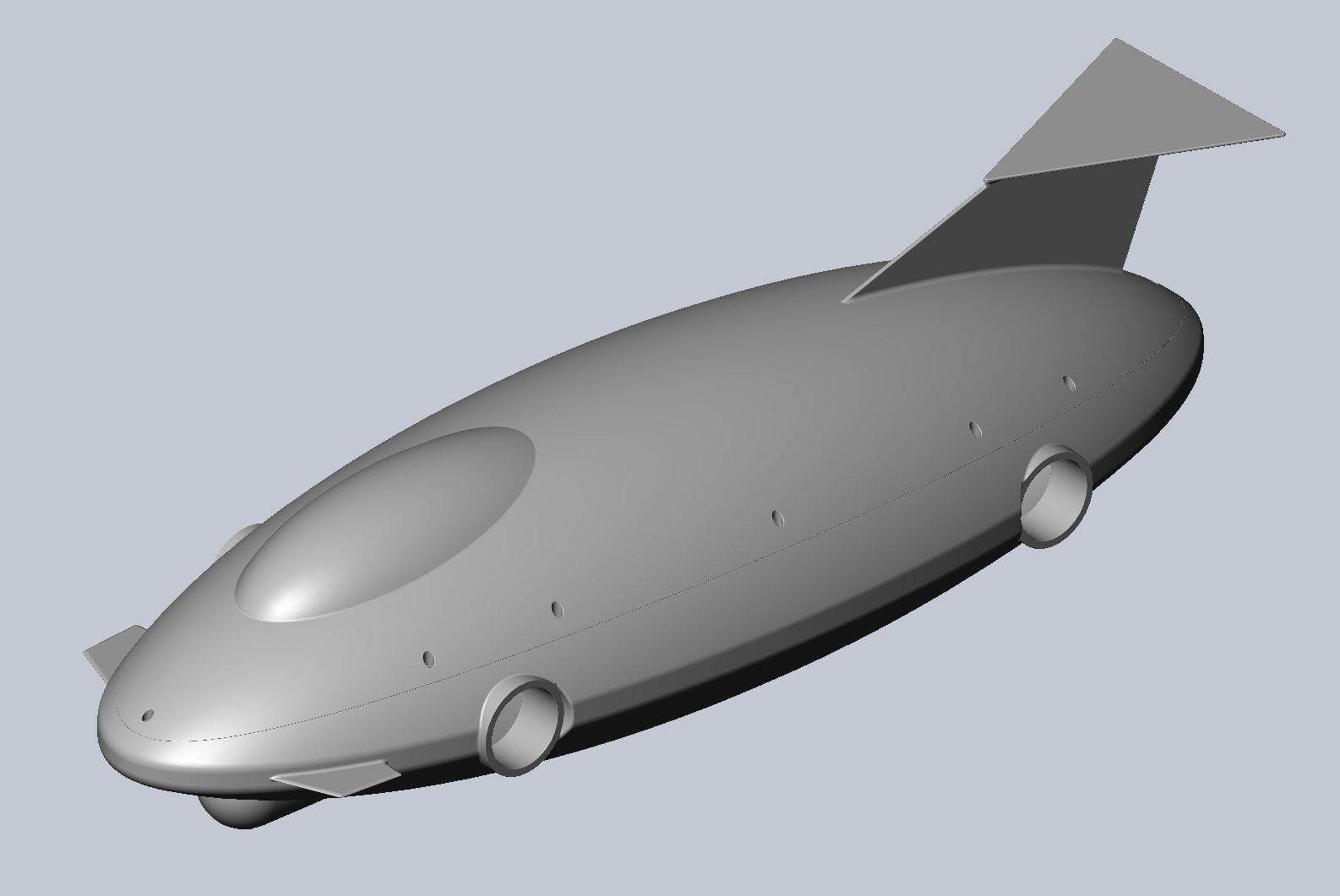

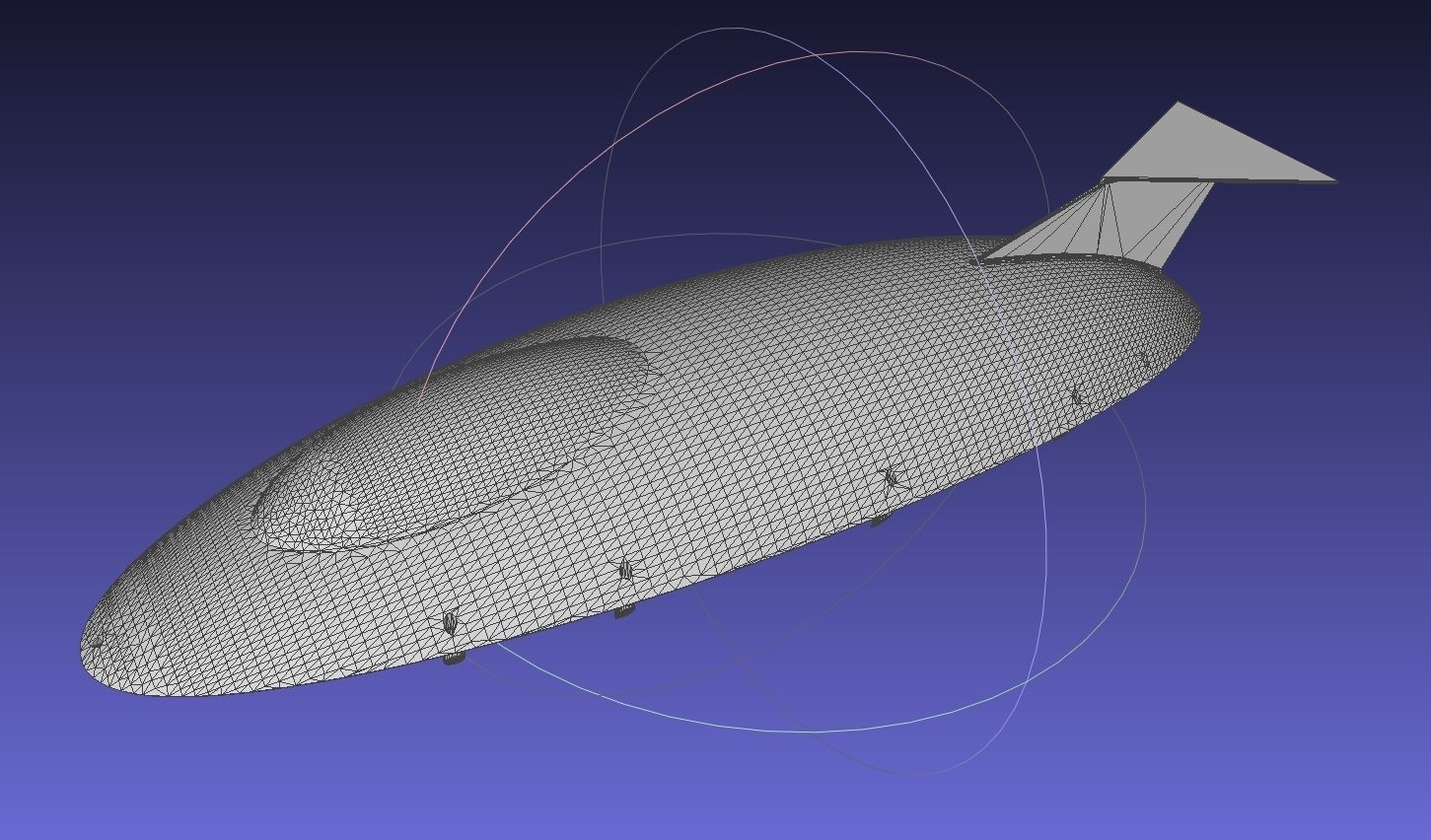

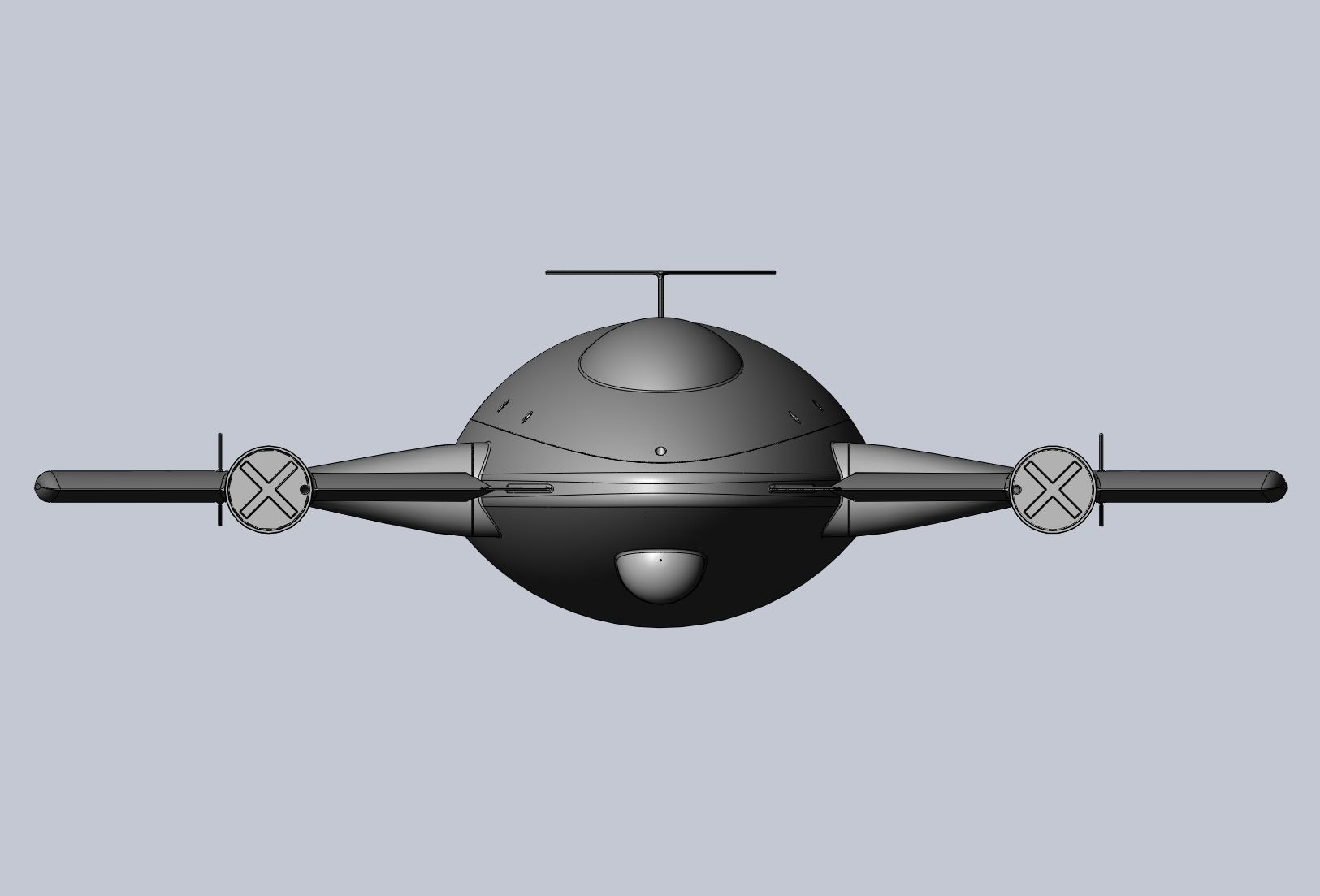

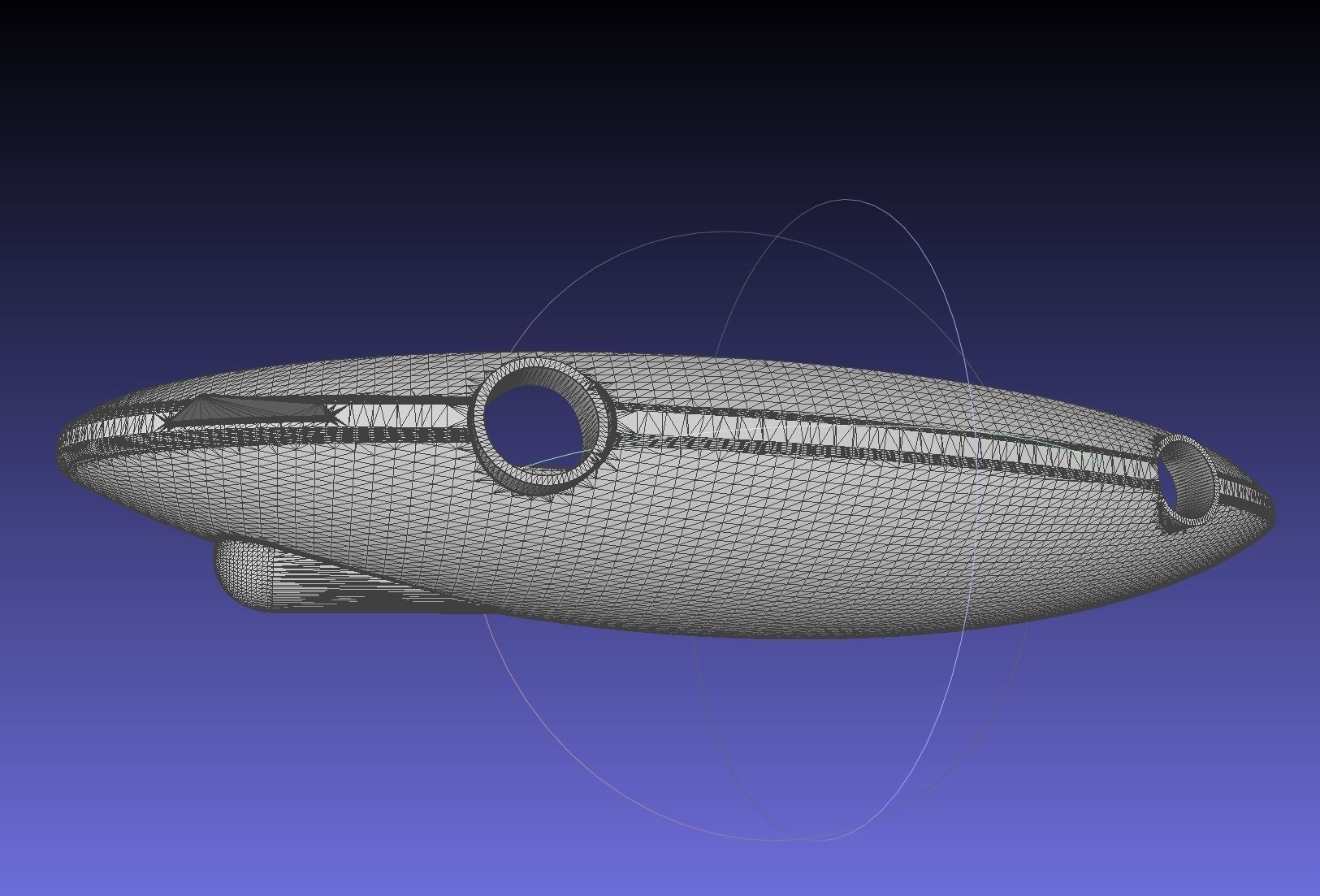

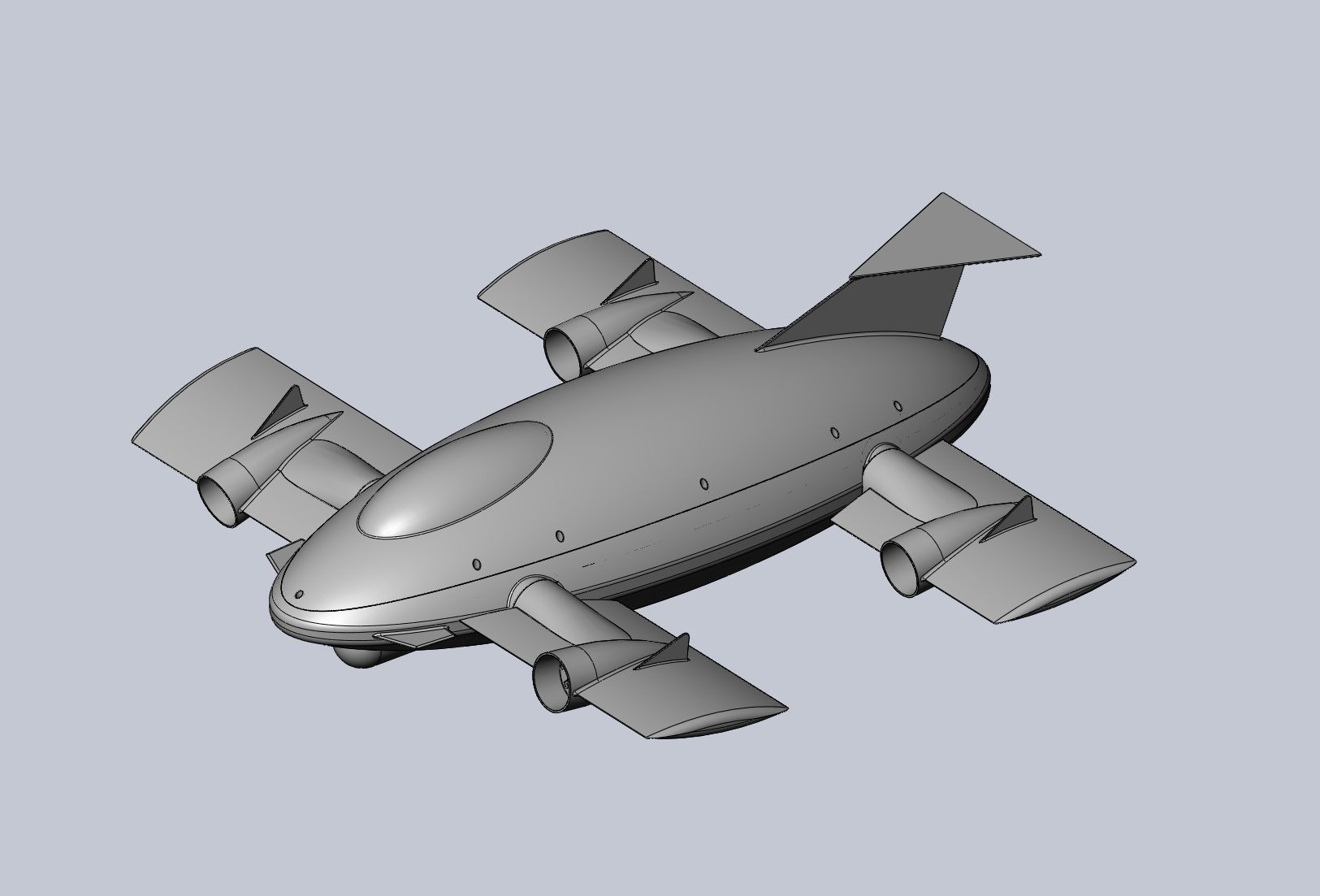

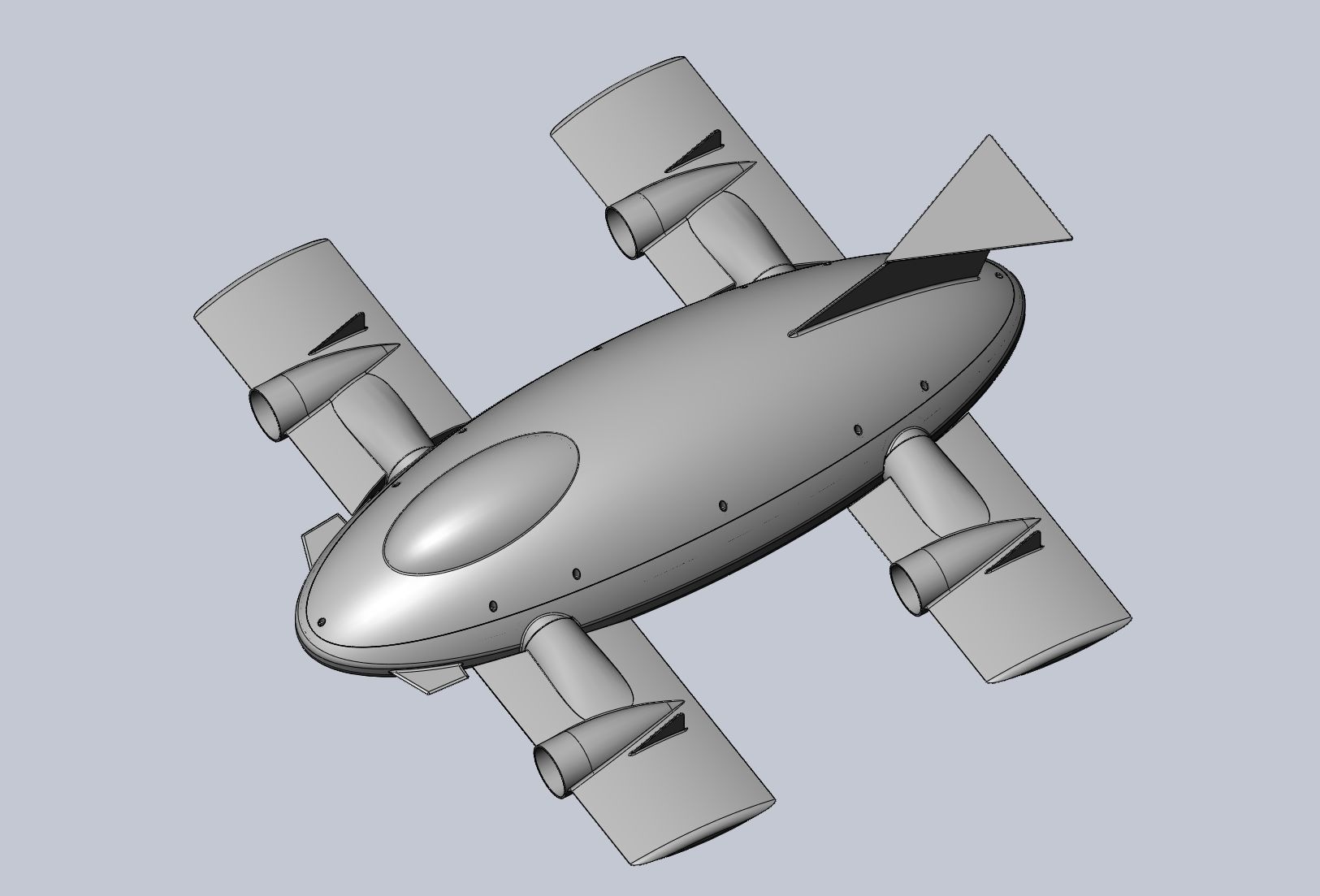

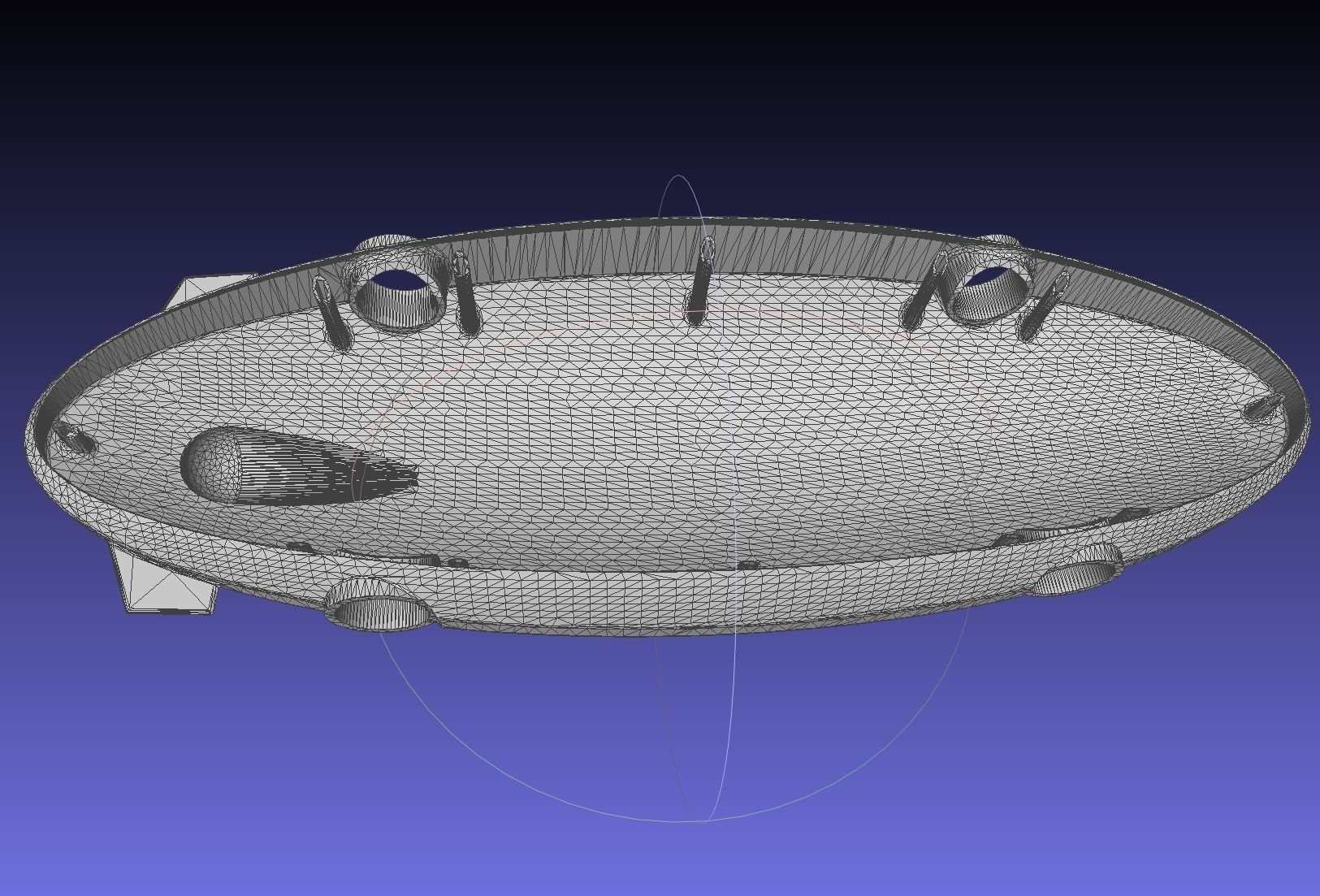

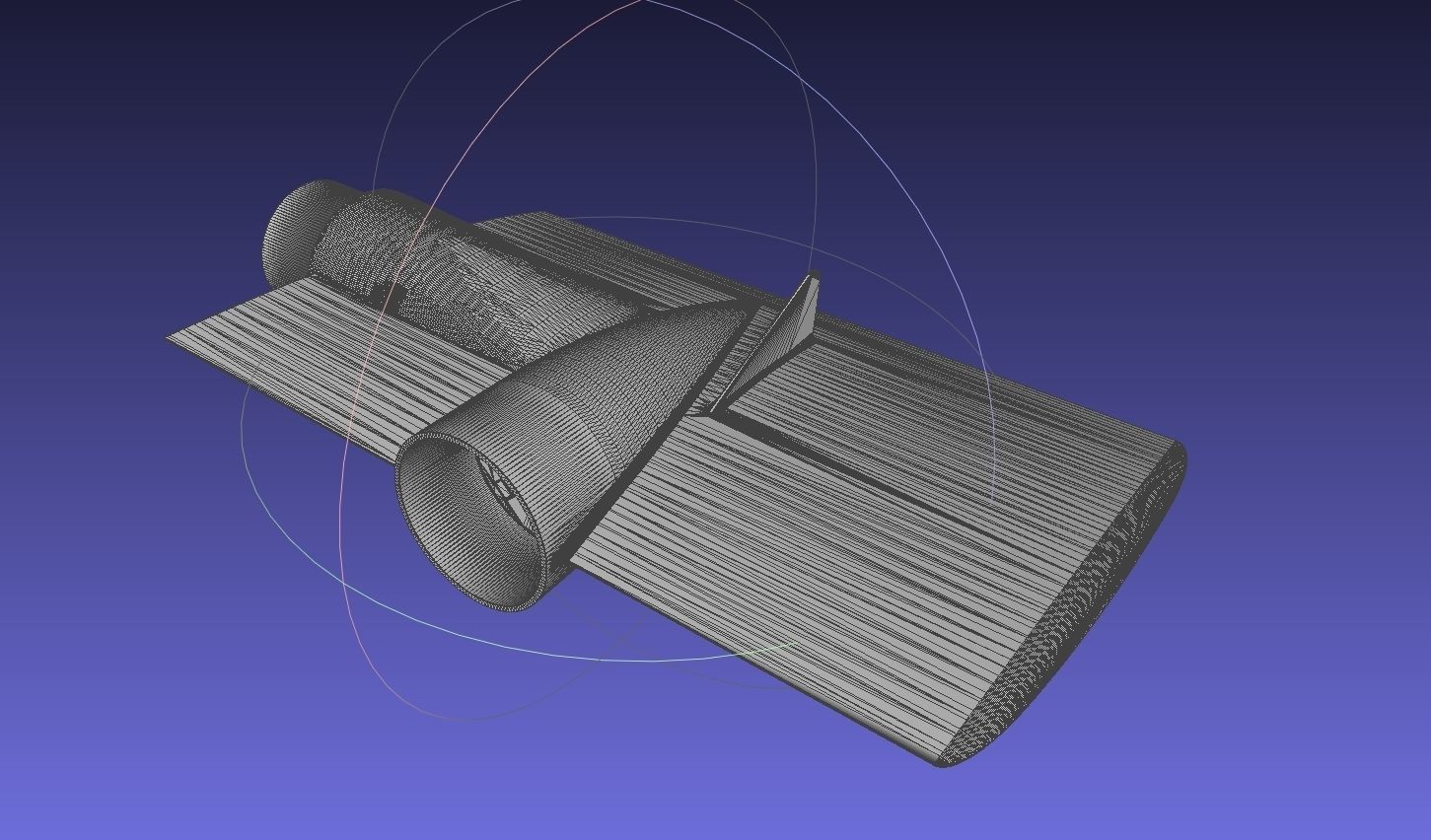

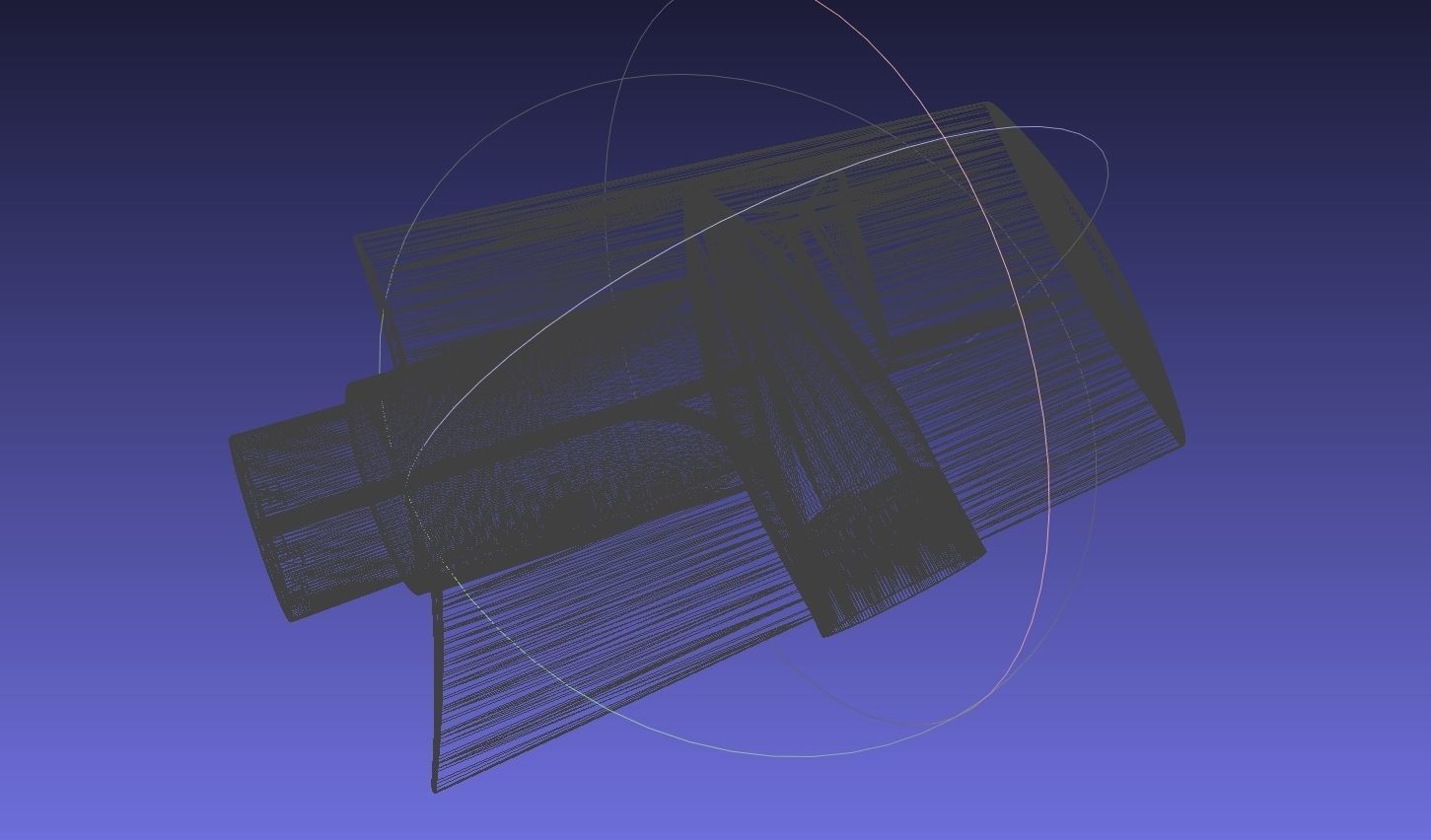

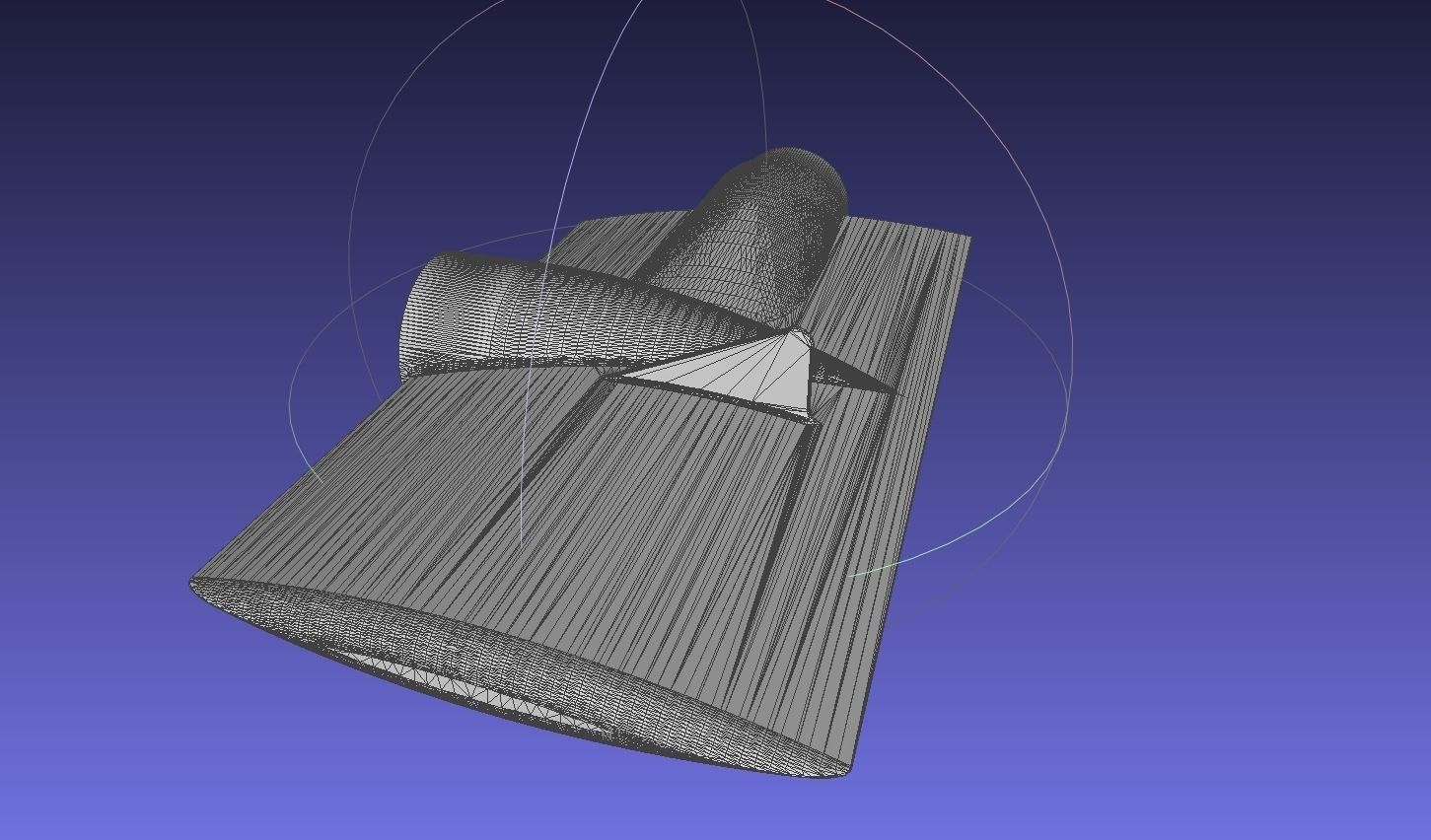

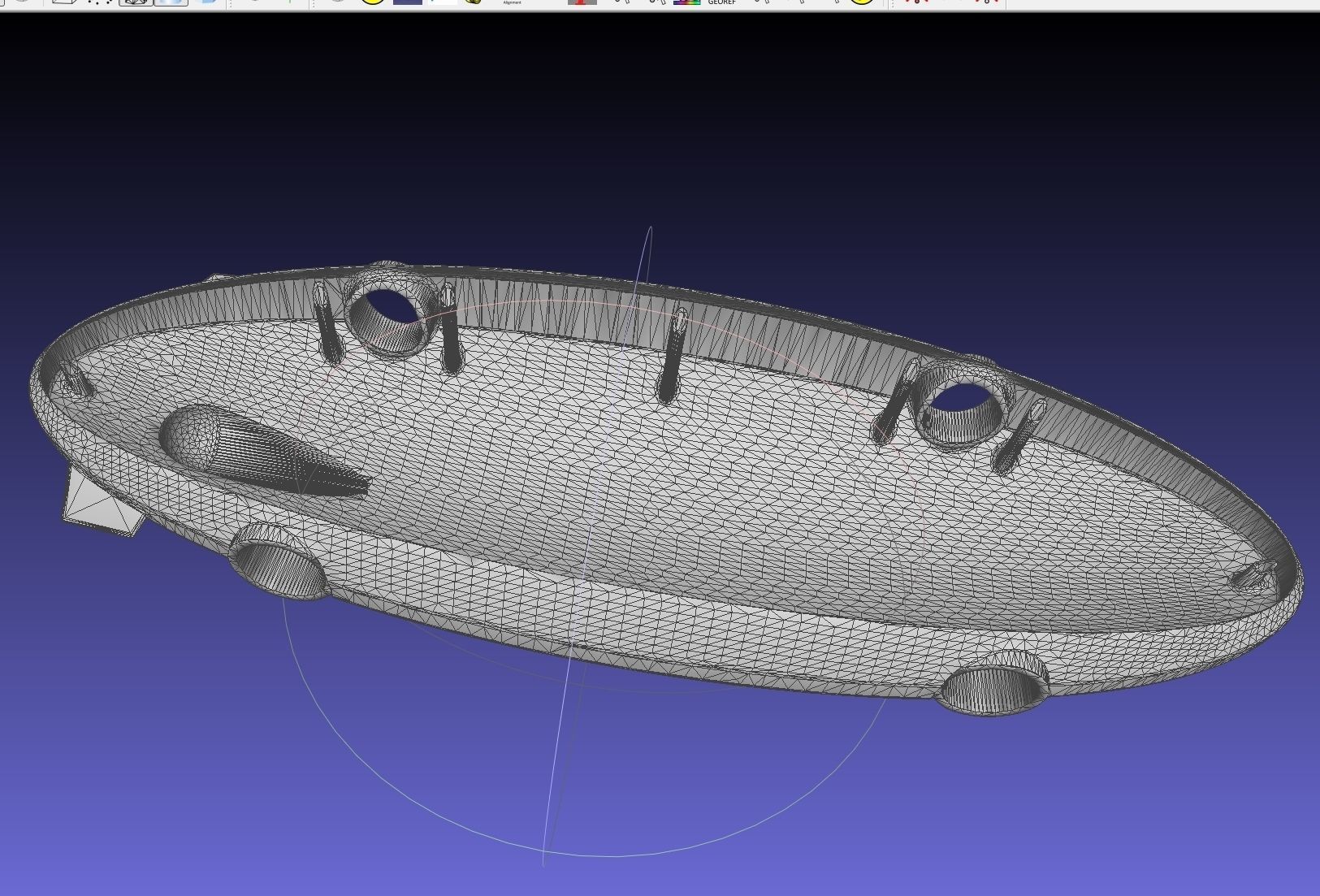

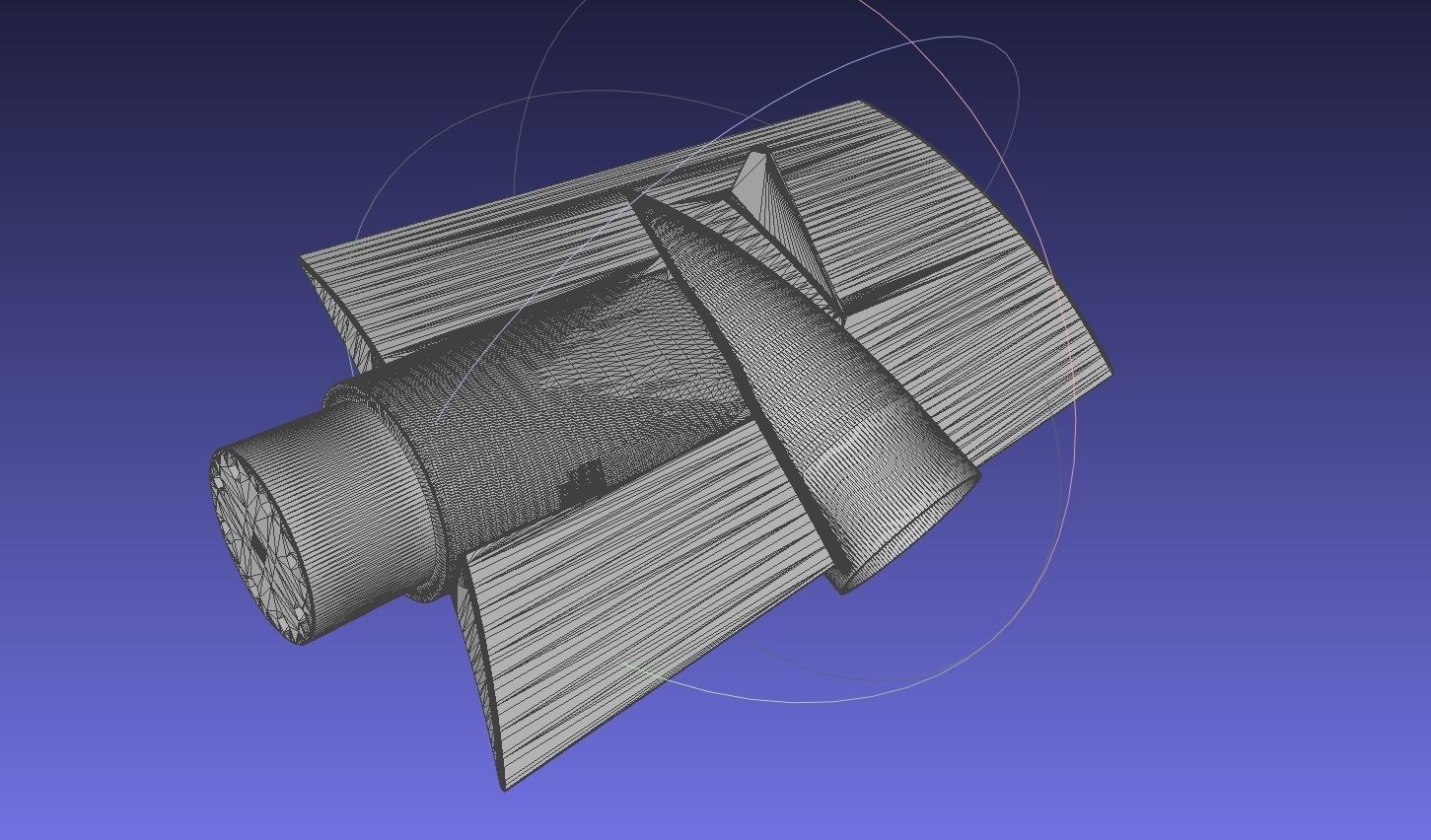

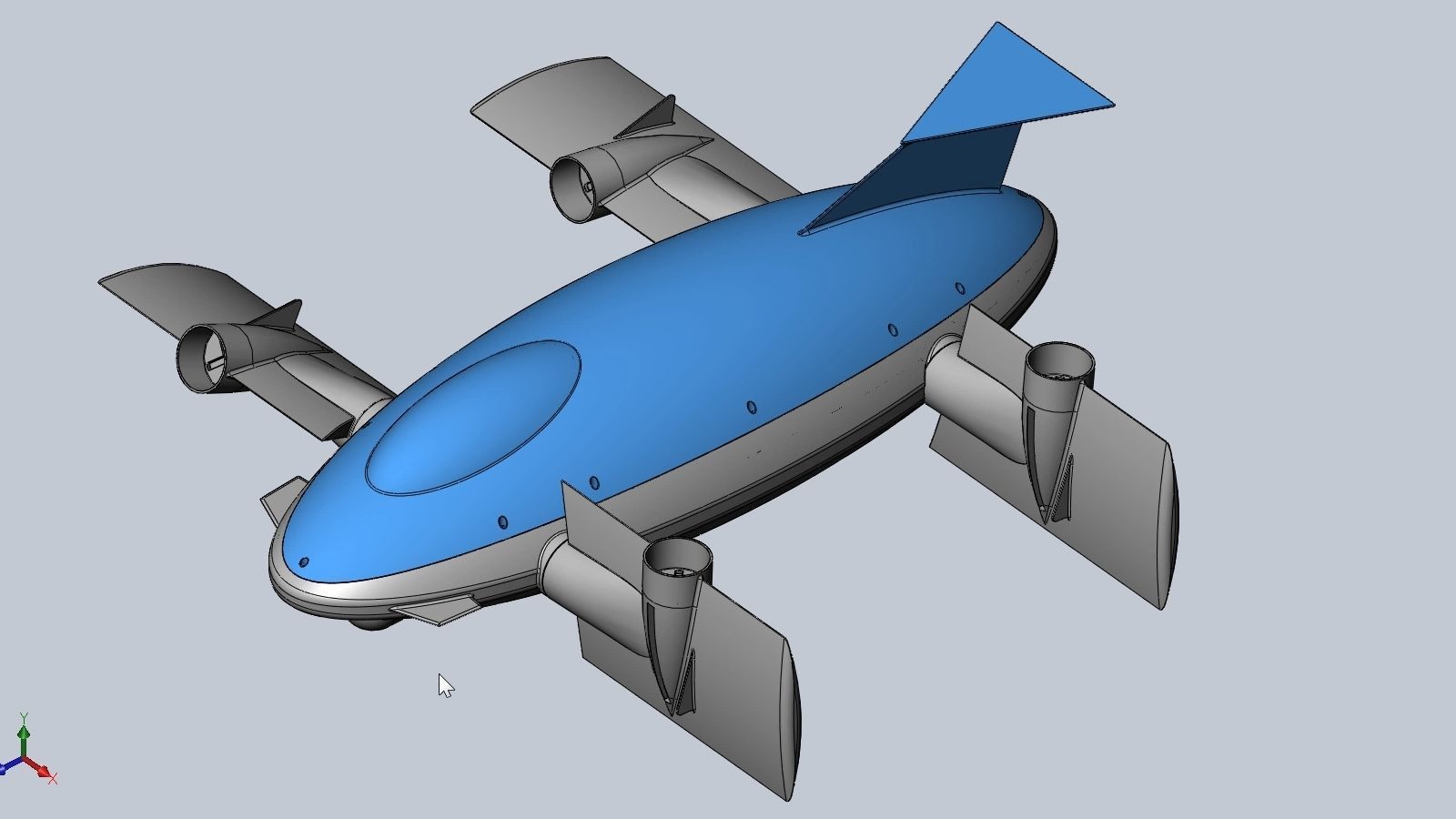

A design for a remote controlled drone that can be 3d-printed then outfitted with electronics, etc, the model only include teh main aerodynamic and structural body. It's a tiltrotor or tiltwing design so it can take off and land like a regular quad and hover around on the spot but can also turn into a makeshift plane for higher speed and efficiency with four wings. The files include the lower and upper part of the body with screwsockets for assembly as well as wngs that can be kept on with screwed on plates and moved by servos. They havea cavity to fit a motor and propeller and once where a landing gear can be placed.The design has a wingspan of 800mm and is roughly square shaped though it can be scaled - it is layed out for a 3-5 kilogram drone using small drone or rc helicopter motors.The wings can be tilted seperately and serve as control surfaces along with the motors seperate throttle similar to a drone in regular flight.The main body is shapedd as an aerodynamic lifting body with two places optimized for camera positioning which can be printedi n transparent or cut out and replaced with transparent plastic foil or bent sheat - one at the bottom in the typical observation/dronefootage camera shape and one shaped like a pseudo cockpit at the top

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Printable Tiltwing Tiltrotor Drone Body 3D print model

Royalty Free License (no AI)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT9 files
Size: 11.6 MB
Exchange formats
OBJ
OBJ | 6 files<br />File Size: 12.2 MB
3DS
3D Studio | 6 files<br />File Size: 3.59 MB
STL
Stereolithography | 12 files<br />File Size: 117 MB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is prepared for 3D printing
The designer indicates this model is prepared for physical 3D printing and includes printable file formats.
Publish date
