Description

Hi! We glad introduce you 3d model - STL + CAD bundle (STEP as CAD file) - to modify and print your own Pathfinder housing for arduino RC car

The model is divided into parts for printing on a 3D printer with immediately required colors and a minimum print area of 200 x 145 x 140 mm (X x Y x Z)

Lot include 41 stl files for 3D printing of the case, for further installation of electronic components that are not included in this lot and are ordered separately as a kit or individual components.

Model include:

  • 1 CAD file of Pathfinder Housing for RC Car model - STEP format.
  • 41 stl files to 3d printing (biggest part 180x163x98mm).

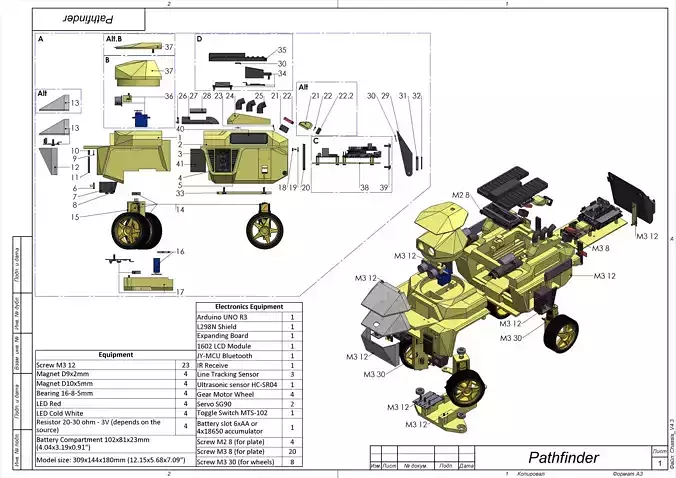

  • Digital Instruction for assembling.
  • List of components you will needs for assembling.

The model assumes a presence of LED backlight.

Dimensions:309x144x180mm (12.15x5.68x7.09")

List of components needs for assembling with LEDs lighting:

  • 3-4mm LEDs
  • 20-30 ohm resistors
  • M2 screws
  • M3 screws
  • wires
  • D9x2mm magnets
  • D10x5mm magnets
  • Bearing 16-8-5mm

  • Arduino UNO R3

  • L298N Shield

  • Expanding Board

  • 1602 LCD Module

  • Gear Motor Wheel

  • JY-MCU Bluetooth

  • IR Receive

  • Line Tracking Sensor

  • Ultrasonic sensor HC-SR04

  • Servo SG90

  • Toggle Switch MTS-102 SPDT 3PIN

  • Battery compartment size: 81x93x23mm (3.19x4.3.66x0.91")suitable for 6xAA battery slot or 4x18650 accumulator slot

If there is a different design you would like have, and don't see it in our list of products. Then please do not hesitate to contact us, and we will see what we can do.

Legal noticeThis is not an officially licensed product and is only considered Fan Art, the item is 3D model designed for fan art by me.

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
