Sliding Mechanical Iris-Hexagon cutout laser cut 3d print 3D print model

Description

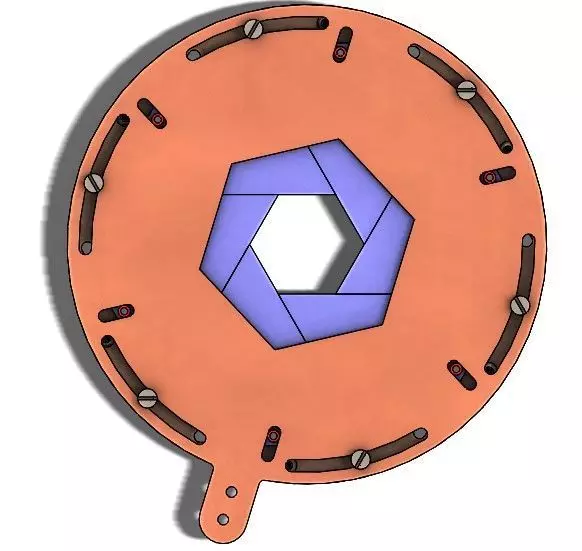

It is a simple mechanical iris structure or shutter mechanism-Hexagon cutout. It can be open and closed gradually. Most parts are designed for laser cutting or 3d printing. You need to buy some screws to assemble them together. STL and STEP format files are included in the attachment. After you get the files, ignore the obj and fbx format files, they are only used to meet the platform's requirement. More: https://www.tanerxun.com/mechanical-iris-shutter-mechanism/.html

Write comment
monk3947
monk3947
monk3947 2021-10-30 23:07:45 UTC
The outer diameter is 200 mm, inner diameter is appr. 80 mm, total thickness is appr. 8mm
Item rating
1 0
Sliding Mechanical Iris-Hexagon cutout laser cut 3d print
$4.90

Royalty Free License
Sliding Mechanical Iris-Hexagon cutout laser cut 3d print
$4.90

Royalty Free License
Mmonk3947
monk3947
(13 reviews)
Response 100% in 3.1h
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning
Hire meView all Designers Models

3D Model formats

Format limitations
  • DXF (.dxf) (4 files)110 KB
  • OBJ (.obj, .mtl)43.8 MB
  • Stereolithography (.stl) (6 files)46.1 MB
  • Autodesk FBX (.fbx)43.8 MB
  • PDF (.pdf)263 KB

3D Model details

  • Publish date2020-07-23
  • Model ID#2527864
  • Ready for 3D Printing
