Linear Robotic Arm Robot Actuator 3D print model

Description

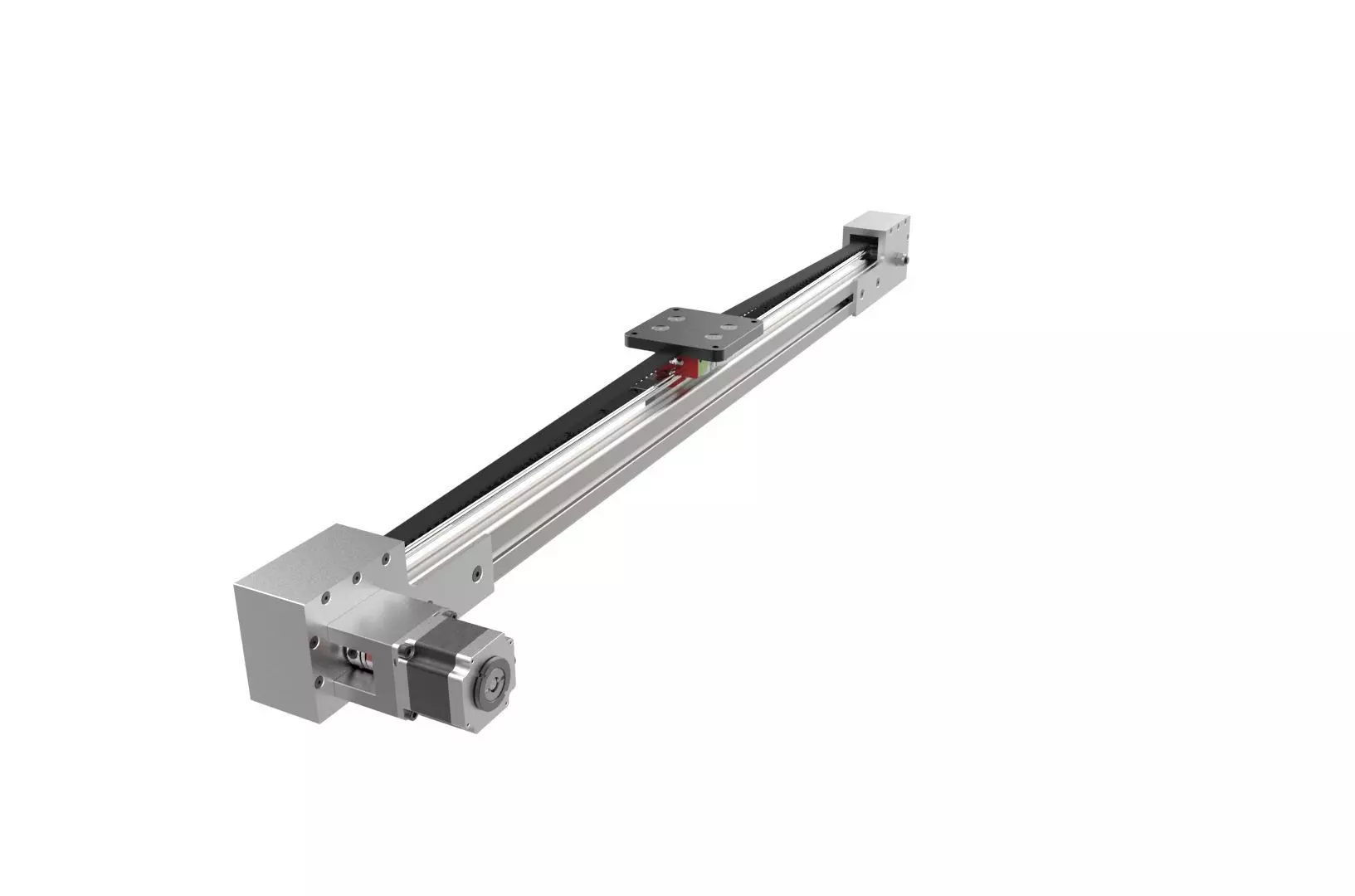

This is a linear robotic arm that is designed for a custom project. It features a aluminum profile with a linear rail guide. Motion is given by a stepper motor that is mounted on one end of the assembly and is transmitted by a pulley/belt system.

In the files you can find all 3D file variations but also the step and IGES format for technical design.

All parts (guide rails, aluminum profile, belt, pulley etc) are designed according to standard parts available to the market.
