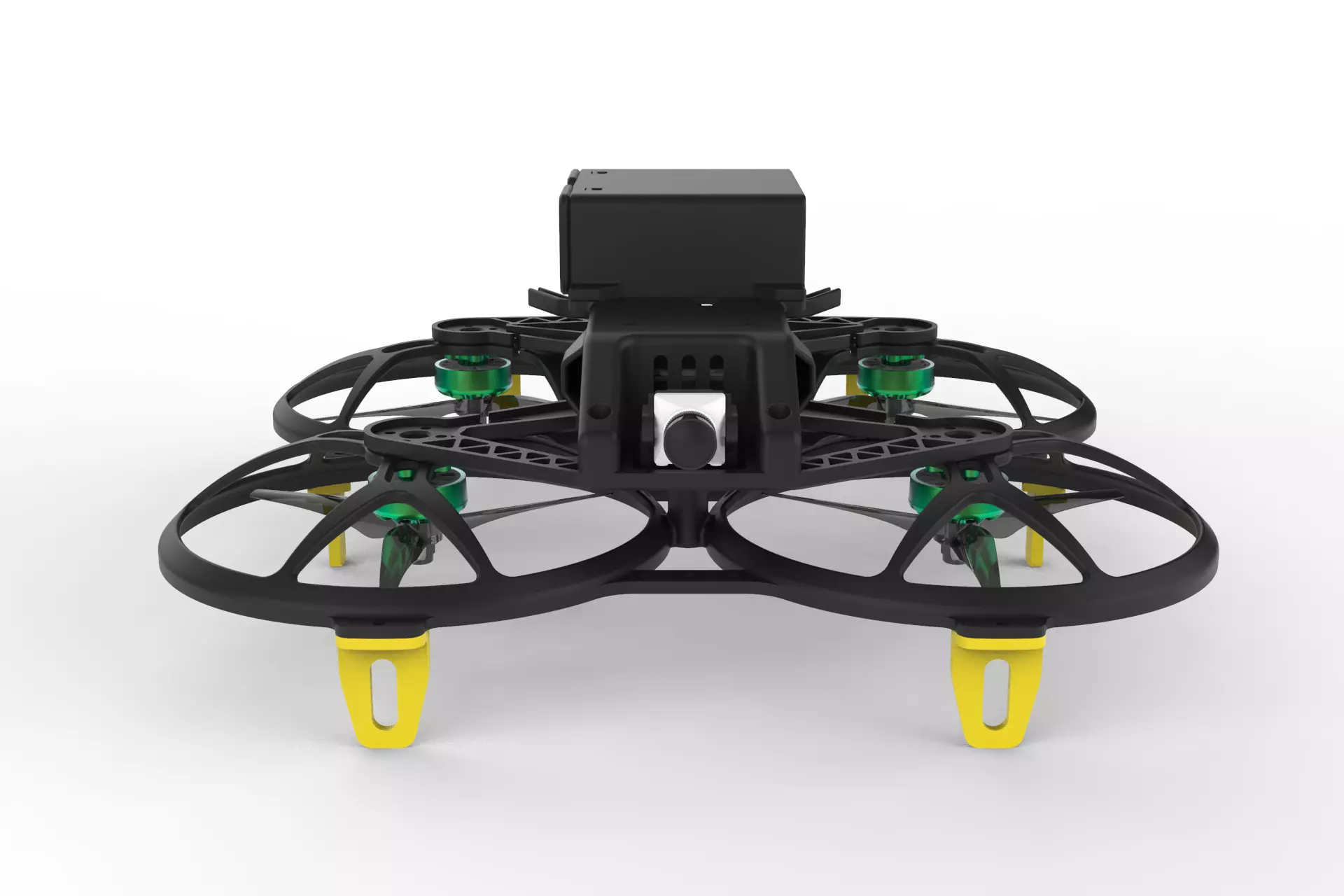

Drone Project 5 inch 3D print model

Are you ready for your own challenges ? If your answer is yes, this project is completely suitable for you.*There it is fully 3d printable 5 inch drone project is ready for your flights !

• I designed and printed this drone for use in facilities but you can fly in everywhere with this.
• It is safe and reliable with propeller guards for prevent propeller damage but be careful with flights everytime !

You can find all stl and main 3d model files in folders and set for your 3d printers in slicer program. This design is suitable for fdm 3d printers especially table size is 300x300mm.** I printed this drone with creality k1 max printer and you can see flight videos from fpv camera.

---Parts Information List---

• All body material can be print with (pla, abs or asa) but landing arms and fpv camera holder preffered tpu (prevent of jello shake in camera and protect frame for hard landing)
• Battery configured with 4S Li-ion Sony VTC6 18650 3000mah cylindrical with 40Ah bms circuit. (be careful and you should get proffesional consultant for battery pack production)
• Flight control and esc : SpeedyBee F405 V3 BLS 30x30 50A Stack
• FPV Camera system: CADDXFPV Polar Starlight Vista Kit
• FPV Goggles: DJI goggles v2 or 2 series
• Remote Controller: Radiomaster Boxer ELRS
• Receiver: Geprc elrs dual antenna
• Gps: No but you can add
• Motors: Meps SZ2306 FPV Motor 4S 6S 1950kv
• Props: Gemfan Propeller 51466 - 3 blades
• Flight distance: Aprrox 5 km (but be careful for your battery level for return home)
• Flight time: Approx 10 min.
• Weight: 700-800 grams. (without gopro)
• Bots: M3x10,12,16,35mm allen bolts and nuts.

***If you are ready to make your own drone with your printer, let's get start, good luck !
