DIY - Robot Gripper 3D print model

Description

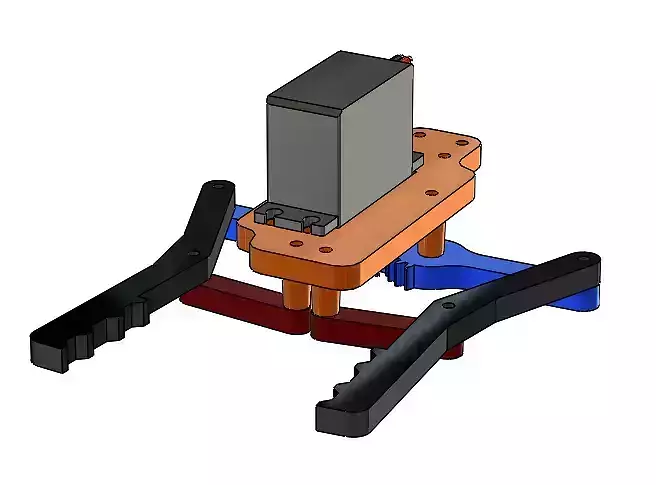

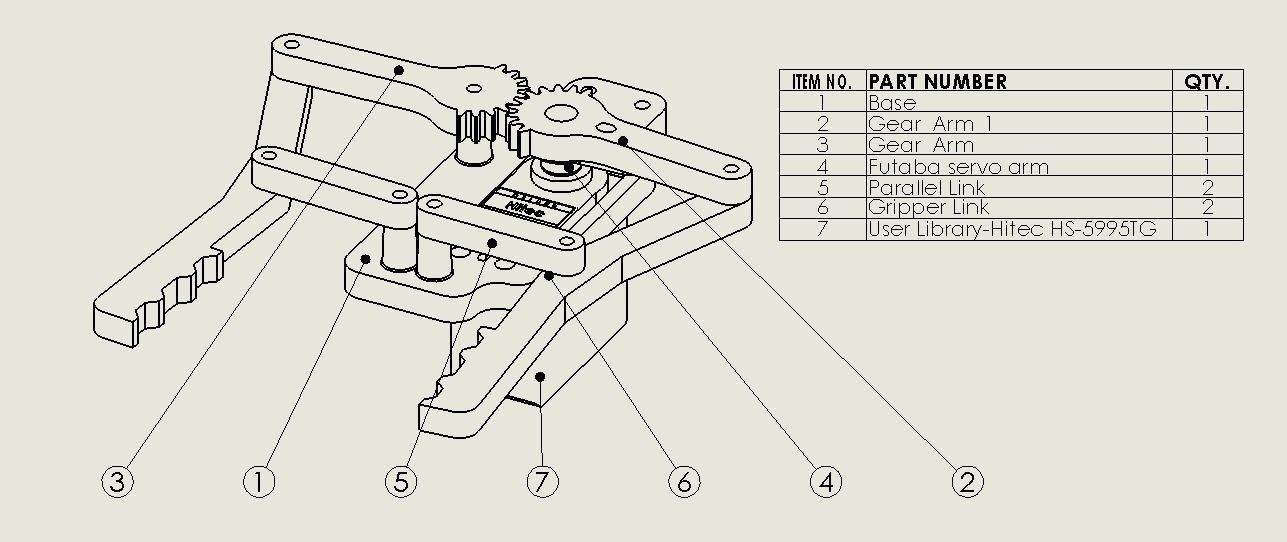

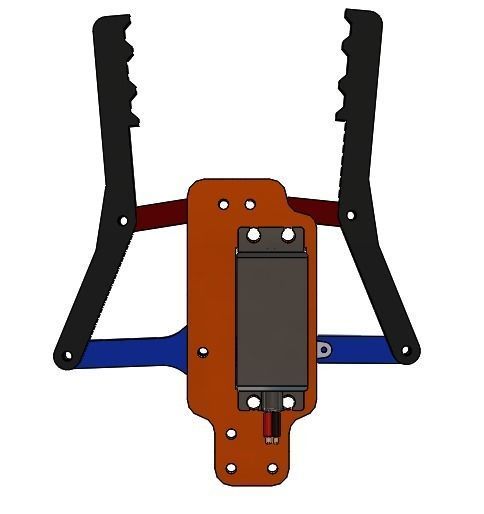

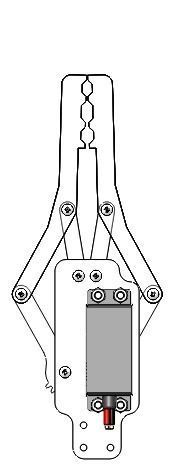

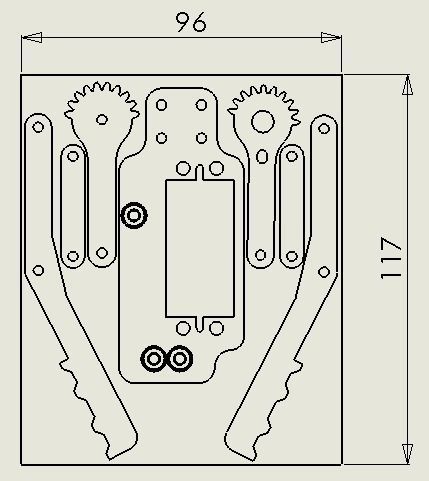

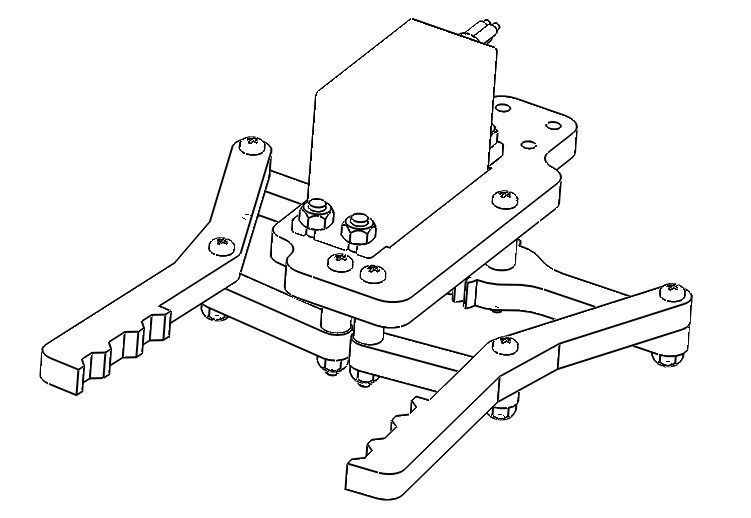

DIY Gripper mechanism using a standard FUTABA servo motor and 2 geared arms. All designed files and fabrication files are included, Easy to use 3D printer or laser cut machine to fabricate the gripper model.

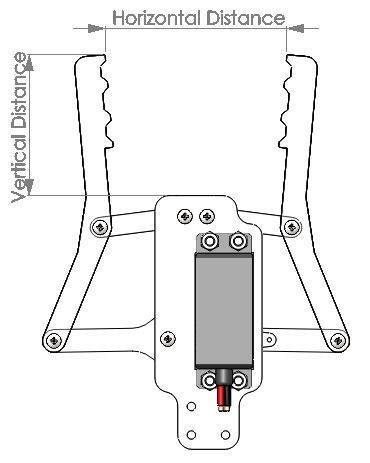

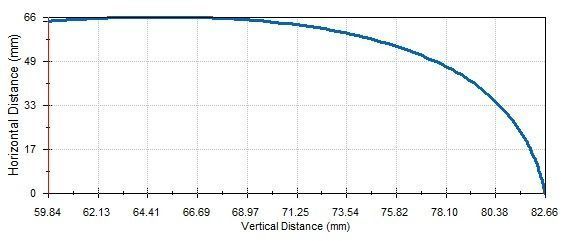

Take a moment to see the video, it is a simulation of gripping cylinder object with different sizes.

Write comment
Item rating
0 0
DIY - Robot Gripper
$3.00

Royalty Free License
DIY - Robot Gripper
$3.00

Royalty Free License
MM-Sami
M-Sami
(1 reviews)
Response 96% in 13.5h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw) (10 files)2.23 MBVersion: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019
Exchange
  • OBJ (.obj, .mtl)1.61 MB
  • Stereolithography (.stl) (2 files)1.28 MB
  • STEP (.stp)2.88 MB

3D Model details

  • Publish date2023-05-04
  • Model ID#4479753
  • Ready for 3D Printing
