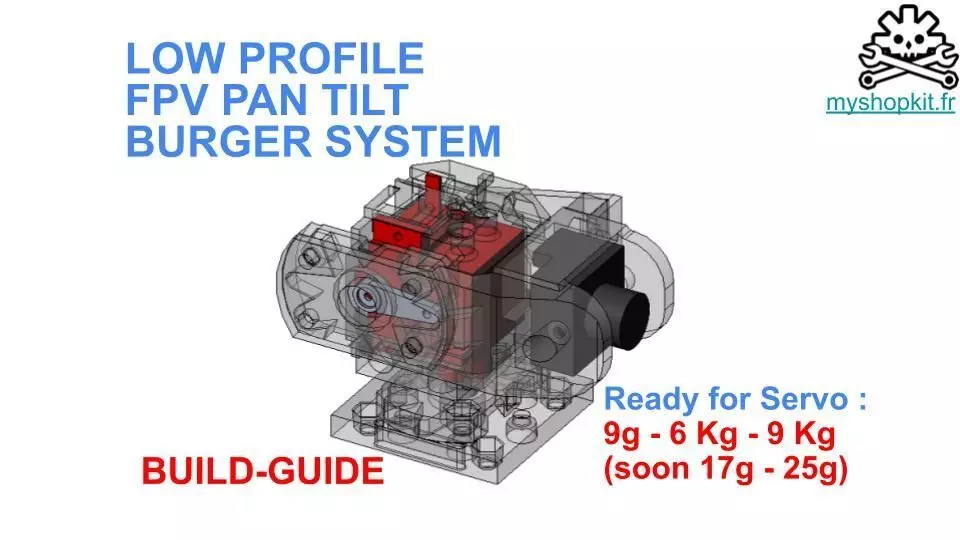

V1 Low Profile Pan Tilt FPV Camera Gimbal Burger System 3D print model

[¯`·..·[ Diy Printed Low Profile Pan Tilt Camera Gimbal Burger System ]·..·´¯]

3 mode possible :Pan / TiltPan / Tilt / RollPan / RollFor each you've got two type of tilt :Short or Long

Short is compact and can do 180 degreesLong can do 270 degrees but less compact

BUILD VIDEO :https://www.youtube.com/watch?v=si3Wh3fyYgI

BUILD GUIDE :https://docs.google.com/presentation/d/1s-cRoMrCodAB8l4SCKNU3SpsGQb5N14esyoVh01UTfM/edit?usp=sharing

TOOLS :

Hallen H2.5mm(for M3 Screws)

NEEDS :

Lock Nuts M3 ( X 10)ScrewsM3 x 8mm Hexa ( X 8) (Spreader Bar Blockers)M3 x 10mm Hexa ( X 8) (Optional for adapter)M3 x 20mm Hexa ( X3) (ServoMount Burger)Servos + Spreader Bar

TAGS :

Centered / Balanced / Optimised / ModulableStandard PartsStrap readyCollective partsBurger system one part for all , Pan part = Tilt partEnder 3 compatiblePreOriented STL PartsStrong modulable design easy replaceEasy to print easy to assembleCable management includedNo Glue Only M3 Screws and LockNutsGoPro mount with or withoutRéversible parts, Multiples positioning servosReady for FPV cams 22 x 22mm and 19 x 19mm (foxeer, runcam, ect)Ready for Servos 9 g 17 g 25 g 6 kg 9 kg (only Premium Version)Servos :S0900M Surpass Hobby 9 Kg (or no name)S0600M Surpass Hobby 6 Kg (or no name)S0009M Surpass Hobby 9 G (or no name)Ready for flight controller 30 x 30 (betaflight or others)Compatible PLA ou TPU ect

ONLY PREMIUM :

See under because of 90 degrees adapterWith GoPro mountMore servosThank you for your buy :)More Camera MountMore Servo Spreader Bar BlockersMore Base Mount with 30x30mm holes :Square (Free)RectangleDemi-lune Fly Controler BoardExtreme Low Profile
