Crawler V306 Cab SCX6 - 1-6 RC body 3D print model

Requires a printer with minimum 256x256x256mm build volume (Bambu Lab X1 size).

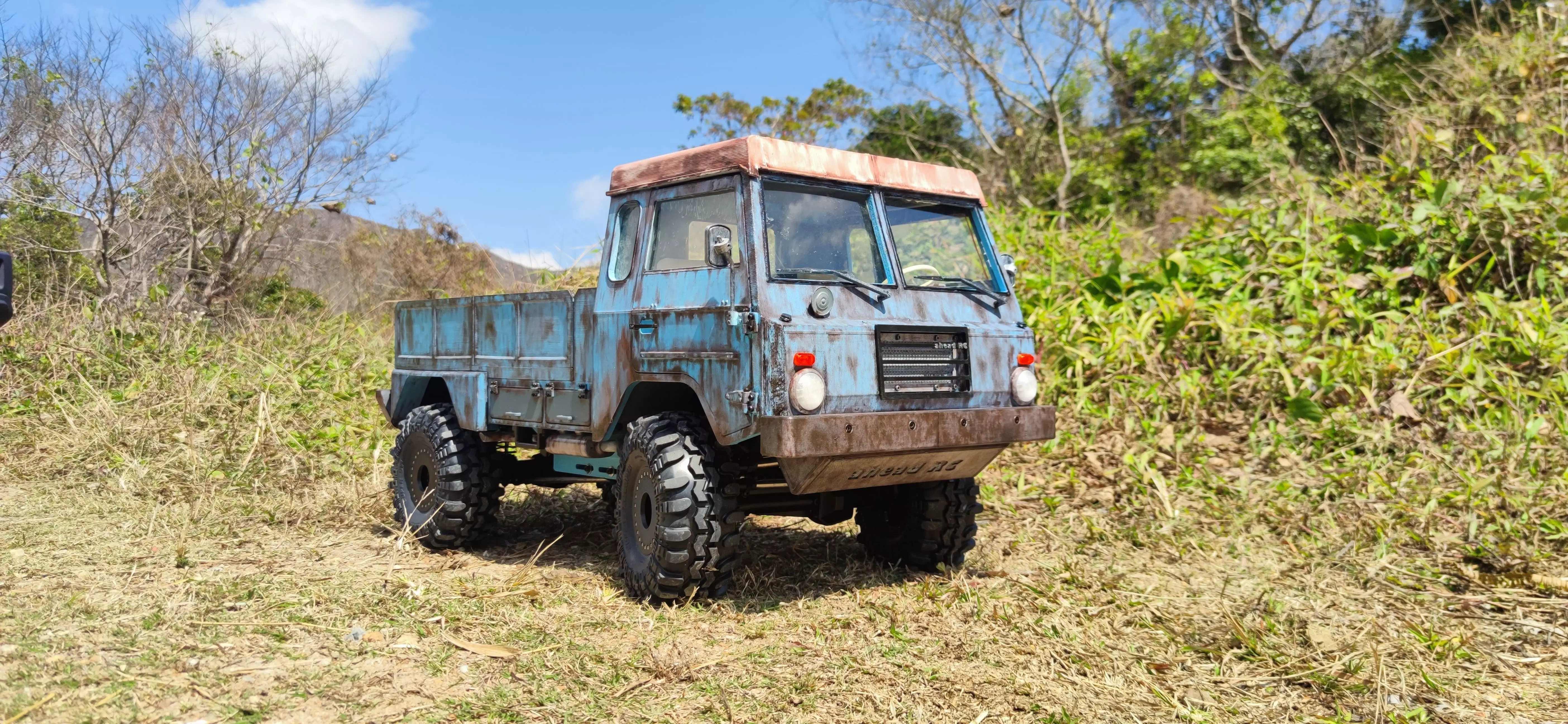

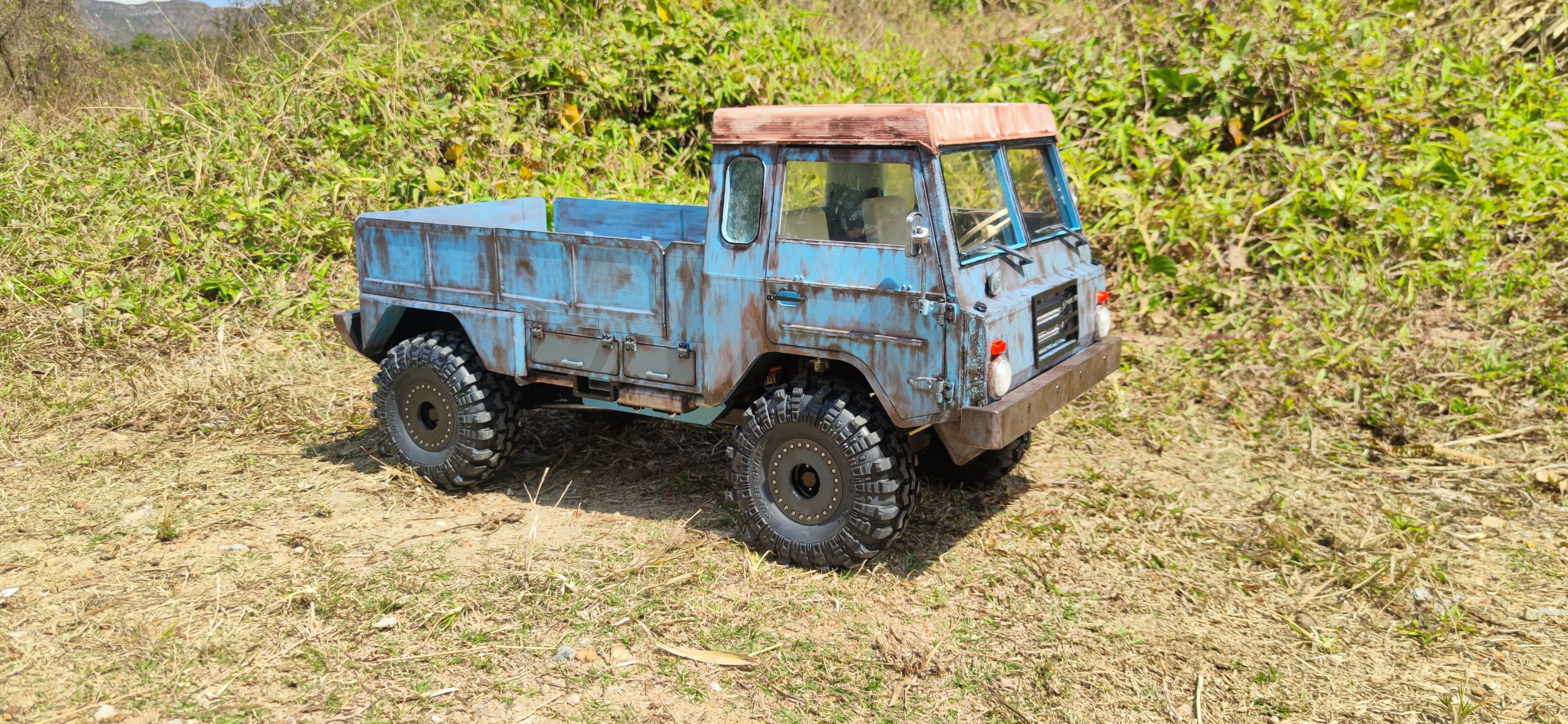

Please note the V306 SCX6 flatbed in the pictures is sold separately. Wheels and tyres, 1:10 V306, 1:1 Jimny, are not included.

Everybody seems to love ‘flatpack’ styled Swedish trucks, so much so a much larger version of it actually makes it even more fun to look at and drive around in!

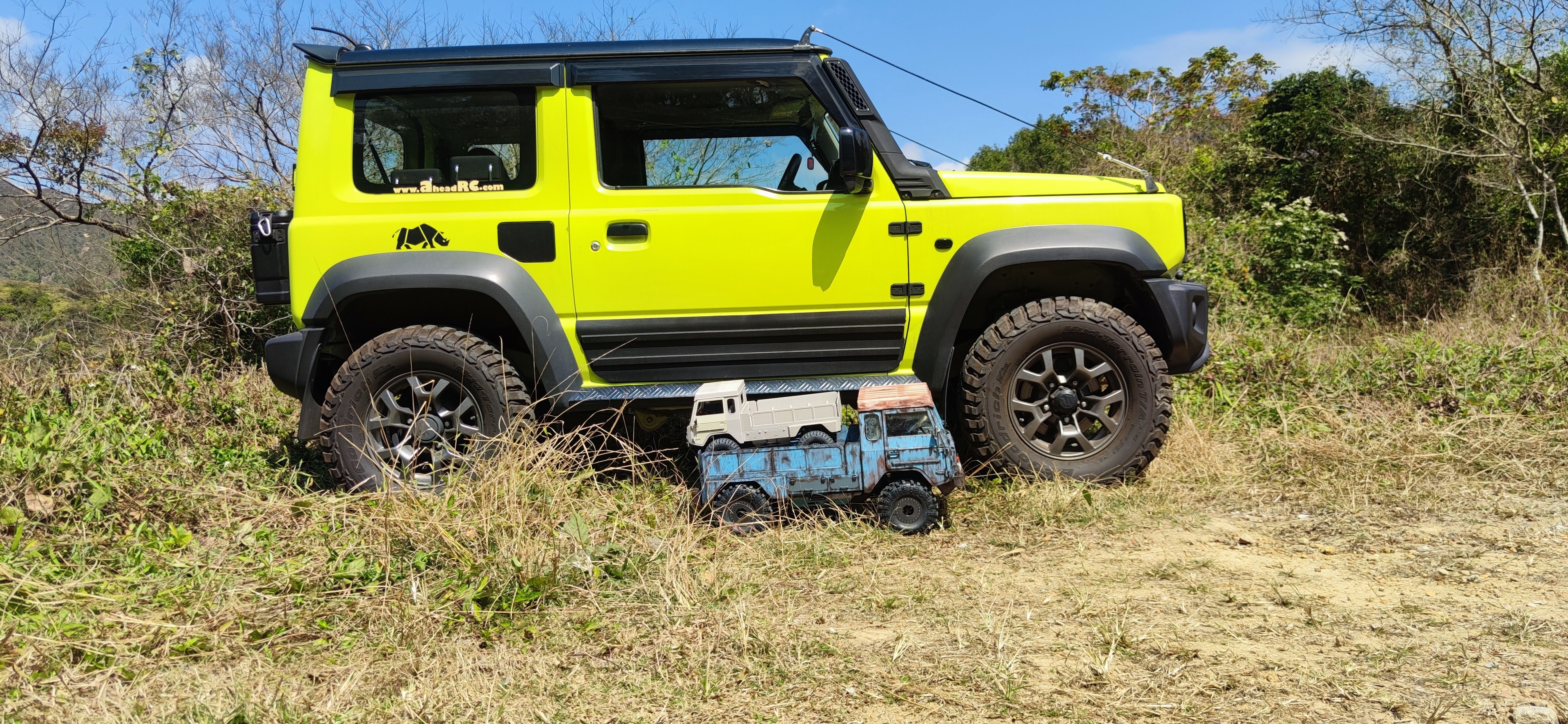

A size comparison between 1:10, and 1:1 are shown in the images.

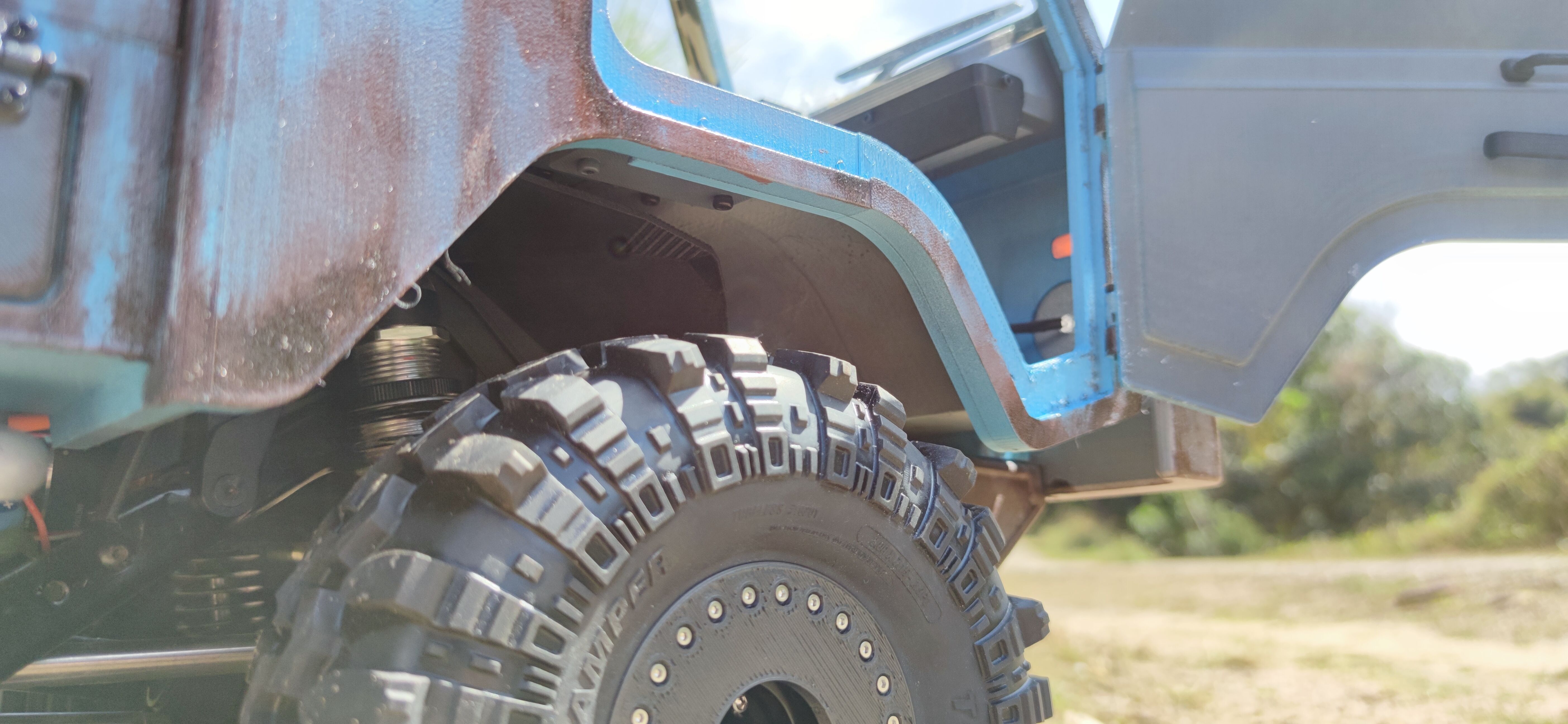

This body benefits from a slightly lower ride height for more scale stance and CG. The ride height setup shown in the pictures has the front and rear shock lower rod ends mounted in the axles’ lower mounting tabs, at the link mount’s level. Please note that all inner fenders will have to be removed and replaced with the ones included in the files.

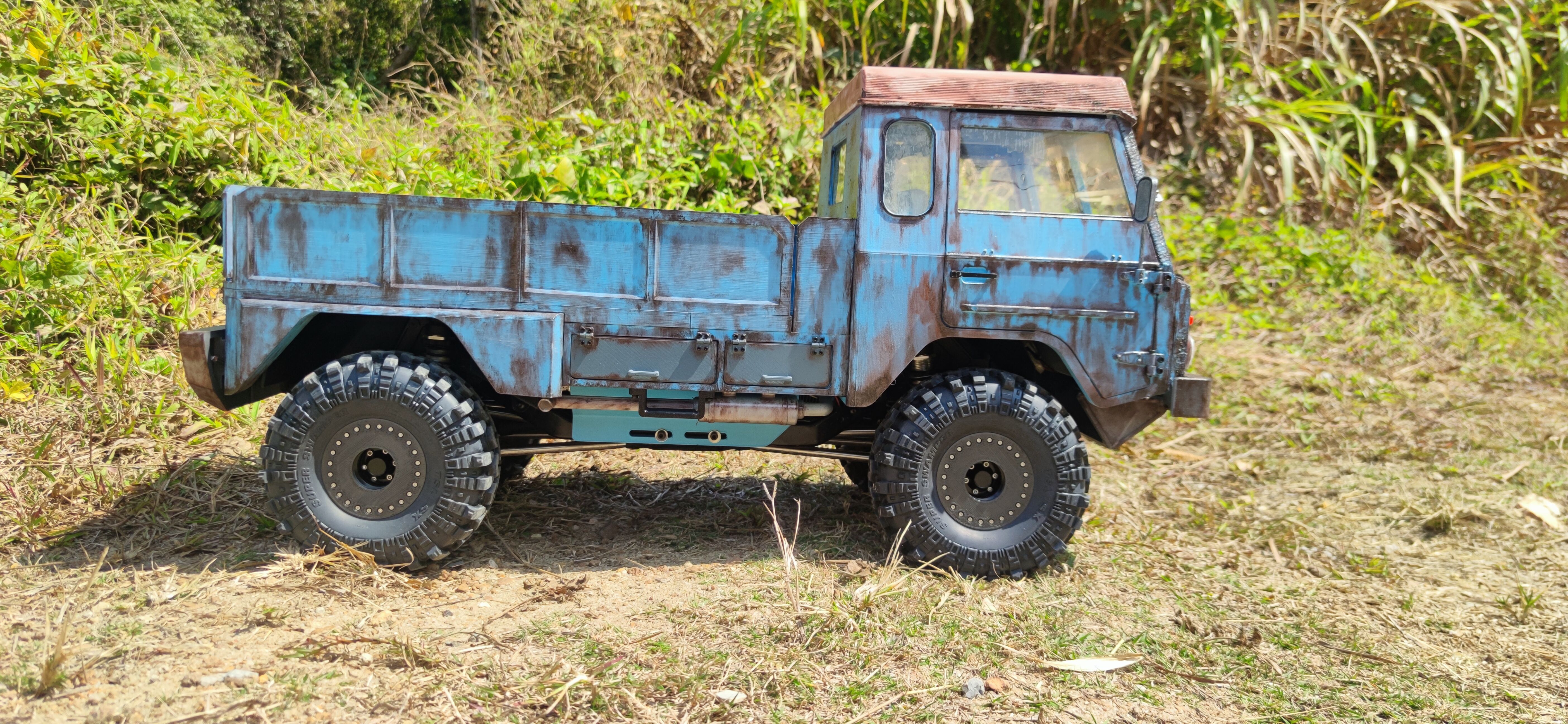

For best weight distribution across the entire truck, it is highly recommended to use the cab together with the flatbed.

Easy printability: the cab itself is split into 4 parts and is assembled with hardware to improve stiffness and durability.

The flatbed and cab should be paired with the SCX6’s stock wheelbase of 501mm, tyre to tyre outermost width of 378mm, and 7in to 7.5in diameter tyres.

SCX6 body mounts are also included, which bolt directly onto the chassis rails.

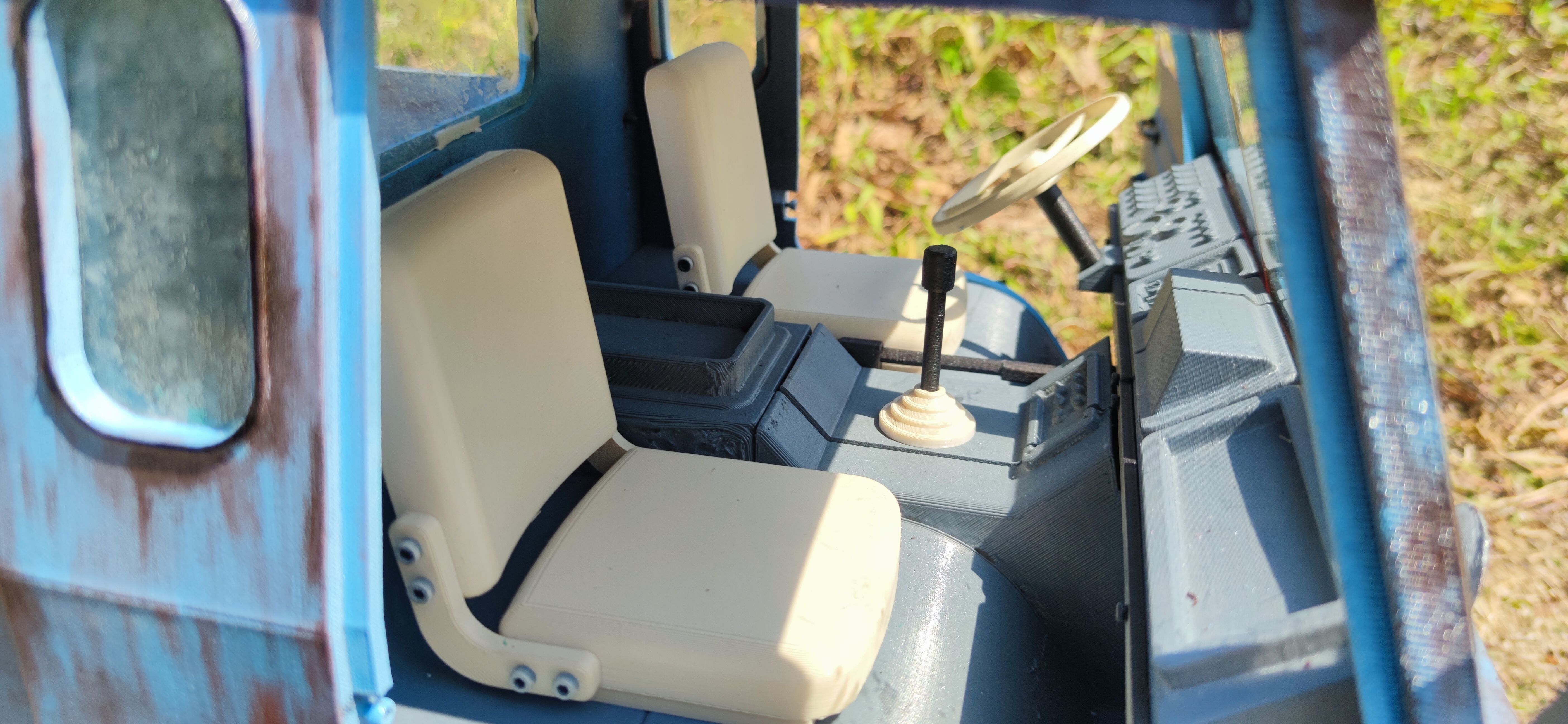

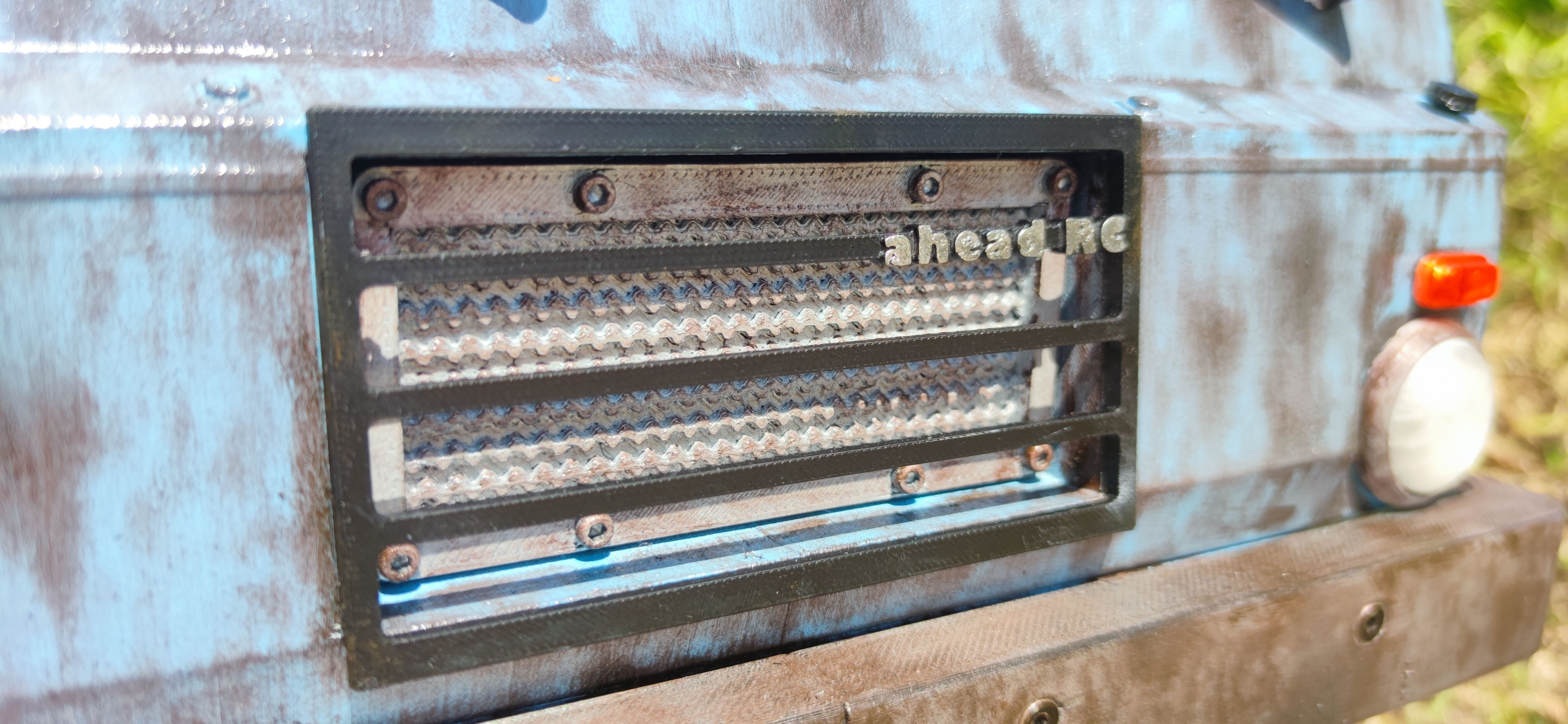

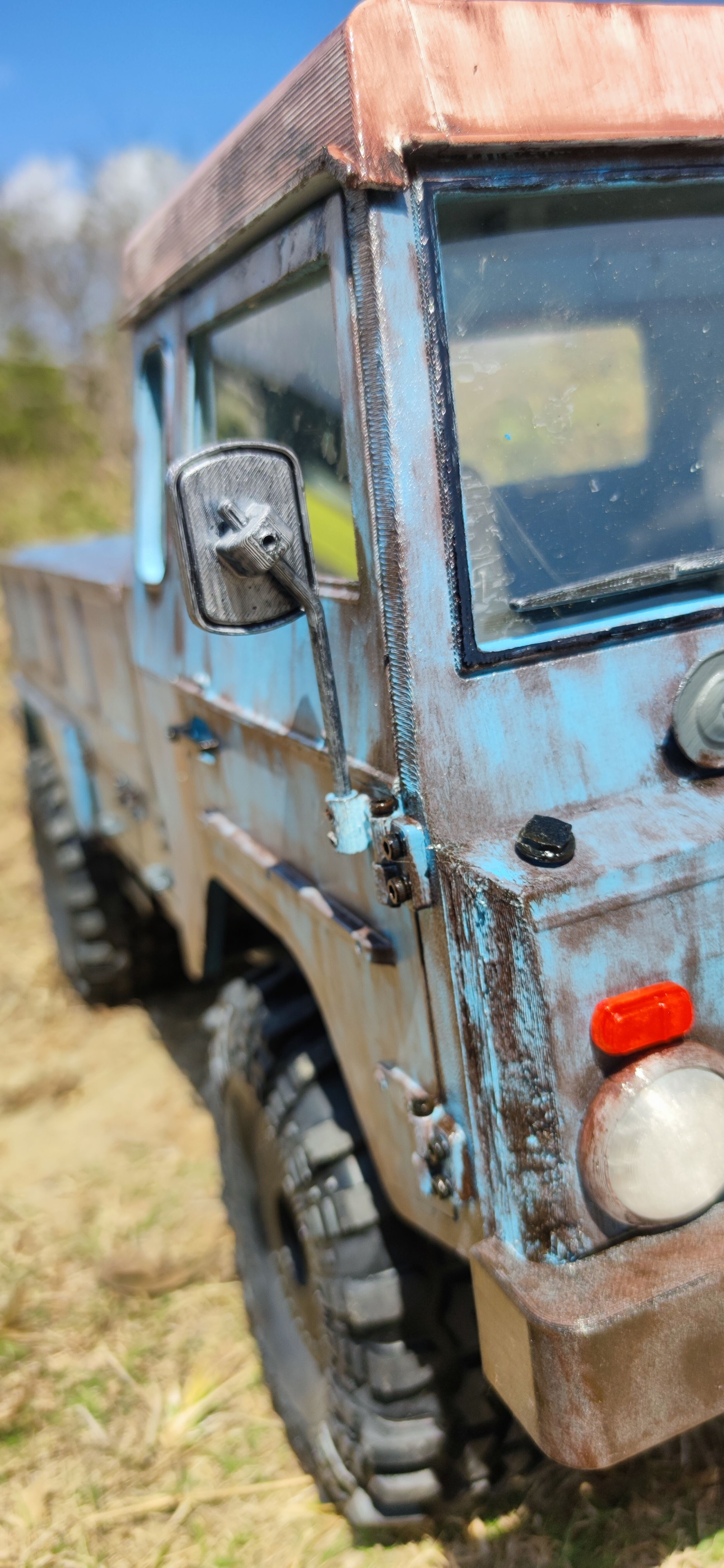

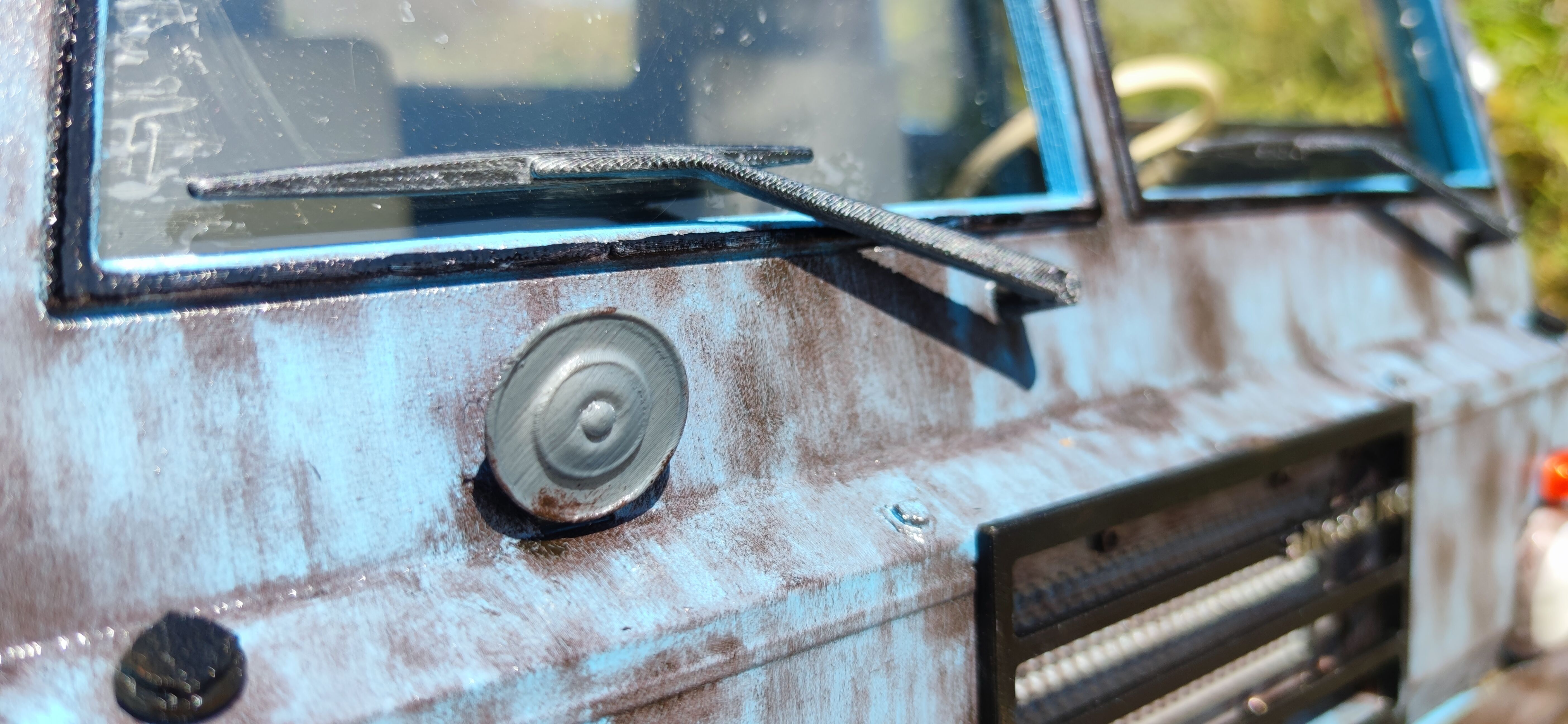

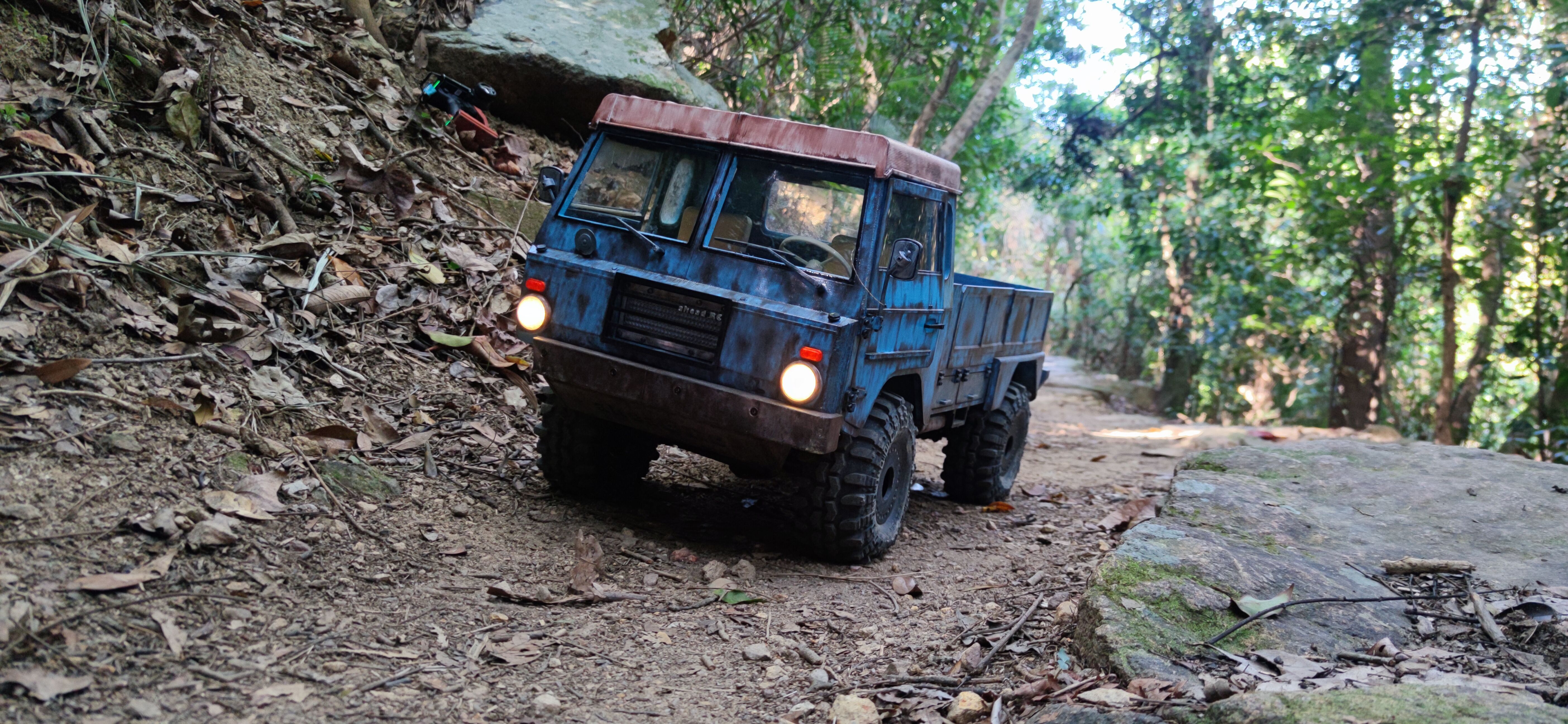

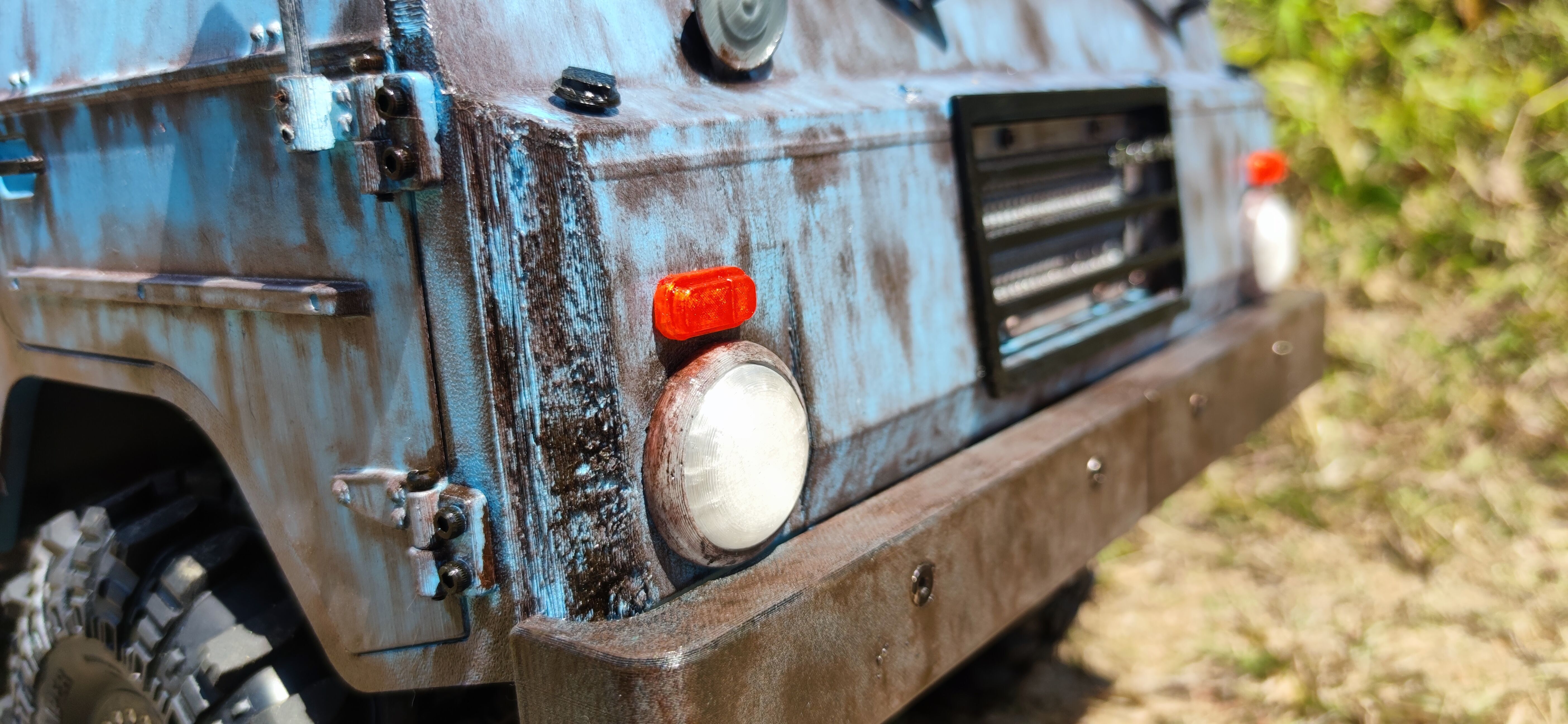

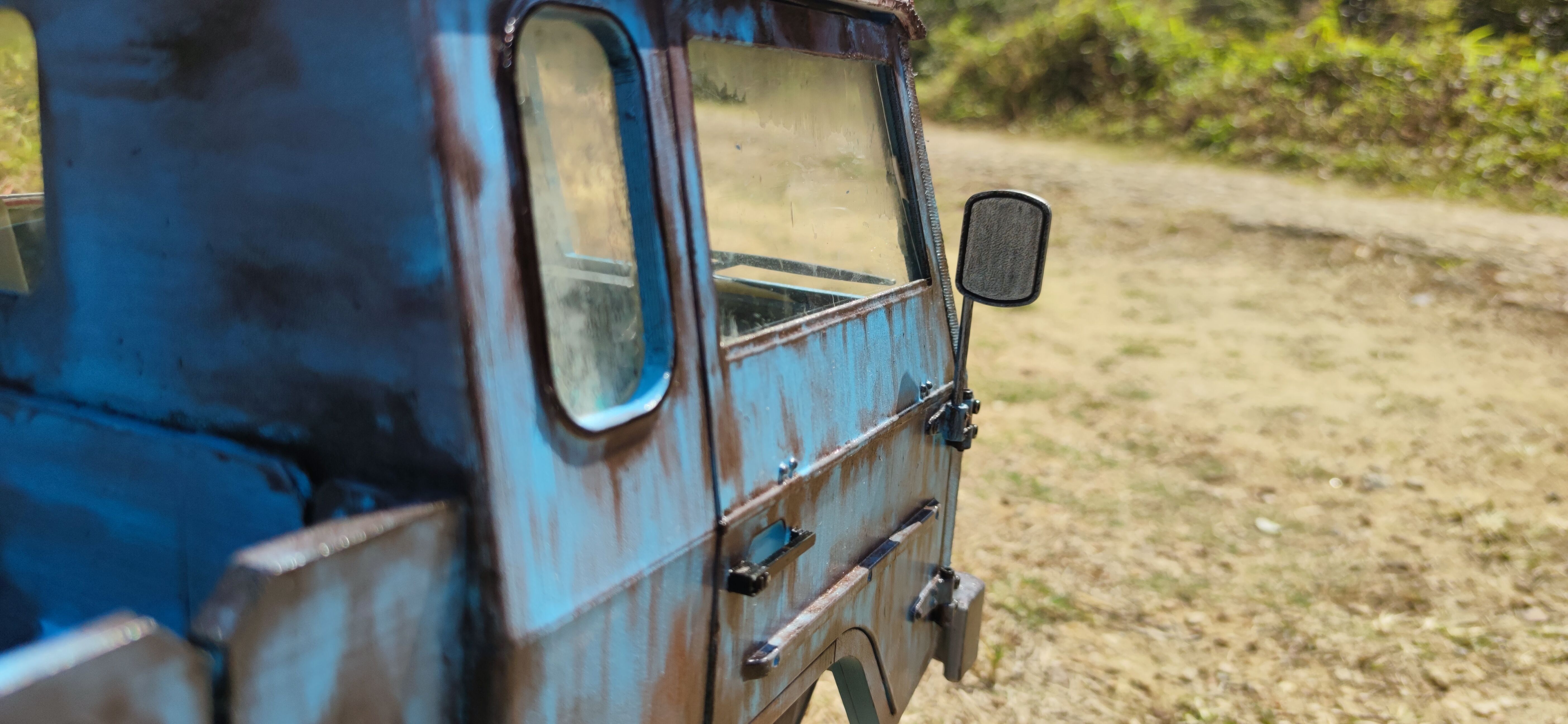

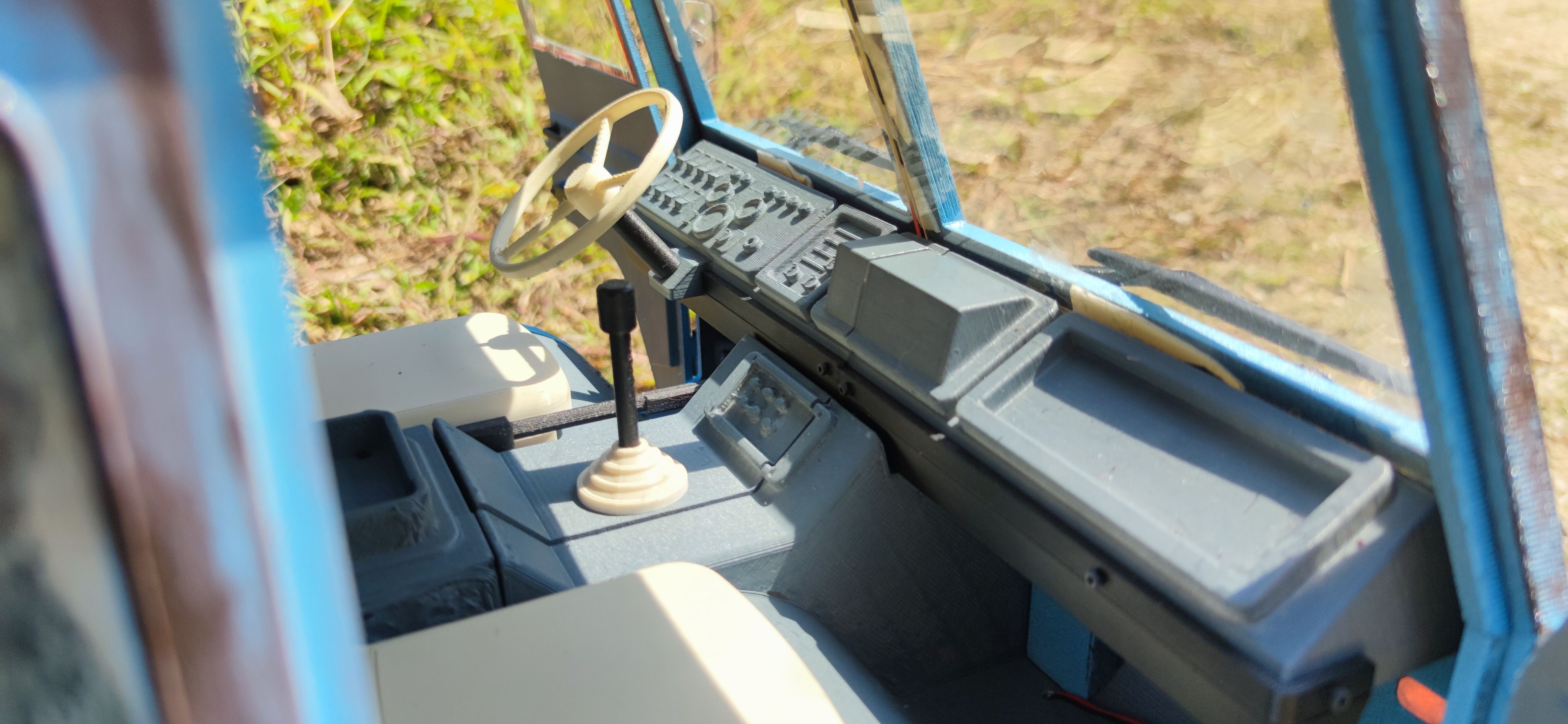

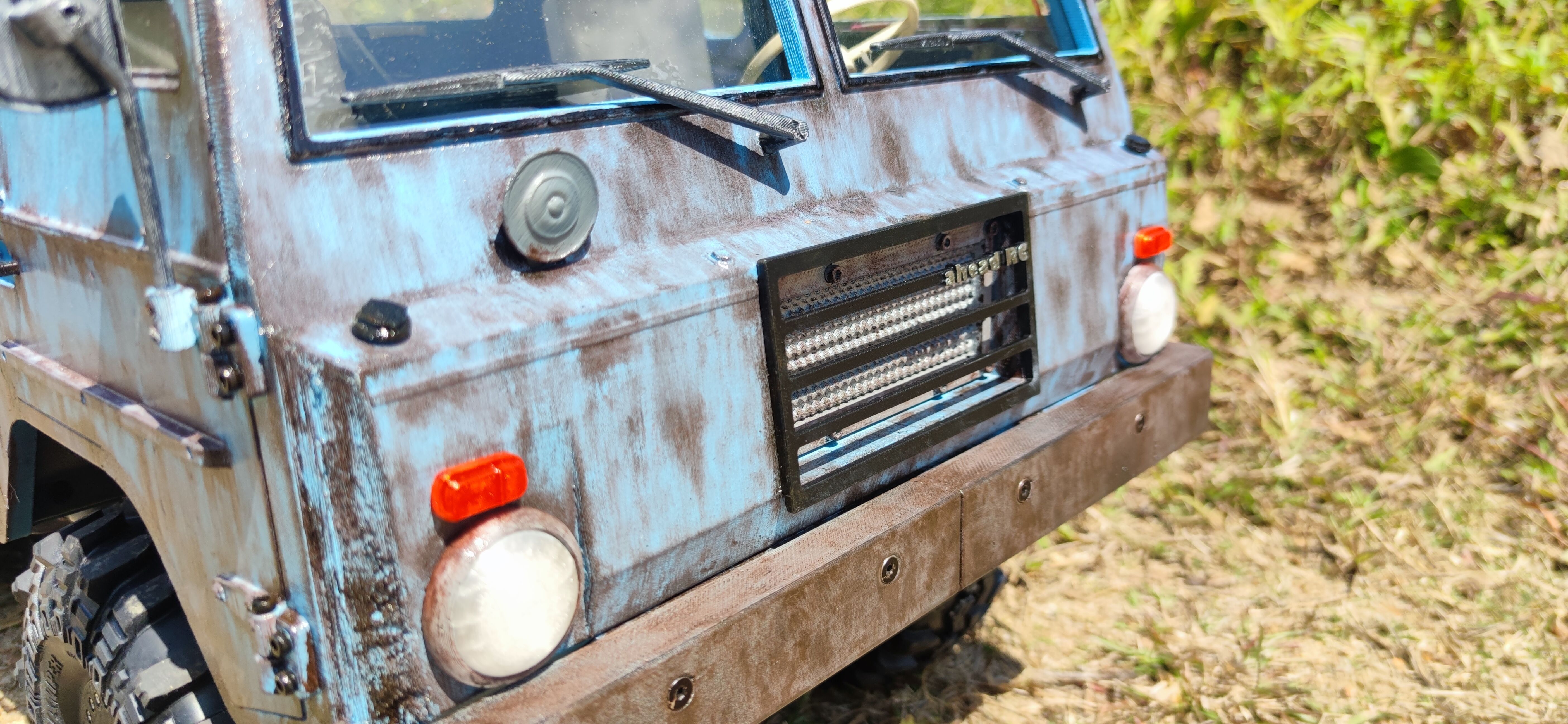

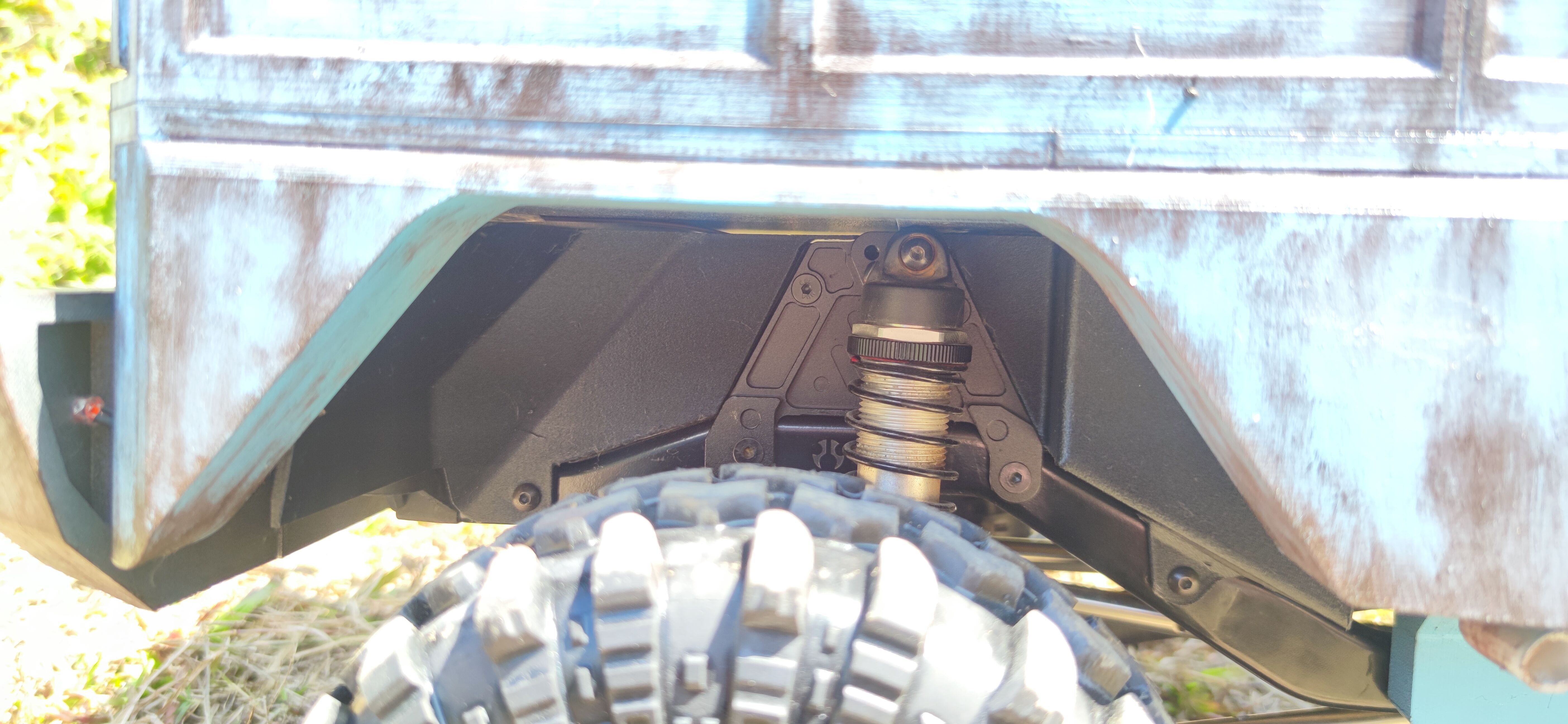

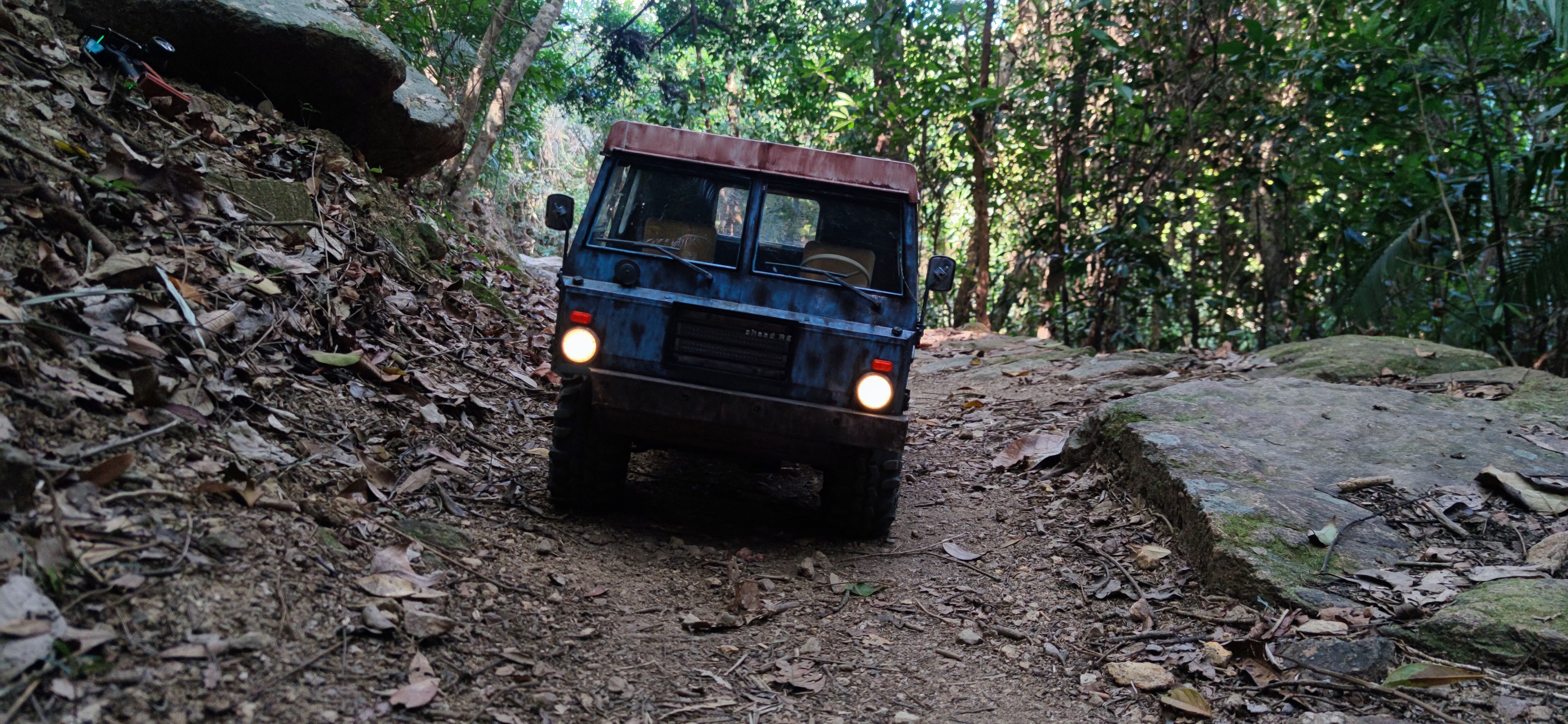

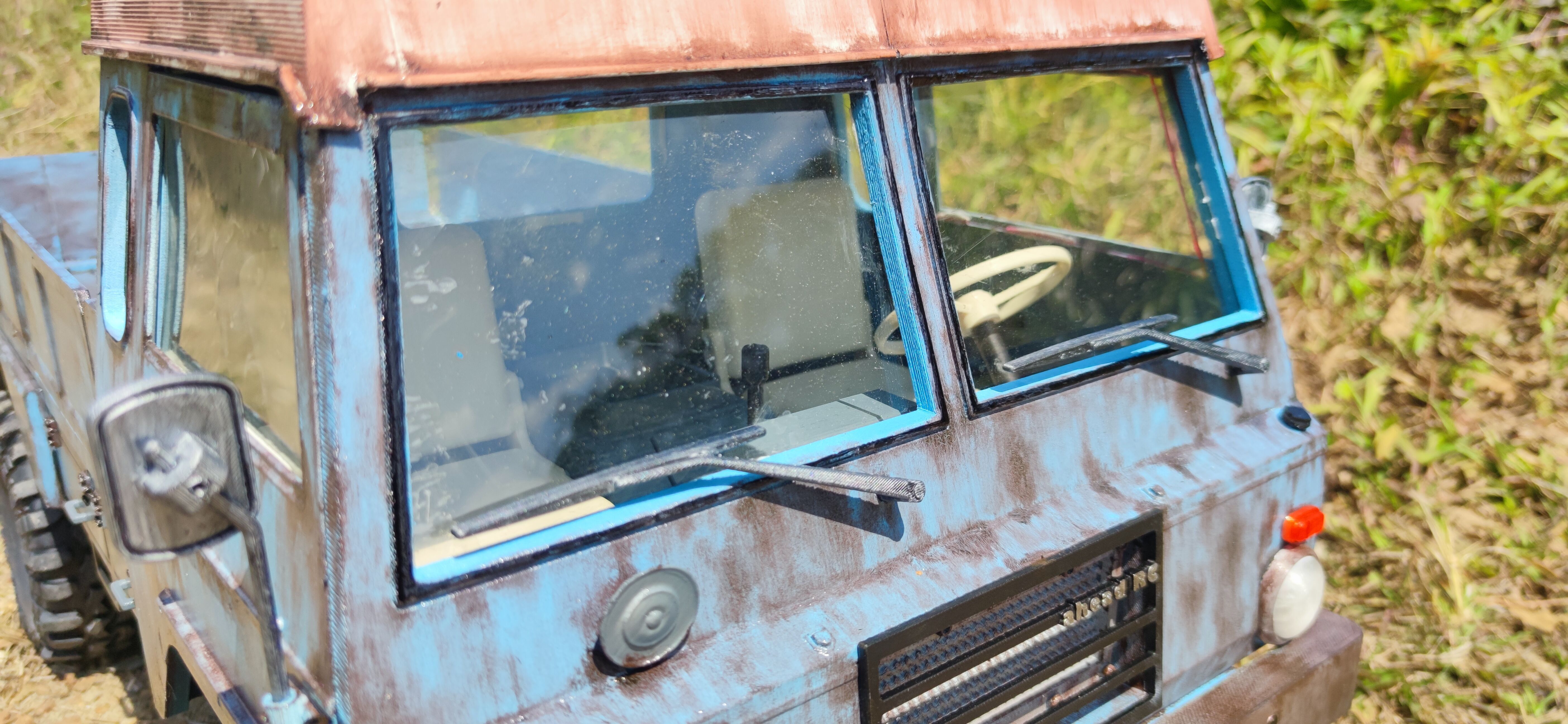

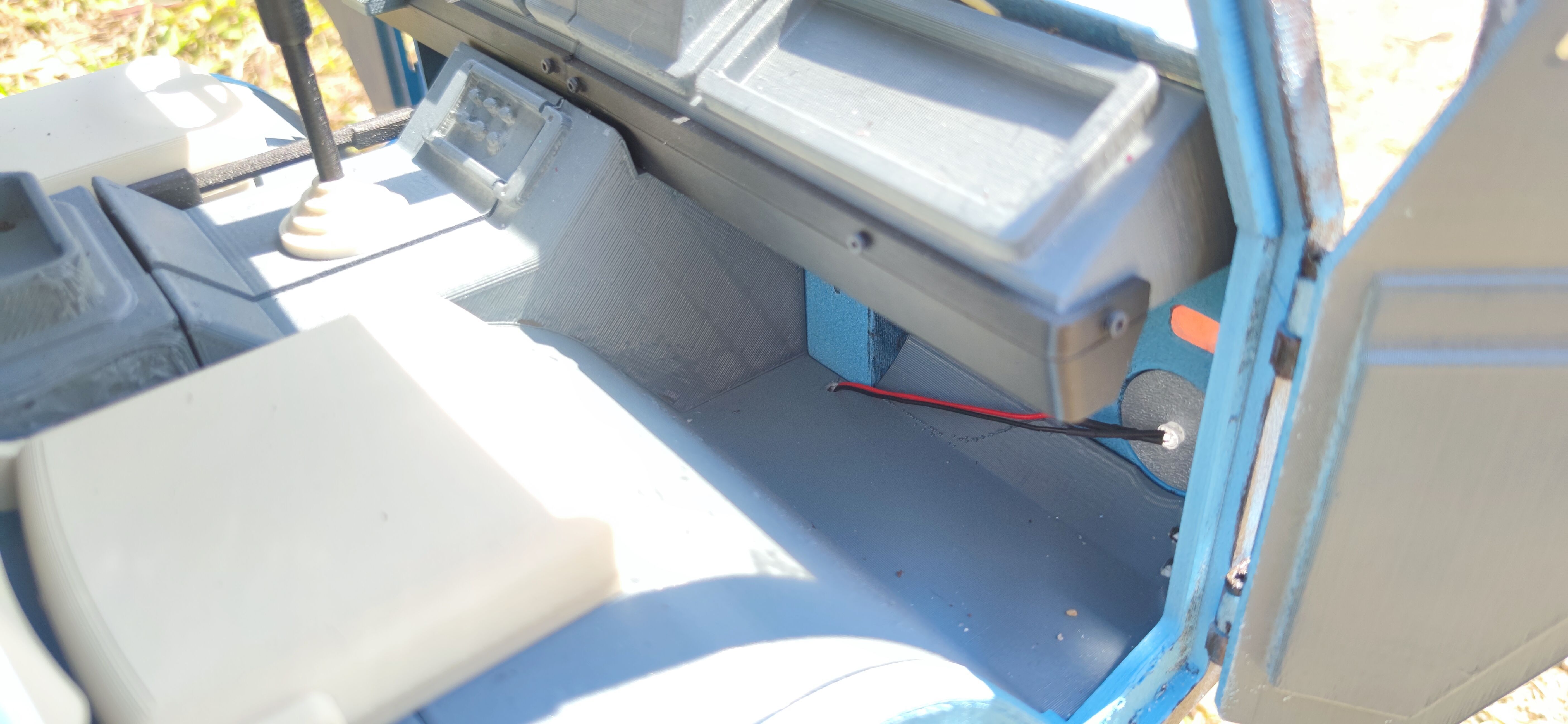

Some of the features and details included:Standard and high clearance bumper versionsNarrow and wide front bumper skid platesFully detailed interior, floor plan, dashboard and steering wheelFunctional hinged doors2 styles of latching doors, including magnetic and screw head clipCustom designed inner fenders included, with 2 different versions for the rearFully functional light bucketsSplit part printing and solid assemblingDetailed exterior partsAdjustable mirrors

Be sure to check out the instruction manual and gather all required hardware for assembly.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

.DXF window outline files are included with this body.Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

FDM printing:PLA+ or PETG filament0.2-0.4mm layer heights30-50% infill densitySupports are necessary
