Spray trigger pump 3D print model

Description

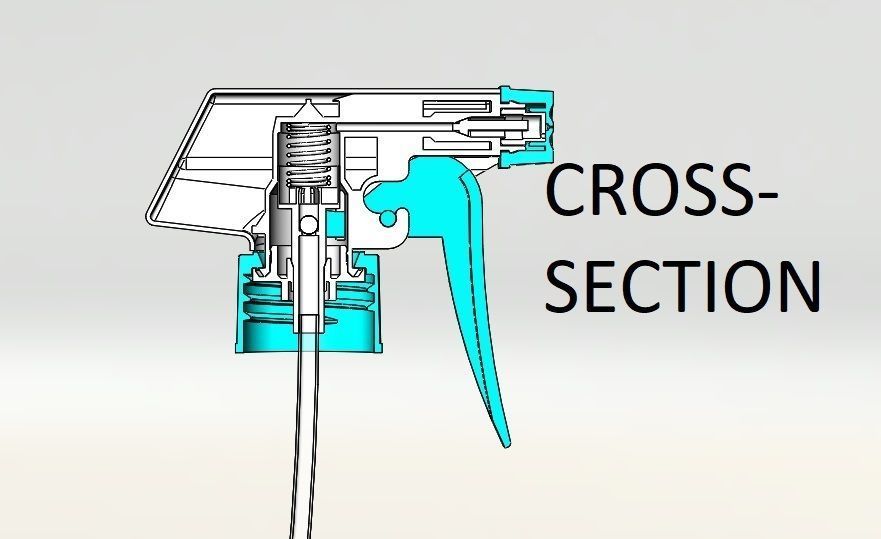

This spray trigger pump. It modeling in Solidworks 2018 with actual dimension. IGES, STL, and Solidworks file provided in the zip file. Both of zip file is consists of each individual part file. Which is, spring, cap, mounting, pump cup, ball valve, nozzle valve, inner nozzle, outer nozzle, body, cover, and straw. Only assembly file that provided for IGES file and Solidworks file. All dimension is base on an actual pump in the market. The attached STL file can be used for 3D printing. The neck fitting size is 28mm.

Write comment
jd94
jd94
jd94 2021-02-15 07:30:47 UTC
awesome work!
copycat-meowmeow
copycat-meowmeow
copycat-meowmeow 2021-02-15 17:22:40 UTC
Thank you, you can watch the tutorial on how to model it on the copycat meowmeow Youtube channel.
Item rating
0 0
Spray trigger pump
$45.00

Royalty Free License
Spray trigger pump
$45.00

Royalty Free License
Ccopycat-meowmeow
copycat-meowmeow
(5 reviews)
Response 89% in 15.6h
3D Modeling
3D Print Modeling
View all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks 2018 (.sldprt, .sldasm, .slddrw)4.17 MB
Exchange
  • IGES 2015 (.ige, .igs, .iges)1.59 MB
  • Stereolithography 2015 (.stl)2.64 MB

3D Model details

  • Publish date2020-07-12
  • Model ID#2508455
  • Ready for 3D Printing
