Description

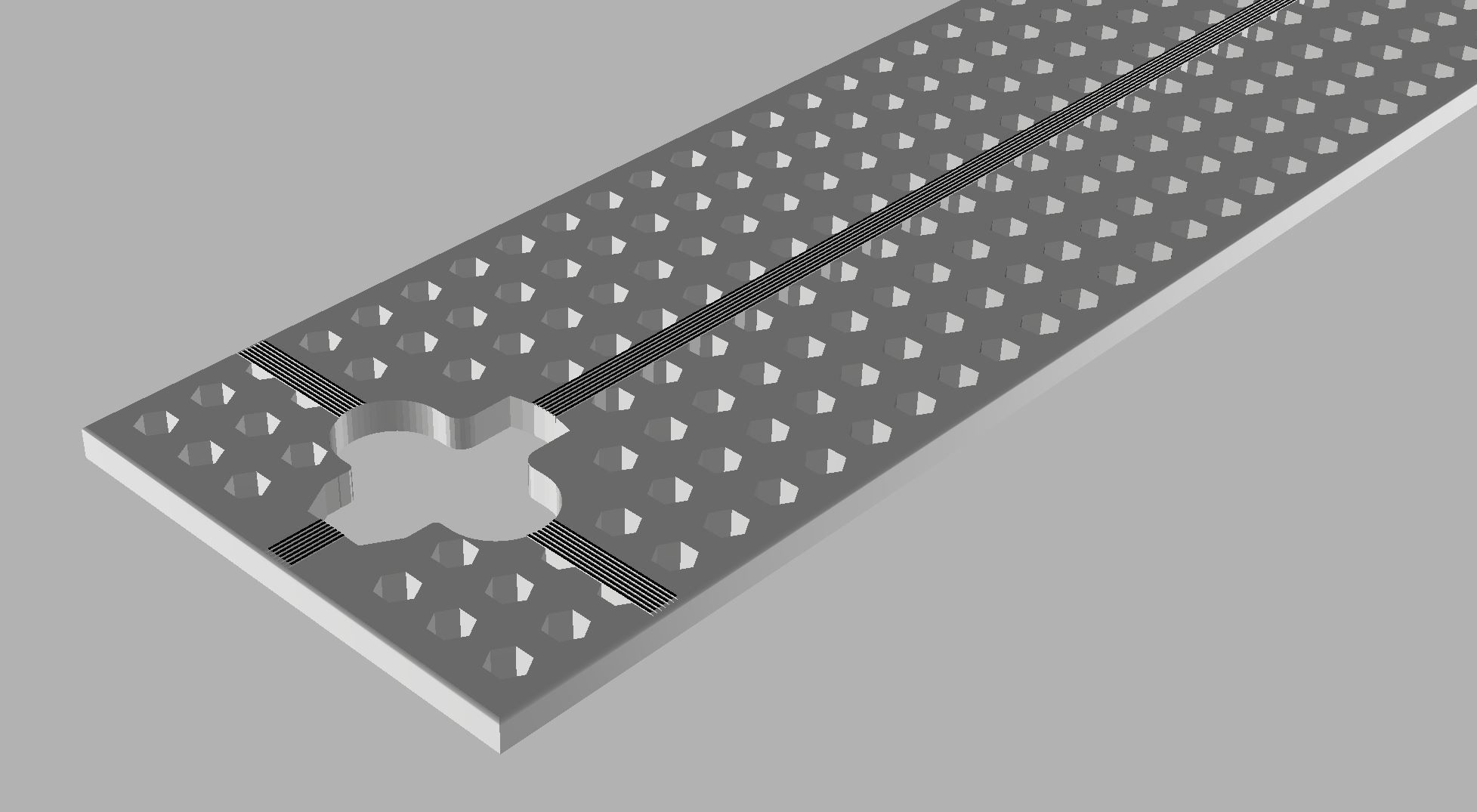

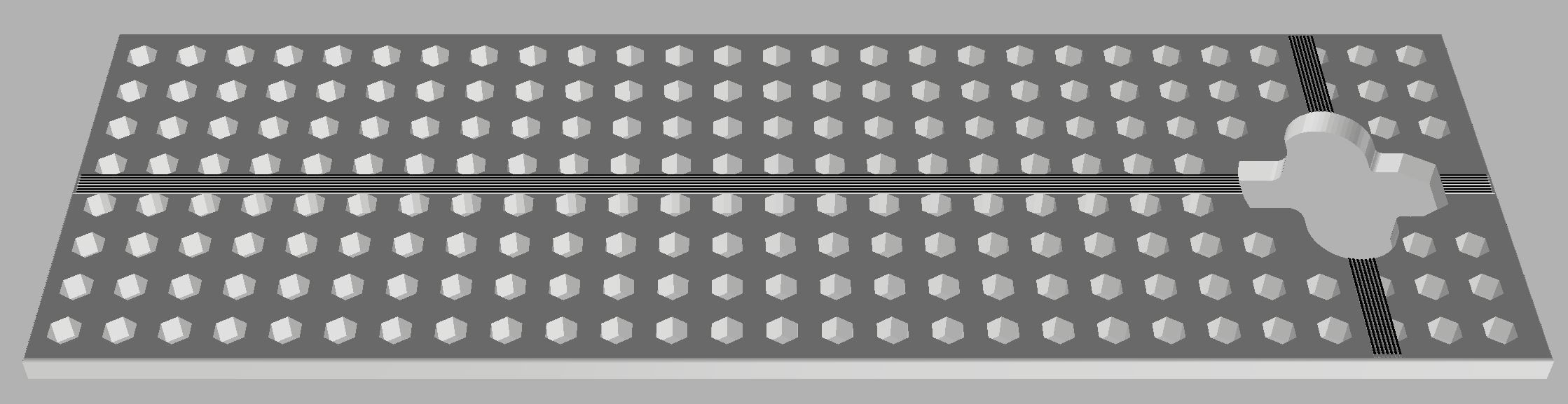

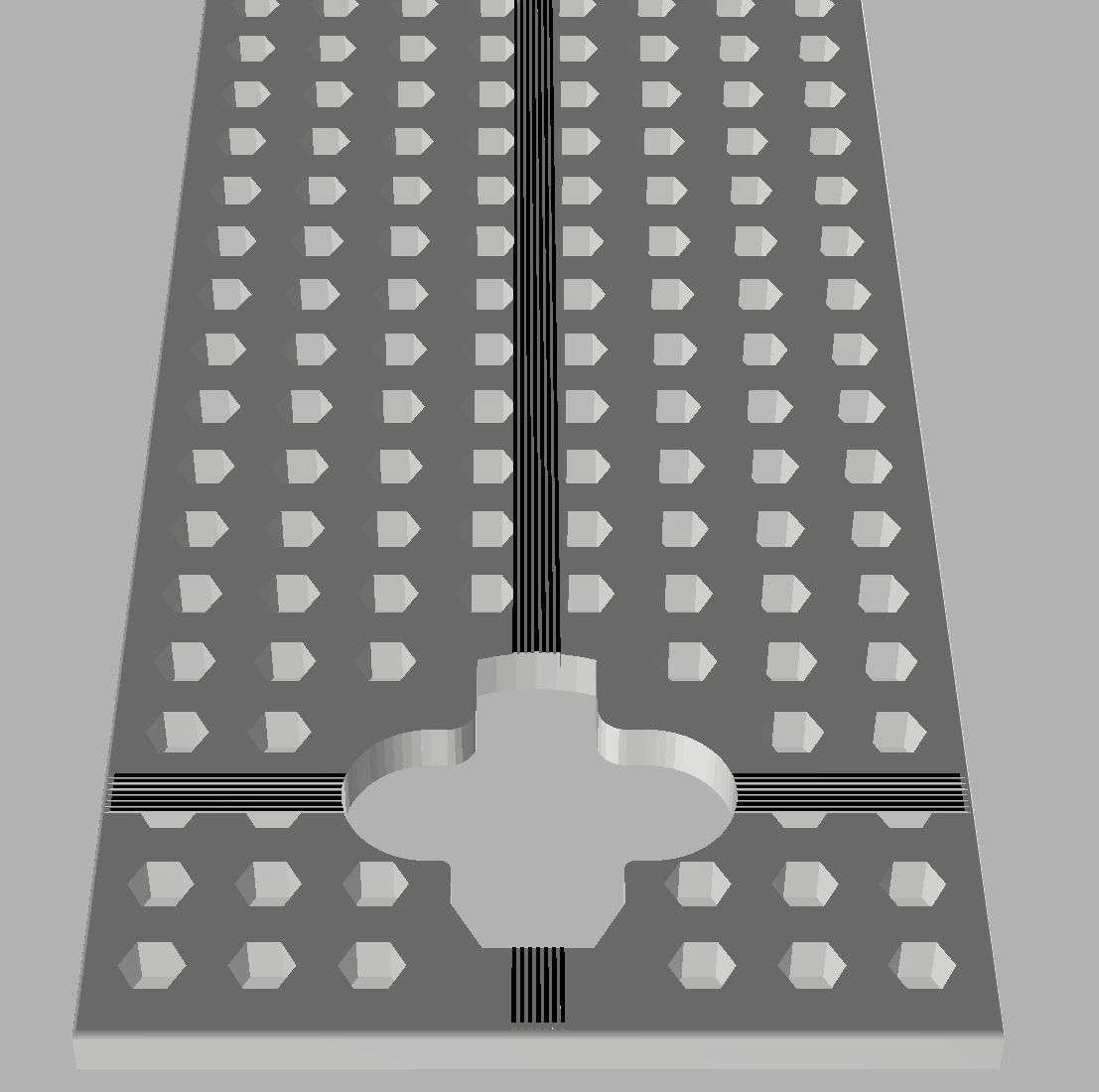

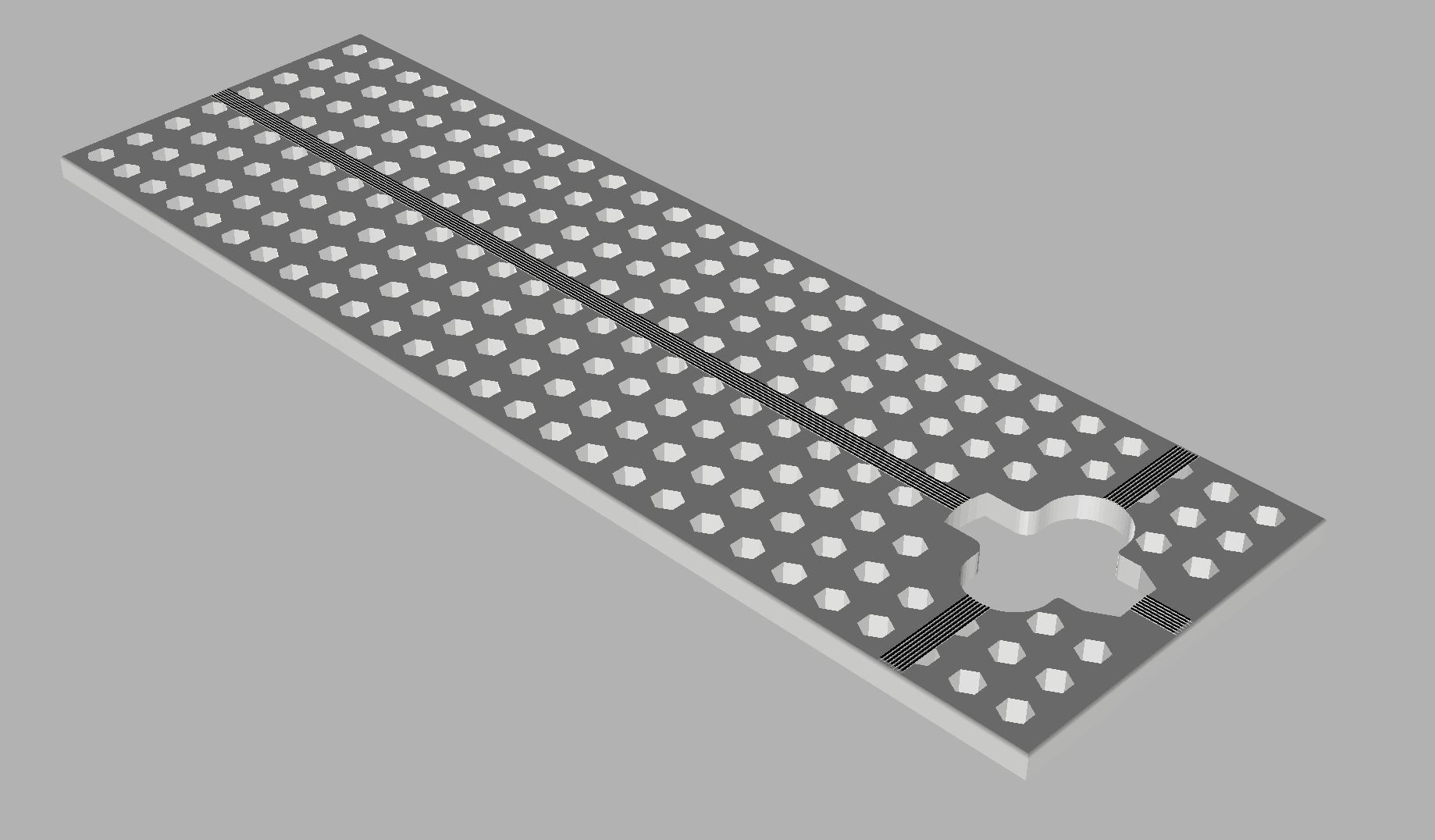

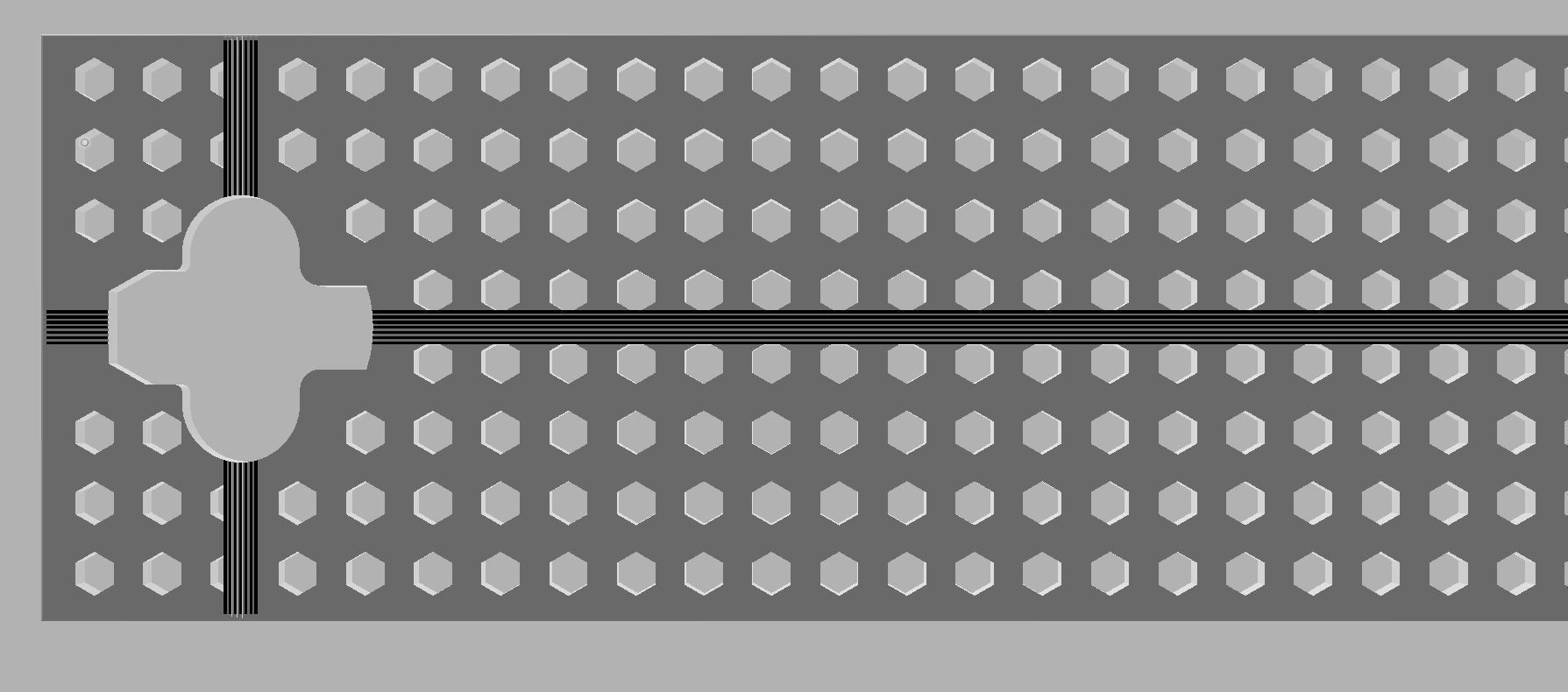

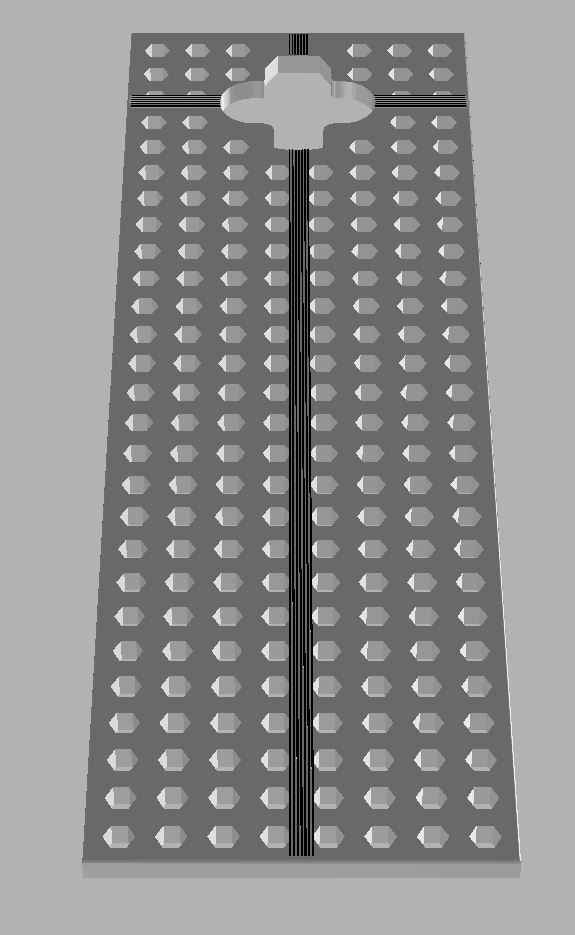

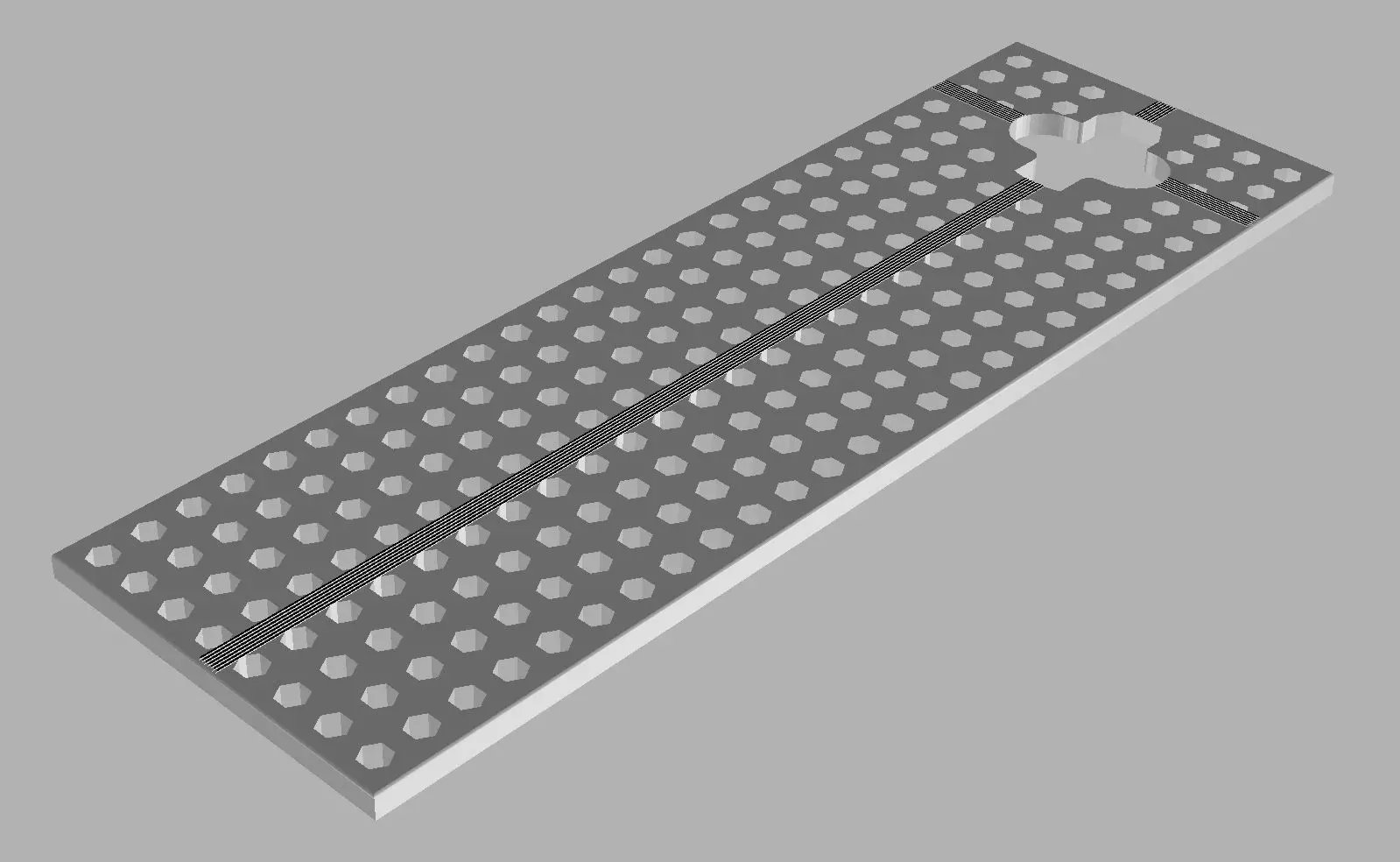

This tool allows the accurate adjustment of the three axis which are important when installing cleats.

The fore/aft position, the stance (Q-Factor) and the foot angle. It is simple, fast and effective.

With this tool you can enjoy your activities without complications.

I recommend to print the last layer with different color. Last layer contain adjustment lines. Having those in different color will help when set up the cleats position

Write comment
W
willem-57b64c
willem-57b64c2020-10-04 10:16:16 UTC
I bought this and is currrently printing. I had to change two characteristics for this tool: - I had to cut it in two to fit my buildplate (added a dovetail joint for easy (dis-)assembly) - I had to ad an extruded ridge to the outline of the SPD cleat, as a MTB shoe has profile, effectively hiding the cleat. This added ridge will allow the cleat to be 'captured' in the recess. If you want my changes, please let me know (I am not a very clean modeler, but it did the trick) Update: I have printed the model, with the ridge. It now seems that the shape of the SPD cleat is wrong. It just doesn't fit, the top (pointy) part is off. I would appreciate an updated version with an actual SPD cleat shape?
