MK V undersuit 3d print files 3D print model

This is a fan made replica model, and neither myself nor this product is affiliated with Microsoft or 343 industries.

3d file in .stl format for 3d printing with all added detail from game textures.

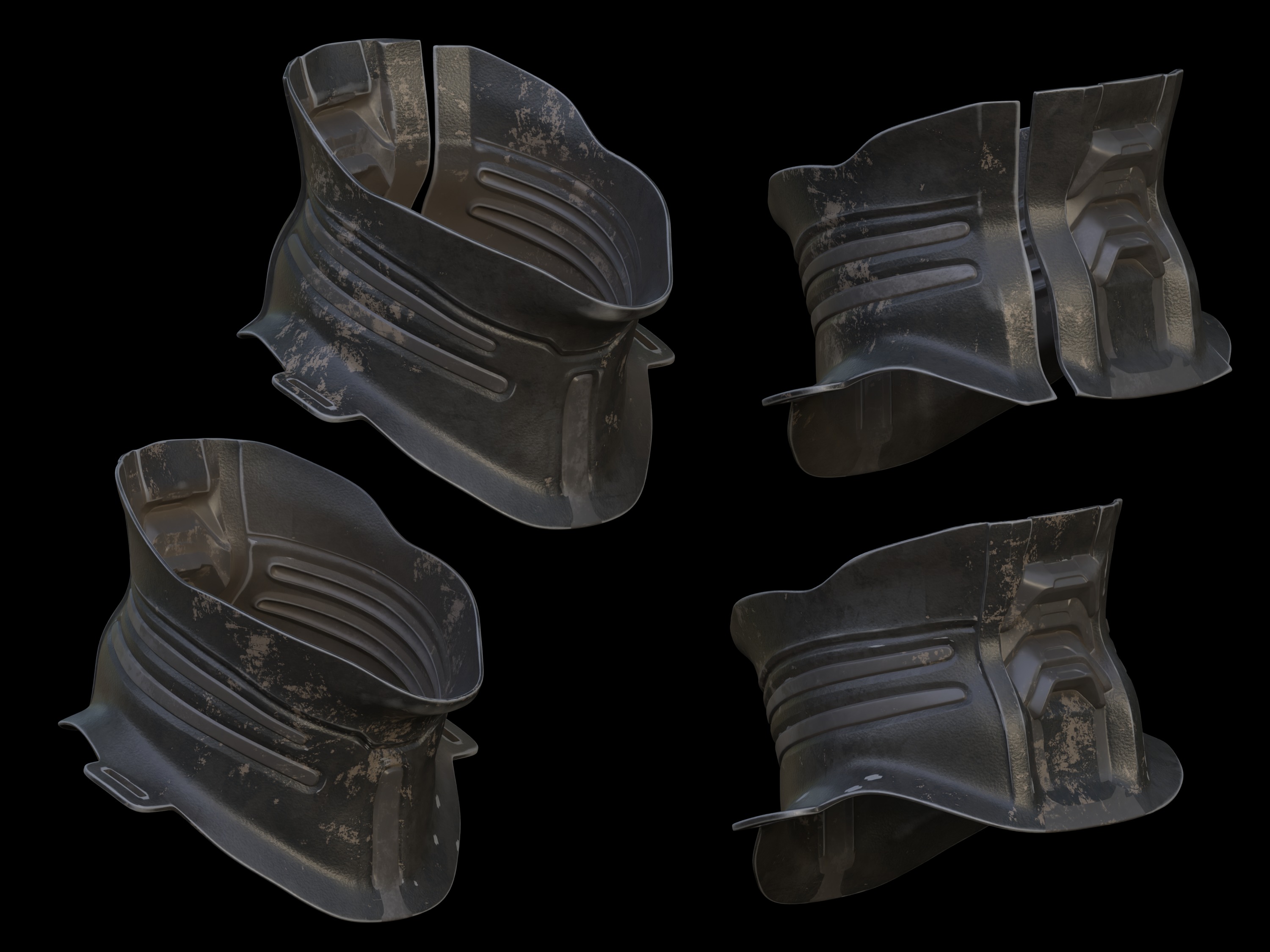

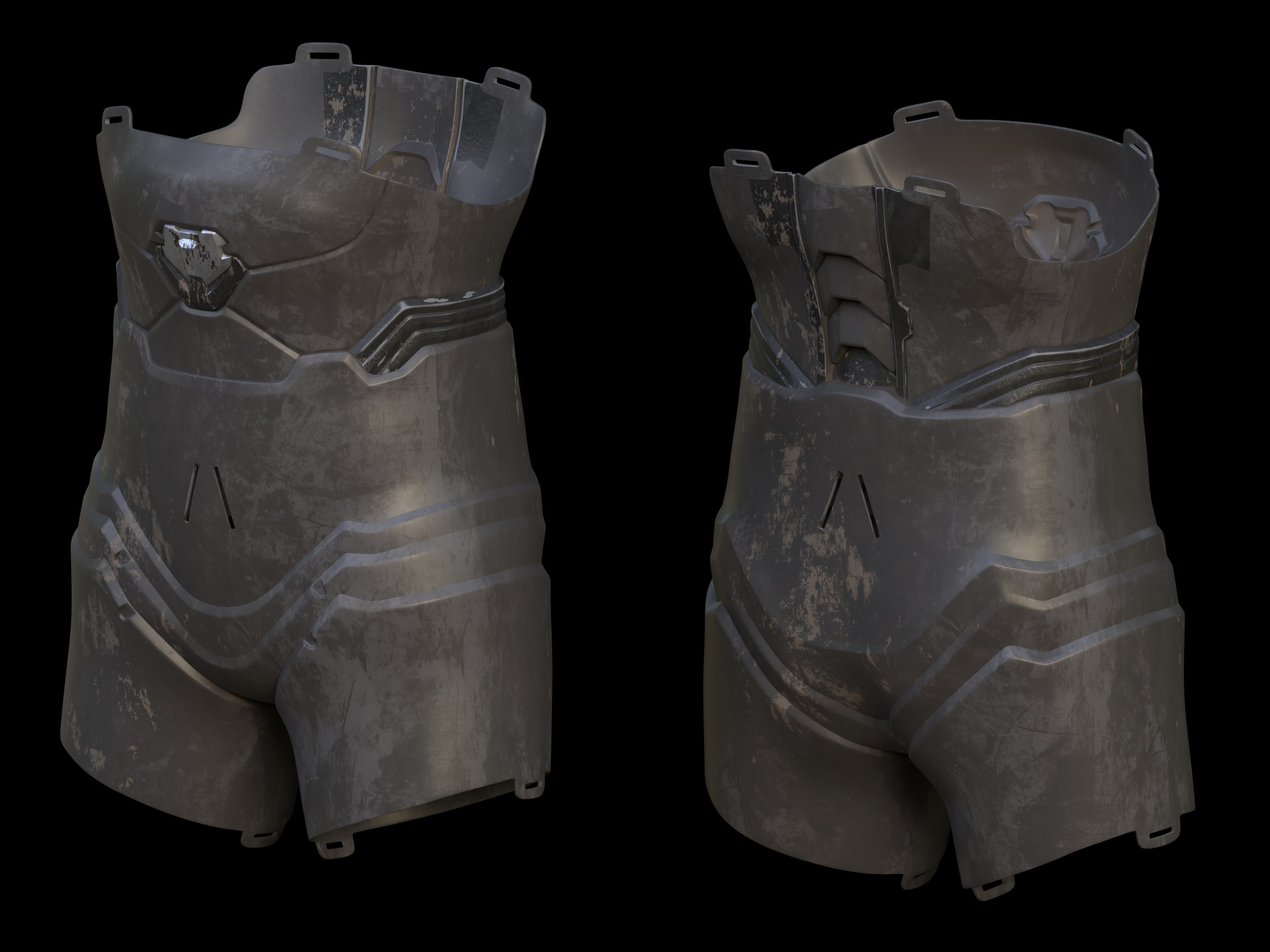

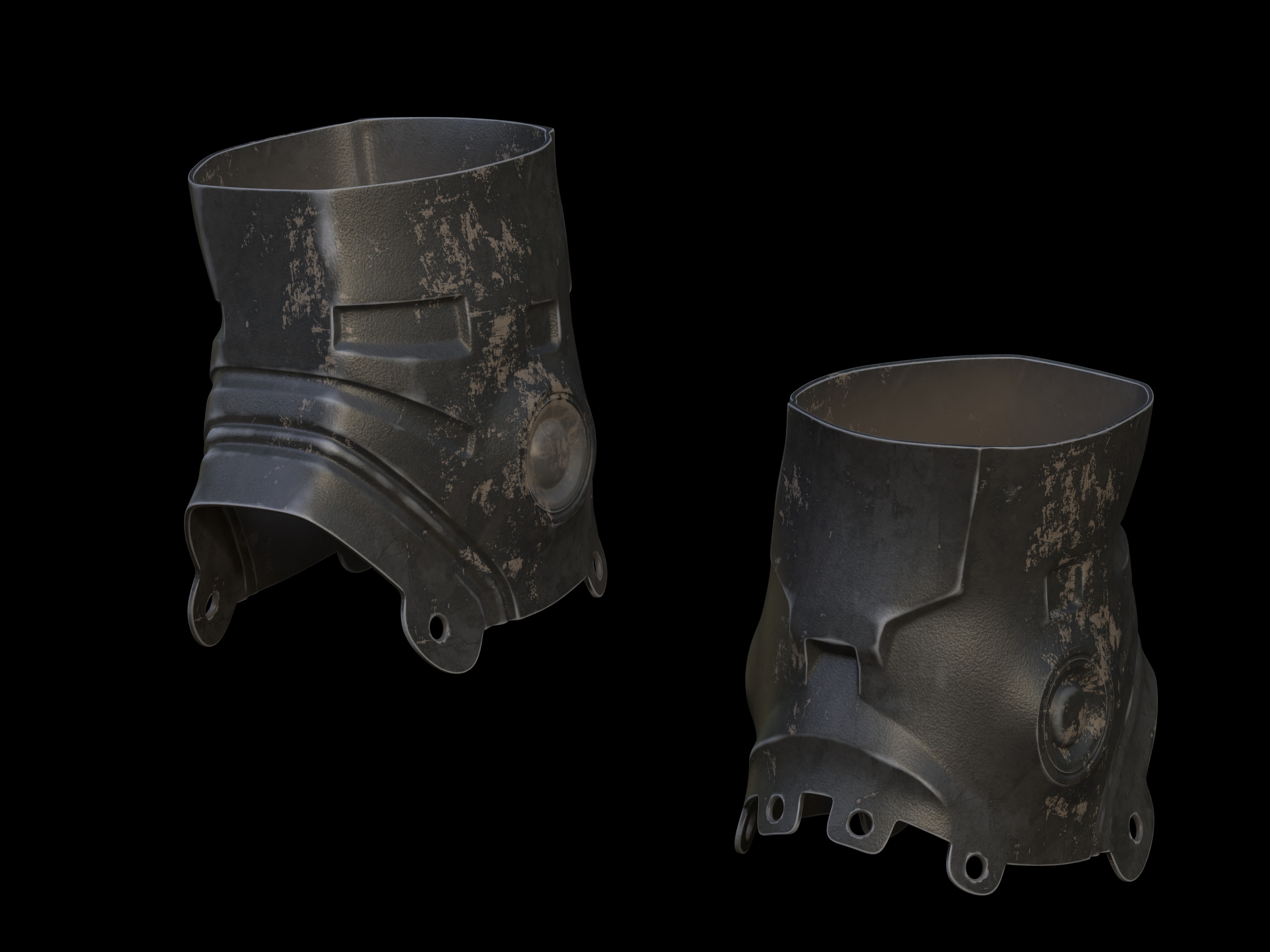

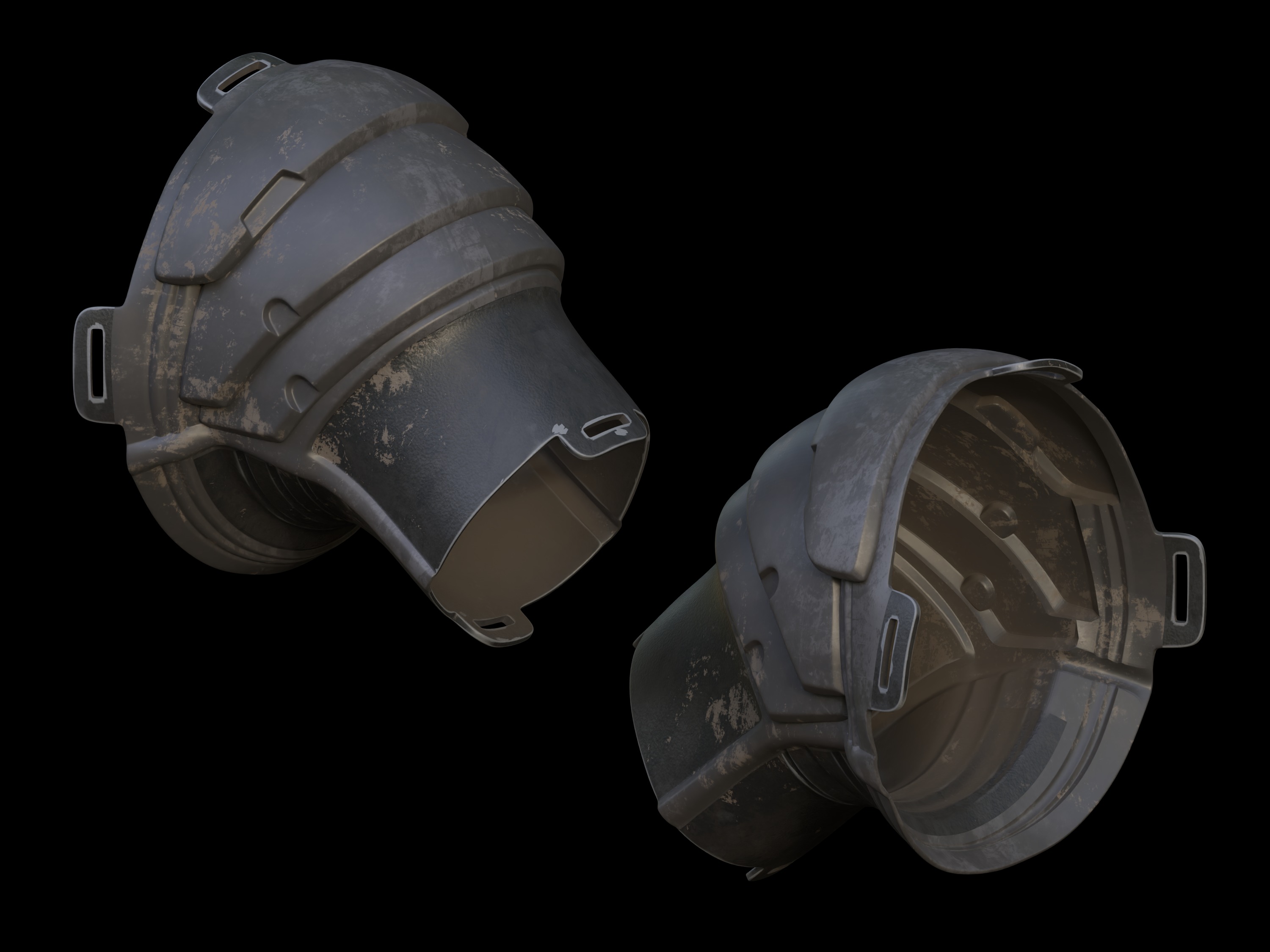

Includes three file packs with the chest mount for pepakura, undersuit core, neck seal, neck seal open, shoulder, elbow, glove, glove solid, knee, and boot (ankle cover). Also includes the low poly or foam version of some of the major suit pieces to be used with pepakura. The files included are either the only part (core and necks) or are for the left side and need to be mirrored to get the right side.

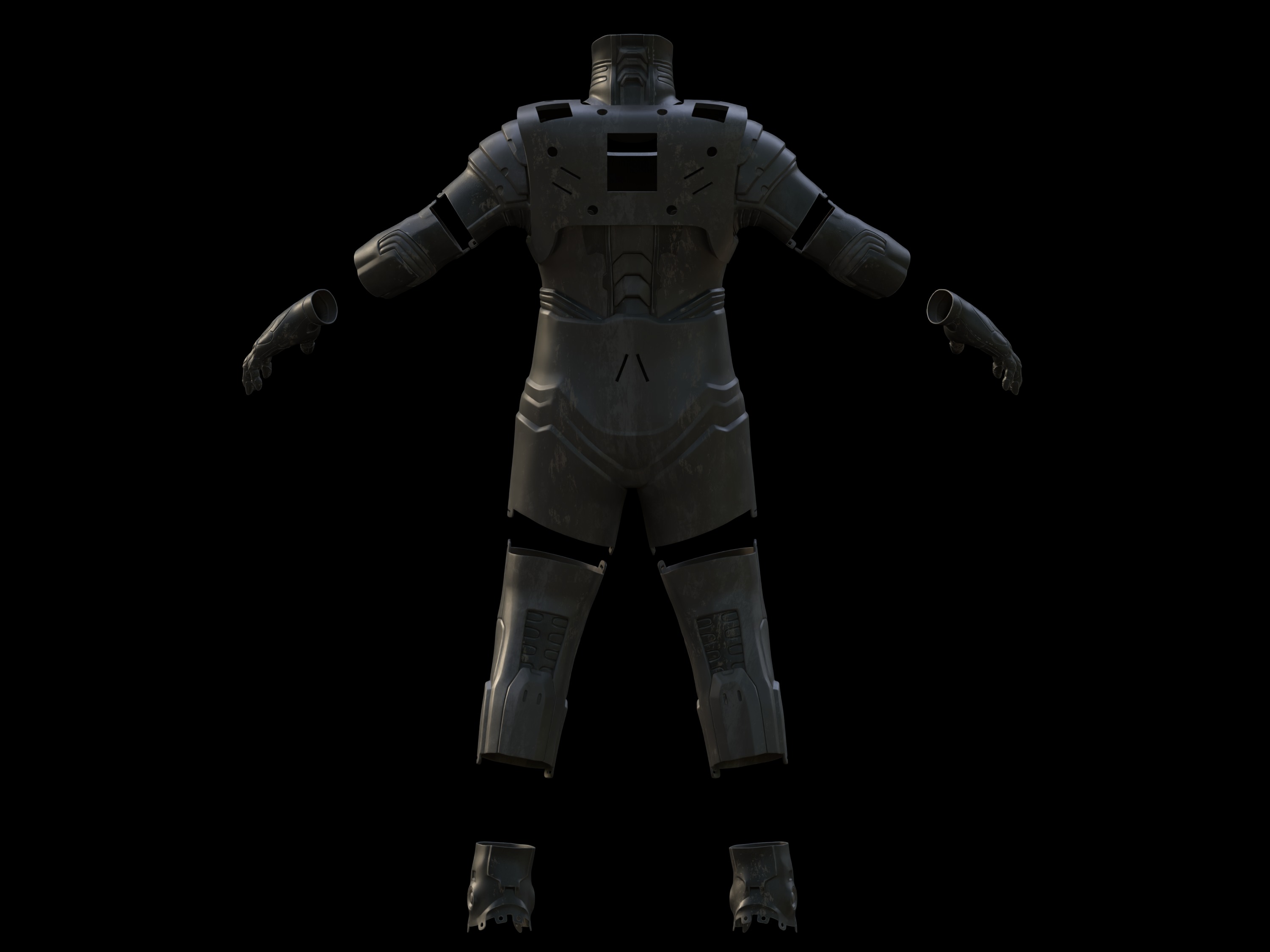

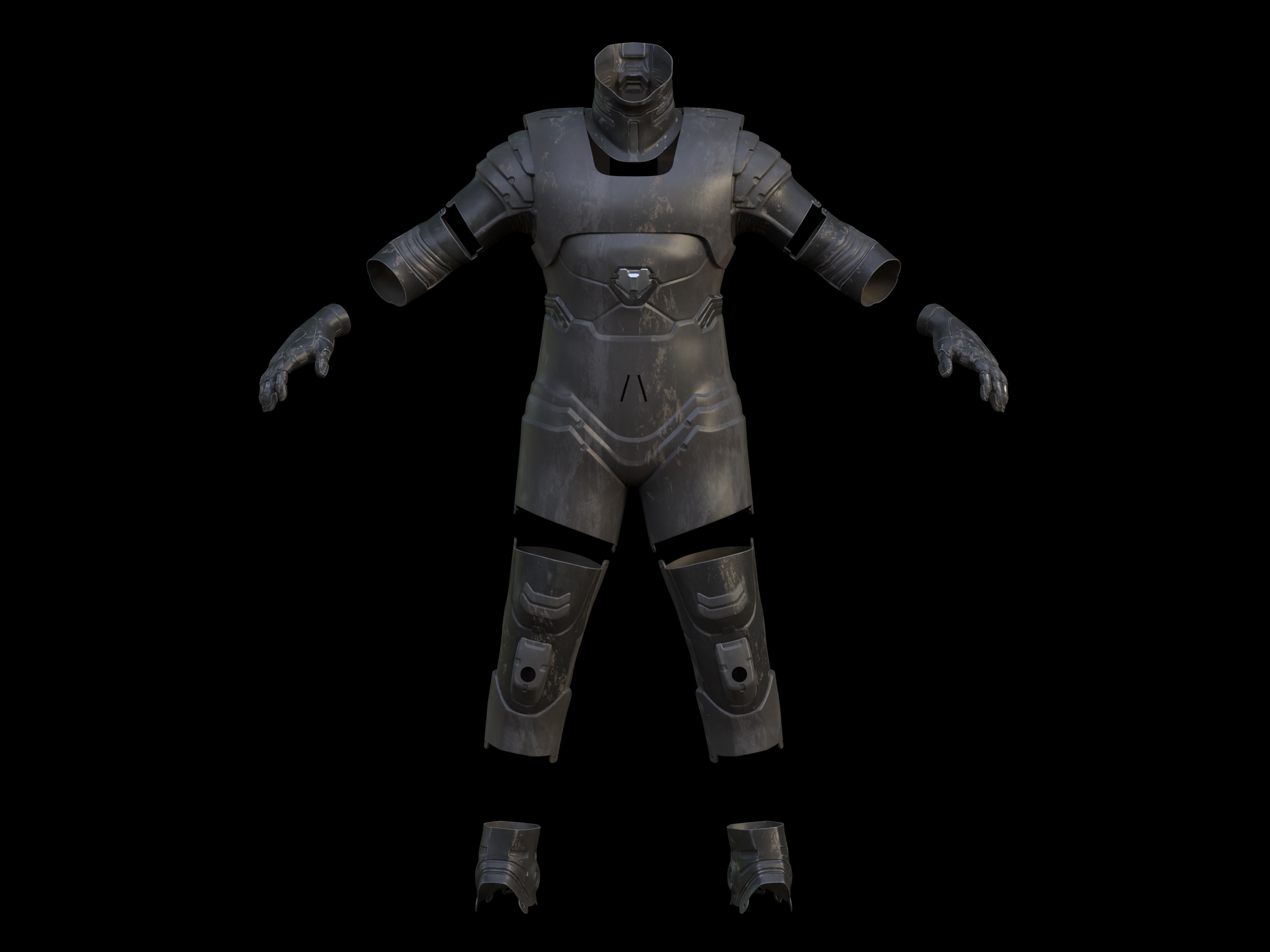

The undersuit has been designed to properly reflect the in game undersuit, but we know that everyone has a different body and to help the builder have more customization in scaling, this suit has been vastly edited with proportions to better fit a person more than all the other suits. Keep in mind you can also make some parts shorter, longer, or thicker to fit your needs better before printing.

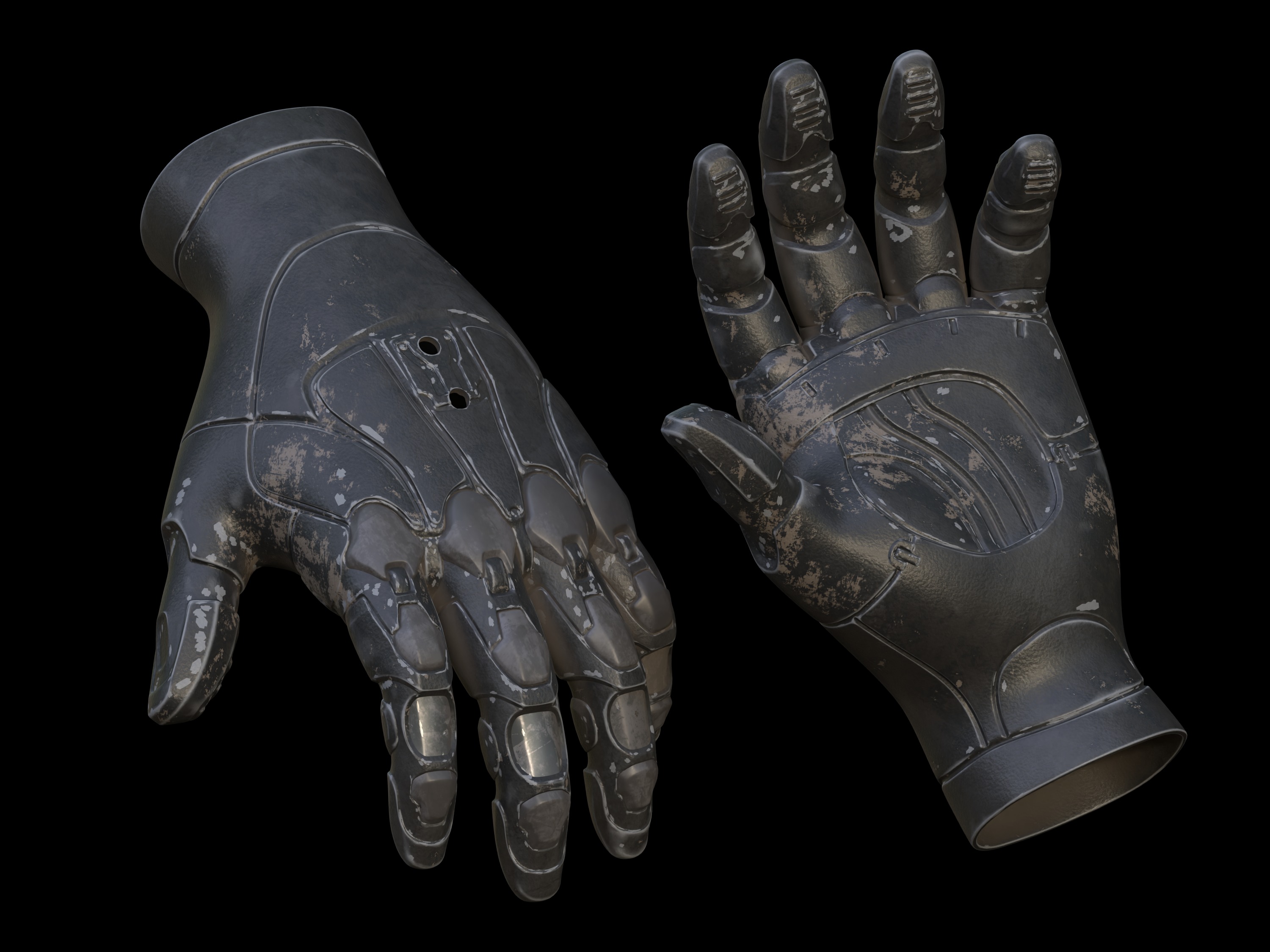

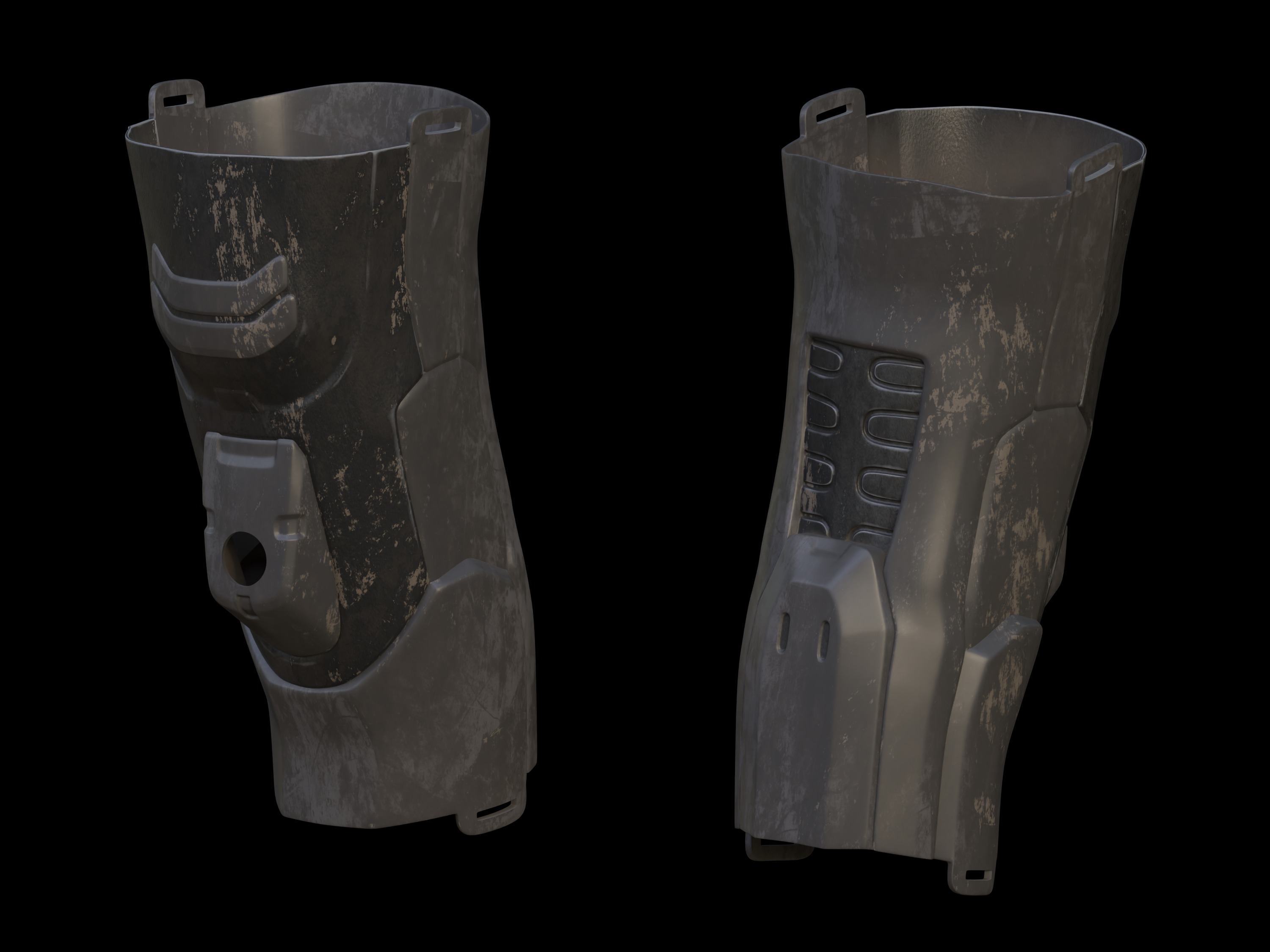

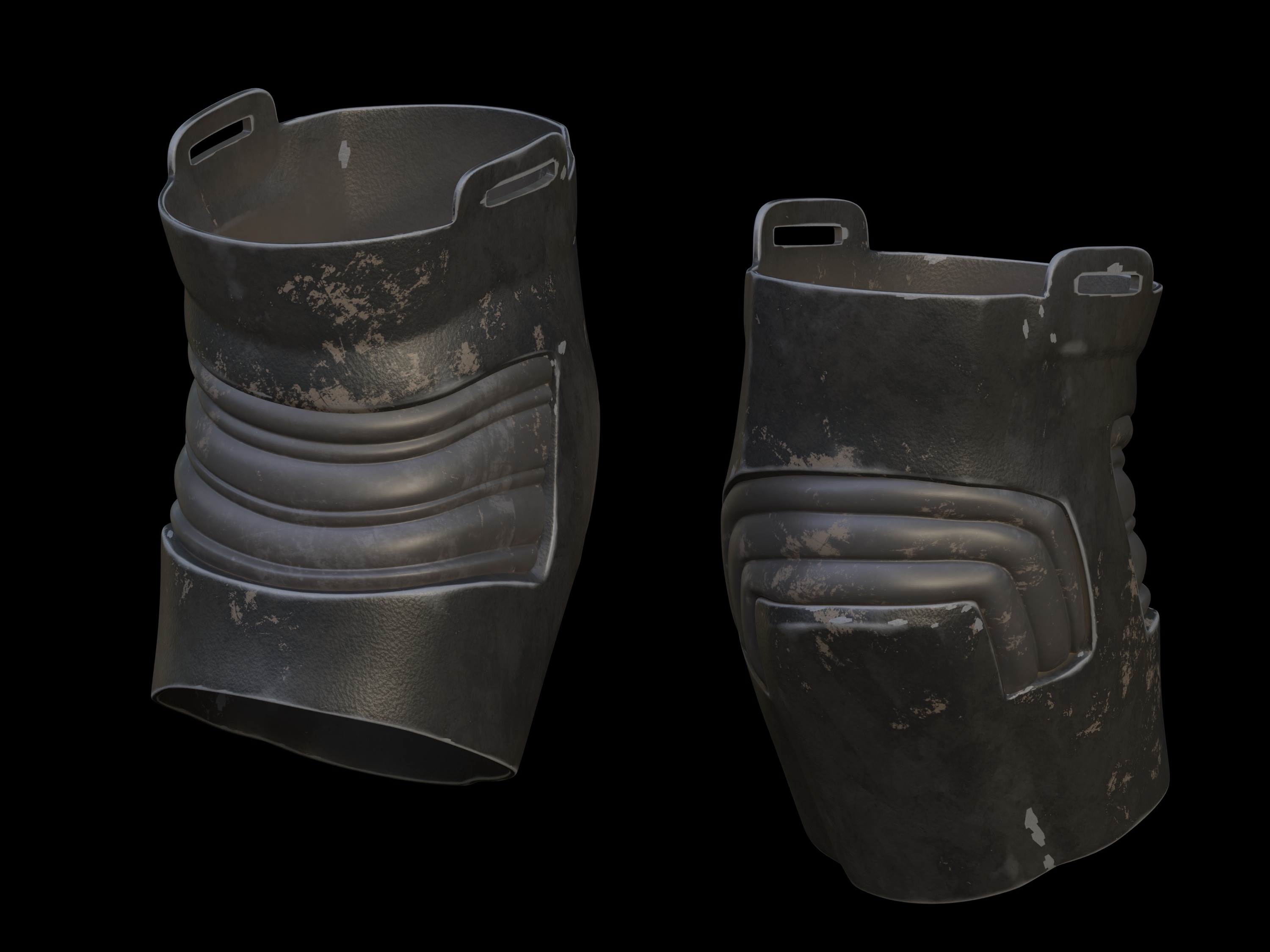

The glove and knee have holes in them for attaching the respected glove armor and knee armor for undersuit parts that sandwich between the undersuit. The glove has been edited to also have air slots in the fingertips to help reduce suction when sliding the glove on and off.

To help with scaling I would recommend armorsmith.

Undersuit is scaled roughly for a 5ft 10in individual, but highly recommended to re-scale each piece corresponding to your specific needs. Please keep in mind this is supposed to not be skin tight, think of it more as a more bulky space suit, not a tight divers suit.

Feel free to message me directly if you have any questions. Printer too small? I would recommend a slicer software for your printer, PrusaSlicer is free and easy to use. It can cut your model into smaller bits as well as any filament or printer tweaks before you print.

Interested in printing and selling my designs for your business? Business use Patreon membership is available, note this only gives access to sell physical prints while the membership is held, no digital file selling is allowed.
