Air rifle Shooting Tripod Stand for shooting sports KPN10 stand 3D print model

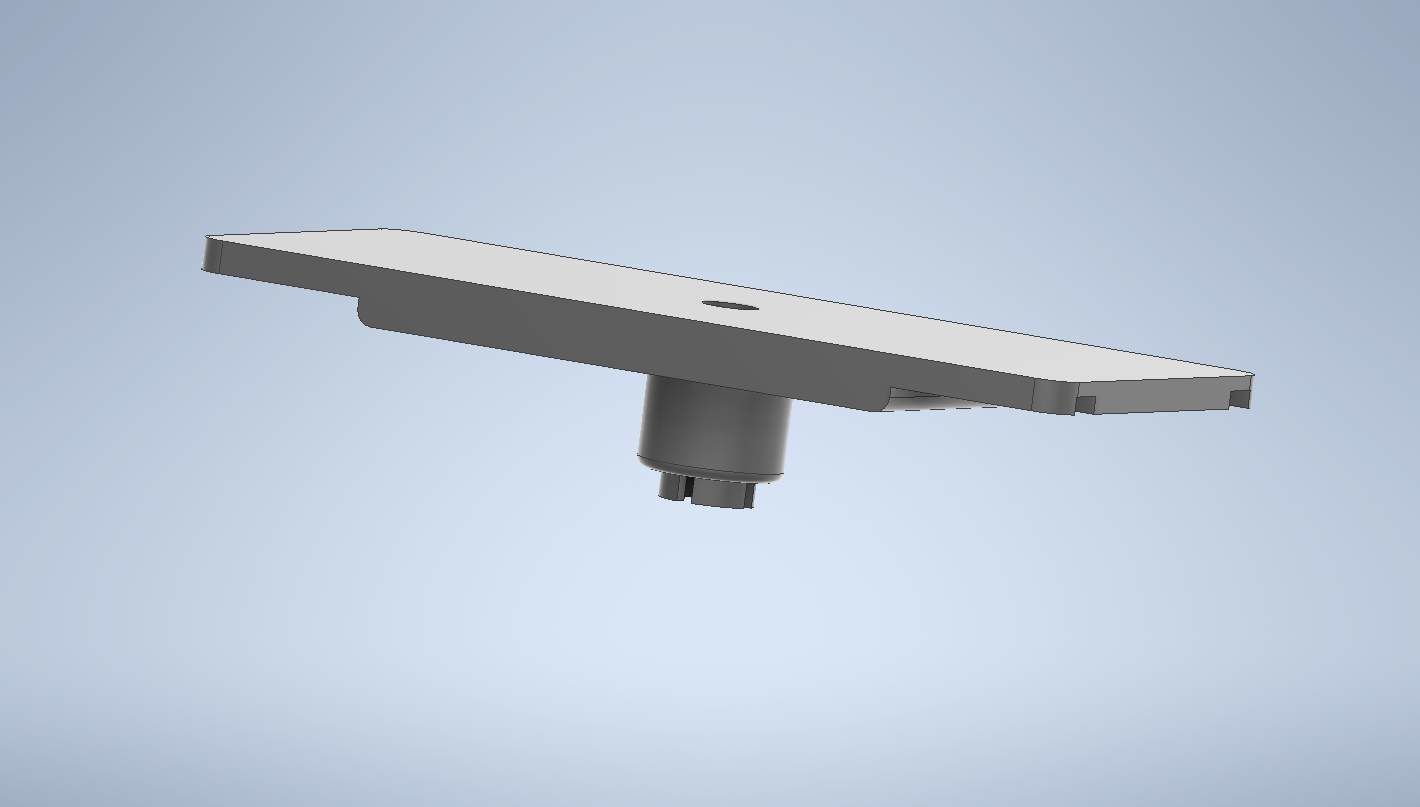

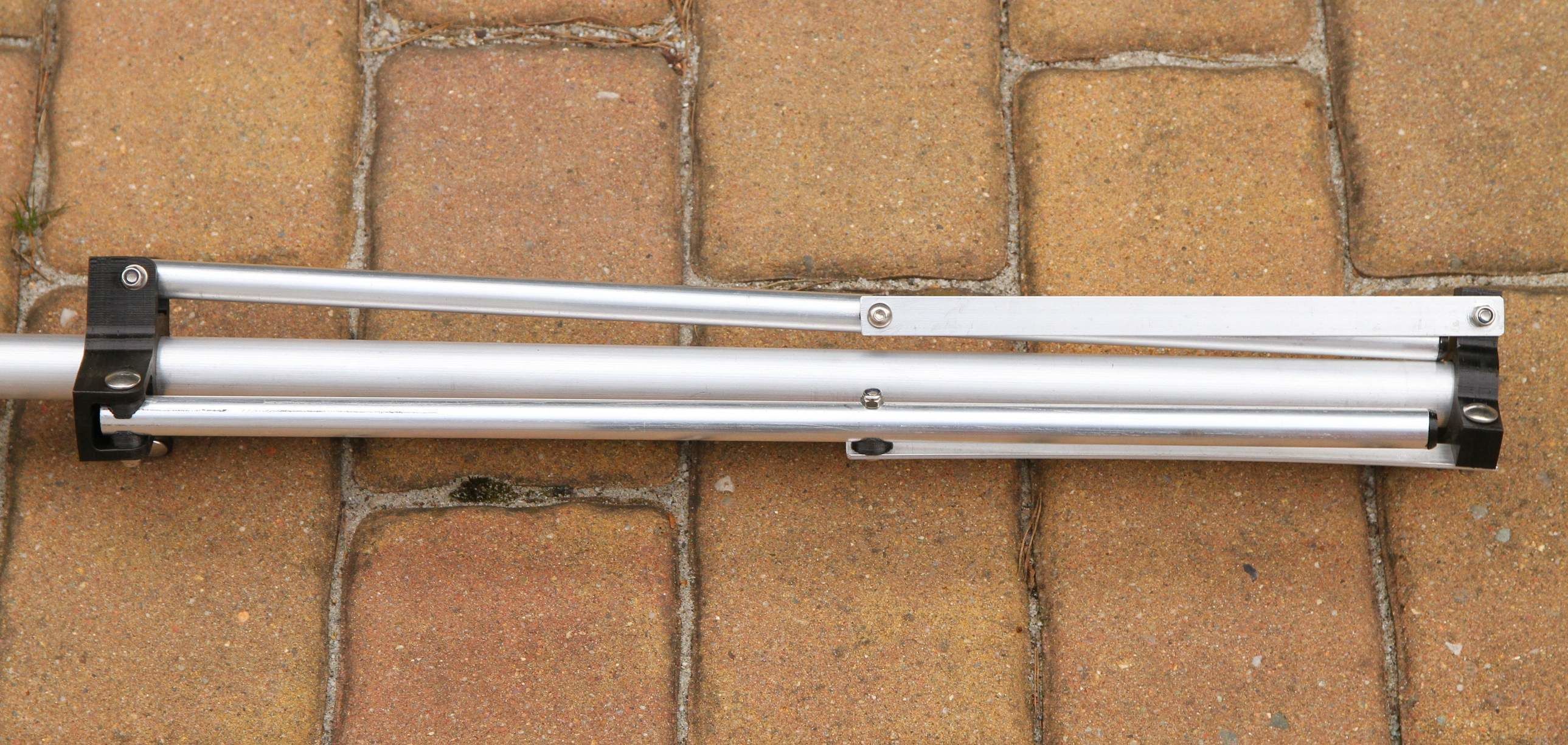

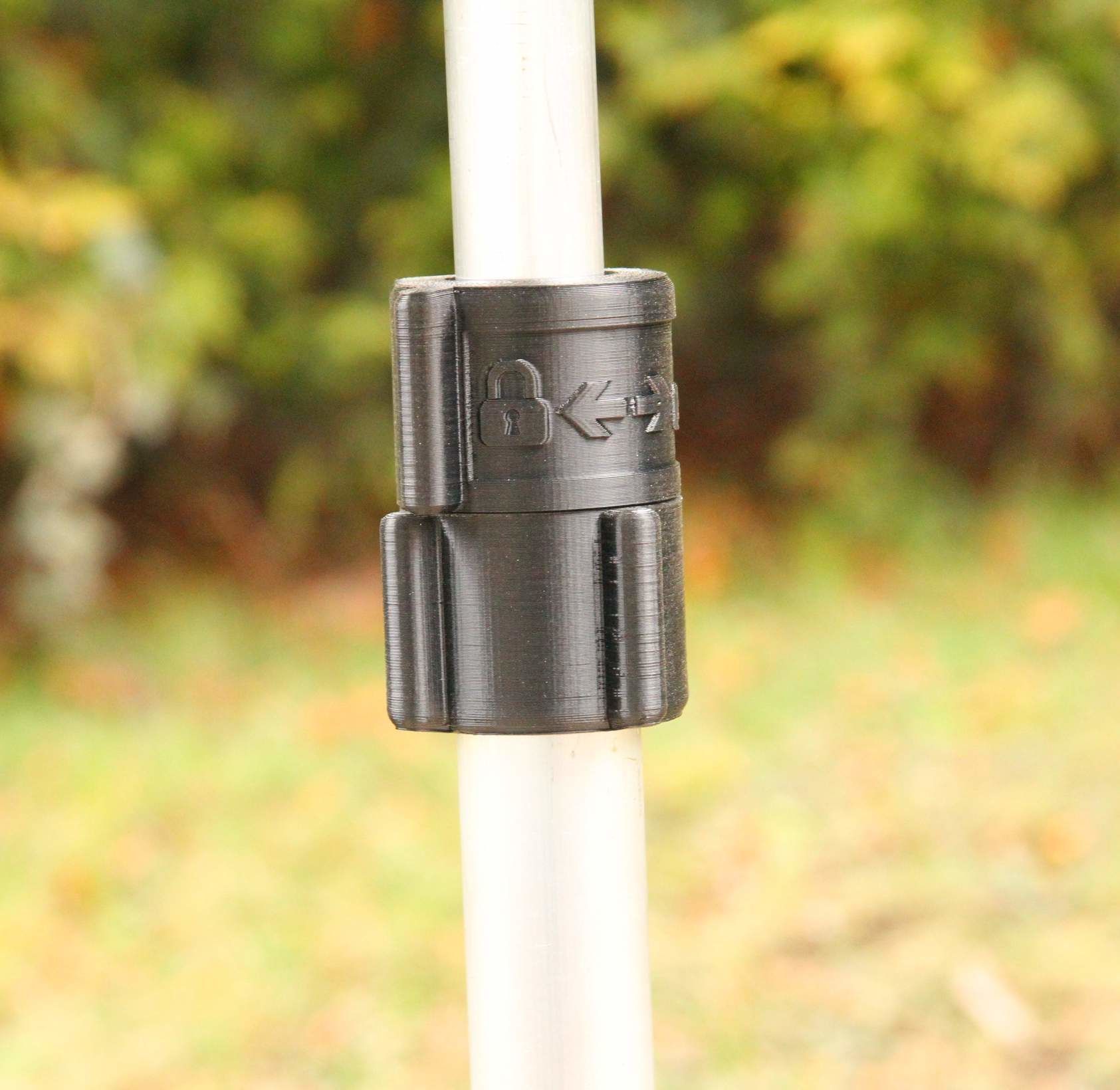

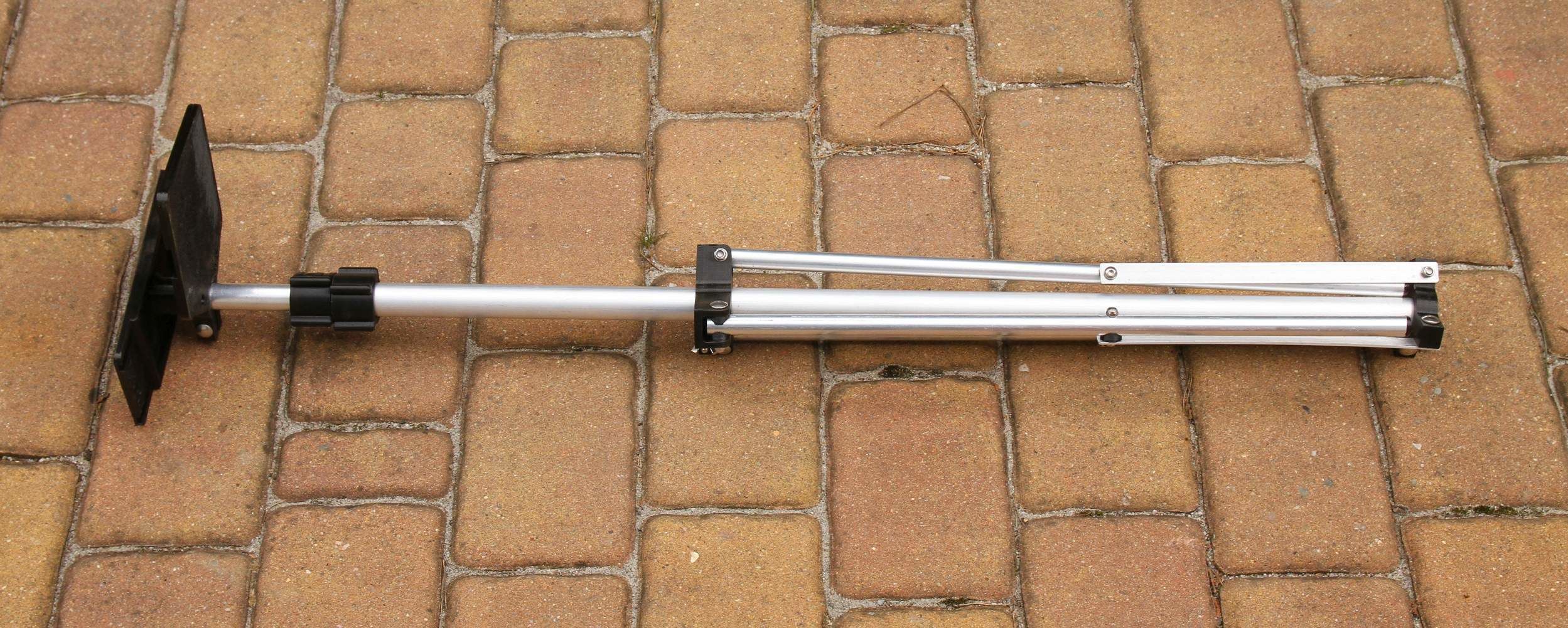

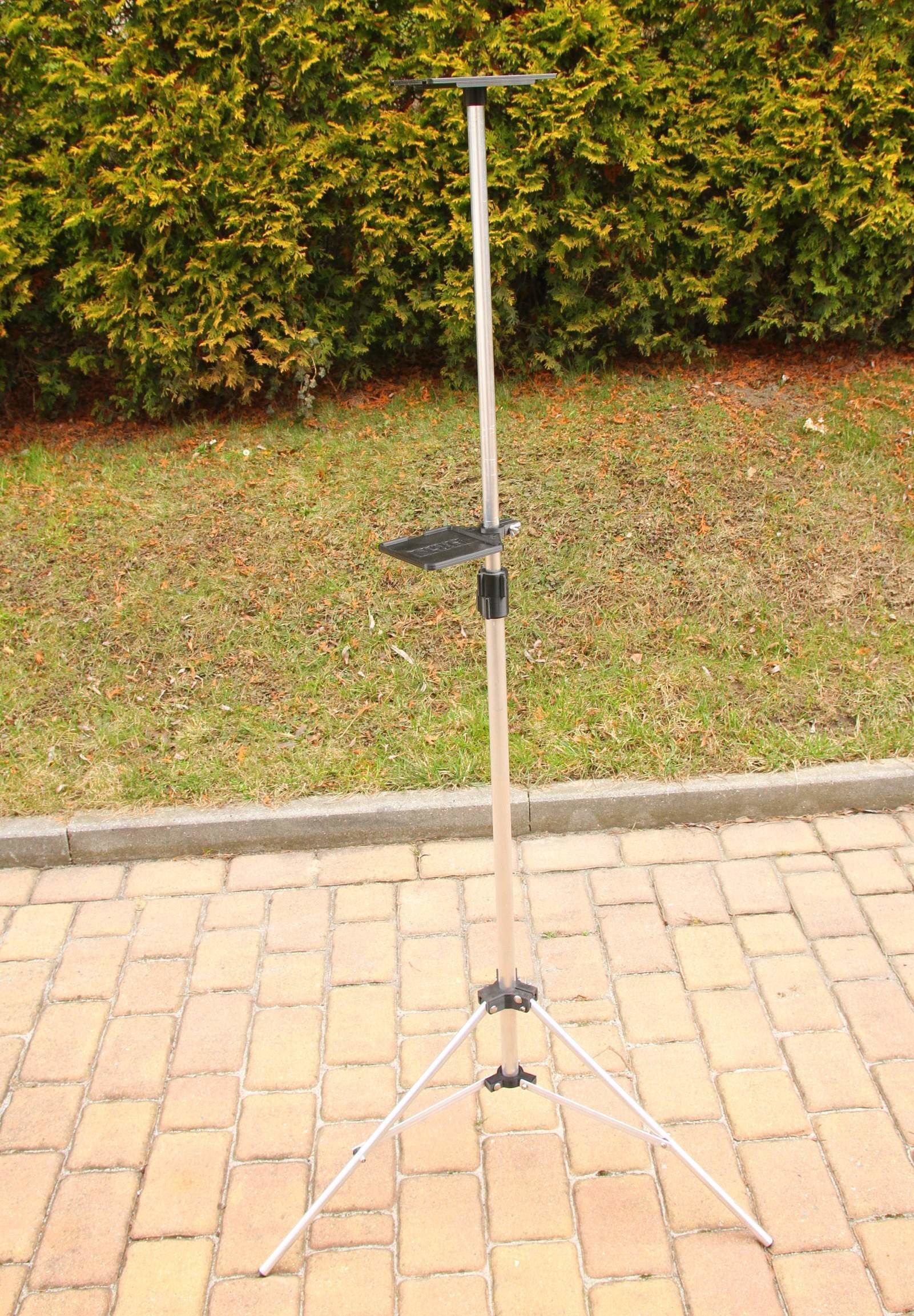

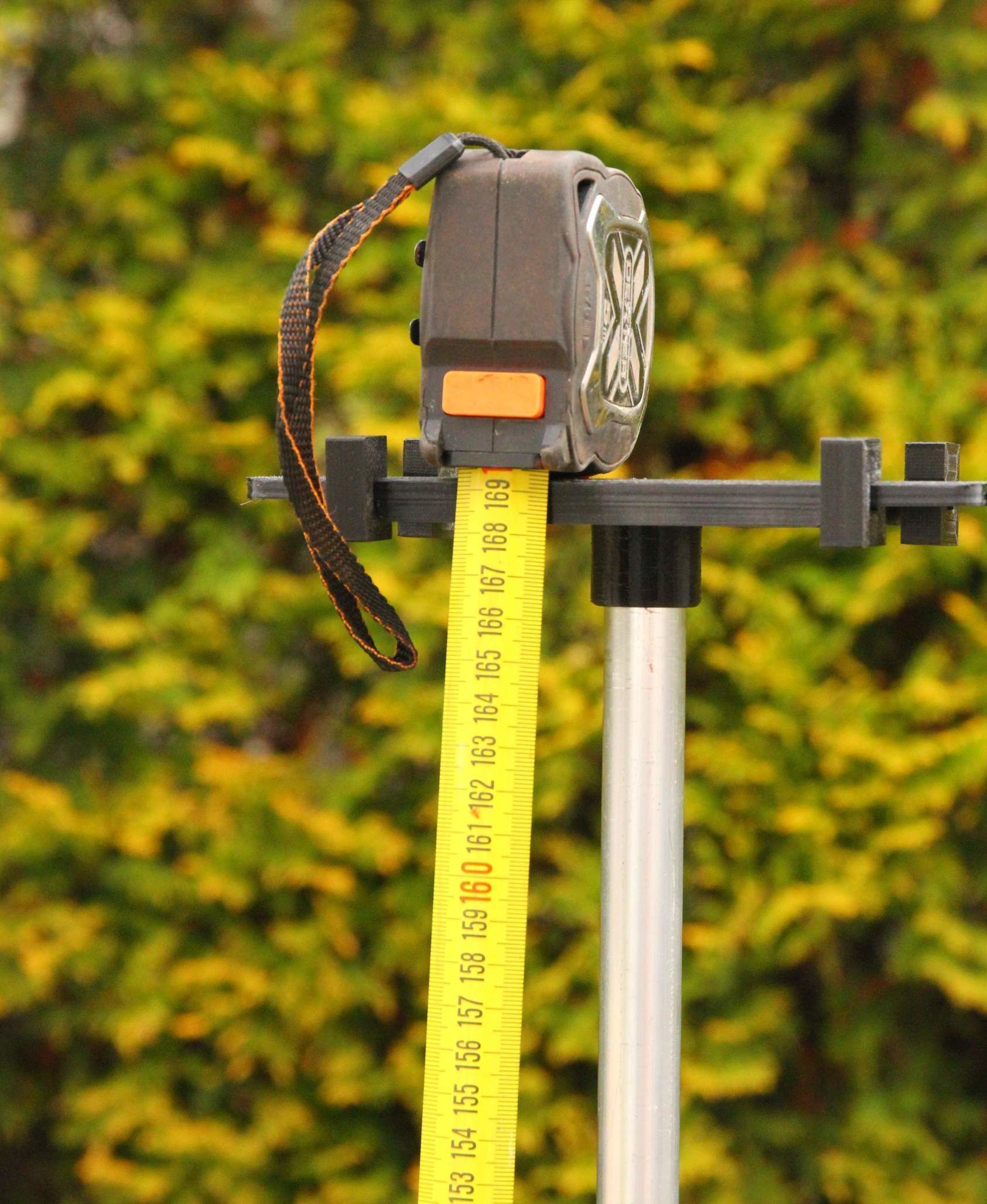

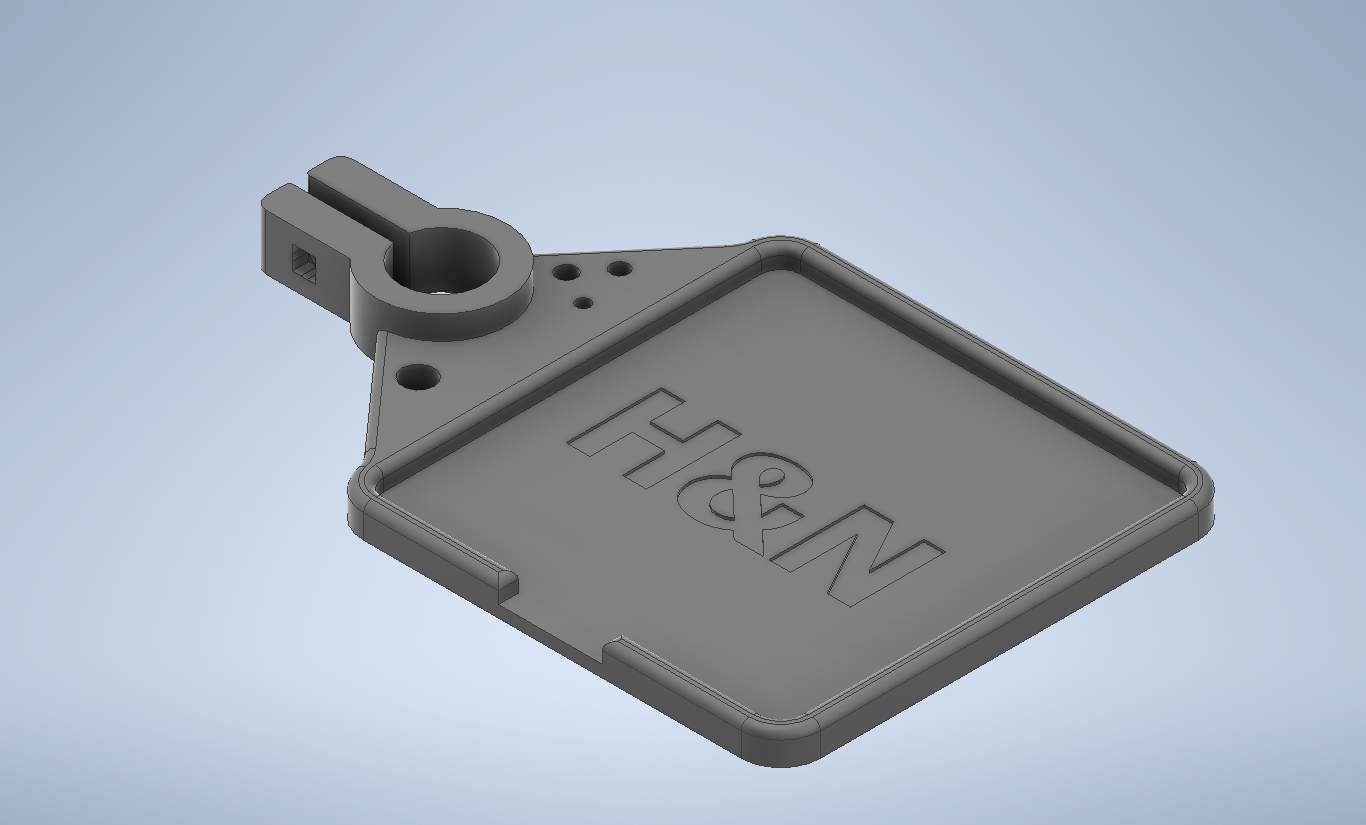

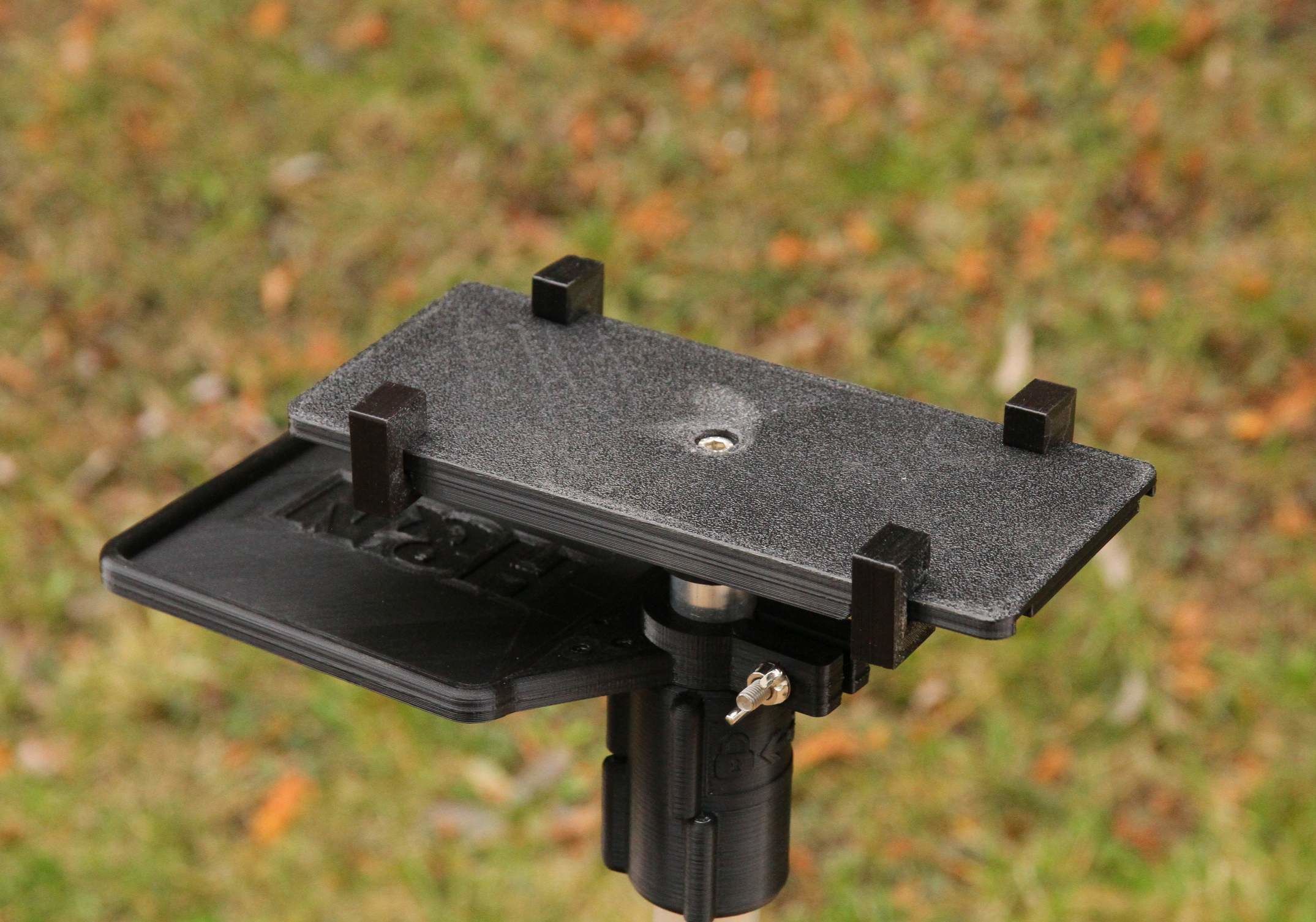

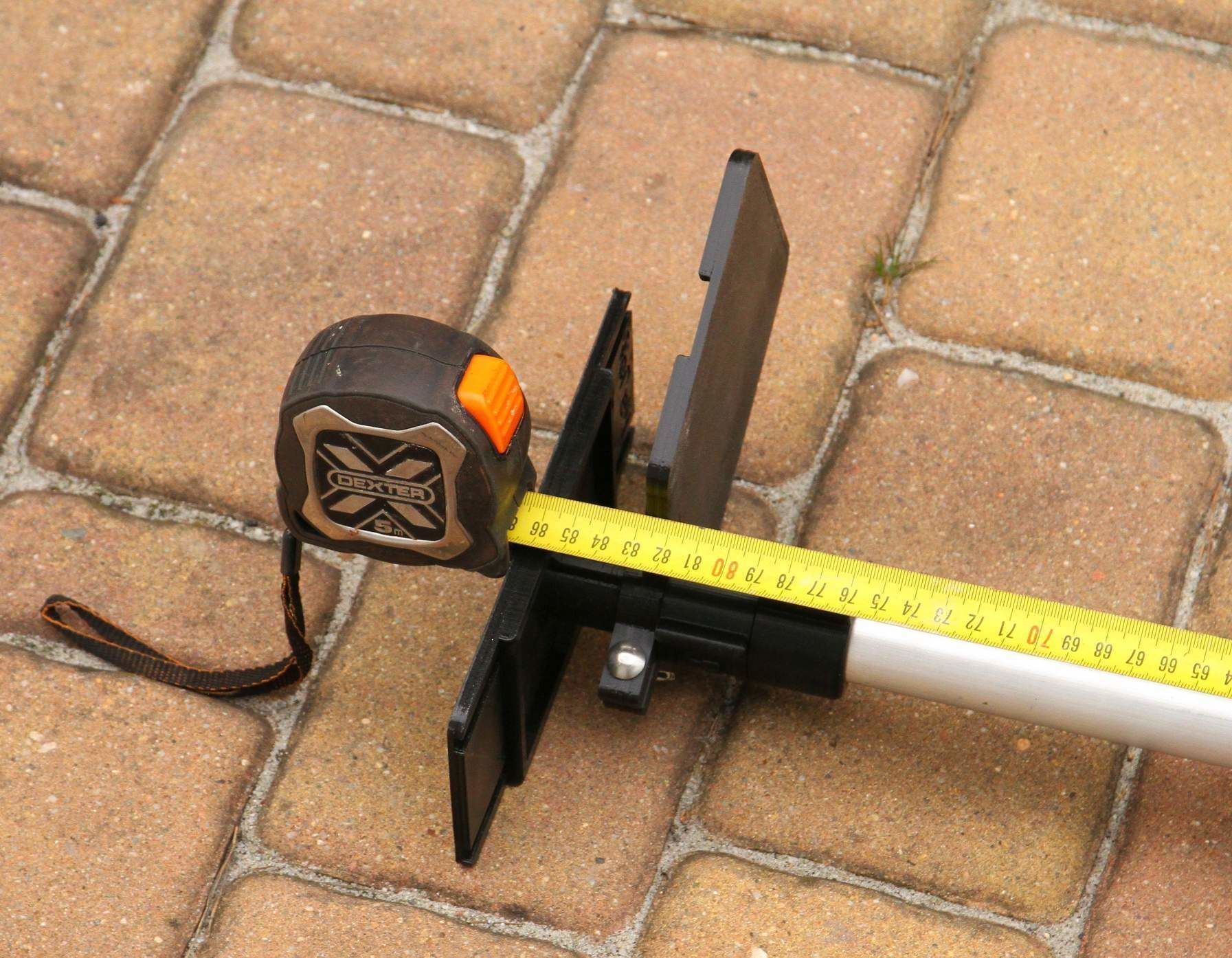

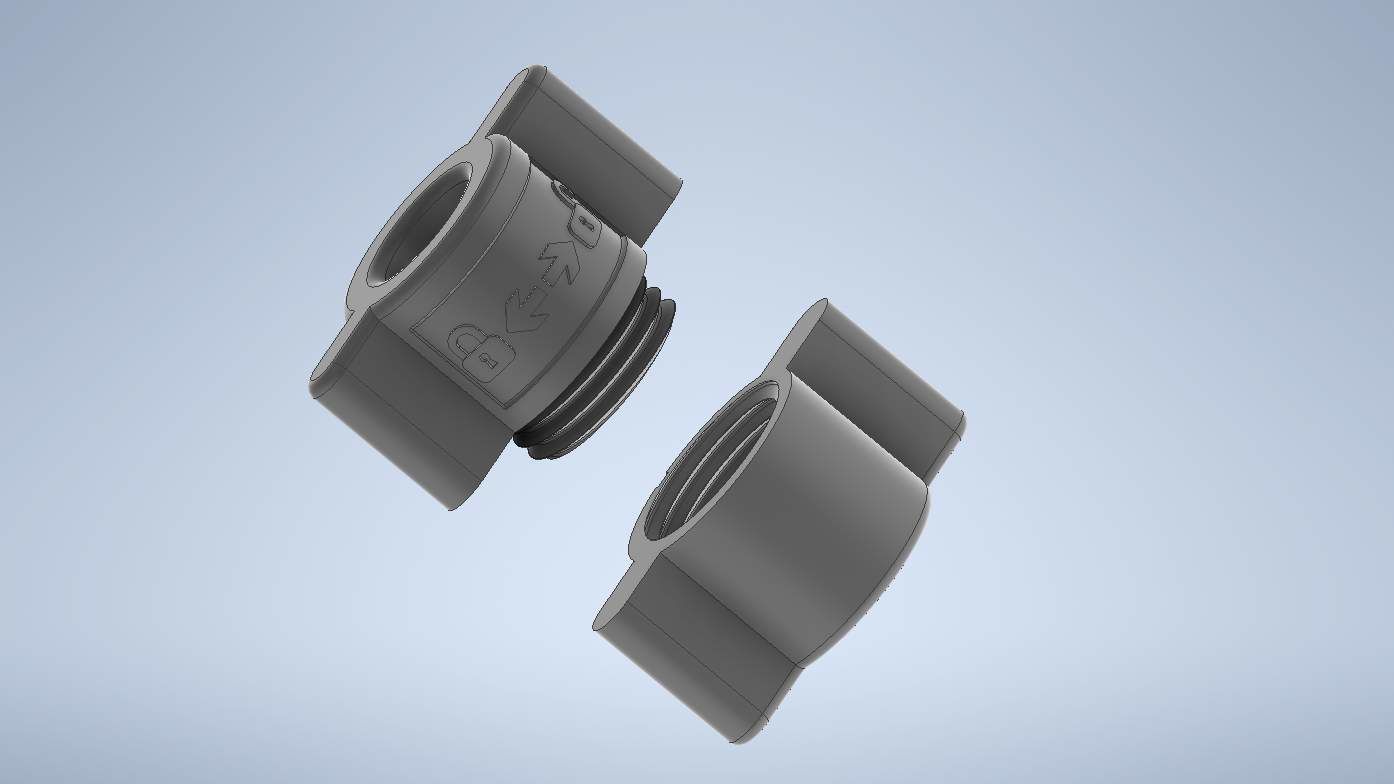

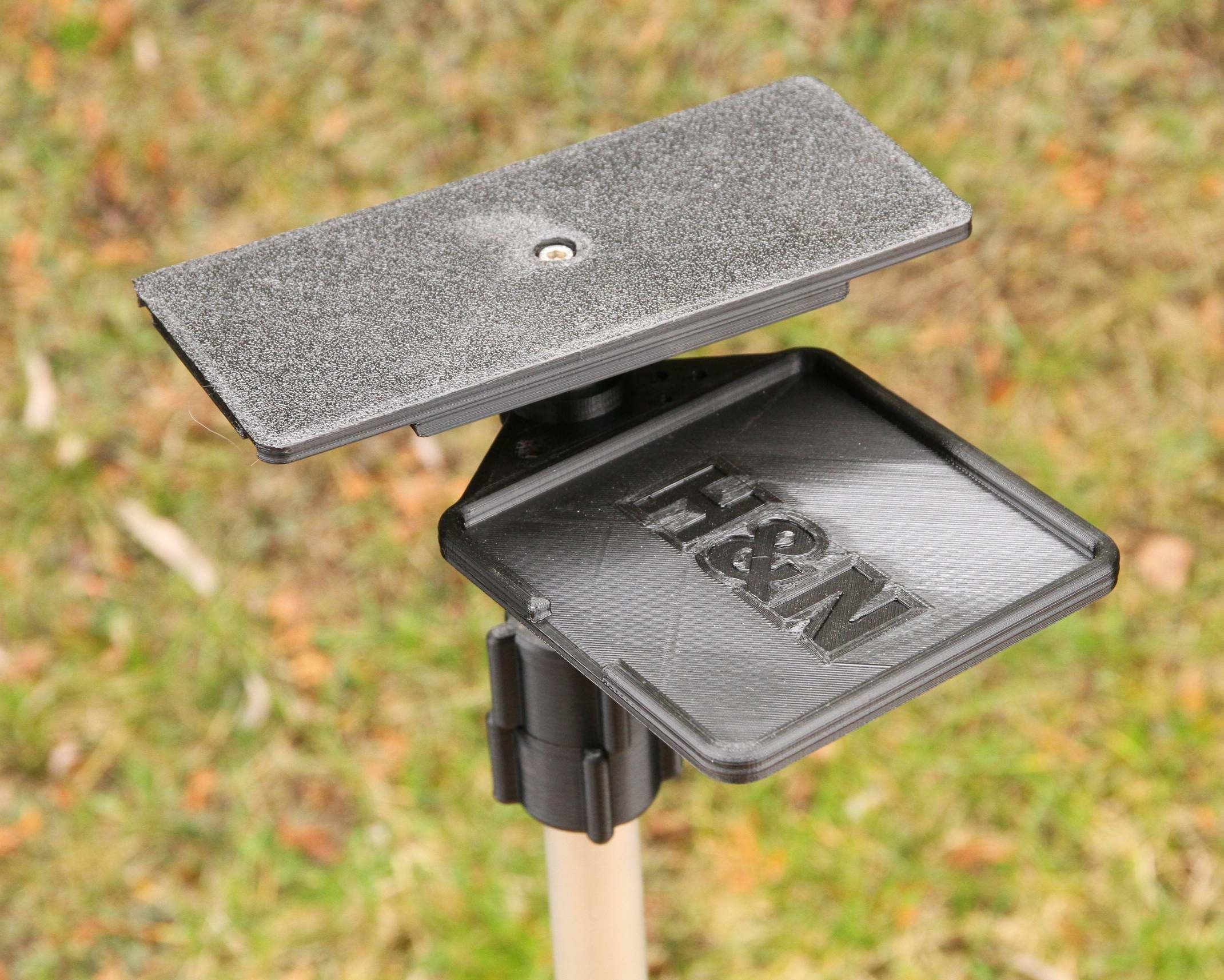

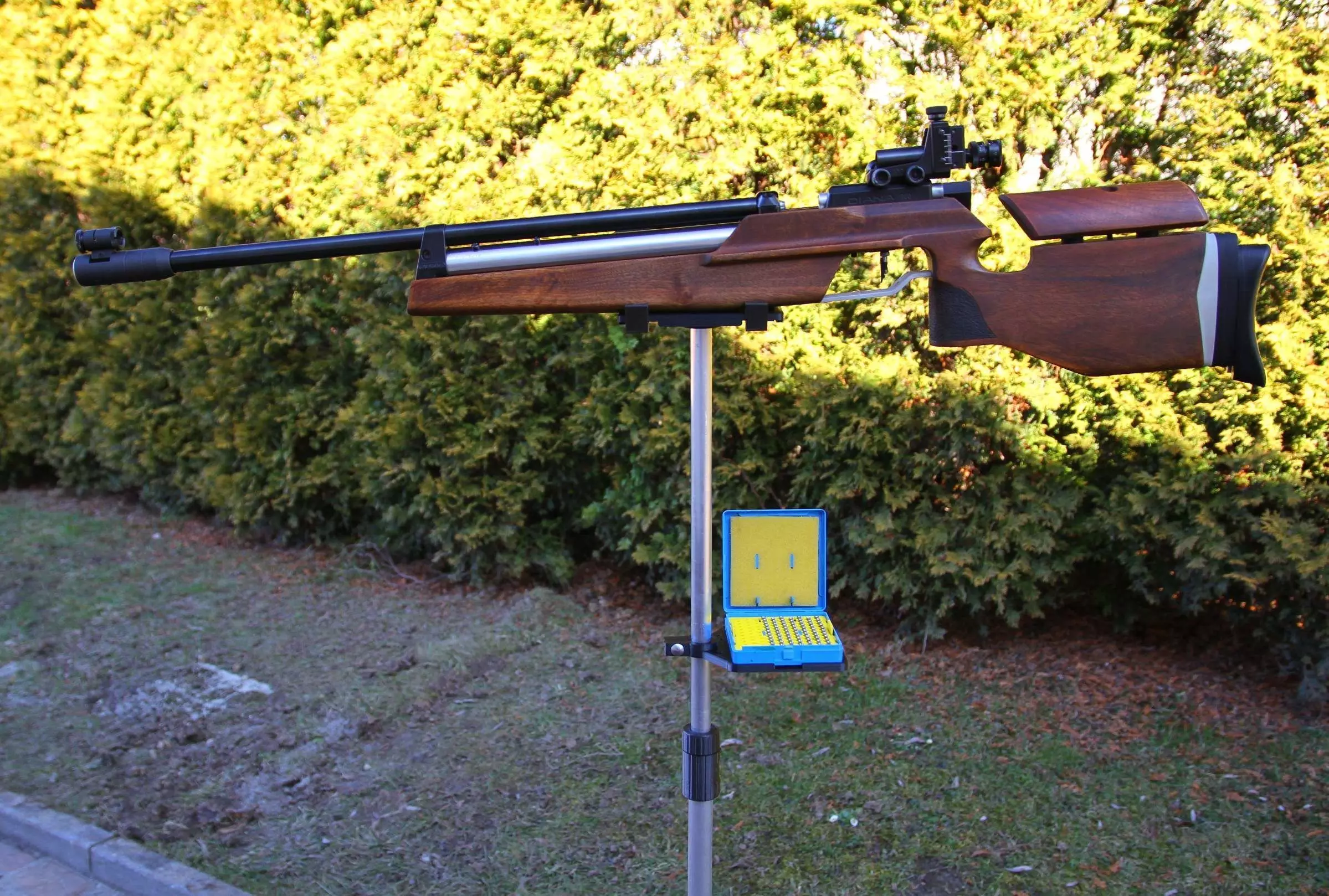

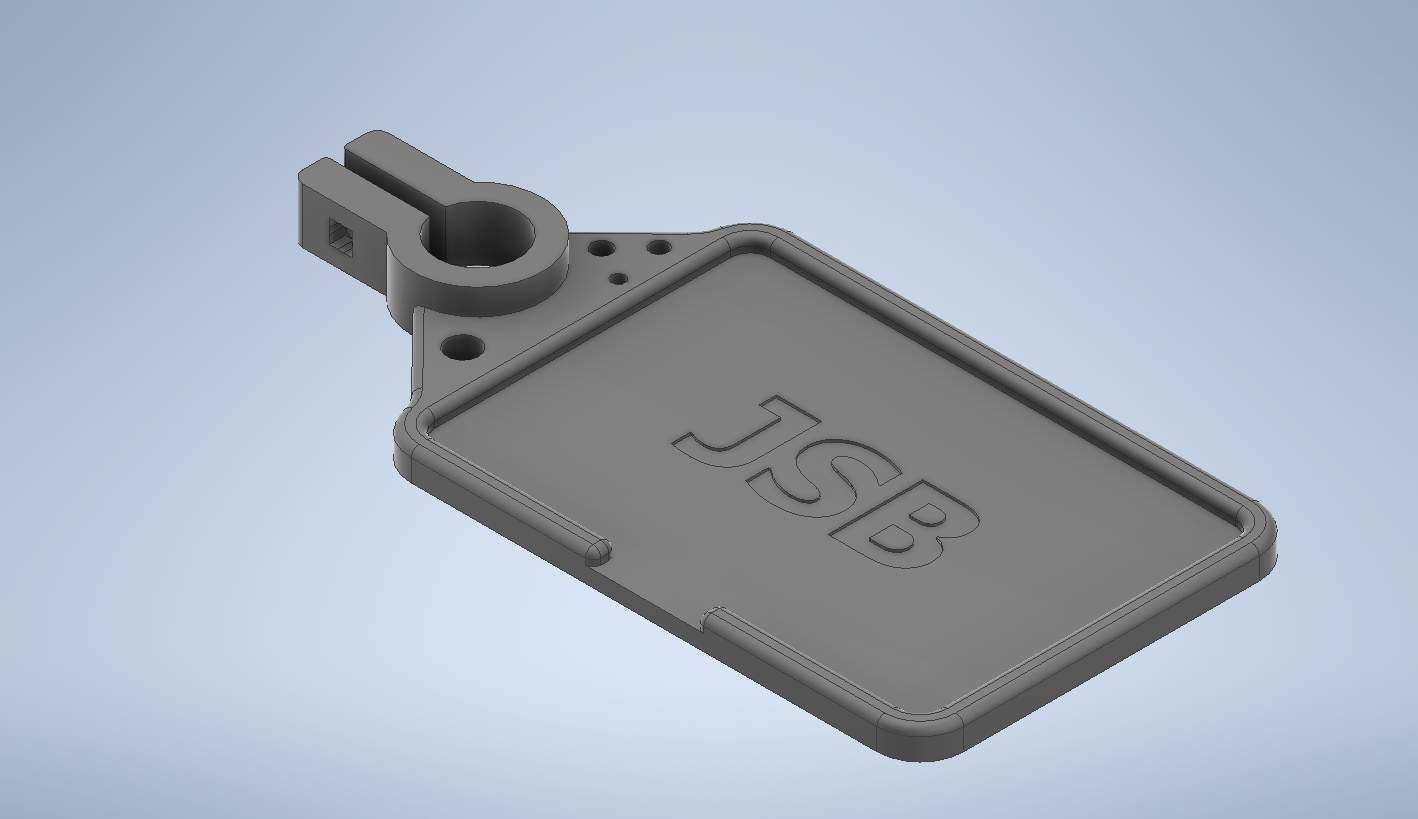

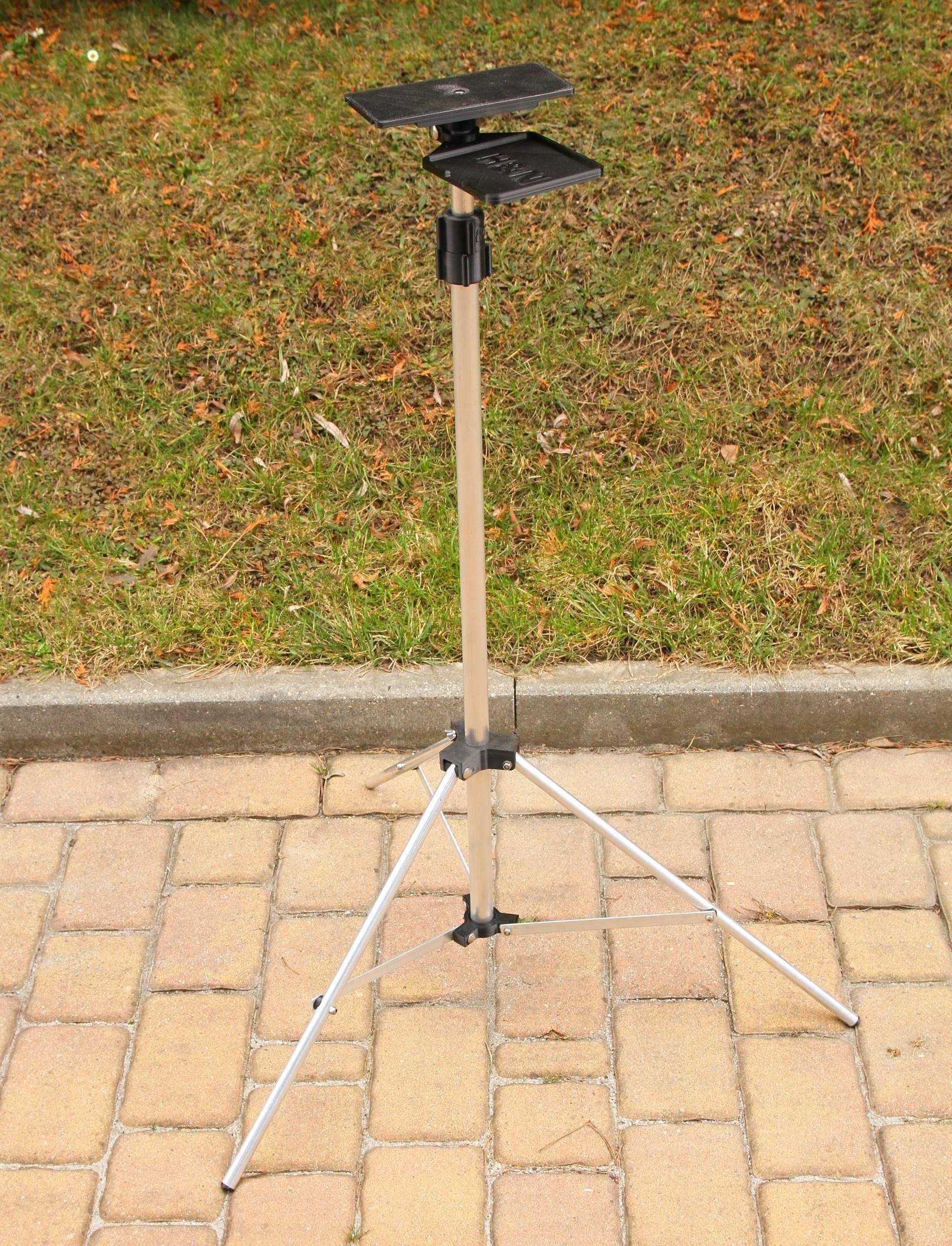

I present my new version (ver. 2) of position rifle rest used for resting the rifle between shots (e.g. KPN10). The stand has a shelf for the H&M or JSB Premium pellet boxes (alternatively). The stand also has the option of attaching limiters to the rifle support. The unique connector of my idea used allows you to adjust the height of the stand in the range from 115cm to 170cm (shotters height up to 200cm). The connector securely connects two vertical pipes that slide together in a telescopic manner. The fastener securely locks the stand in the required height. The stand can be easily folded up to a height of 86 cm. If you are satisfied with the height of the stand less than 170 cm (necessary for a shooter with a height of 200 cm), you can shorten the stand tubes to a smaller dimension when folded.

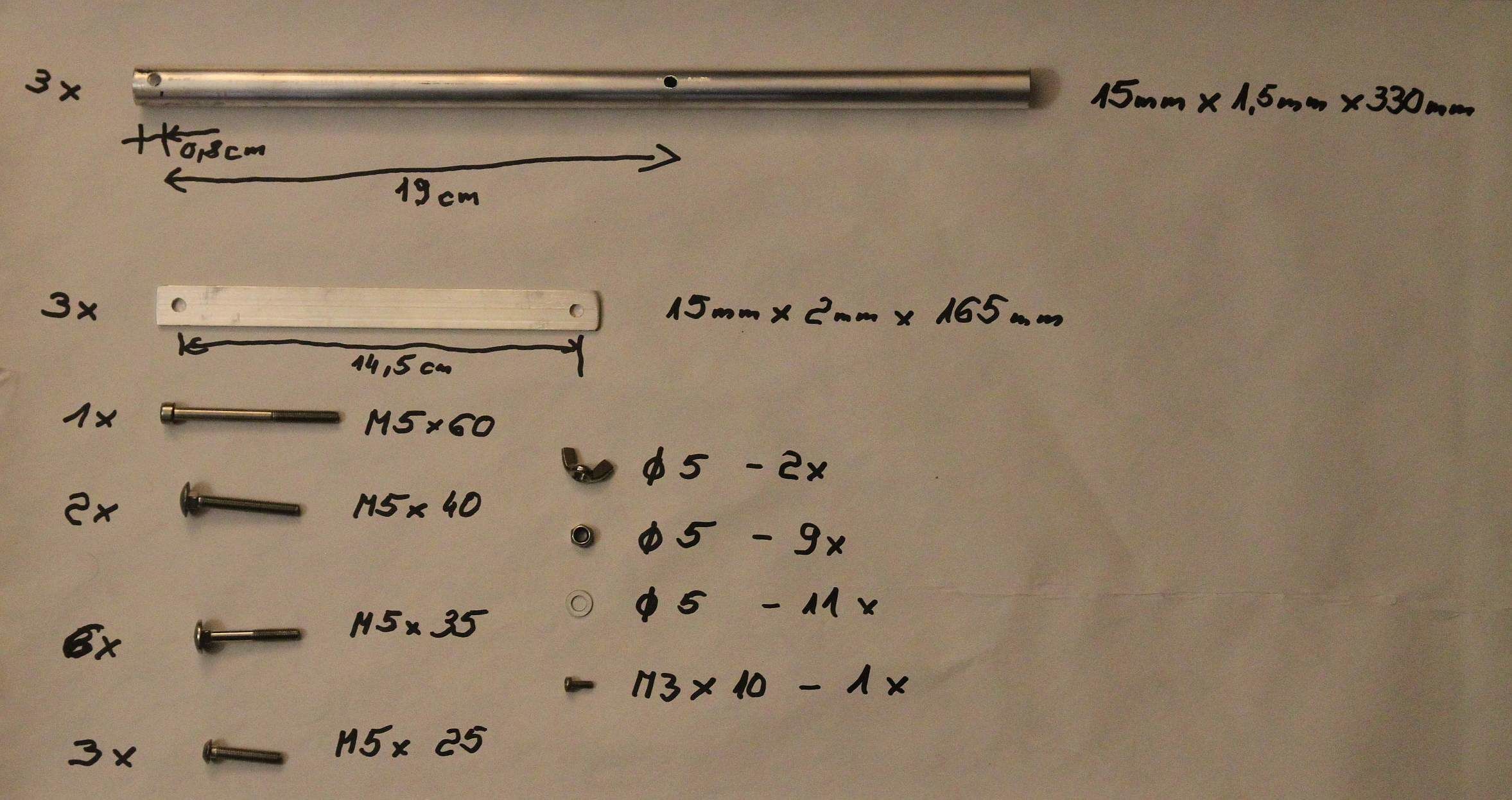

To perform Rifle Rest you need:

• 1 x 25mm x 2mm x 900mm aluminum tube
• 1 x 20mm x 1mm x 850mm aluminum tube
• 3 x 15mm x 1.5mm x 330mm aluminum tube
• 3 x 15mm x 2mm x 165mm aluminum flat bar
• 1 x M5 x 60mm screw (allen type)
• 2 x M5 x 40mm screw
• 6 x M5 x 35mm screw
• 3 x M5 x 25mm screw
• 1 x M3 x 10mm screw
• 2 x M5 wing nut
• 9 x M5 clamping nut (with plastic)
• 11 x washer fi 5

PET-G filament was used for printing - filling 65%. Layer height - 0.2mm Print speed - 60mm / s (for small elements I recommend 40mm / s)
