Jedi Fallen Order Scout and Patrol Trooper Staff and Shield 3D print model

This is just the files for the Jedi Fallen Order Biker Scout & Patrol Trooper Staff & Shield

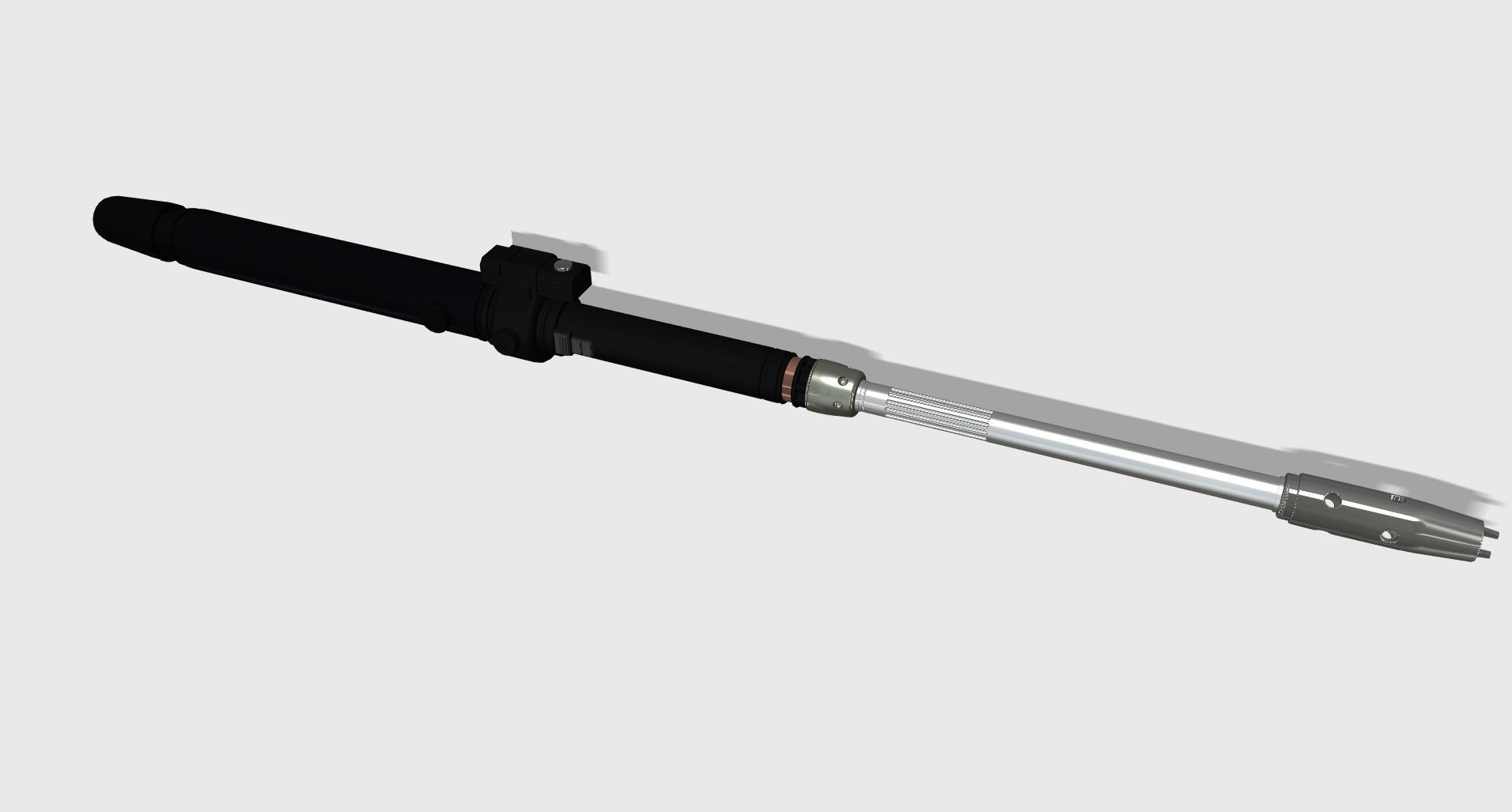

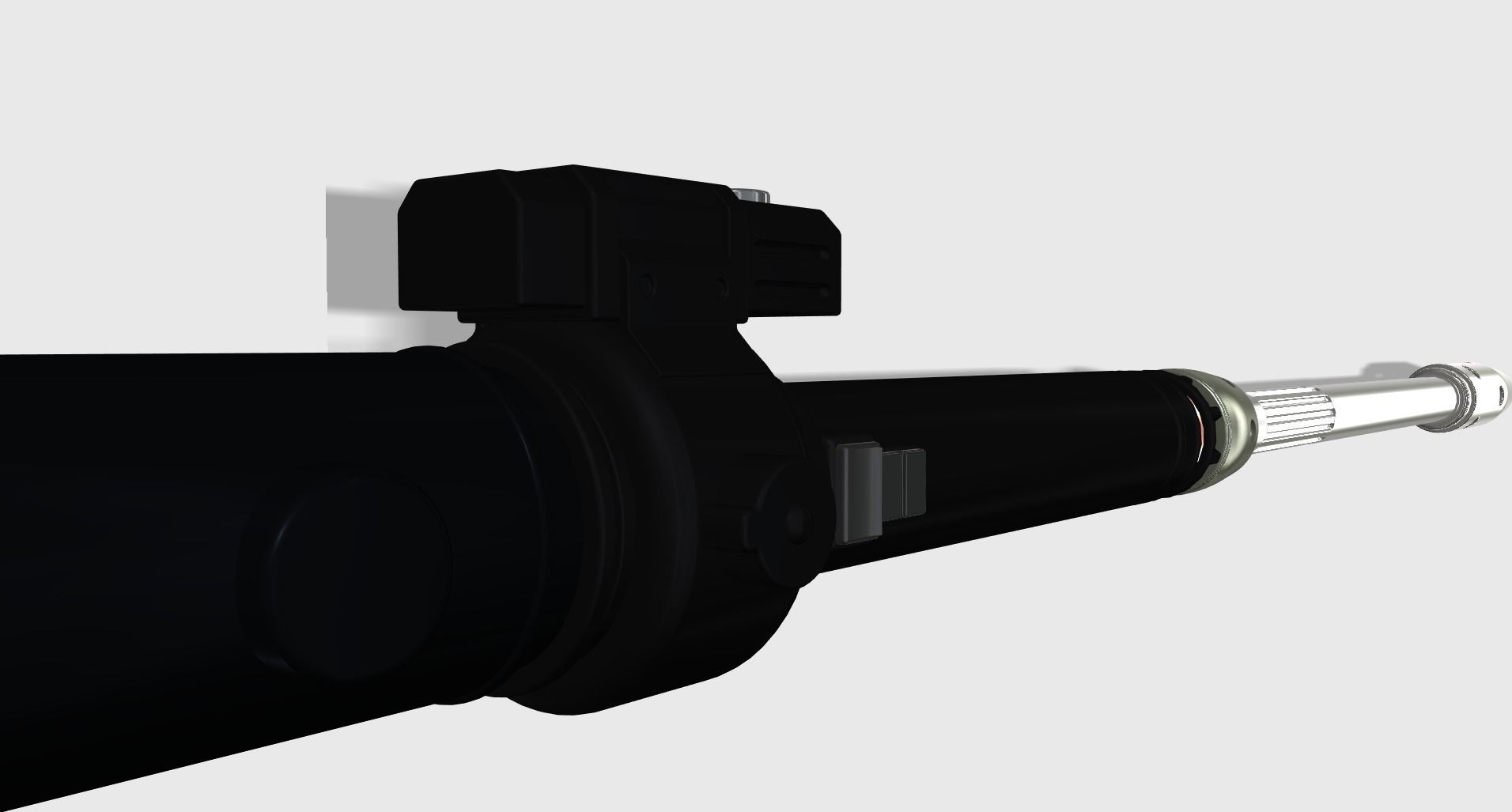

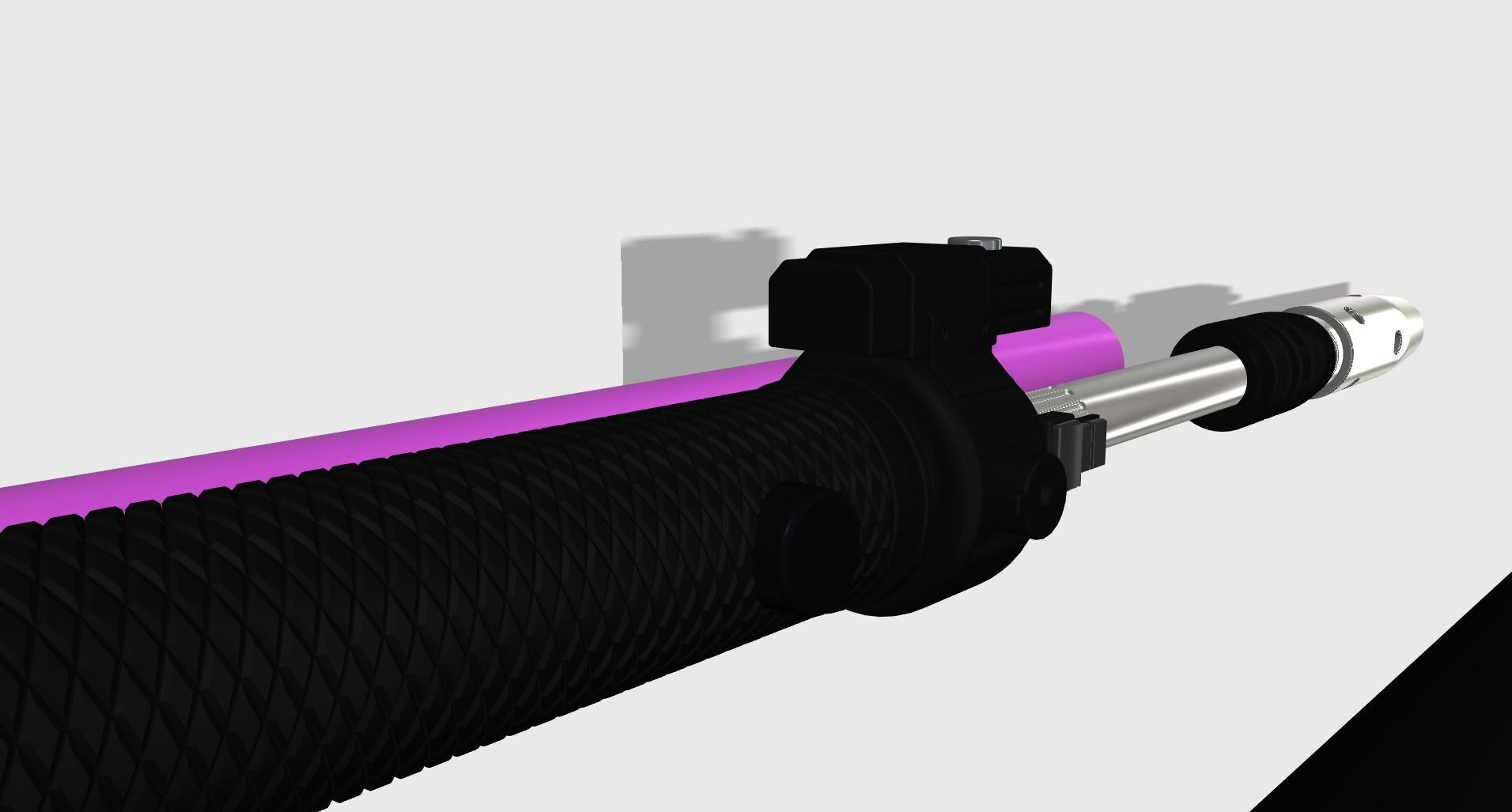

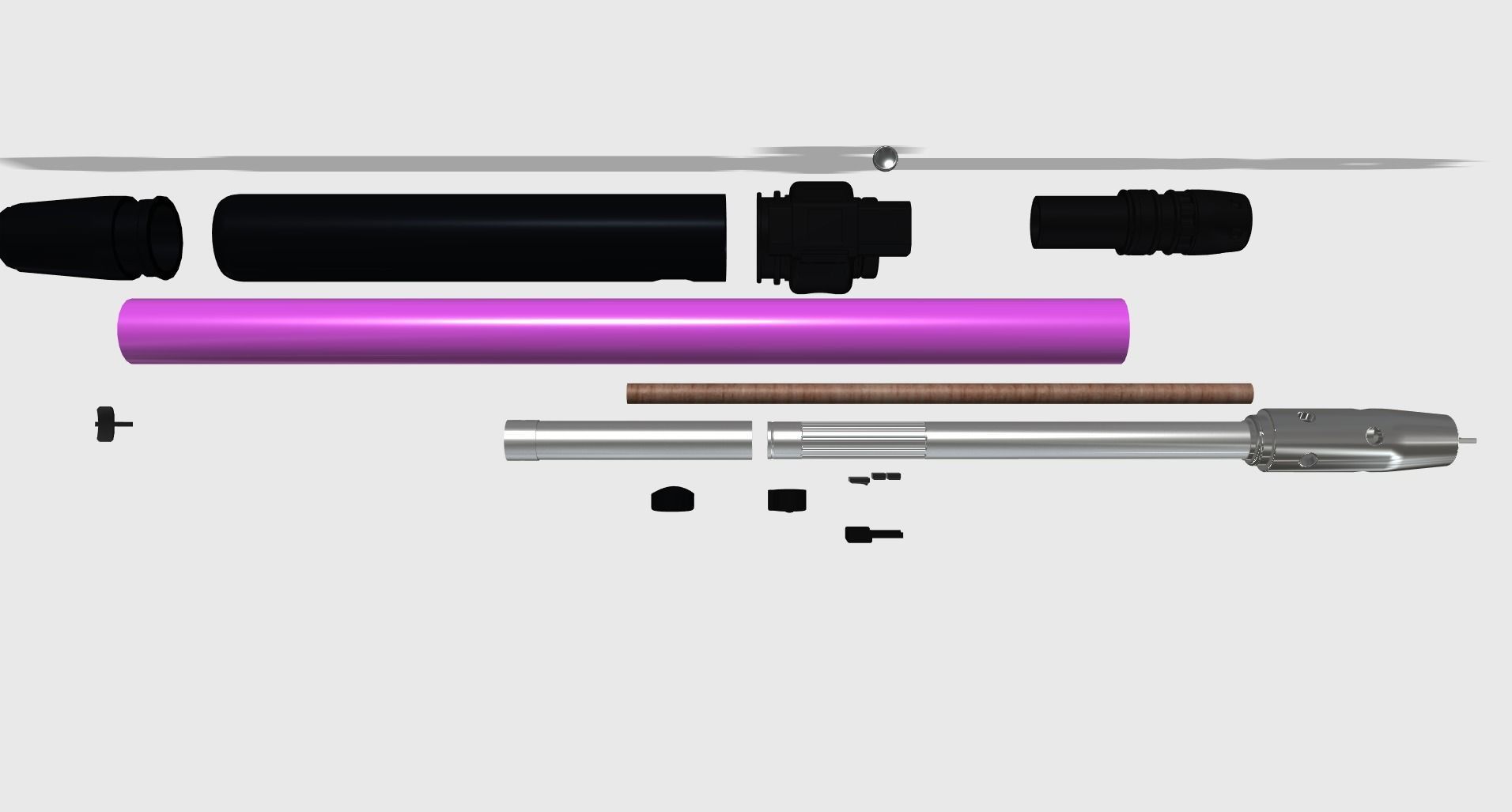

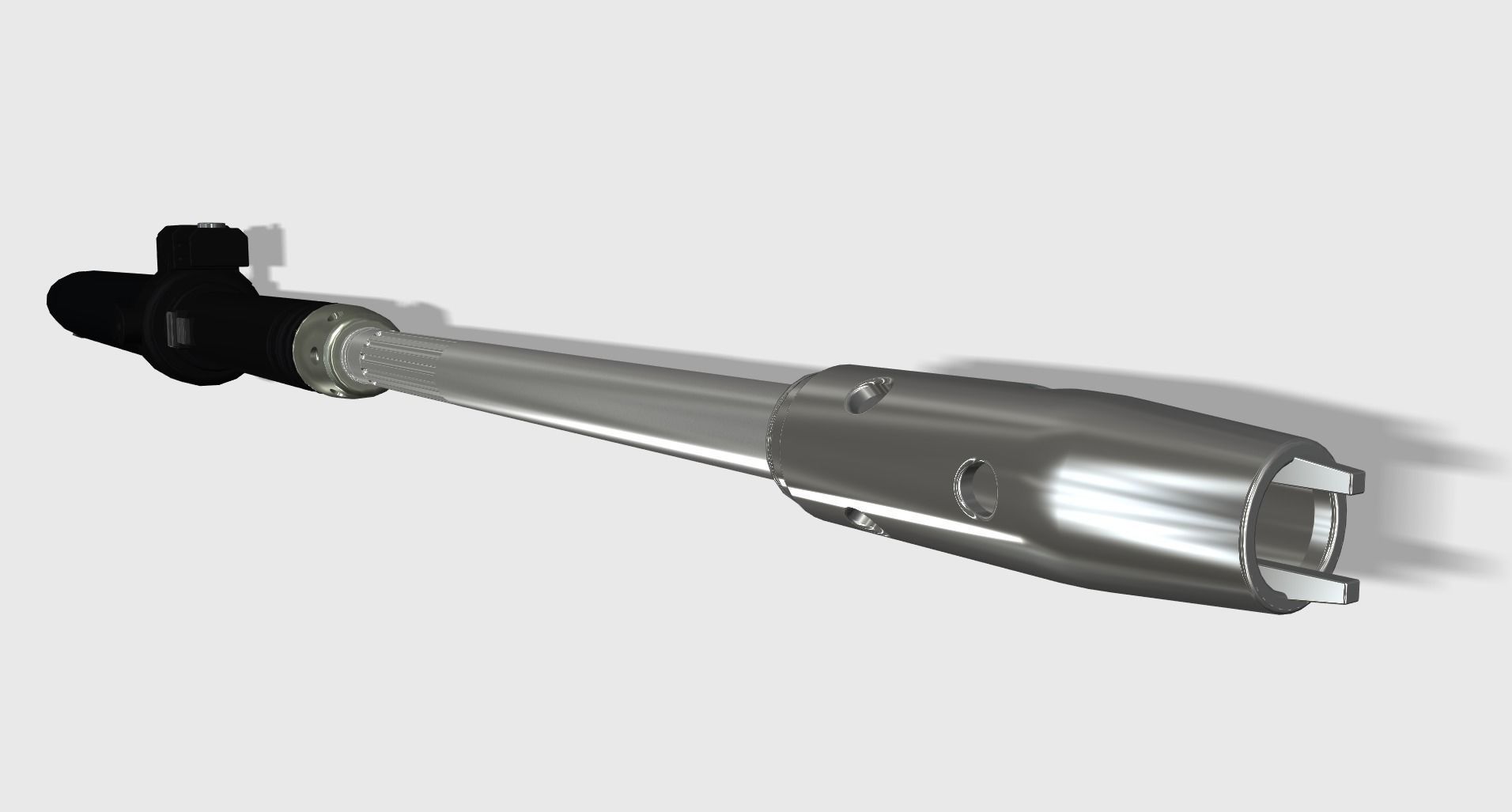

Staff requires additional (non-printed) parts to complete. 1.25PVC cut to a length of 63.5cm. A 0.5 woodenm dowel cut toa length of 40cm.

You will also need to find a way to affix the sliding prod so that it locks into place when opened and closed.

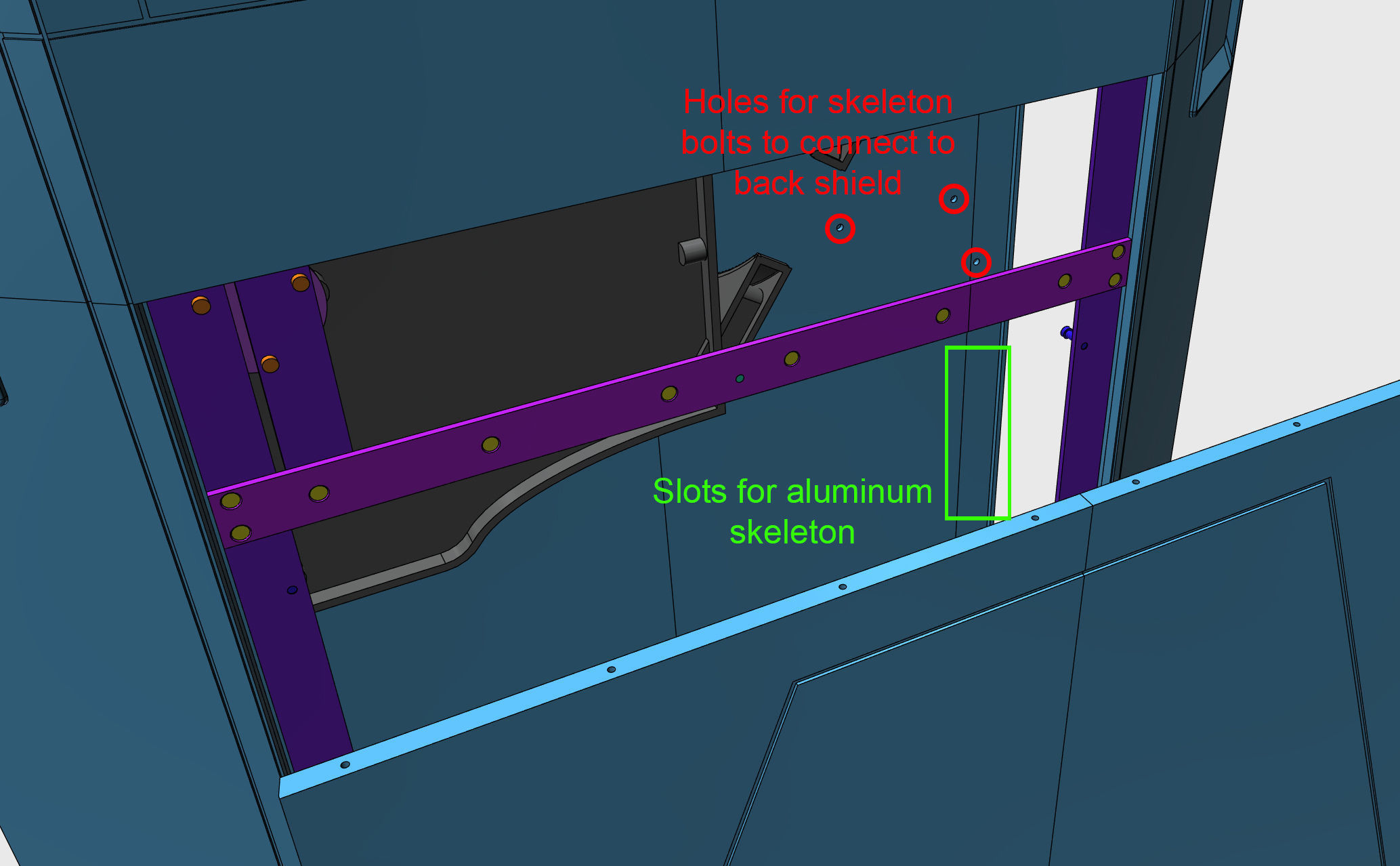

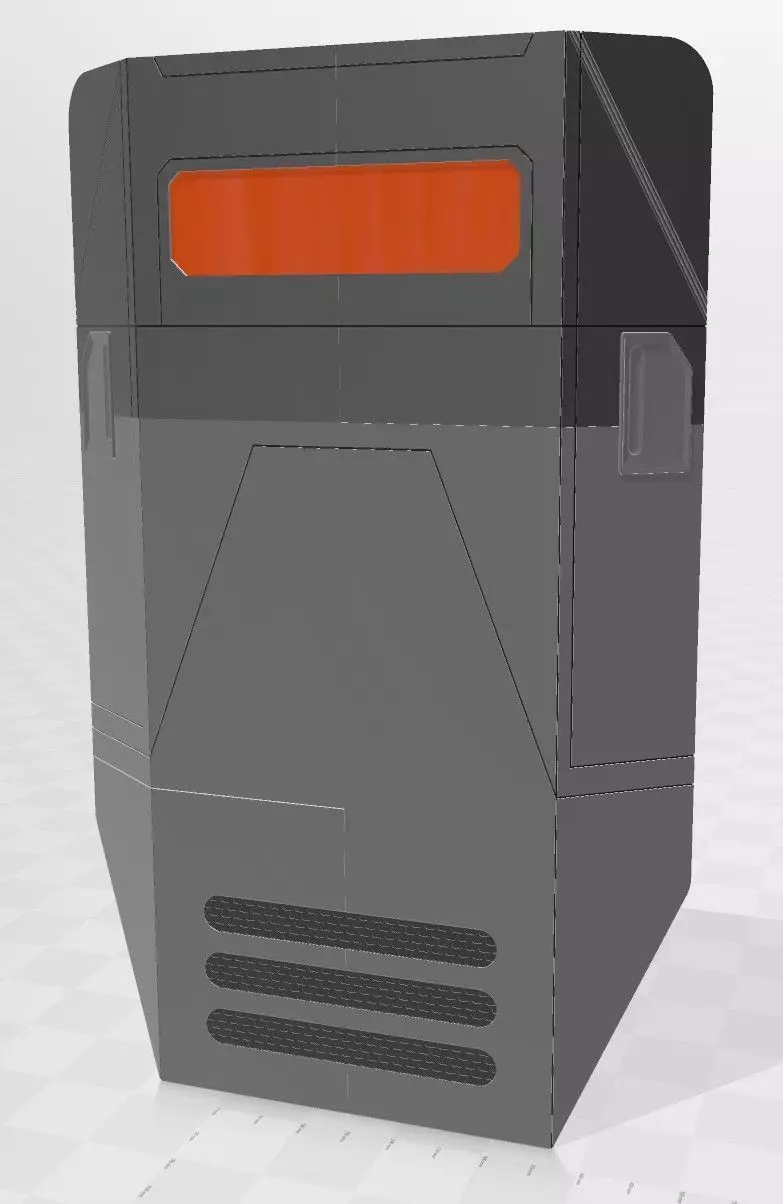

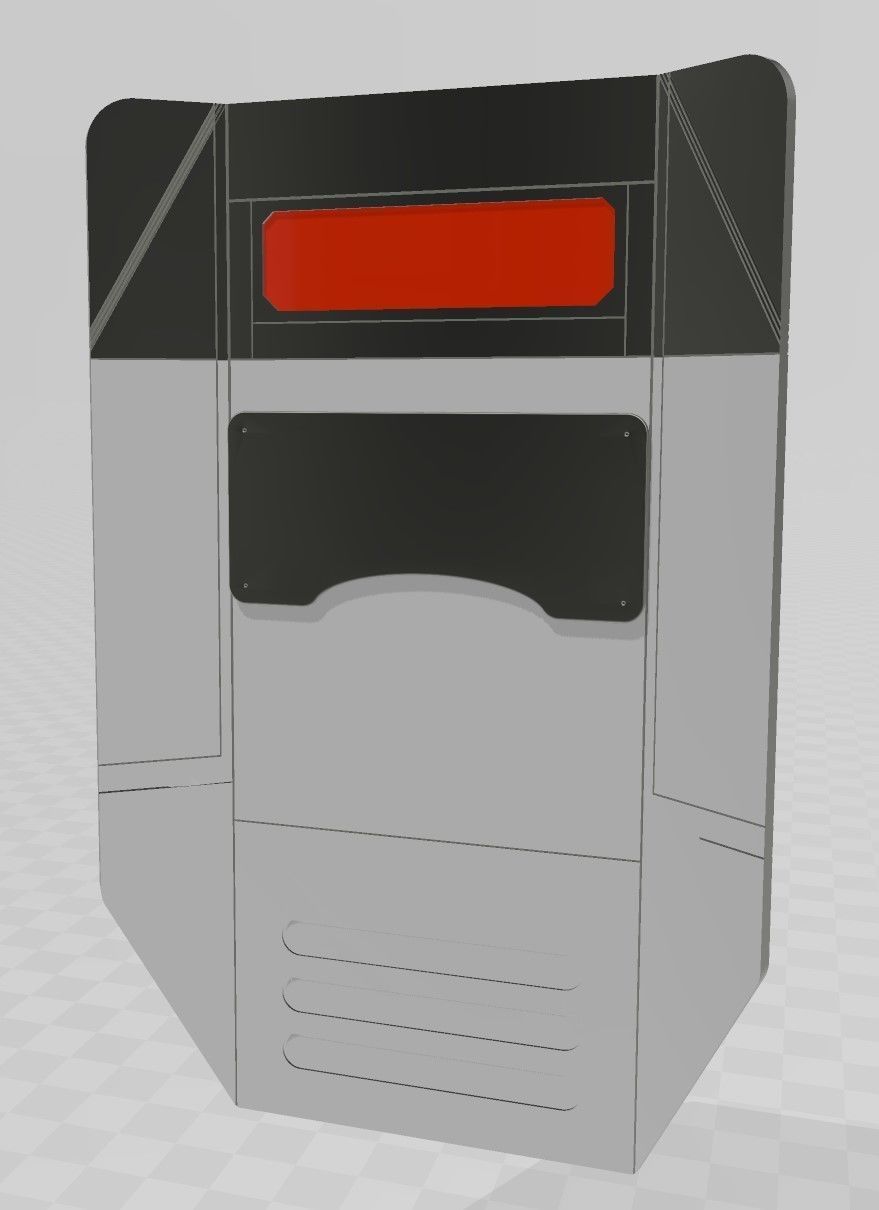

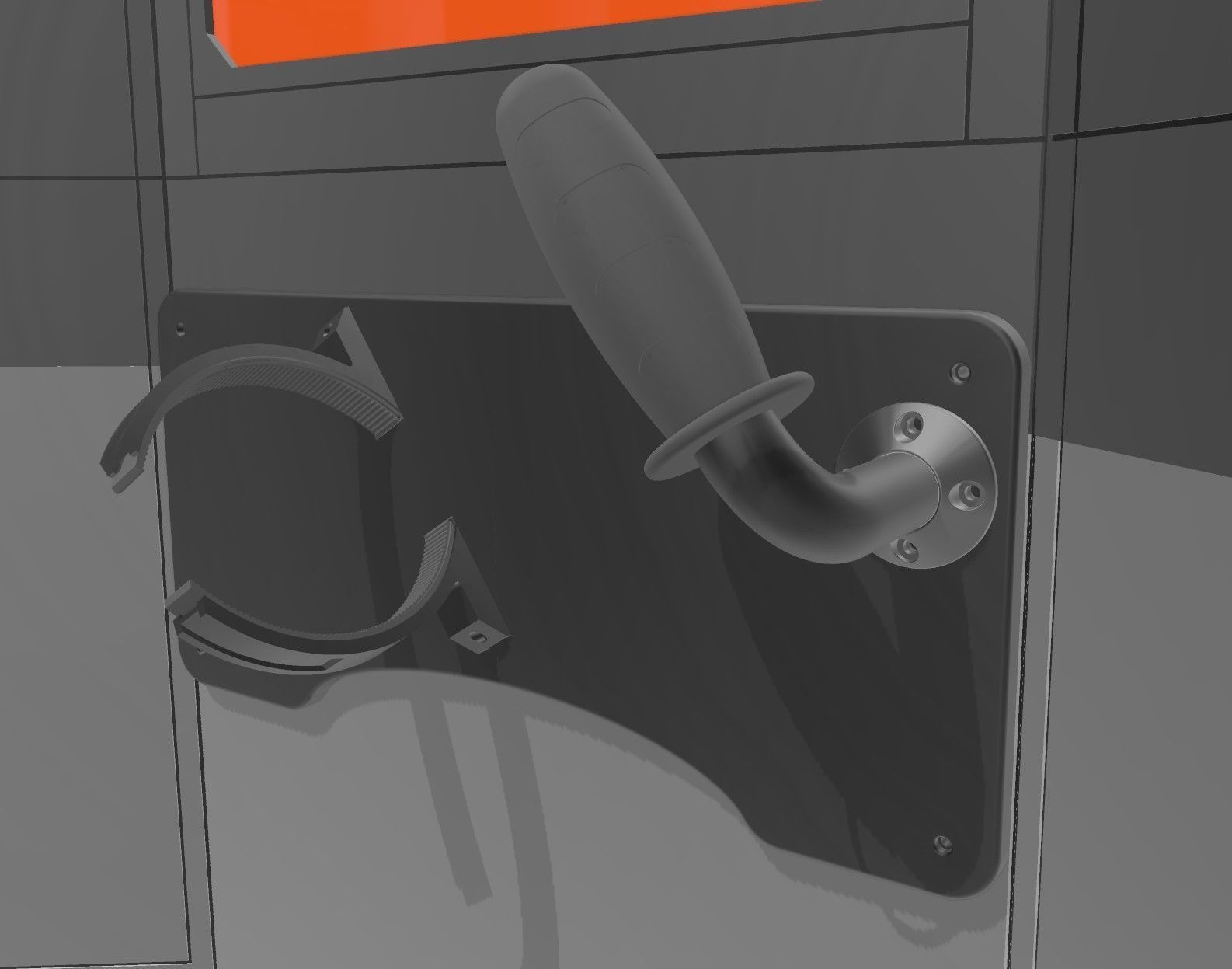

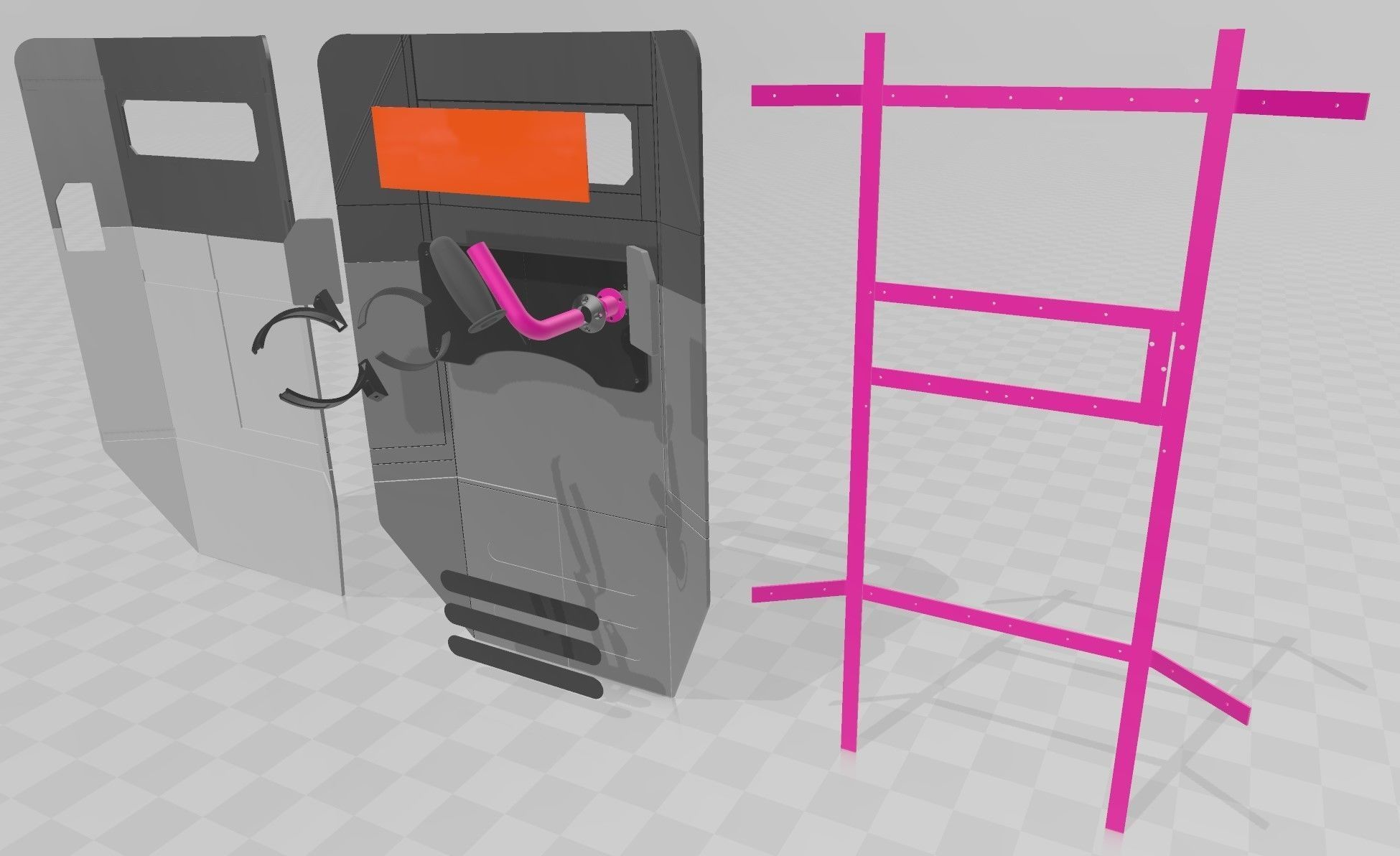

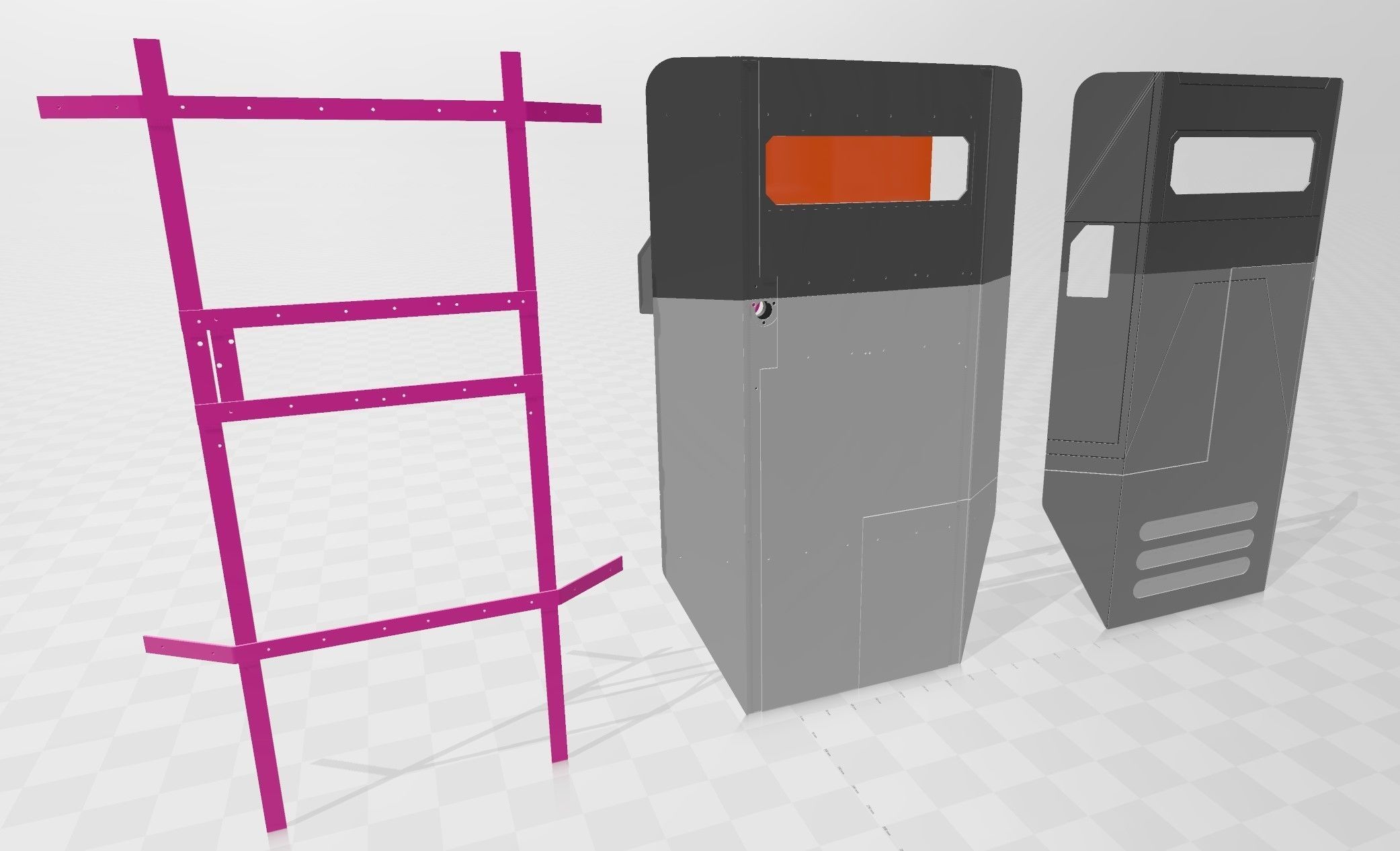

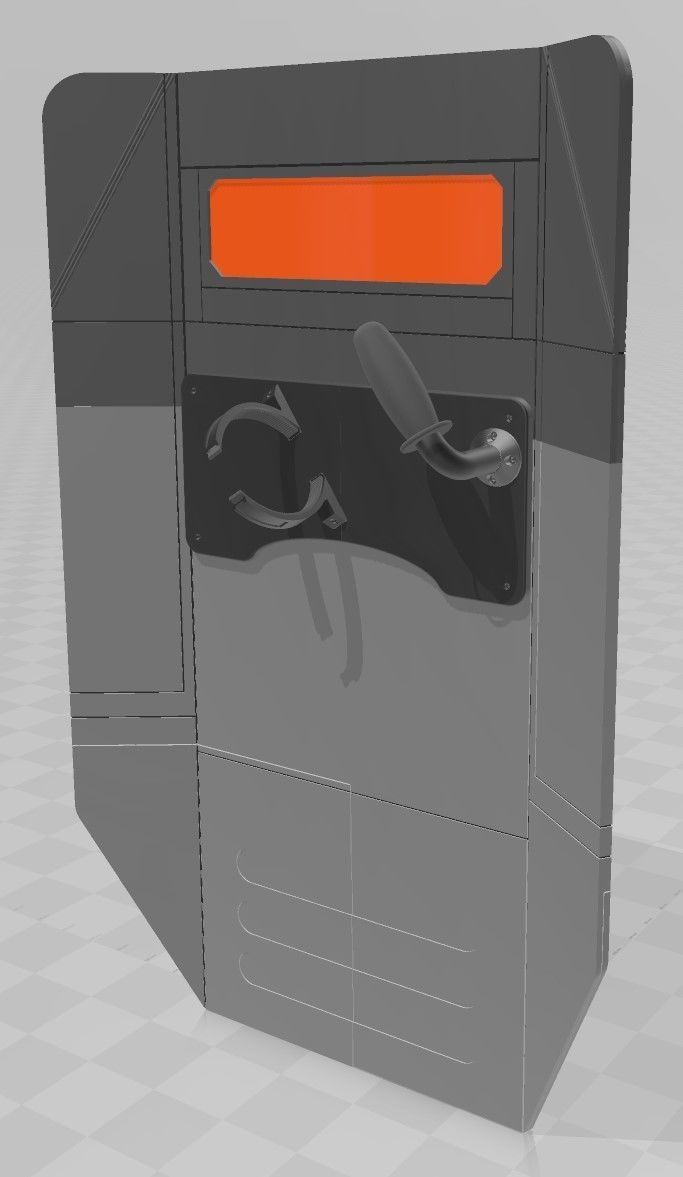

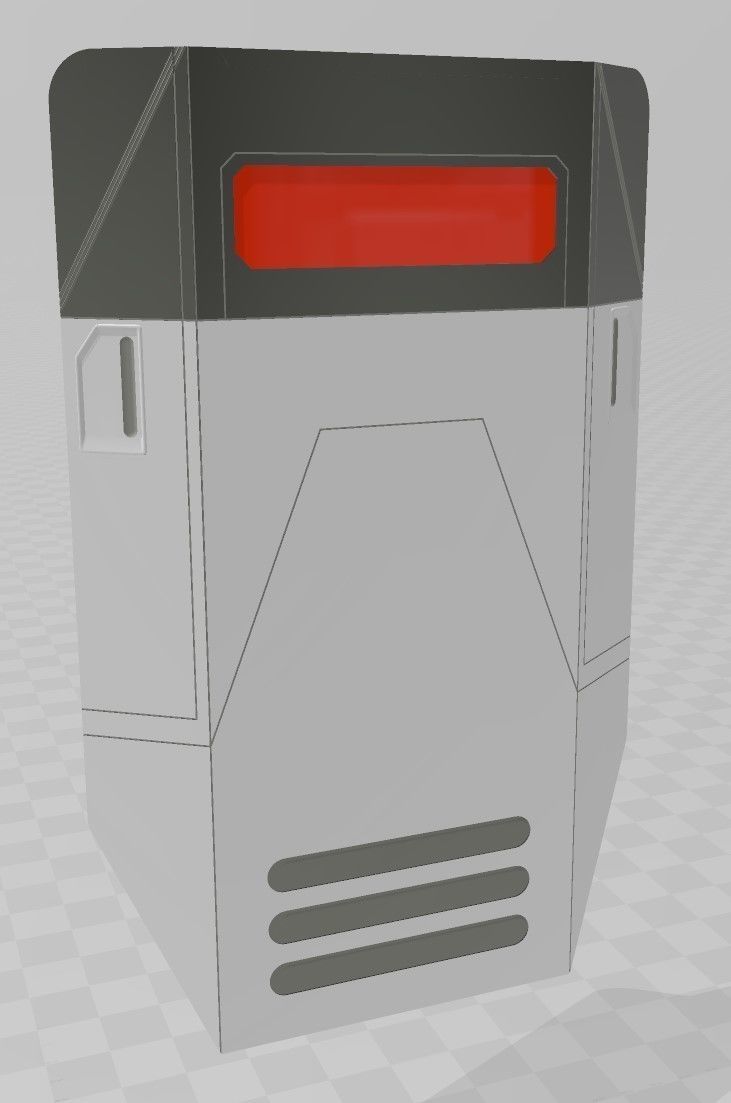

Riot Shield will require some 1" aluminum strips as well as screws of various sizes. You will also need some aluminum tubing (Link below), and a tubing bracket.https://www.amazon.com/dp/B07D481C94/?coliid=IIR2A8GDQOJYP&colid=3H8XHQ0L1XXN0&ref_=list_c_wl_lv_ov_lig_dp_it&th=1https://www.amazon.com/dp/B07V67DT5D/?coliid=I1WQDAKJOSW25&colid=3H8XHQ0L1XXN0&psc=1&ref_=list_c_wl_lv_ov_lig_dp_it

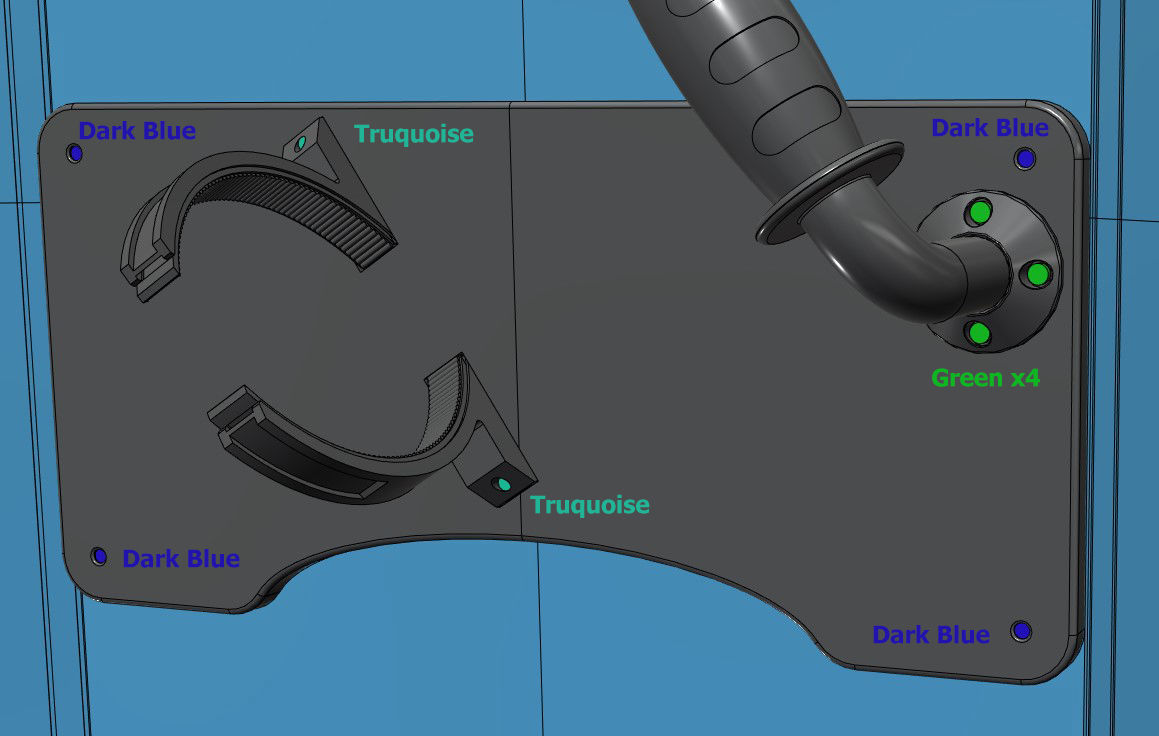

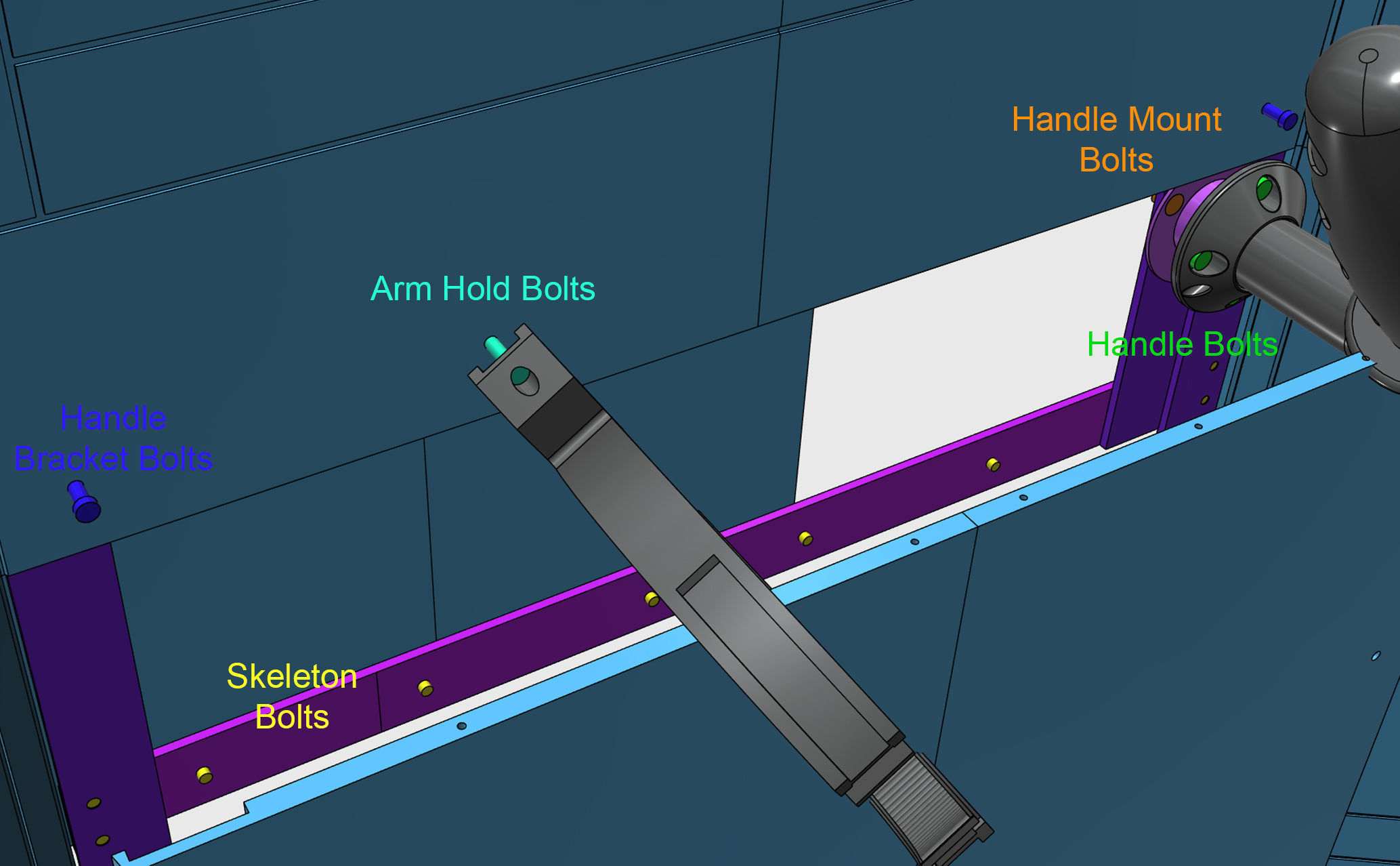

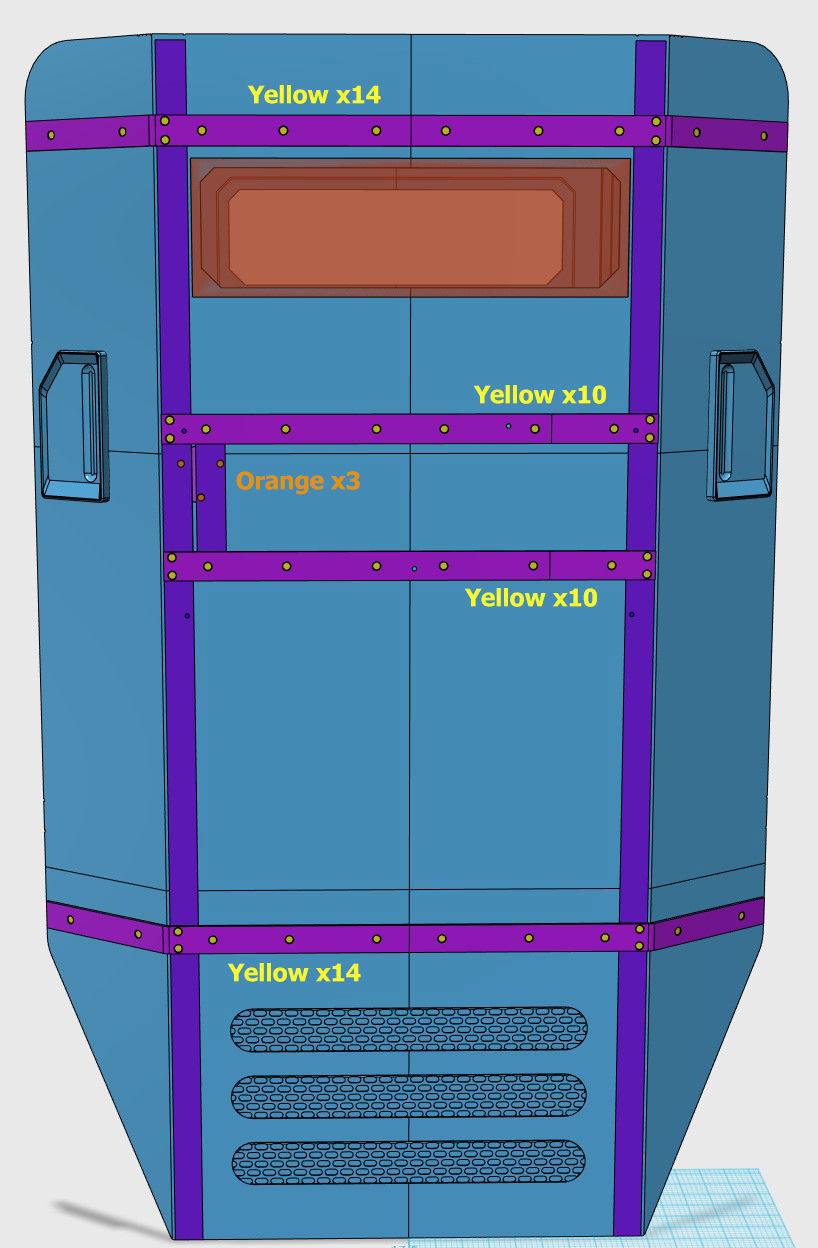

Bolts needed. Colors correspond to the colors on the images above.

48 - 4mm x 5mm (length) tapered head bolts (frame) (Yellow)

3 - 6mm x 6mm (length tapered head bolts (handle mount) (Orange)

4 - 5mm x 6mm (length) button head bolts (handle) (Green)

4 - 4mm x 25mm (length) button head bolts (arm holds) (Turquoise)

4 - 4mm x 17mm (length) button head bolts (handle bracket) (Blue)

4 - 4mm x 3mm (length) button head or round head bolt (arm holds) (Lime)

*Additional Biker Scout Armor can be found at https://www.thingiverse.com/mrpoopie/designs

Updates:

• 07-02-2024 - Various changes to bolt lengths t o make them more uniform an easier to aquire. Added additional bolts to arm holds.
• 07-03-2024 - Added alignment points for inner and outer shield. Added templates for drilling holes in aluminum skeleton and bending aluminum.
