G36KA4 RIS Handguard for SRC brand 3D print model

Latest version of G36KA4 RIS Handguard for 3D print. REUPLOADED MODEL

STL is not supported by CGtrader policy, customer have to translate step to stl via some SW (many on the net) or you can ask me after purchase in personal message

Only fits to SRC brand! (Gen.3 works)

Battery type

• you can insert only battery with this dimensions: 116x16x19mm (this is maximum)
• for example Turnigy nano-tech 1200mah 11.4v (designed for this acu-pack) - but you need to shorted cables to minimal lenght (Dean-T is prefered conector)

Useful tips for 3D print

• material PETG

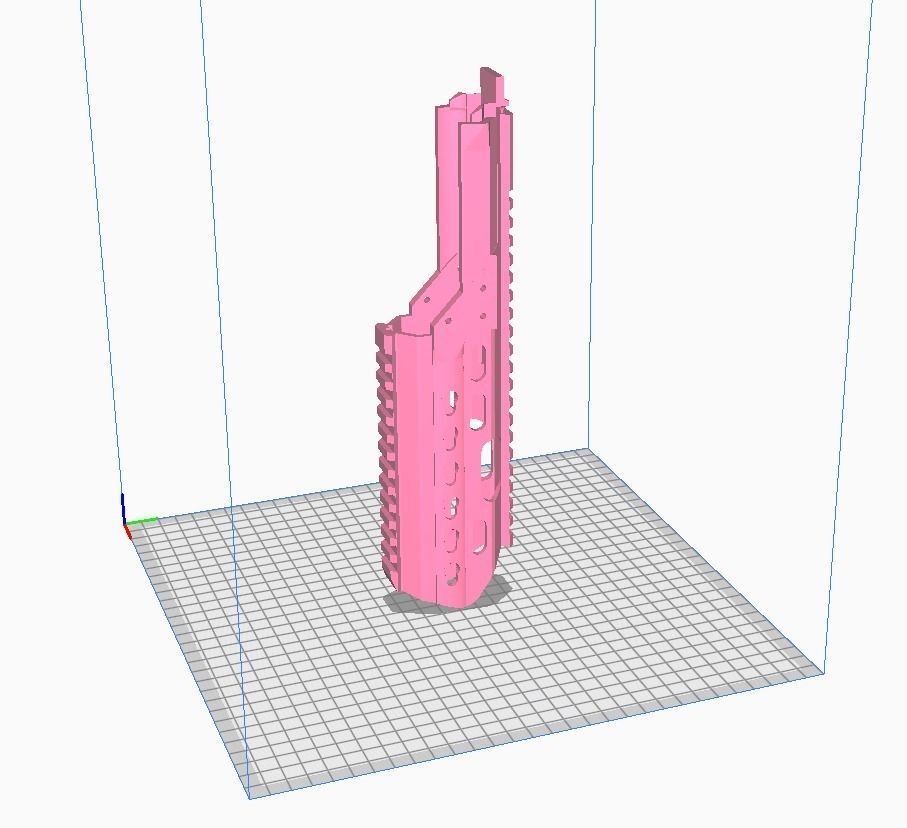

• print in vertical pose, frontside facing against bed

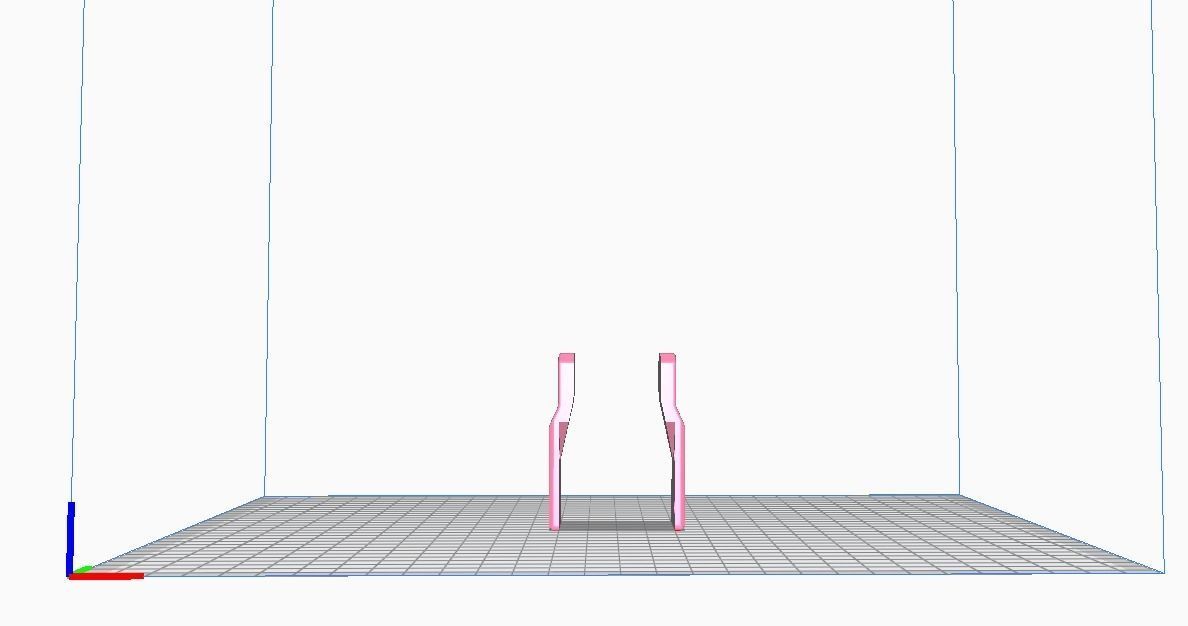

• side holders are in separate file, print separated also

Useful tips for montage

• you need 6x screw DIN 7991 M4x10 (and manually and gently by hand screw them into rail for assambly with sides)
• also 1x DIN439 M6 lowered nut
• also 1x DIN7984 M6x40 screw with lowered head
• use knife to cut and remove neccessary plastic corners on outter SRC body barrel for good fitting

Useful tips for surface finish

• after print, just sand surface with different sanding papers (for ex.200/400/800) in water
• use your favourite primer for plastic
• use your favourite spray color

Model contains one piece of model 3D printed side rail - you just need to get keymode nuts and screws

Feel free to ask me any questions
