F-4E Pilot throttle for DIY cockpit simulator 3D print model

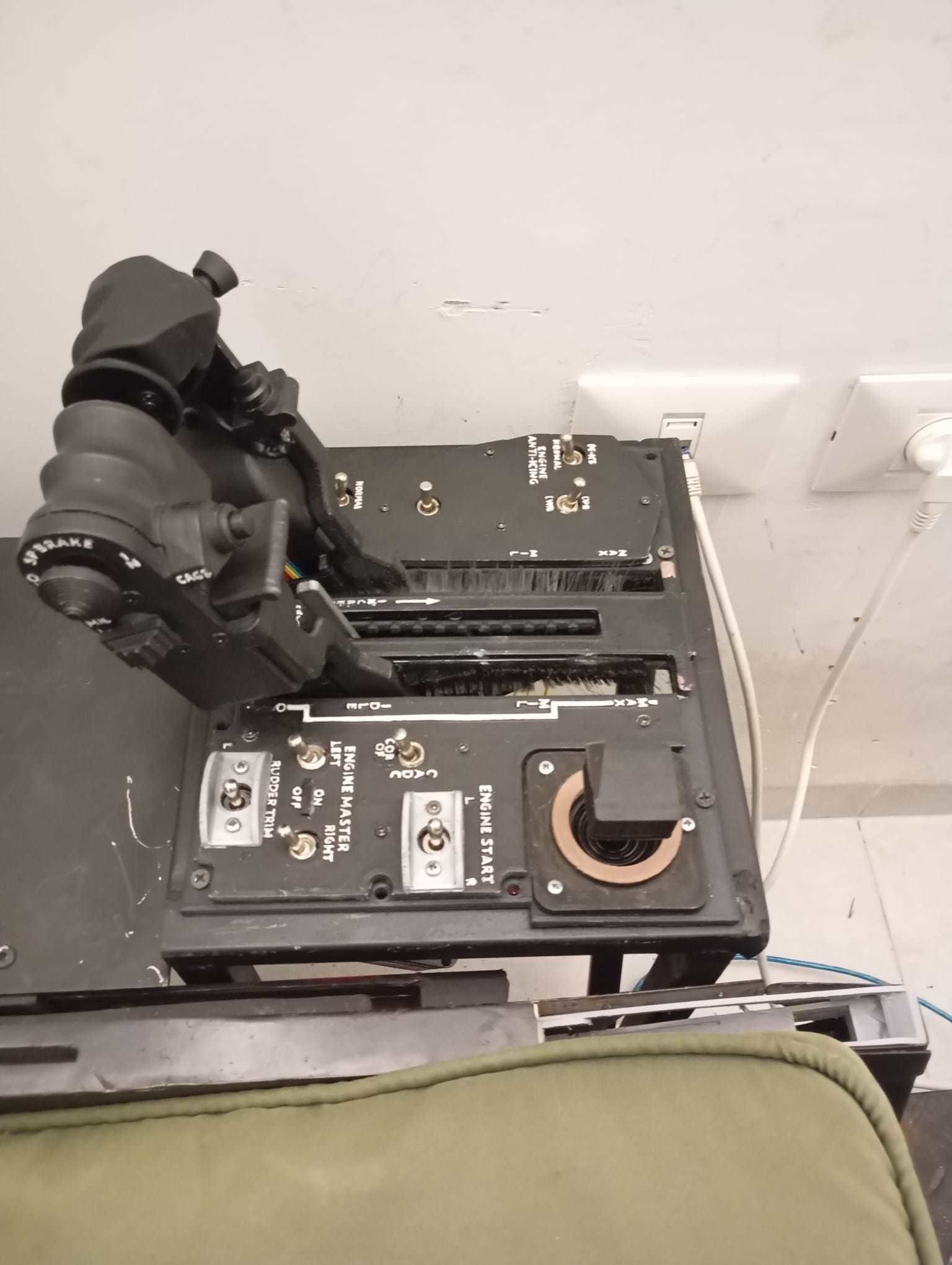

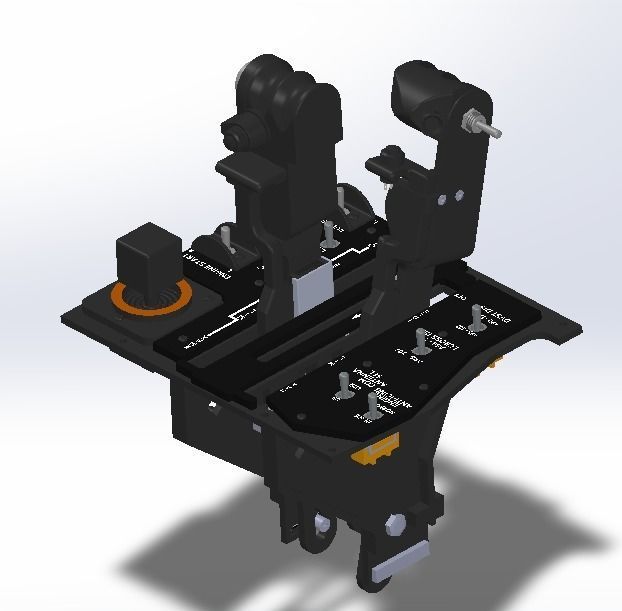

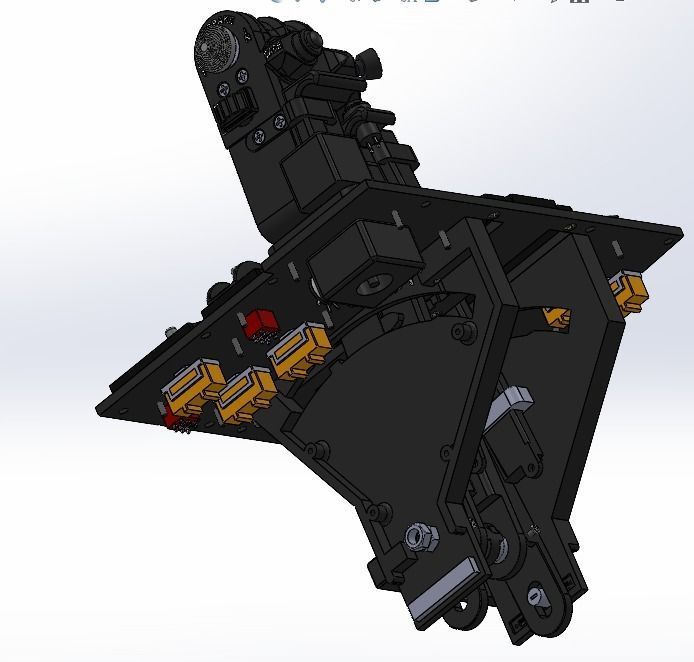

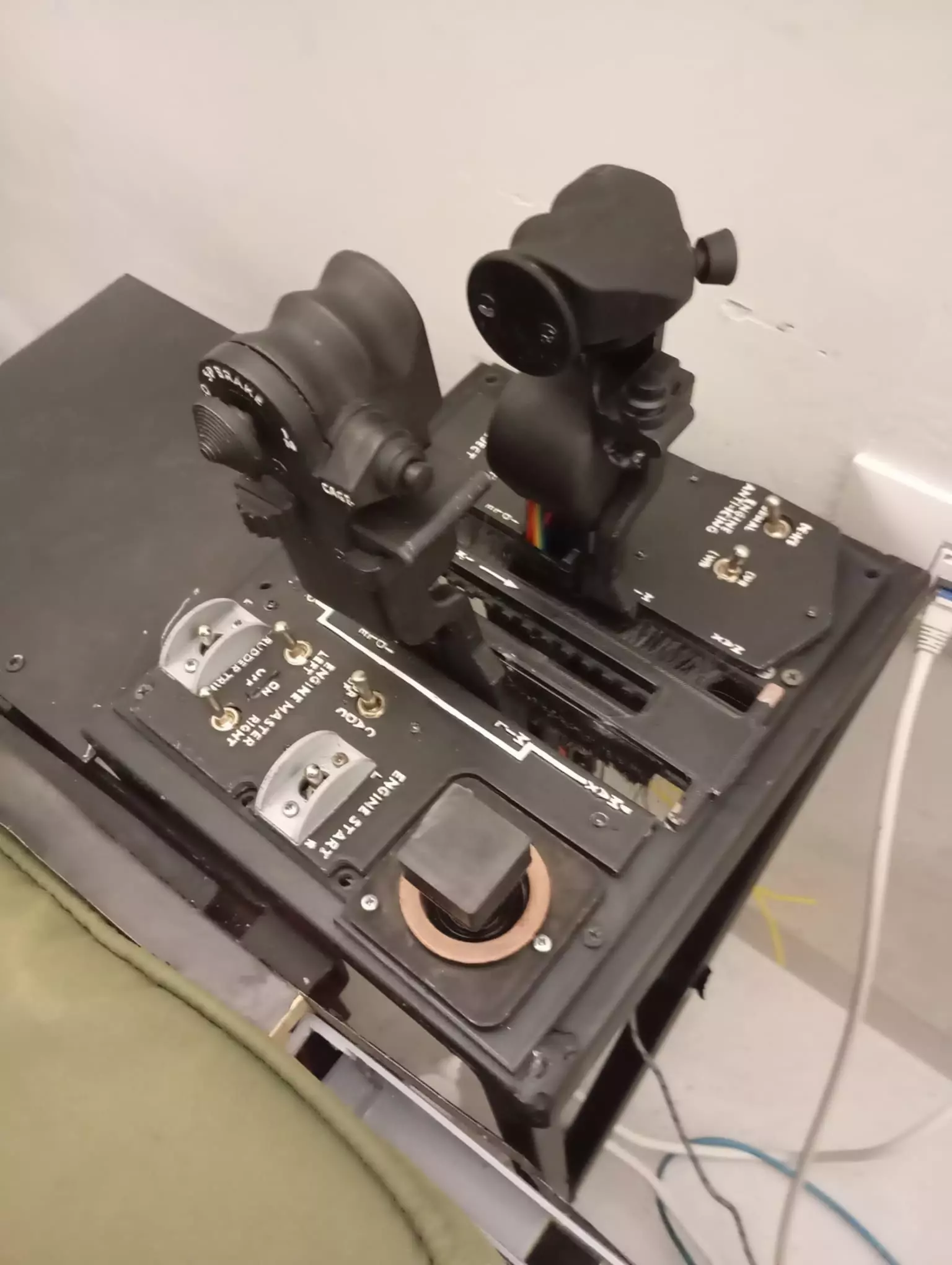

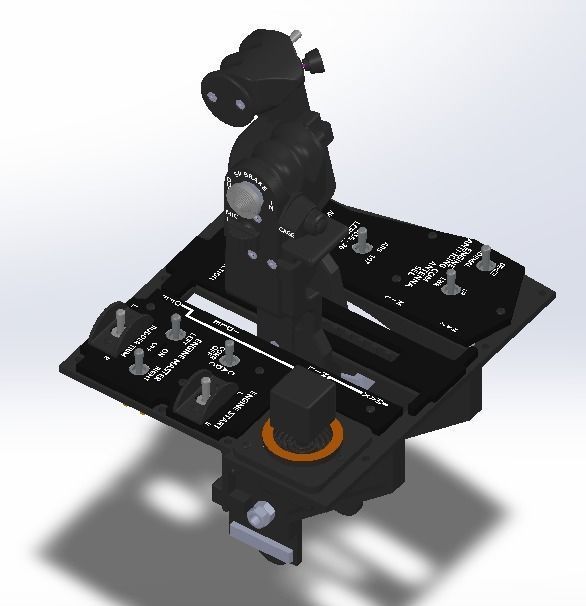

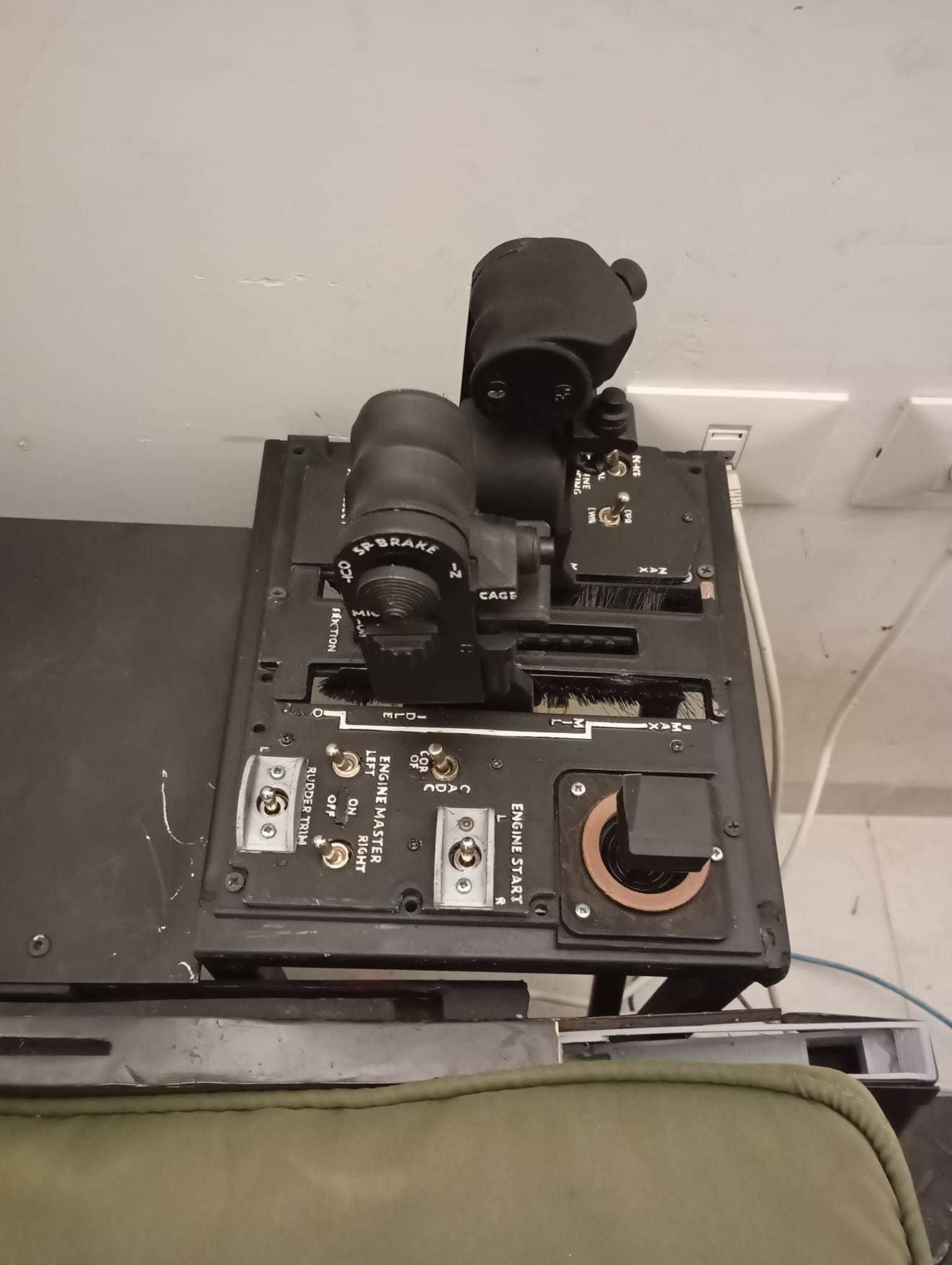

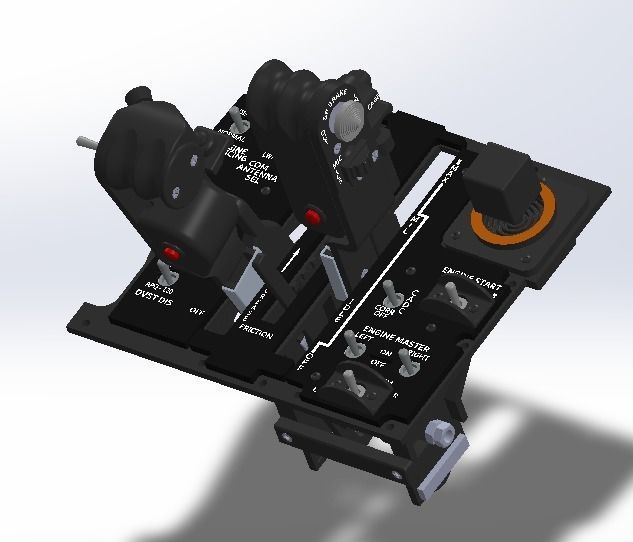

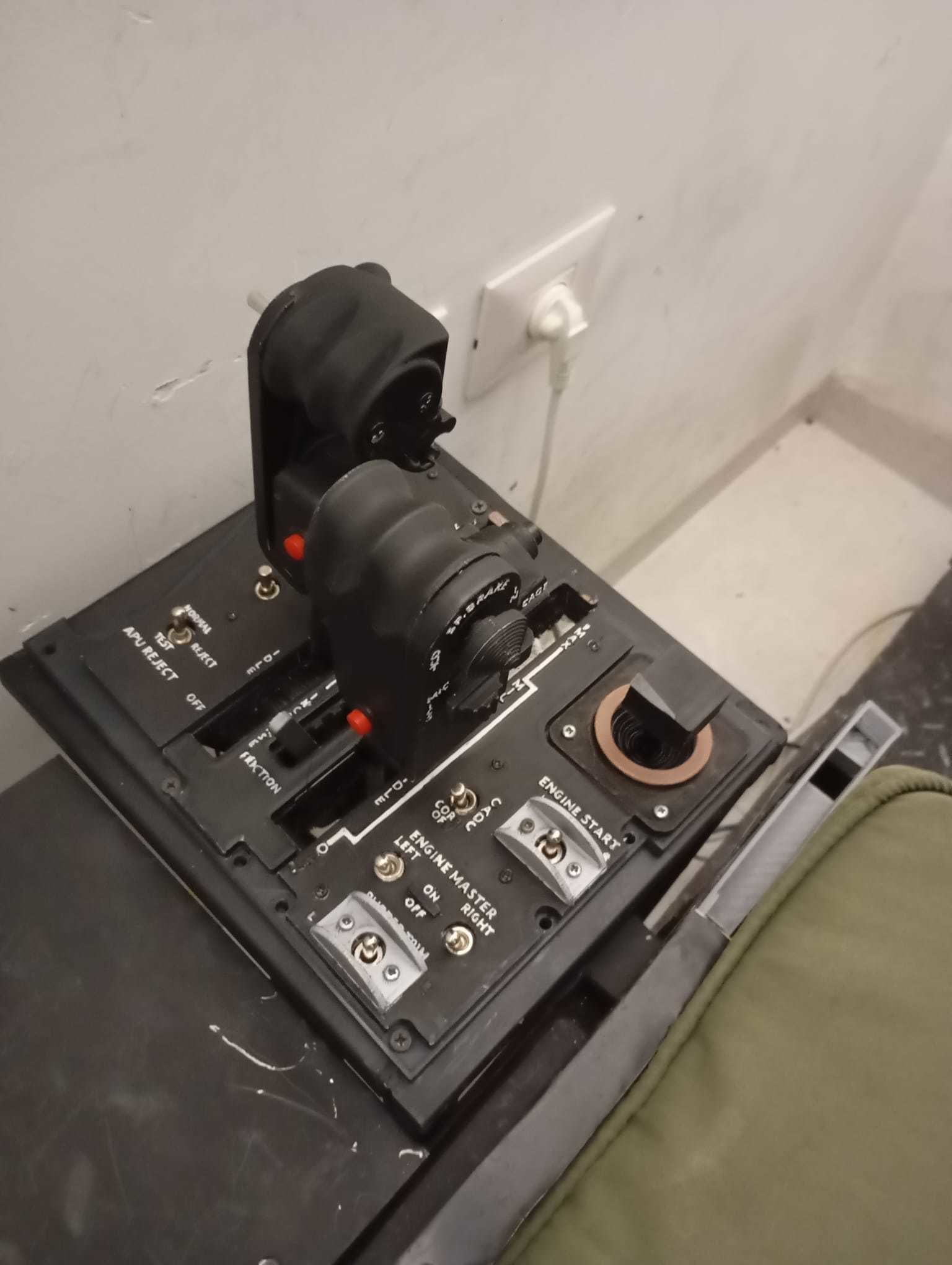

The F-4E phantom is a legendary aircraft flew in many airforced. recently Heatblur release the F-4 phantom sinulation for DCS.This is a 3D printing replica of the complete throttle assy with engine panels.The Model include electric buttons and switches needed to connect to the computer (electric card does not included).

printed it with Al infuse PLA for easy sanding and metallic feel. All files are STL format and ready for 3D printing slicing program (I use Cura).There are aditional Files formats - STEP and Parasolid (X_T).I use it with FreeJoy card with 4021 shift registers cheeps. you can check https://github.com/FreeJoy-Team/FreeJoyWiki for more info about the connection to your PC.

3 STL Files with V2 at the end are 3 edited files for the addition of the WHT / BLK toggle at the right panel, so Print those files in stead of:

F-4ThrottleAssy - F-4ThrottleRightPanel - 1F-4ThrottleAssy - F-4ThrottleUpperPlate - 1F-4ThrottleAssy - RightSupport - 1
