DIY AC GT-TURISMO STEERING WHEEL 3D print model

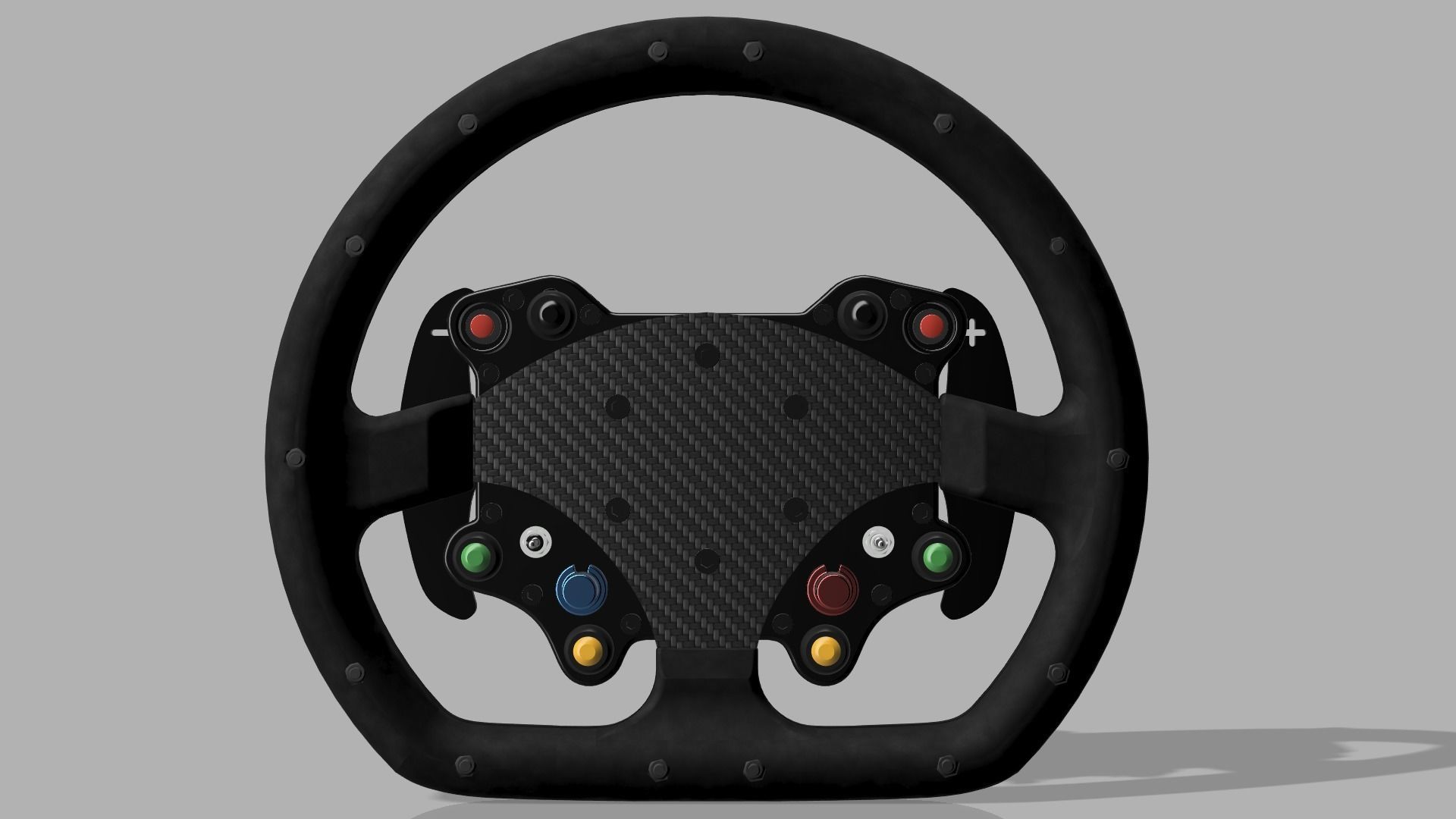

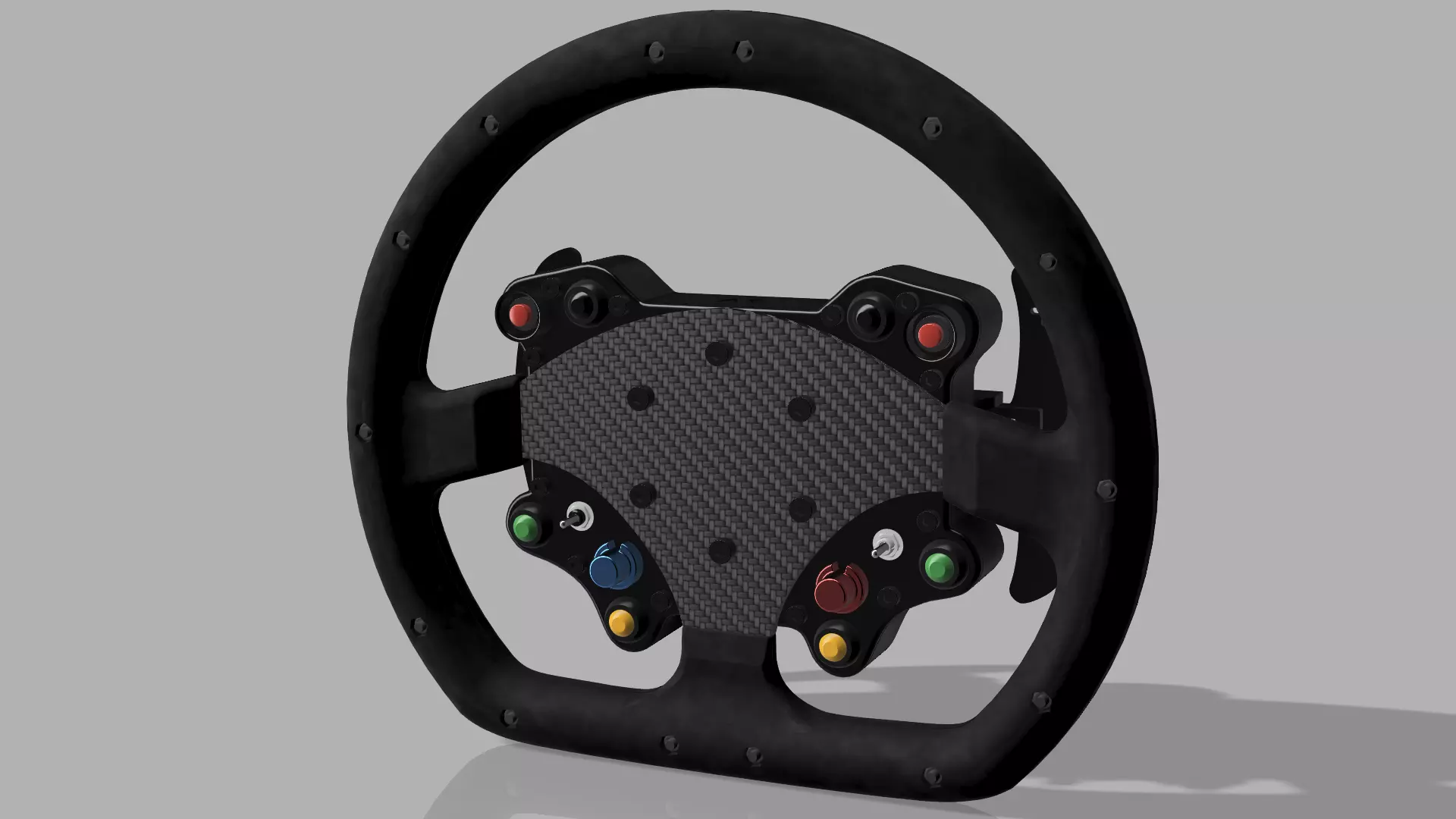

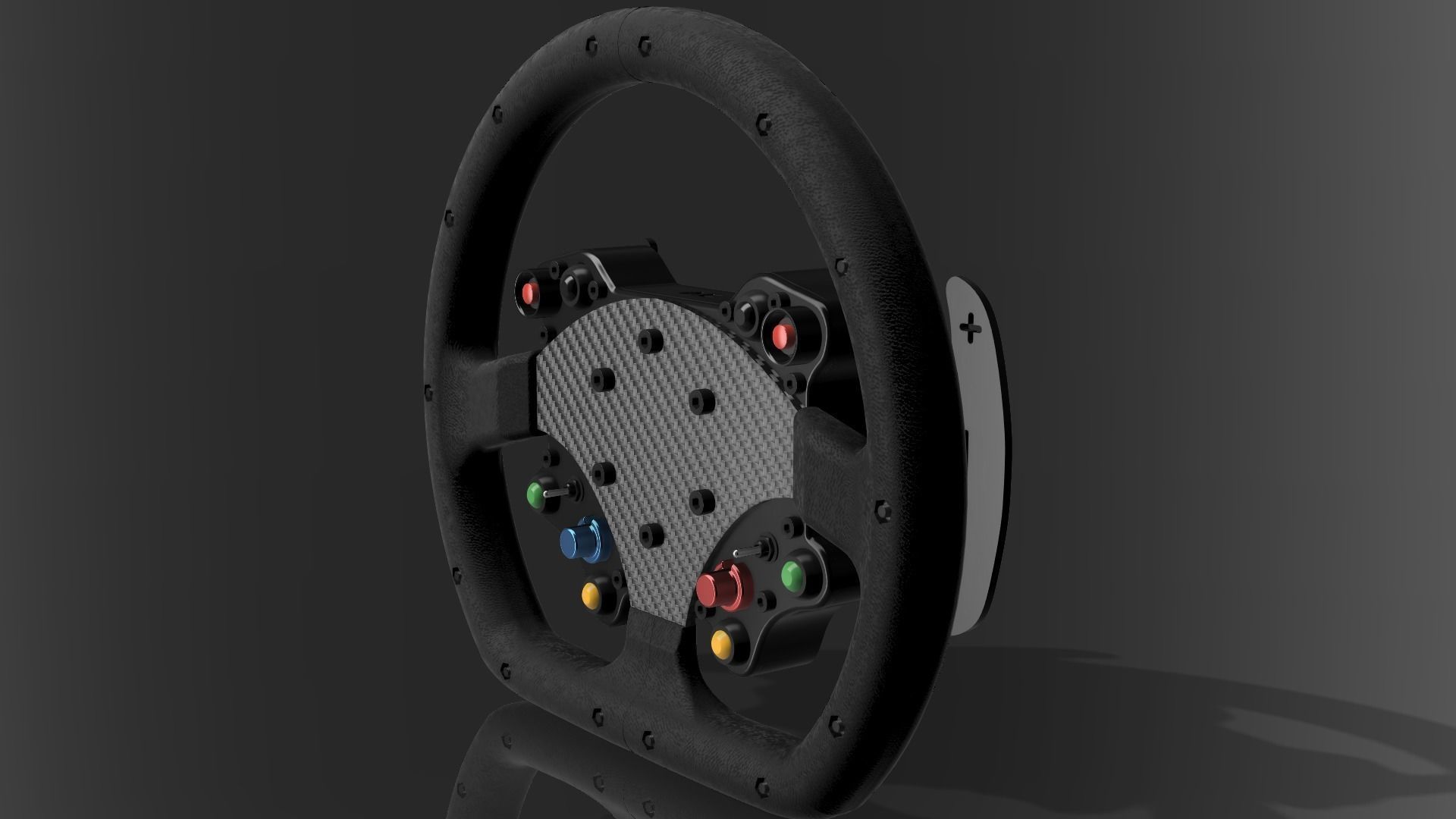

DIY AC GT-Turismo Steering Wheel by AC3D

• 300 mm long.

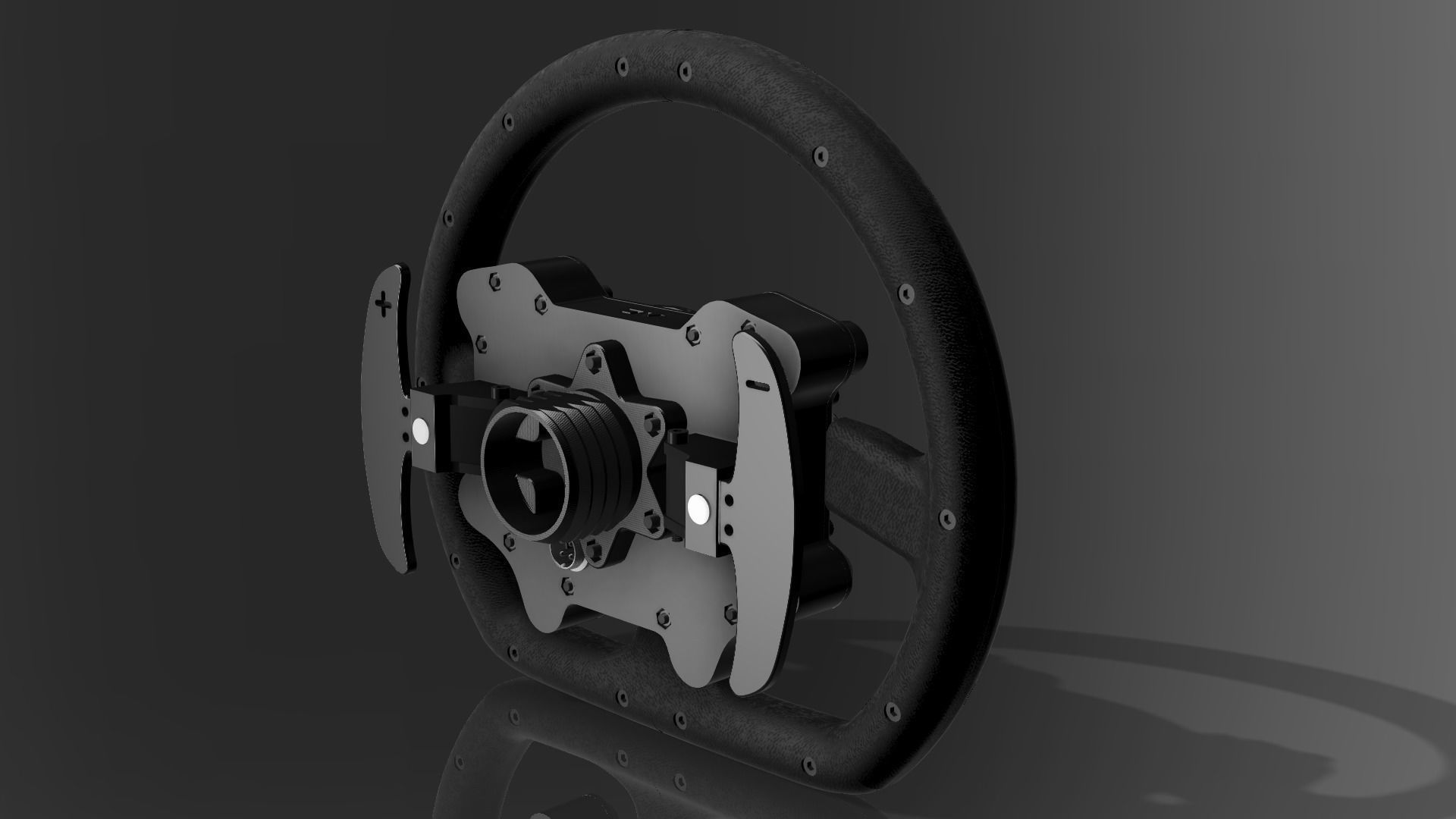

• Included Magnetic Paddle Shifter.

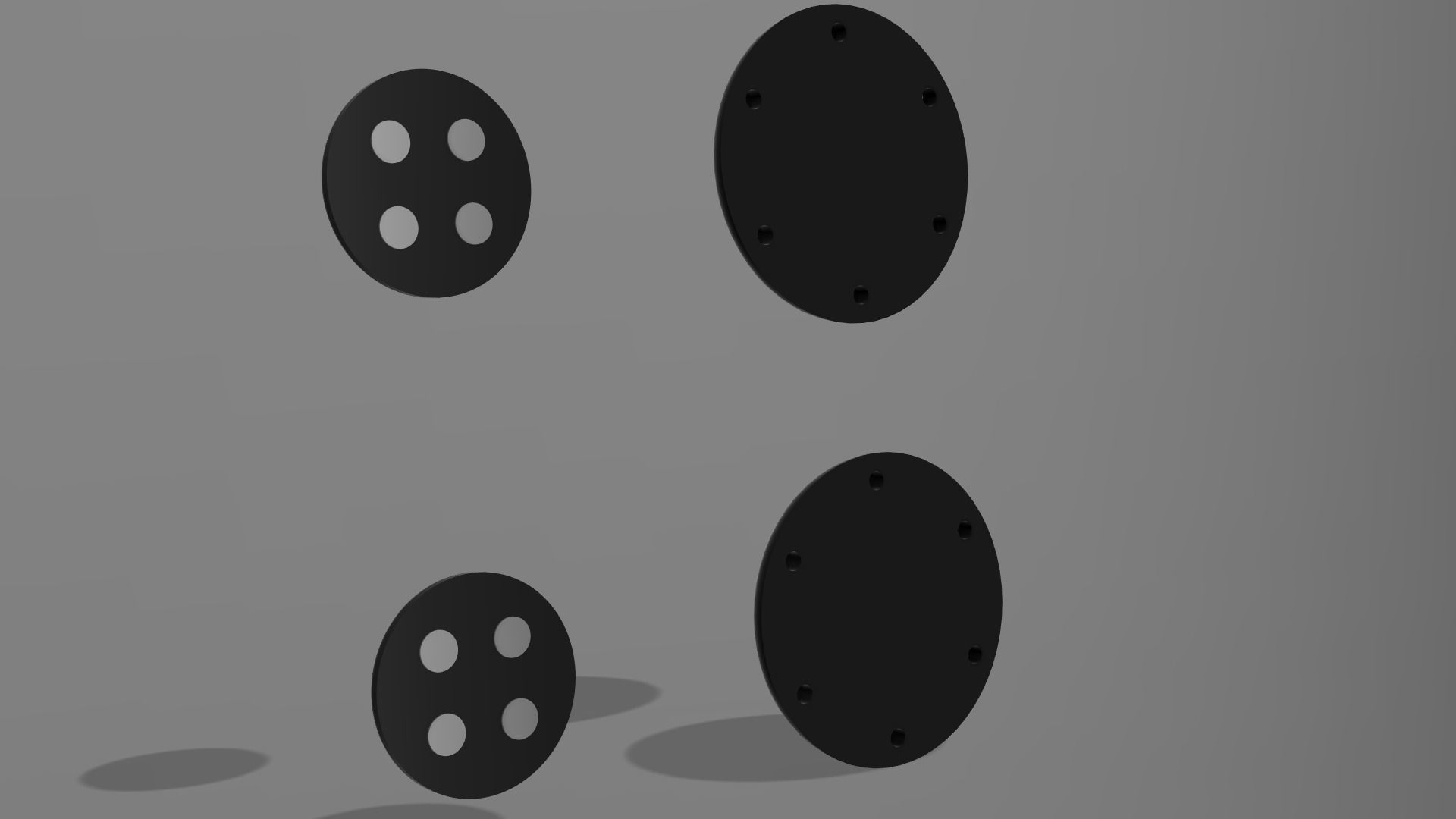

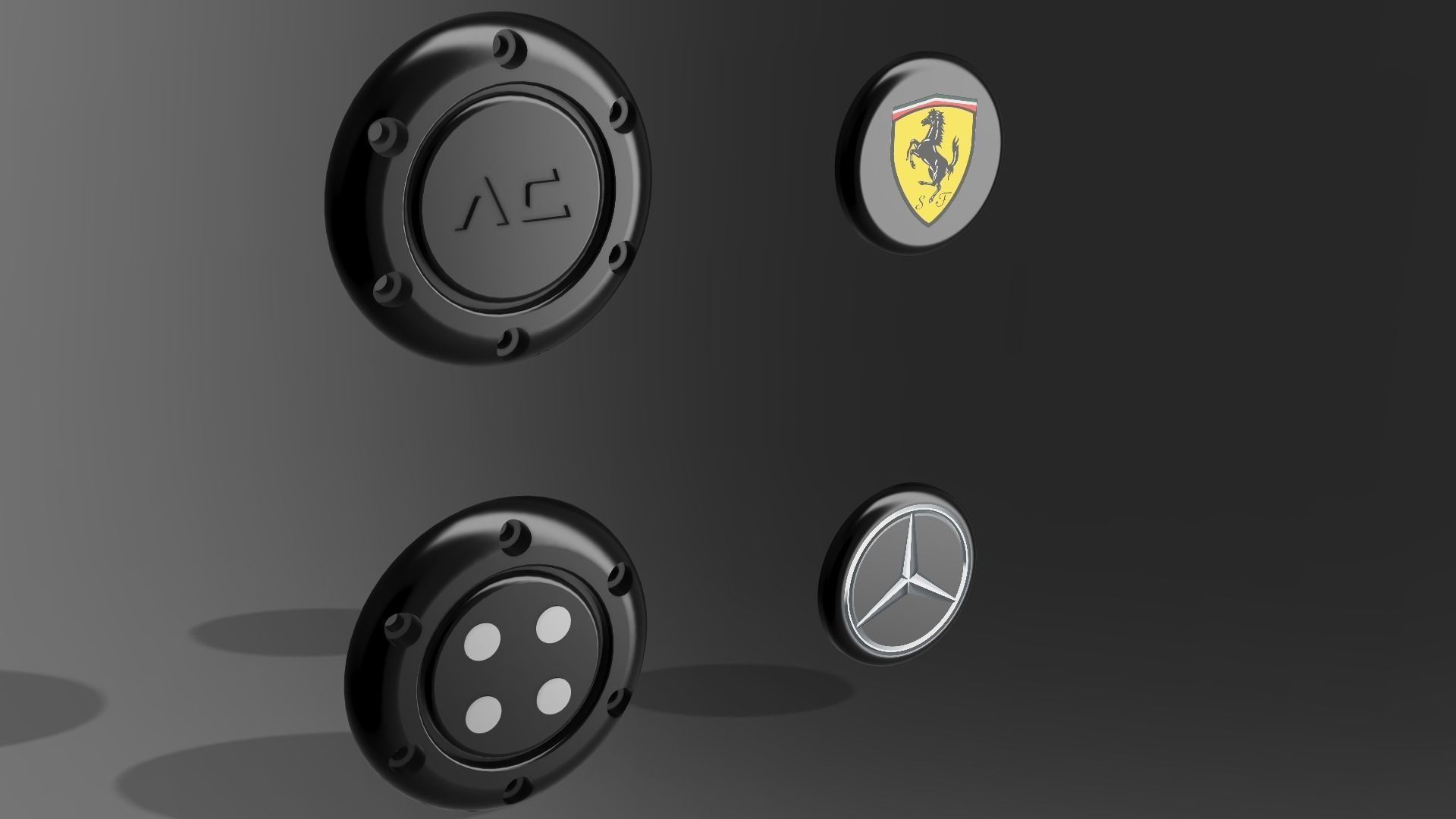

• Included 70 mm Thrustmaster Quick Release. (You can also use your own 70mm quick release.).
• Ordering the base plate file .dxf to cut in CNC aluminum or carbon fiber 4 mm.
• There is the possibility of ordering the paddles file .dxf to cut in CNC aluminum or carbom fiber 3 mm or 4 mm.

Hardware:

(You can use screws with the head you want. For example: Countersunk head on the front panel).

• 12 = M4x20
• 14 = M4x25
• 12 = M4x30
• 2 = M4x35

• 6 = M5x45

• 40 = M4 Nuts

• 6 = M5 Nuts

• 4 or 8 = 10x3 mm magnets.

Switch / buttons (you can use any that suits the measurements).

• 2 = EC11 Rotary Encoder, but I'm sure any will work.
• 2 = 2 = Microswitch https://www.amazon.com/Cylewet-25Pcs-Switch-Arduino-CYT1073/dp/B073TYWX86/ref=sr_1_11?dchild=1&keywords=Micro+Switch&qid=1609527518&sr=8-11&tag=cults0d-20
• 2 = 10 mm Buttons https://es.aliexpress.com/item/4000164359428.html?spm=a2g0o.productlist.0.0.68c61522p5e9hR&algo_pvid=44824074-f4d7-42e0-9d33-0a011c26c4c2&algo_exp_id=44824074-f4d7-42e0-9d33-0a011c26c4c2-1&pdp_ext_f=%7Bsku_id%3A10000000546906660%7D&pdp_pi=-1%3B22.46%3B-1%3B3052%40salePrice%3BUYU%3Bsearch-mainSearch
• 6 = 12 mm Buttons https://es.aliexpress.com/item/32976514600.html?spm=a2g0o.productlist.0.0.68c61522p5e9hR&algo_pvid=44824074-f4d7-42e0-9d33-0a011c26c4c2&algo_exp_id=44824074-f4d7-42e0-9d33-0a011c26c4c2-33&pdp_ext_f=%7Bsku_id%3A66673243805%7D&pdp_pi=-1%3B13.99%3B-1%3B-1%40salePrice%3BUYU%3Bsearch-mainSearch

• 2 = Toggle Switch Momentary ON ON https://es.aliexpress.com/item/1005001951366191.html?spm=a2g0o.productlist.0.0.50a3150dISeaW4&algo_pvid=fb00722a-ad1a-4275-b092-840448fc6dfd&algo_exp_id=fb00722a-ad1a-4275-b092-840448fc6dfd-1&pdp_ext_f=%7B%22sku_id%22%3A%2212000018203858432%22%7D&pdp_pi=-1%3B2.2%3B-1%3B-1%40salePrice%3BUSD%3Bsearch-mainSearch

• 1 = Conector GX-12 4 Pin.

• Electronics Arduino or Leo Bodnar or STM32.

• 70 mm Quick Release. (Included 70 mm Thrustmaster Quick Release). (You can also use your own 70mm quick release).

Personal use only, it is forbidden to sell the model and its prints.

Personal Use - No Derivatives

In case you need something customized, different sizes or style you can contact via private message or email.

Contact email: ac3d.impresiones@gmail.com

3D PRINTING SETTINGS

0.4 Nuzzle.0.2 - 0.18 Layer50% + Infill.
