Battery Holder 1S15P 57000mah 3D print model

Description

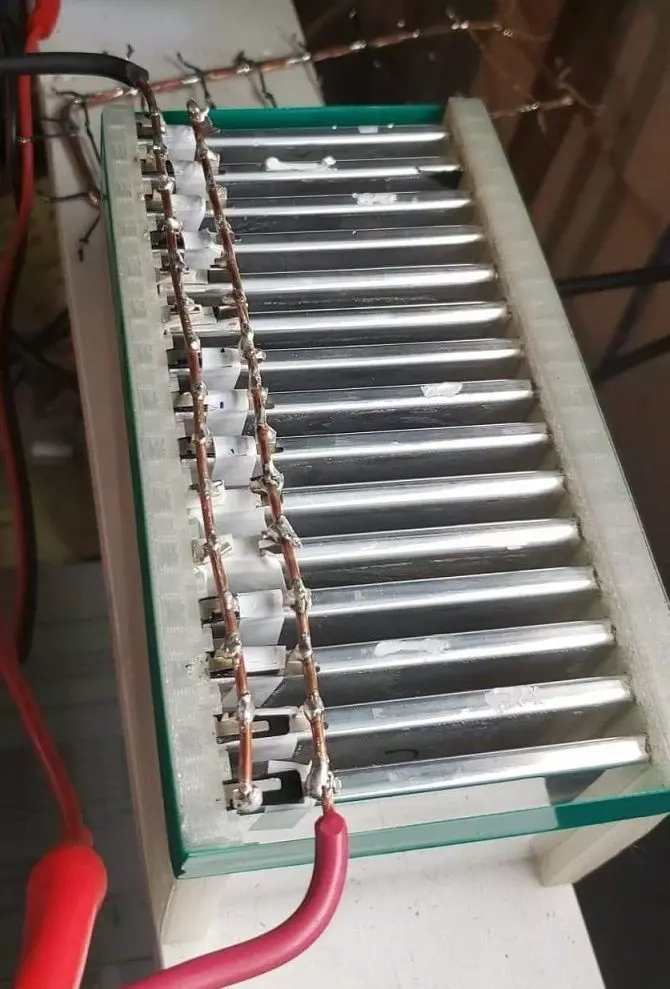

Holds 15 3800mah samsund SDI, Batteries are found in many laptops and chromebooks.the Dellpack 5R9DD is an example. battery interrnally has an LGUH6FB60 (3800MAH) or samsung SDI ICP596080A (3700mah). Each battery has a built in fuse, so no need for fuse wire.In total at 1s15P gives you about 57000mah at 4.2v depending on how you wire it.I plan on stacking 7 of these to make a 7S15P 29.4V for use with a 24V inverter.

Write comment
C
cmajeff
cmajeff2022-04-26 14:38:56 UTC
I just got a bunch of these batteries and started pulling them apart before coming across this post. I already ripped off the fuse before knowing what it was. Can you tell me which is positive and negative if I ripped out the fused connections and can you also tell me how you are wiring this up. I see two bus bars. The negative I understand, the positive, I don't quite see how it is connected. Thanks, Jeff
C
Chris1977
Chris19772022-04-26 17:51:31 UTC
Running these without the fuse is extremely dangerous. you will need to add Fuse wire between every cell, and the buss bar. the RED wire is positive, easily identifiable with a voltmeter.
C
cmajeff
cmajeff2022-04-26 18:02:07 UTC
could I email you to get more pictures or write up so I can replicate?
