ARRMA FELONY 6S REAR TAIL PAN AND ACCESSORIES 3D print model

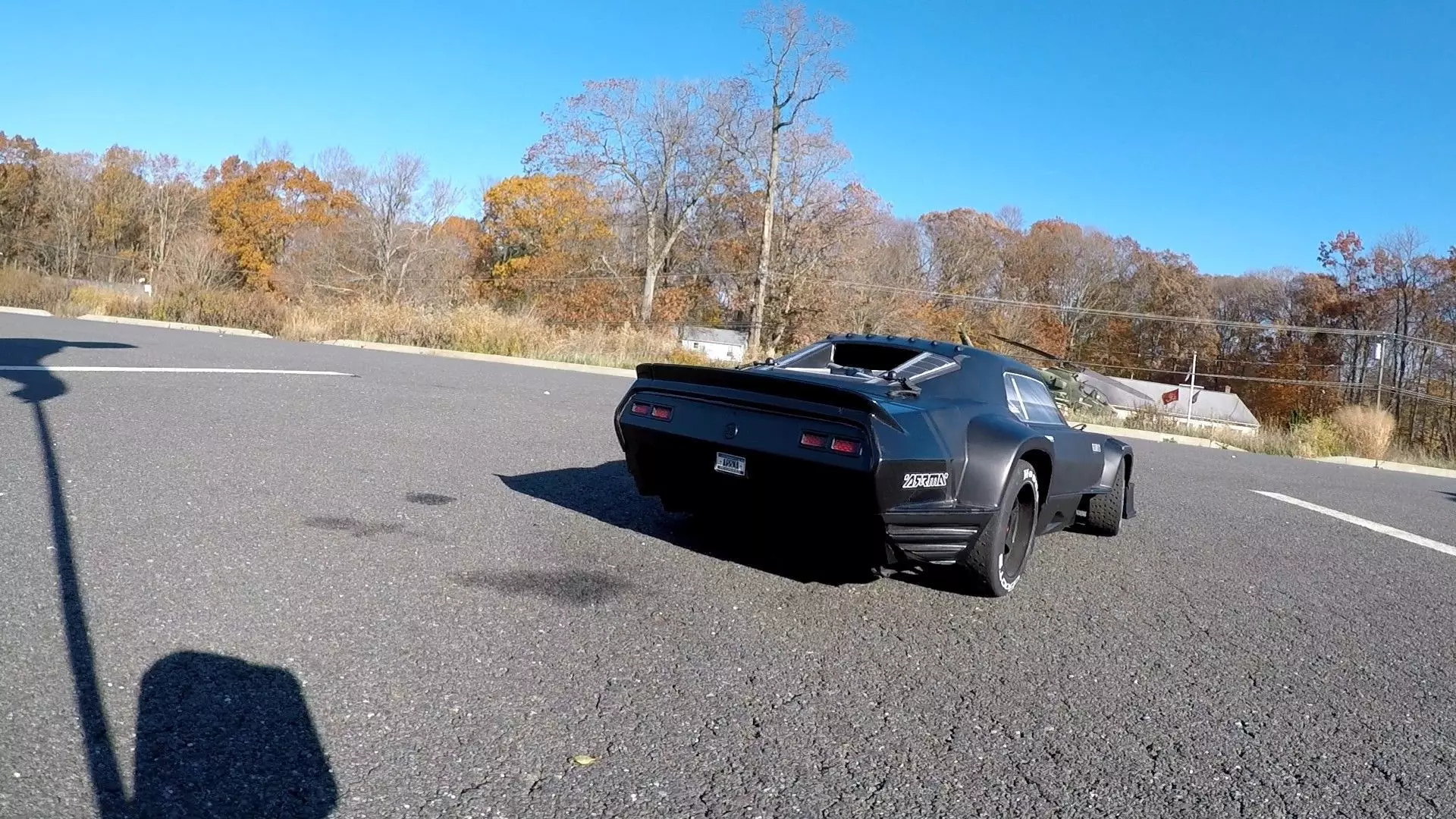

The arrma felony 6s body left something to be desired so i set out on a journey to design some body parts to bring it all together..

These files contain the rear tailpan, tailight buckets, tail pan lenses, and led retainers.. In order to print the part all in one piece a minimum bed size of 300mm x 300mm is required.. If using a smaller build platform (like the ender 3 at 210mm x 210mm) it is needed to cut the model up into 3 pieces and be glued together..

If printing in 3 pieces it is best to print each side skirt, and the center section seperately.. Each side skirt should be printed on the inner most flat against the bed.. The center section can be printed in the vertical position but maintain a slower speed for accuracy..

my print settings;.15 layer hieght2mm walls8% infill, grid pattern30mm sec outer wall speed50mm sec inner wall speed50mm sec infill speed

You will need to print 2 each of the following;tail pan led buckettaillight lensesbuckets are designed for 5mm led lights.. and require 2mm x 6-8mm button head screws for the retainers

You will also need to print 4 of the following;Tail pan led retainerHope you enjoy the new look! be sure to check out the front air dam files i uploaded as well...
