AH-64D Apache cyclic 3D printing model with electric componenets 3D print model

Description

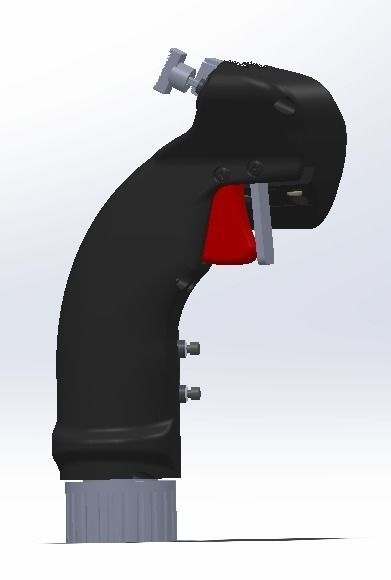

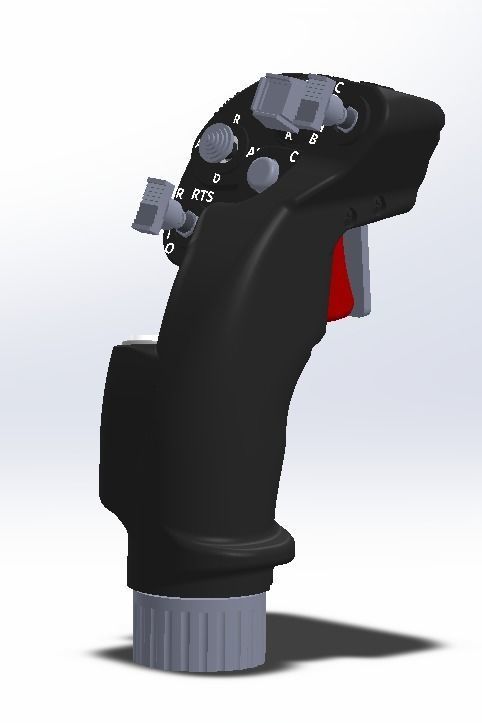

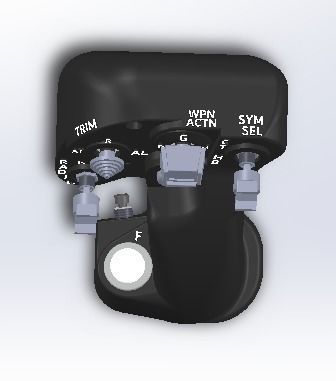

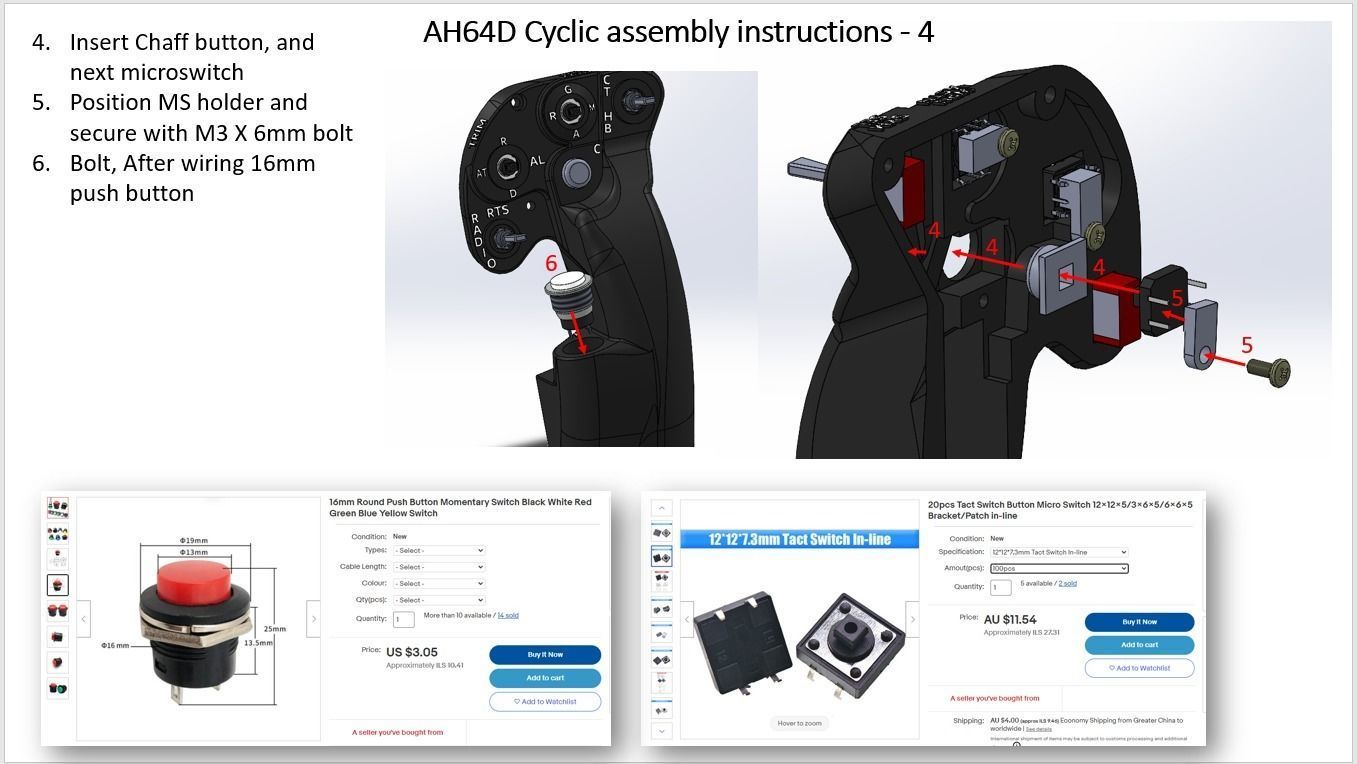

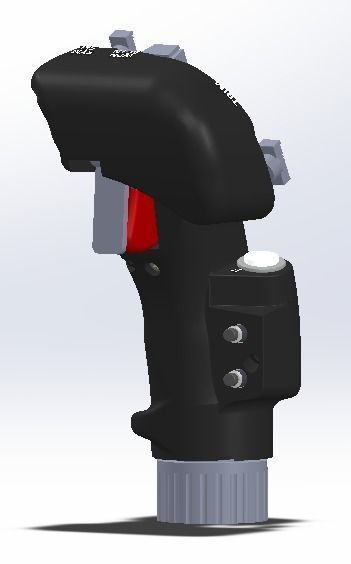

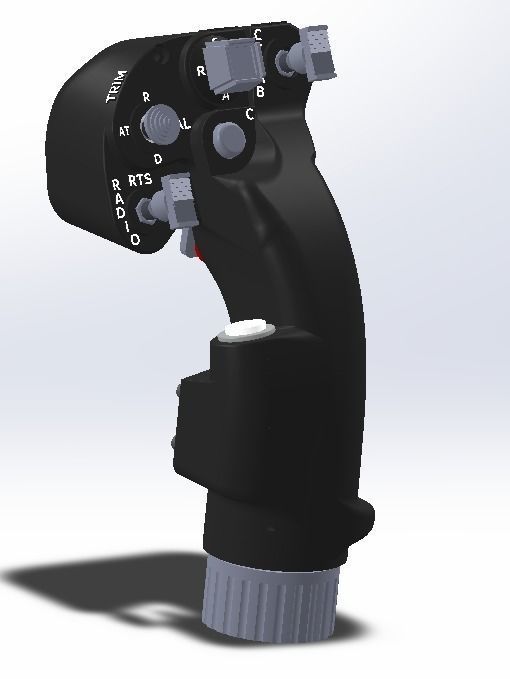

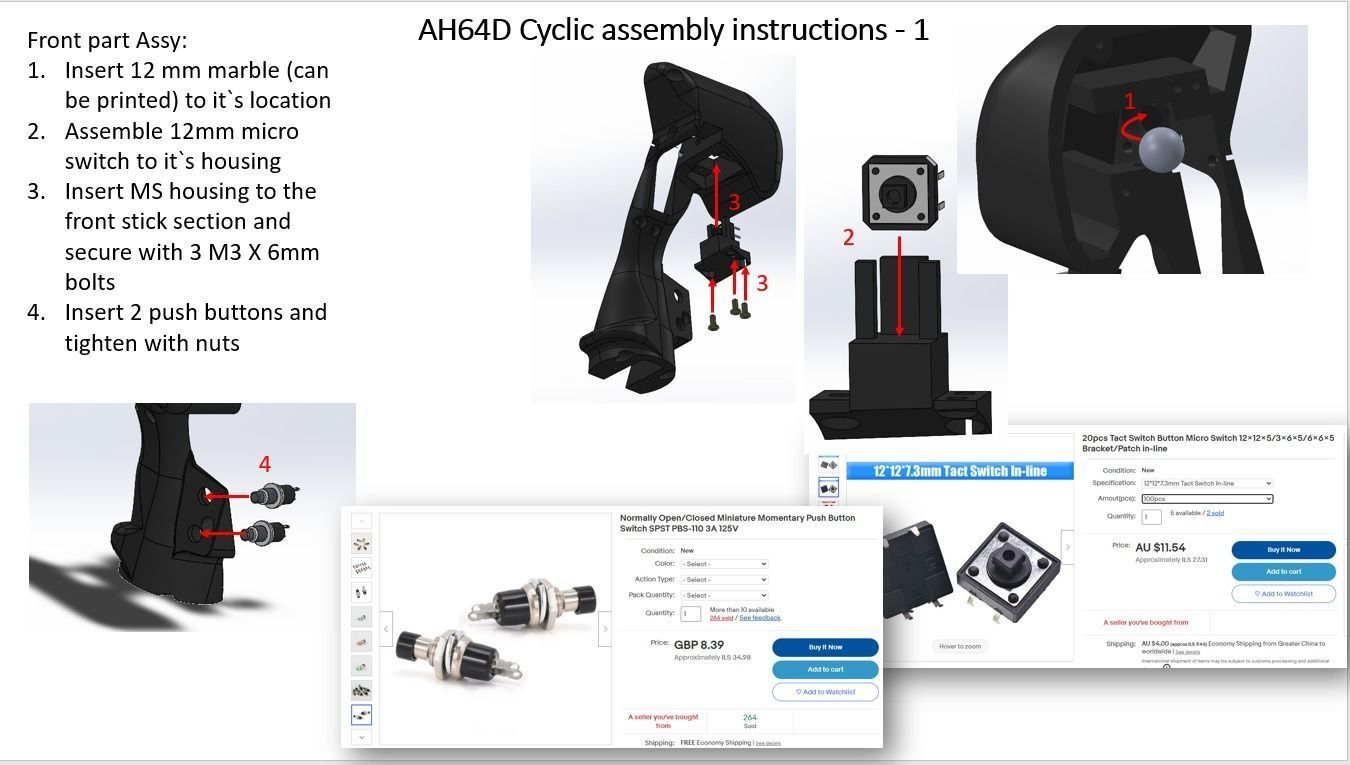

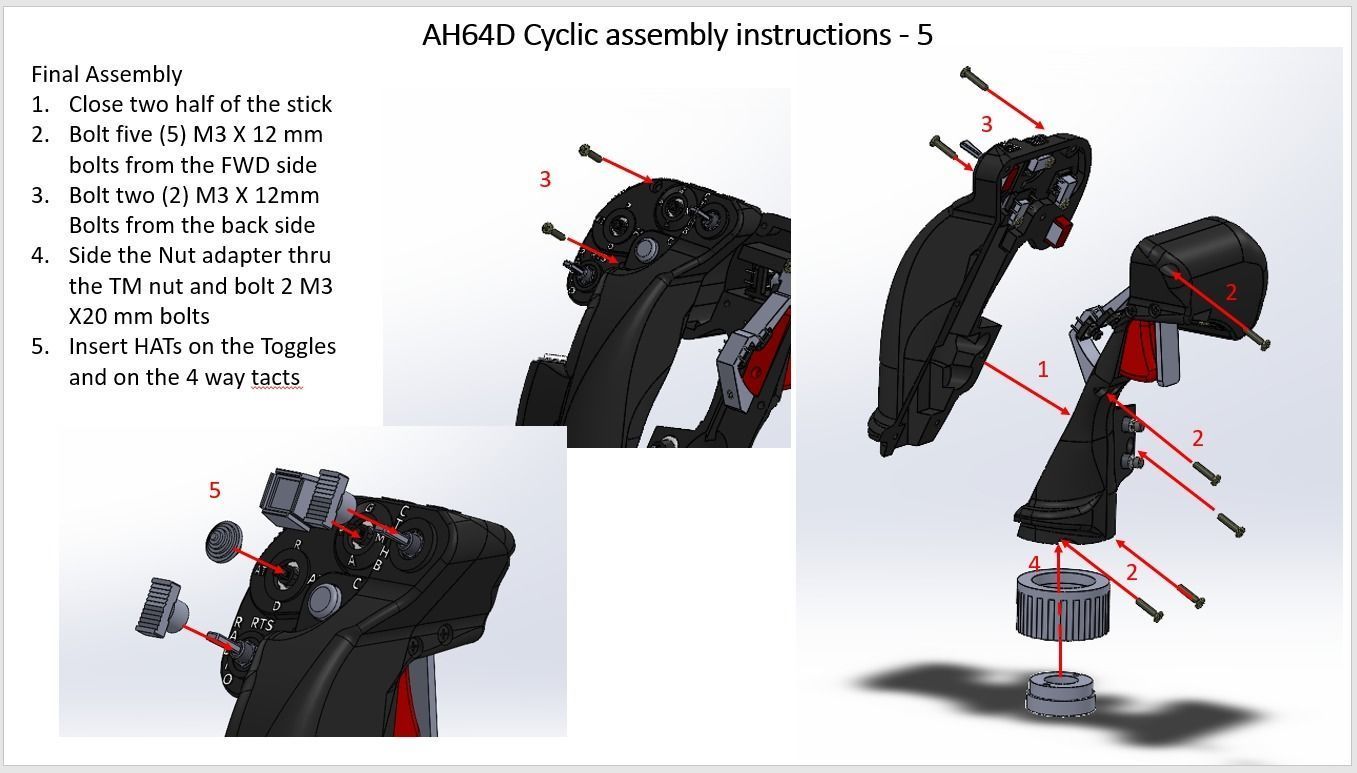

AH-64D Apache is US attack helicopter. This is a 3D Printing model of a repllica of it`s Cyclic controller. The Model include electric buttons and switches needed to connect to the computer (electric card does not included). The interface to the gimble is with thread ring suiteble to TM sticks. All Parts needed describe at the assembly instructions pictures.

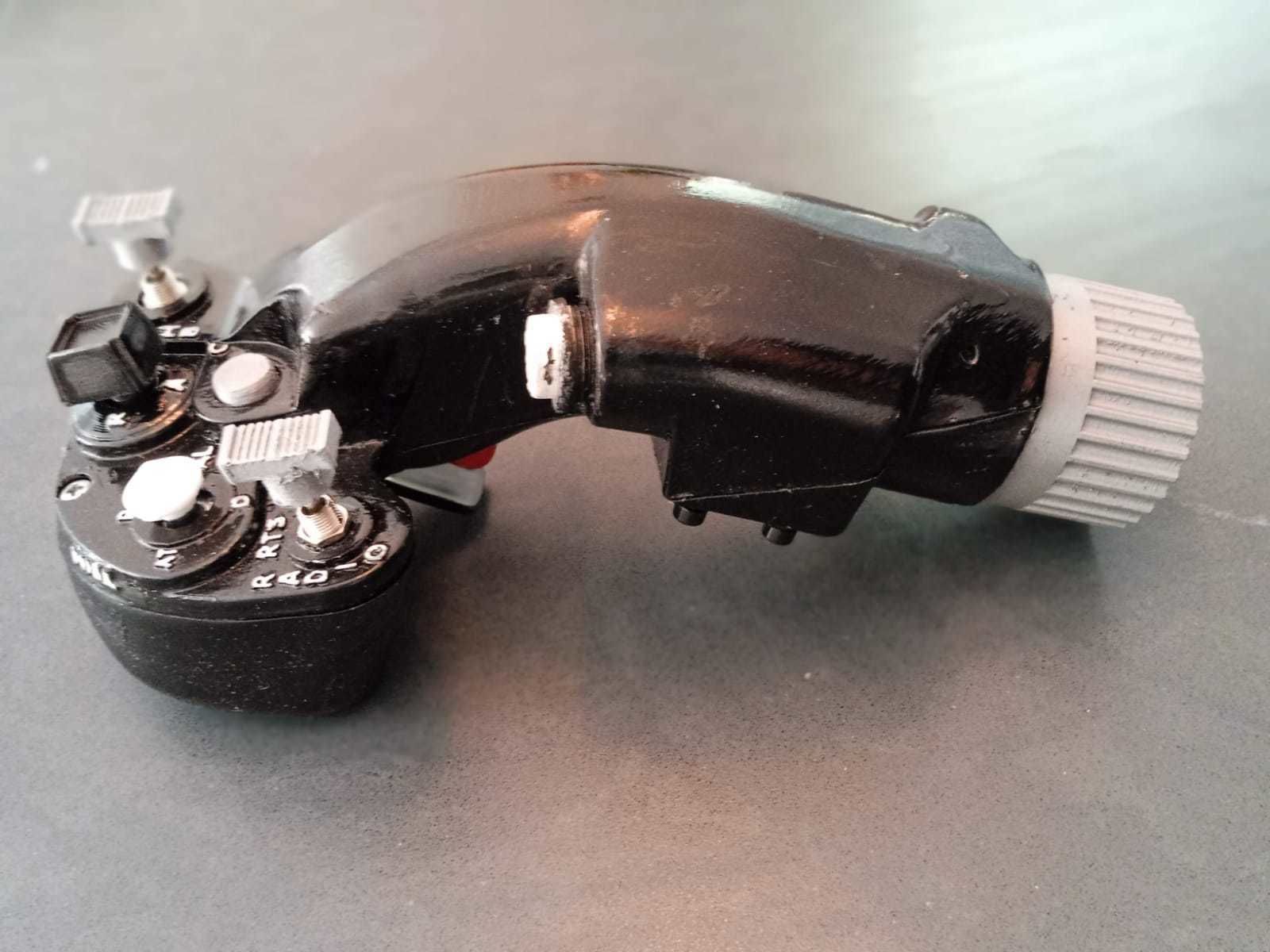

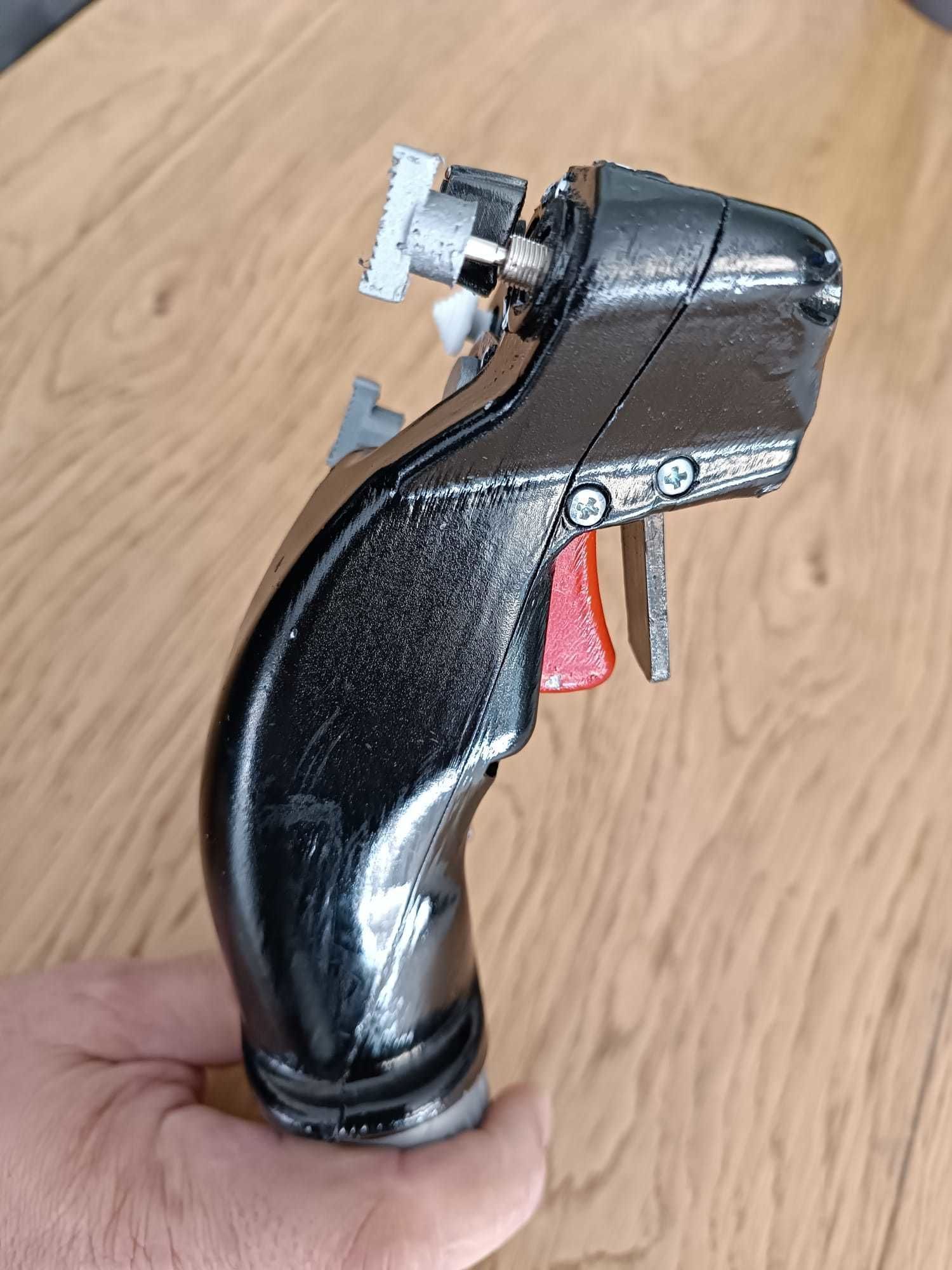

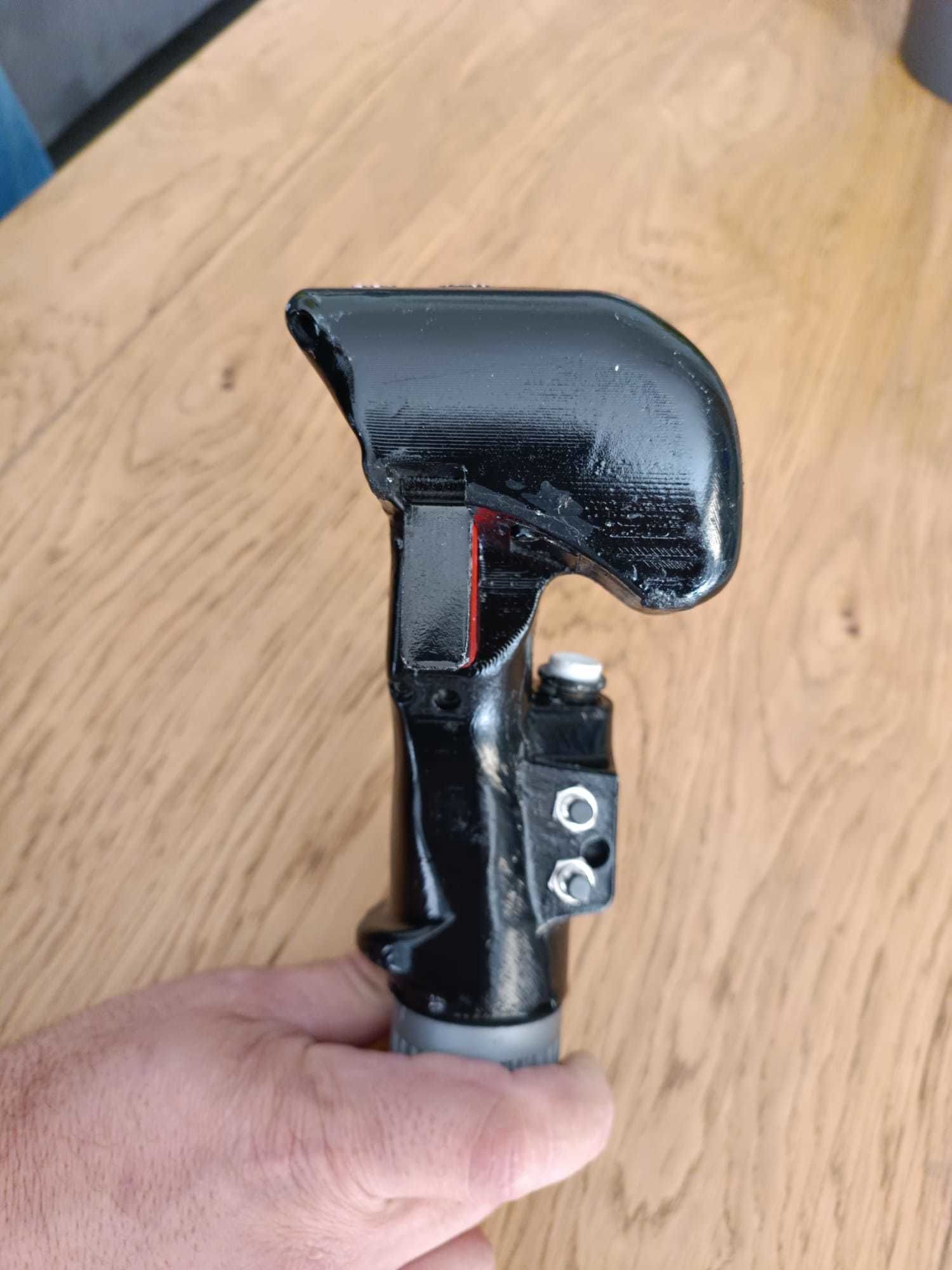

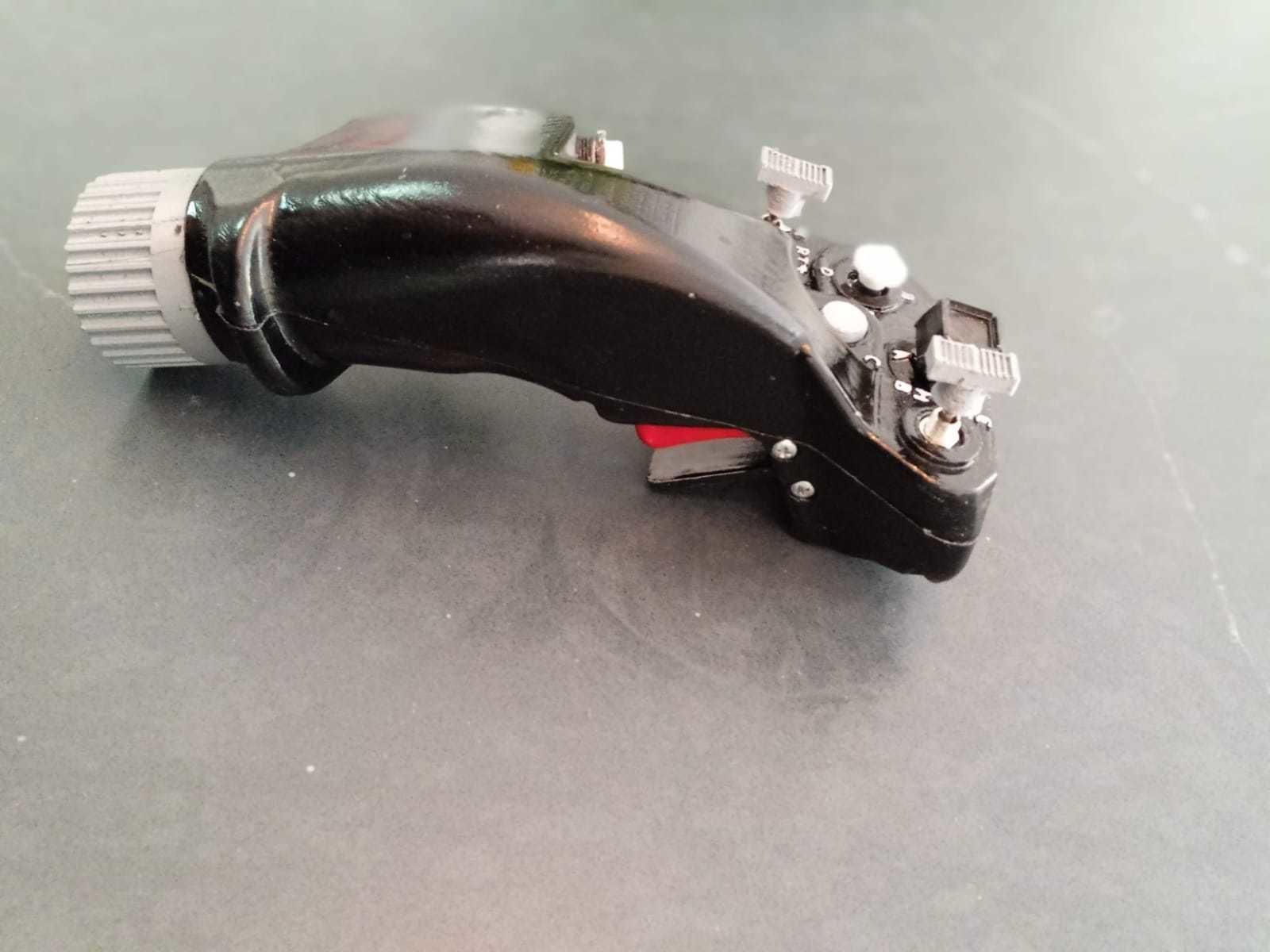

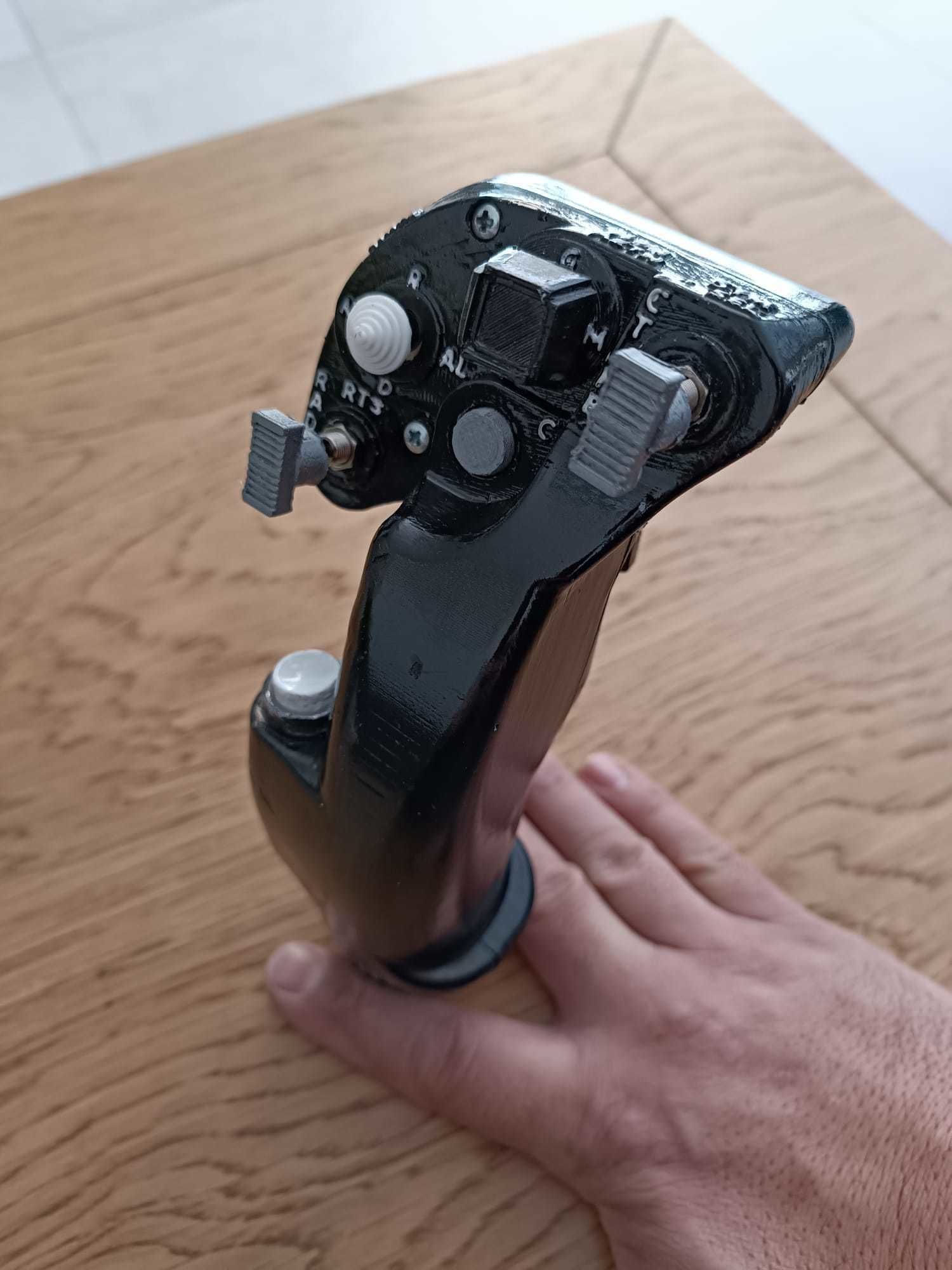

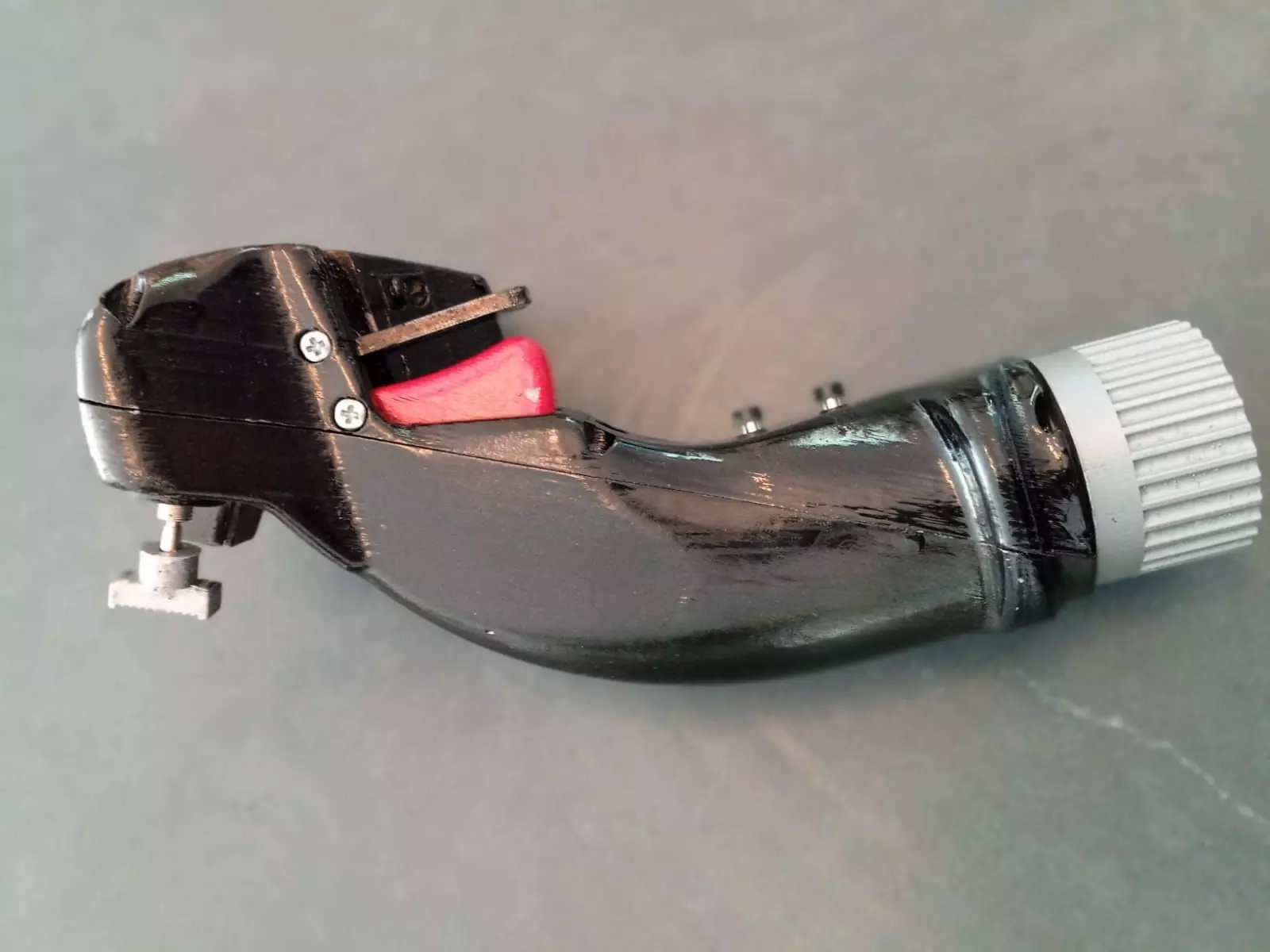

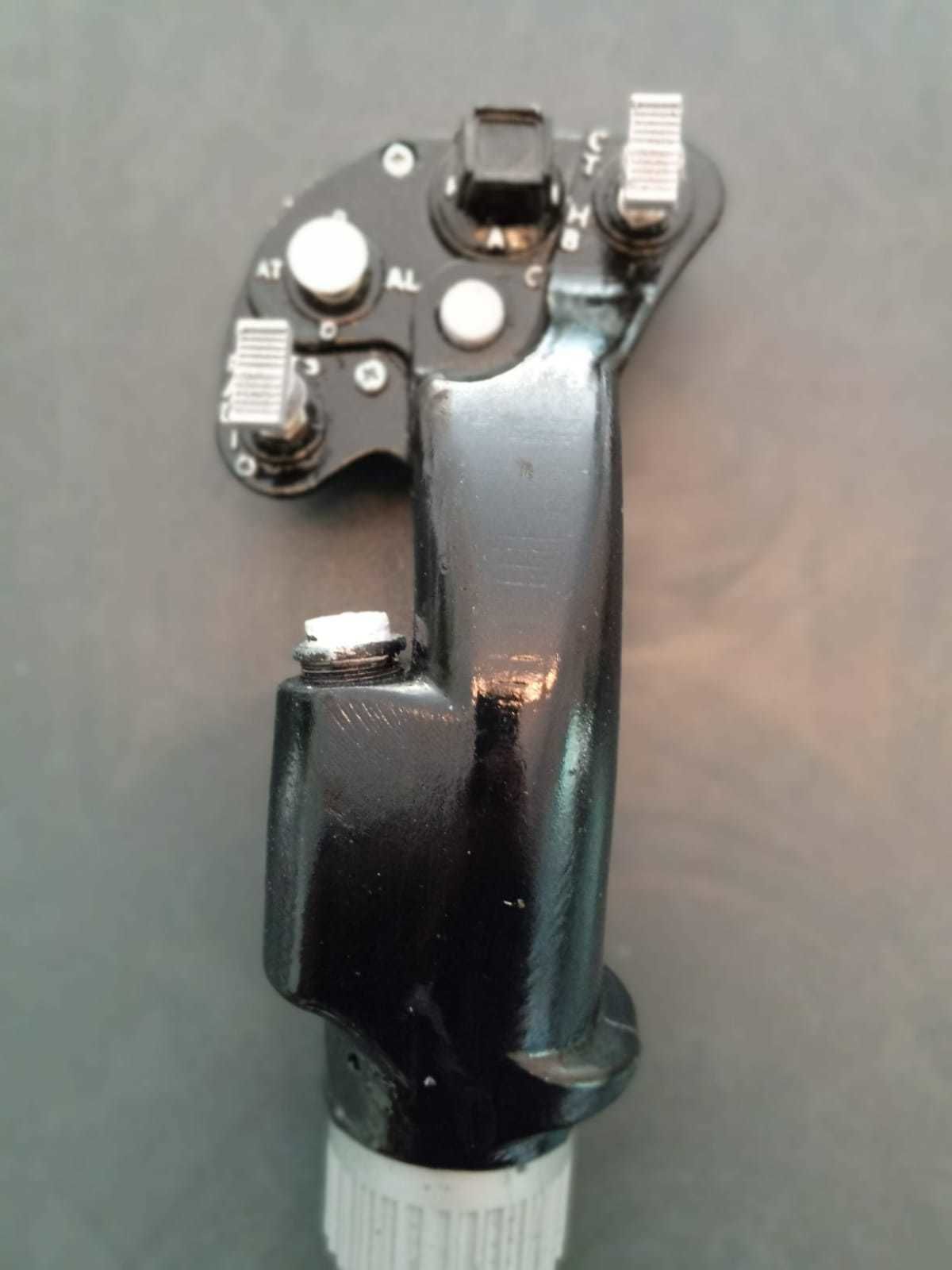

I printed it with Al infuse PLA for easy sanding and metallic feel. All files are STL format and ready for 3D printing slicing program (I use Cura).

the one file that incluce the interface to the gimble is also at STEP and Parasolid formats in case changes needed for your gimble. I use it for DCS simulation, and FreeJoy card with 4021 shift registers cheeps. Model includes space for a 34.3 X 37.8 mm electric card

Write comment
S
stevenschmick47
stevenschmick47 2024-04-01 17:30:25 UTC

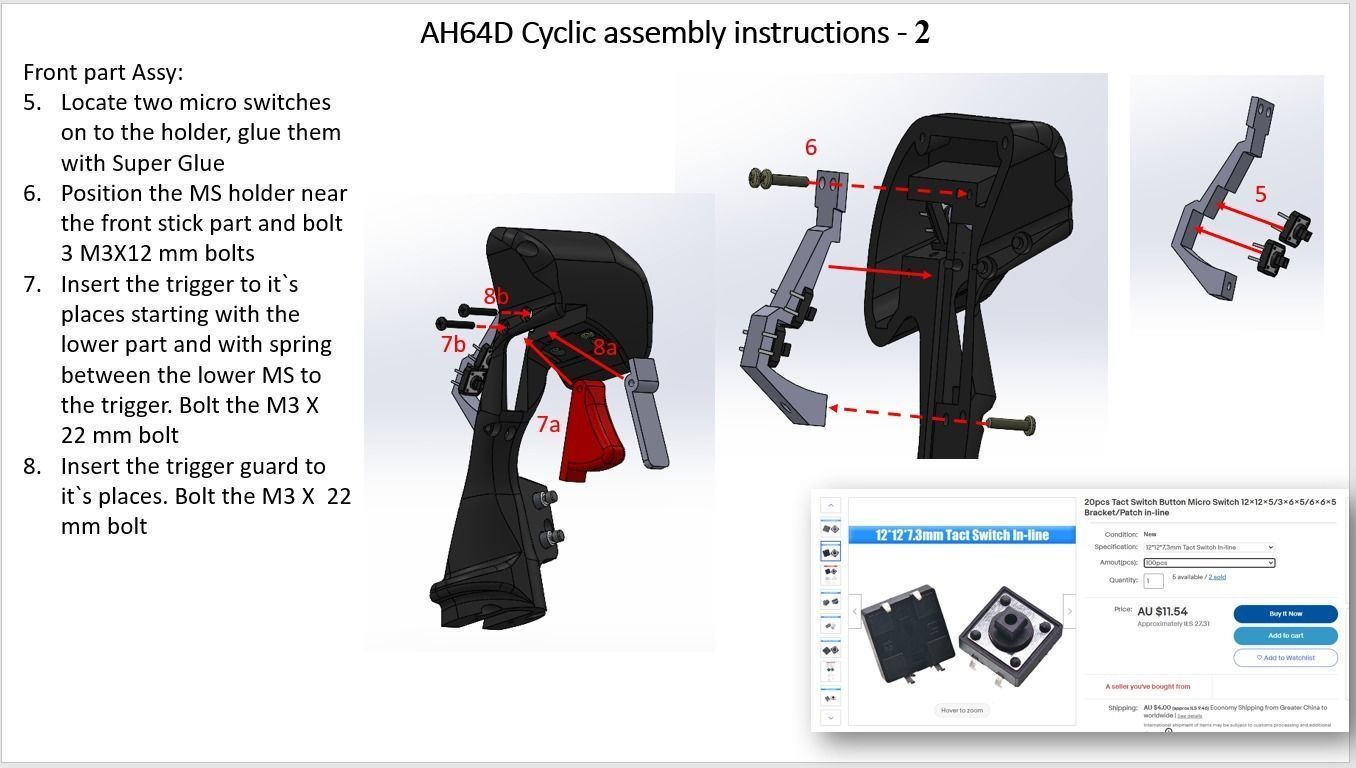

Hi Sagil! I'm working on assembling the grip and noticed that you mention a spring for the trigger assebmly "7. Insert the trigger to it`s places starting with the lower part and with spring between the lower MS to the trigger. Bolt the M3 X 22 mm bolt" Can you advise what size spring you used for the trigger please? Thanks in advance. The grip is looking great. Printed it with a resin printer using ABS-like resin and it's turning out very nice!
