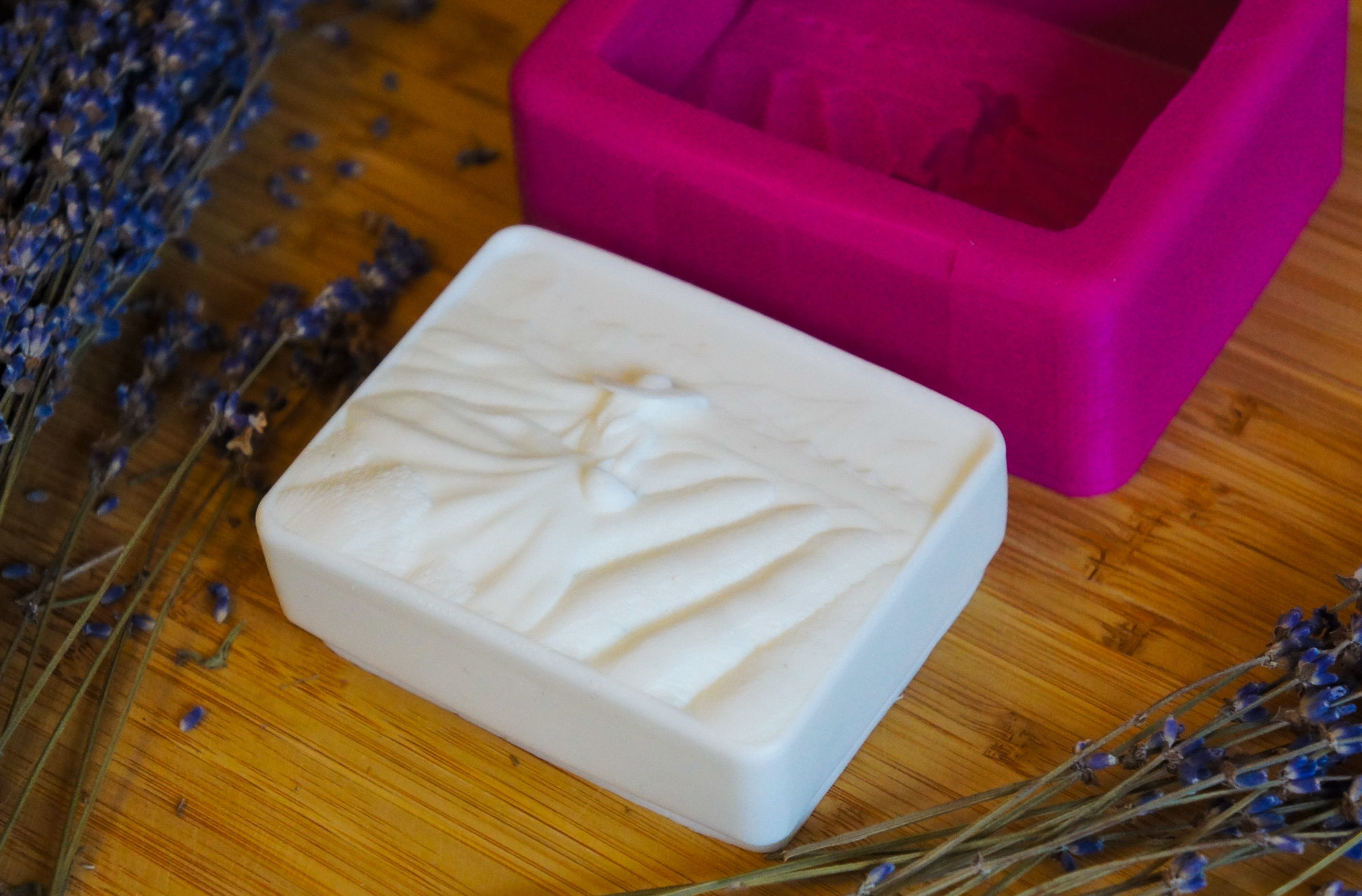

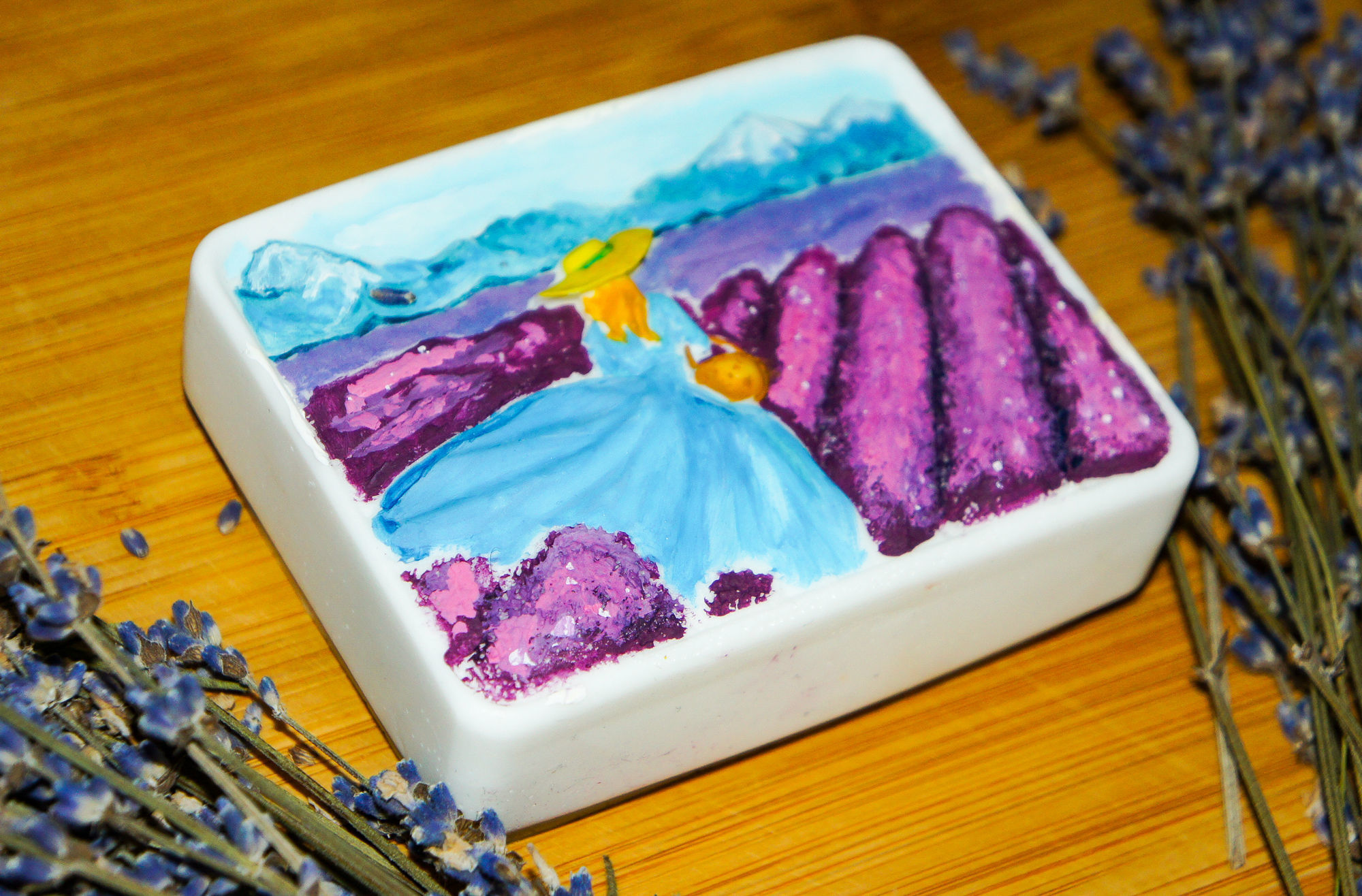

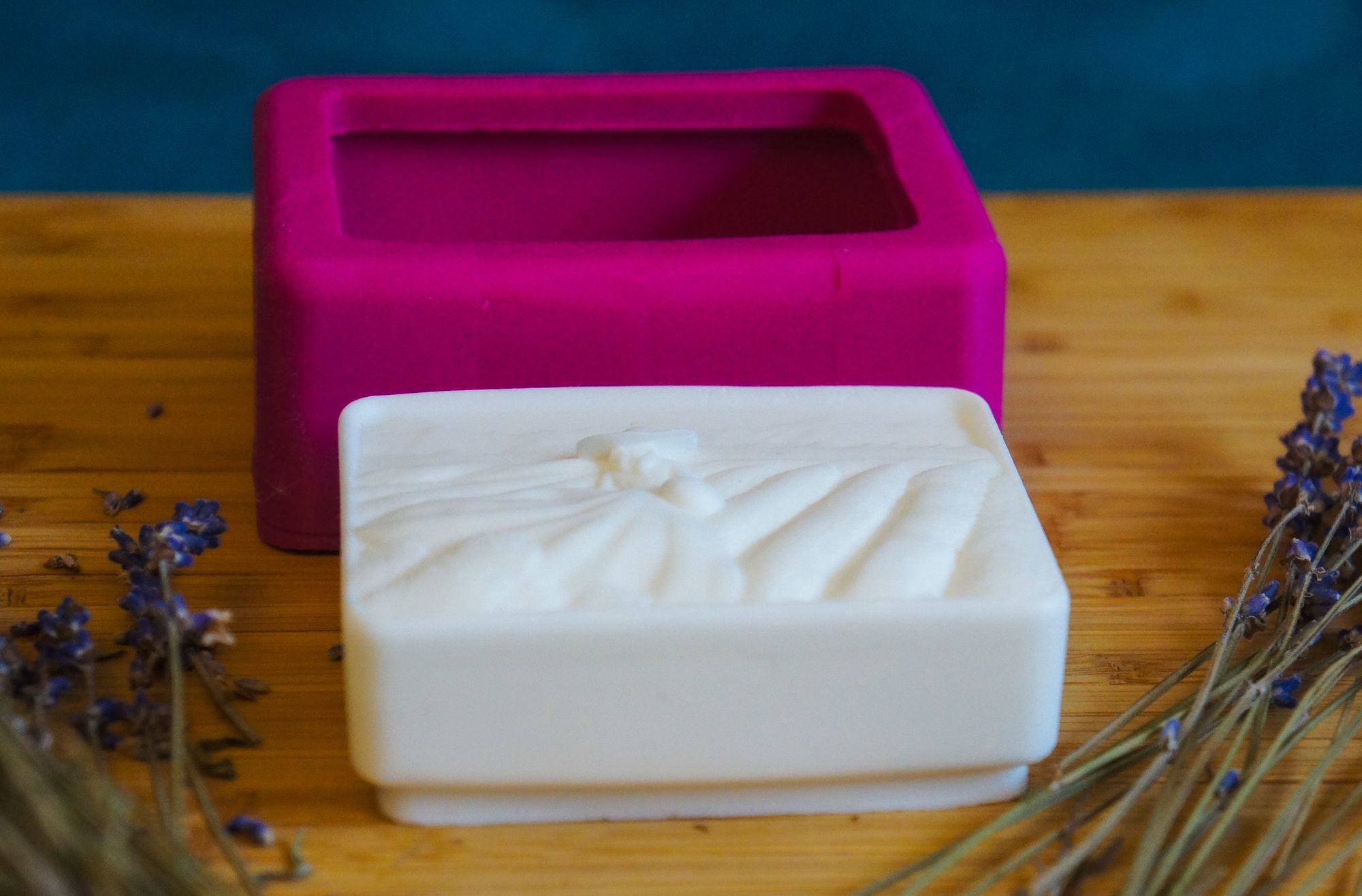

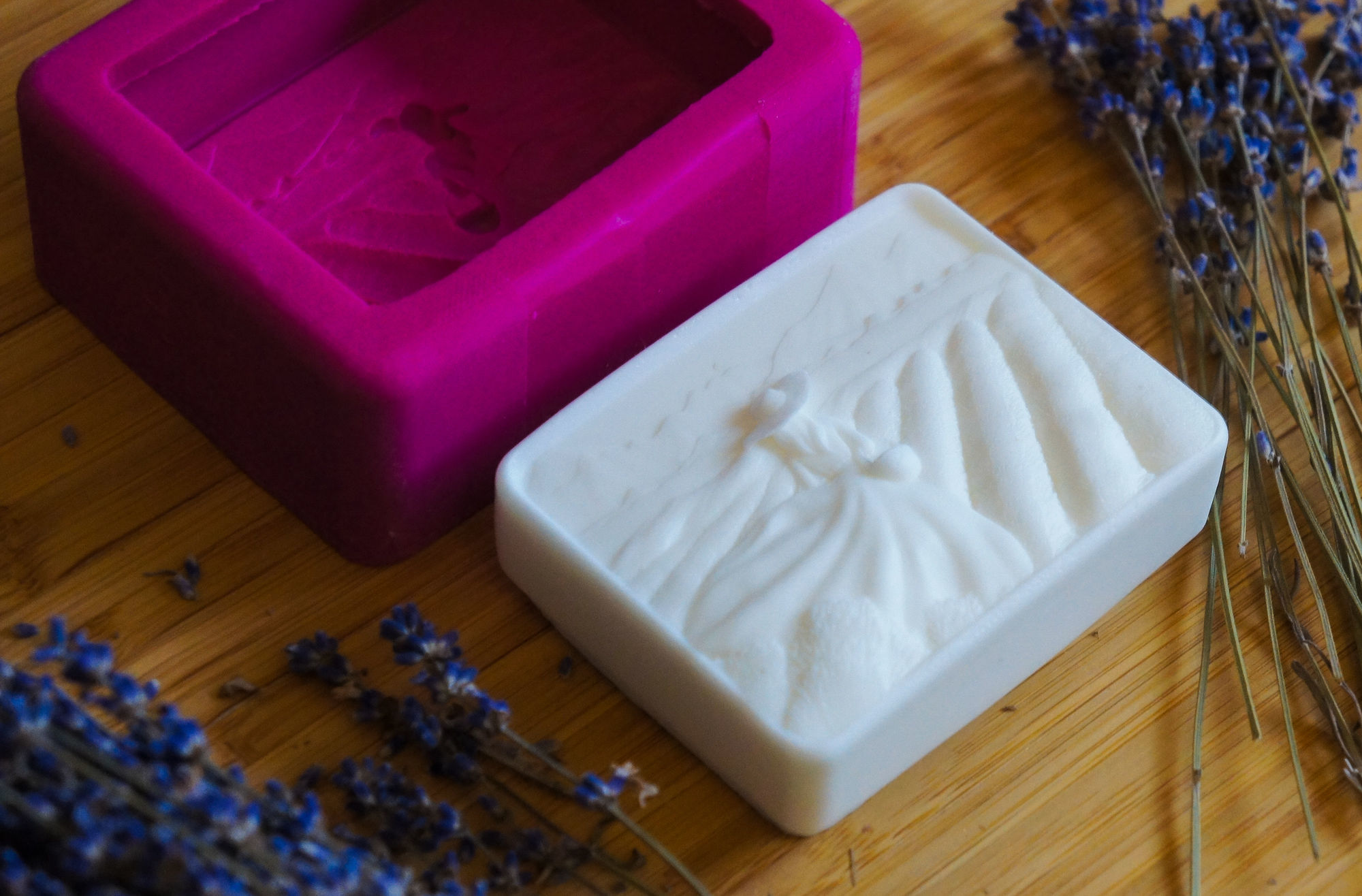

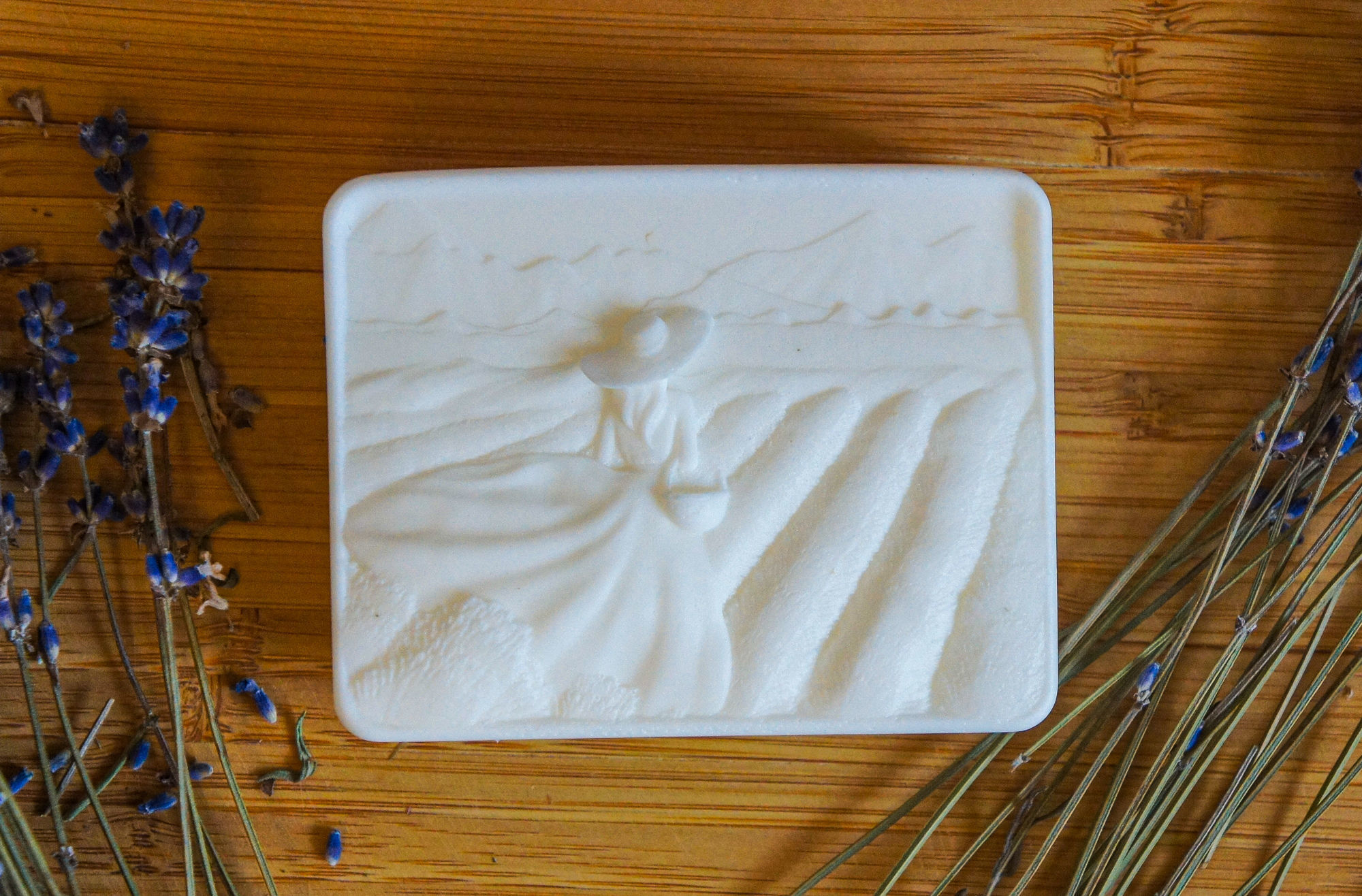

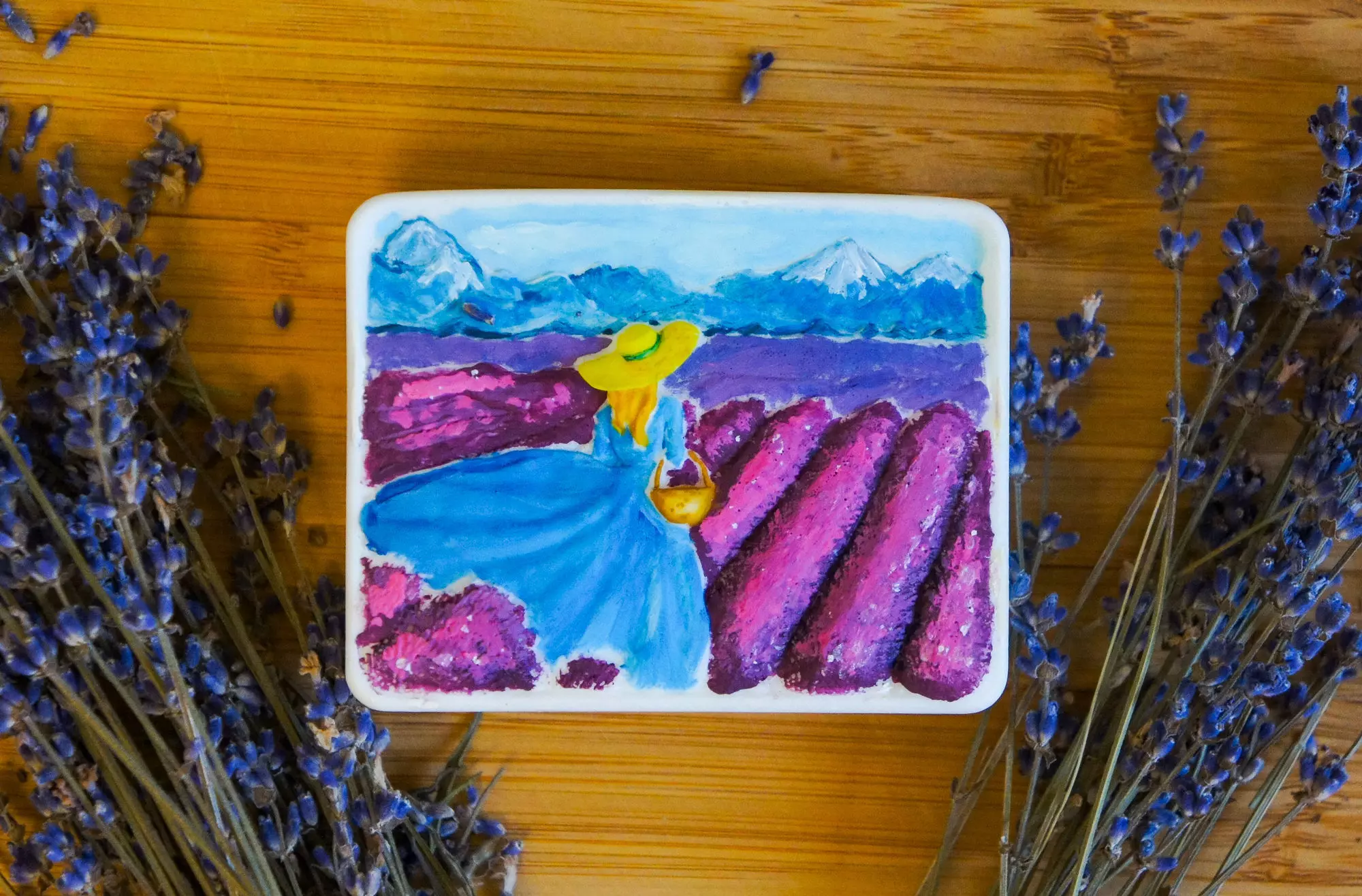

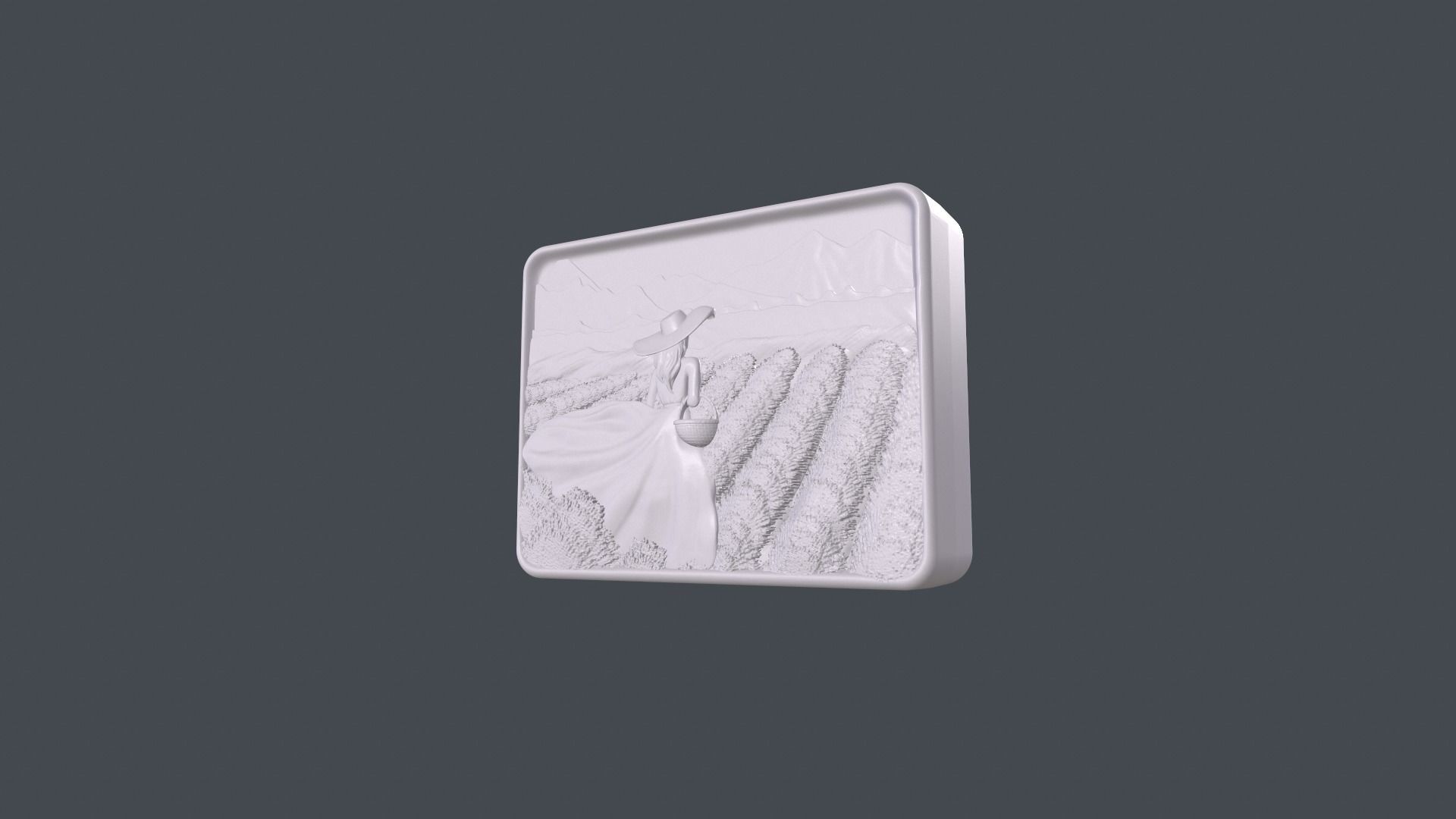

A girl on a lavender field SOAP master 3D print model

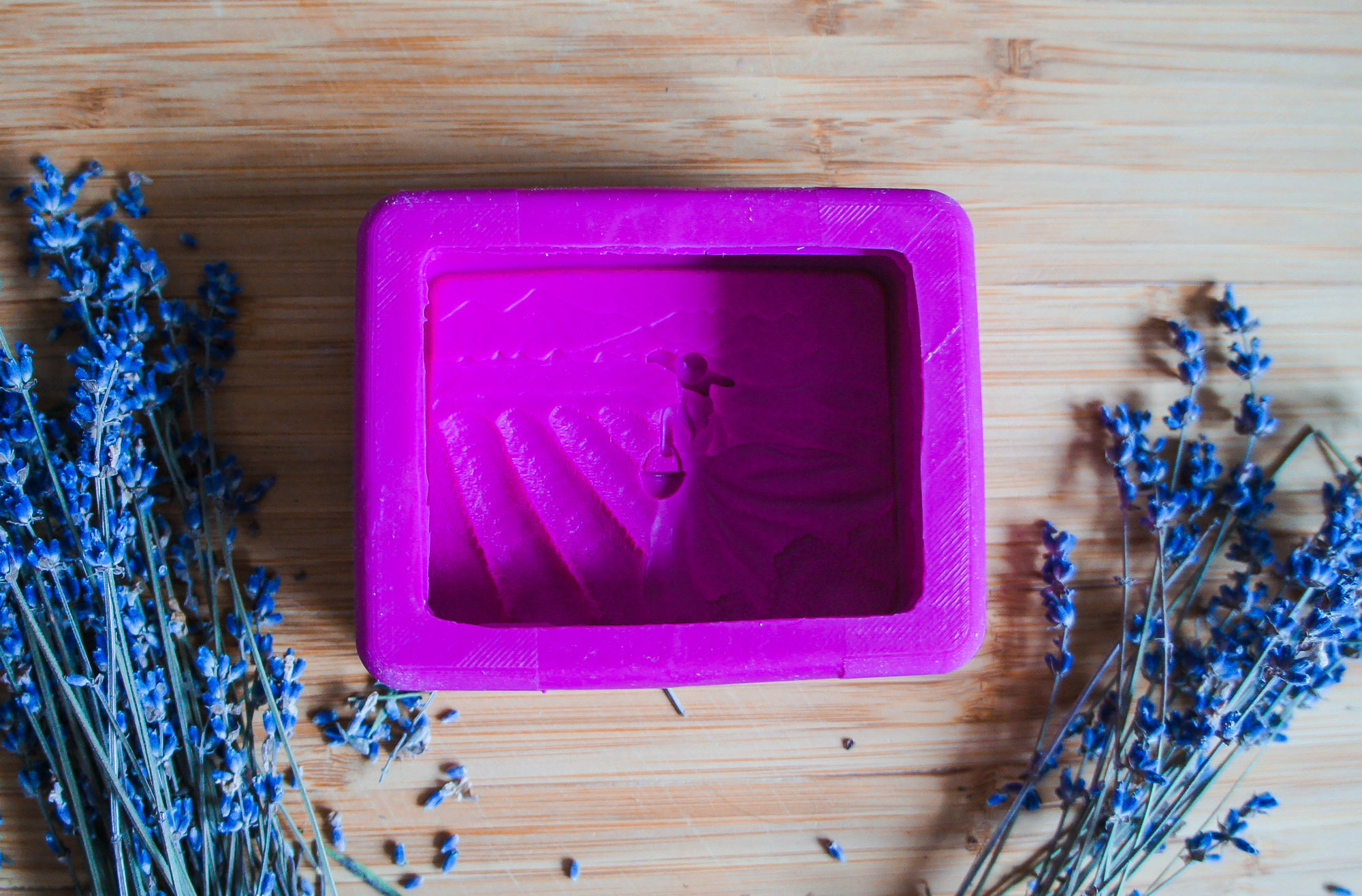

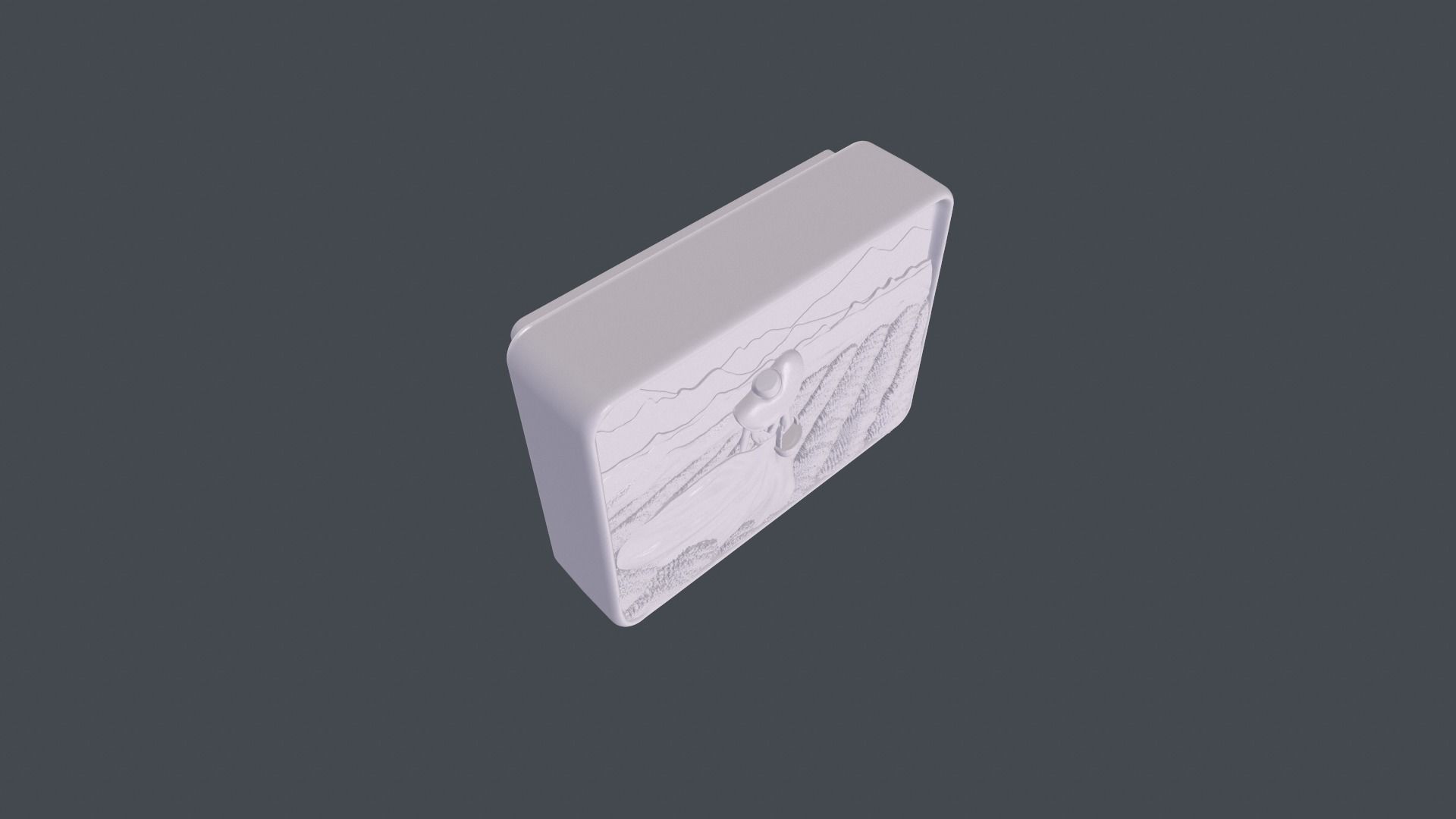

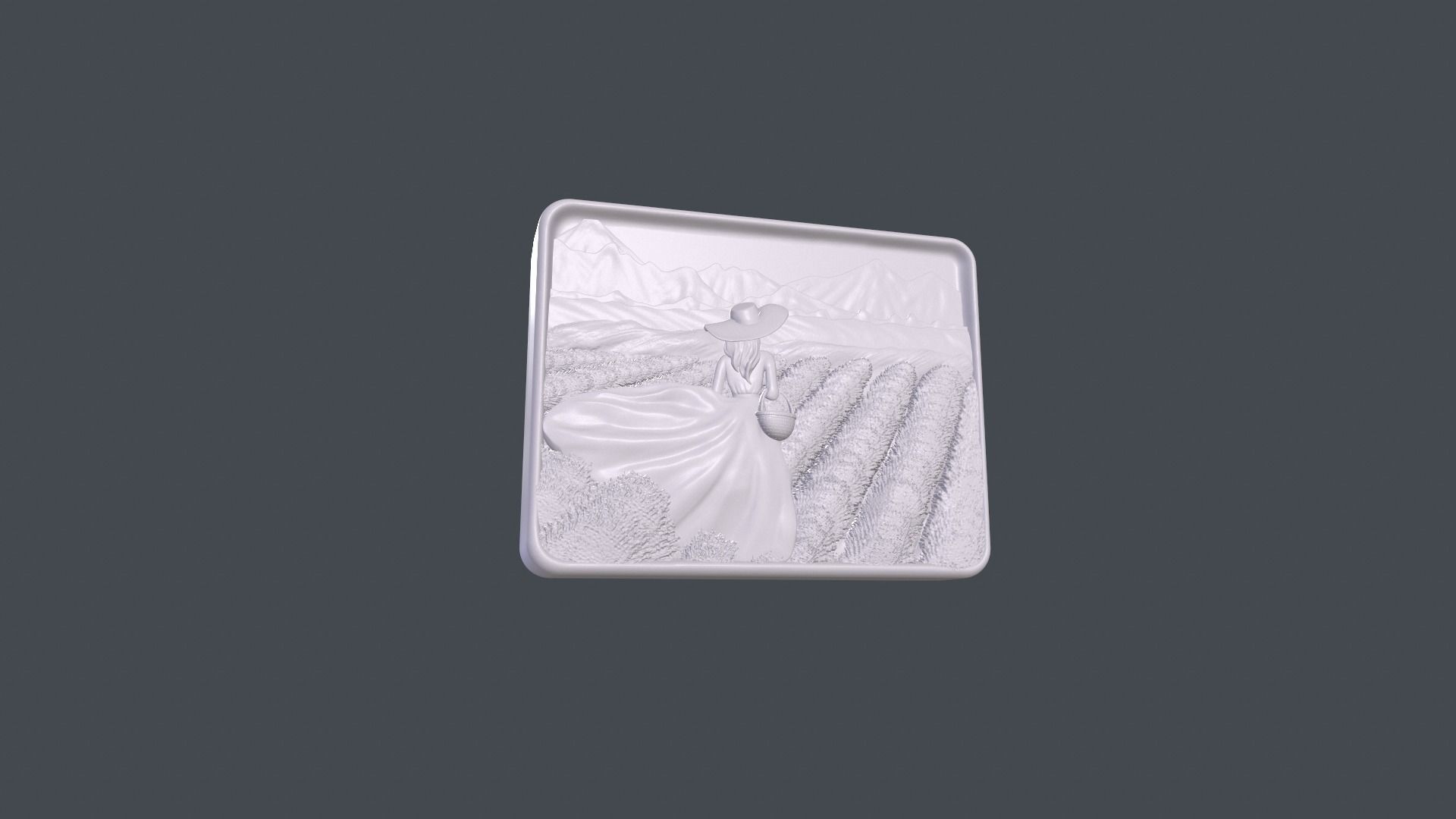

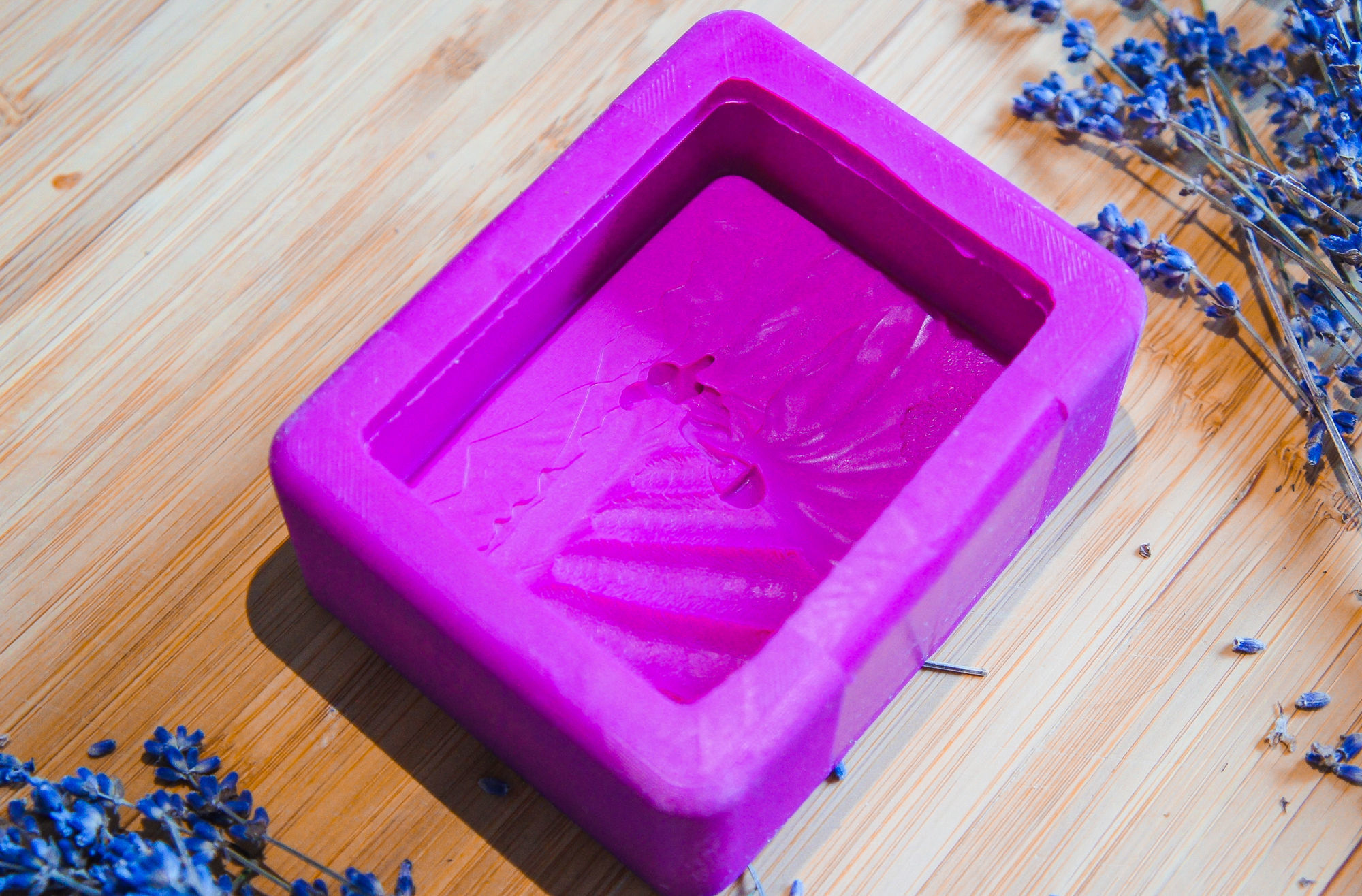

Exclusive 3d master model for handmade soap from the Provence series, A girl on a lavender field.When buying a master model for making soap, you get a complete set of 3d models of a silicone filler, which you can print on a 3d printer. As part of the formwork:

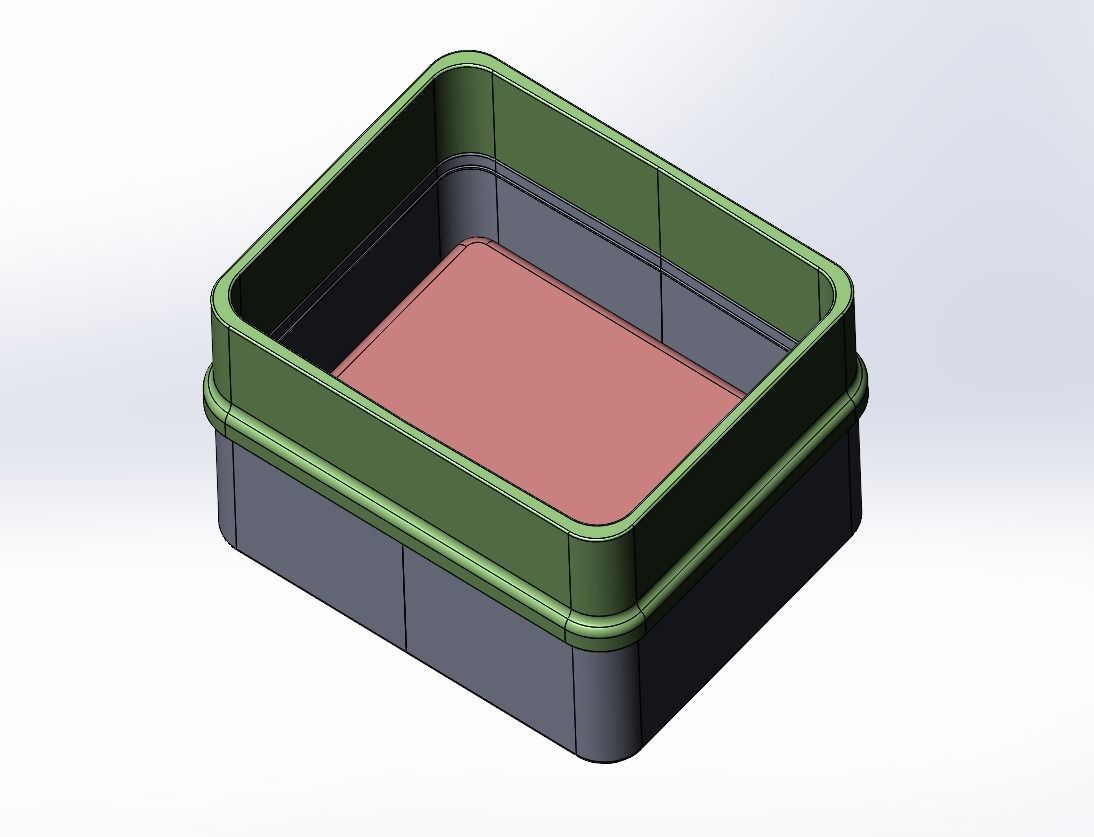

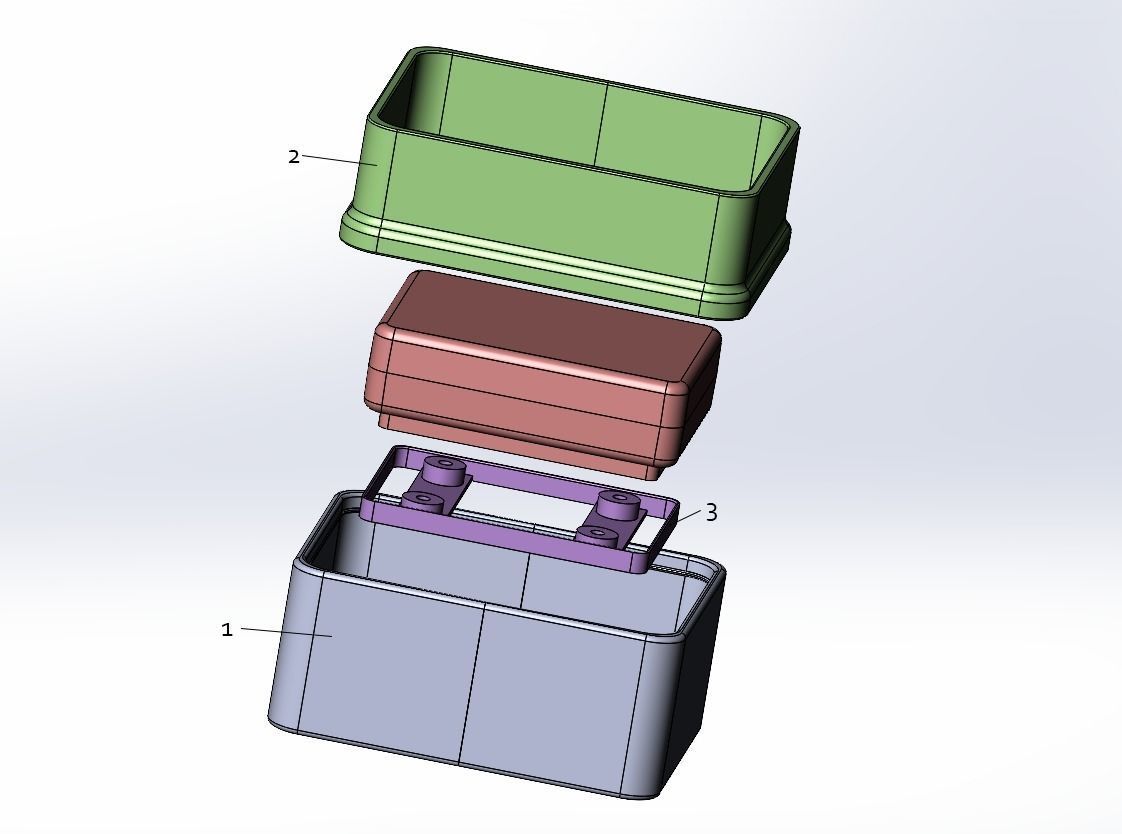

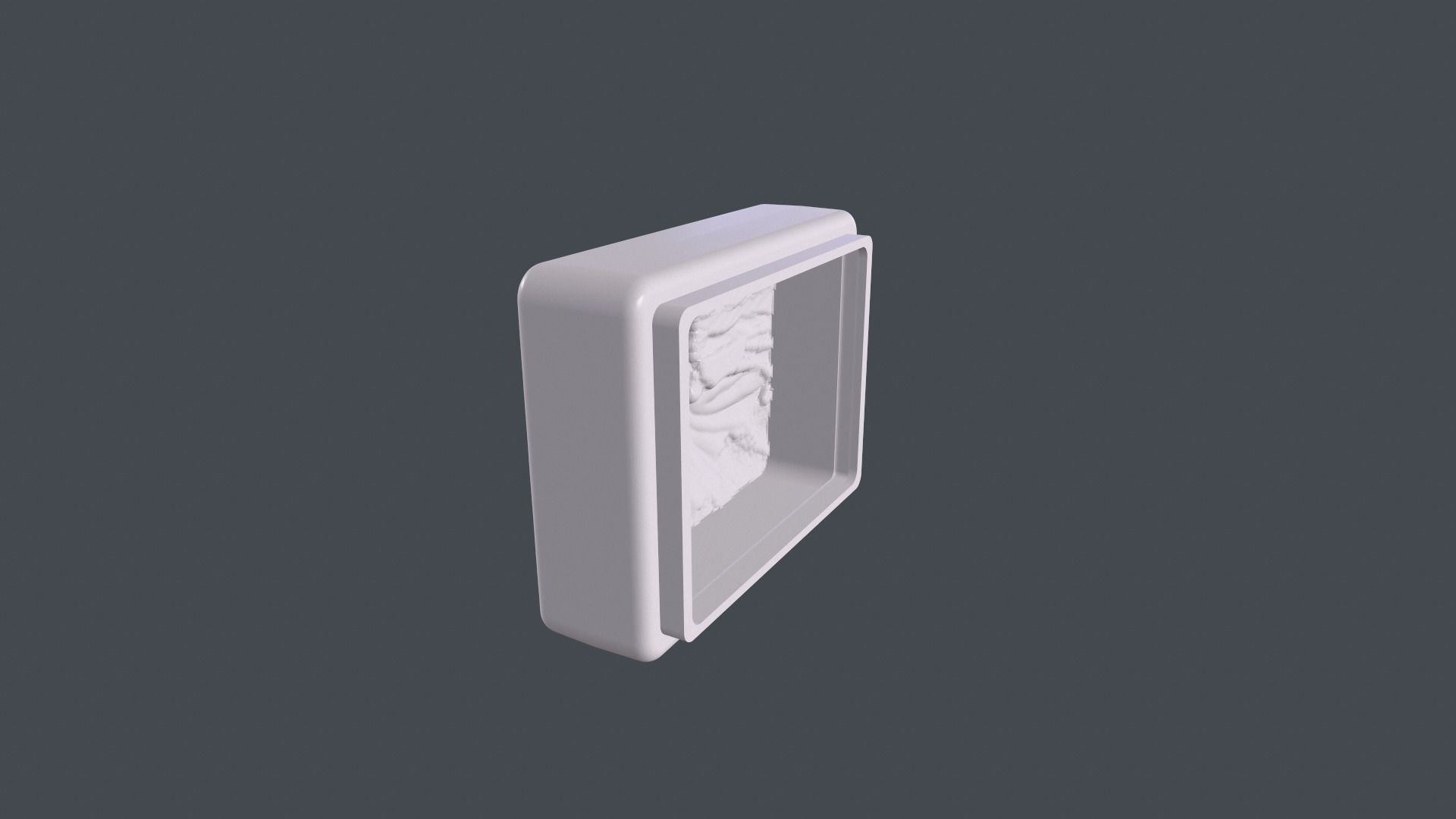

1. 2-piece formwork
2. Mounting truss, lifting the sides of the formwork for degassing, and fastening the parts of the formwork.
3. Mounting panel. You need to glue it to the bottom of the printed master model, for further attachment to the formwork. Fastening is made using standard M4 screws (for example, furniture, with a countersunk head)

• The order of work

  After 3D printing of the master model, carefully treat the surface from the remnants of supporting structures and illuminate the resulting print with ultraviolet light. Then glue the panel (3). Fold the formwork and insulate the seam around the perimeter with a wide masking tape to avoid silicone leakage into the seam. Attach the master model to the formwork with fixing screws, then fix the mounting truss (2) on top. The structure is ready for pouring.

• IMPORTANT!!!

  When using a printed photopolymer master model, check its compatibility with the silicone you will be working with. Platinum-based silicone is susceptible to inhibition at the point of contact with most resins. Just saying, it won't freeze. To work, choose a special photopolymer suitable for working with platinum silicone, or use tin-based silicone. Also, to obtain a high-quality casting, use a vacuum chamber for degassing, and follow the instructions of the silicone manufacturer during operation. And everything will work out for you!

  ----------------------------------------------------------

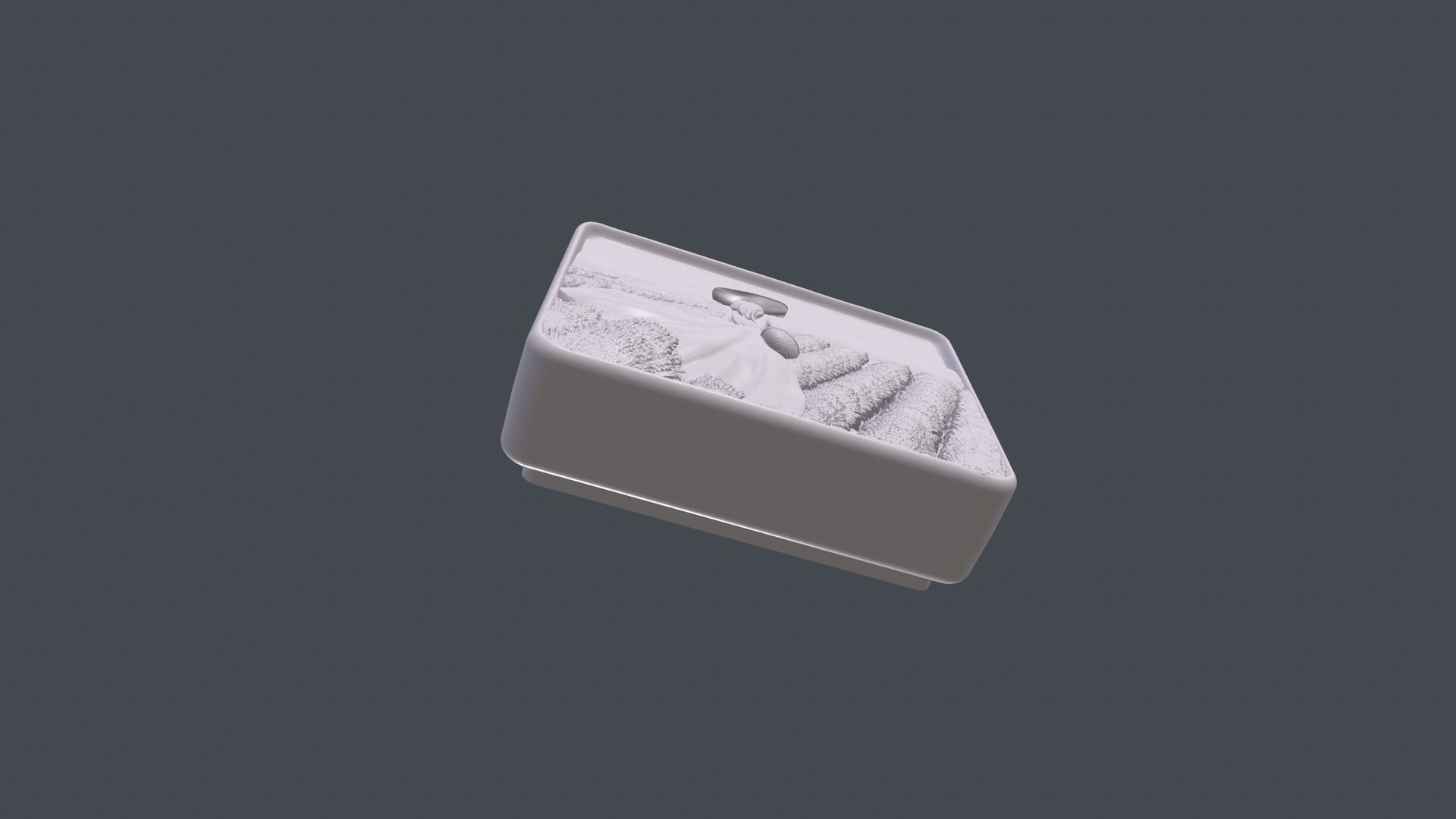

Dimensions of the master model - 90x70x25 mm + to the height of the pad 5 mm silicone consumption ~ 210 grams

If you have any questions, please write a personal message, I will try to help.
