Z AXIS REINFORCEMENT SQUARE FOR PHROZEN SONIC MINI - MINI 4K 3D print model

Description

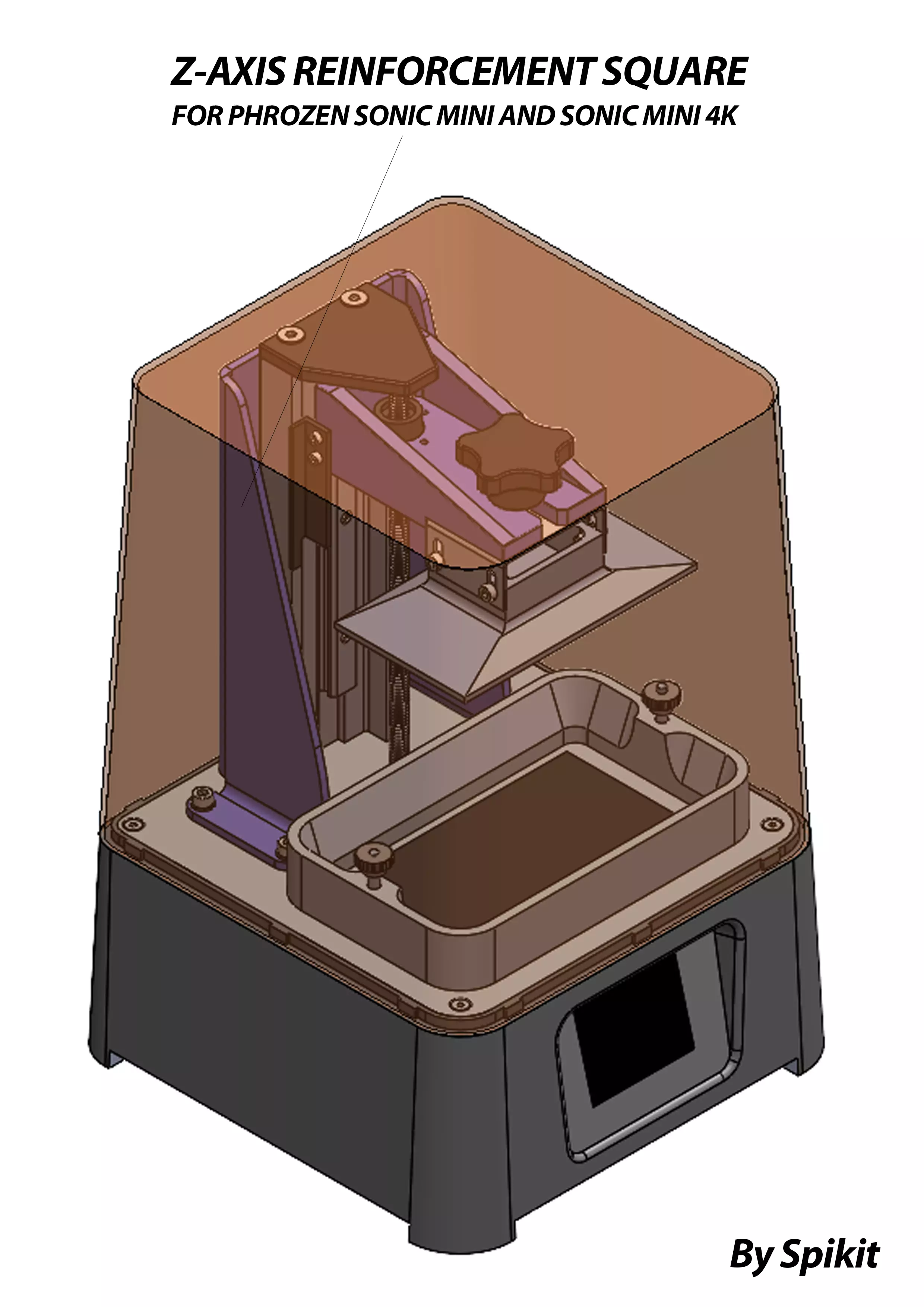

Here is a stainless steel part that totally stiffens the column of the linear rail of your PHROZEN SONIC MINI and MINI 4K 3D printer. The excellent LCD screen of this machine allows high precision prints, but its lack of Z axis precision means that many prints, especially with castable resins, are missed. This square completely solves this problem of the Z axis. Another part (REINFORCED BUILD PLATE SUPPORT FOR PHROZEN SONIC MINI - MINI 4K), also available on the CGTrader account, solves the problem of the Y axis.

This pack contains the plans necessary for the manufacture (dwg and pdf), the 3D model (STEP), as well as the assembly instructions. The part fits perfectly to the original parts and is very easy to install. All you have to do is send the folder « MANUFACTURING PLANS » to your local CNC mechanic and request a quote for the number of parts you wish to order. If you don't know anything about CNC, no problem! Also included in the pack are 2 names of companies that provide CNC machining services at very competitive prices.

The Pack contains :1 – Manufacturing plans (.pdf, .dwg, .STEP)2 – Assembly plans (.pdf)3 – 3D views (.png)

Transform your Sonic into a high-end machine and take full advantage of the high precision of its screen now!

Facebook : www.facebook.com/SpikitDIY

Write comment
Item rating
1 0
S
sebastian-brandt
sebastian-brandt2022-01-17 10:21:04 UTC
Recommended
Excellent addition to the Phrozen sonic mini 4k. I chose to 3d print my z axis support and plan to switch to a metal one in the near future.
