Type2 Connector Adapter 3D print model

Description

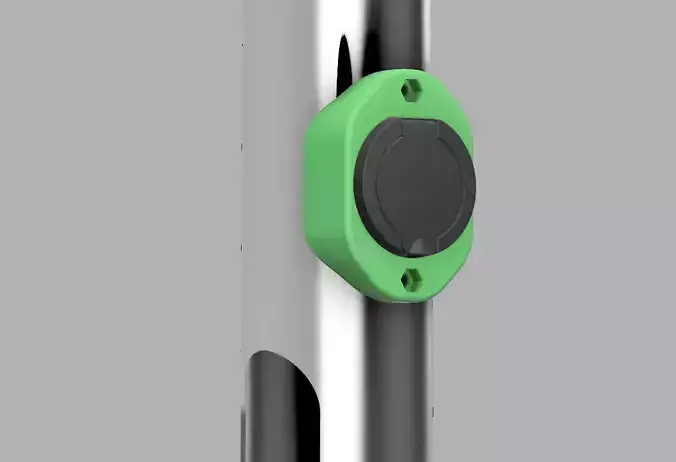

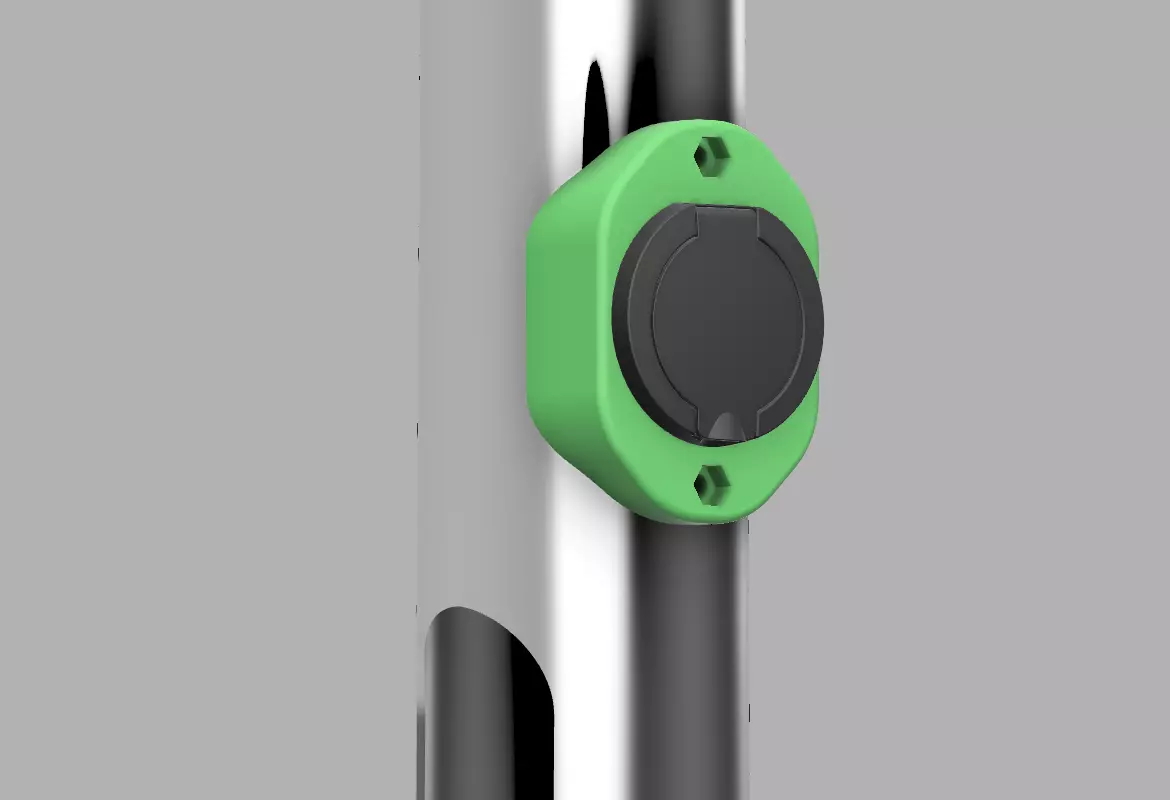

Field tested adapter for Type2 (DSIEC2a-G-EV-S) electric-vehicle charging connector and 8 m standard cone street-lighting pole.Mounted at 1450 mm (center) height, with 2xM10x50 bolts + washers&nuts. Pole hole diameter is 85 mm. 3 mm rubber gasket drawings for laser/CNC included.ABS/PC, min. 40 % infill, print on flat side, use supports.

Write comment
Item rating
0 0
Type2 Connector Adapter
$999.00

Royalty Free License
Type2 Connector Adapter
$999.00

Royalty Free License
Ddukubu
dukubu
(0 reviews)
Response 20% in 48.0h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • Stereolithography (.stl)214 KB
  • DXF (.dxf)238 KB

3D Model details

  • Publish date2022-02-17
  • Model ID#3590080
  • Ready for 3D Printing
