Turbojet engine combustion liner chamber 3D print model

Description

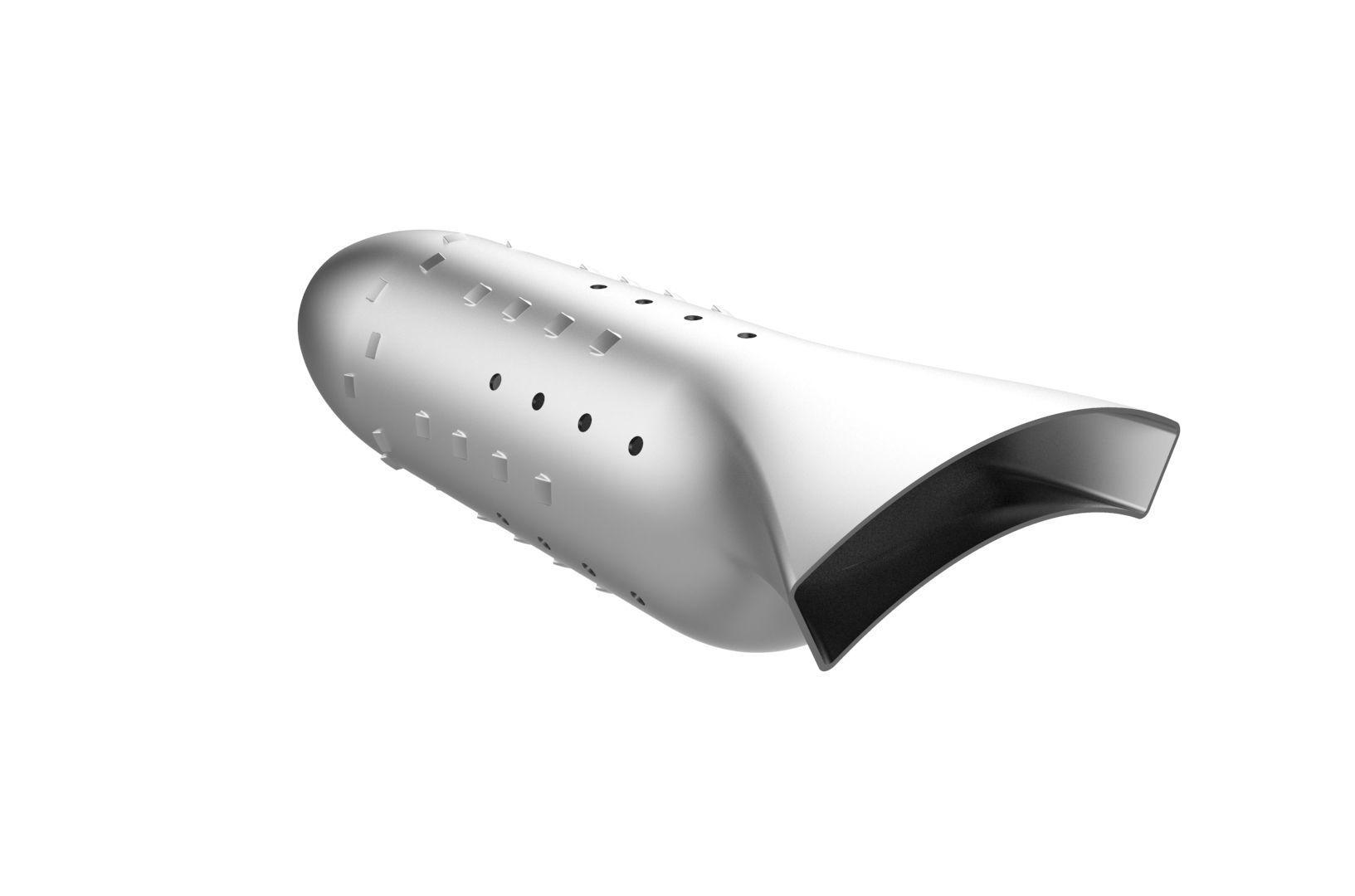

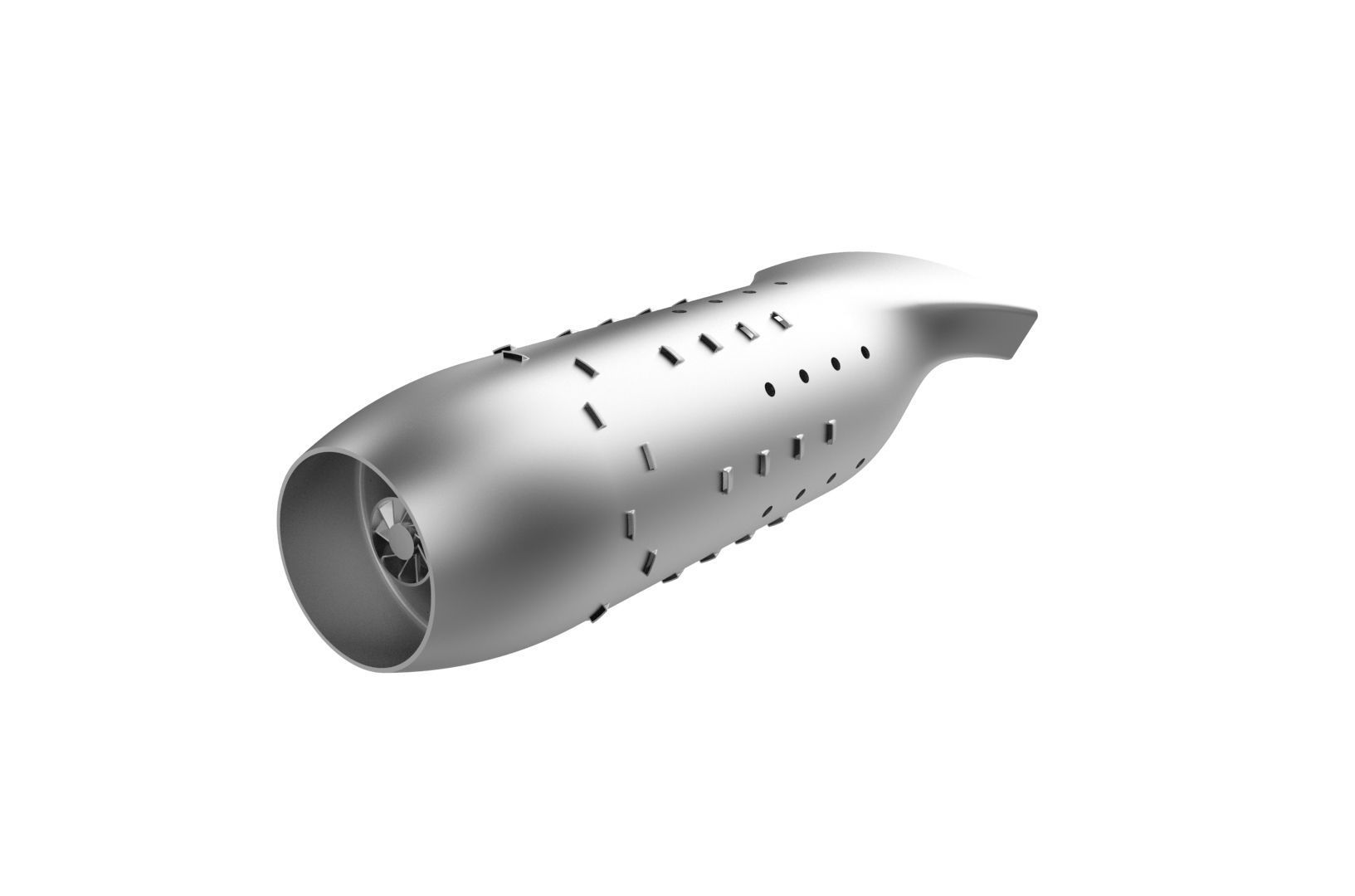

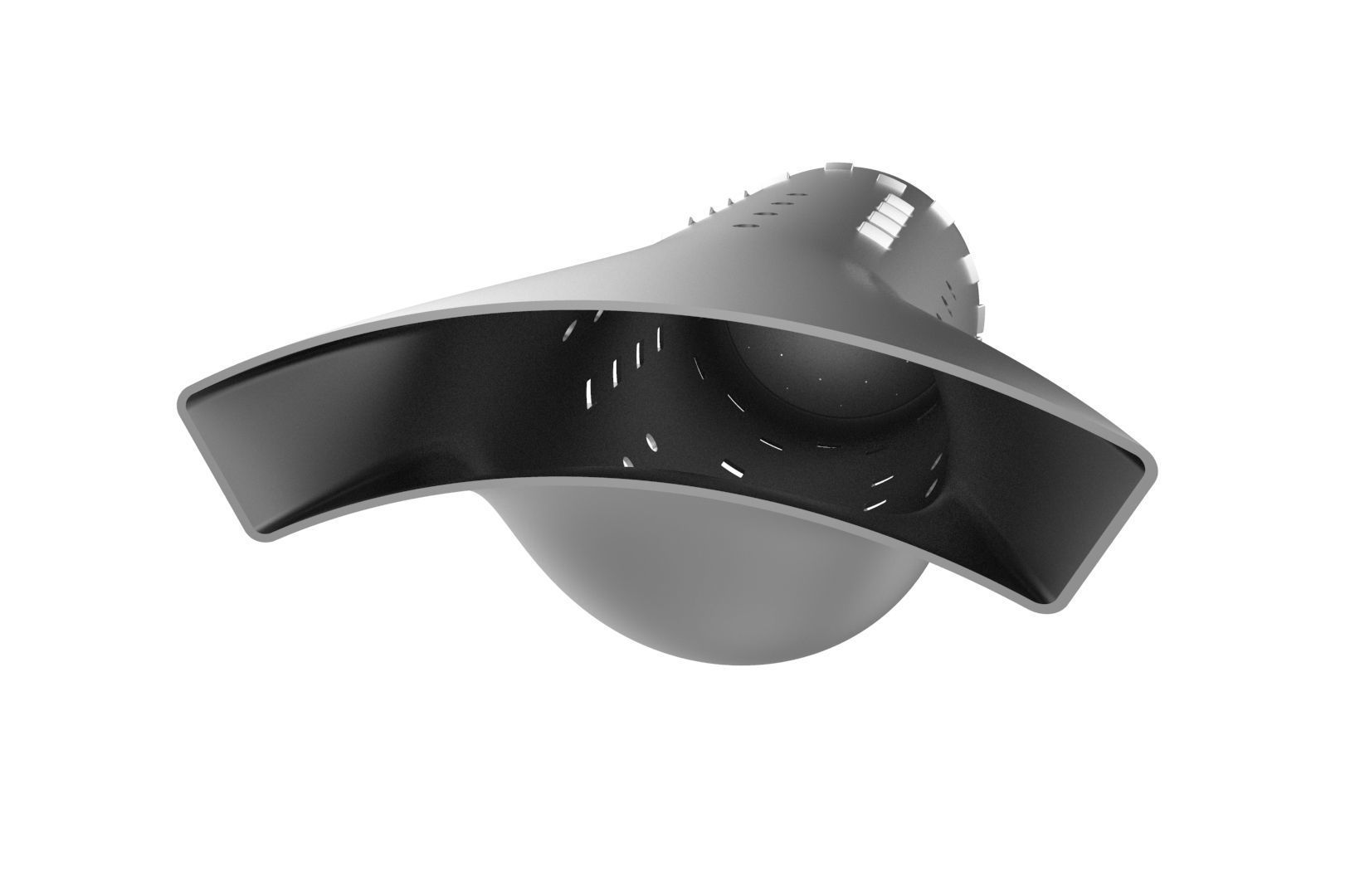

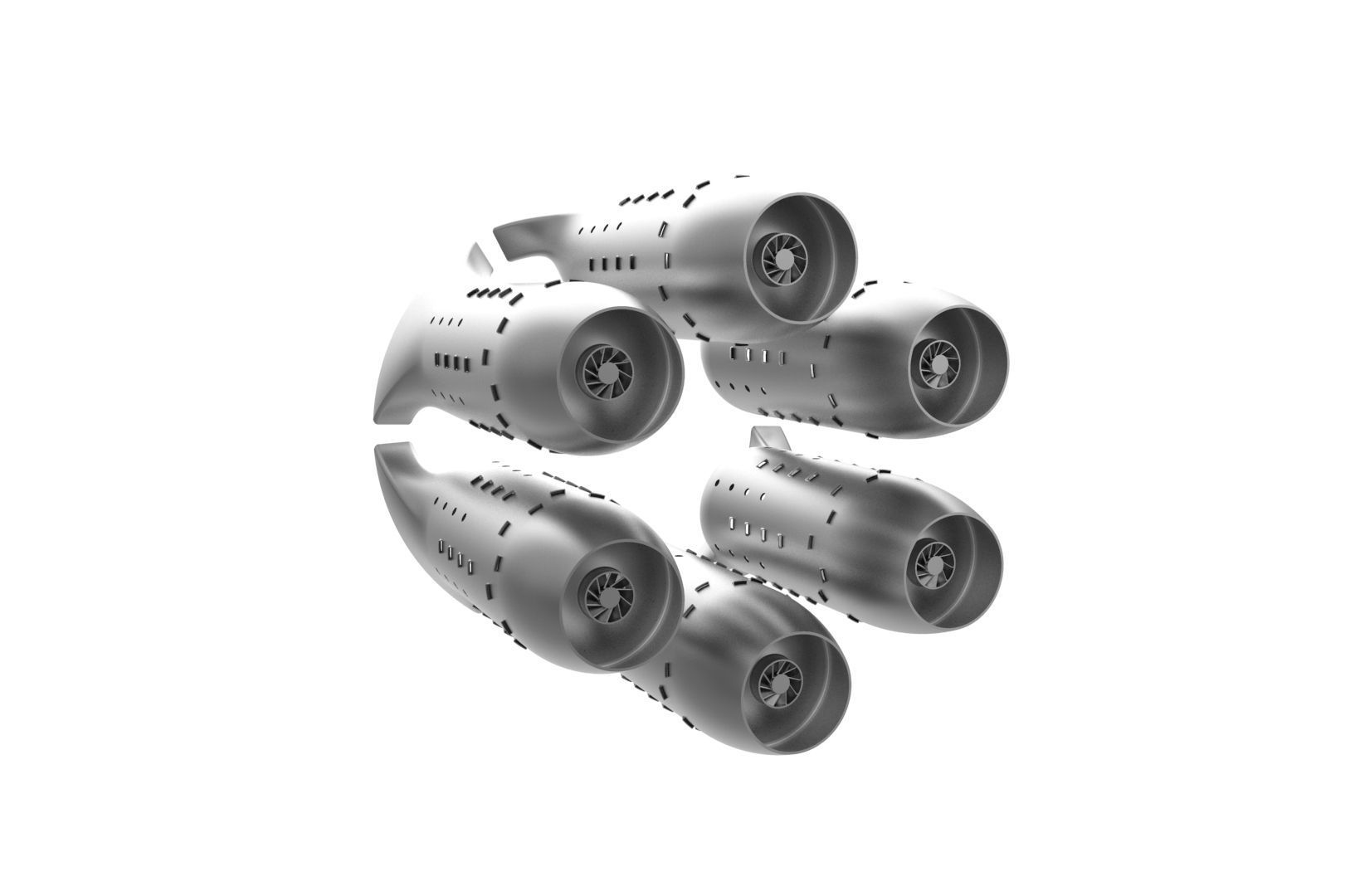

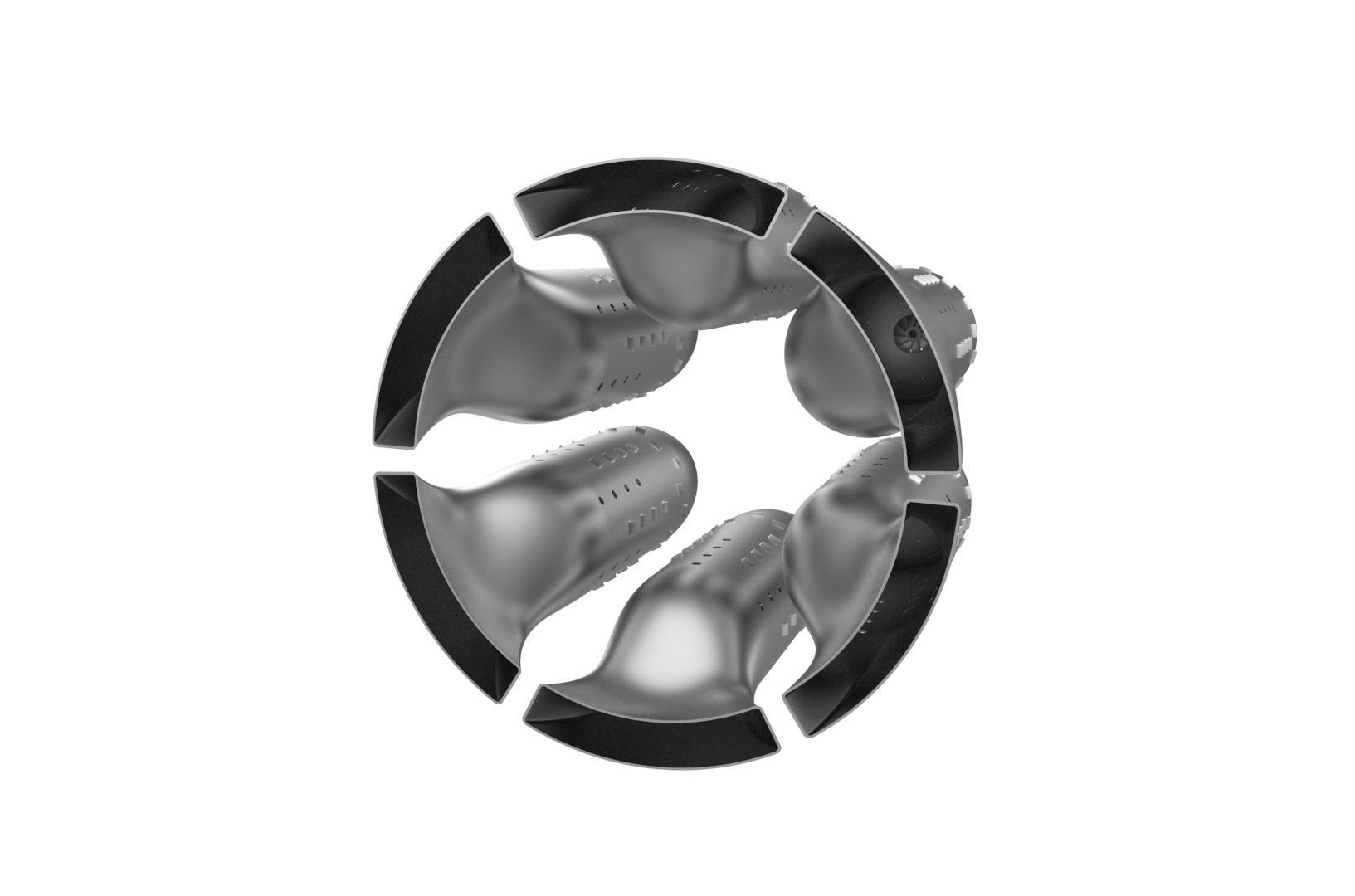

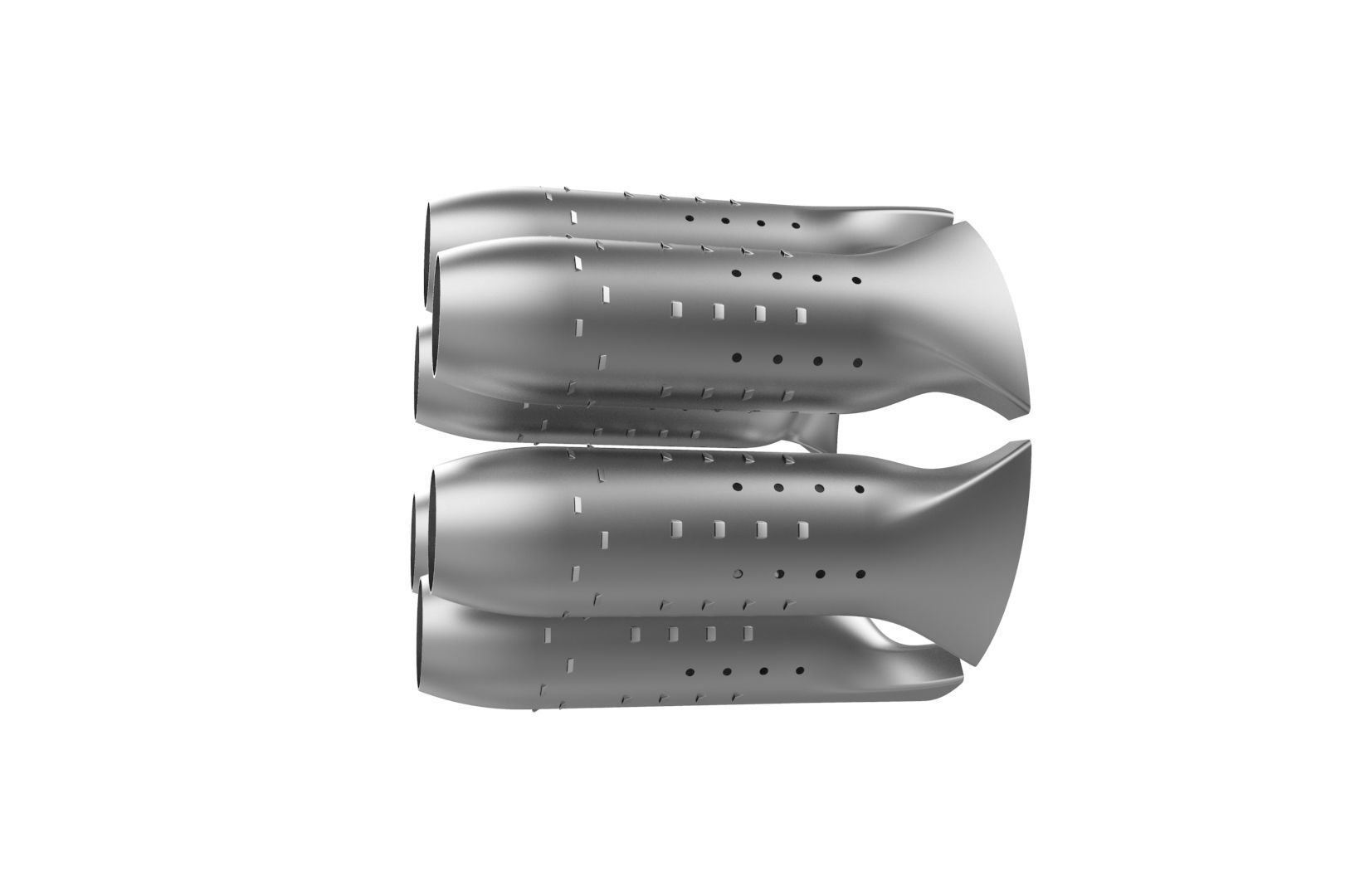

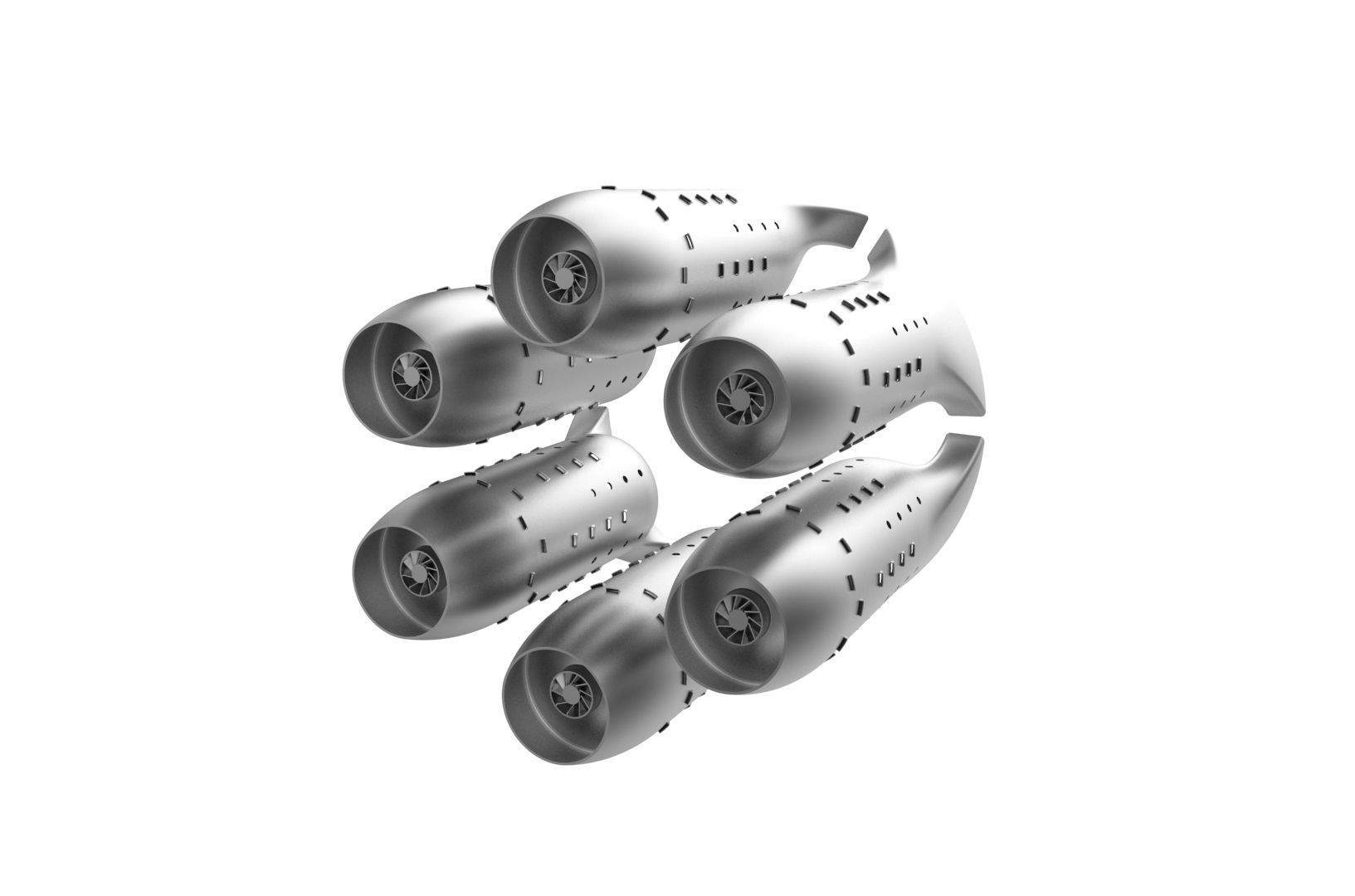

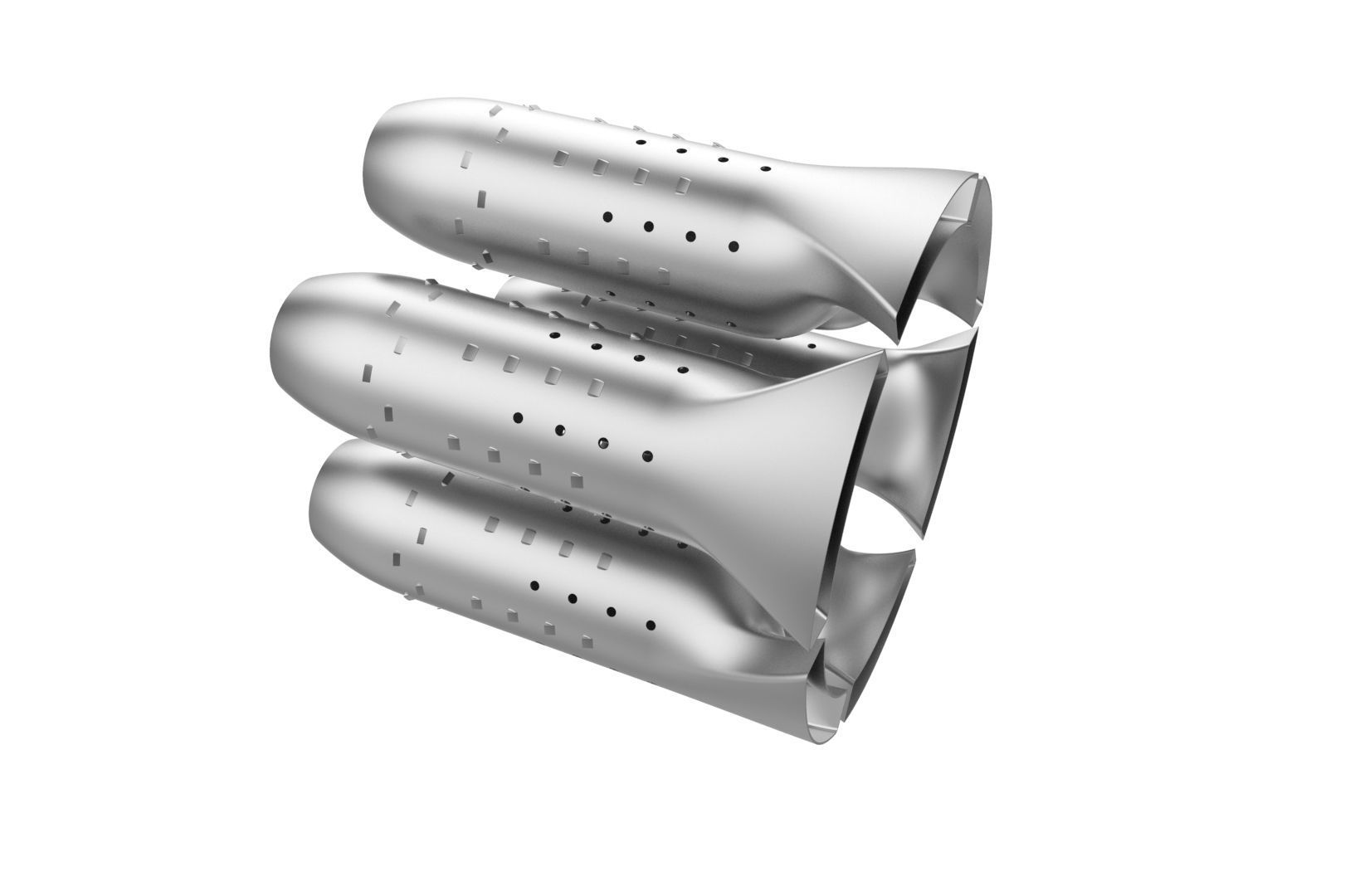

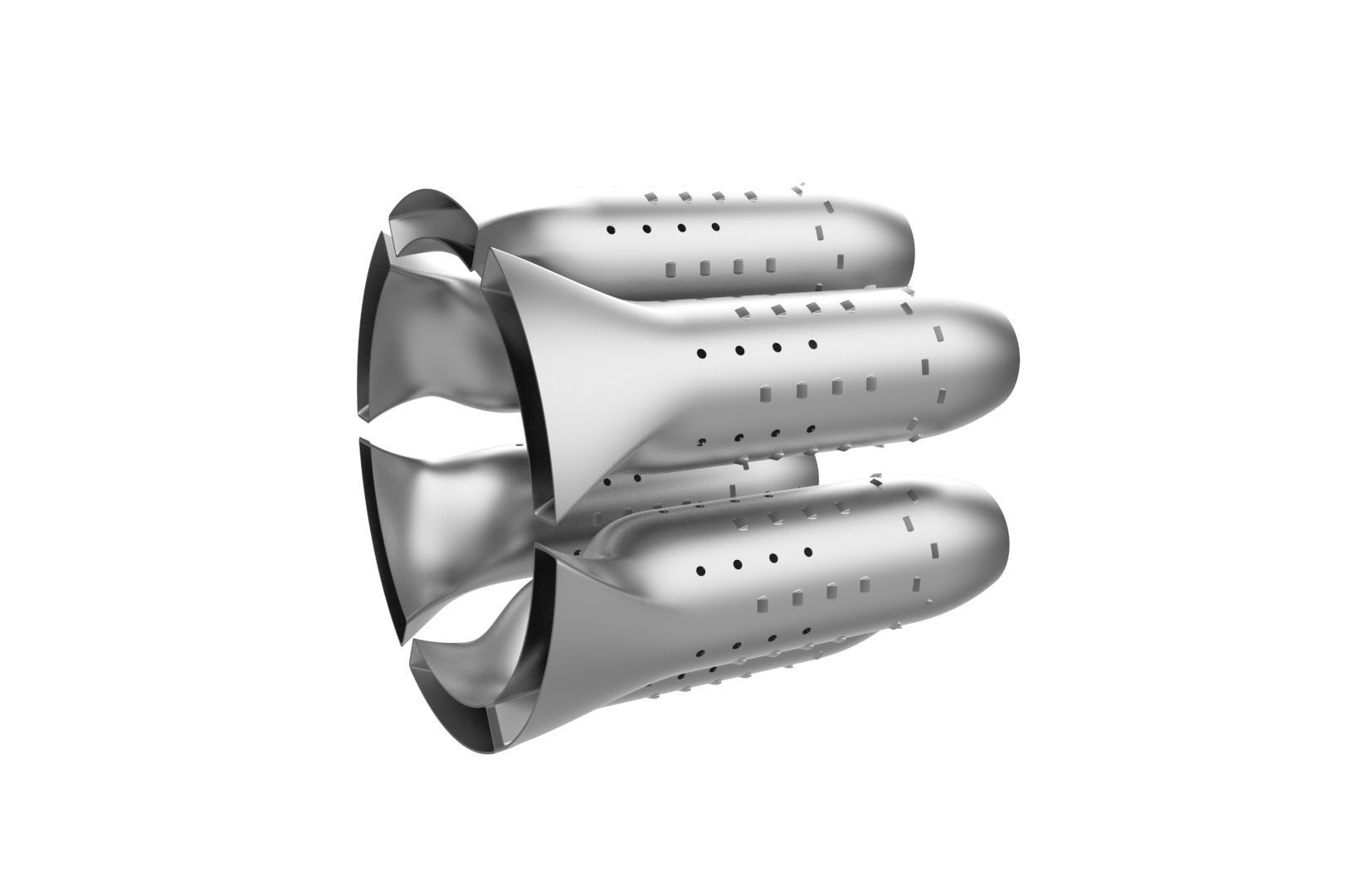

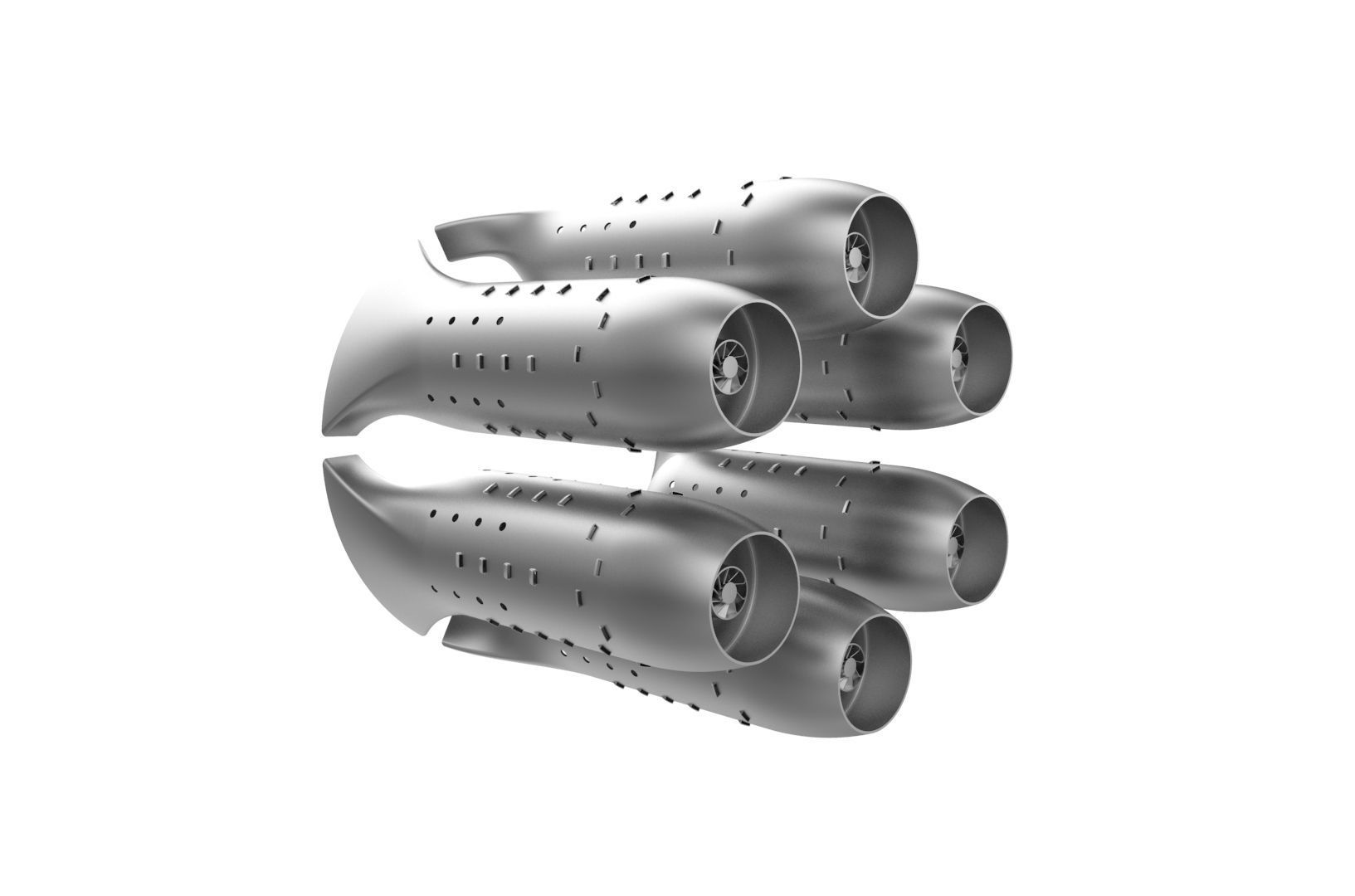

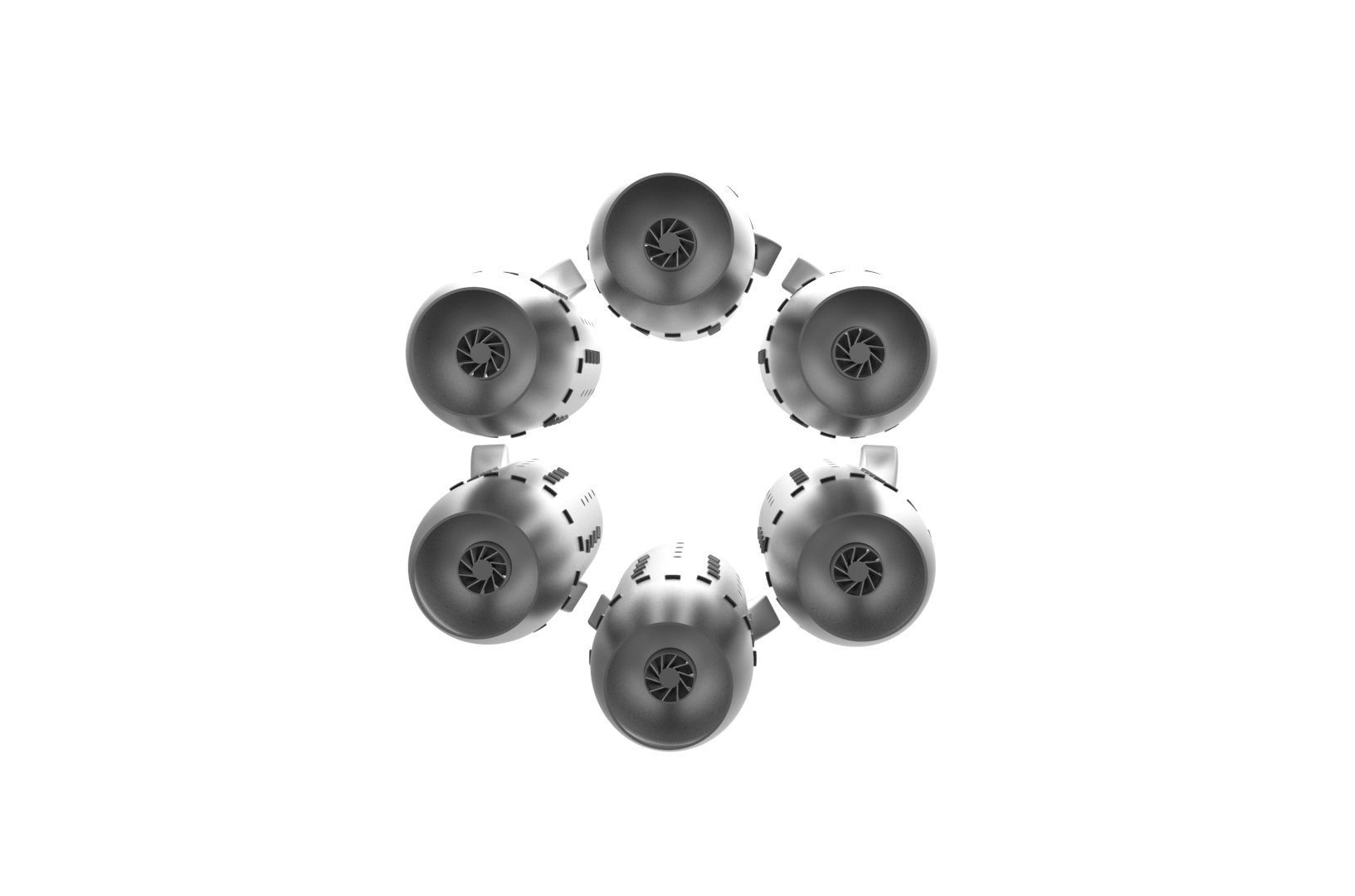

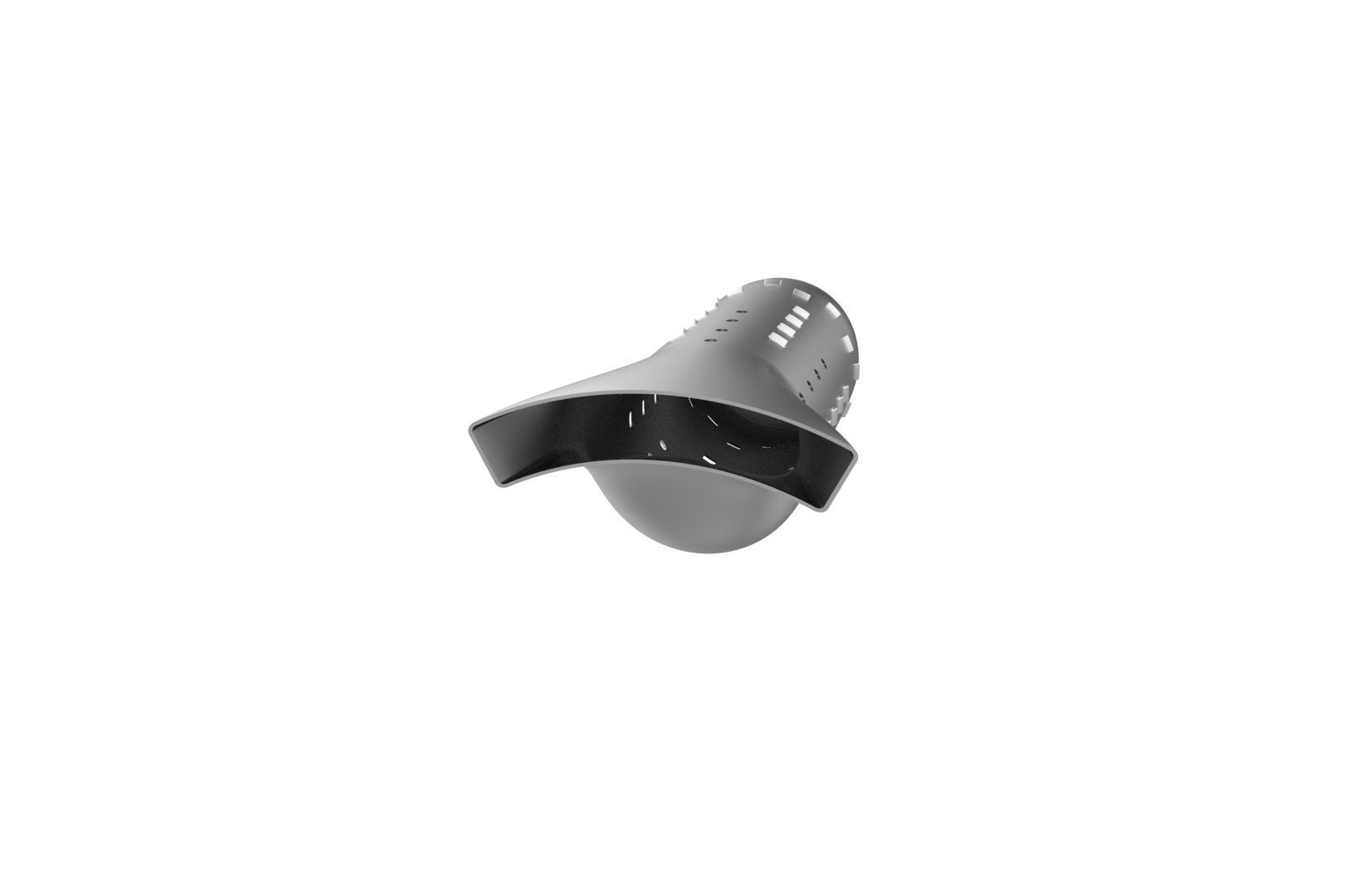

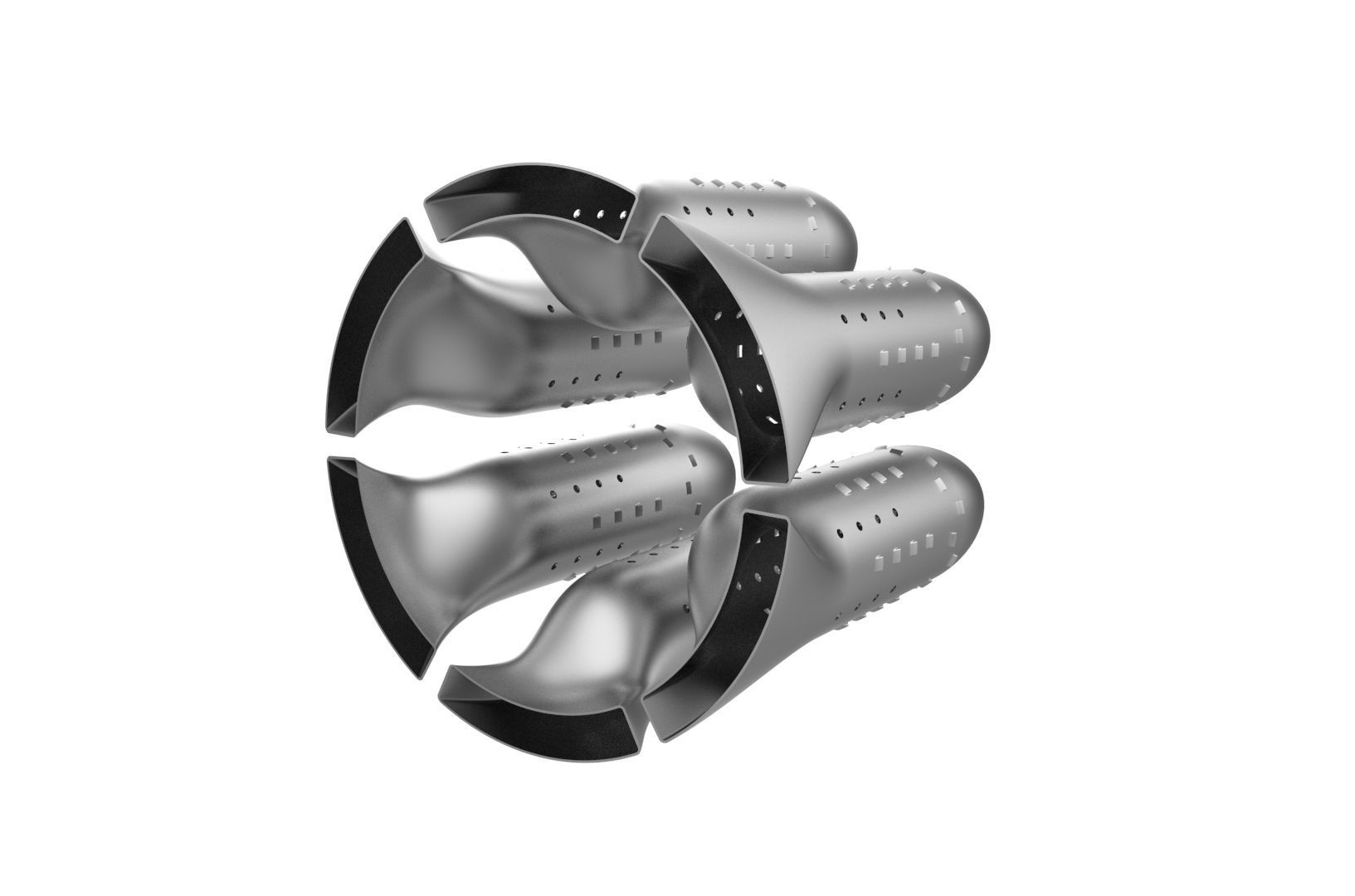

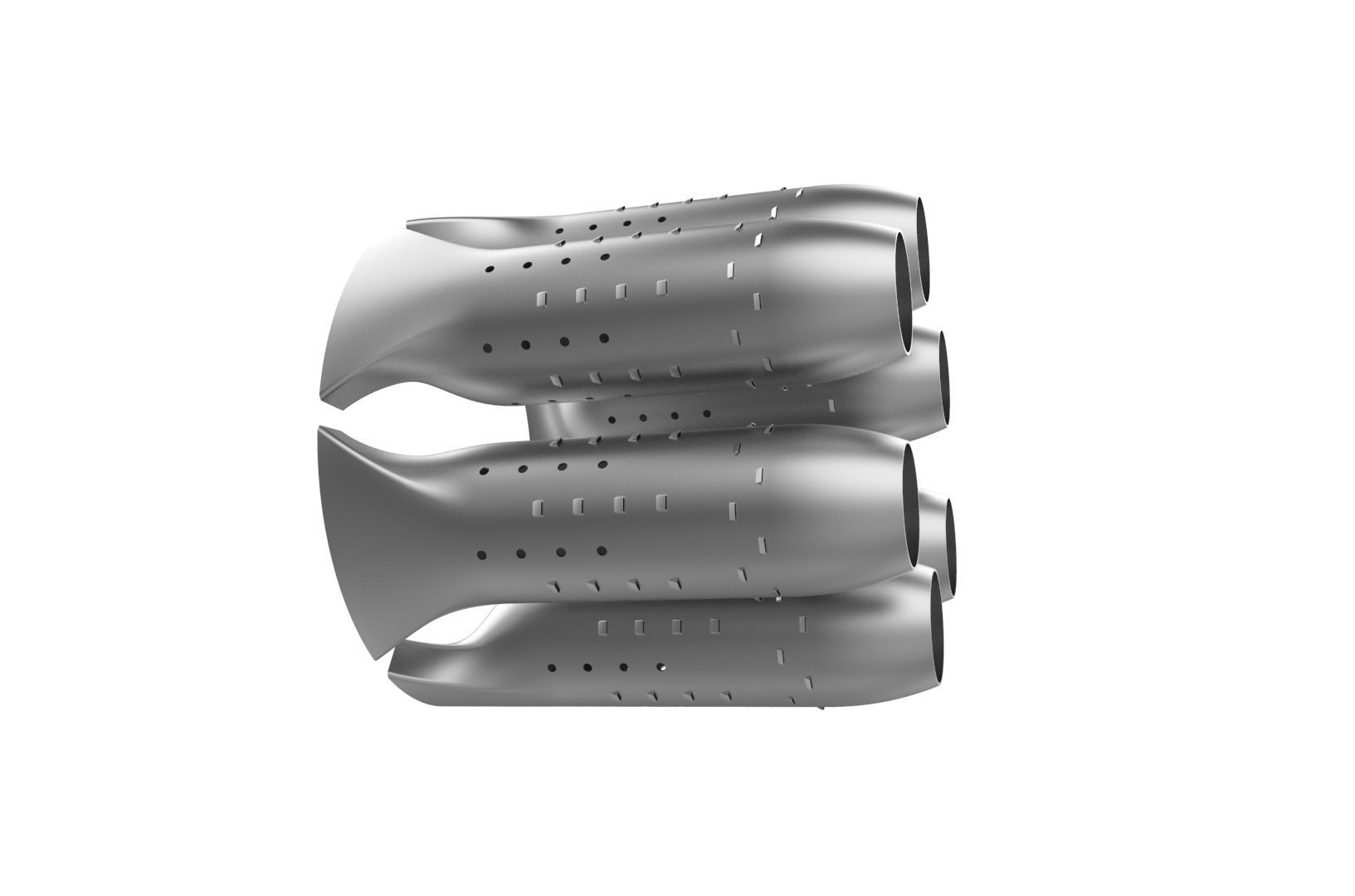

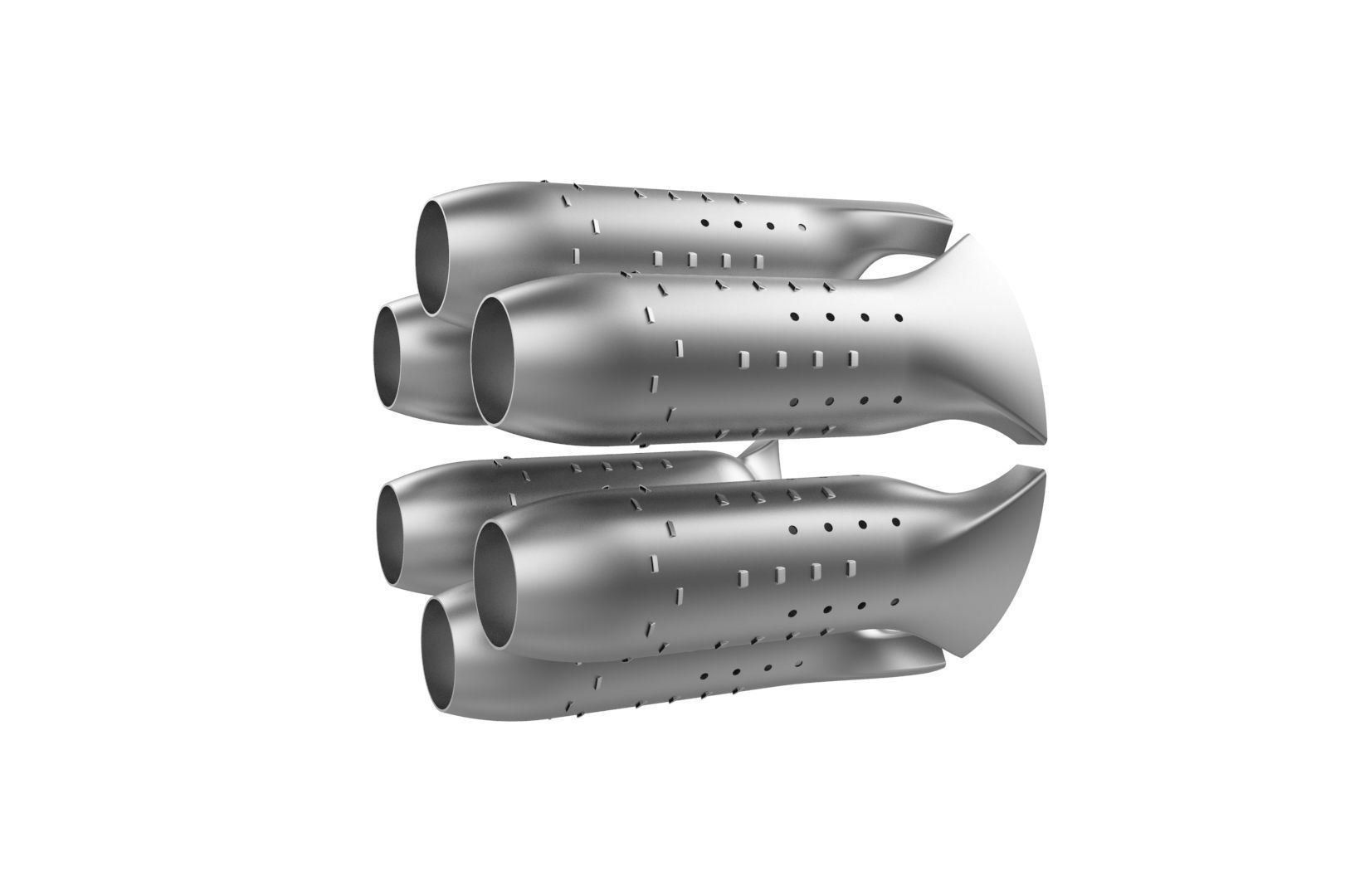

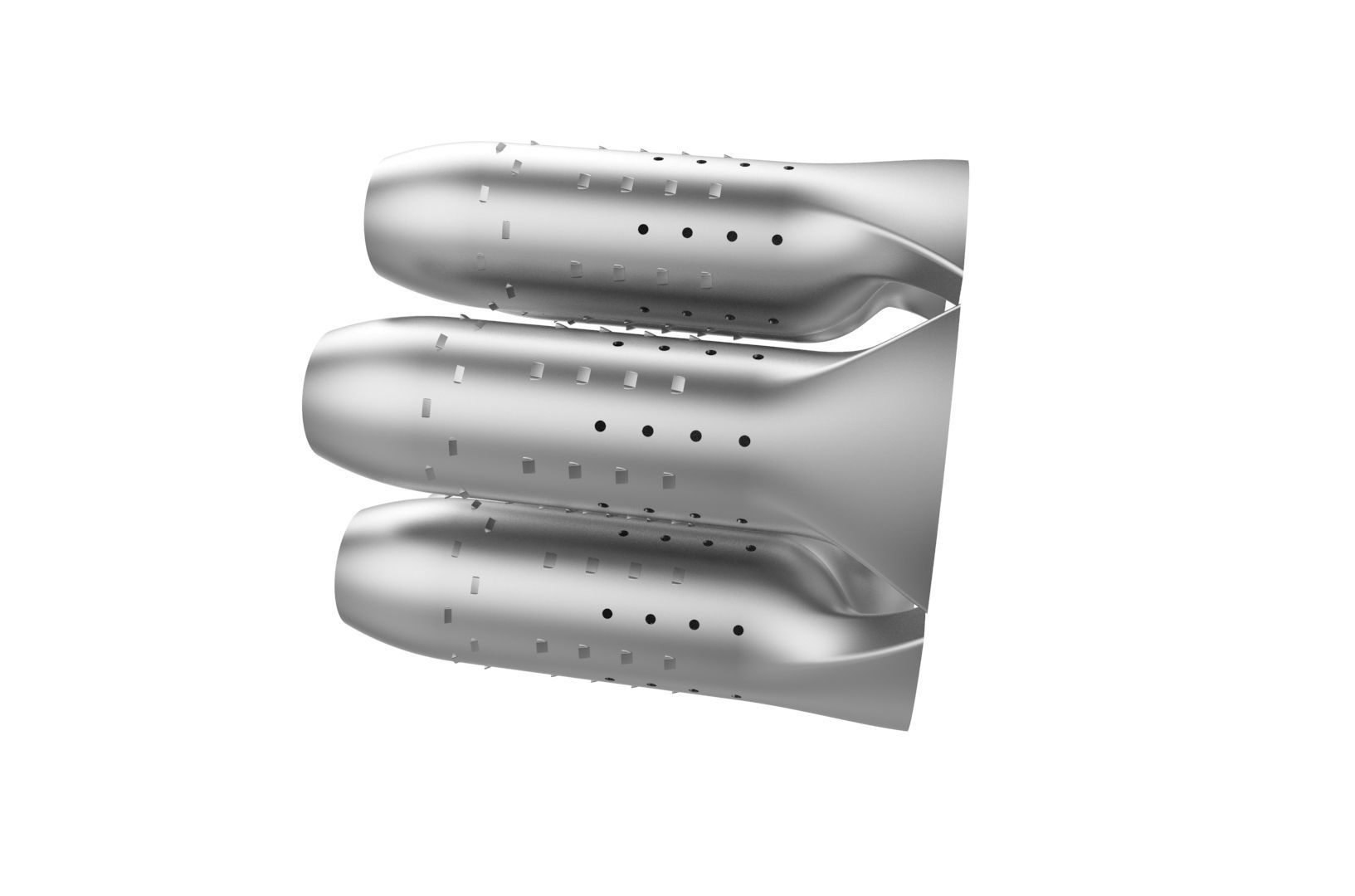

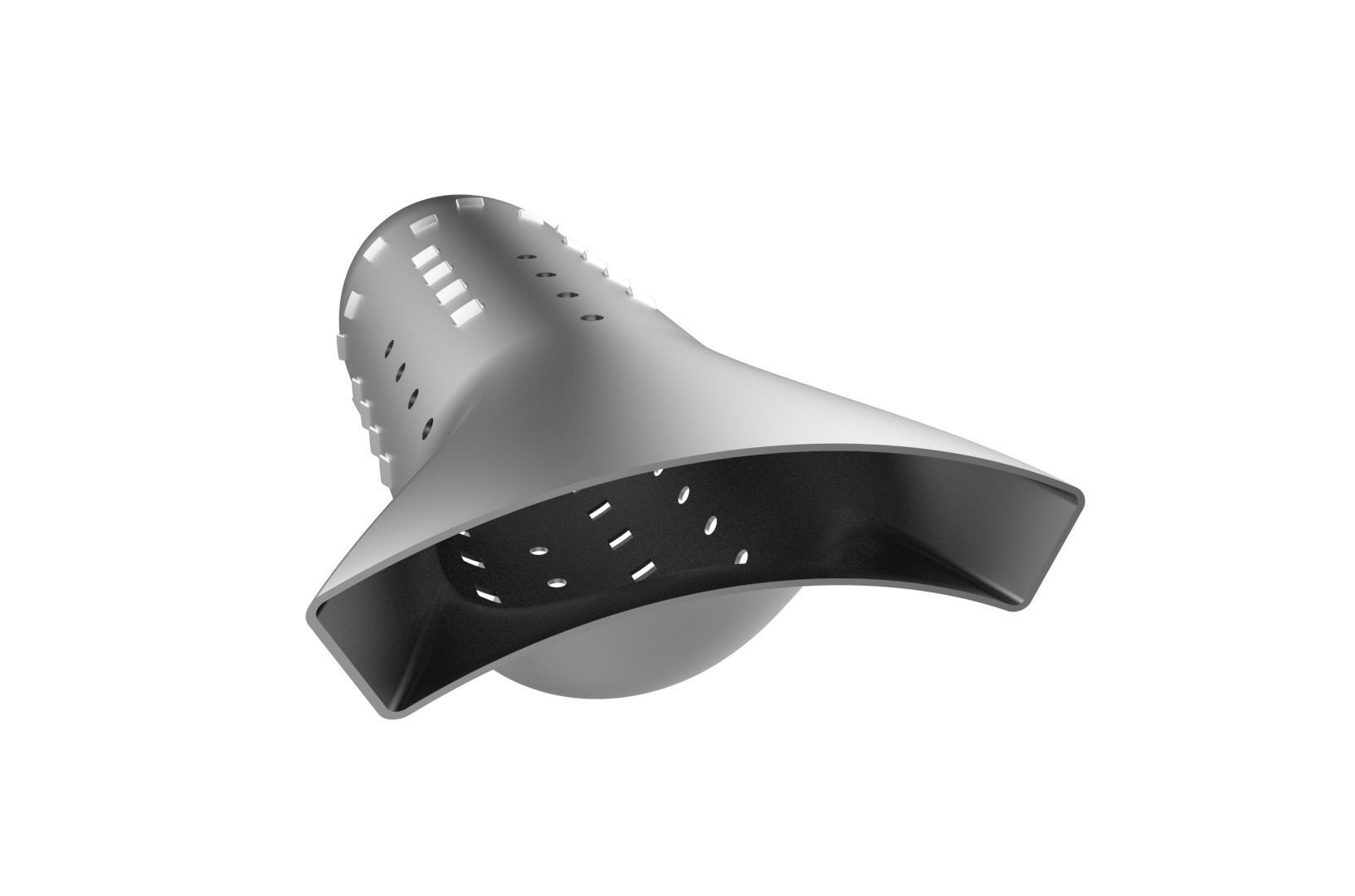

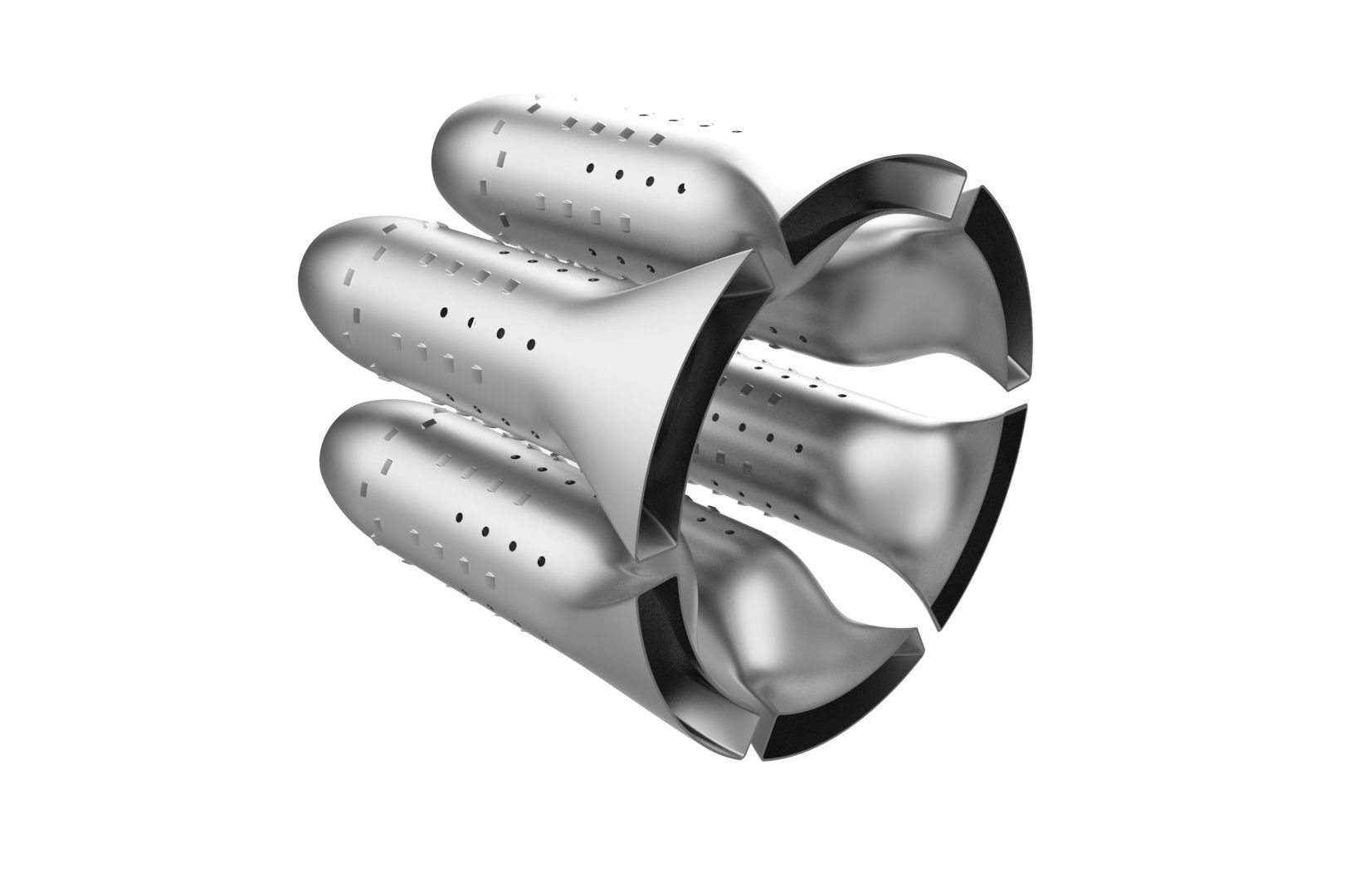

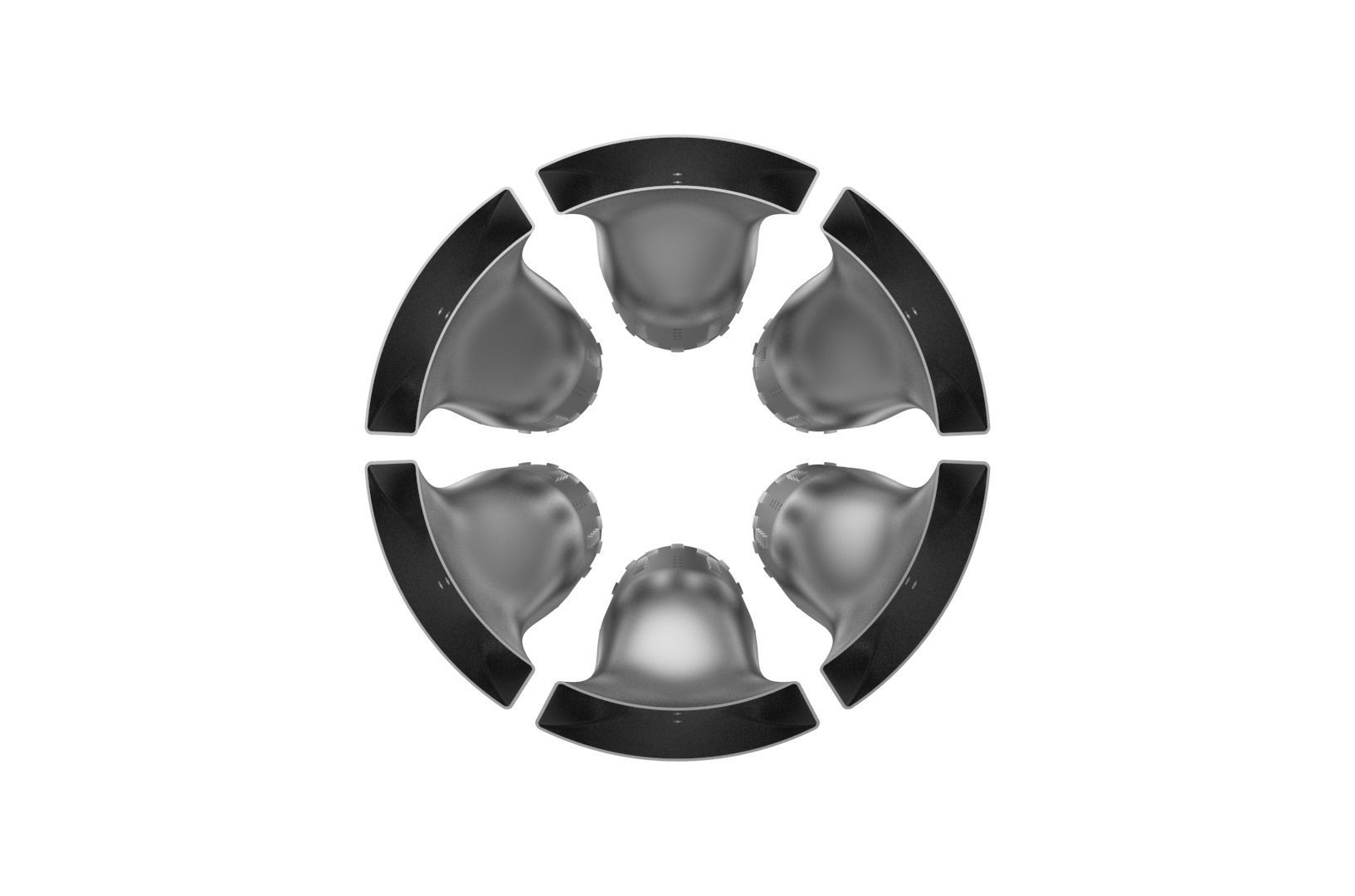

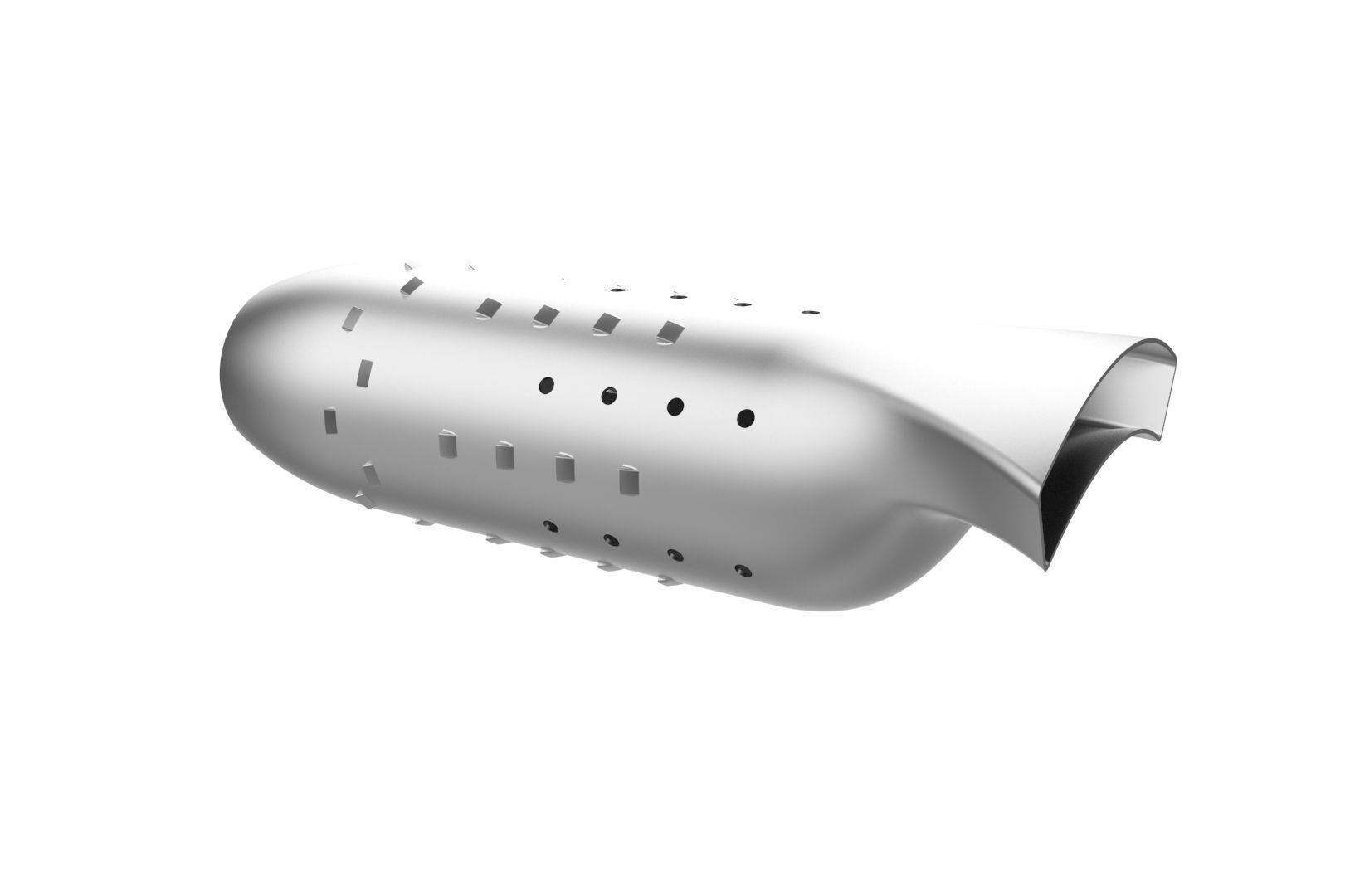

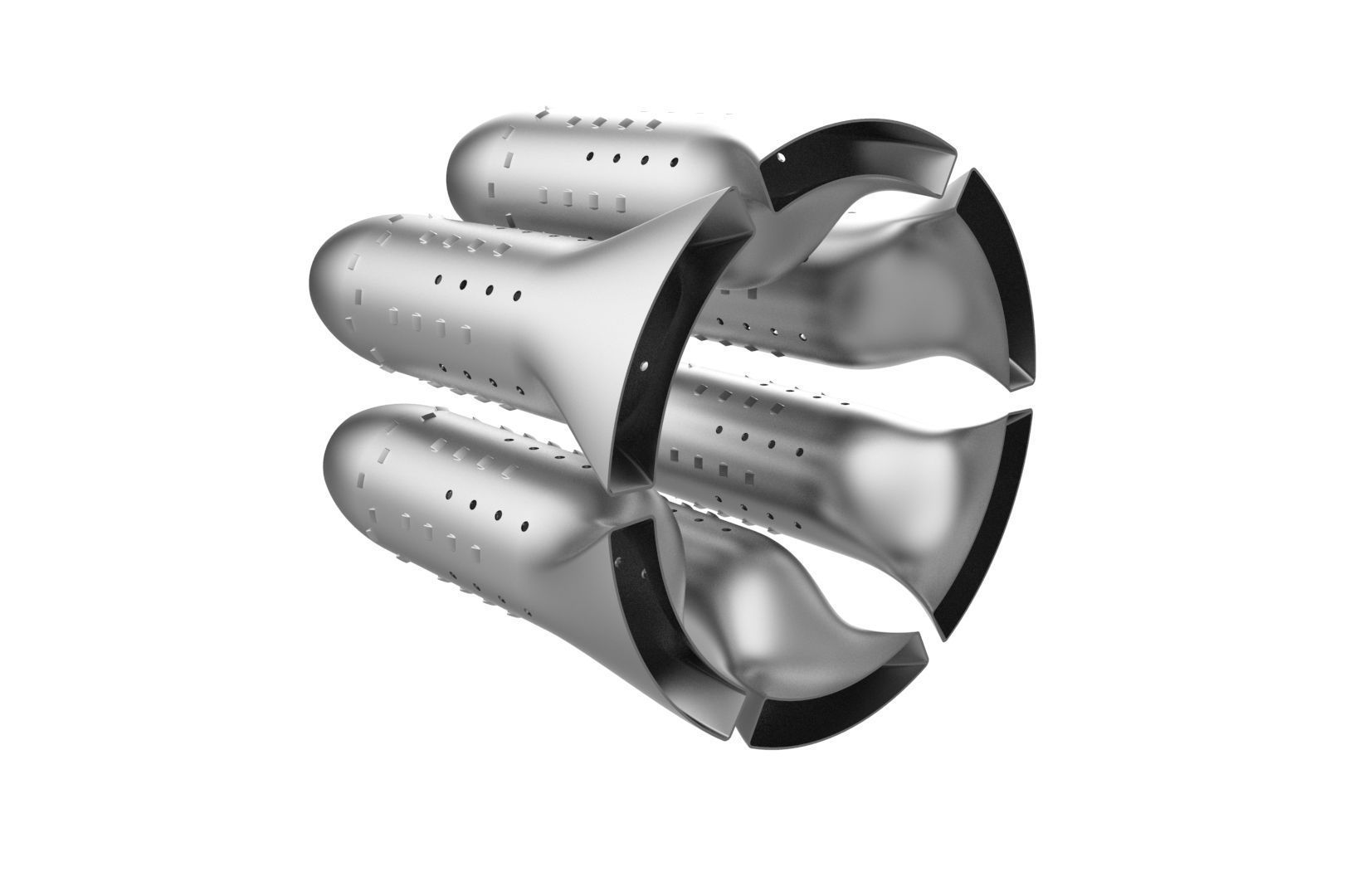

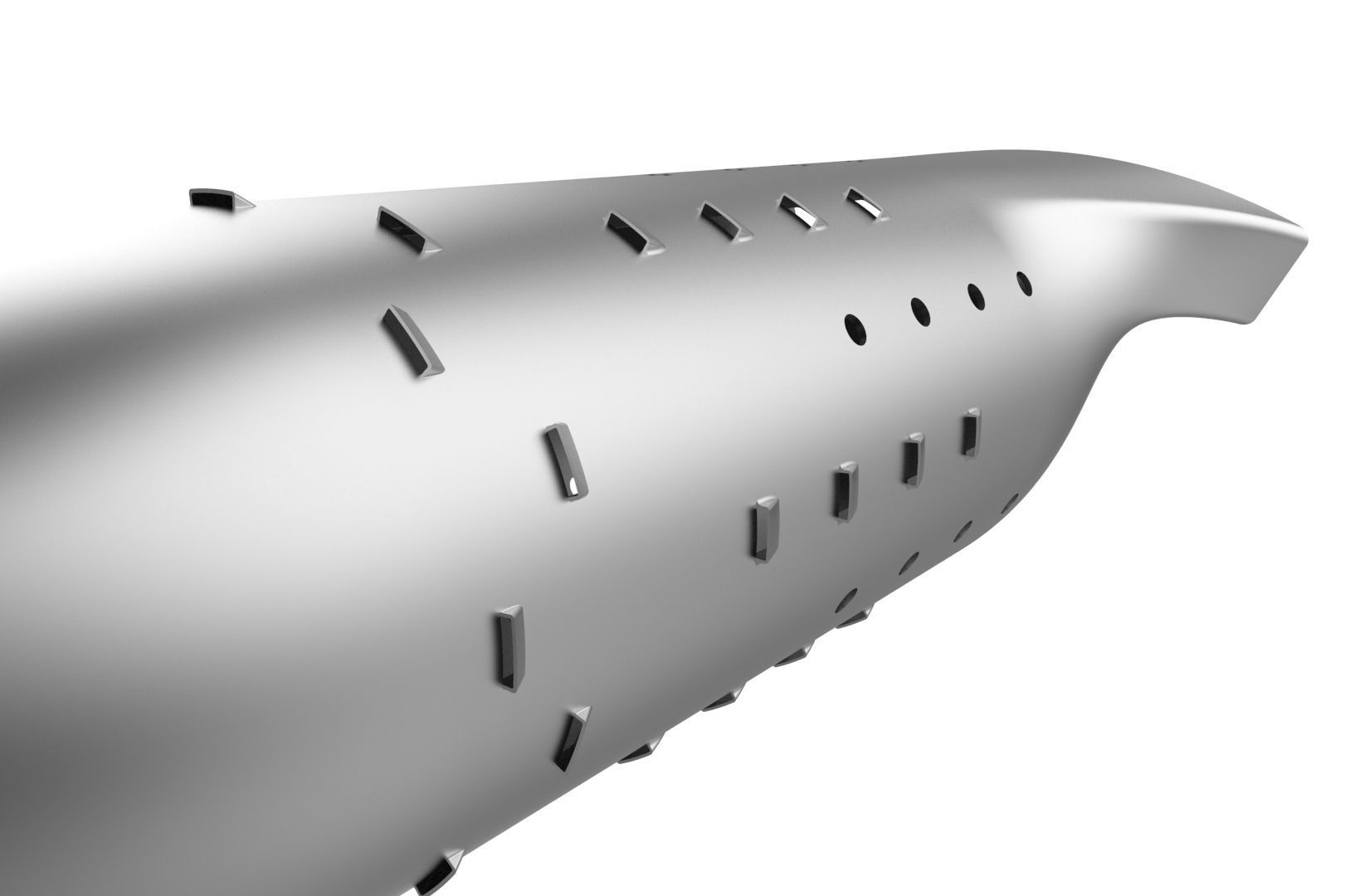

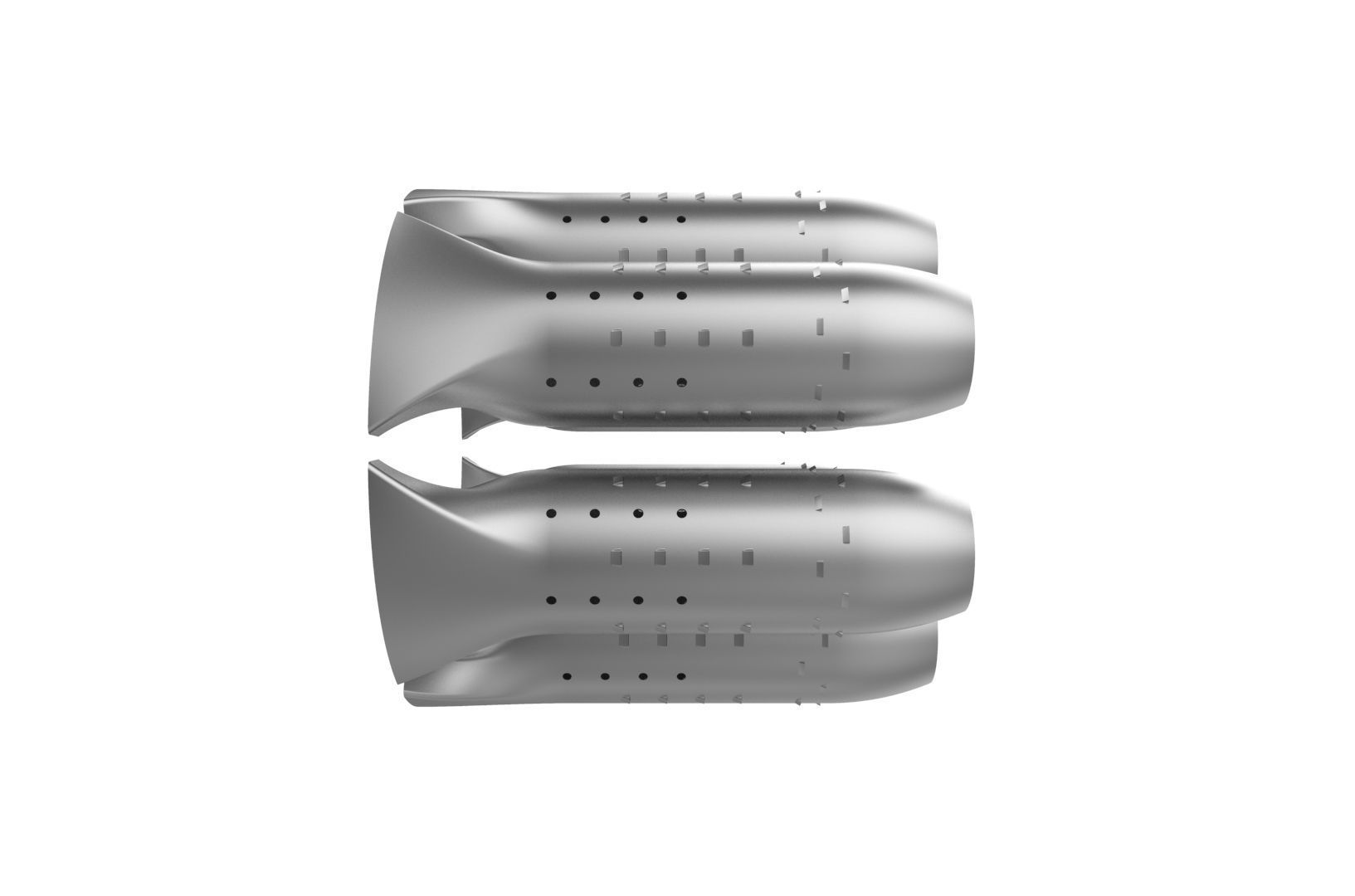

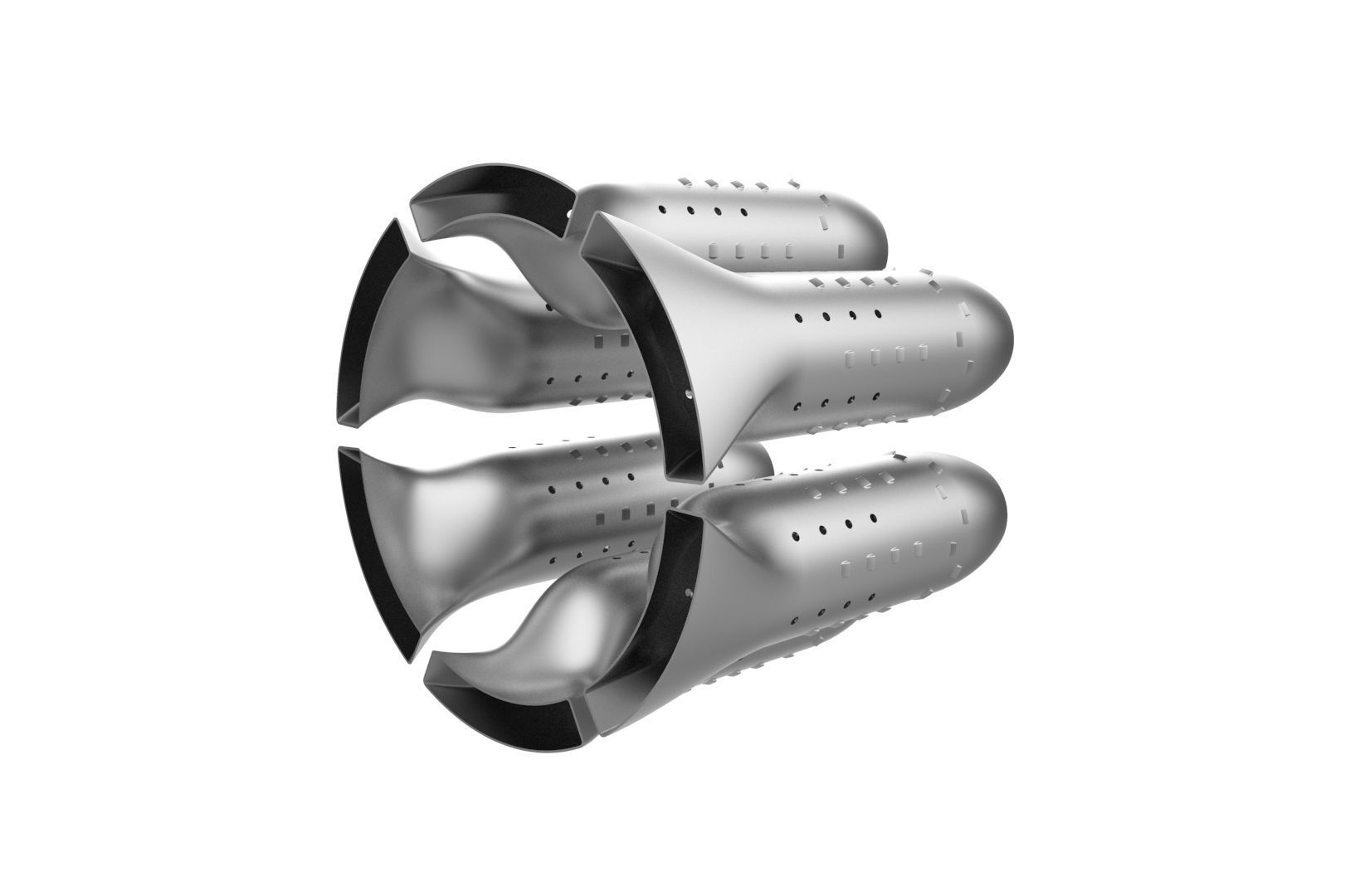

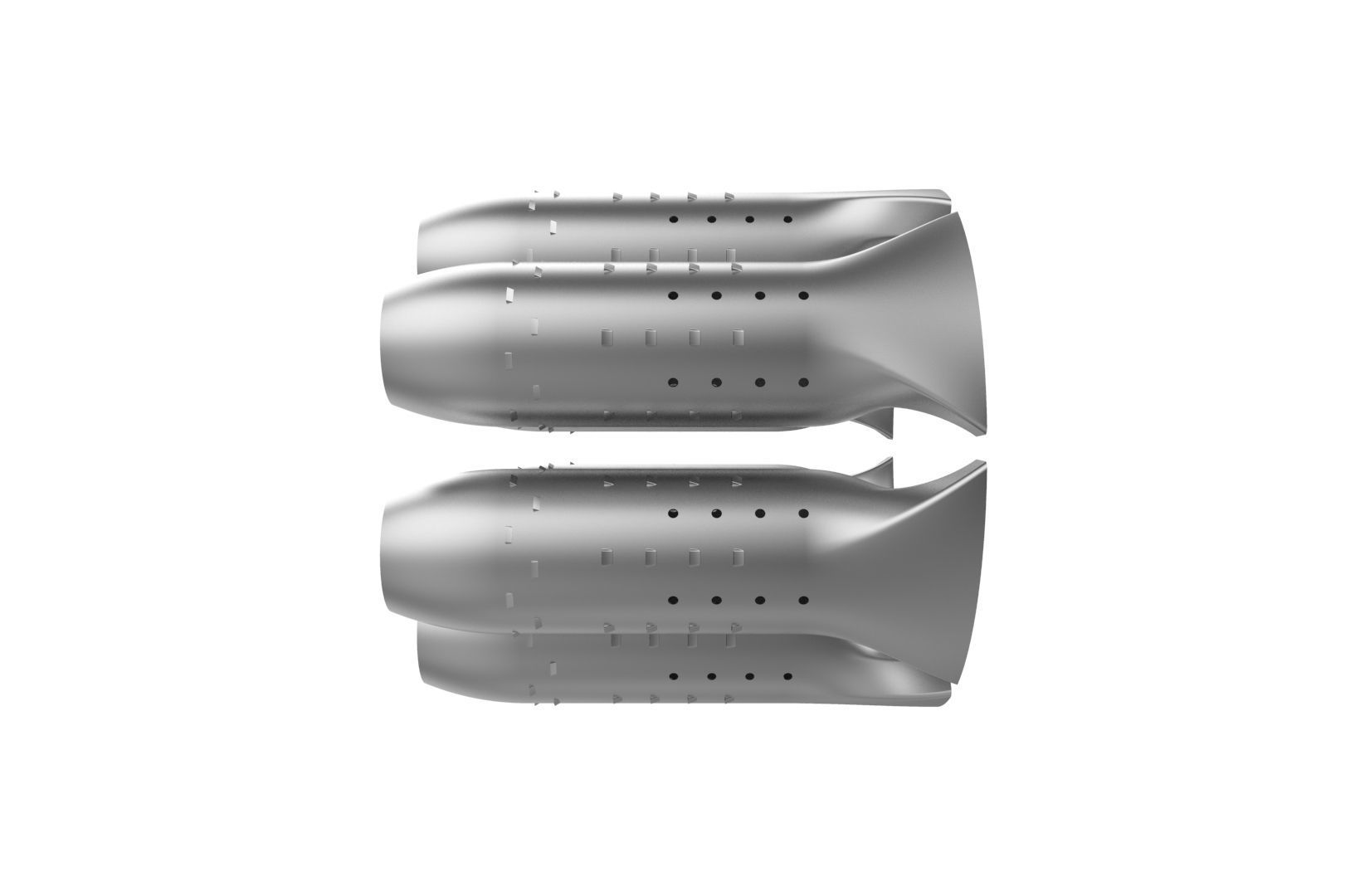

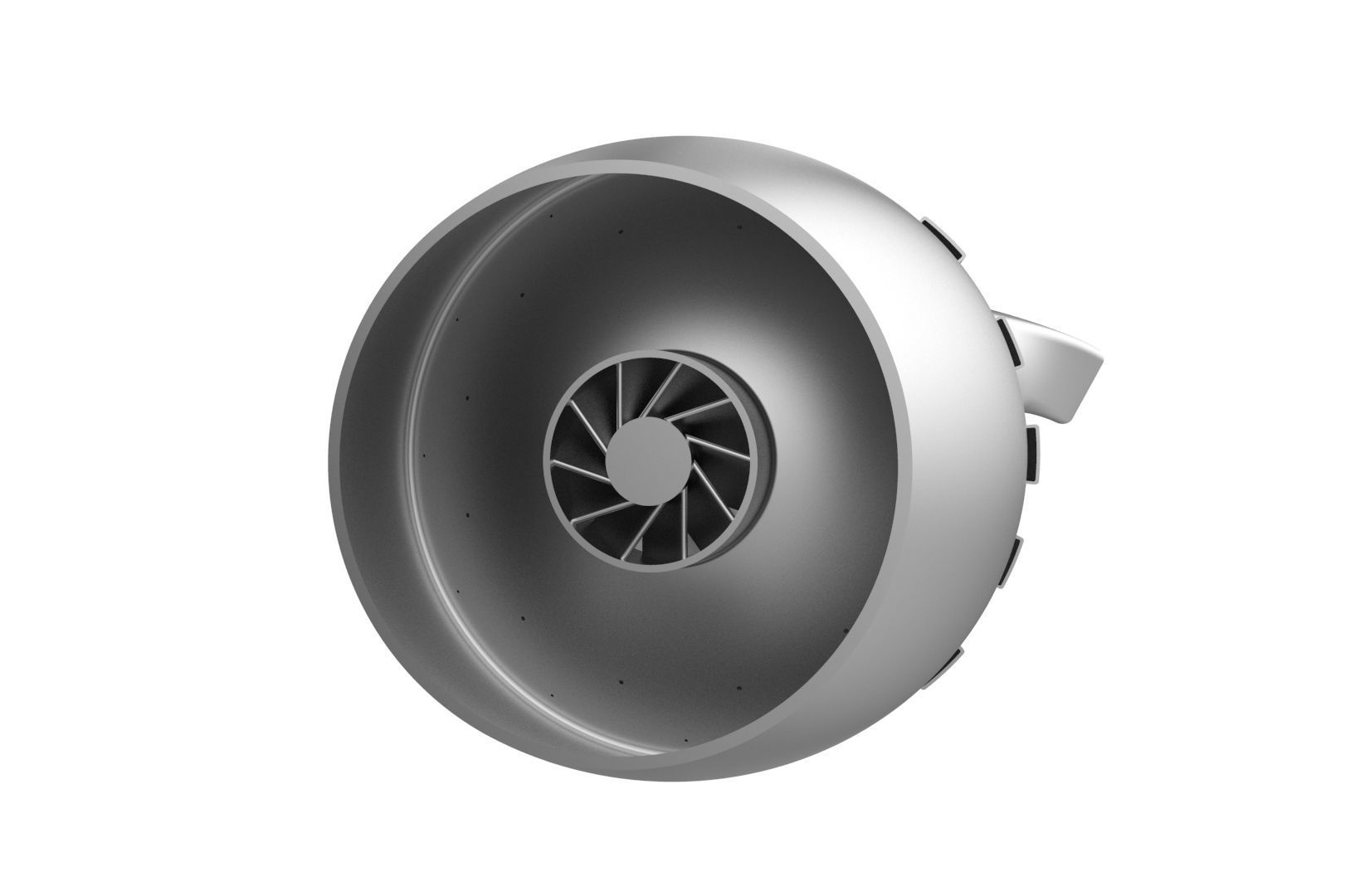

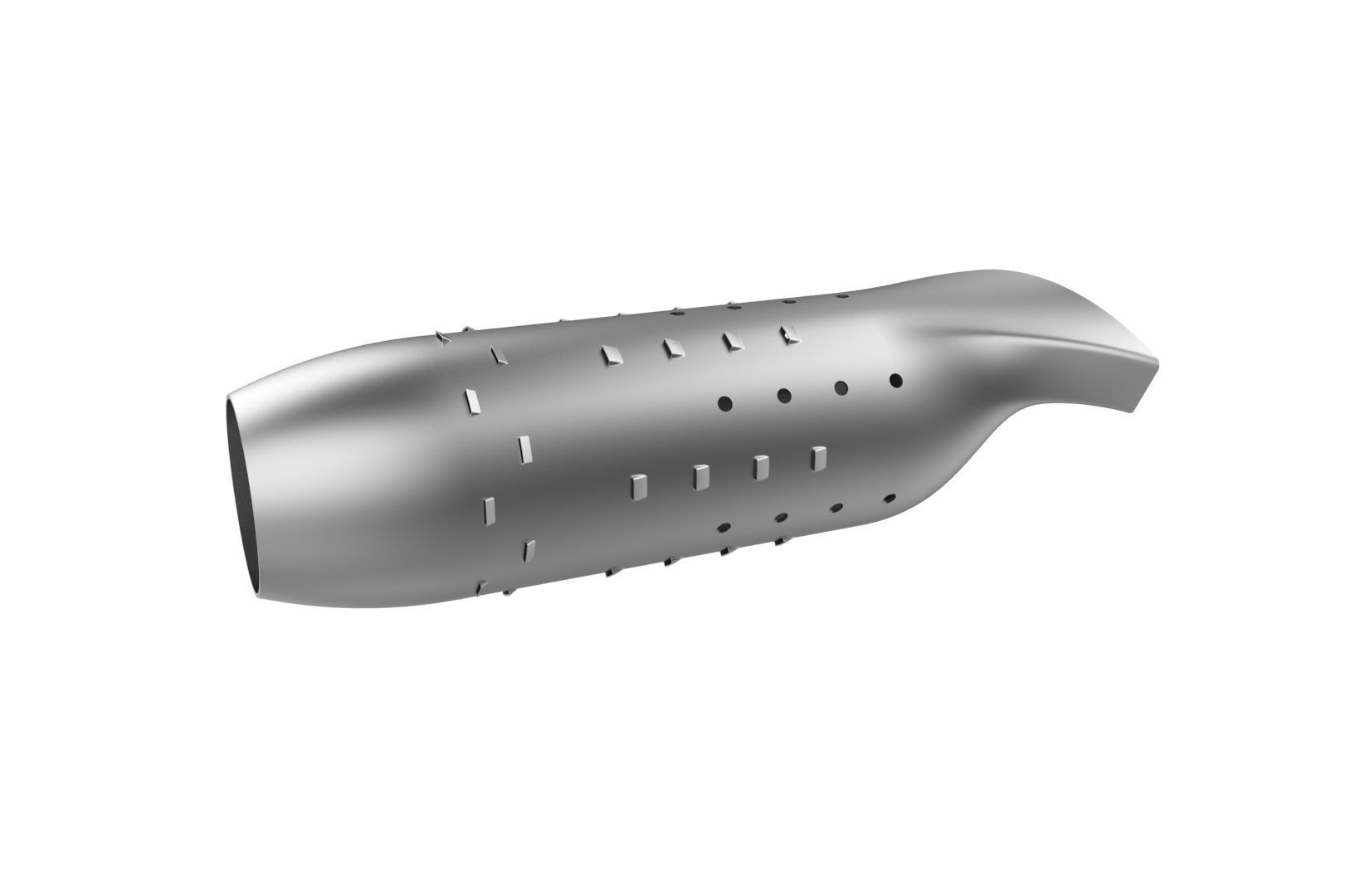

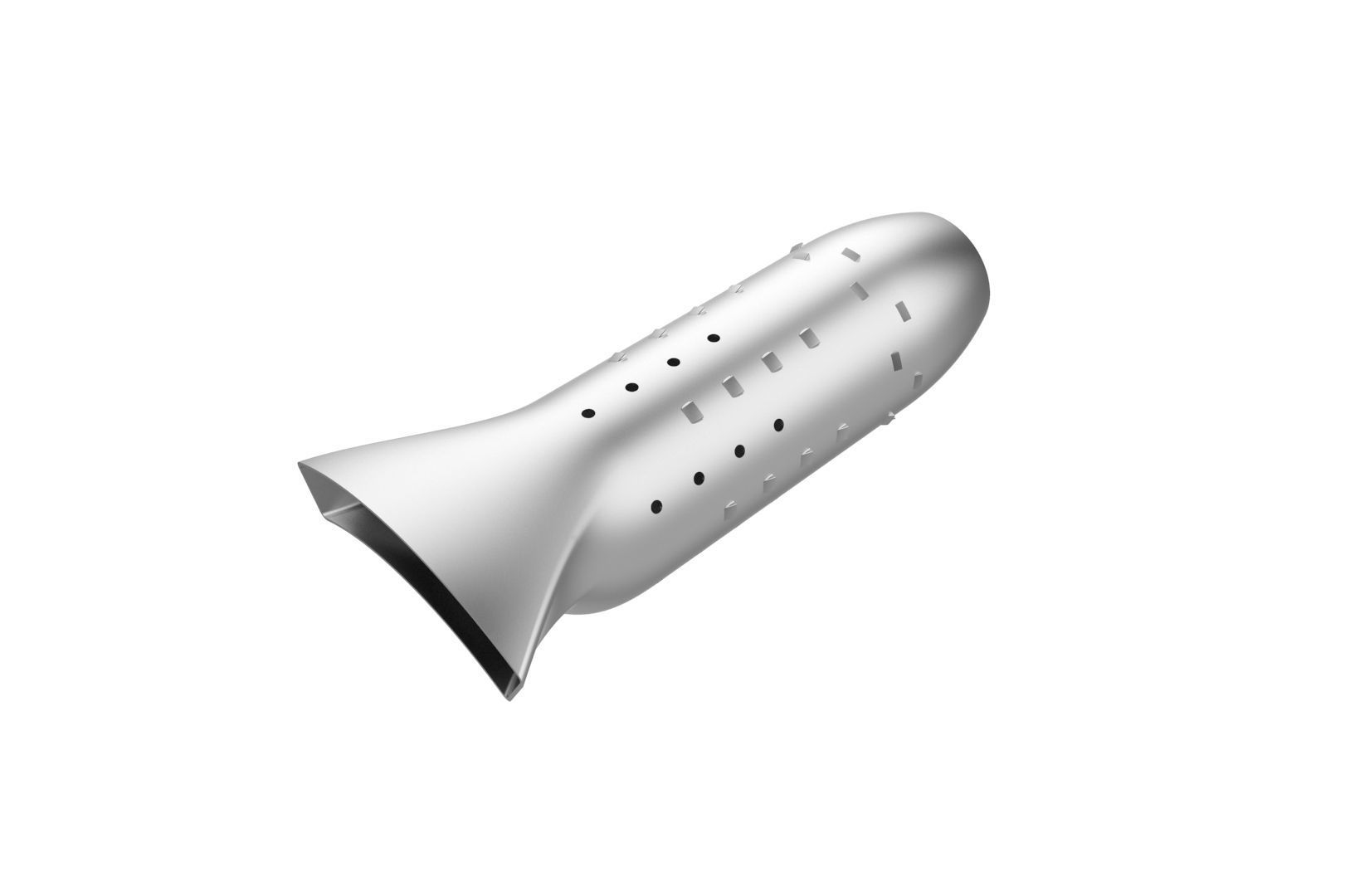

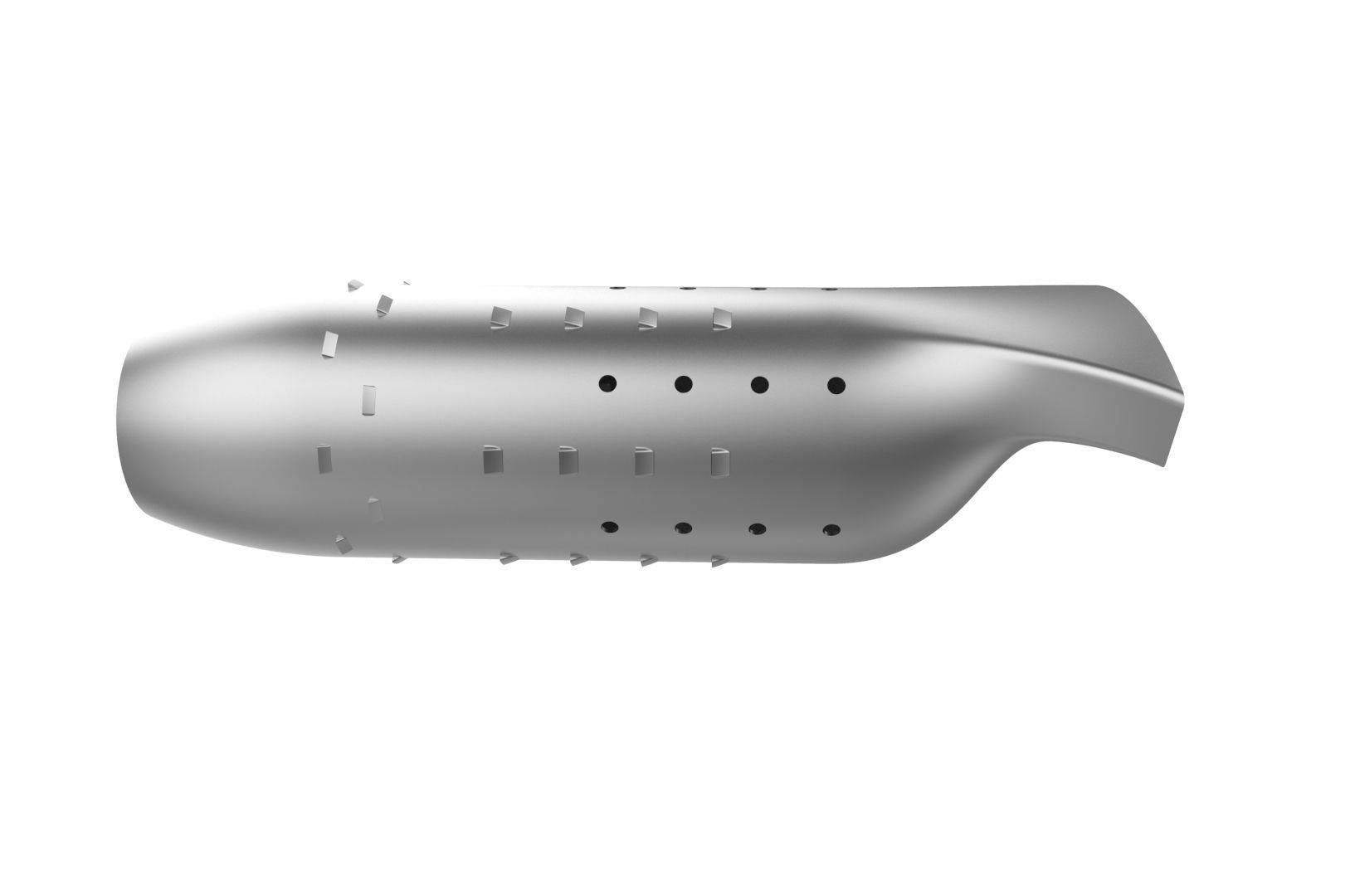

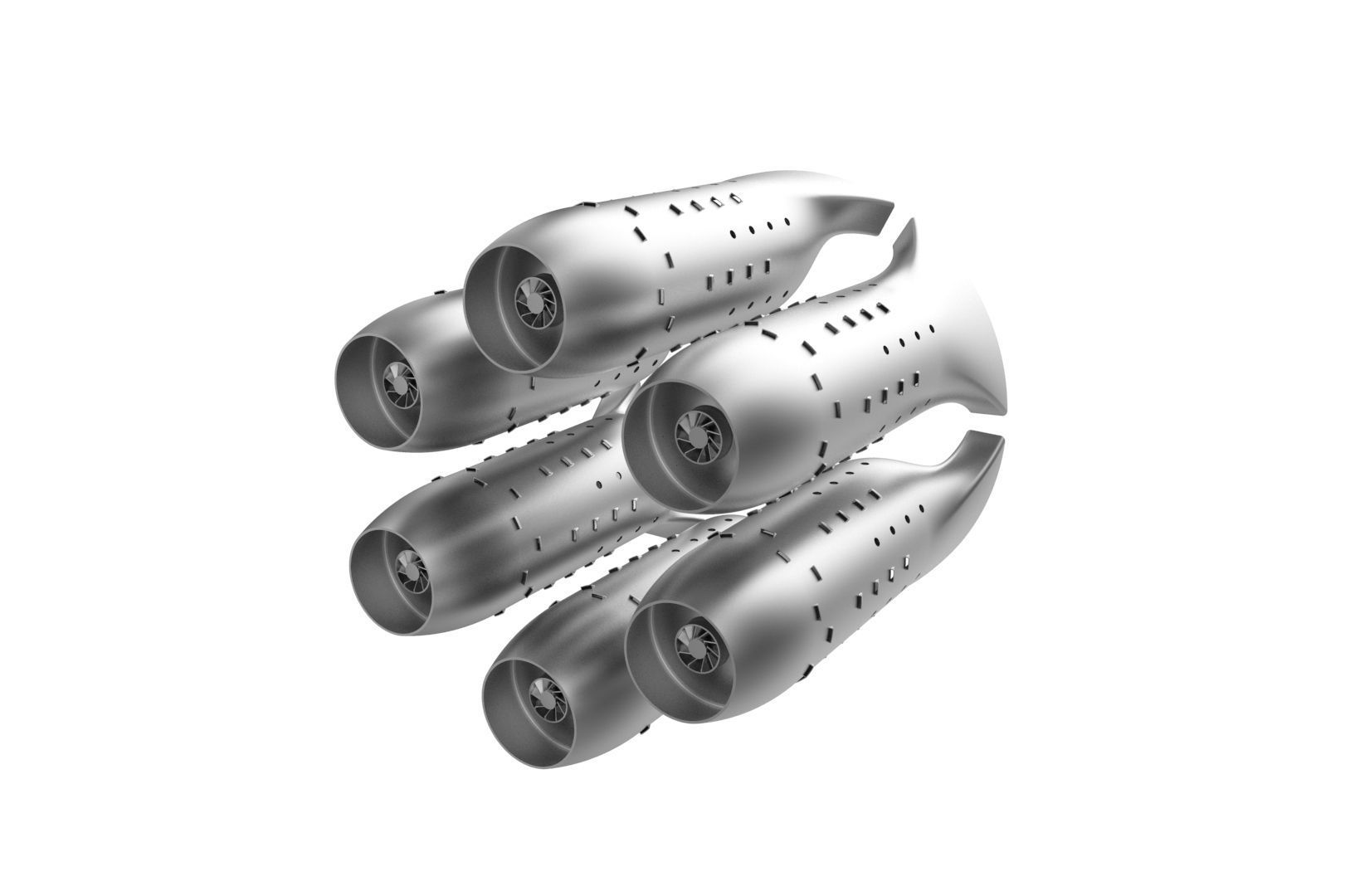

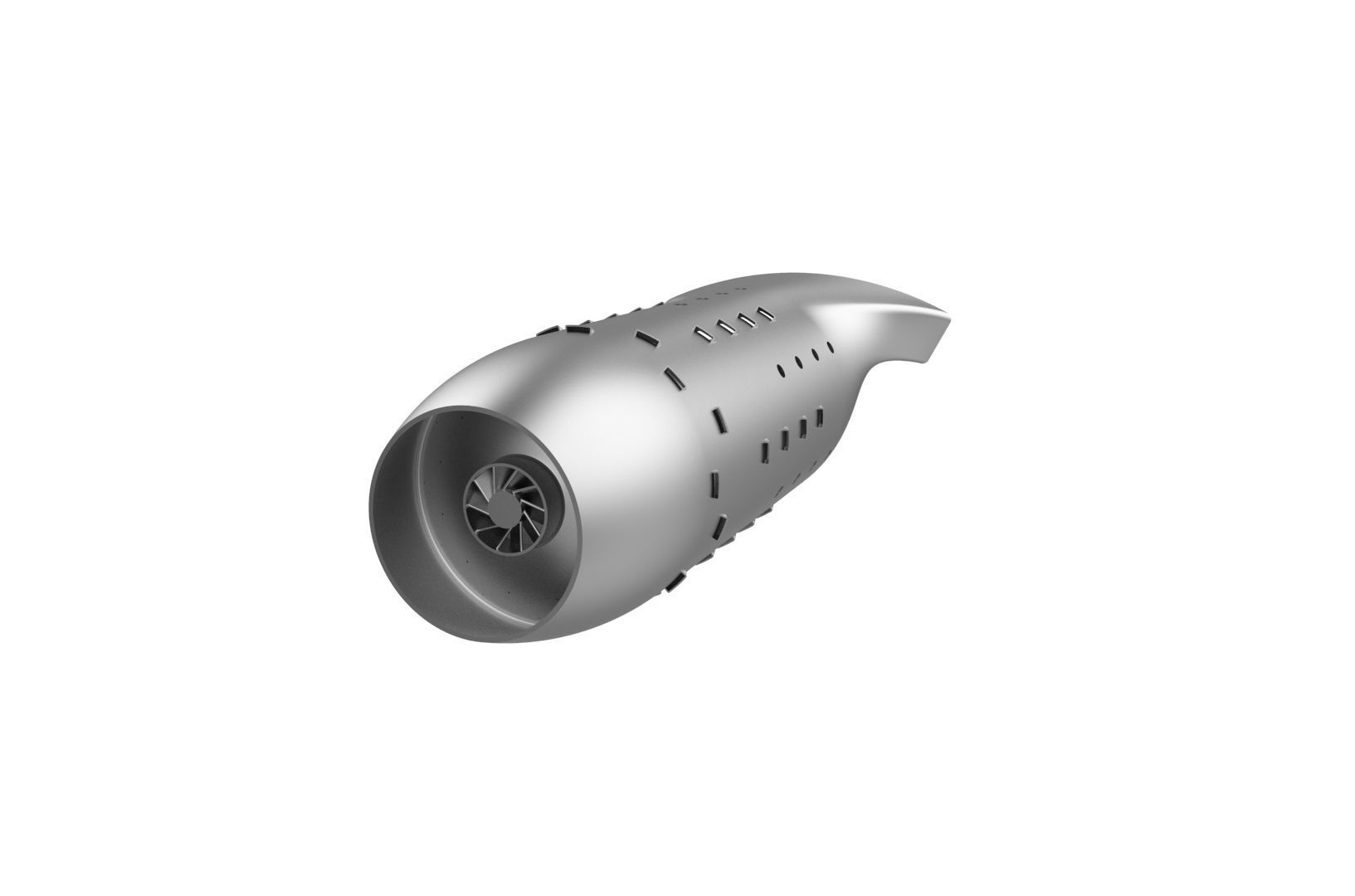

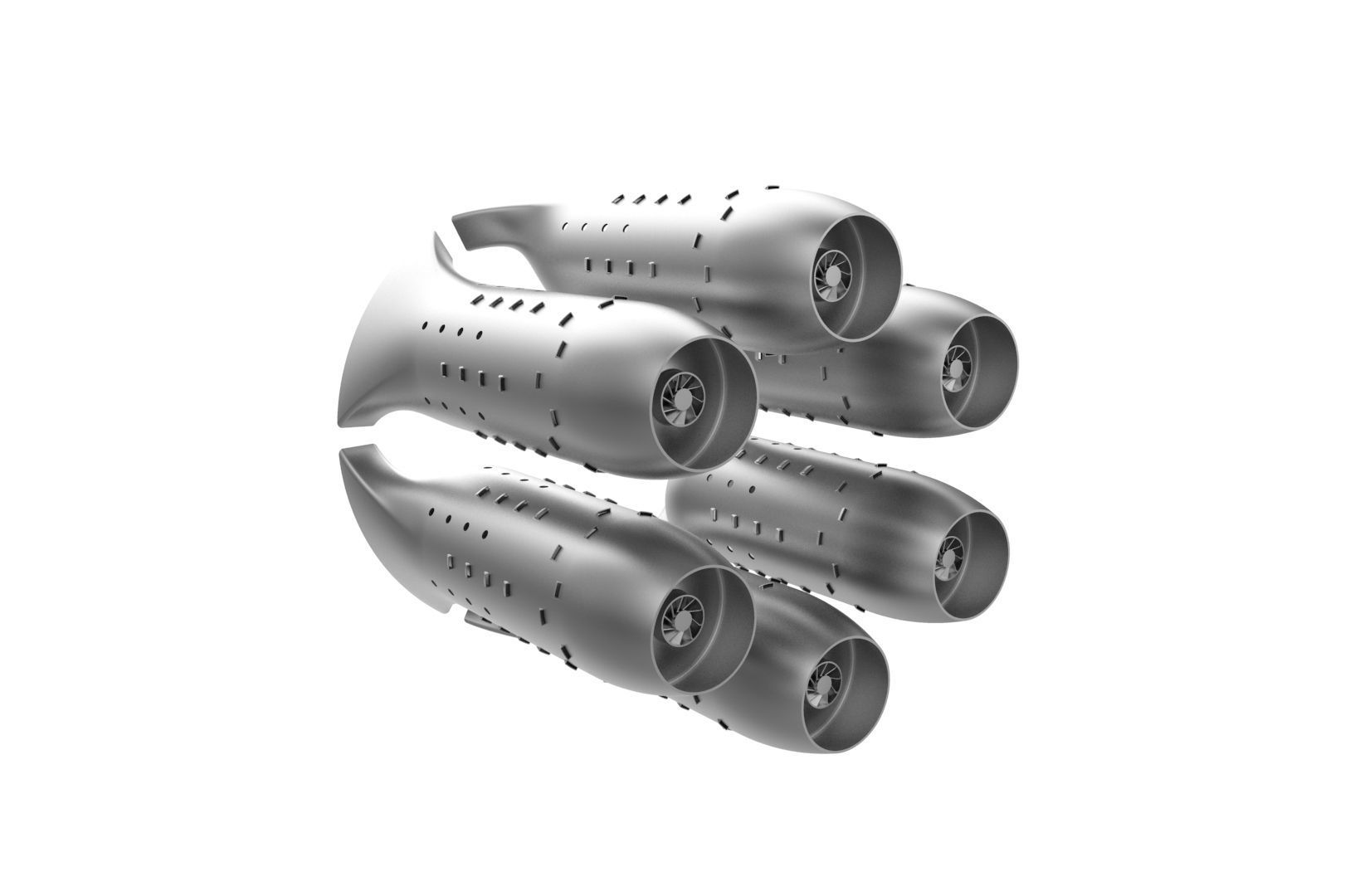

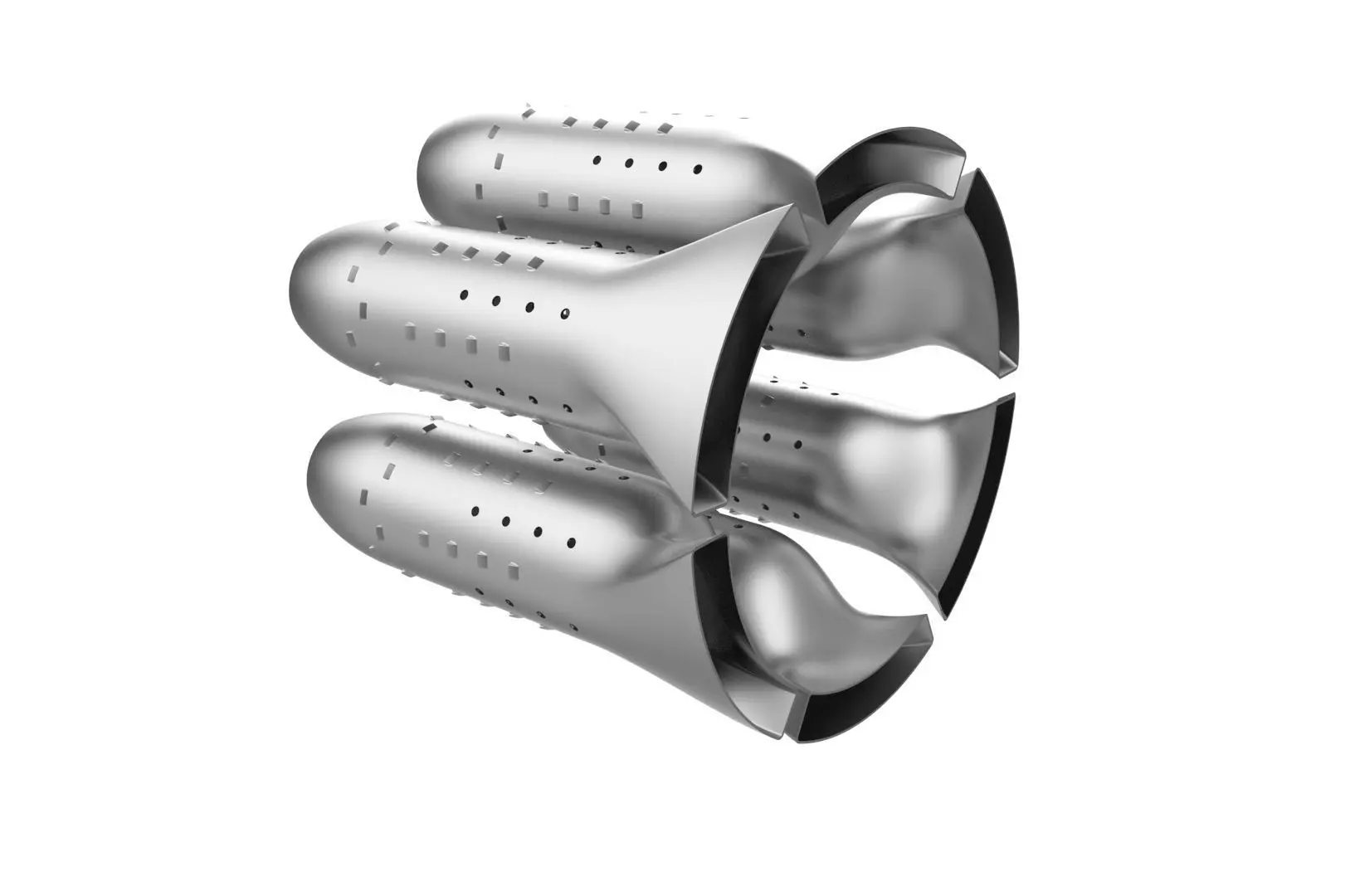

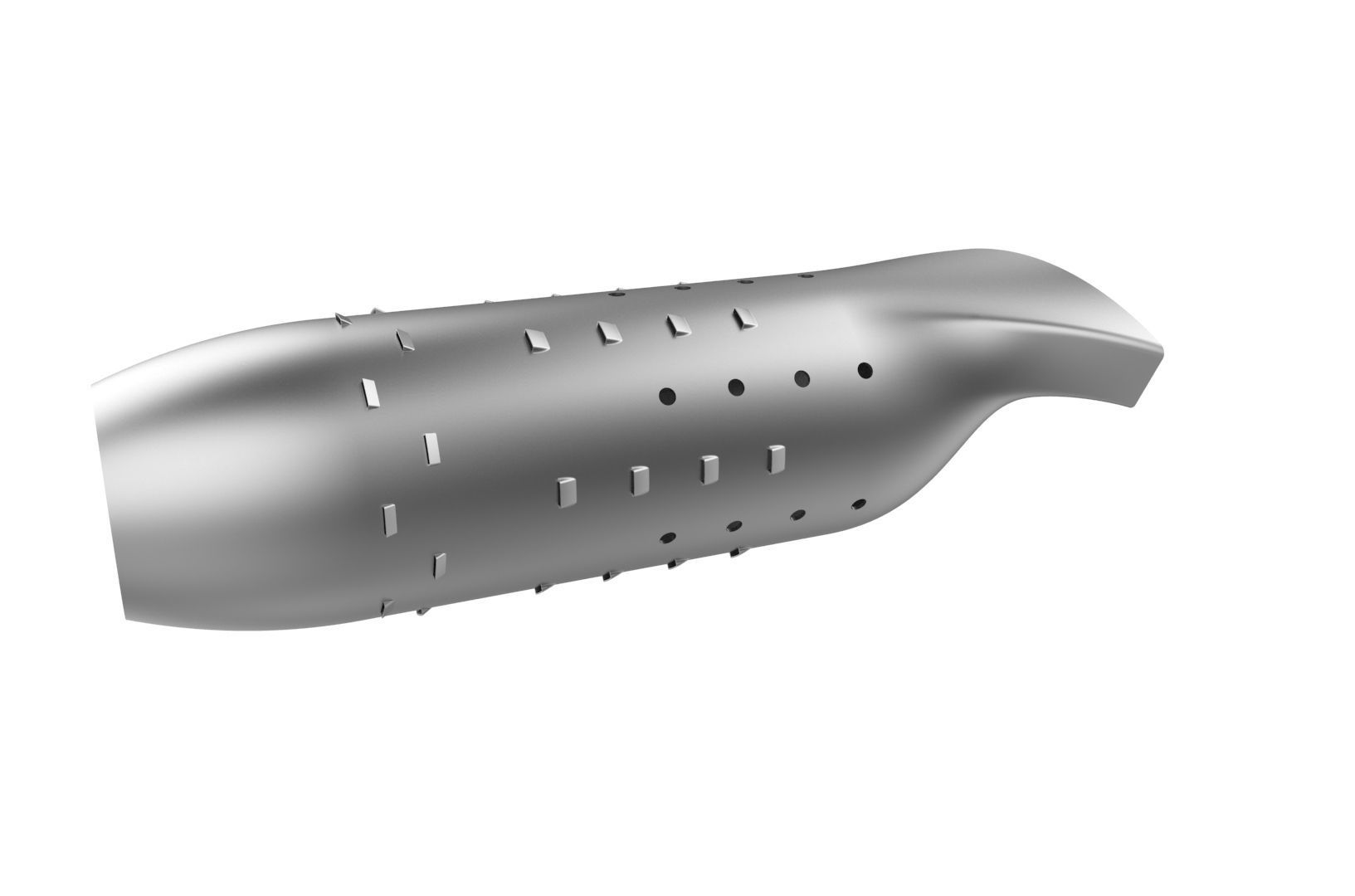

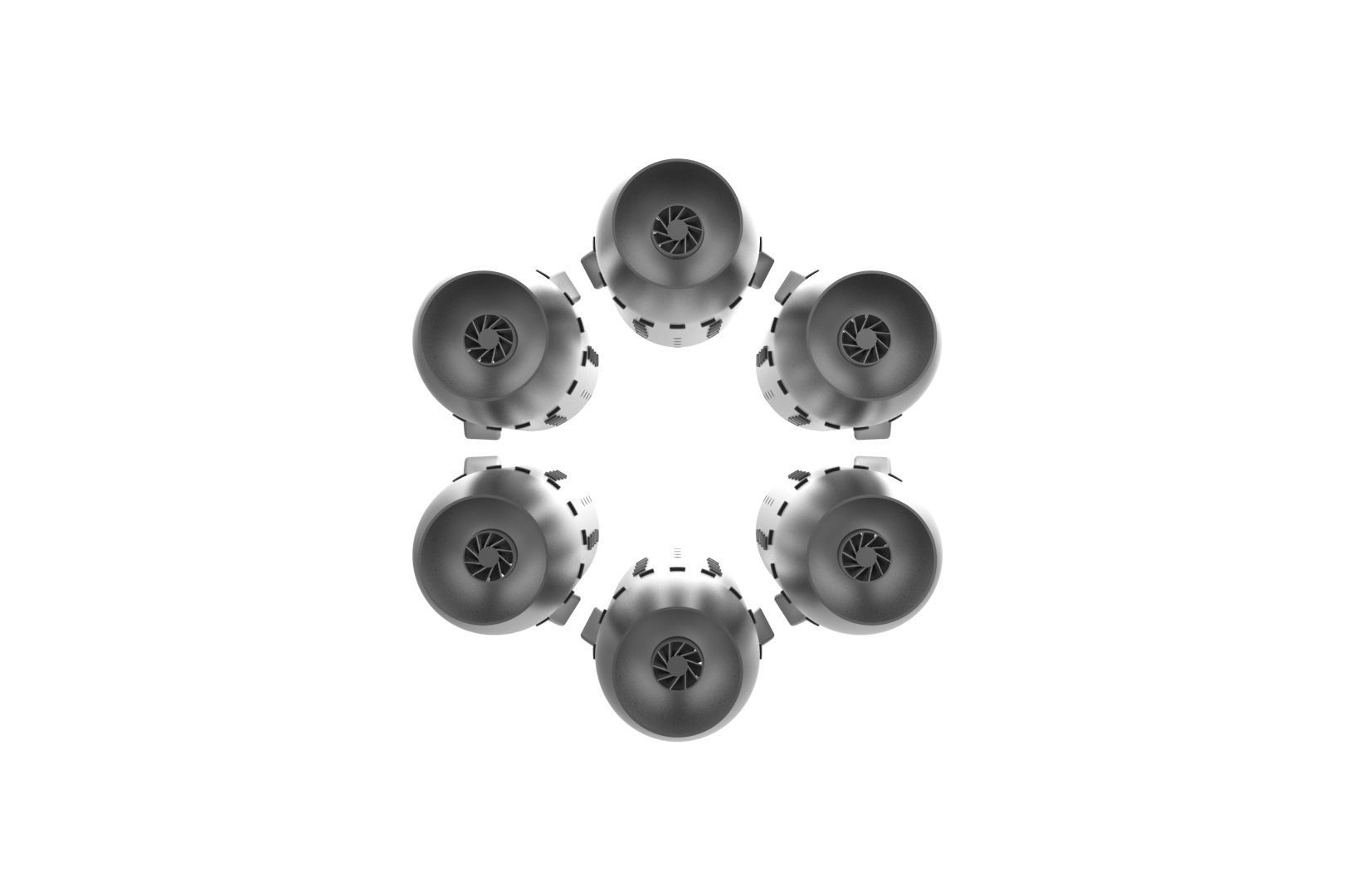

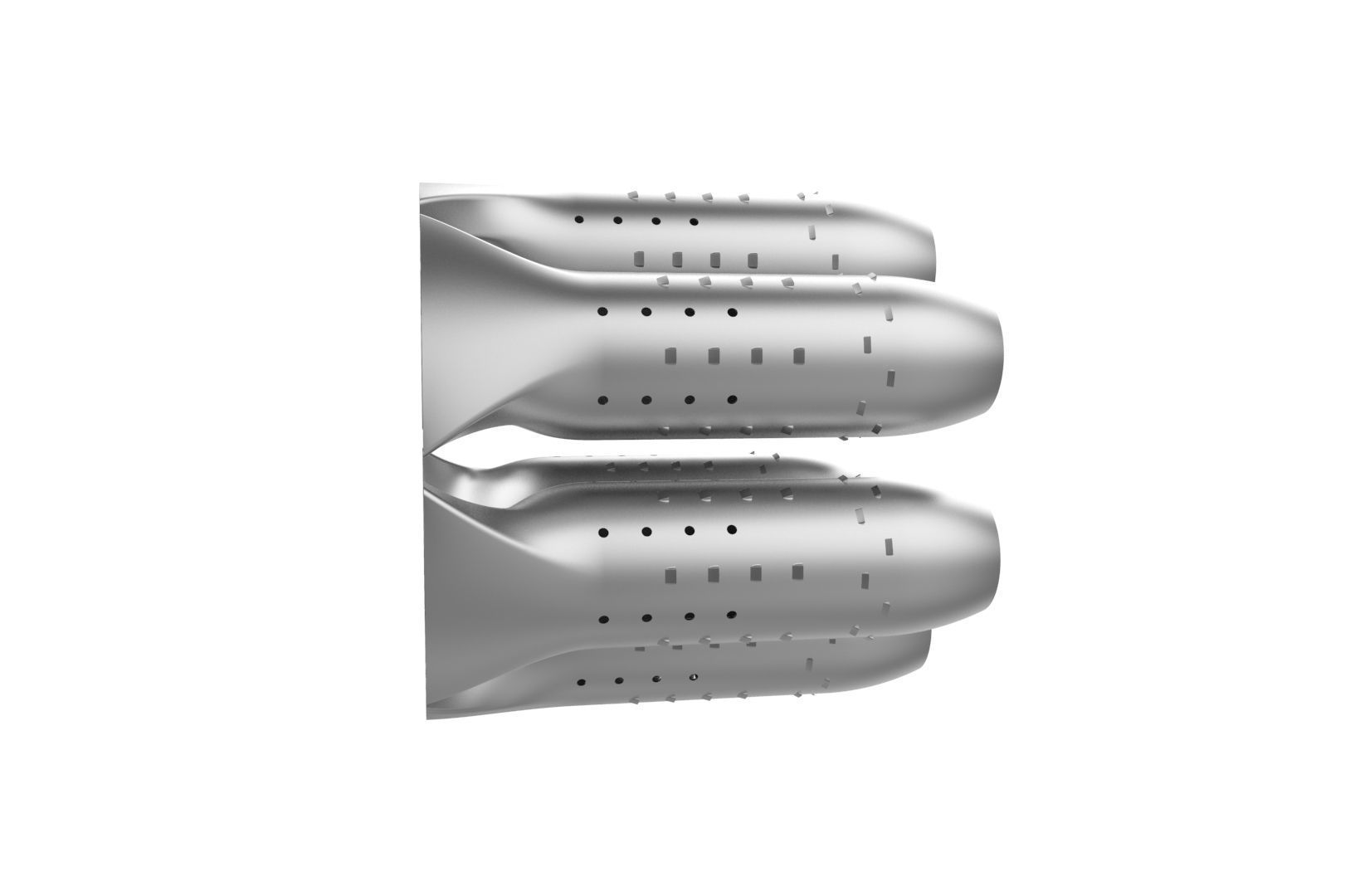

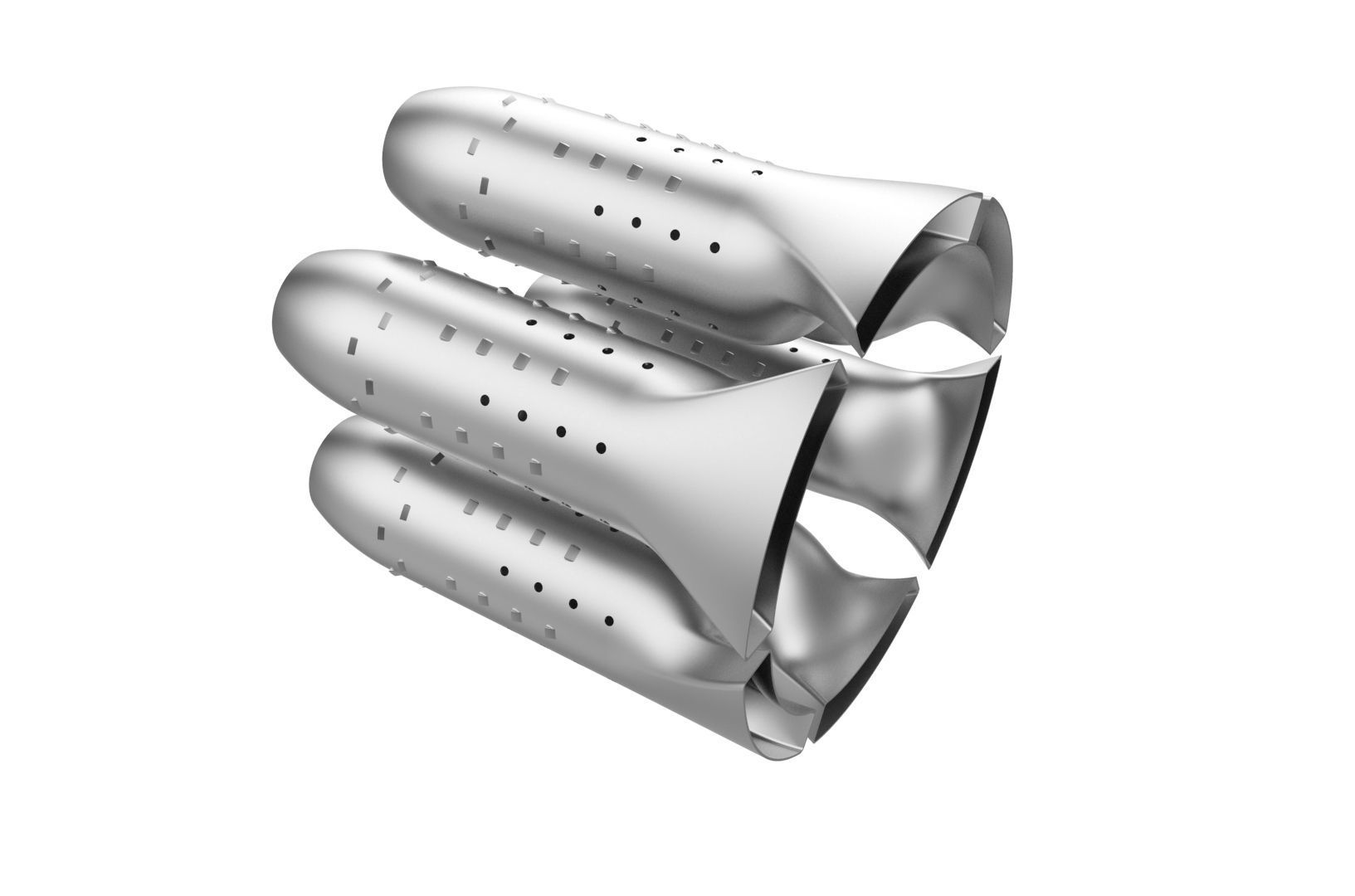

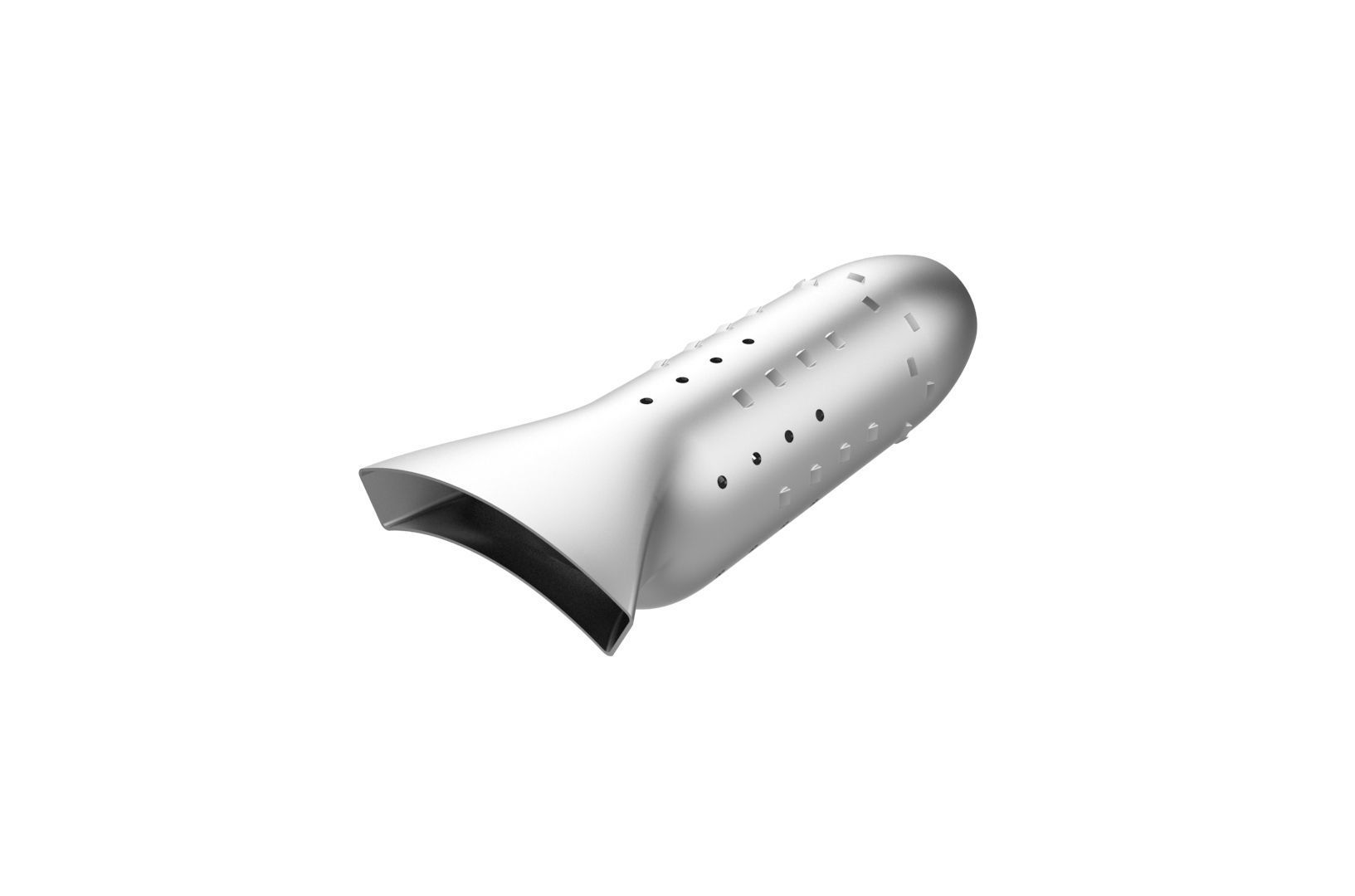

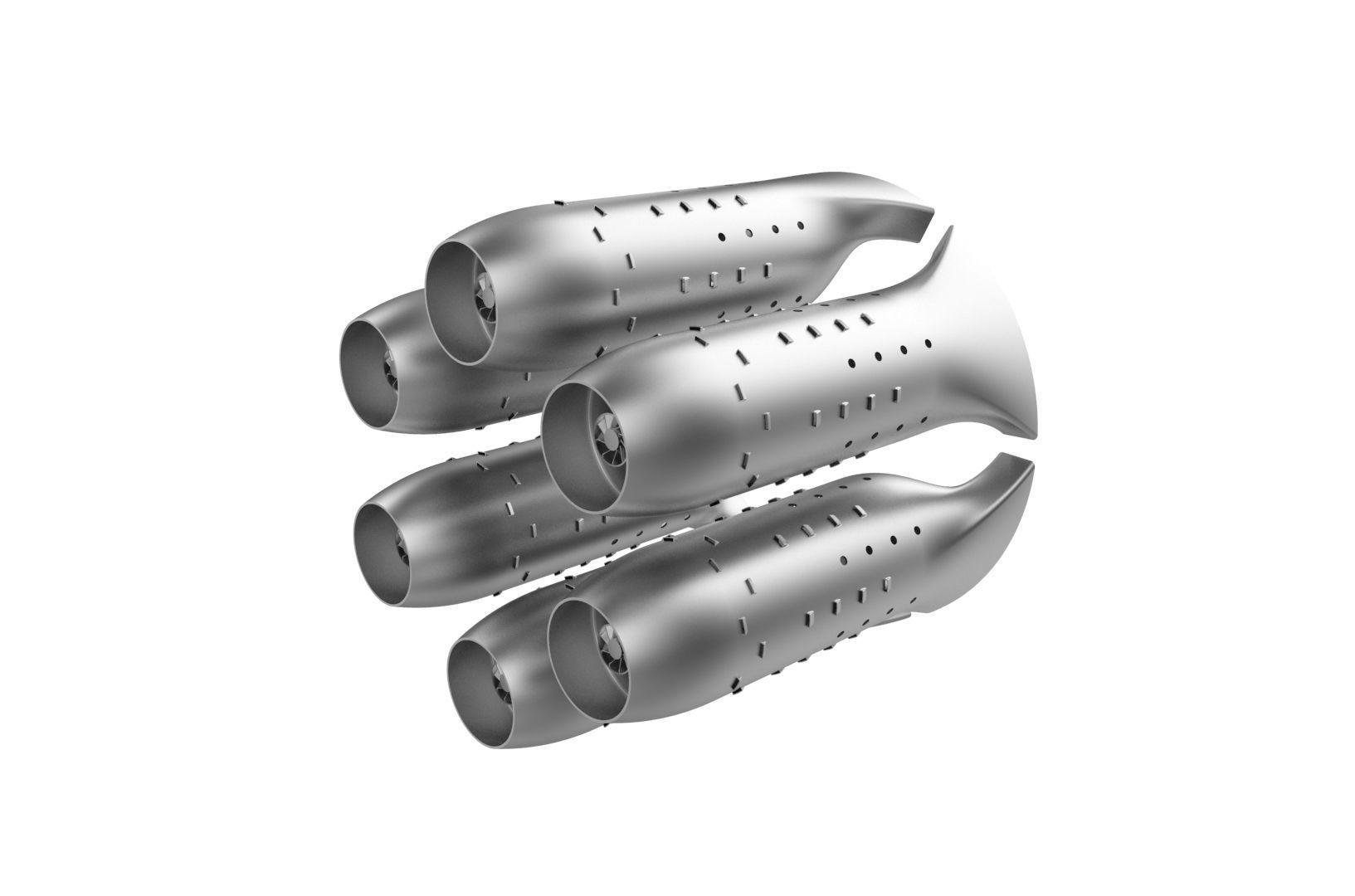

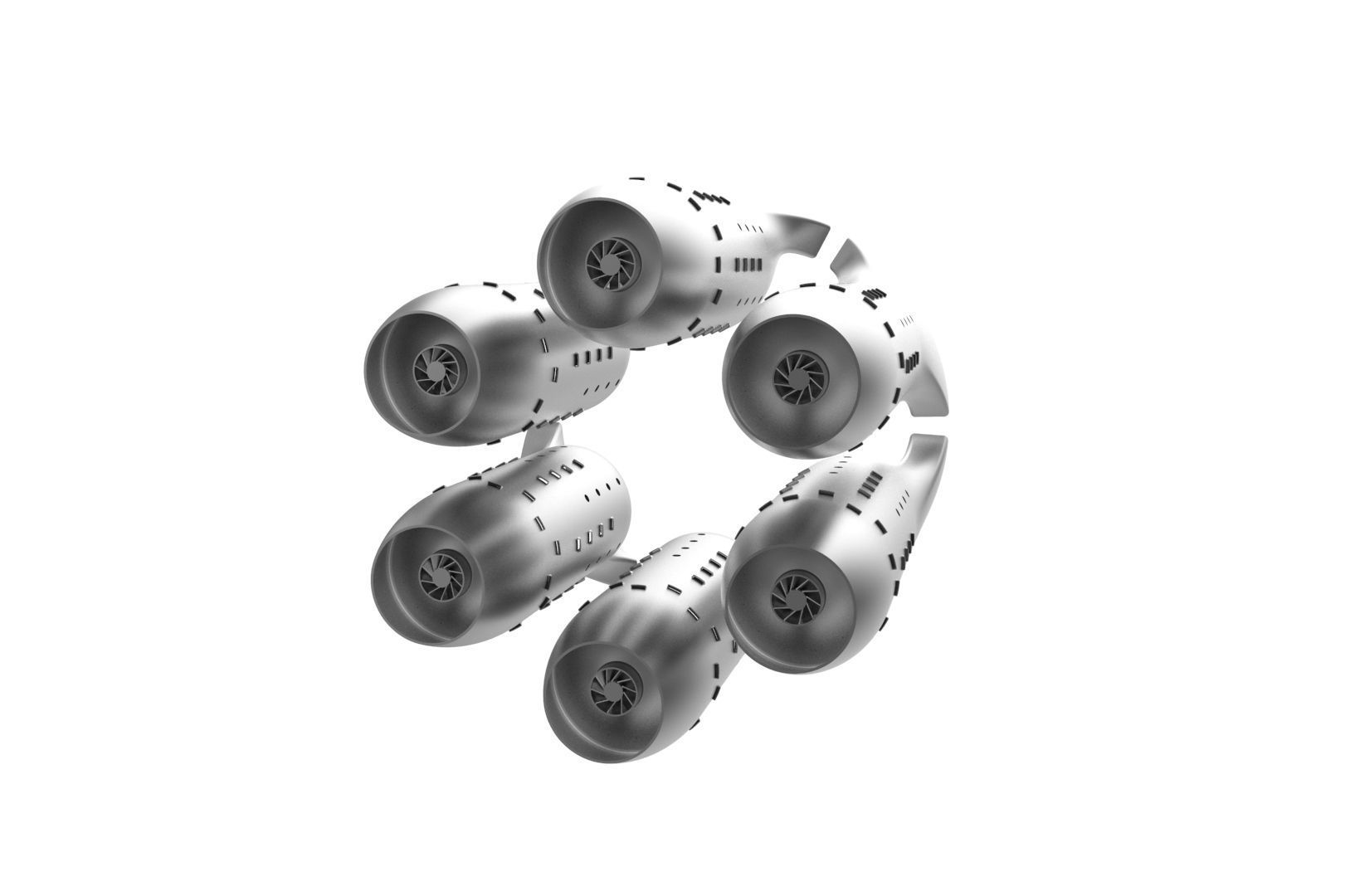

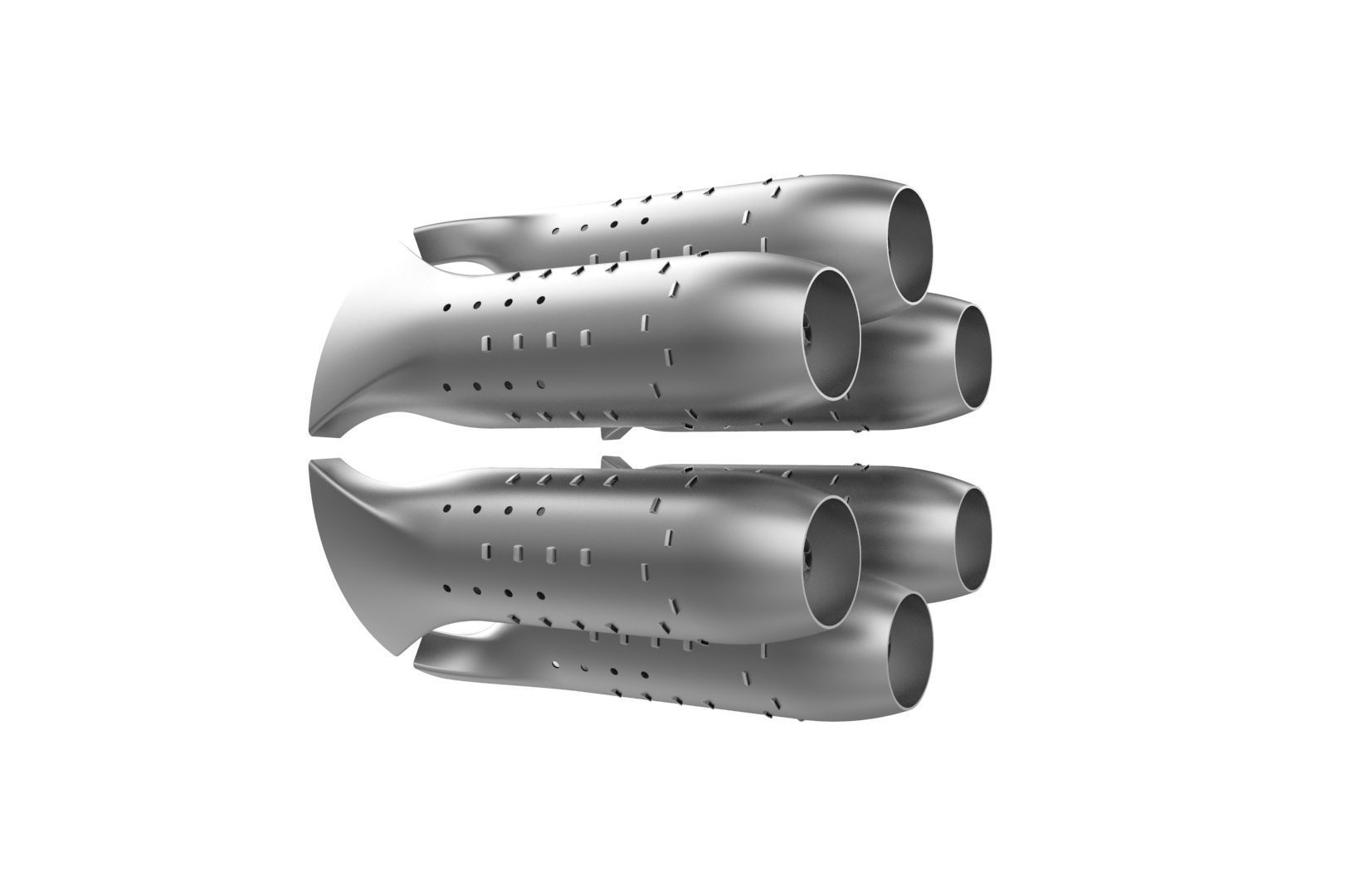

This is a 3D model of a turboject engine conbustion chamber (combustion liner). It is designed according to reference images that i have found on the internet. All of the basic features of a typical combustor liner are included. The model has been also tested in simulation for proper combustion feasibility and is OK. Size is random but can be scaled to whatever size you wish. Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached. Can be used for 3D printing.

Write comment
Item rating
0 0
Turbojet engine combustion liner chamber
$12.95

Royalty Free License
Turbojet engine combustion liner chamber
$12.95

Royalty Free License
AAG-Design
AG-Design
(16 reviews)
Response 81% in 0.4h
3D Modeling
3D Print Modeling
Low-poly Modeling
Rendering
3D Scanning
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)21.3 MB
Exchange
  • Ply (.ply)2.11 MB
  • IGES (.ige, .igs, .iges)15.6 MB
  • Stereolithography (.stl)4.54 MB
  • 3D Manufacturing File (.3mf)992 KB
  • amf (.amf)9.56 MB

3D Model details

  • Publish date2021-04-08
  • Model ID#2973528
  • Ready for 3D Printing
