Tool Rack for Tormach TTS Style of Tools 3D print model
NOTE: If you are buying our full CNC enclosure, this is included free in that pack! You don't need to purchase seperately.

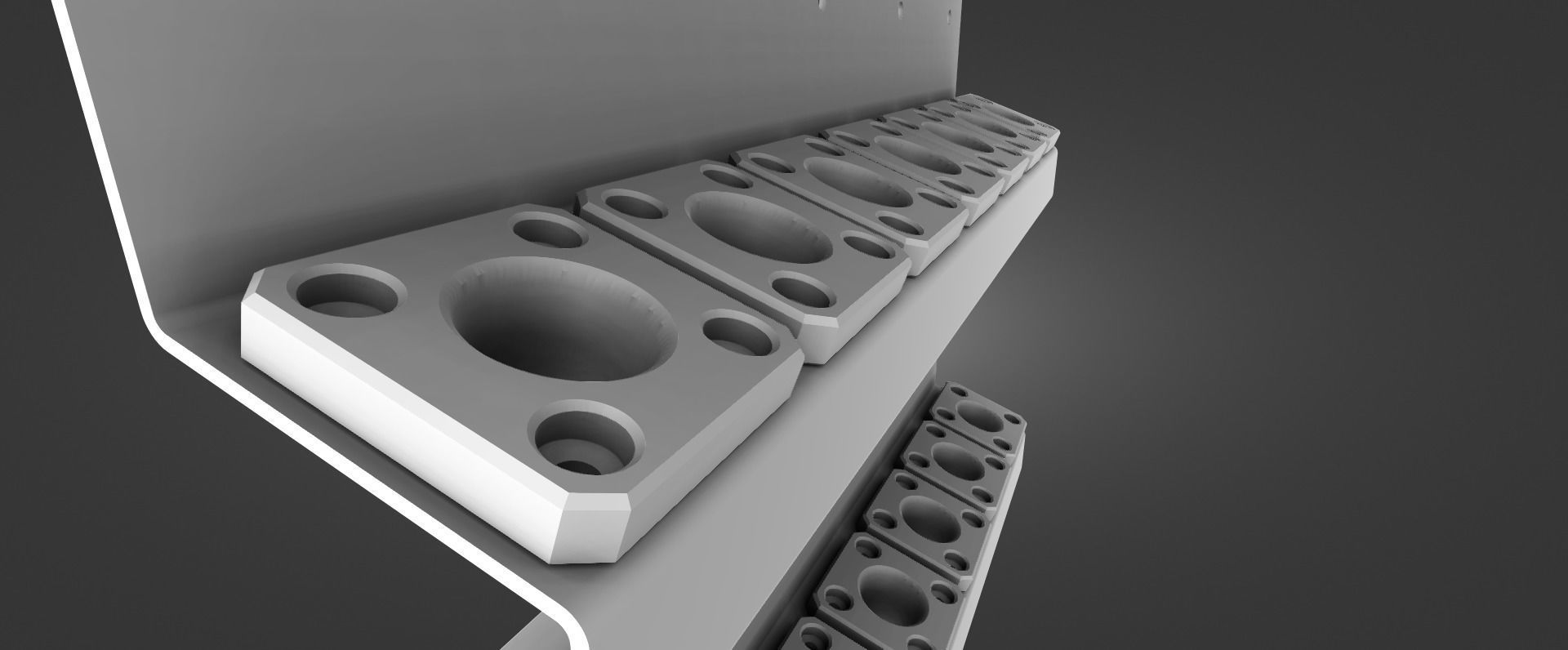

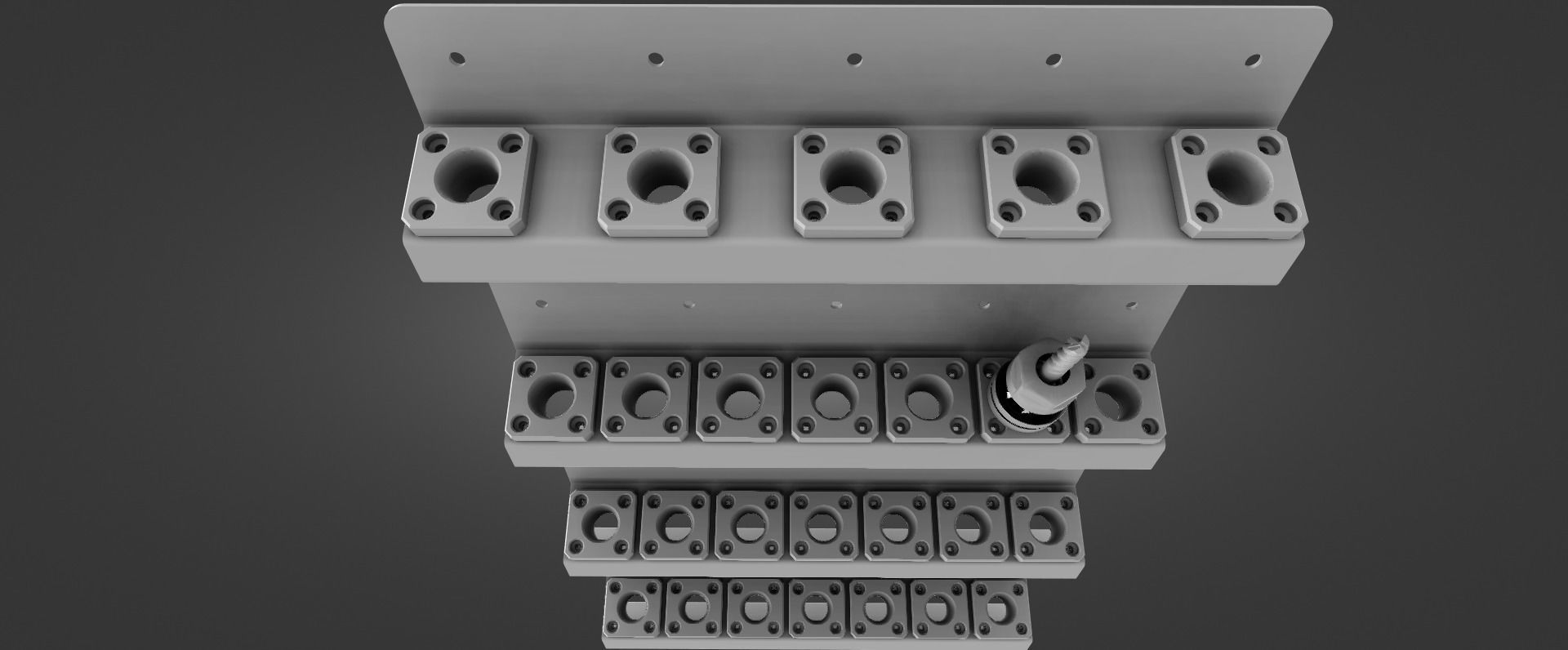

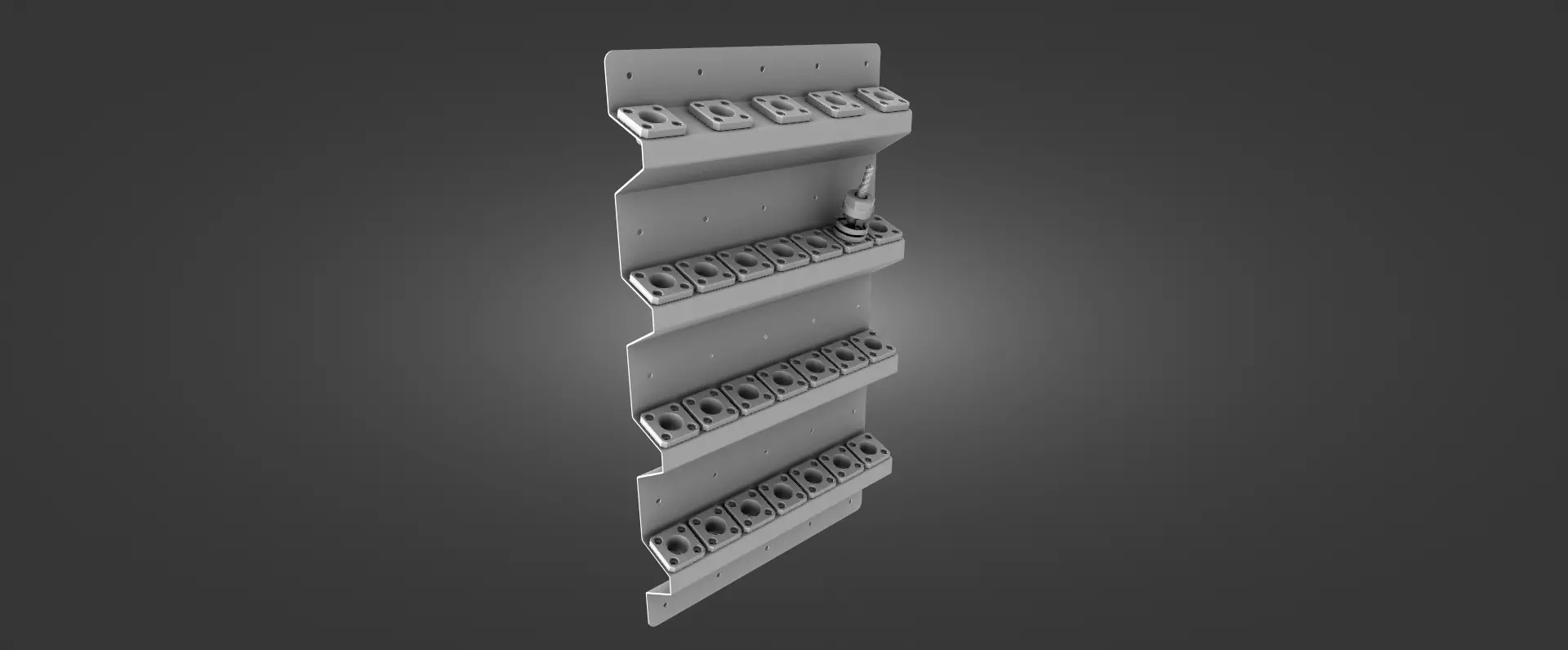

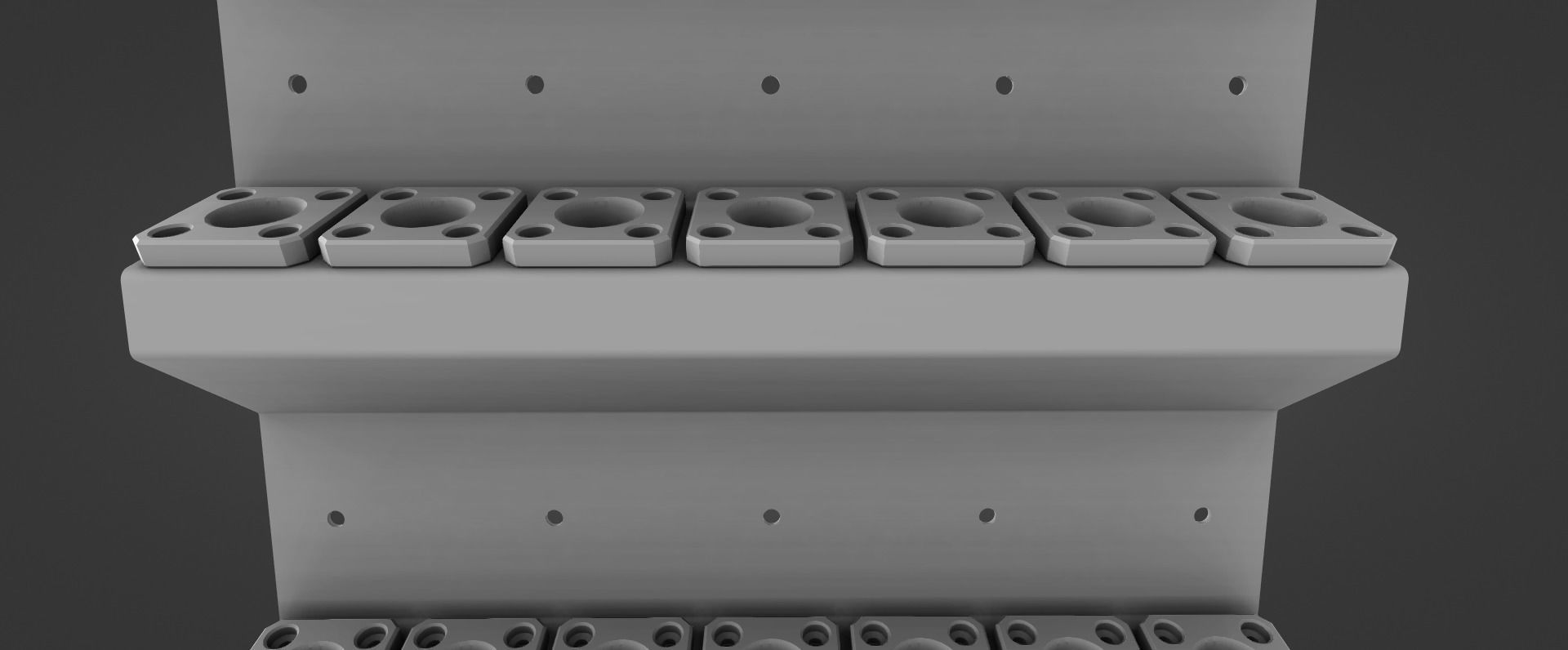

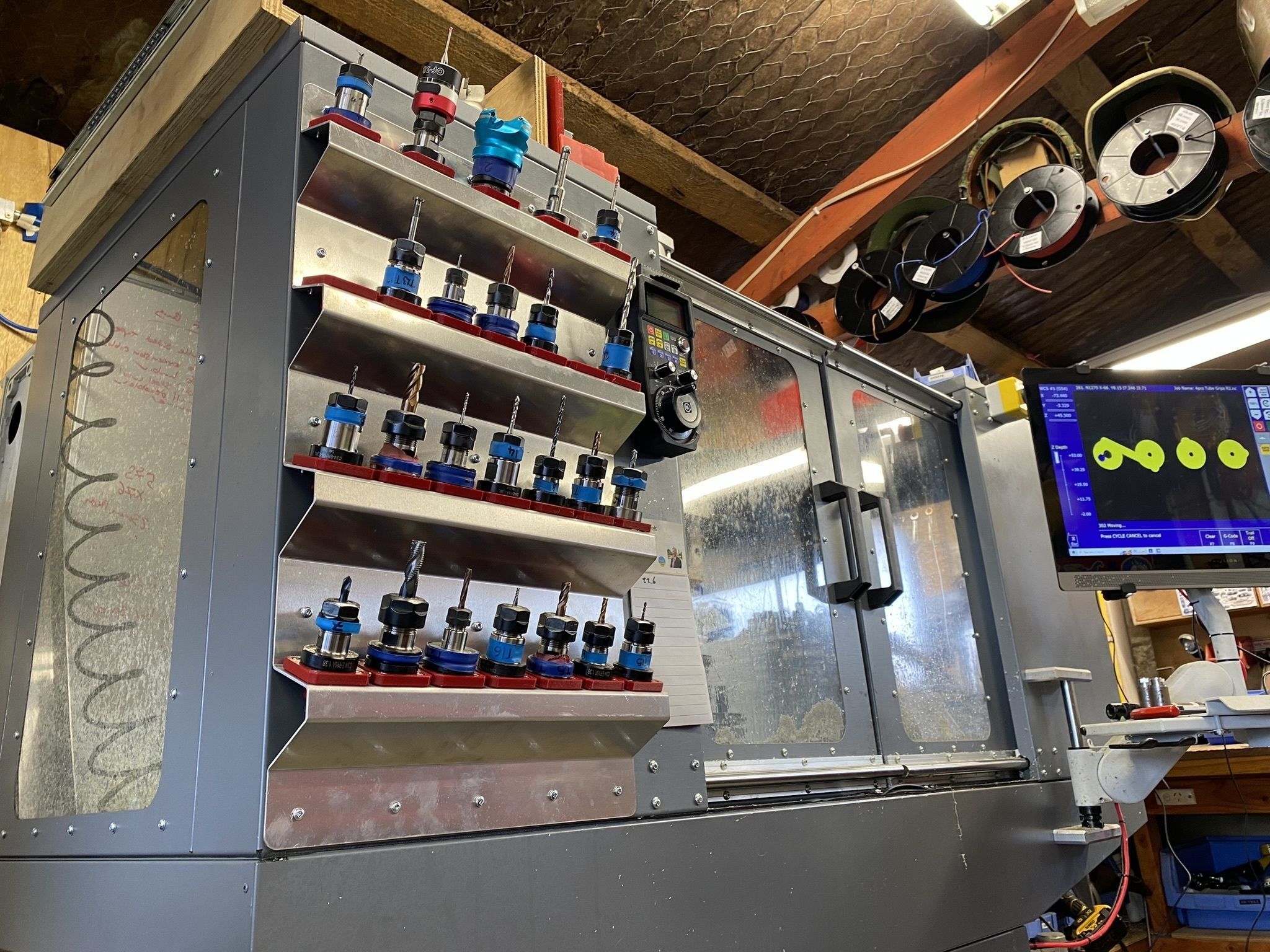

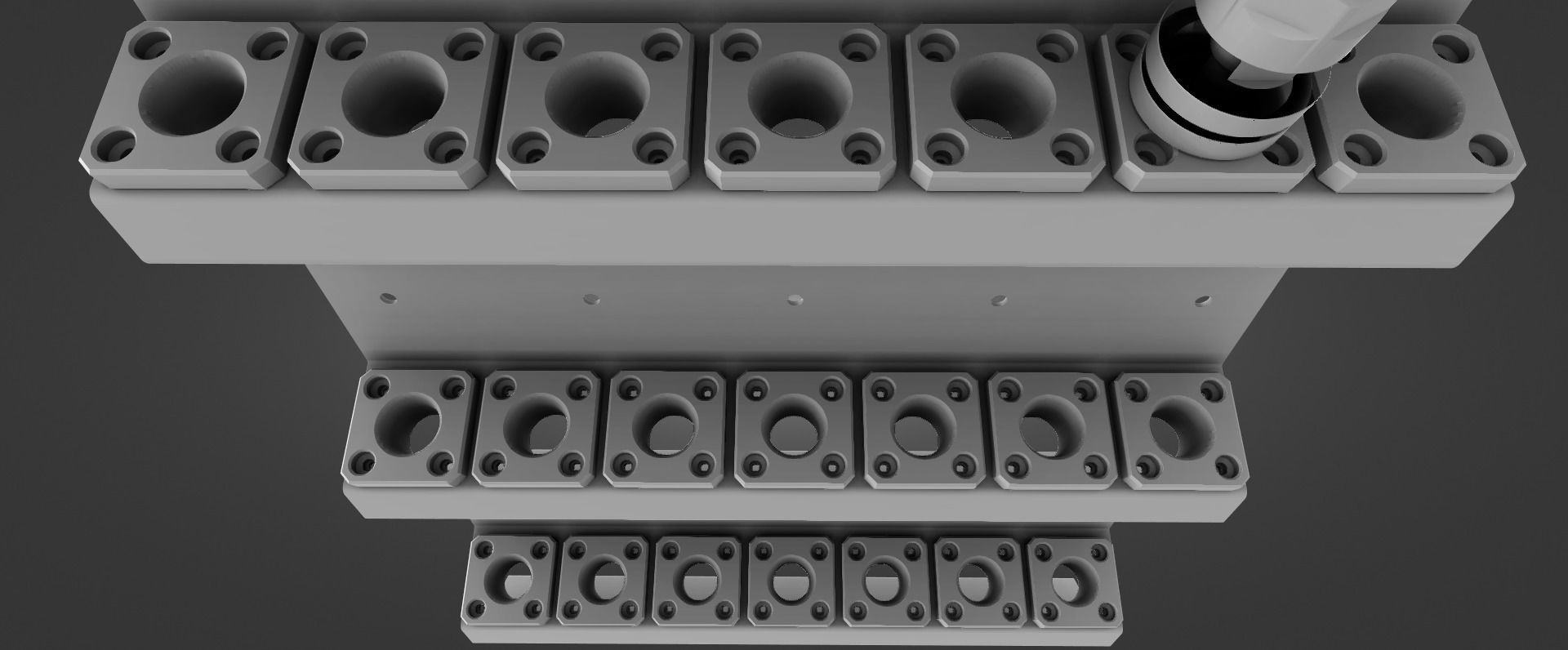

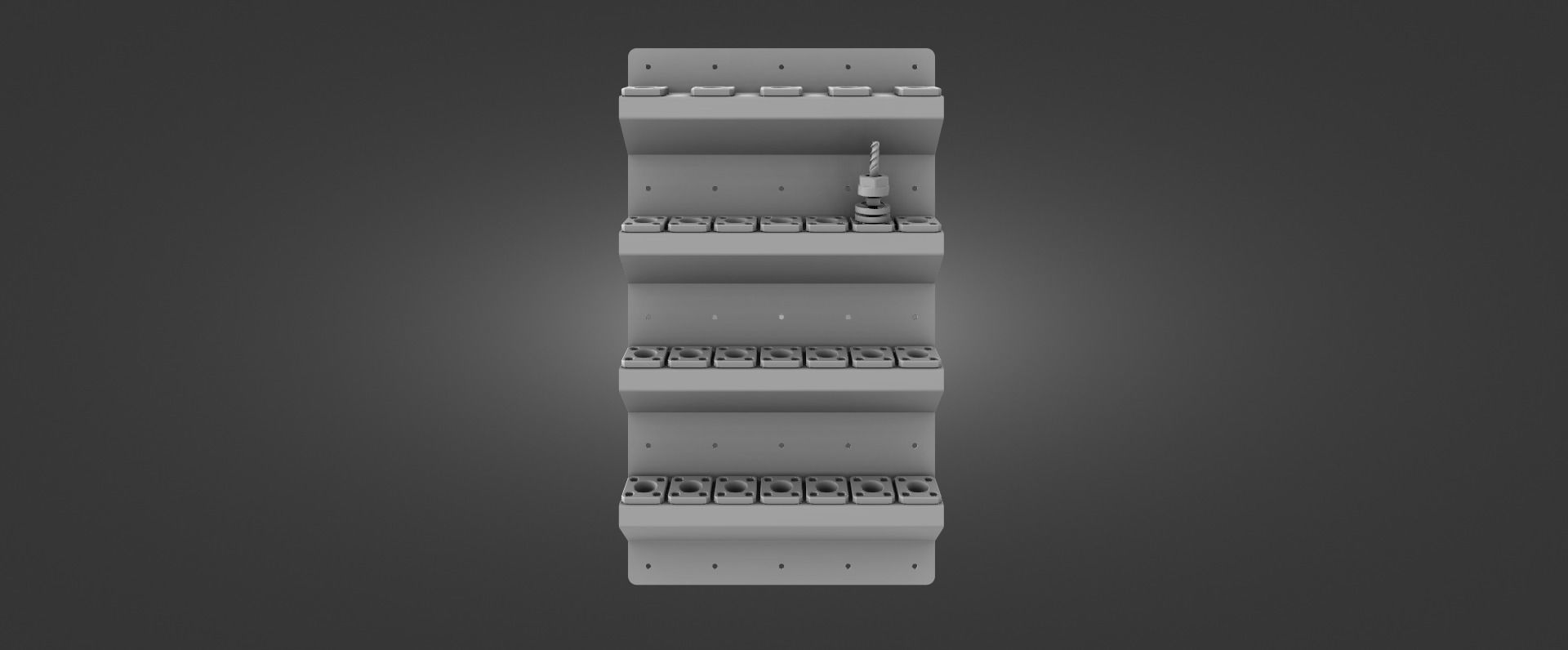

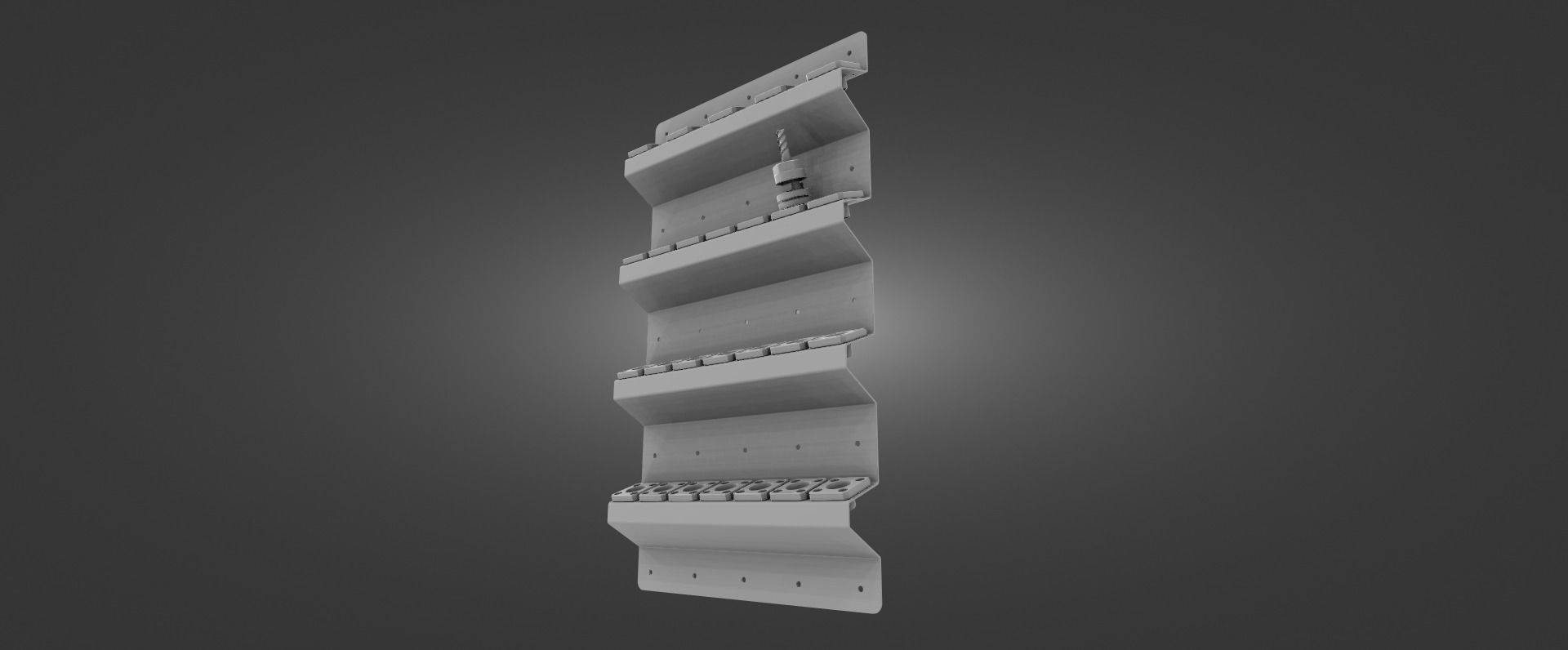

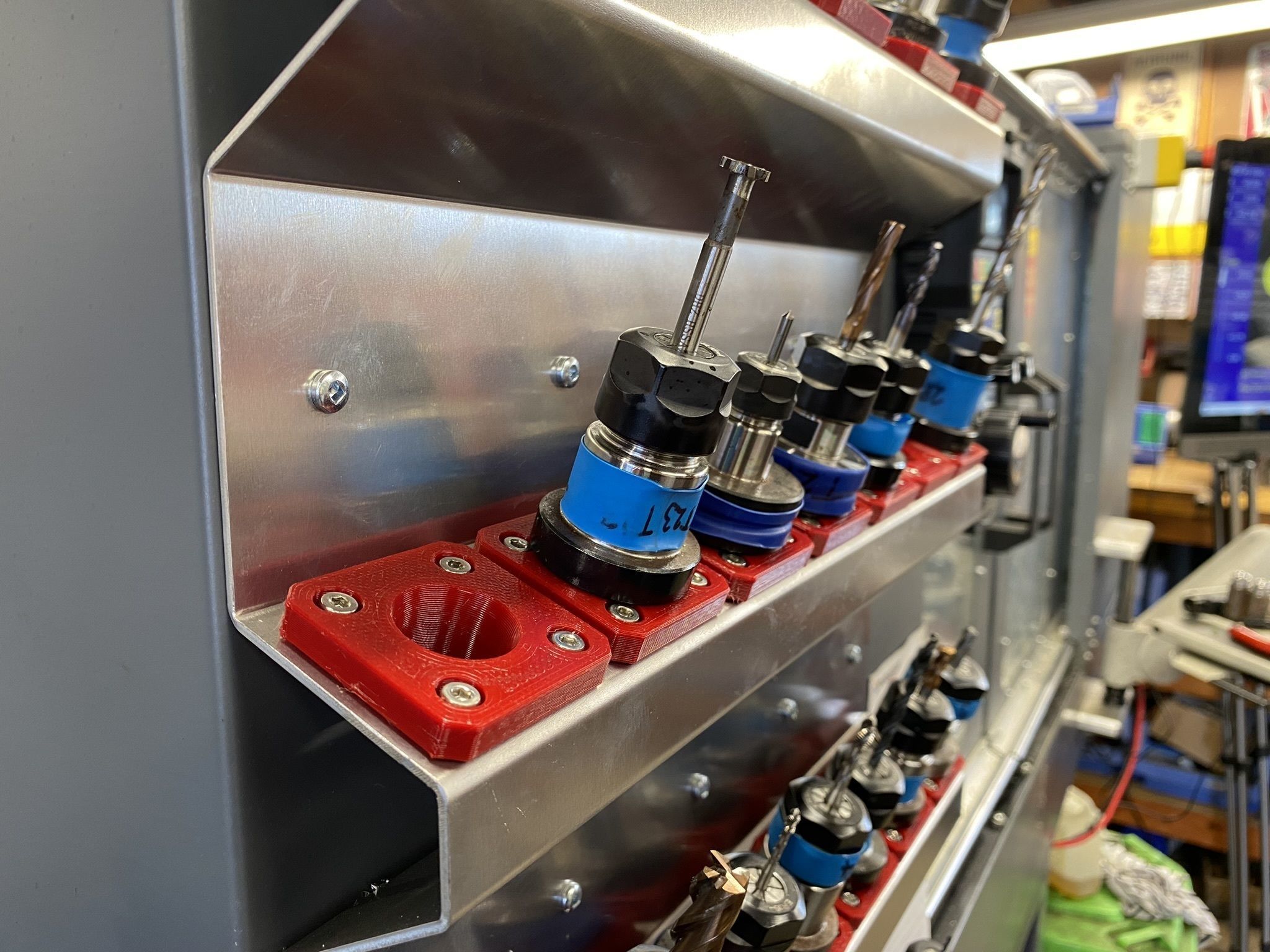

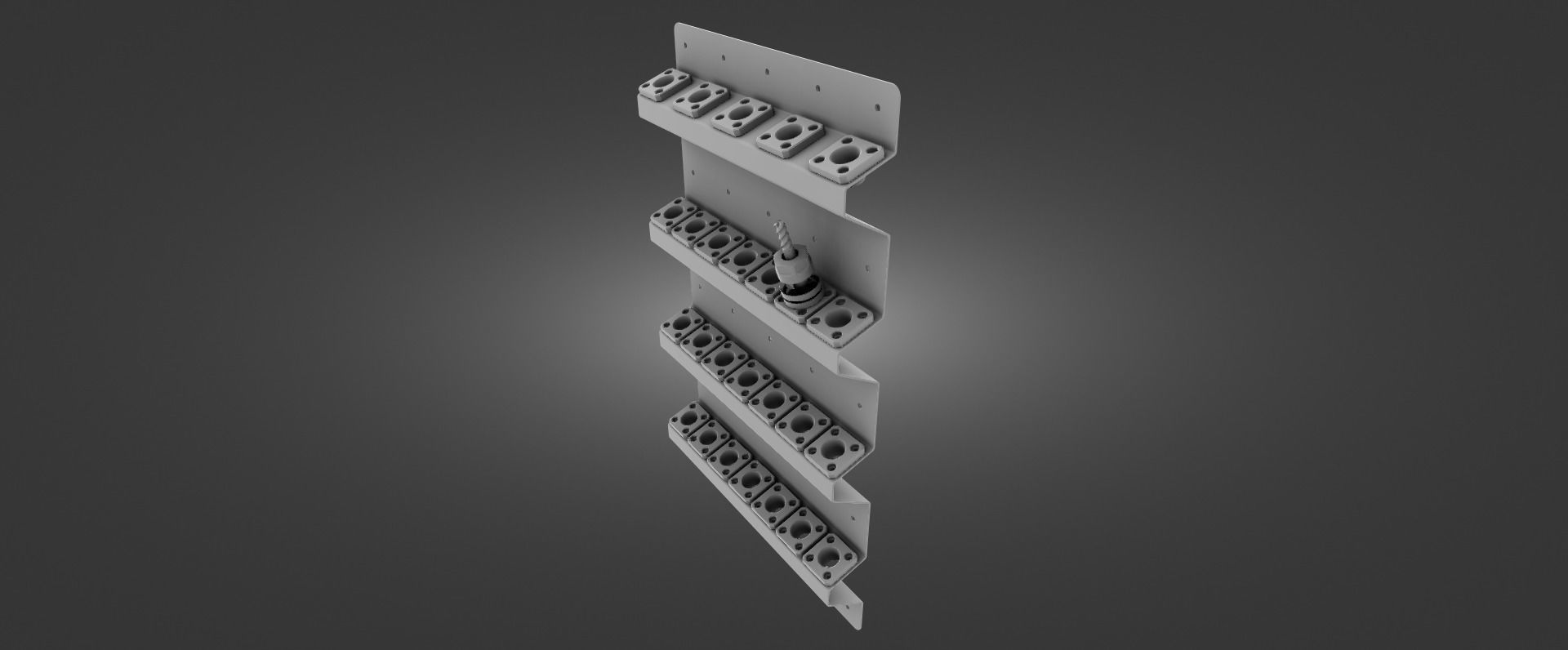

This is the tool rack we've developed to suit the Tormach TTS tool holders. It is designed to mount to the front panel of the machine for easy access to your tools.

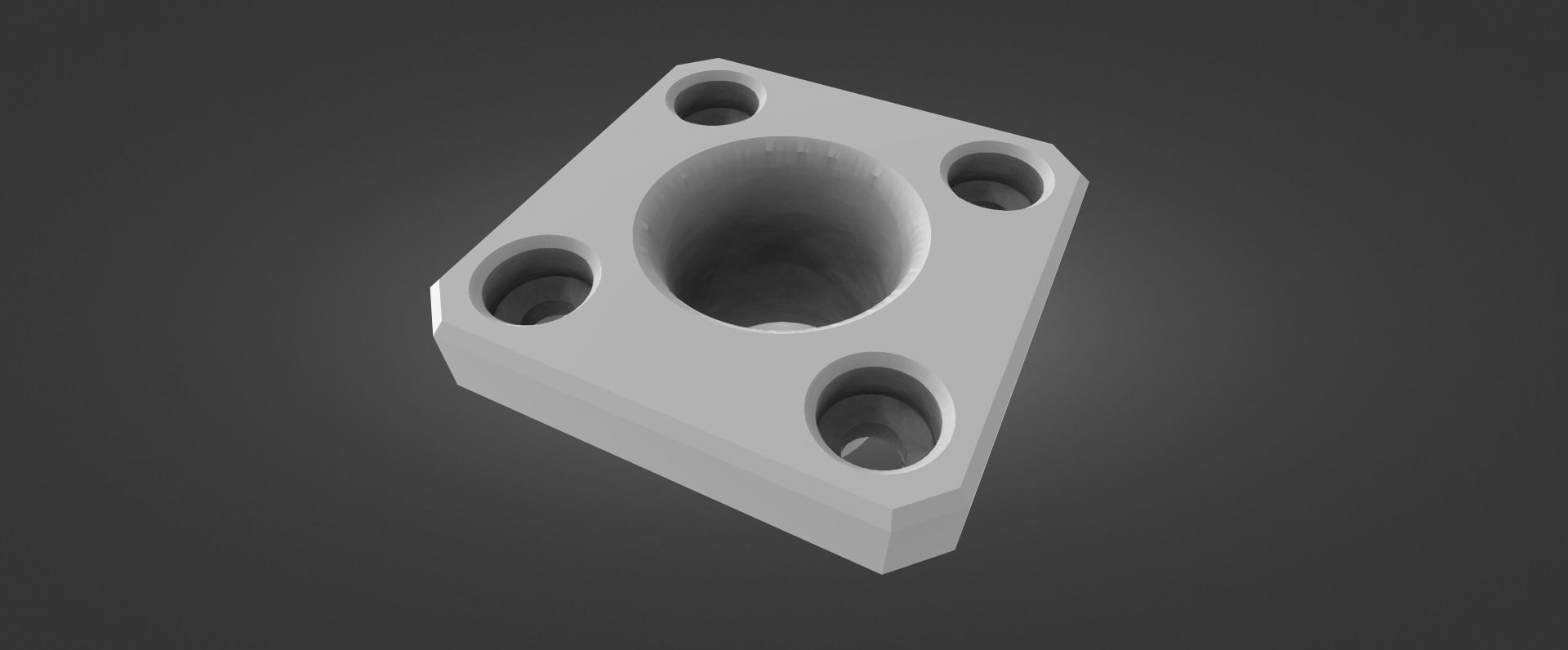

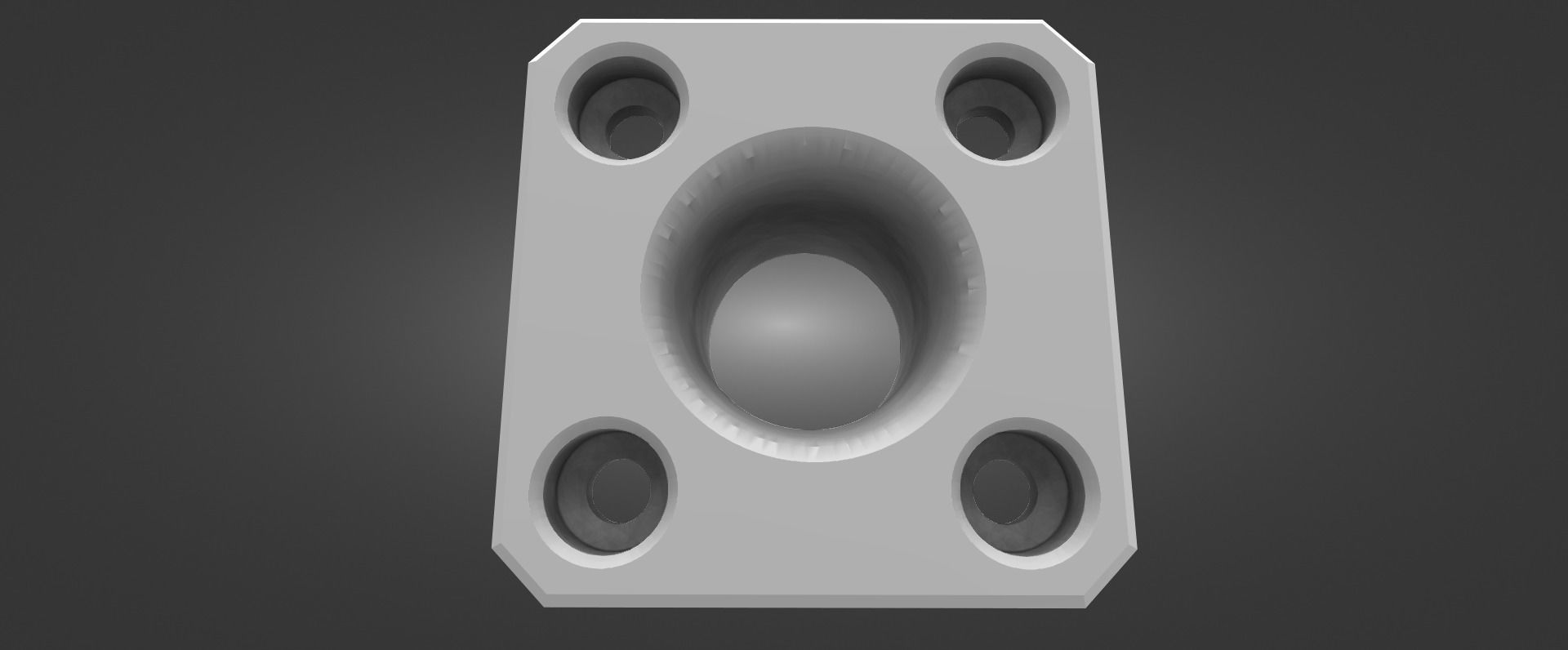

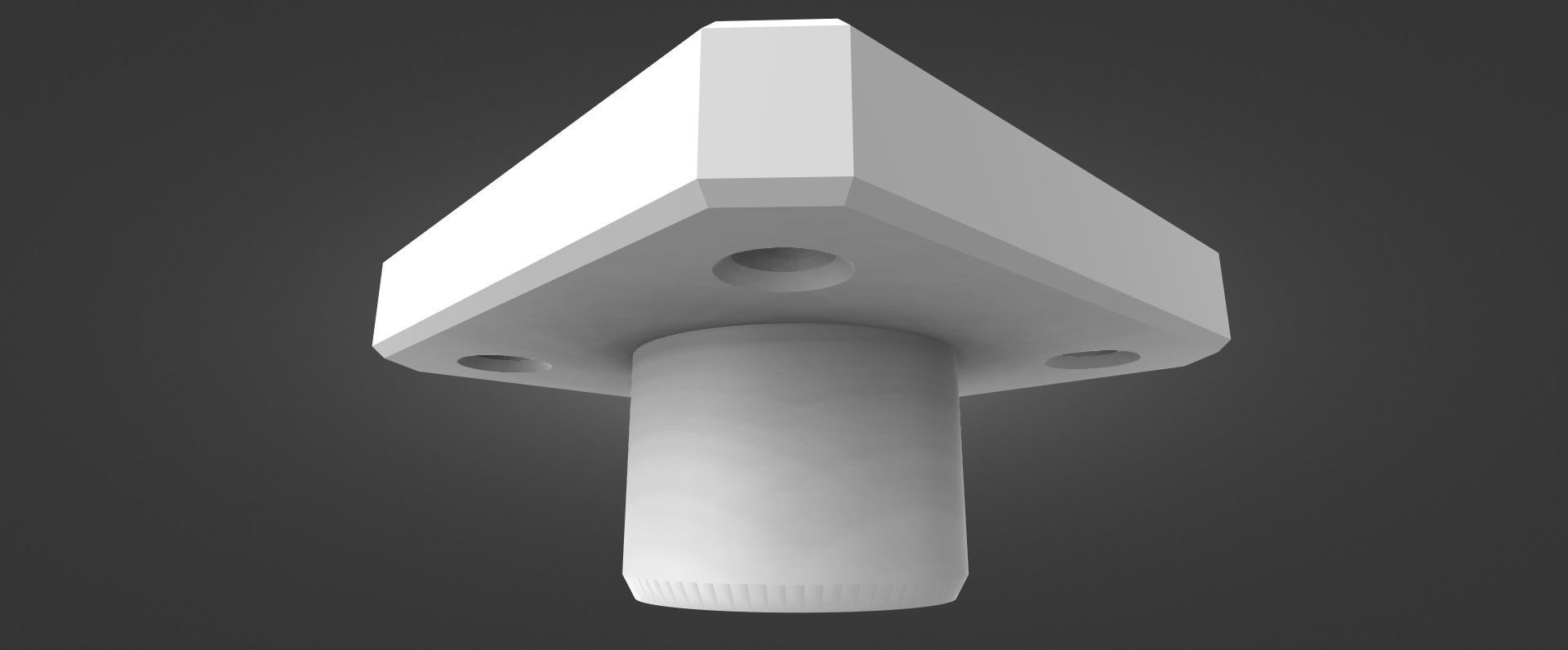

Manufacture is easy - simply lasercut & CNC fold the main panel (.DXF & .STEP files for this are included so you can send it straight out to your favourite cut & bend shop), print the tool pockets, run a drill and M4 tap through the holes, and then screw together!
You will need; 1x Lasercut Tool Rack.STEP 26x 3D Rpinted Tool Pocket.STL 104x M6x16 Socket Head Cap Screws
Included in this pack is the .DXF file, the .STEP file for bending, the .STL file for printing, and then the native .SLDPT solidworks files for everything.
3D Model formats
Format limitations
- Stereolithography (.stl) (2 files)11.7 MB
- SolidWorks (.sldprt, .sldasm, .slddrw)6.41 MB
- DXF (.dxf)50.4 KB
- STEP (.stp)1.07 MB
3D Model details
- Publish date2024-01-05
- Model ID#5007243
- Ready for 3D Printing
