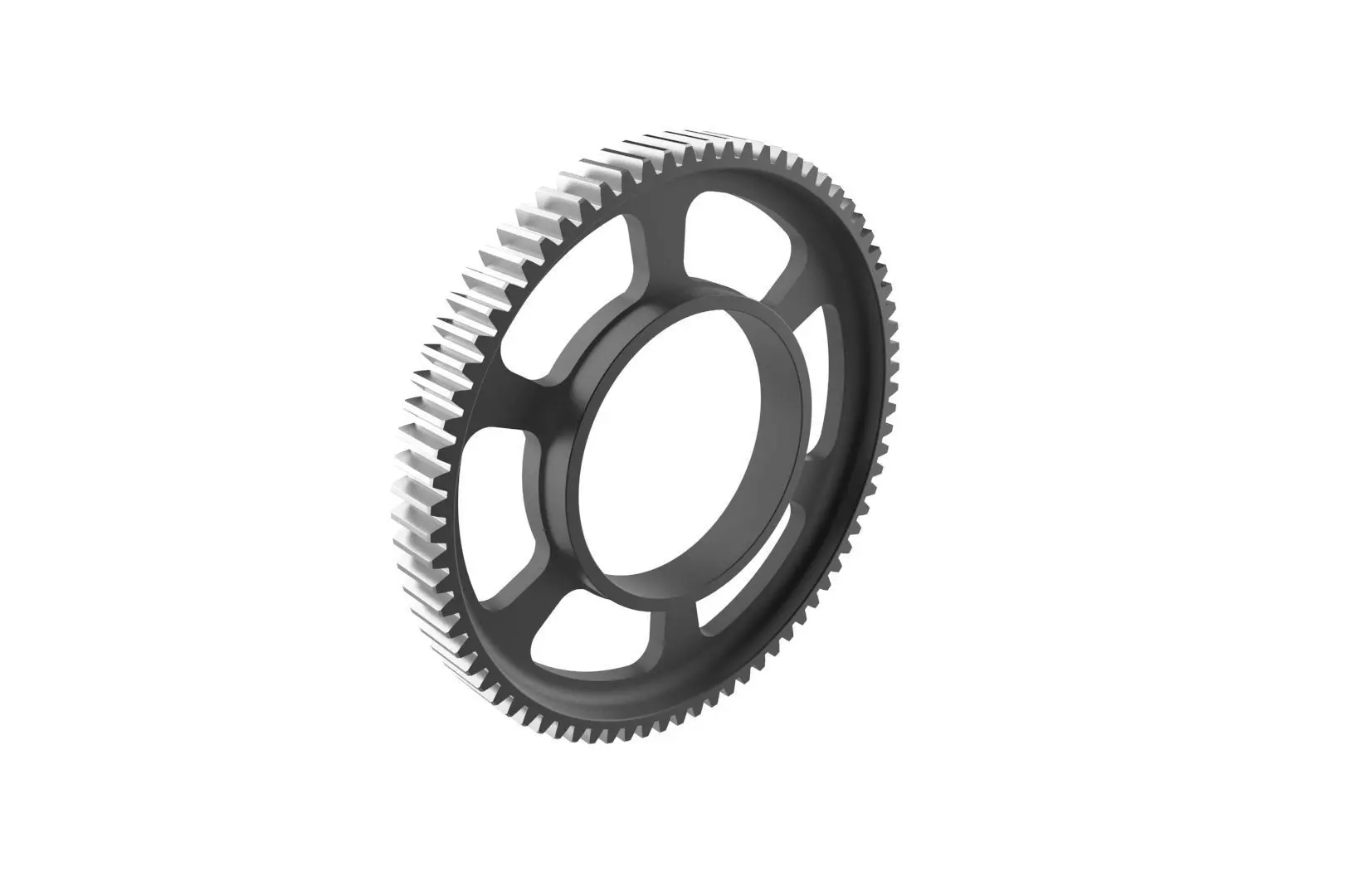

Rotax DD2 1st gear 3D print model
Description
This is the 1st gear from a rotax DD2 2stroke engine. I have modeled this for my graded unit and i'm gonna do a simulation on it to calculate stress distribution. My graded unit is a failure analysis on this gear.I modeled this gear with a caliper on hand. I measured the outer diameter and the No. of teeth.The dimensions of the tooth follow mathematical equations of the involute curve so they are acurate.There are multiple files attached for every use. Polygon file is also attached.
G
gtraikovich
Rotax DD2 1st gear
Royalty Free License
Rotax DD2 1st gear
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)17 MBVersion: 202
Exchange
- Stereolithography (.stl) (2 files)3.28 MB
- IGES (.ige, .igs, .iges) (2 files)11.1 MB
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)17 MBVersion: 202
- Ply (.ply)614 KB
- 3D Manufacturing File (.3mf)318 KB
- amf (.amf)2.64 MB
- STEP (.stp)4.36 MB
3D Model details
- Publish date2015-04-13
- Model ID#125034
- Ready for 3D Printing
