Multistage Pump 3D Model Multistage Pump FULL DESIGN 3D print model
Description

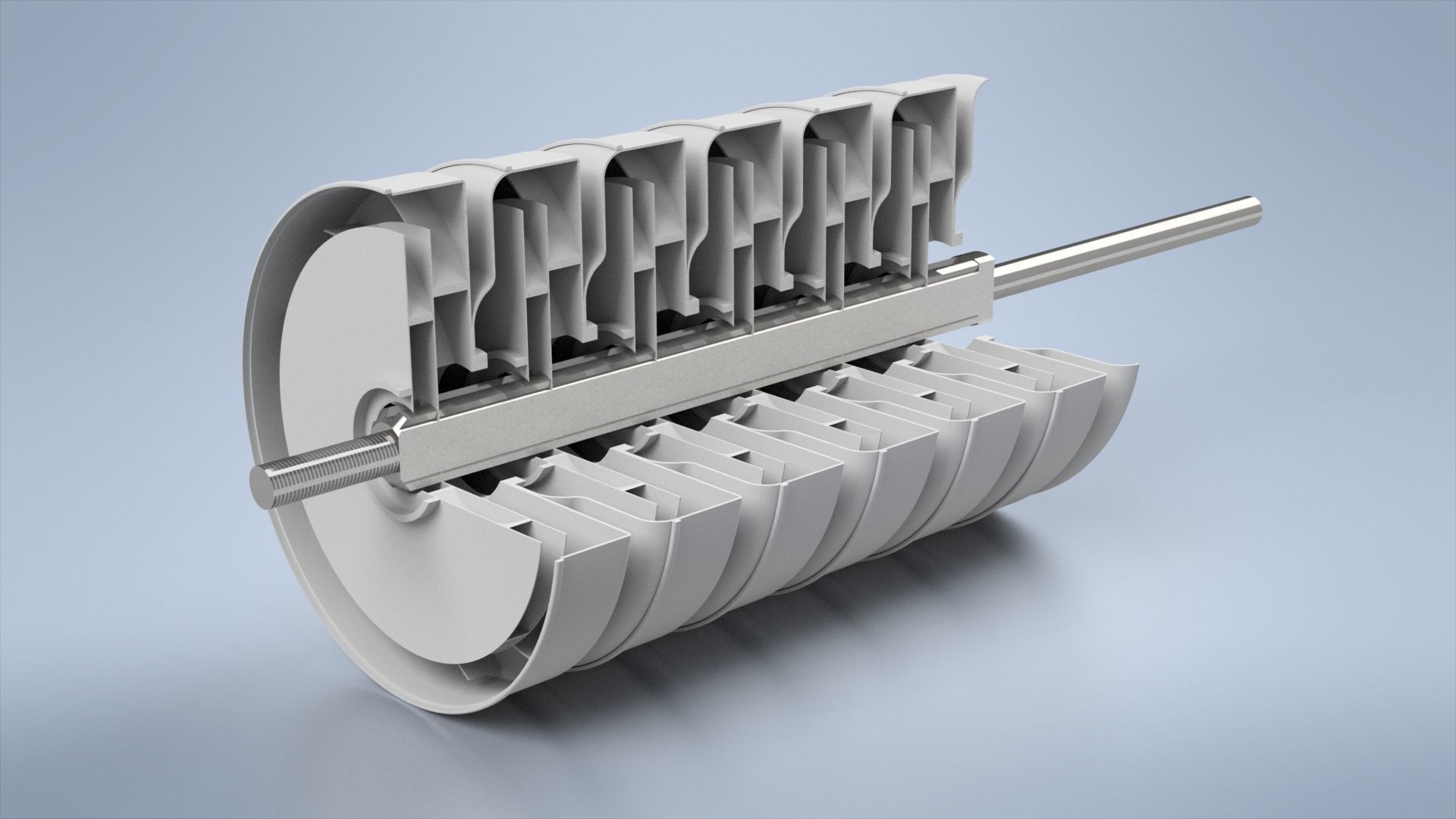

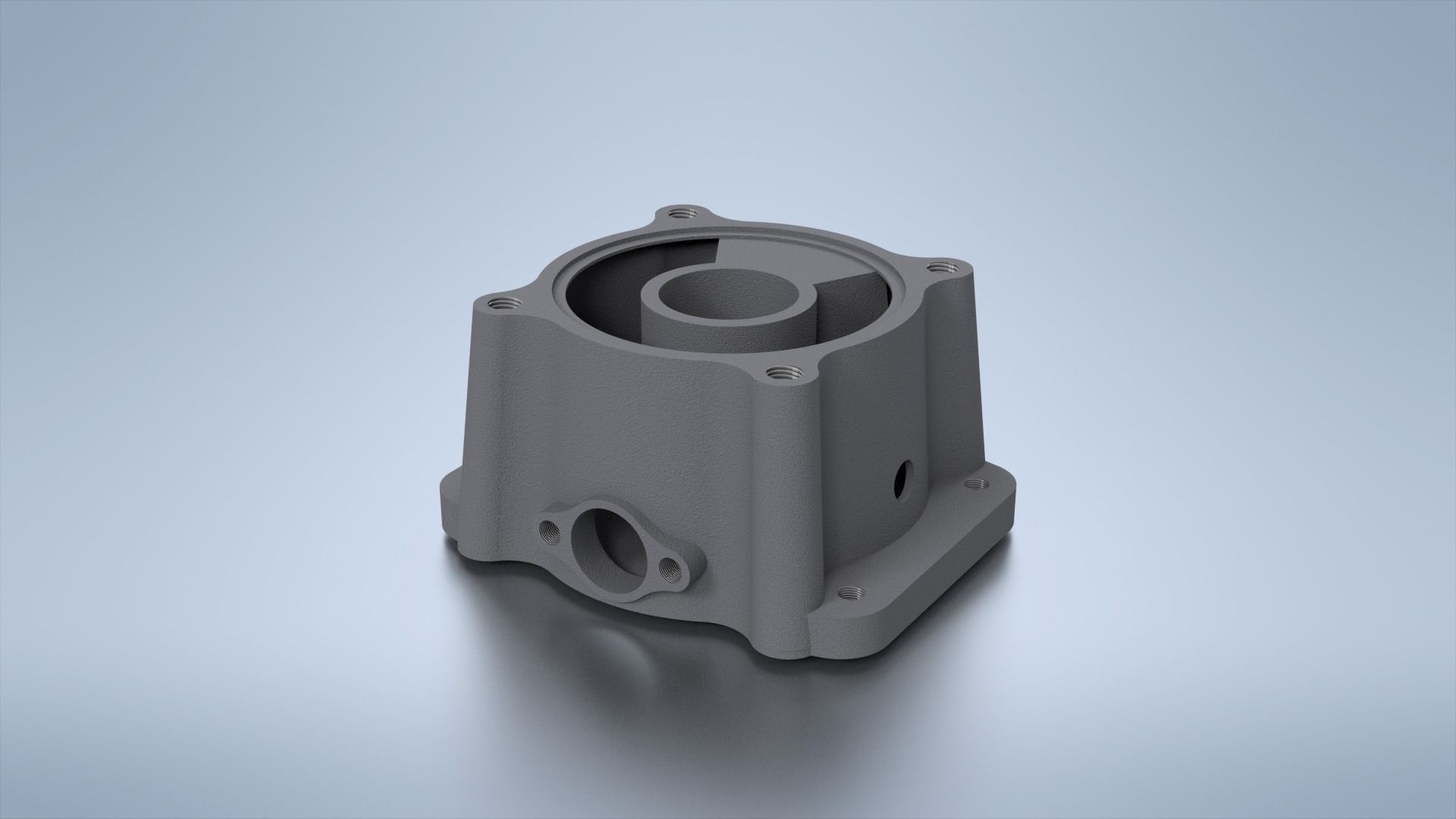

What is a Multistage Pump?A multistage pump is a pump in which the fluid flows through two or more impellers fitted in series. Hence, such a pump will have multiple liquid chambers or stages connected in series. Each stage consists of an impeller, a combination of a diffuser, and return guide vanes, all housed within the same stage casing.

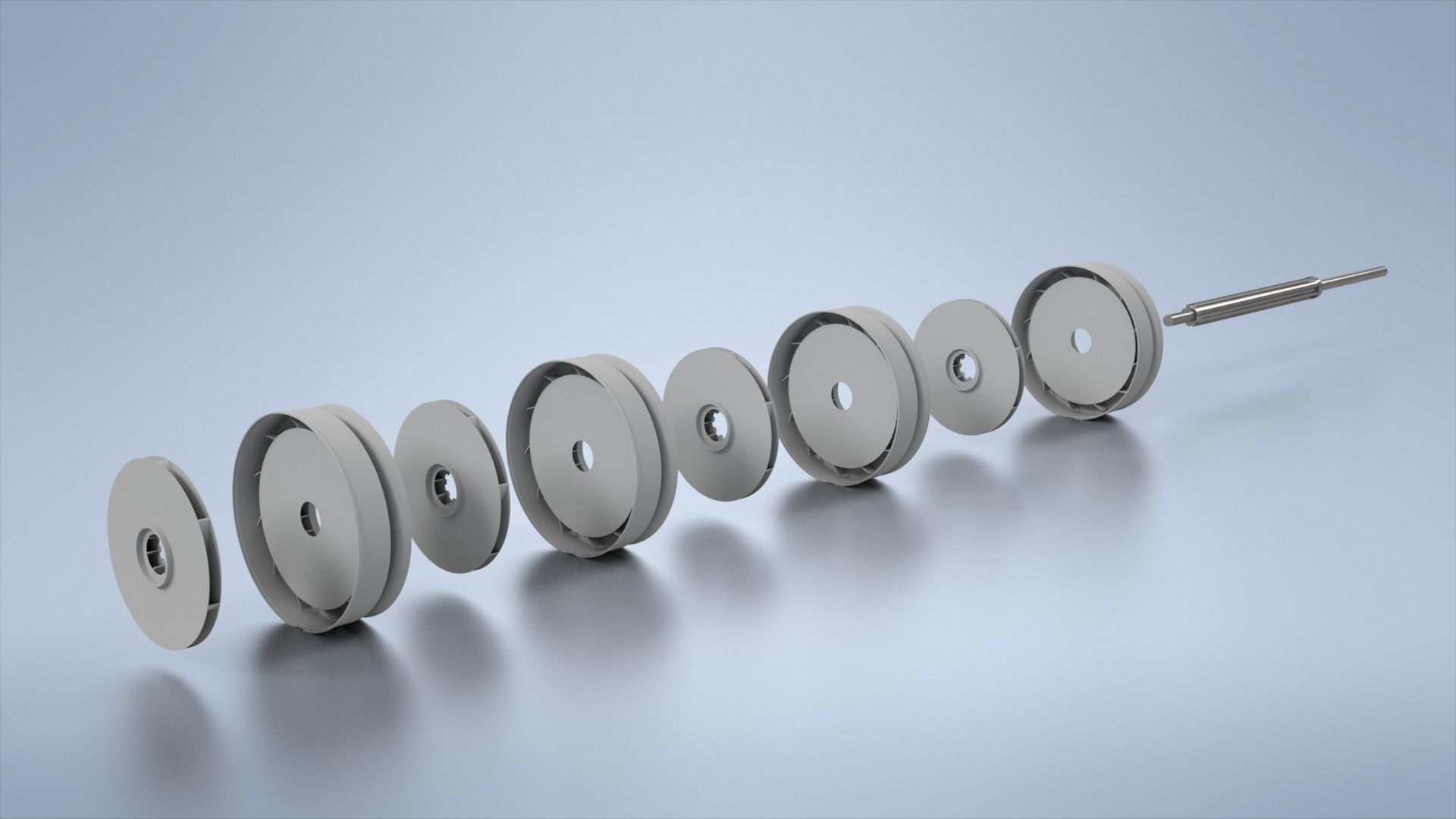

These impellers are installed in series and rotate on a single shaft driven by a power source (usually a motor). The design of multistage pumps allows the fluid to flow through the chambers only in a linear fashion.

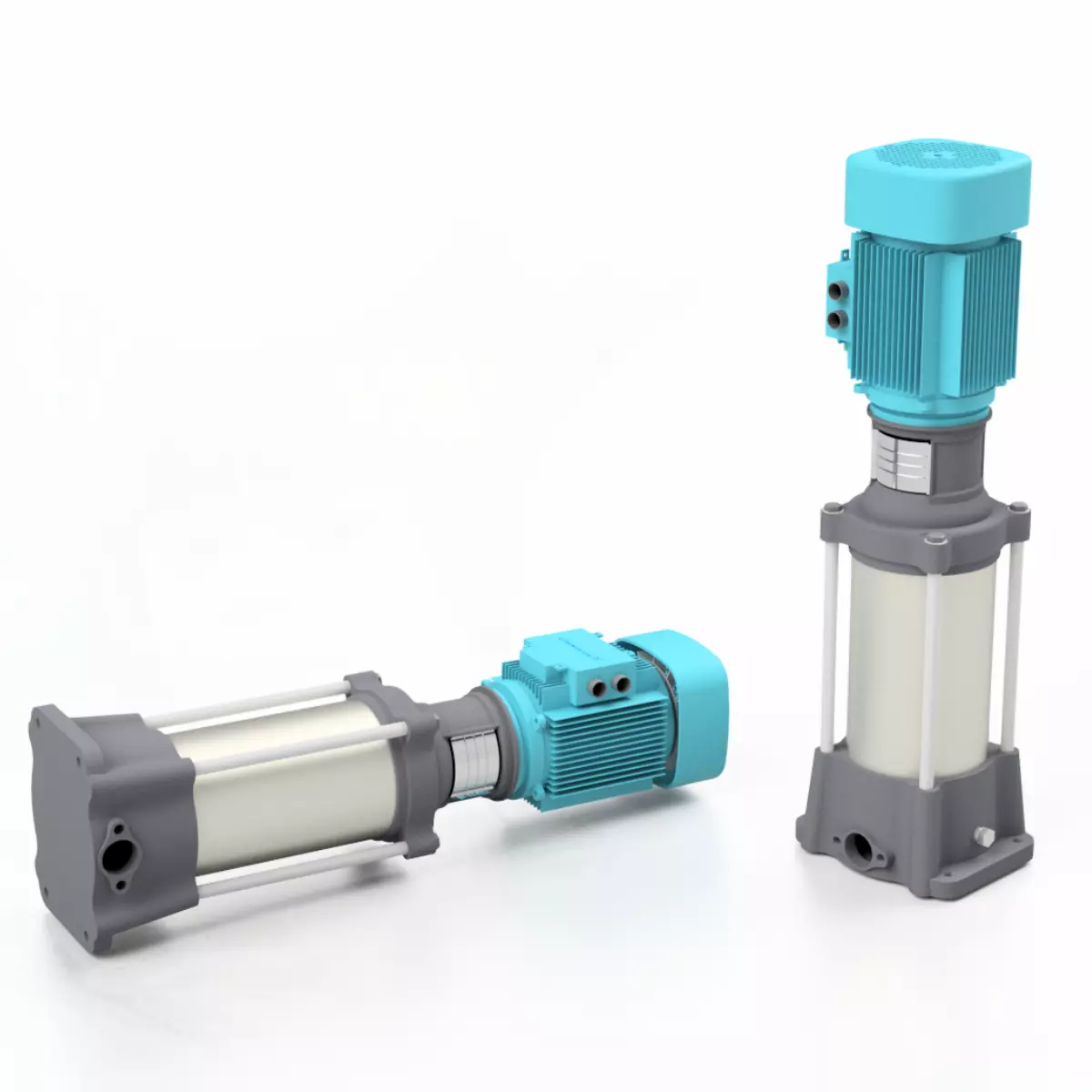

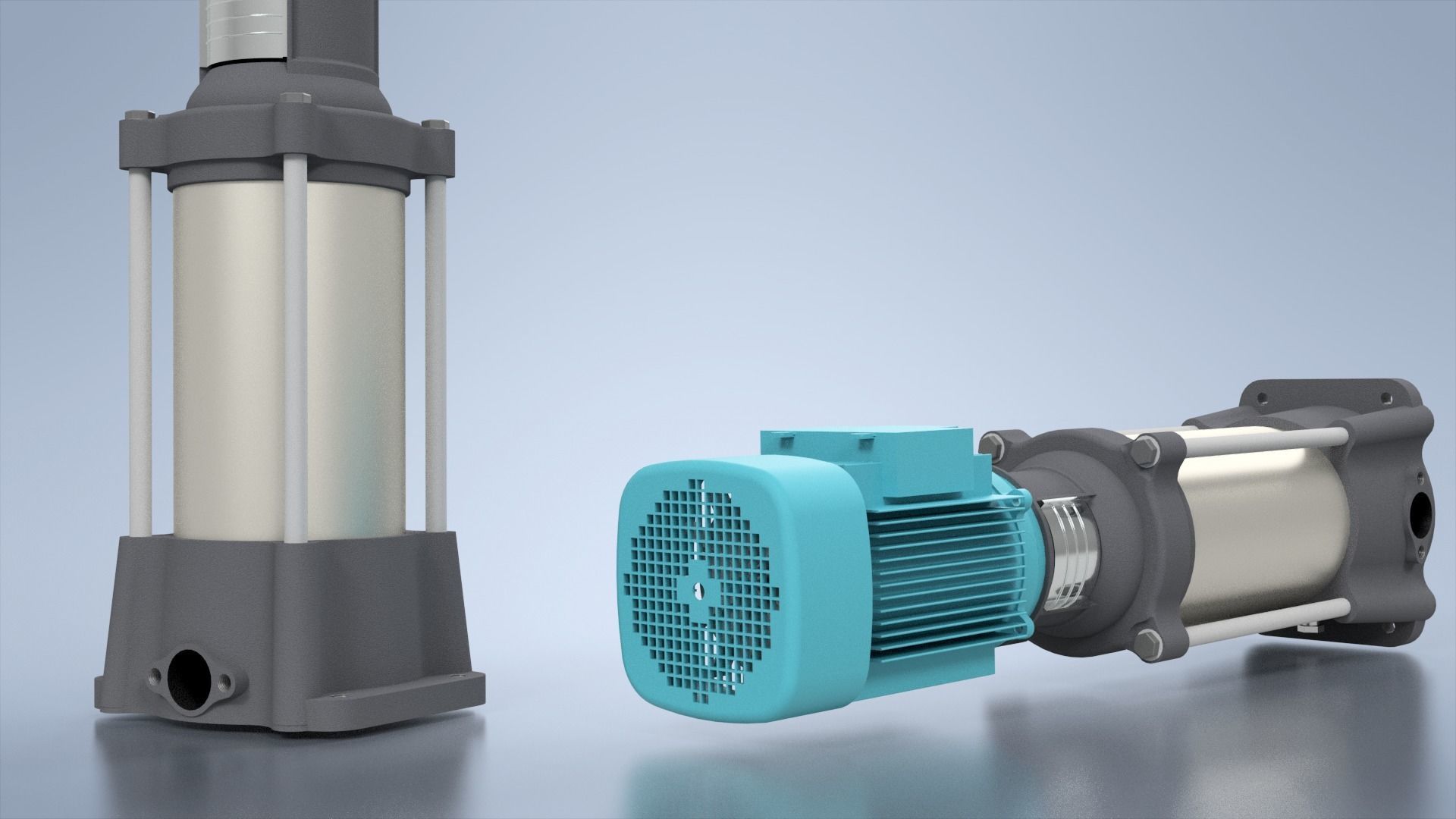

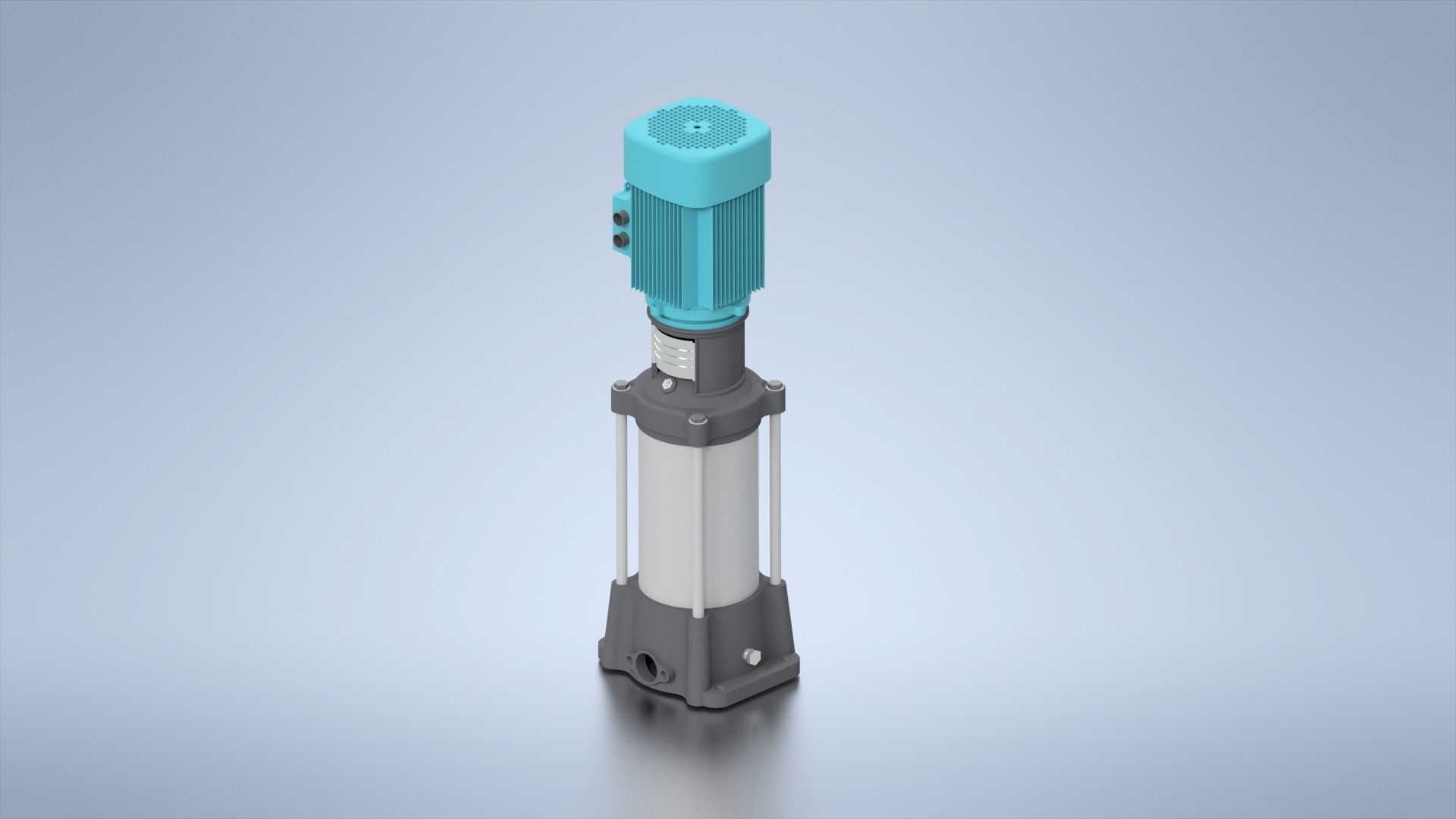

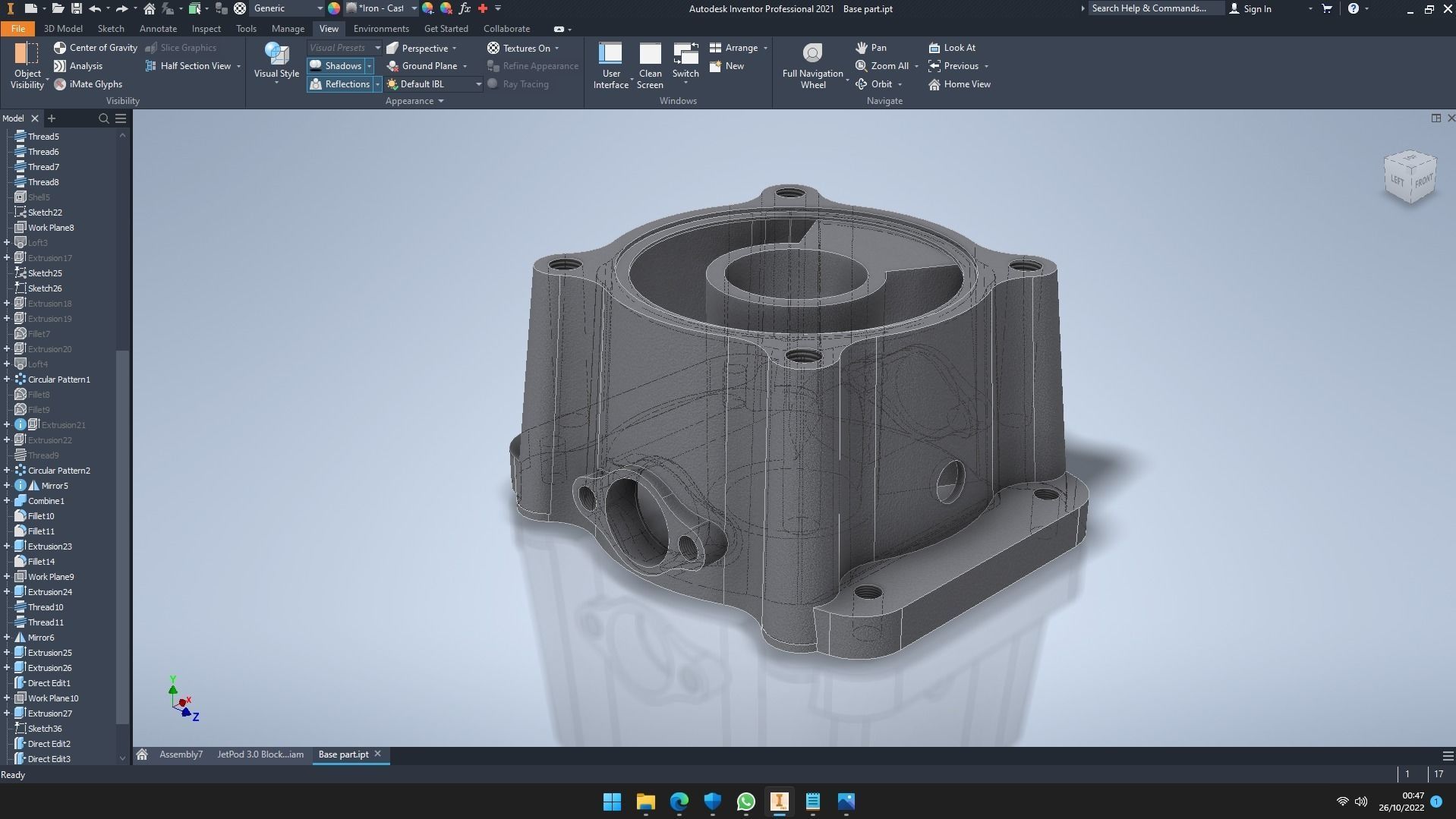

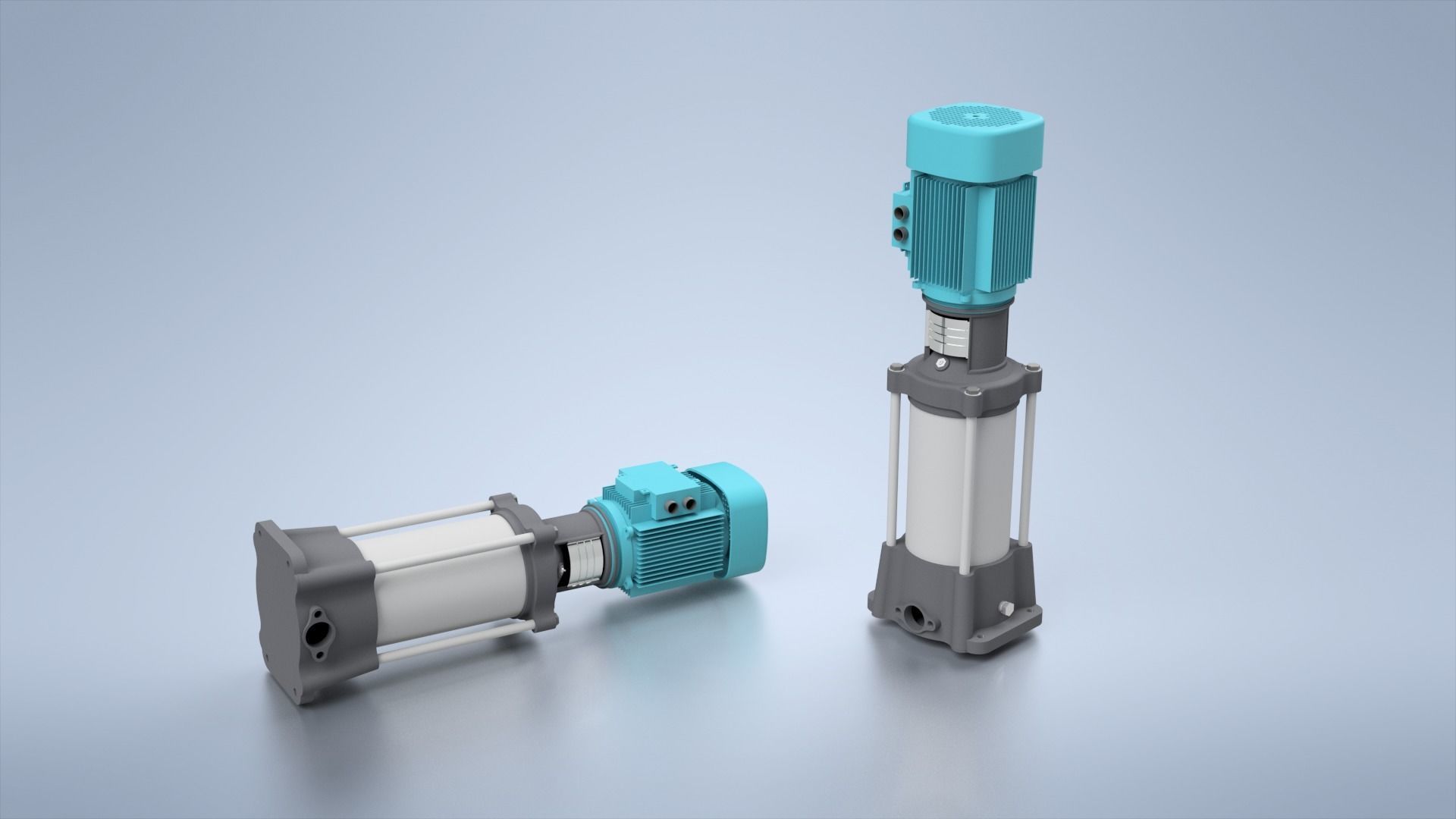

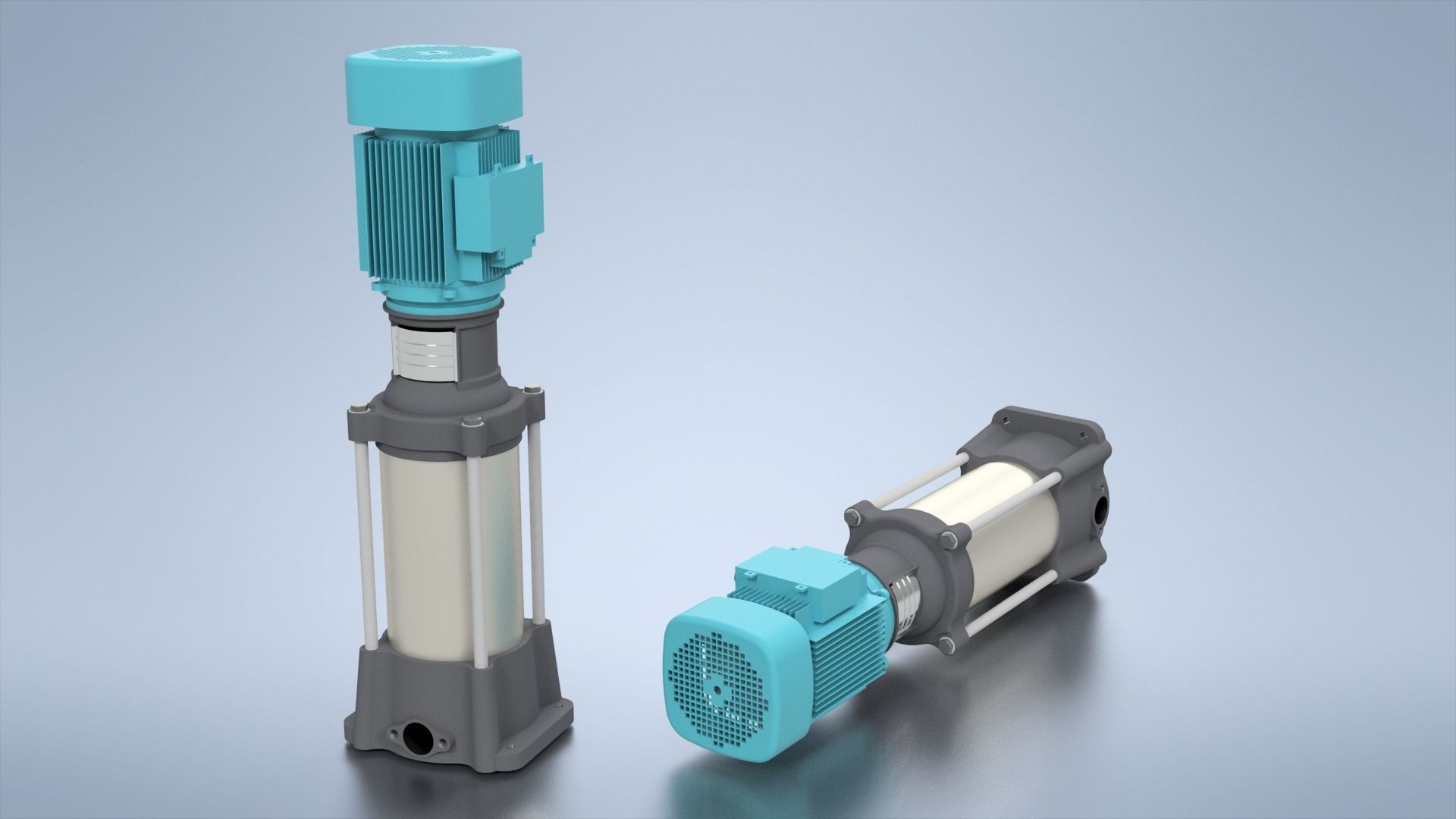

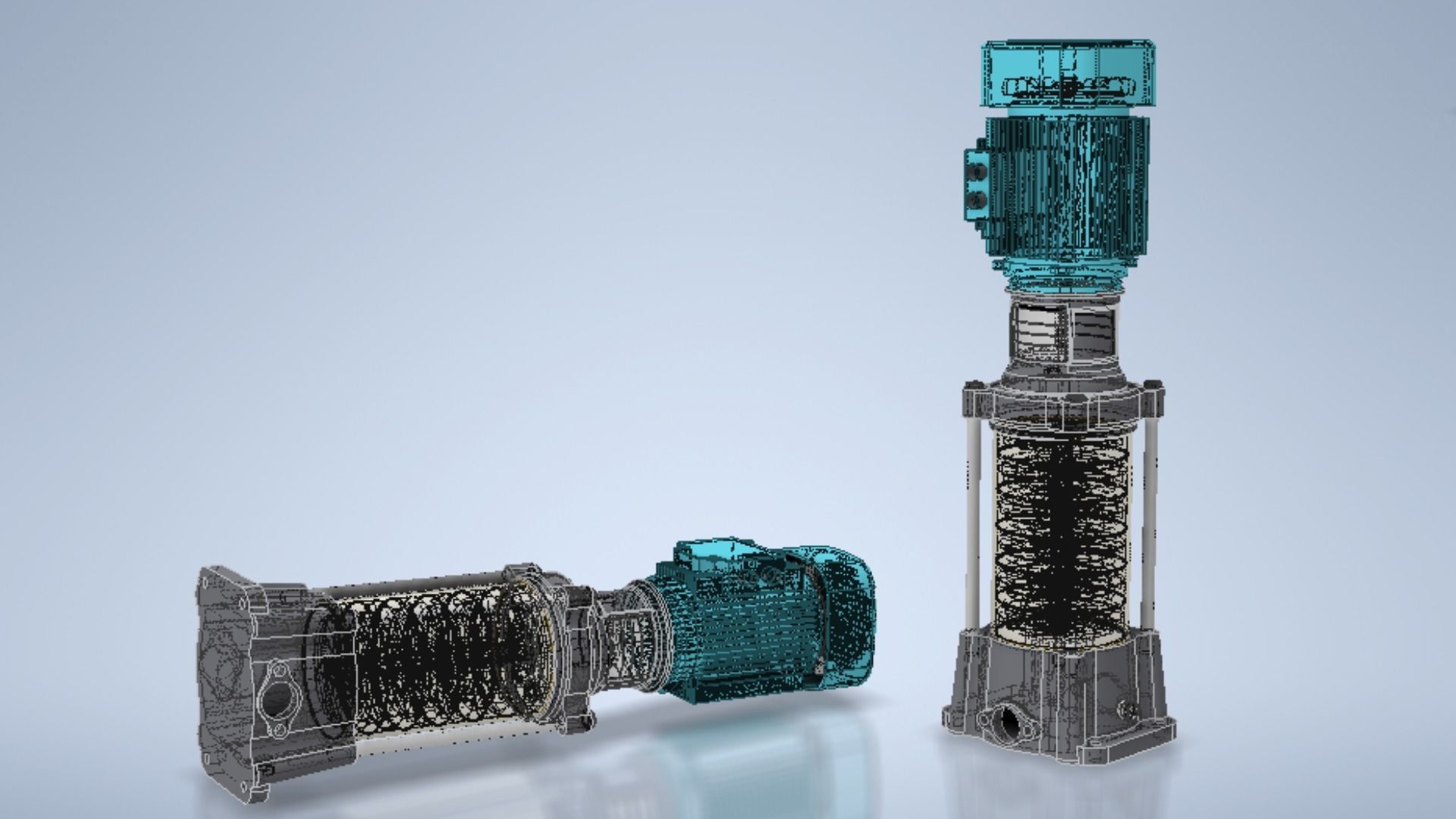

Multistage Vertical Water Pump is a high quality, photo real 3d model that will enhance detail and realism to any of your rendering projects. The model has a fully textured, detailed design that allows for close-up renders, and was originally modeled in Autodesk Inventor 2021Hope you like it!
File Formats:
- Autodesk inventor 2021 (.iam .ipt)
- Solidwork
- IGES
- STEP
- STL
- OBJ
Multistage pumpDesign multistage pump3D design multistage pumpMultistage horizontal pump
Multistage Pump 3D Model Multistage Pump FULL DESIGN
Royalty Free License
Multistage Pump 3D Model Multistage Pump FULL DESIGN
Royalty Free License
3D Modeling
Rendering
Animating
3D Model formats
Format limitations
- Stereolithography (.stl)4.15 MB
- STEP 2021 (.stp)3.98 MB
- Autodesk Inventor (.iam, .ipt) (2 files)21.3 MBVersion: 2021Version: 20Renderer: Octane
- OBJ 2021 (.obj, .mtl)6.67 MB
- IGES (.ige, .igs, .iges) (2 files)26.9 MB
- PDF (.pdf)20.2 MB
- AutoCAD 2021 (.dwg)20.2 MB
- Autodesk Inventor 2021 (.idw)20.2 MB
- fbm (.fbm)20.2 MB
3D Model details
- Publish date2022-12-19
- Model ID#4177149
- Ready for 3D Printing
