3DP5BLROD30A 3D printable Mechanical Iris shutter diaphragm diy 3D print model
Description

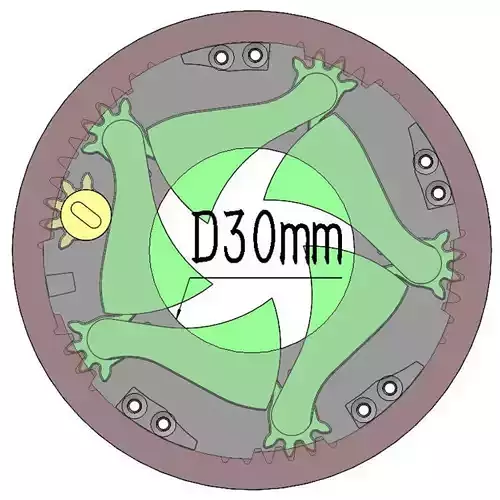

Iris mechanism designed for 3d print. There are 5 leaves. Then you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 30mm, the outer size is diameter 70mm and thickness is 8.2mm. To assemble the parts togther,some M2 screws are needed.It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality.Ignore OBJ and FBX format files, they are only used for cgtrader's requirement.
3DP5BLROD30A 3D printable Mechanical Iris shutter diaphragm diy
Royalty Free License
3DP5BLROD30A 3D printable Mechanical Iris shutter diaphragm diy
Royalty Free License
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning
3D Model formats
Format limitations
- Stereolithography (.stl) (5 files)4.49 MB
- Autodesk FBX (.fbx)682 KB
- OBJ (.obj, .mtl)682 KB
3D Model details
- Publish date2021-12-17
- Model ID#3454288
- Ready for 3D Printing
