M5 x 40mm Full Thread Cap Head Bolt 3D print model

Description

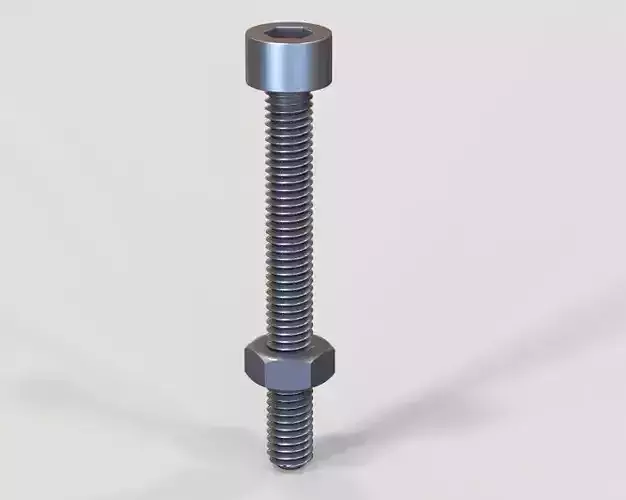

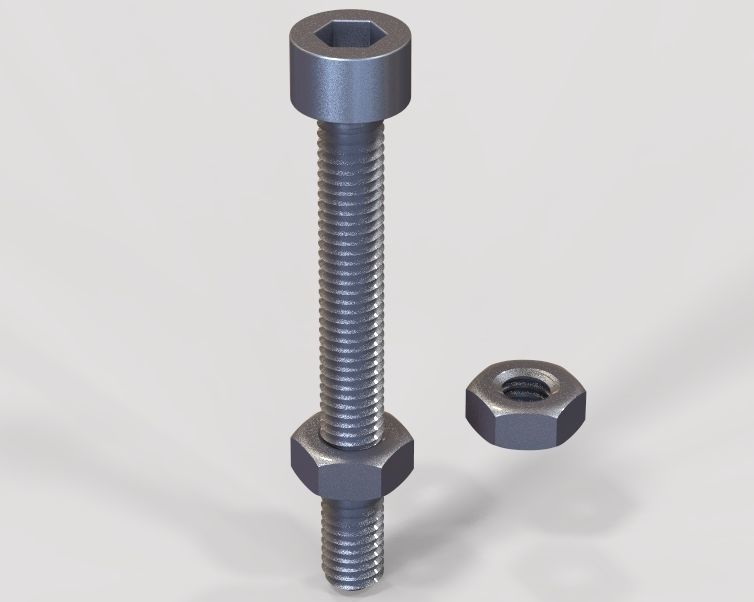

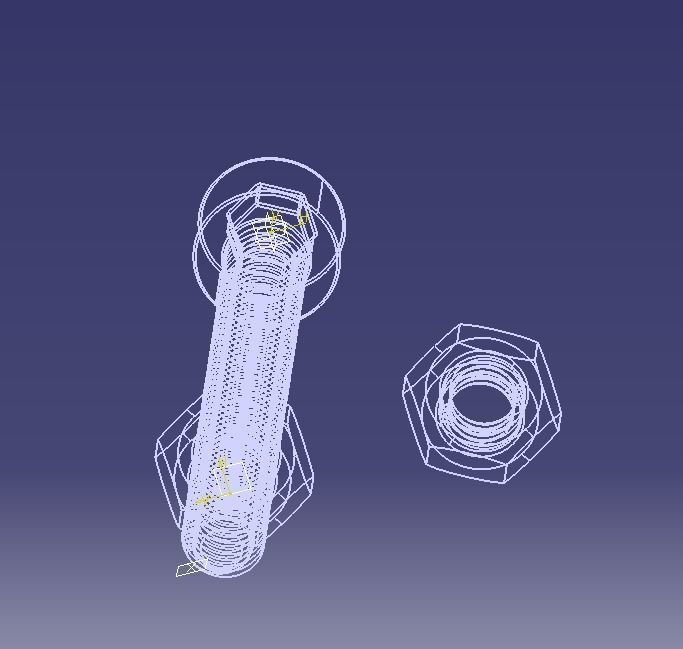

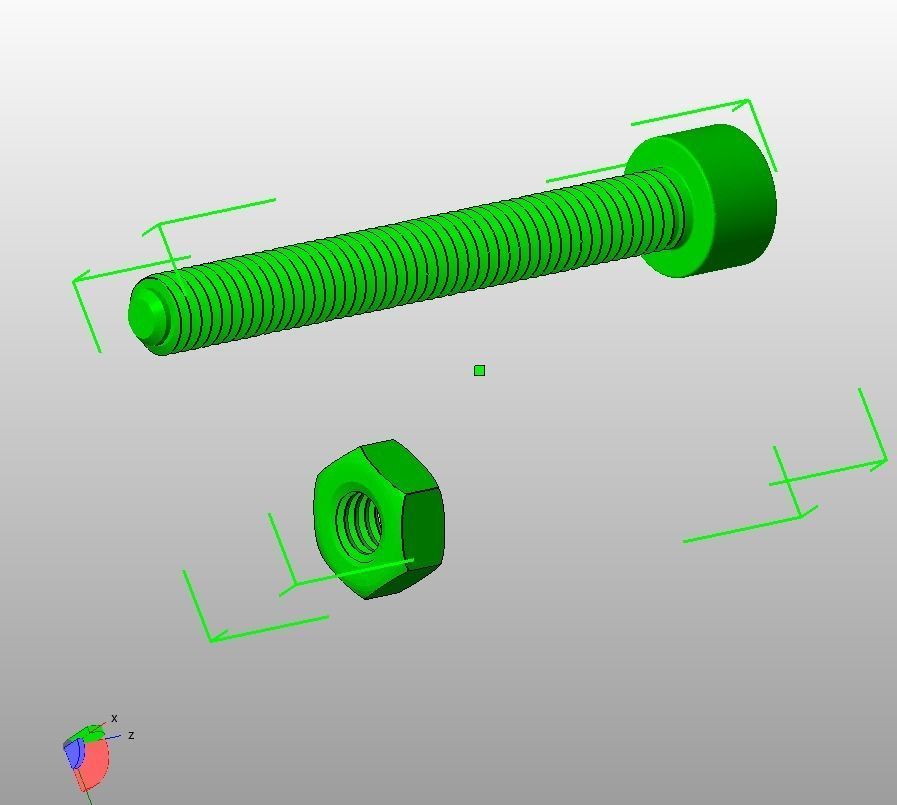

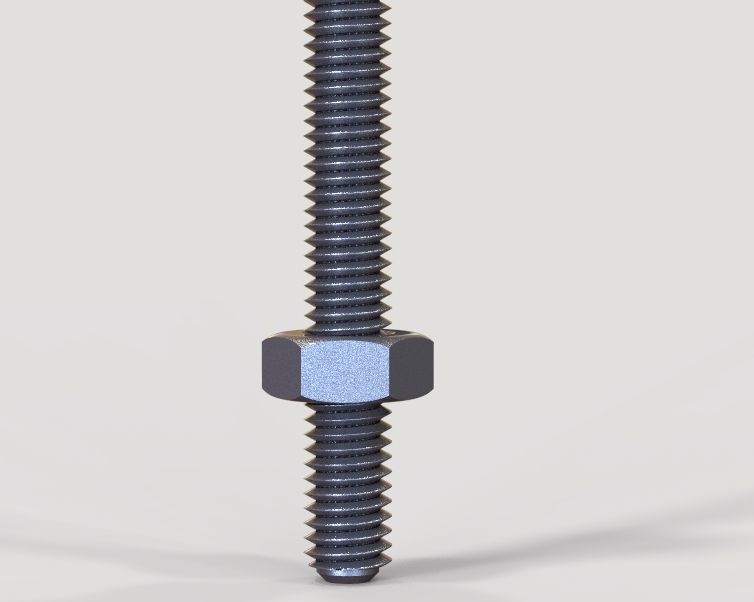

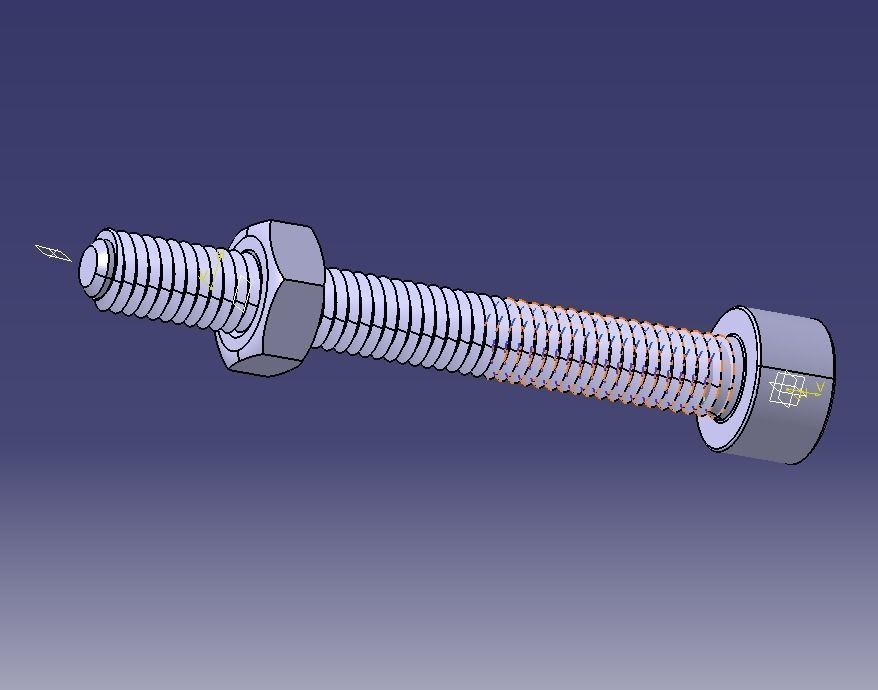

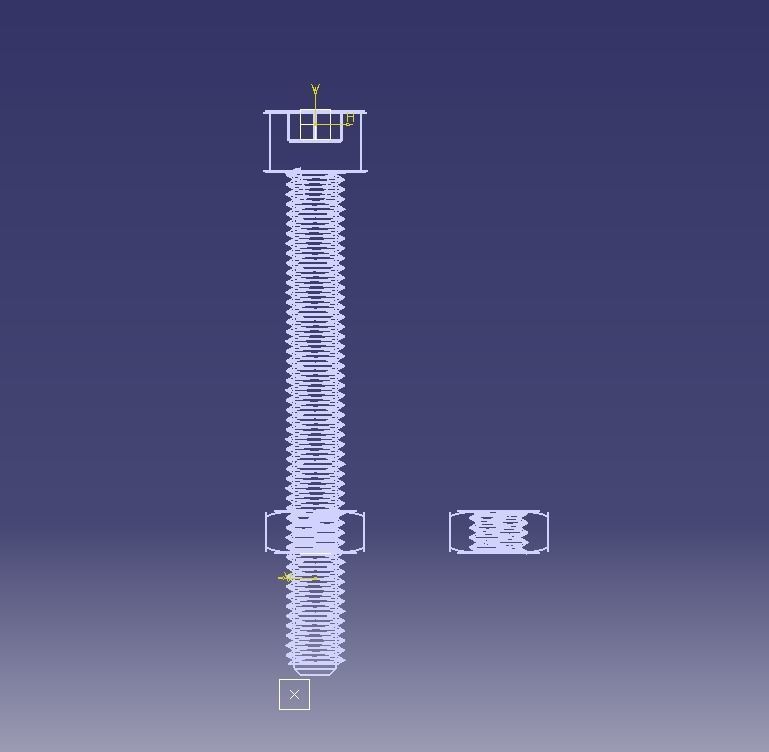

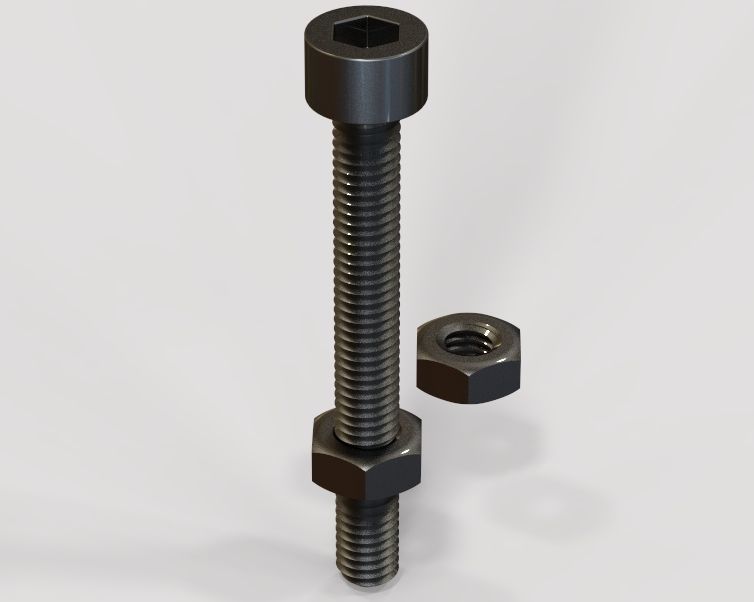

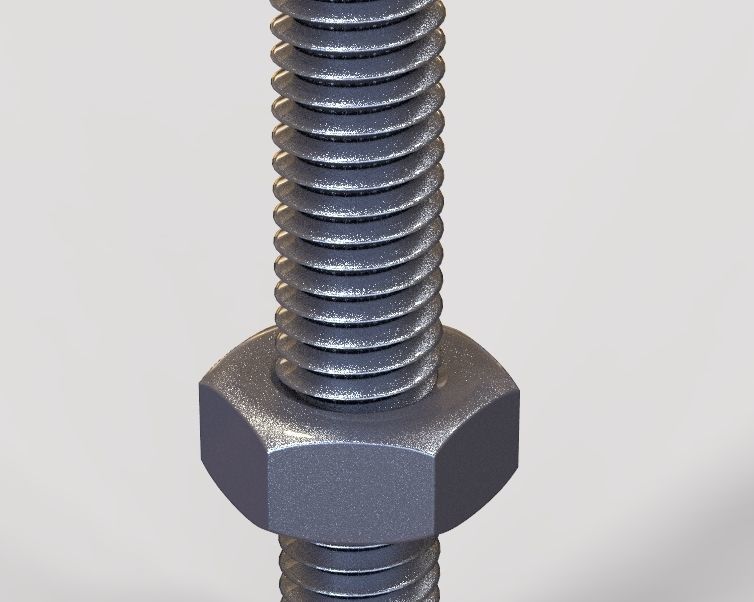

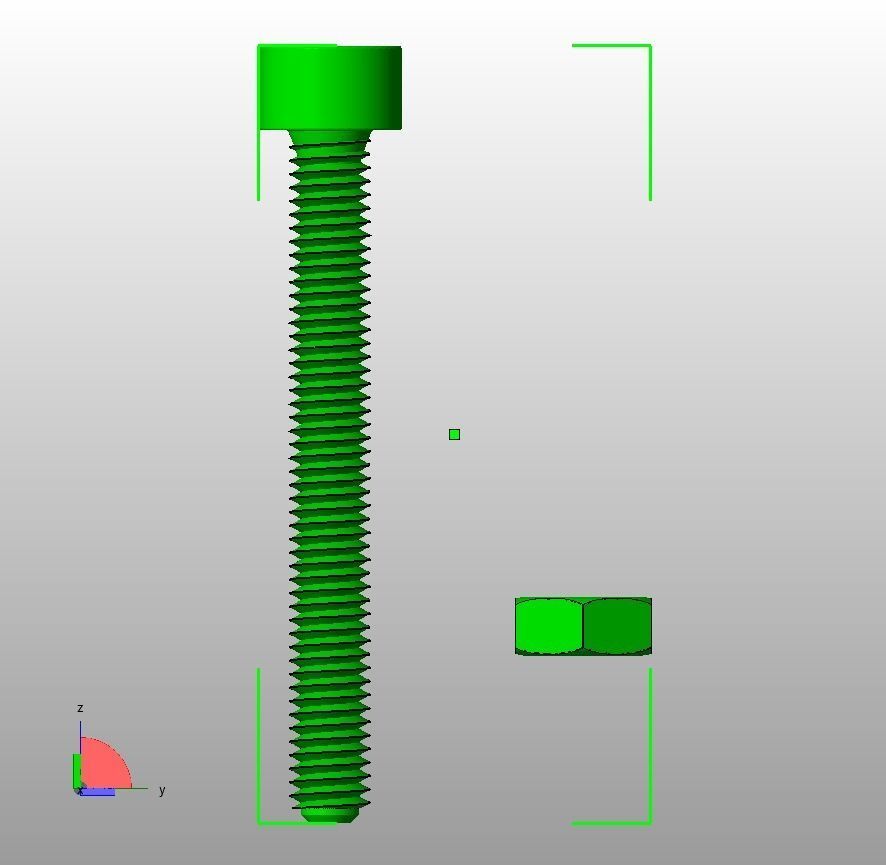

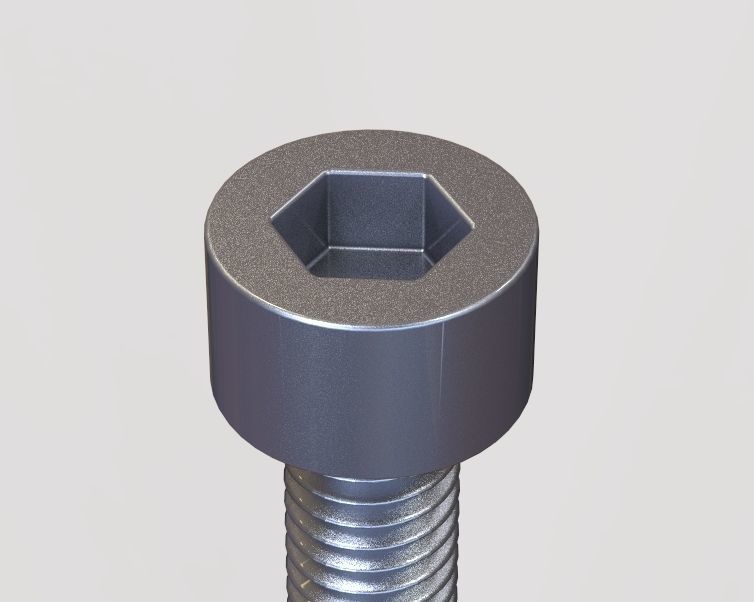

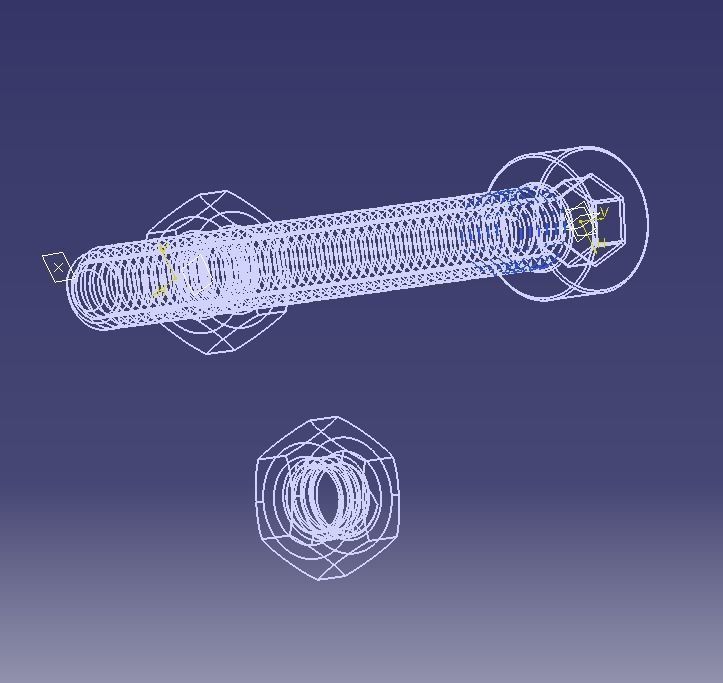

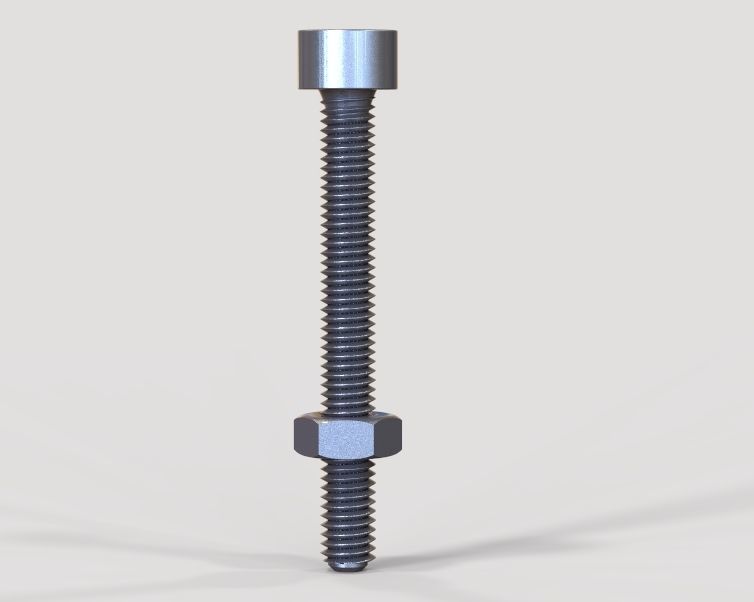

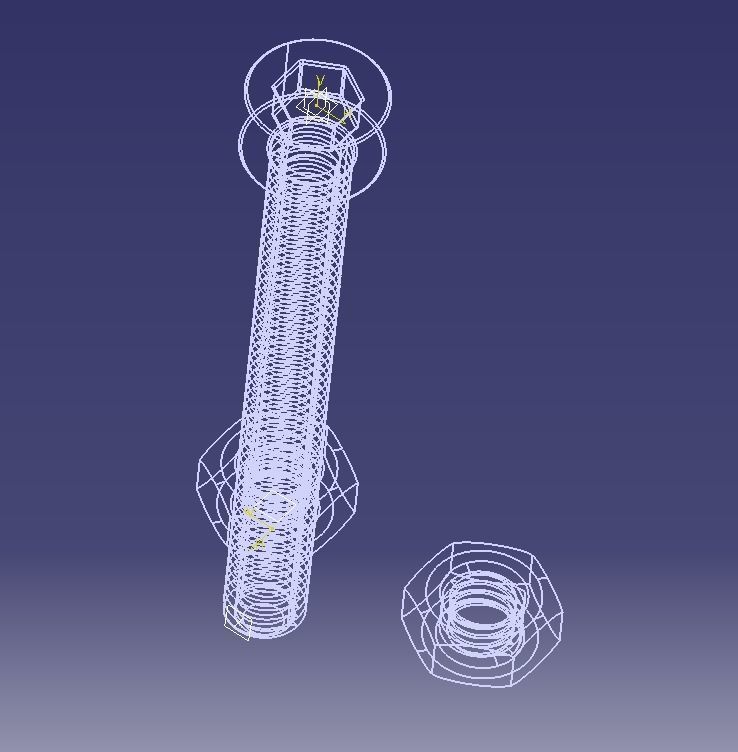

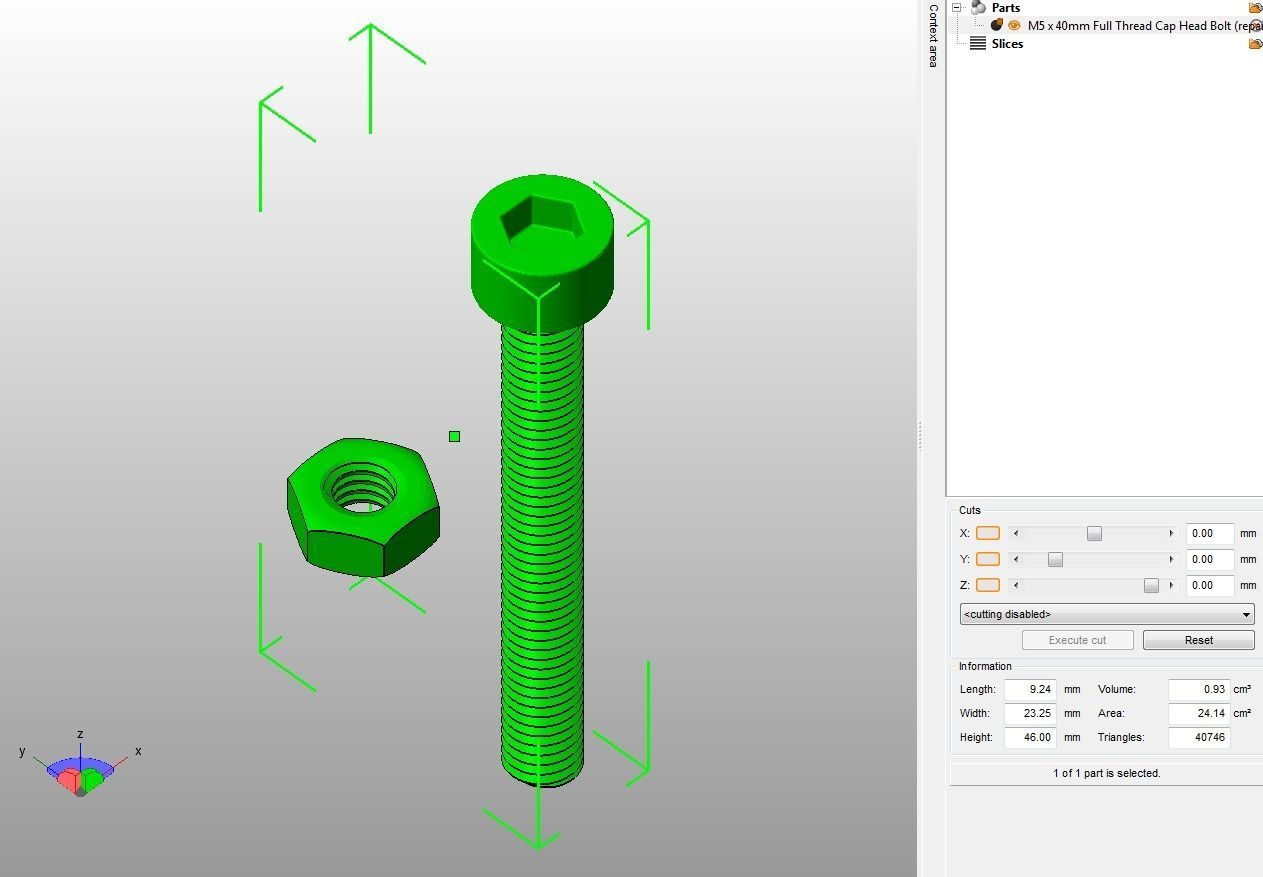

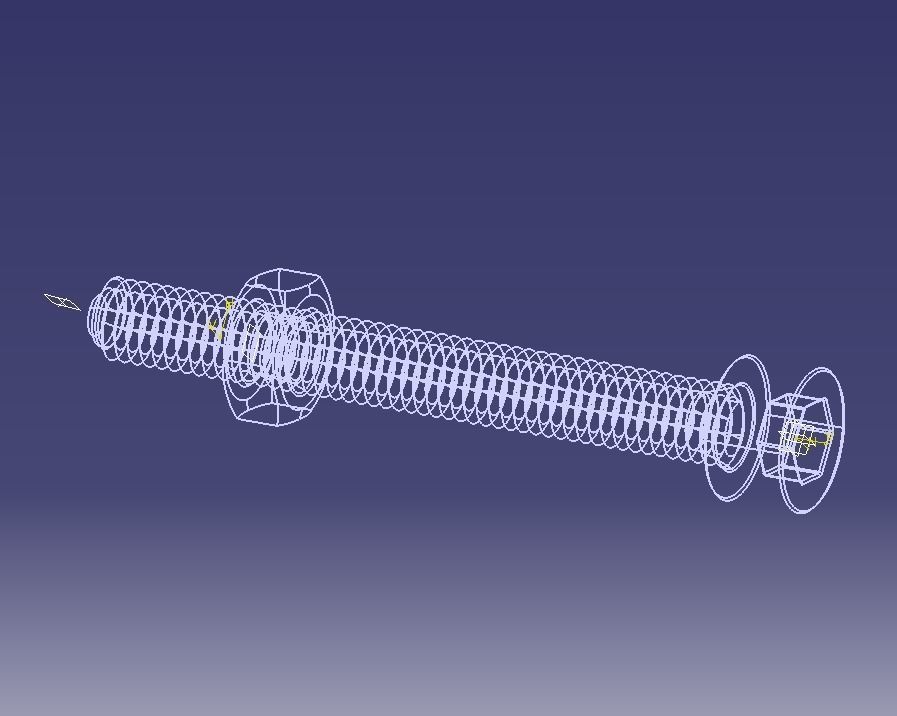

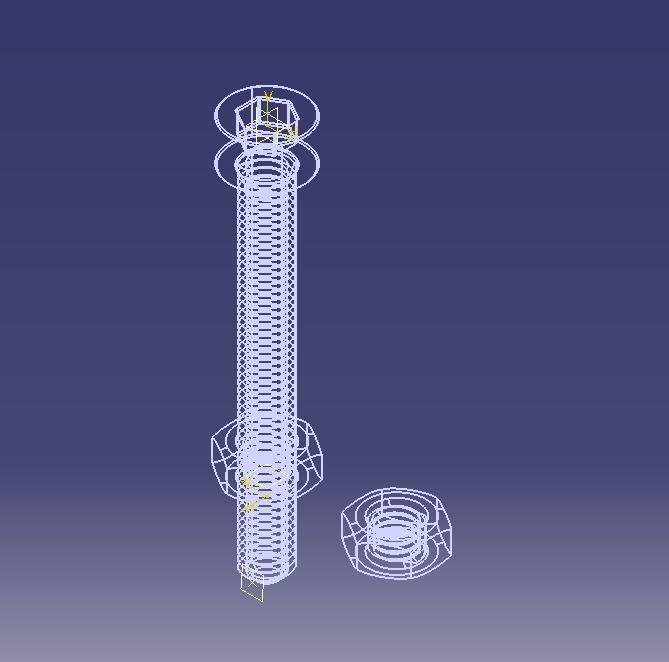

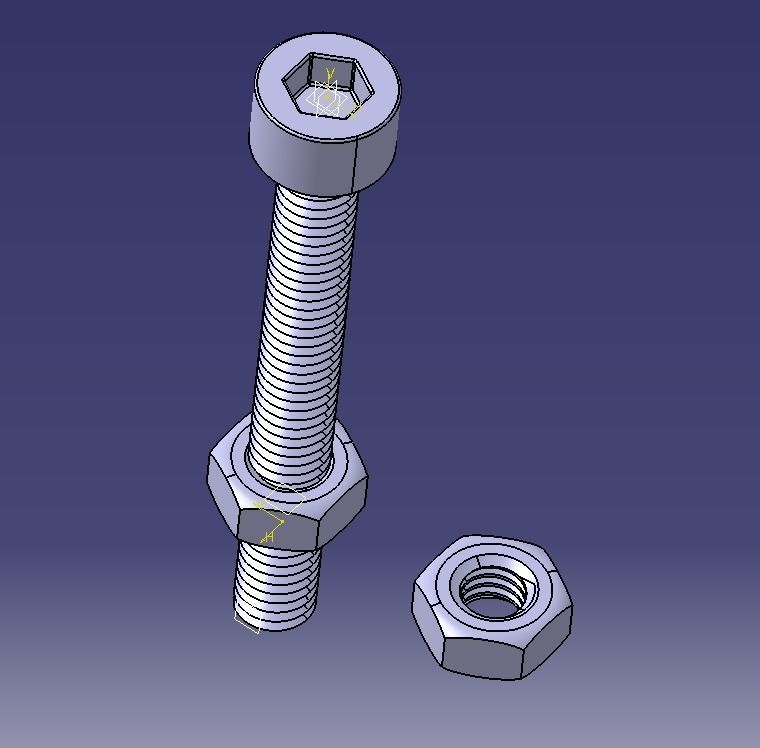

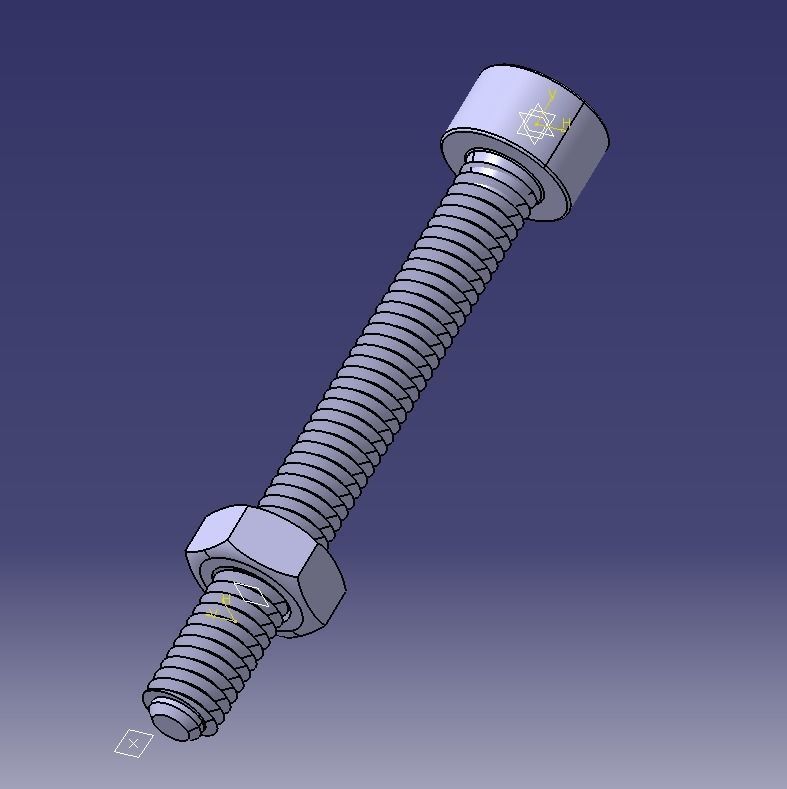

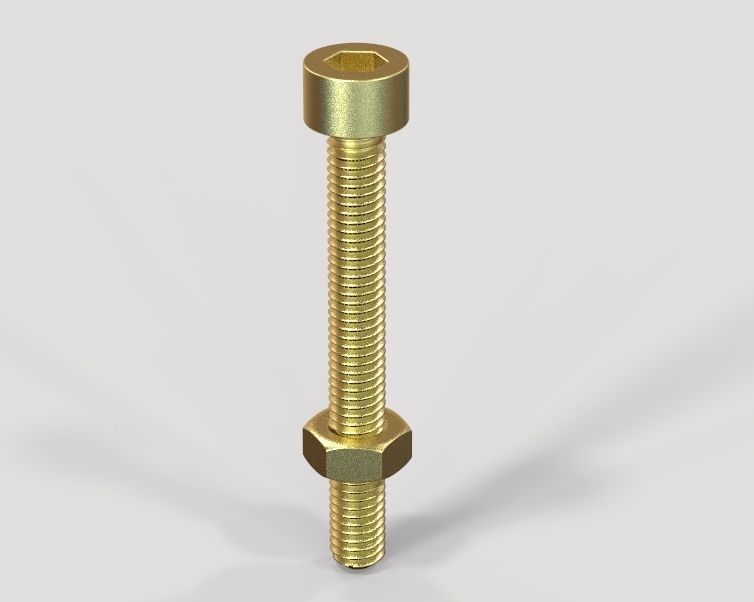

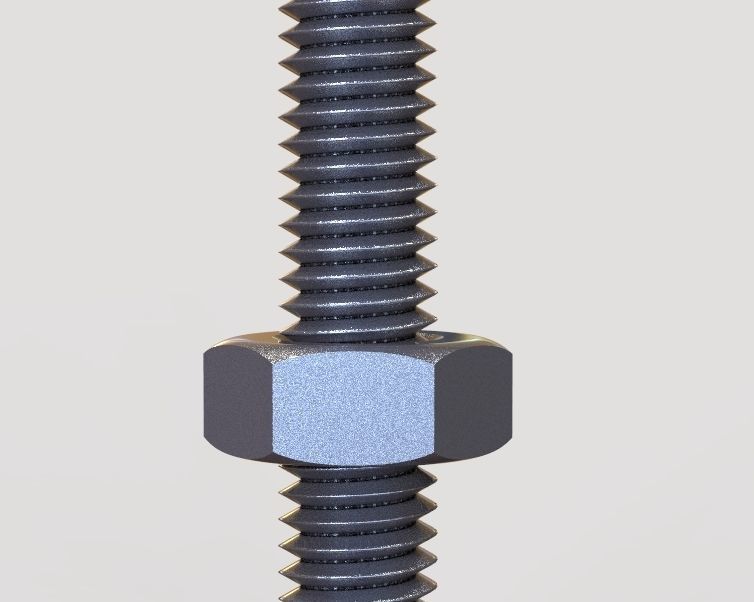

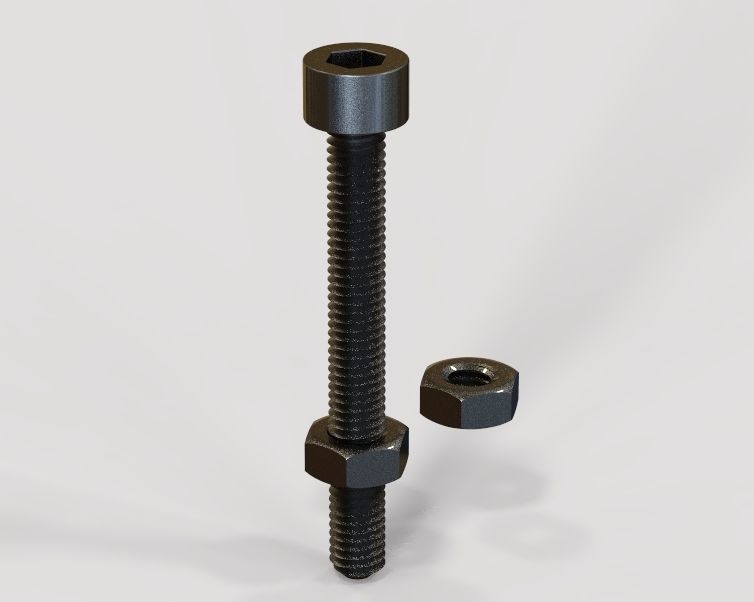

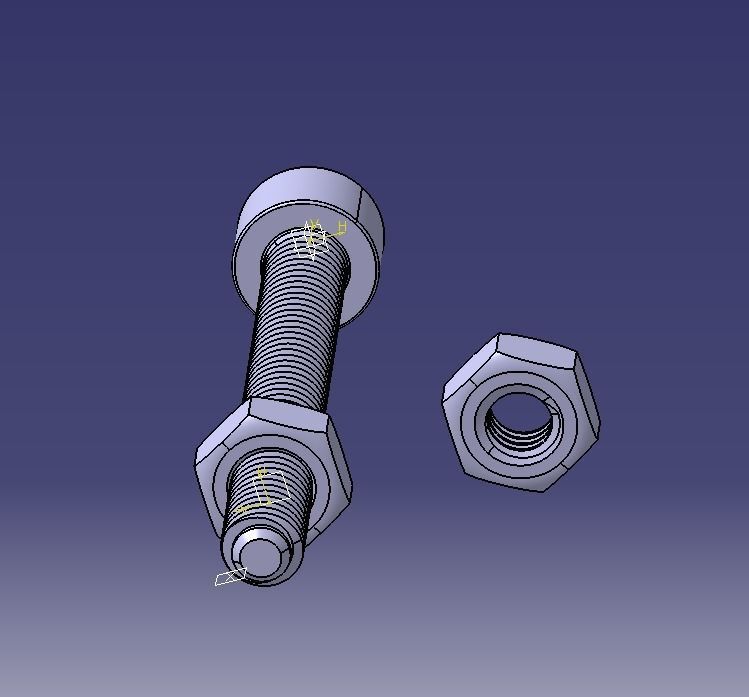

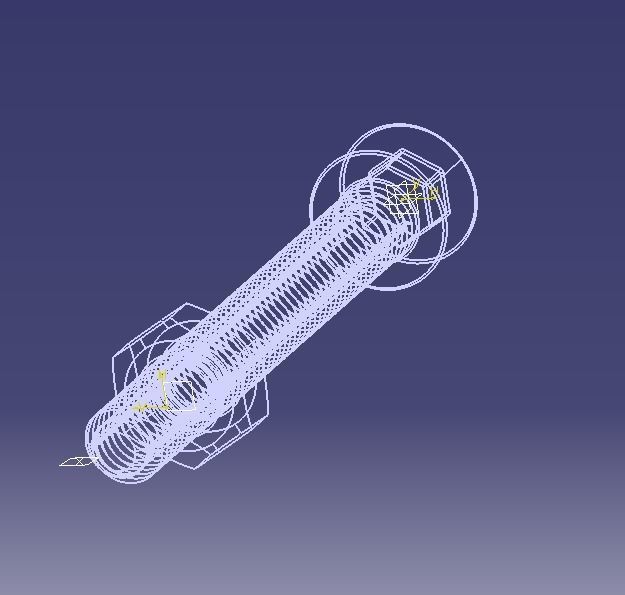

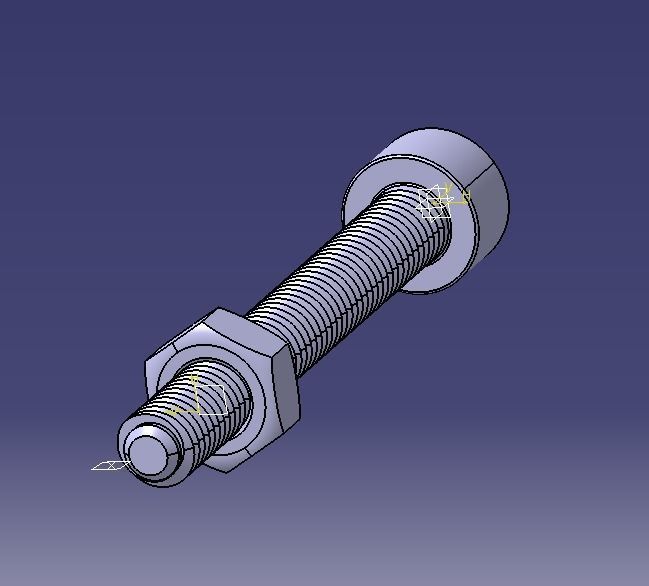

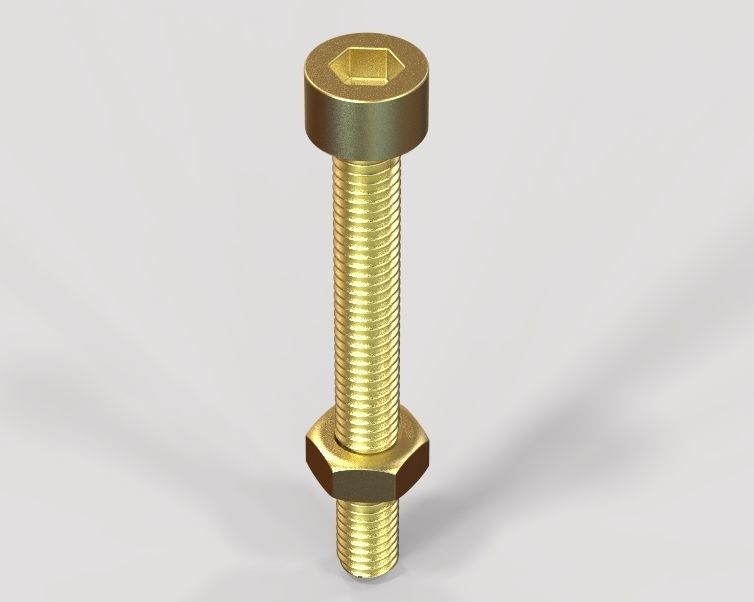

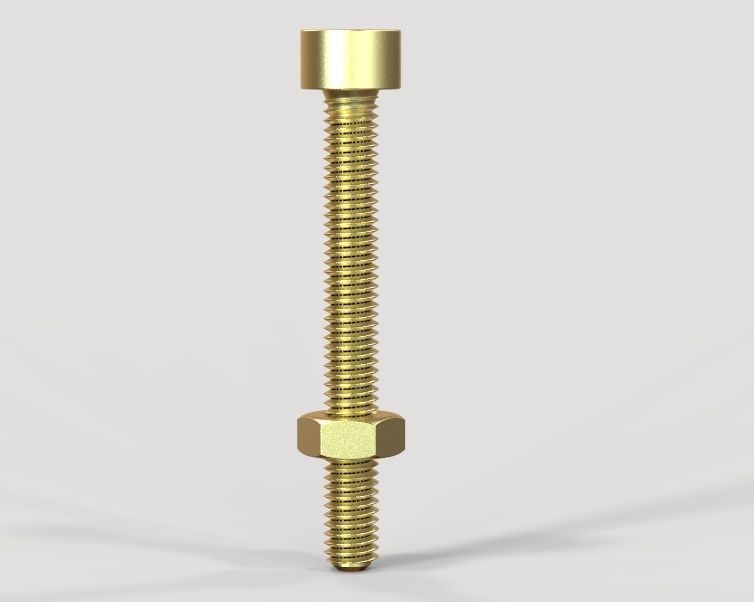

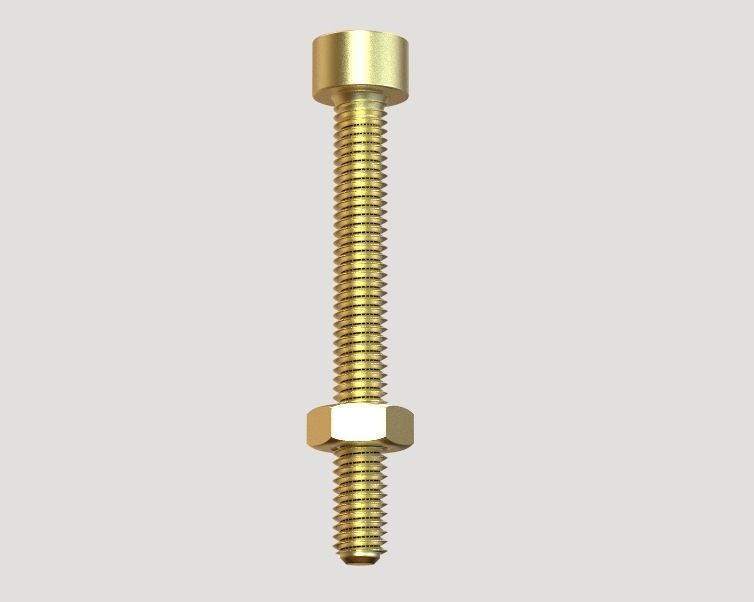

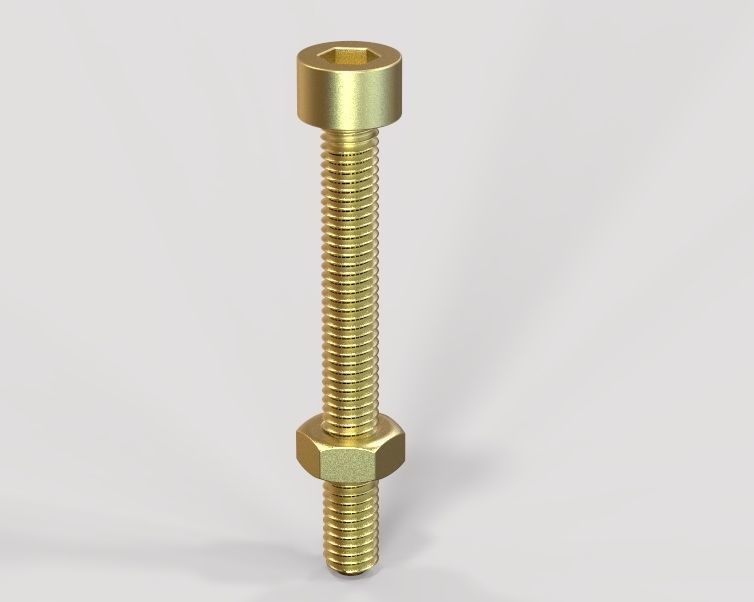

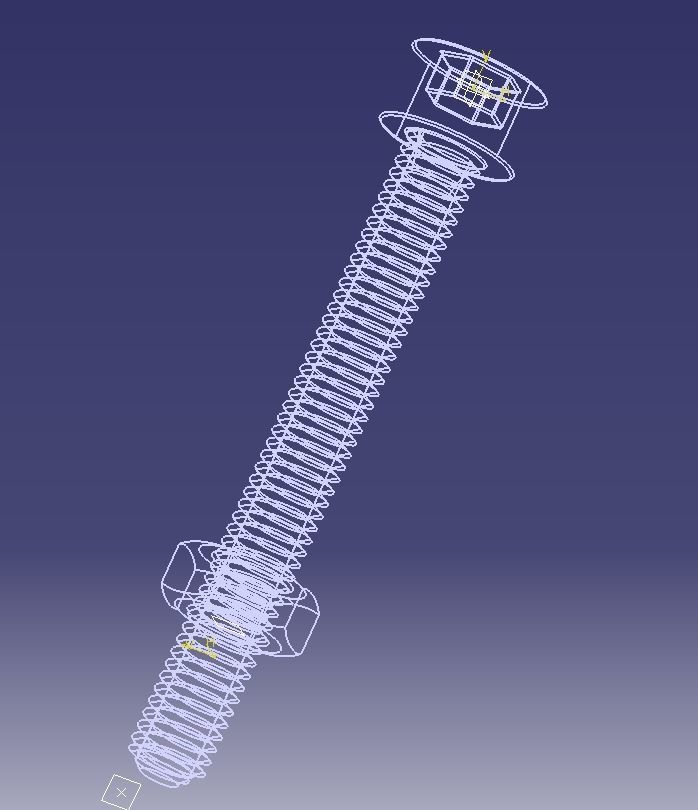

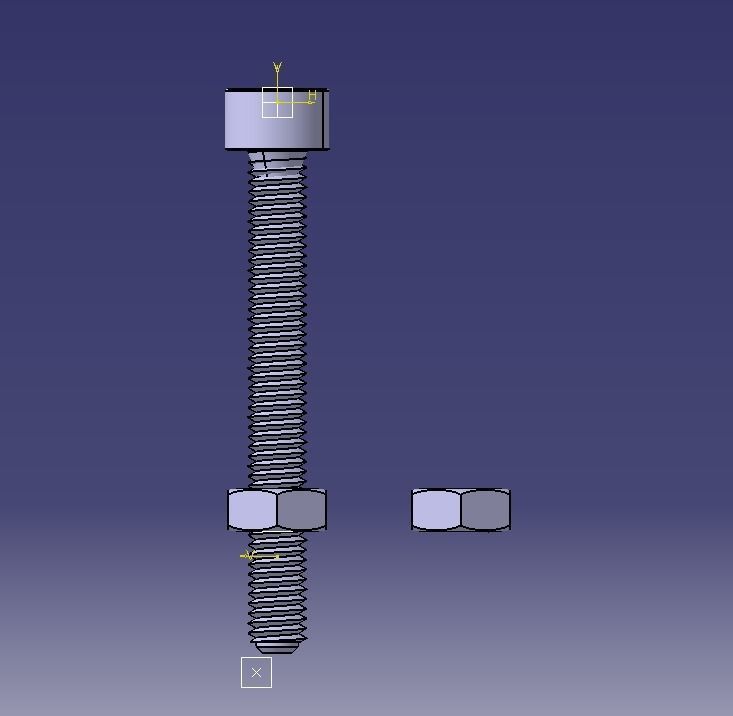

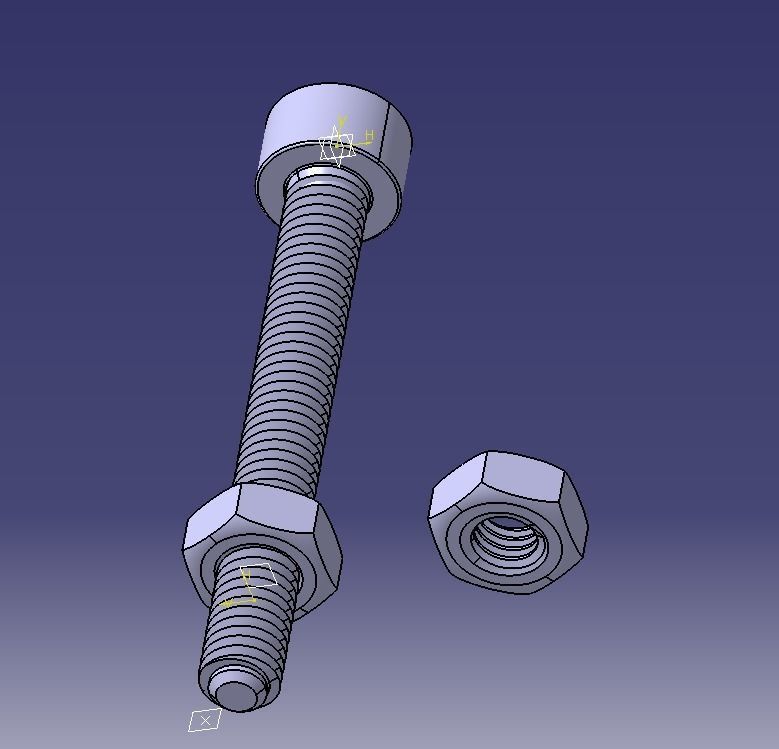

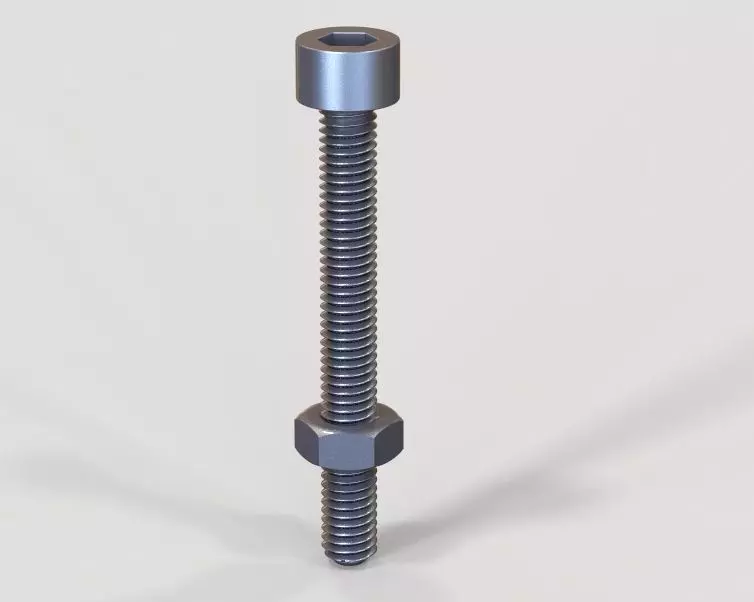

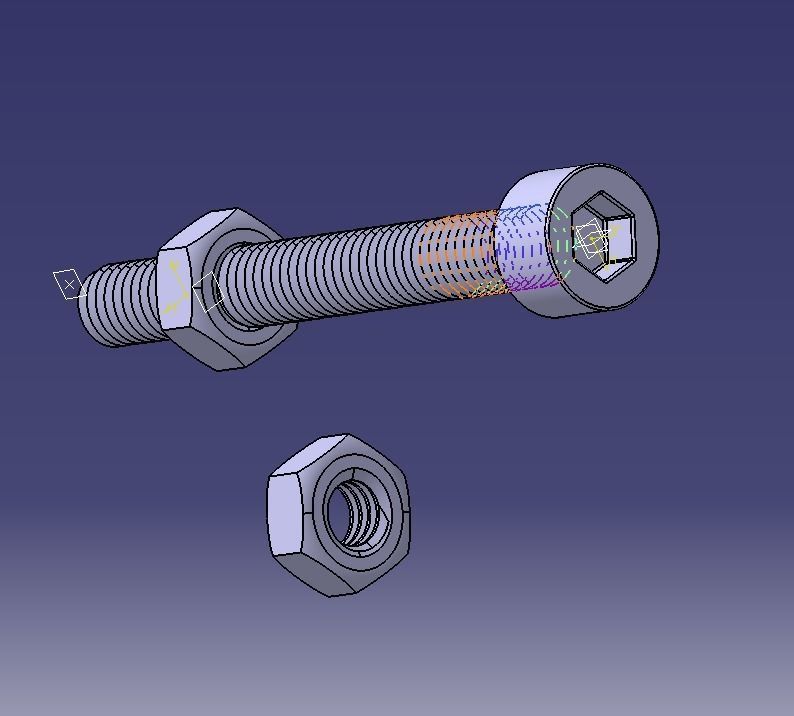

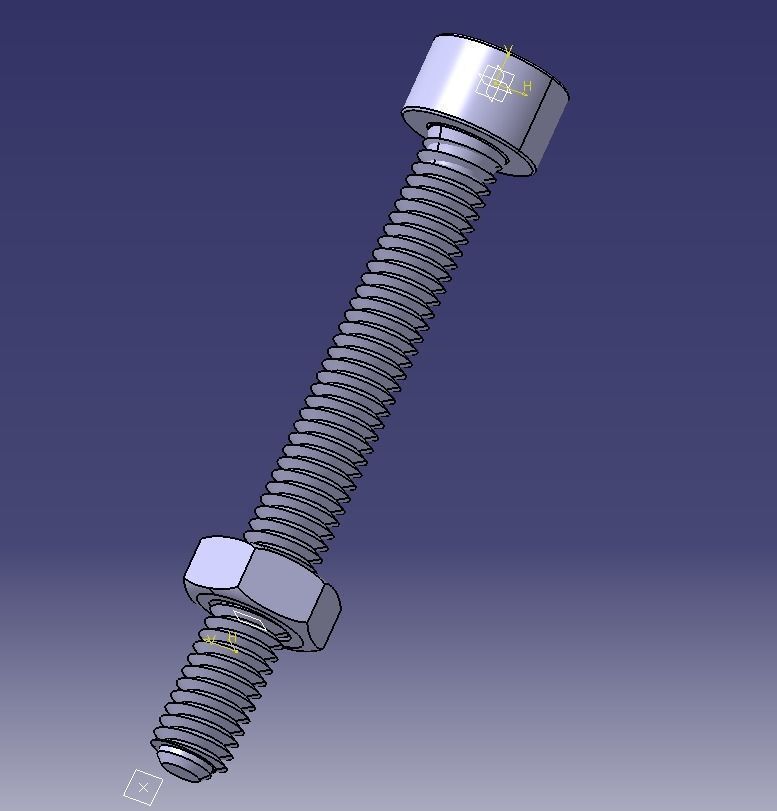

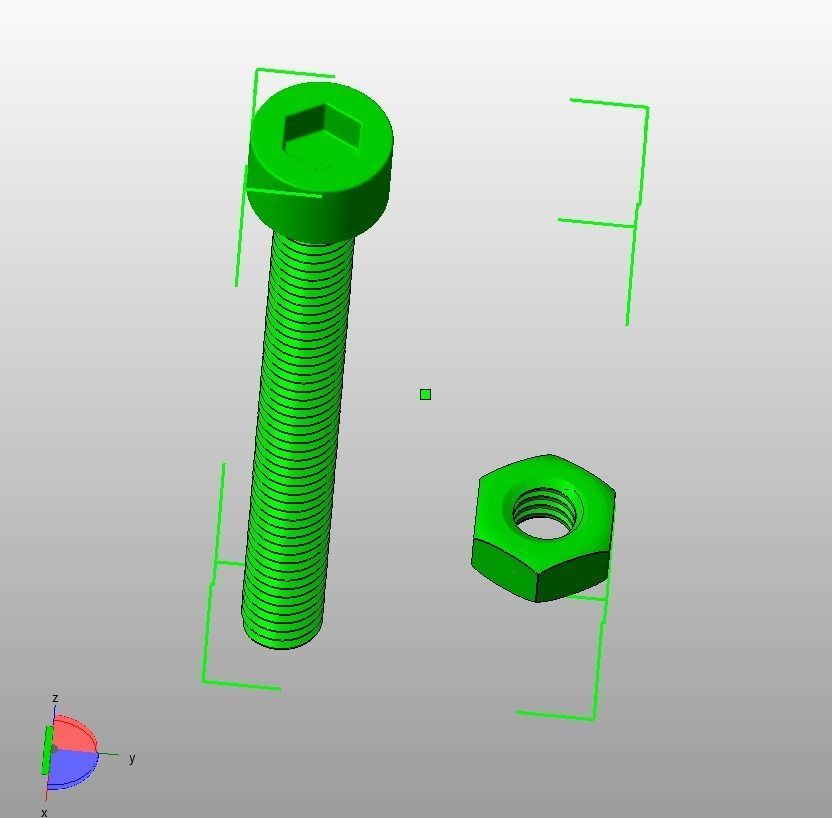

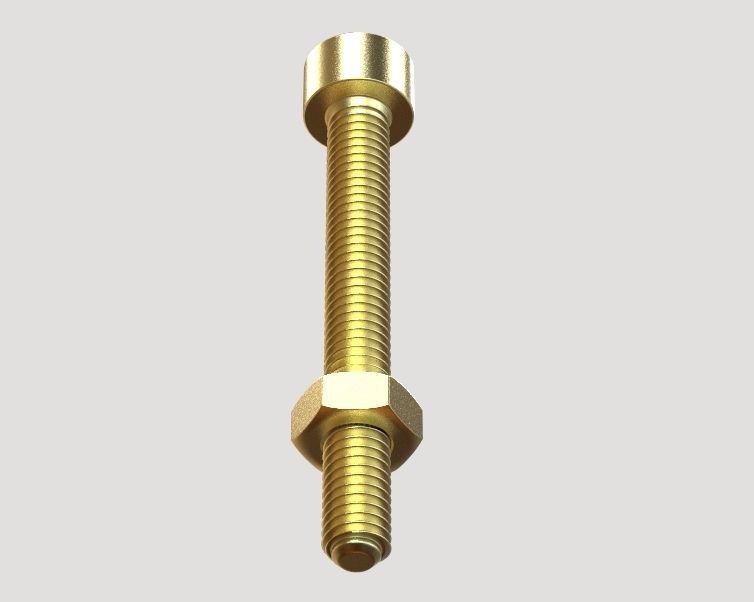

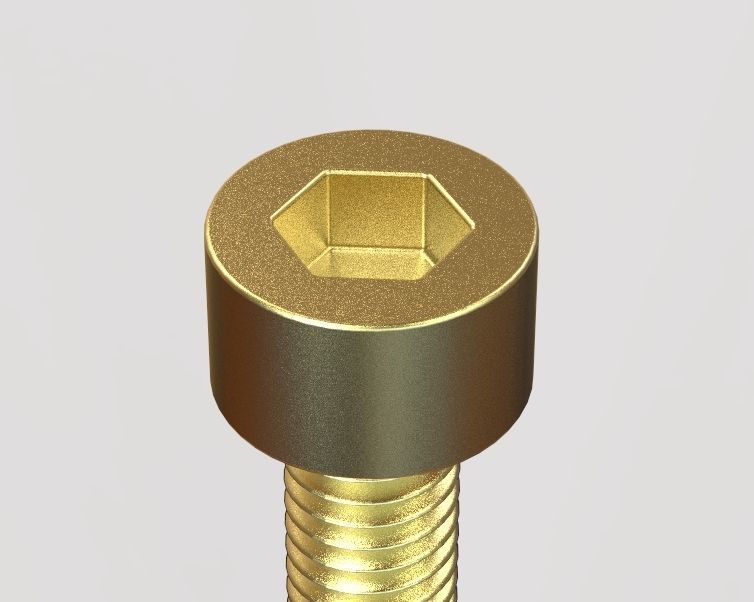

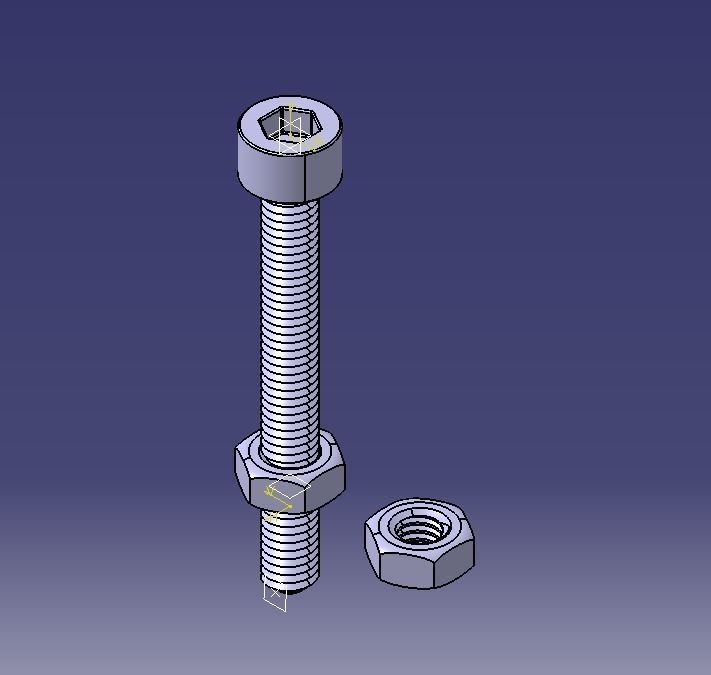

This is a M5 x 40mm Full Thread Cap Head Bolt and nut. Bolt length is 40mm(without Head). 25mm thread. Accurate design. 3 file formats are attached.Details:2.5mm Hexagon Depth (P)16mm Length (L)+0/-0.13mm General TolerancesFully Threaded0.8mm Screw Thread PitchM5 (5mm) Thread Size+0/-0.22mm Head Diameter (D) Tolerance+0/-0.18mm Head Length (H) Tolerance4mm Socket Size (J)5mm Head Length [Max] (H)8.5mm Head Diameter [Max] (D)

Custom size and design possible, you have to contact with me. If you want other file formats please contact with me,

Thanks, Mahbub
