GE TF34 Nose Cone and Fan with threaded hole in Nose Cone 3D print model
Description

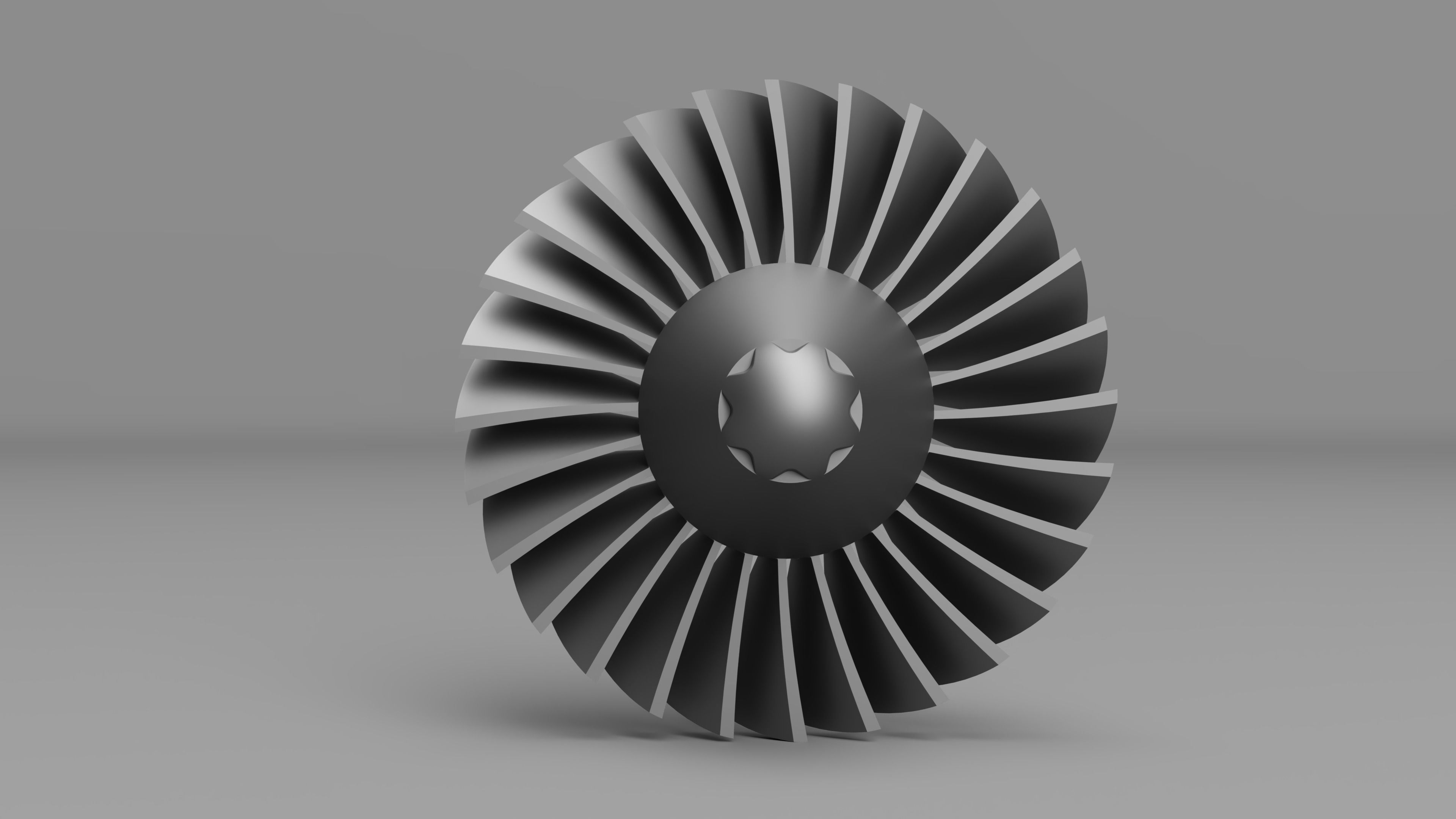

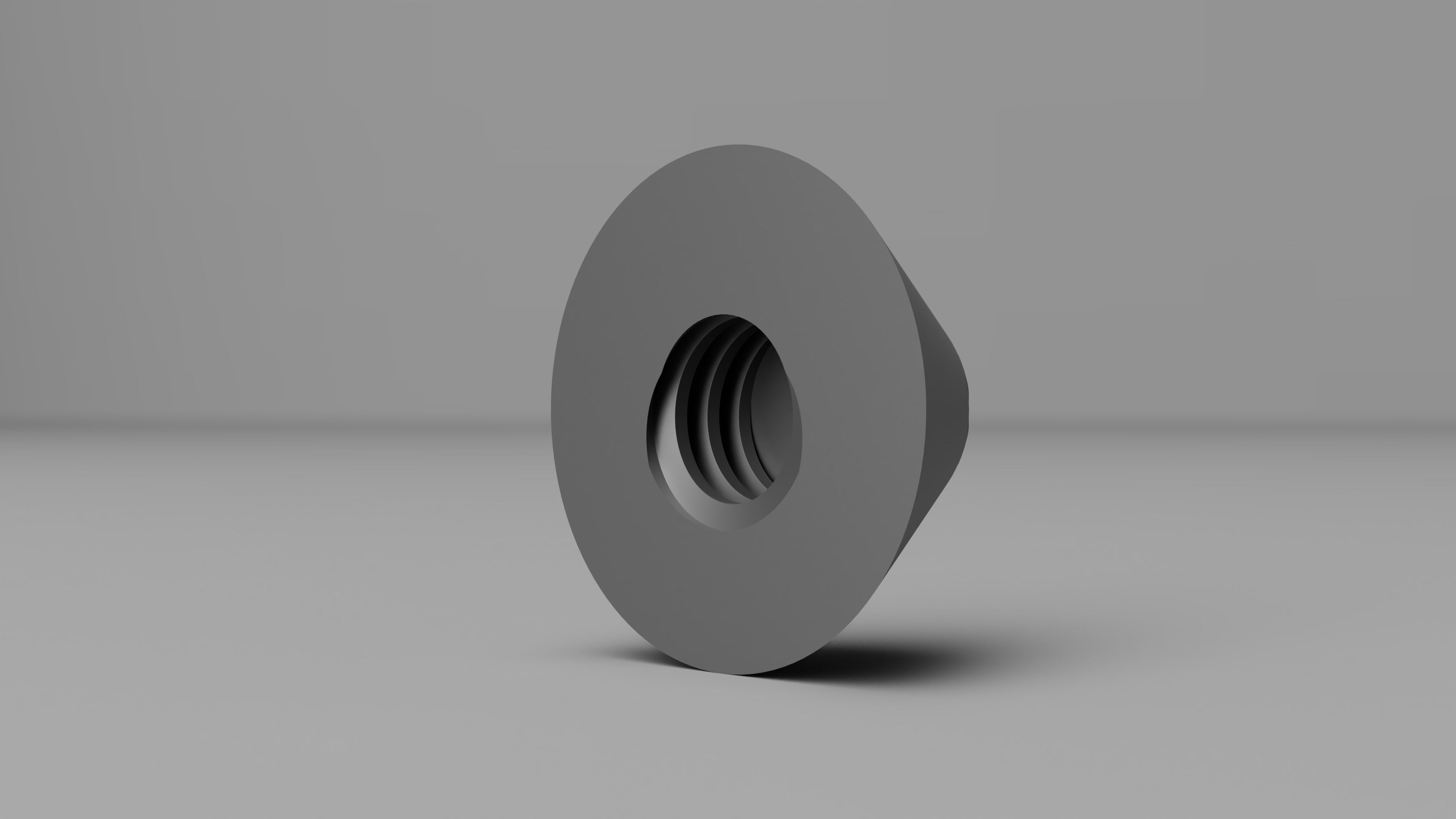

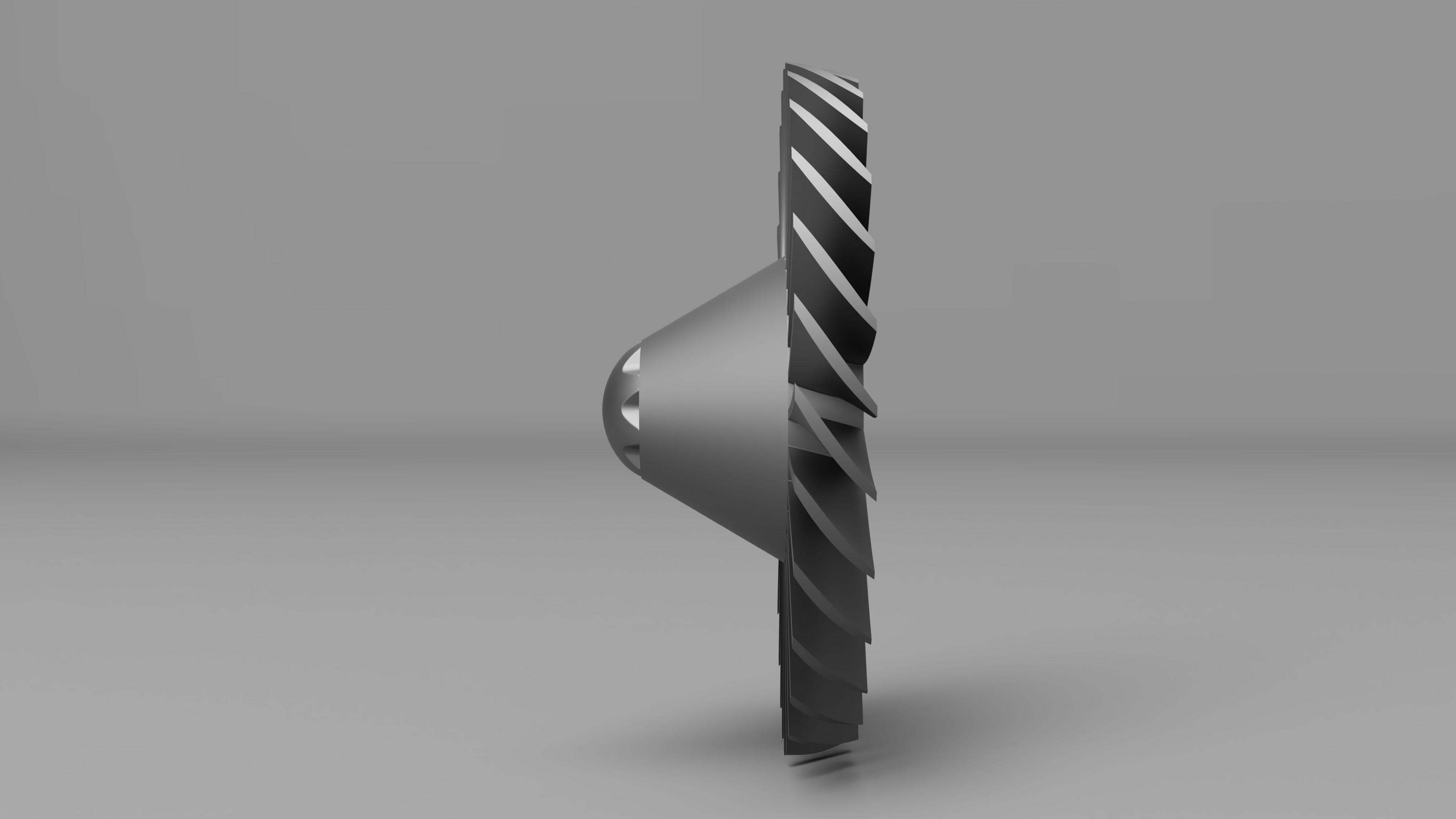

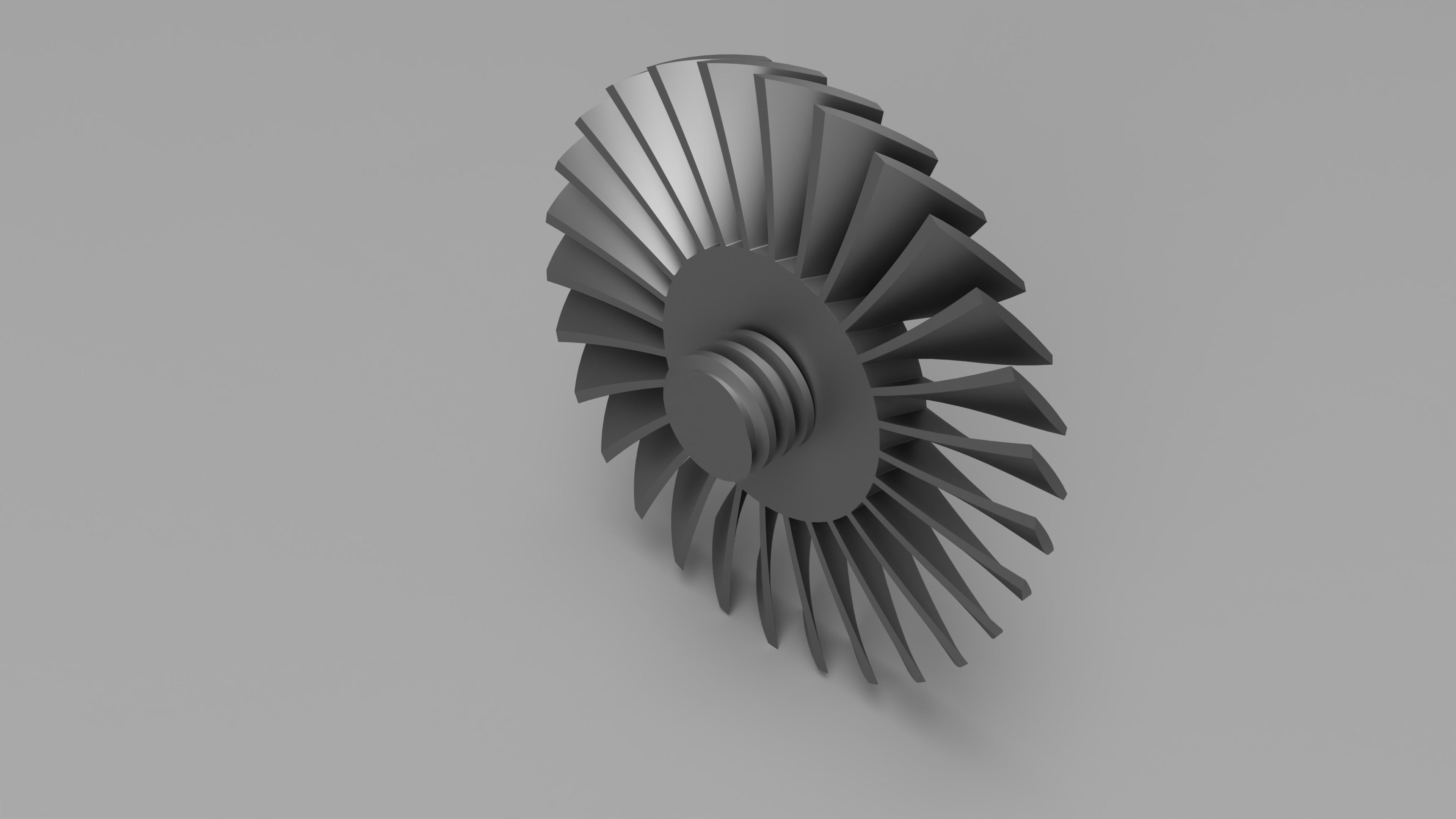

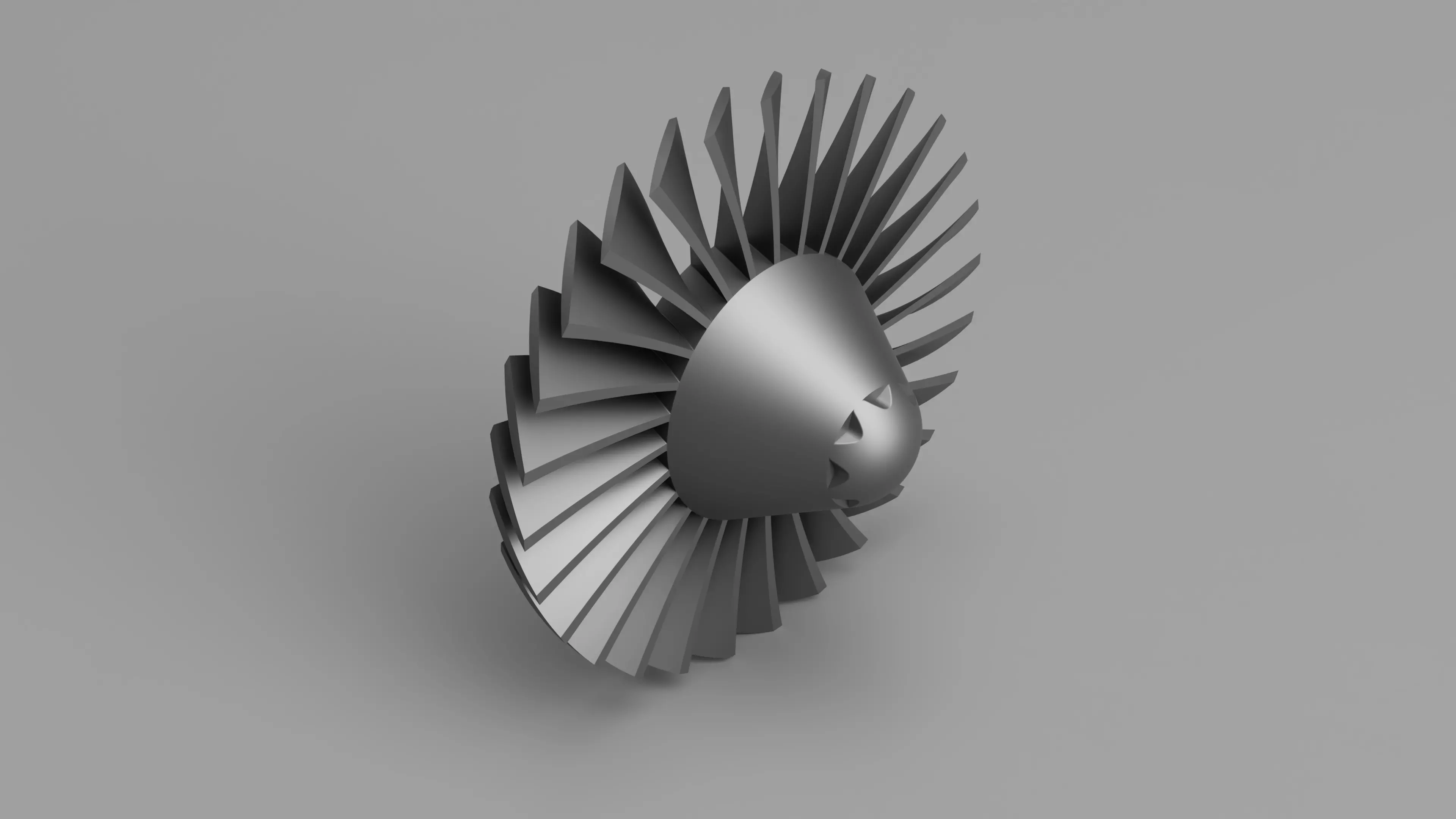

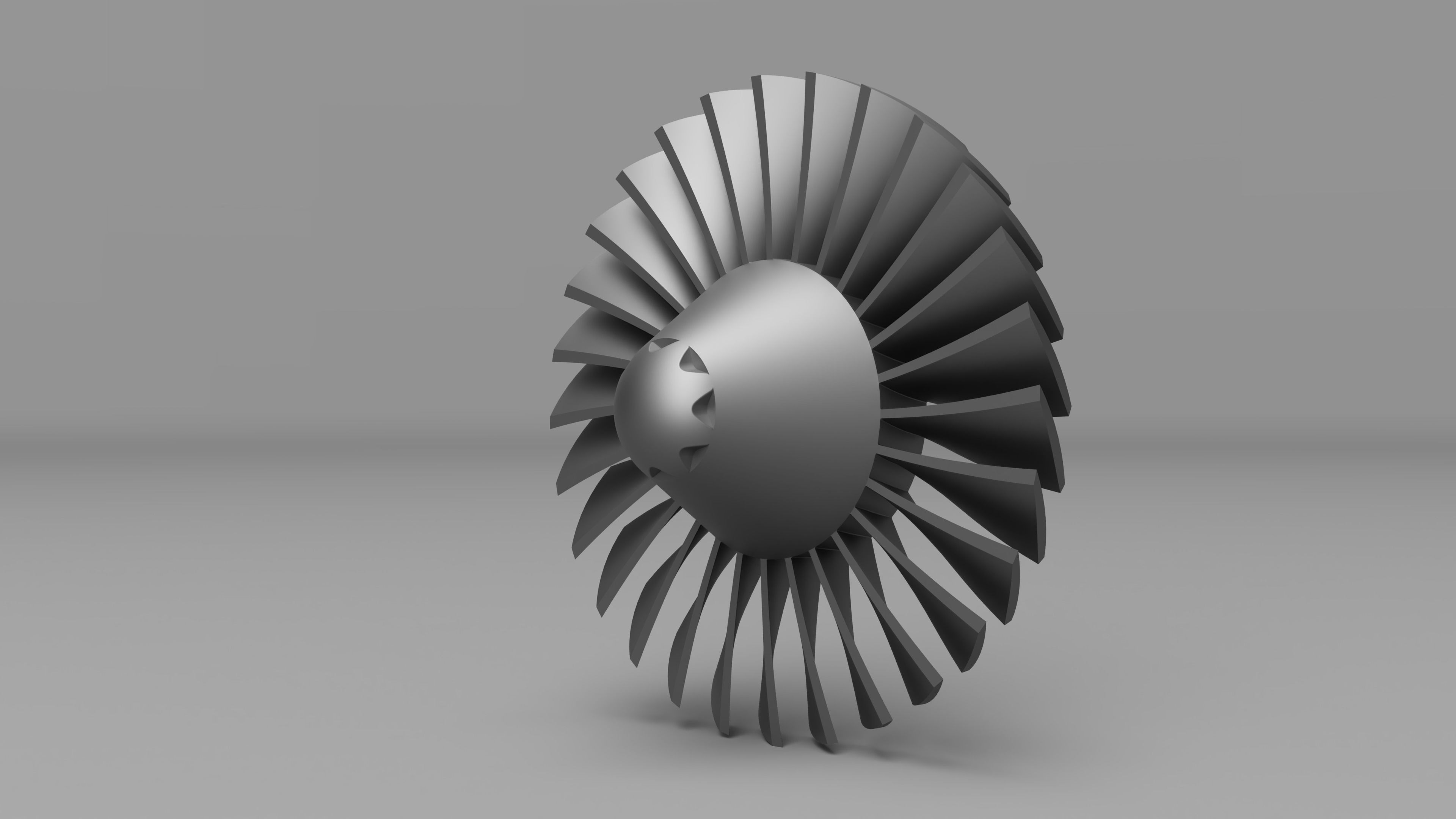

This is a 1/6th scaled CAD model of the Front Fan and Nose Cone assembly of General Electric's TF34 turbine motor.This assembly model is designed in such a way that it can be easily 3D printed. For this part to be easily 3d printed the Thickness of the Fan blade is increased and appropriately sized fillet features are provided.Also, a threaded extrusion profile is provided on the fan blade component and a threaded hole profile is provided on the nose cone component. Therefore both the components can be easily assembled together.Outer Diameter of fan blade = 5"
vimalgeorge
Thanks for the compliment......
A
2022-12-04 23:28:37 UTCaaronfilkins
have you made the rest of the engine? i work on these and would love to print a full engine!
vimalgeorge
Unfortunately no sir, but this model is printed and tested. This model was successfully tested at speeds up to 120000rpm by my previous client.
Rendang
nice
vimalgeorge
Thank you for the compliment.
GE TF34 Nose Cone and Fan with threaded hole in Nose Cone
Royalty Free License
GE TF34 Nose Cone and Fan with threaded hole in Nose Cone
Royalty Free License
3D Modeling
3D Print Modeling
Rendering
3D Model formats
Format limitations
- OBJ (.obj, .mtl) (5 files)9.51 MBVersion: 2022Version: 2022Version: 2022Version: 2022Version: 2022
- Stereolithography (.stl) (2 files)3.58 MBVersion: 2022Version: 2022
- Autodesk FBX (.fbx) (2 files)548 KBVersion: 2022Version: 2022
- STEP 2023 (.stp)1.55 MB
- IGES 2023 (.ige, .igs, .iges)2.03 MB
3D Model details
- Publish date2022-07-20
- Model ID#3886702
- Ready for 3D Printing
