FX IMPACT M3 magazine 30cal 3D print model

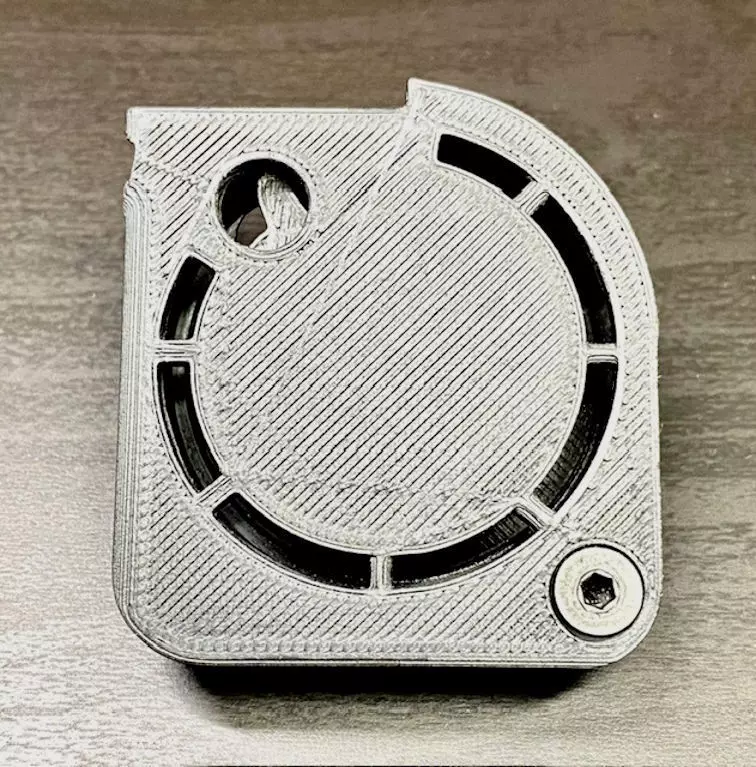

I designed a 30 caliber magazine for the FX Impact M3.It holds only 12 bullets, but is much more compact than the original FX magazine.(Do you really need an unusually large 23-round magazine?)The lid is rotatable and the ammunition can be loaded very quickly.It is fixed and removed by the Magazine Release lever.The magazine can use pellets and slugs.

Other items you will need are:○ Key ring springs that can be purchased for around US$1 .Break the key ring and take out the spring inside. (see image)○φ4mm×10mm screw (Low head screw to hold magazine follower)○φ4mm×15mm screw (flat head screw to connect the lid)○Two φ4mm hex nuts (to fix the above two screws)

How to operate the magazine① Rotate the lid to the right② Rotate the follower to the left③ Put the pellets in the first slot④ After putting pellets in all 12 slots, close the lid.Very easy and quick! (see image)

○ Subtle errors may occur due to differences in software and printers. Please note that some cutting and polishing is required for perfect operation.○ I am also designing 22 and 25 caliber magazines for the FX Impact M3.I will upload it when the design is complete.

Model used FLASHFORGE 3D printer Adventurer4Nozzle diameter 0.4mmFilament resin PLA 1.75mmHead temperature 220°CPlatform temperature 55℃Lamination pitch 0.2mmSpeed 50mm/secFilling rate 50%
