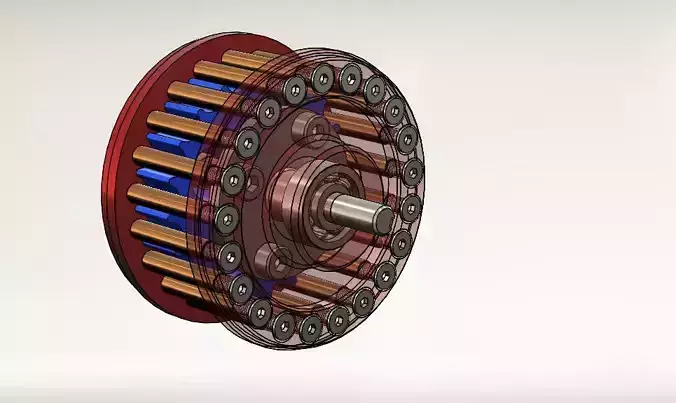

Cycloidal Gear Drive 3D print model
Description
The Cycloidal gear is a type of gear that use tooth profile based on cycloidal curve to generate high reduction ratio 100:5 A cycloidal curve is a curve of one circle roles around the outside or inside of another circle.
This Cycloidal gear is ready for manufacturing and be ready to use, all the files are available to fabricate by 3D printer, center lath, CNC 3 axis milling machine.
what ever your manufacturing fracilities, the files are ready to fabricate.
Cycloidal Gear Drive
Royalty Free License
Cycloidal Gear Drive
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (10 files)4.21 MB
Exchange
- STEP (.stp)3.35 MB
- Other 48.5 MB
- Stereolithography (.stl) (88 files)23.2 MB
- IGES (.ige, .igs, .iges)9.32 MB
- Parasolid (.x_t, .x_b)1.15 MB
- CATIA (.CATProduct, .CATMaterial, .CATAnalysis)5.27 MB
- Solid Edge (.asm, .par, .psm, .dft) (15 files)20.5 MB
- OBJ (.obj, .mtl) (2 files)30 MB
3D Model details
- Publish date2021-11-18
- Model ID#3392508
- Ready for 3D Printing
