Compact planetary gearbox 3D print model

Description

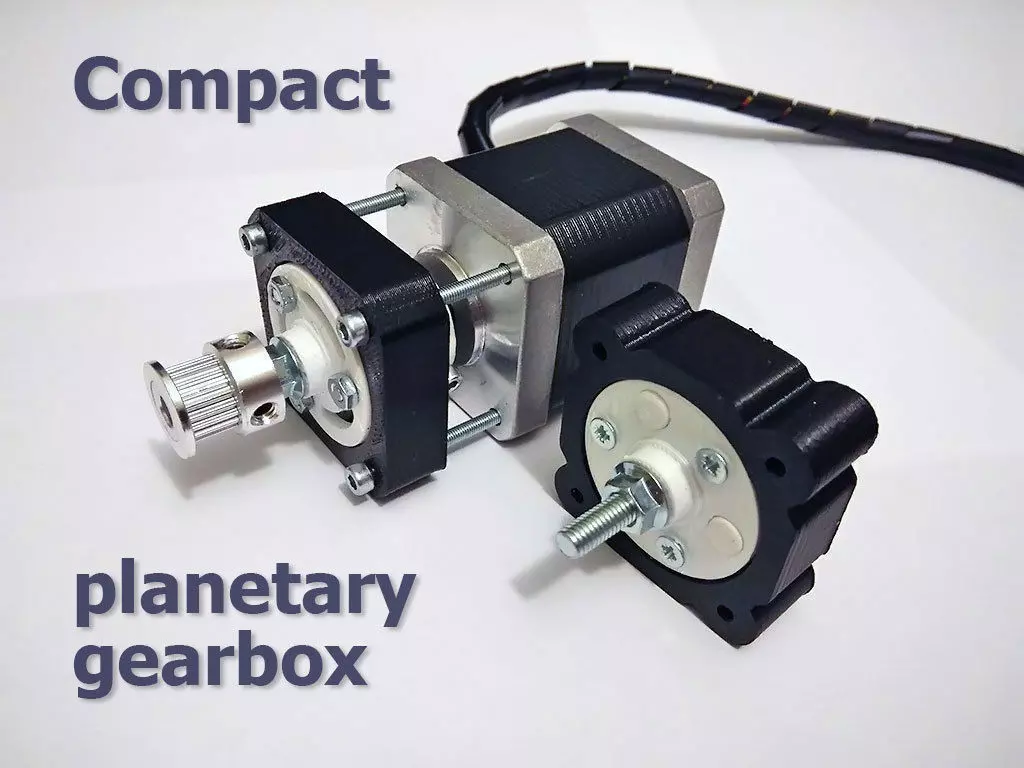

Compact planetary gearbox for the NEMA17 stepper motor

external gear teeth 27 4 internal gears 9 teeth

gear ratio is 4:1

the output shaft bolt M5 M3 screws and nuts for mounting

Boxing thickness v1 - 12mm, v2 - 15mm

All parts are separated your slicer successfully divide into separate parts
