Castable jewellery greensand casting flask pattern with core box 3D print model

Description

Production castable jewellers sand casting flask pattern suitable for 3d printing & cnc machining, including core box

NOTE: Recommend carring out core size measurment checks due to tolerances may differ from printer to printer

  • Scalable & print ready

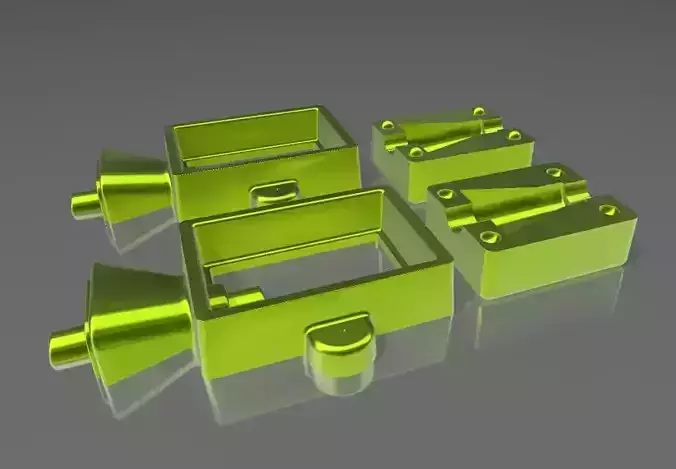

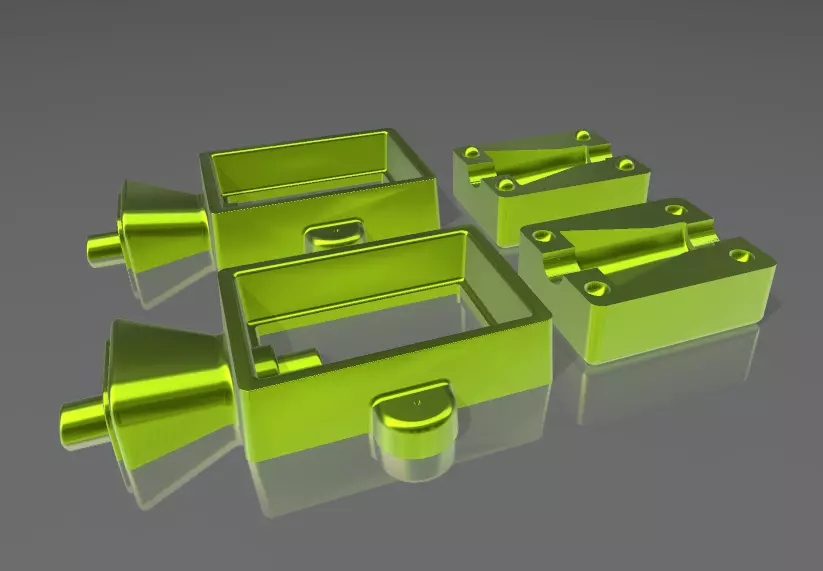

  • Files includes core box ( images 3 & 4 illustrate all parts included)

  • With and without 6mm locator holes pre drilled

  • All files can be printed flat without supports

  • Fully drafted for easy sand removal of single complete part

  • Minimum 2 degree draft angles (xray images above)

  • Large pouring spout opening to cavity minimum 23mm maximum 57mm

-Pre-set hole location for dilling locator pins

  • Pre cast flask size per part: 176mm x 119mm x 29.6mm

File format STL FBX
