BCN3D Hotend Mod

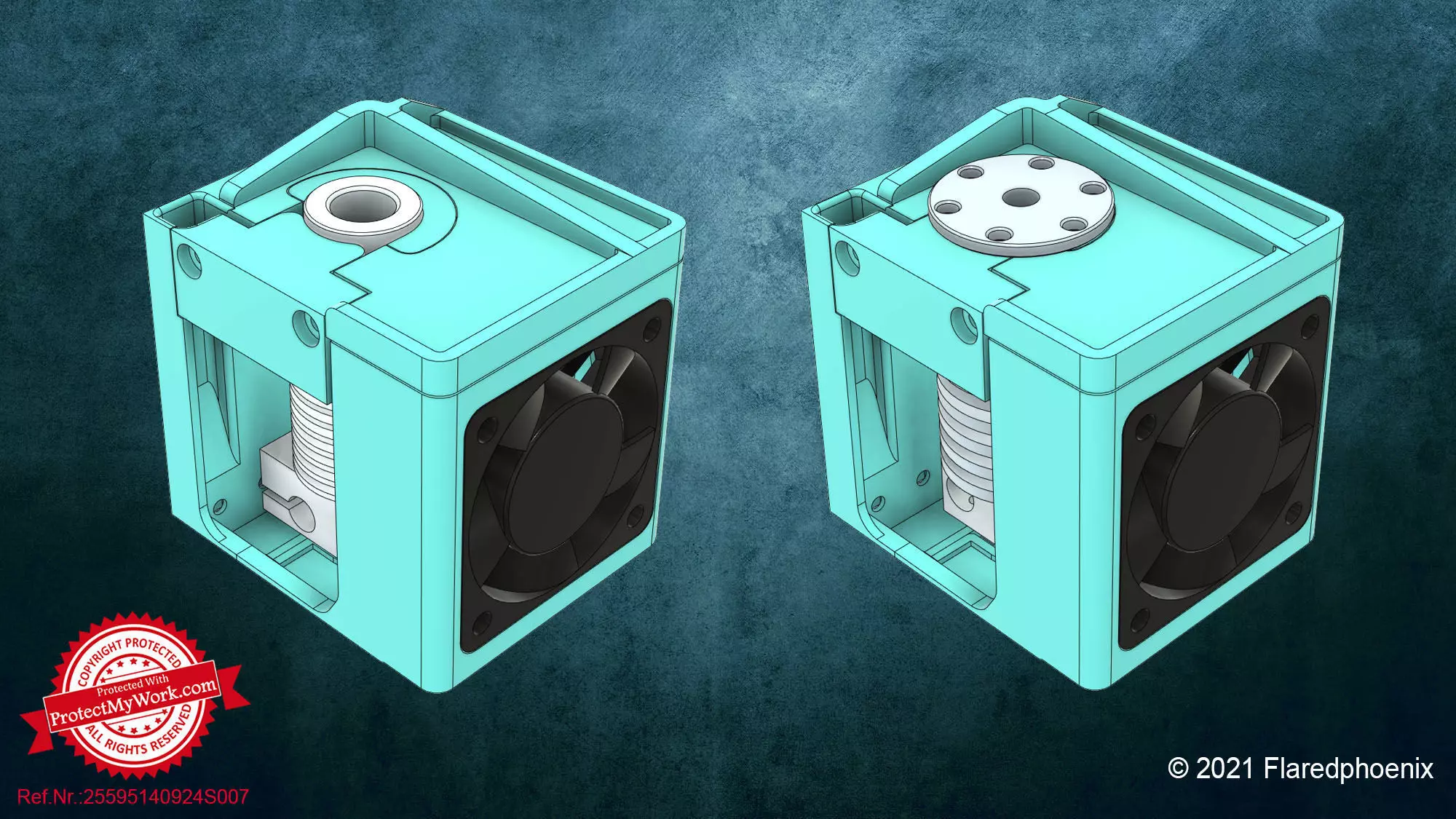

BCN3D Hotend Mod 3D print model

Description

With this hotend holder the original heat sink for the BCN3D Sigma E3D and the normal E3D extruder can be mounted.There are nut pockets for M3 for mounting the fans and M2.5 for the clamping element and the limit switch.An M2 threaded rod L = 60mm including nuts is used as the hinge and 6 magnets 3x3x3mm are used per hotend.Thus, the front can be opened to get better to the extruder.Variant 2 is slightly optimized in the lower area and has a little more space.This variant has been reinforced above.There are also 10x magnets ø5x2mm in the upper area, the lower magnet inserts have been removed.Due to the heat, a heat-resistant material must be used for this object.

Mit diesem Hotend Halter kann der Originale Kühlkörper für den BCN3D Sigma E3D und der Normale E3D Extruder montiert werden.Es sind Muttertaschen für M3 für die Montage der Lüfter und M2.5 für das Klemmelement und den Endschalter vorgesehen.Als Scharnier Wird eine M2-Gewindestange L=60mm inkl. Muttern verwendet und je Hotend werden 6 Magnete 3x3x3mm verwendet.Somit Lässt sich die Front aufklappen um besser an den Extruder zu kommen.Variante 2 ist im unteren Bereich etwas optimiert und hat etwas mehr Platz.Oben wurde diese Variante Verstärkt.Es werden ausserdem 10x Magnete ø5x2mm im oberen Bereich, die unteren Magnet Einsätze wurden entfernt.Aufgrund der Wärme muss für dieses Objekt ein Wärmebeständiges Material verwendet werden.

C
chaytecjunk2024-10-02 17:39:01 UTC
Hey, i just bought this model for my Sigmax R19 and im wondering, do i need to print every piece from every folder or are there just some specific ones? Sorry if im a lil dumb about that haha
Flaredphoenix
Flaredphoenix2024-10-02 18:16:05 UTC
Not yet, ha ha, it’s a legitimate question, unfortunately I didn’t include a very accurate description, sorry, you don’t need to print all the parts there are different versions, they were gradually improved, I tried them all, basically all work, but the latest version is best for me now, I had these printed in aluminum at the end. For some reason, the power-off switch was always smashed, no matter whether I had installed the original housing or my new head, I also developed the endstop protection since it was no longer destroyed, I will now tell you which files I finally installed for my head, All files from these 3 ZIP files, the others are previous versions. BCN3D_Hotend_Mod_V2_STL.zip BCN3D_Cover_V3.zip Endstop_Switch_Protection.zip
C
chaytecjunk2024-10-03 18:40:47 UTC
Thank you so much for your answer and claryfication, i will print these files and see how it goes :)
C
chaytecjunk2024-10-06 09:24:07 UTC
So far everything worked. One question: is the printed endstop casing/mod needed? Cant i mount the endstop directly to the new hotend without the printed endstop parts? Thanks
Flaredphoenix
Flaredphoenix2024-10-06 10:13:19 UTC
Yes, that works
Item rating
1 0
C
chaytecjunk2024-10-10 20:22:33 UTC
Recommended
Couldnt tighten the hotend screws on the original metal cover so looked for a replacement. This mod here worked great, good support from the designer, worth the money in my opinion. Printed on a Bambulab P1S in PLA+
