air powered steam engine

air powered steam engine 3D print model

Description

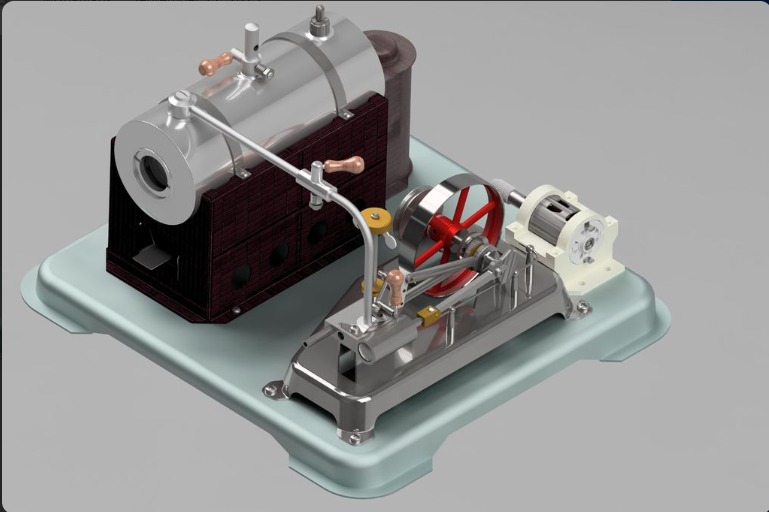

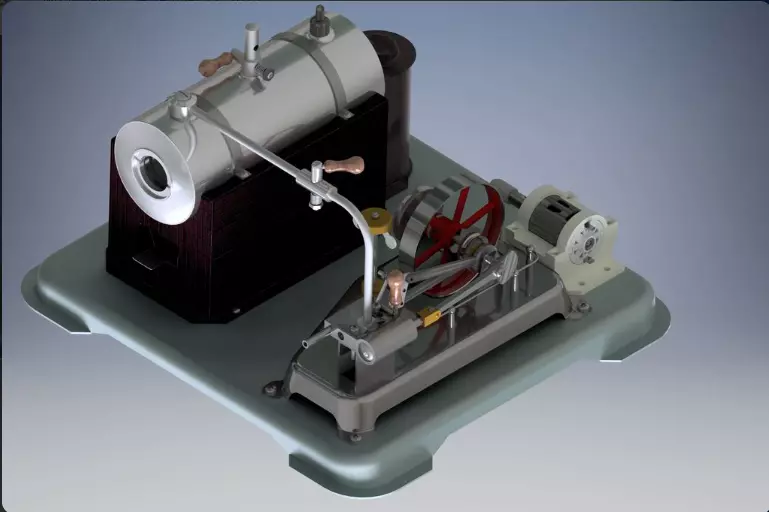

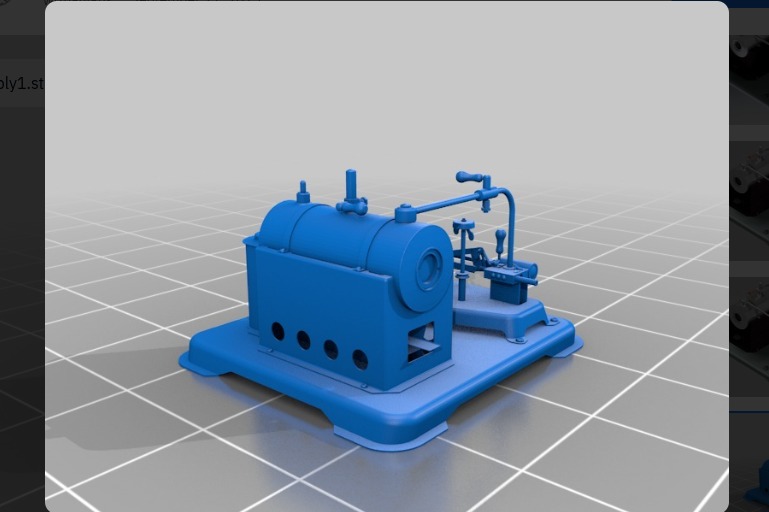

Working steam engine model using compressed air.

Tolerances are tight between the pistons and the engine housing, but will lossen up with a bit of use. This may require a gasket between the top and bottom engine blocks depending upon the flatness/tolerances of your top and bottom layers. M5 bolts, nuts and washers are required for all connections and lock nuts are suggested for the linkage arms.

Item rating
0 0
air powered steam engine
$2.00

Royalty Free License
air powered steam engine
$2.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl)8.18 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2024-10-21
  • Model ID#5595325
