Model Railway Station Platform Brick Subway Steps V2 3D print model

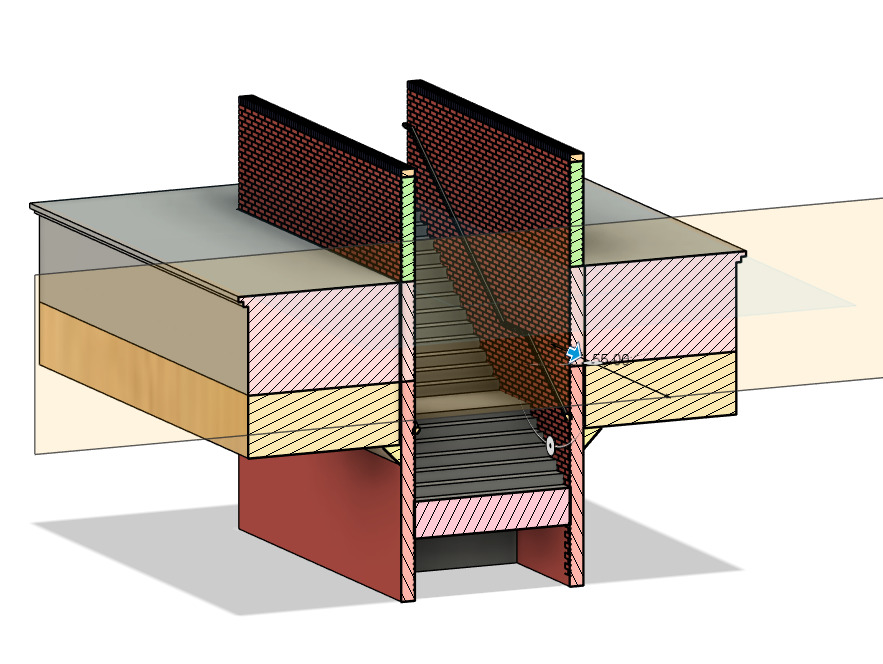

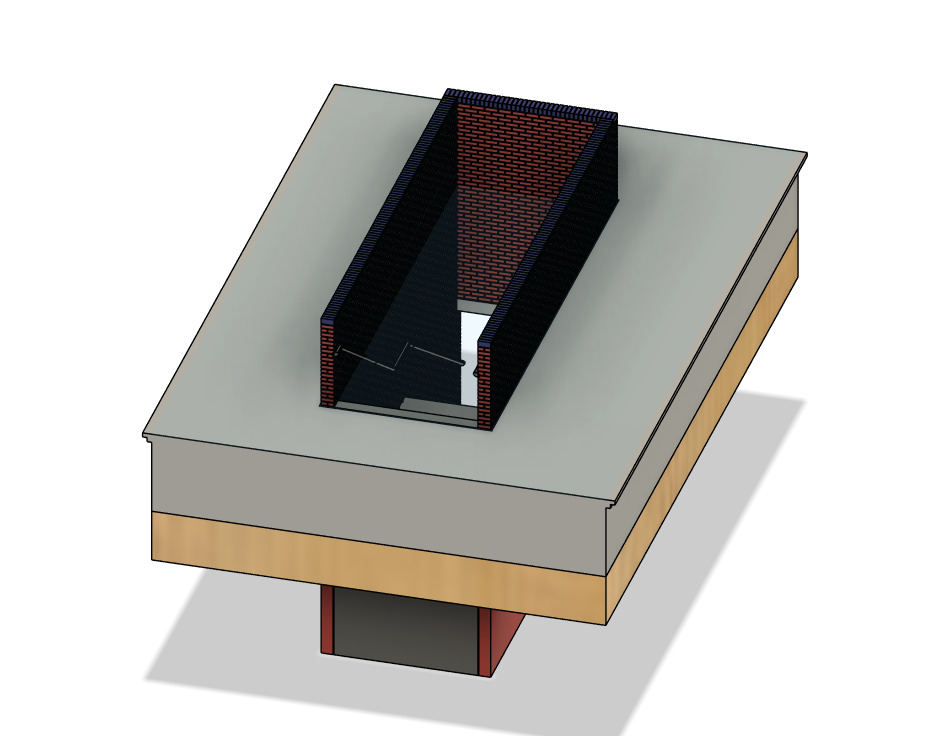

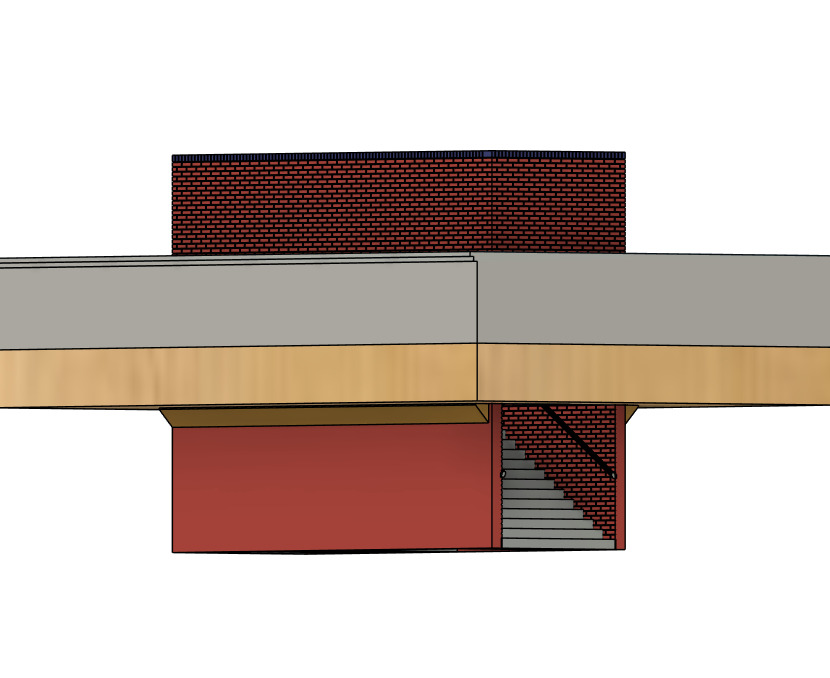

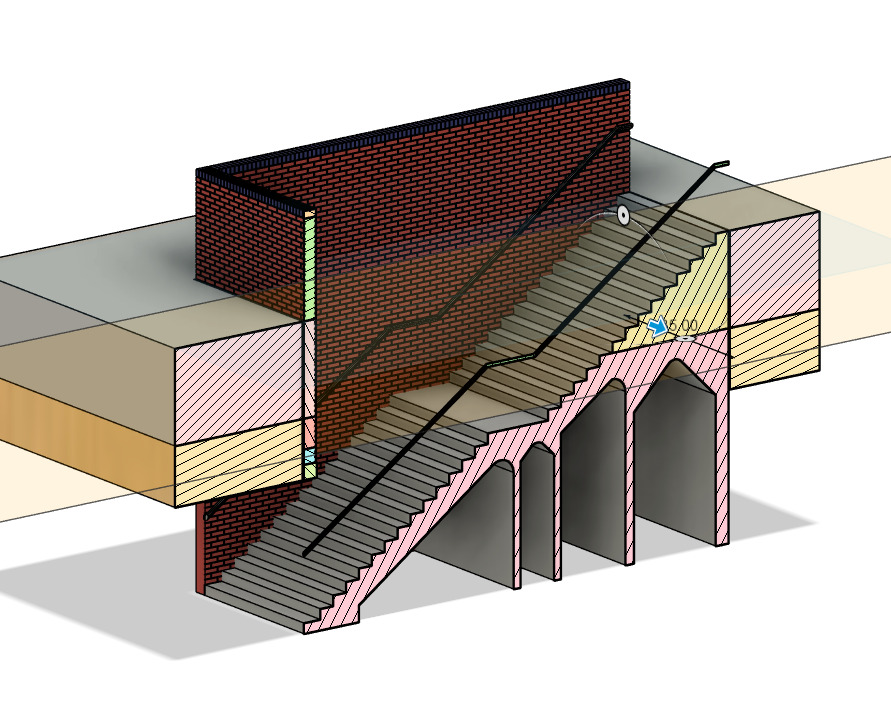

With this design I have got two versions V2 is a design where you put a hole through the baseboard so it looks like the foot subway goes under the railway lines.

V1 is a seperate design that sits on top of the baseboard without having to making a hole in the baseboard.

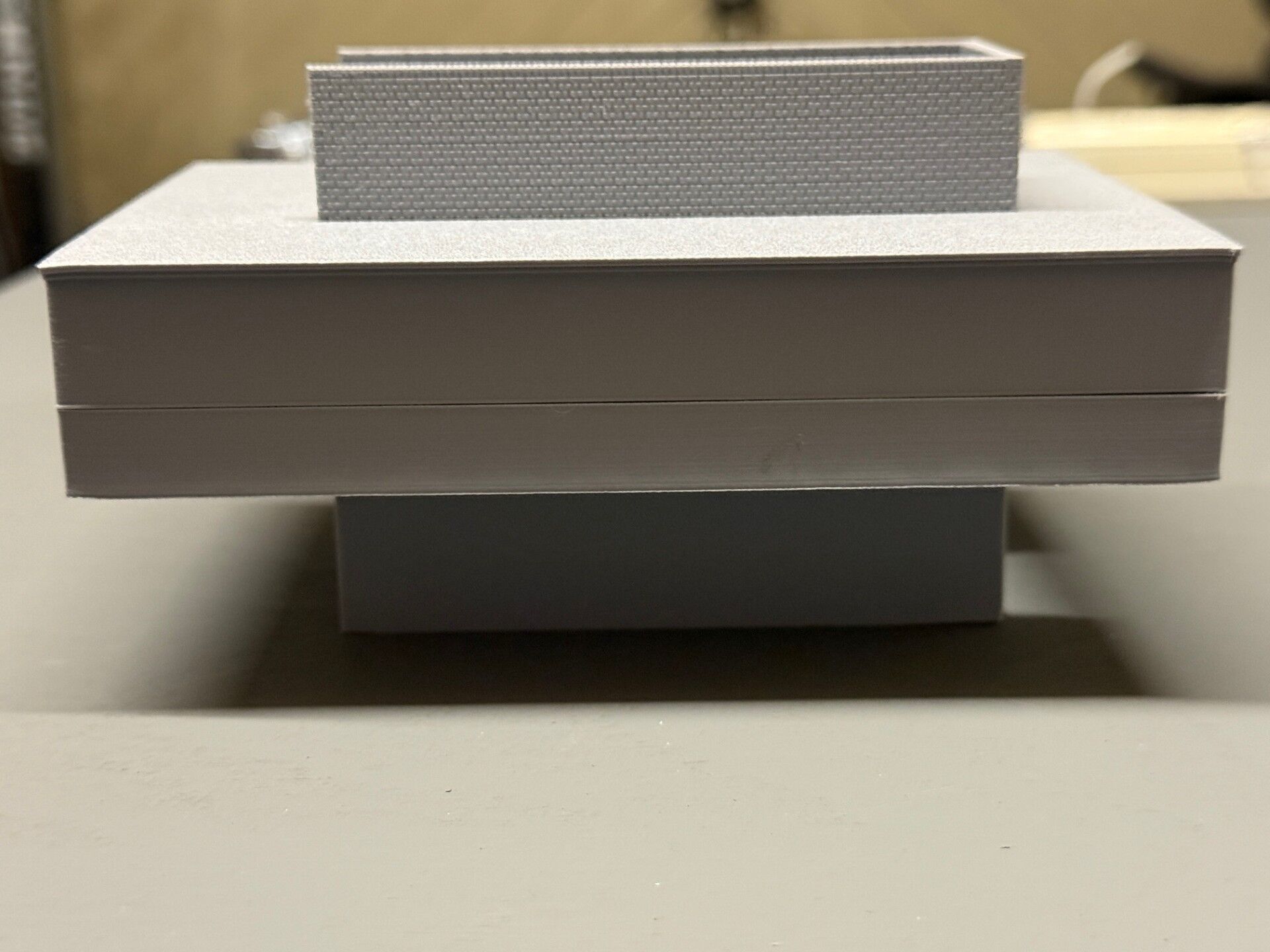

V2 comes in three versions, I have created a version for 9mm and 12mm baseboards that has height guides to help position the subway steps. The third is for any other baseboard thinknesses.

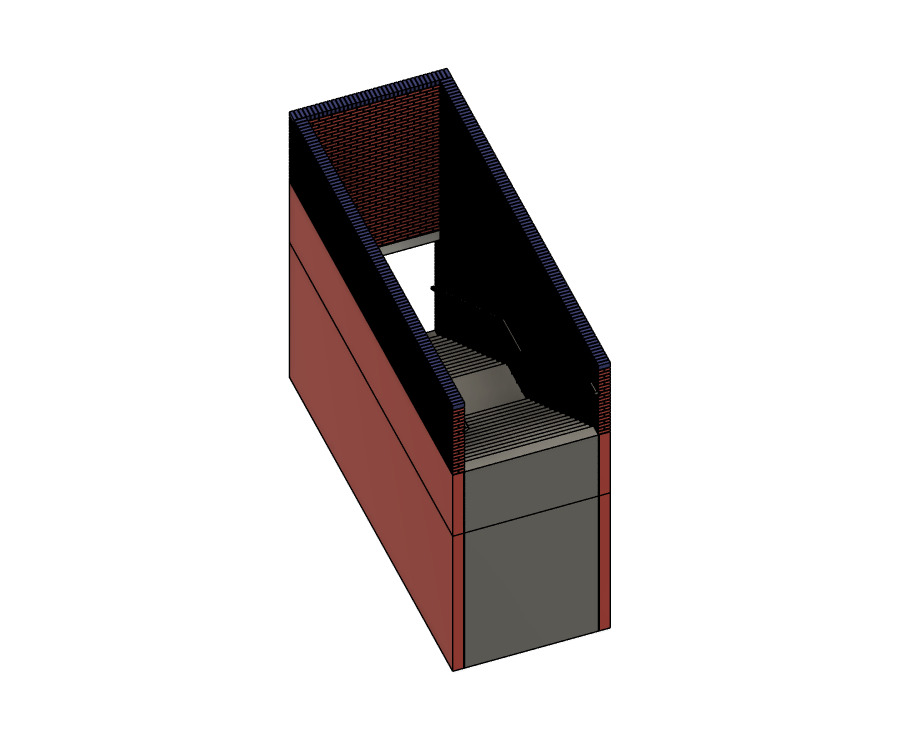

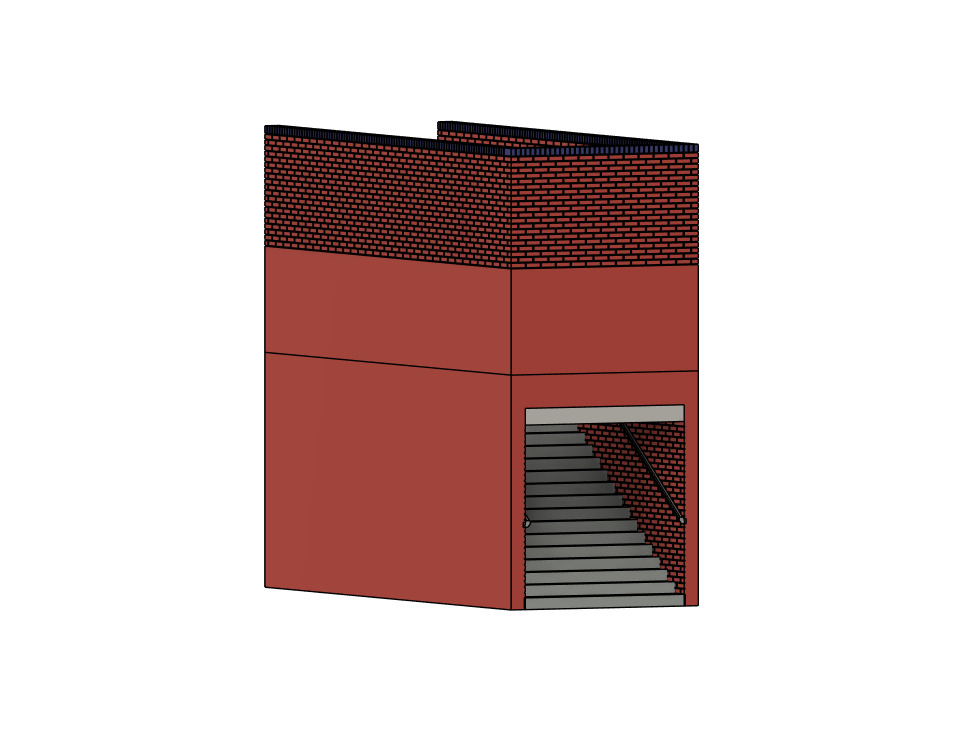

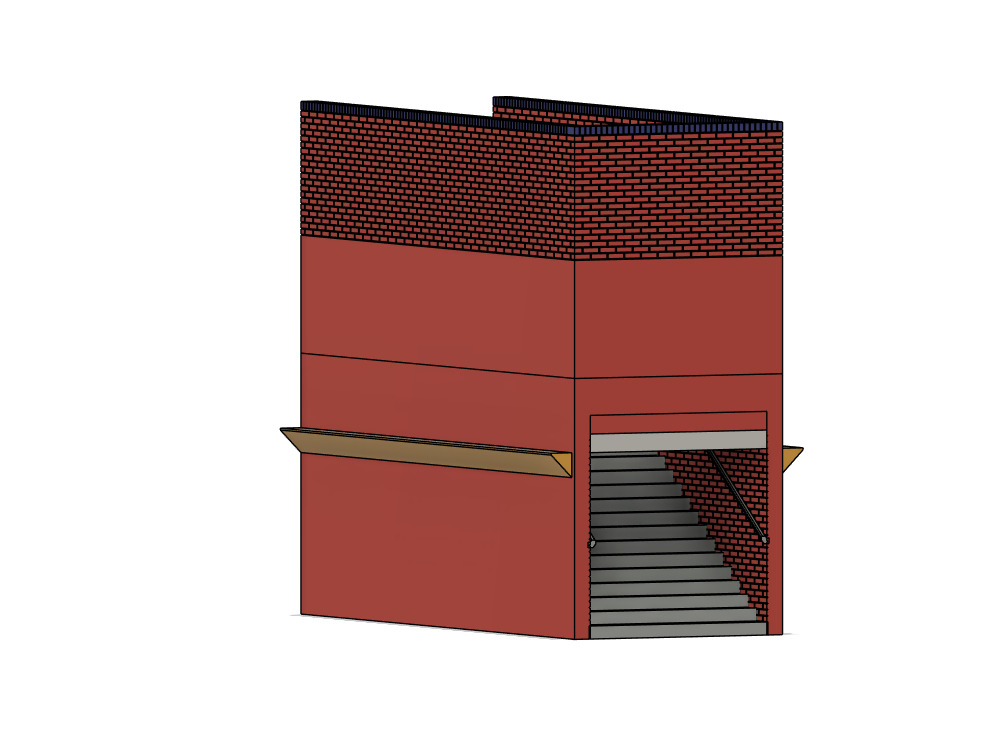

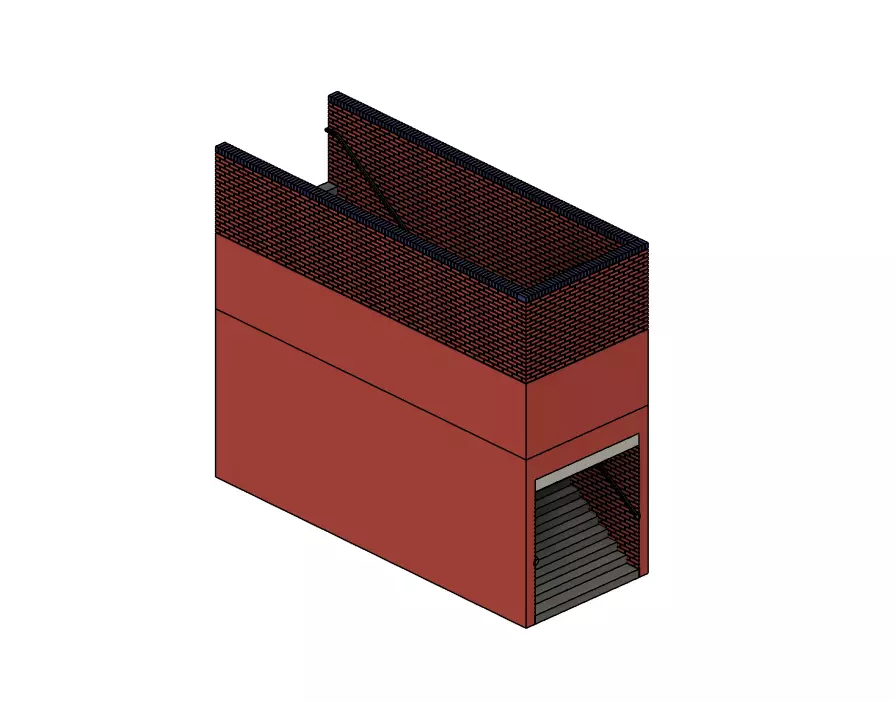

This design is 37.5mm wide by 99mm long and is about 40mm high. The design is for a standard 19mm high platform.You will need to make a hole in your baseboard 37.5mm by 99mm to fit this design.

The design has also been designed to be printed on a FDM printer but for smaller scales I would recommend printing on a Resin Printer.

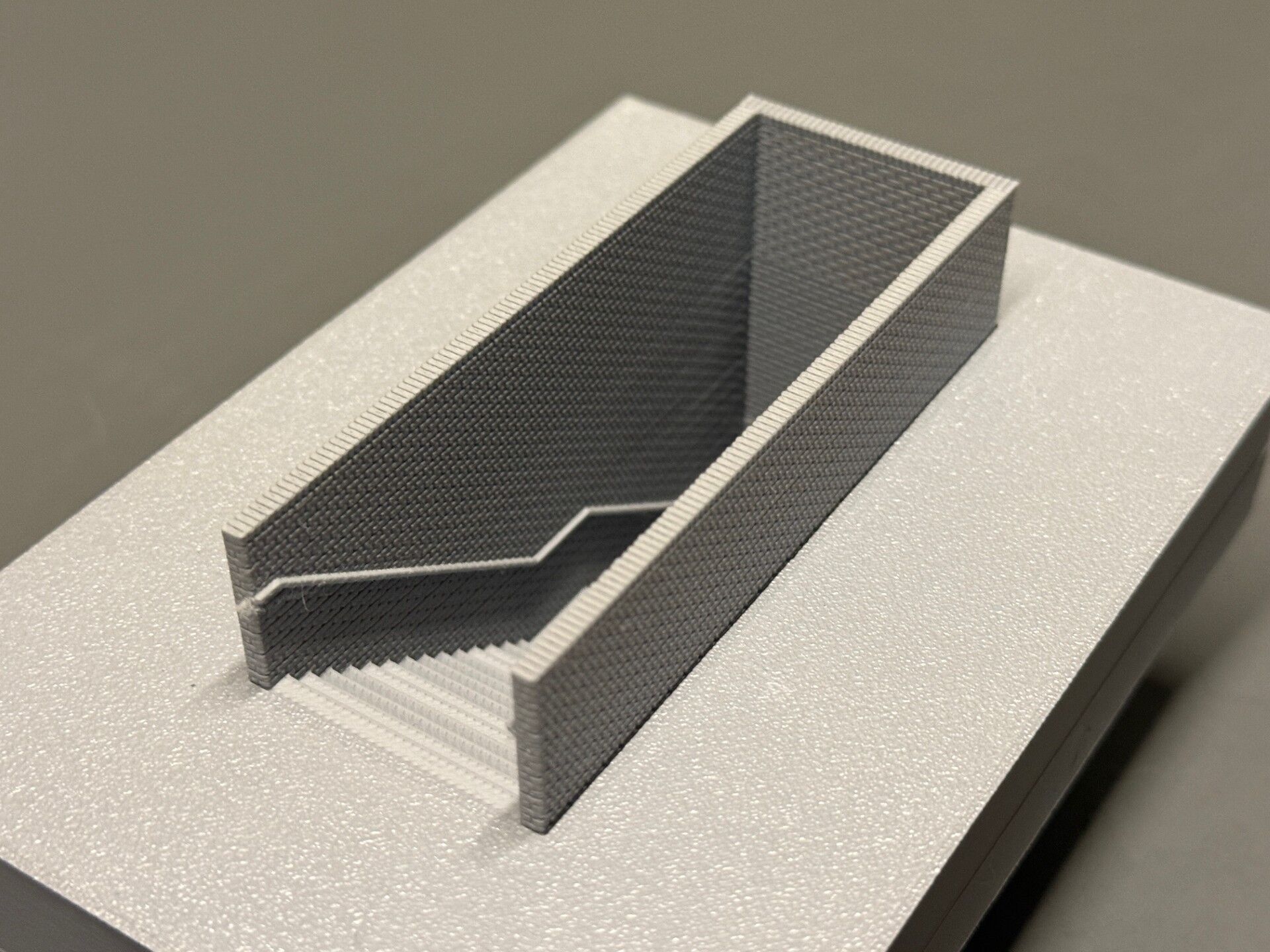

Platform section not included (in photos), used as a demonstration only.

designed at OO gauge, 1/76.2 scale but can easily be scaled for other gauges.for HO gauge print at 87%, 1/87 Scale,for O gauge UK at 175%, 1/43.5 Scale,for O gauge International print at 158%, 1/48 Scale,for N gauge print at 51.49%, 1/148 Scale, (Caution: I have not printed this model in N gauge so I can’t guarantee its printability)

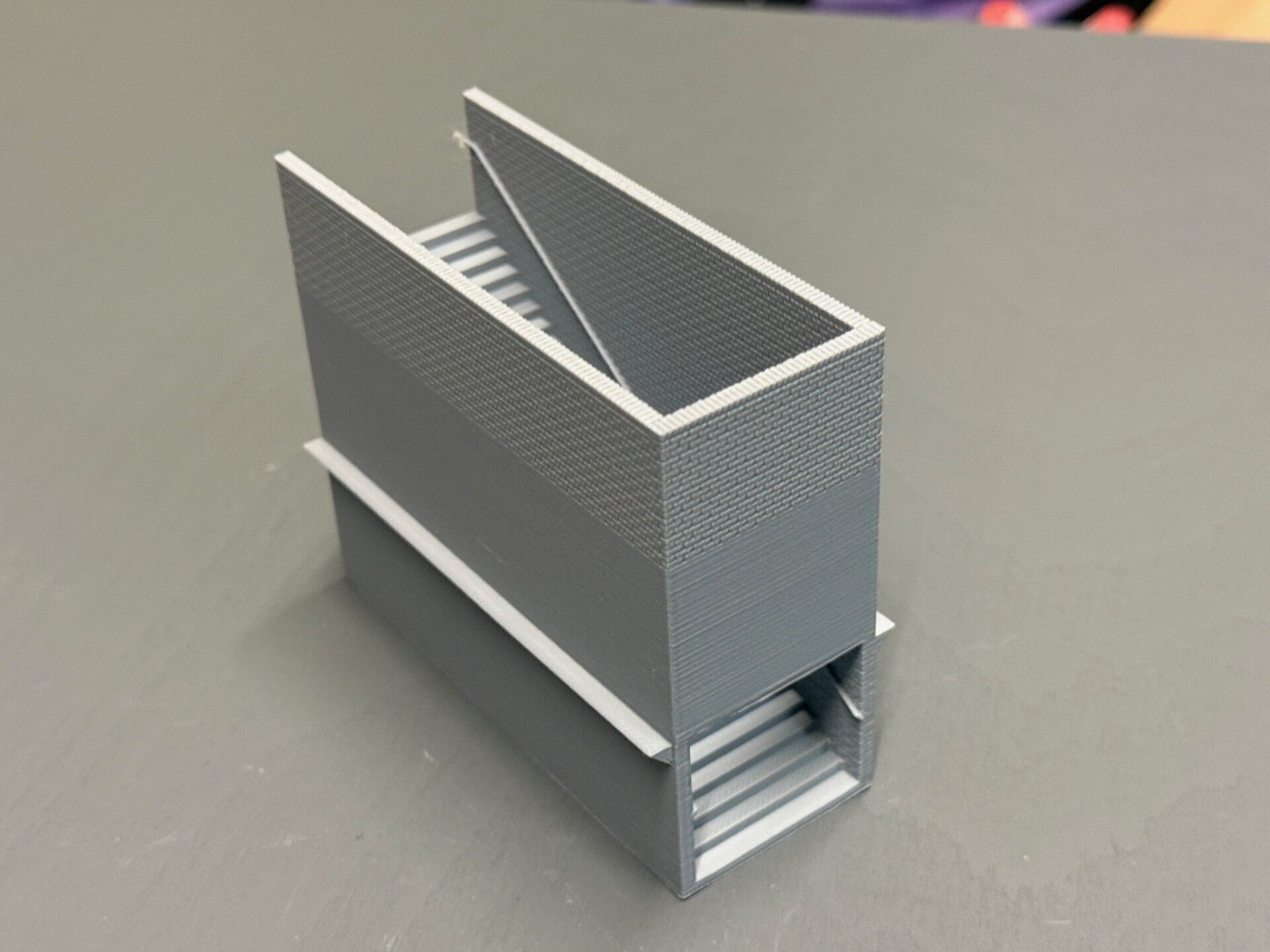

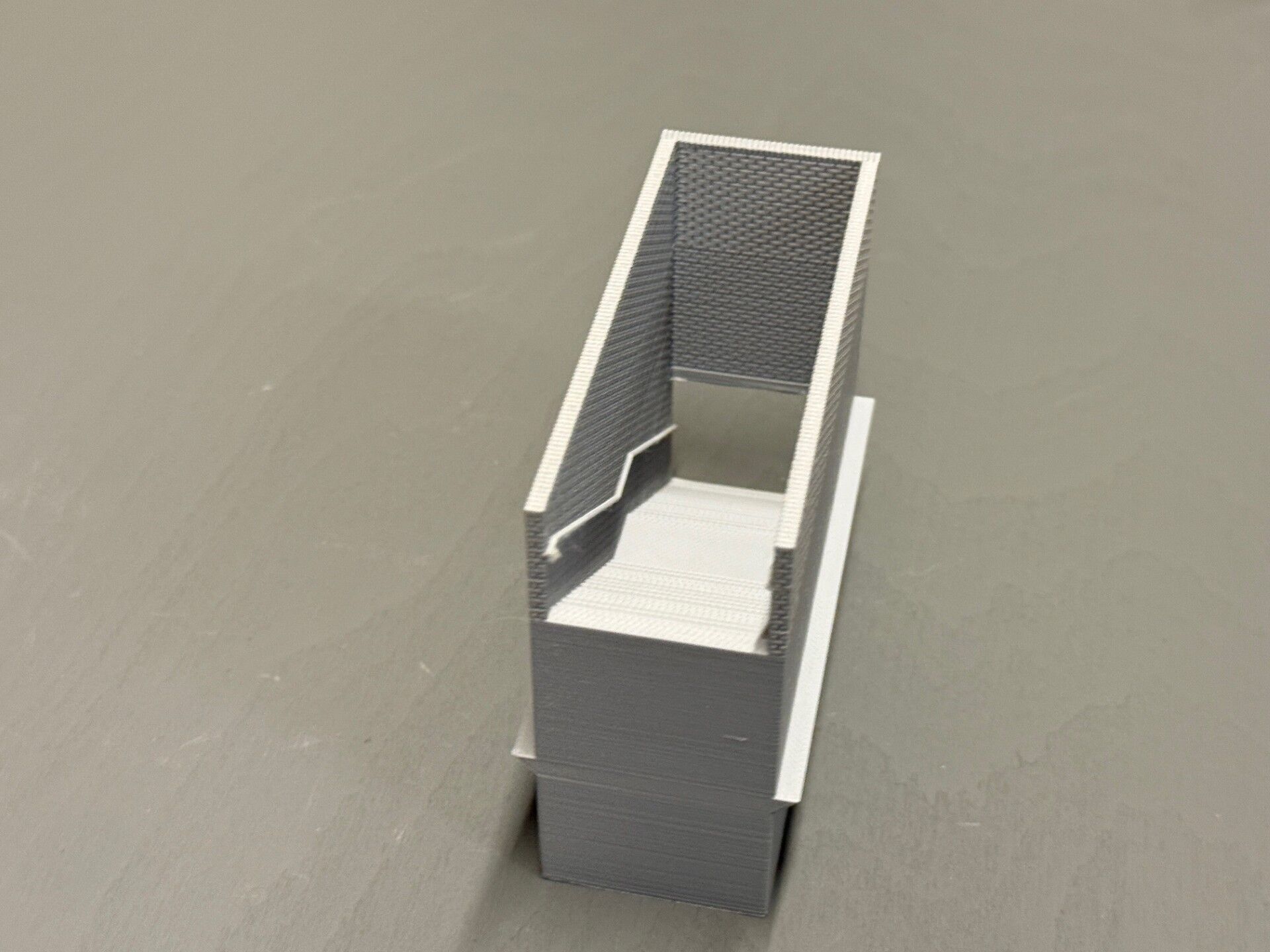

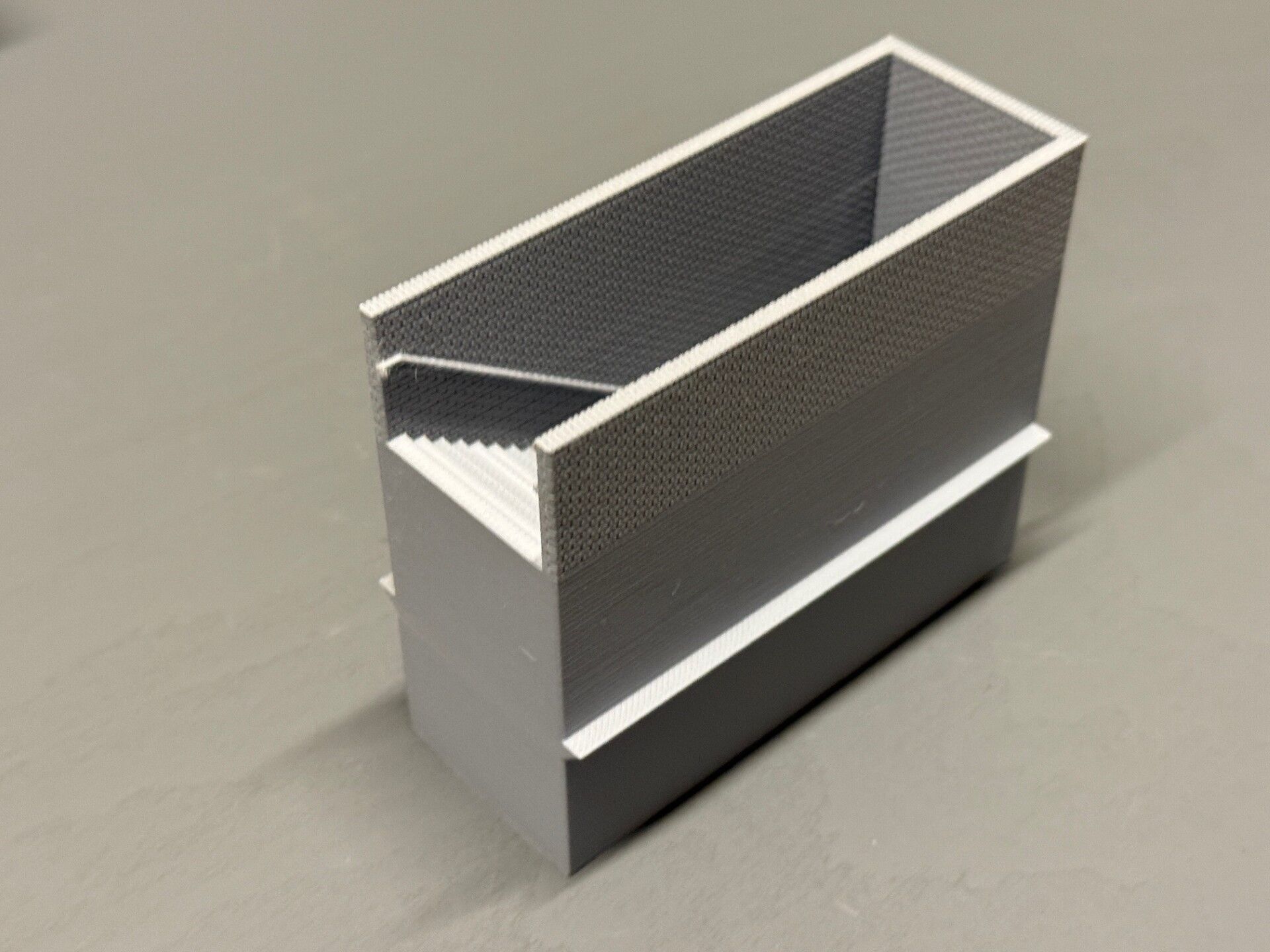

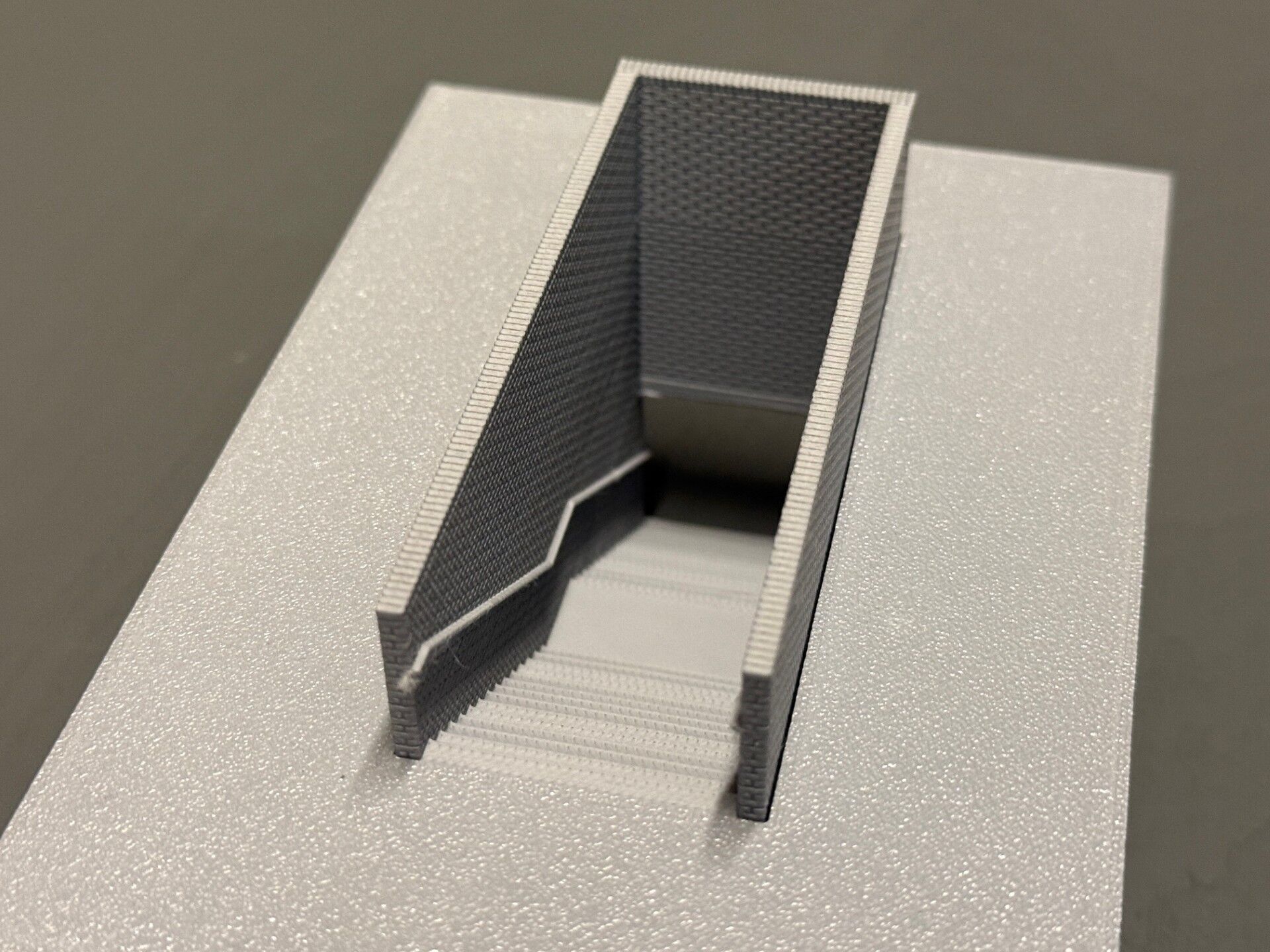

The examples in the pictures were printed on a Bambu Labs A1 FDM Printer.As normal with my designs, there is a balance between accuracy and printability, hopefully not affecting the look of the model too much. This design was especially difficult to get a balance between accuracy and printability.

For FDM printing I used a 0.4mm nozzle and a layer height of 0.12mm using PLA filament.
