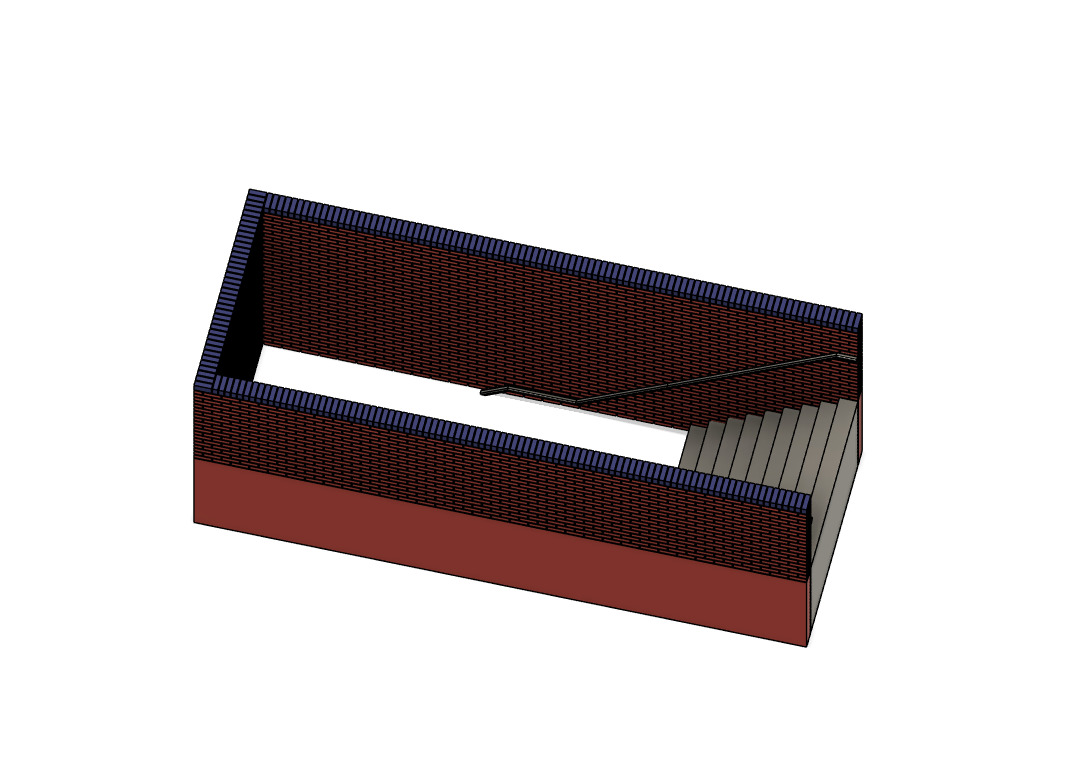

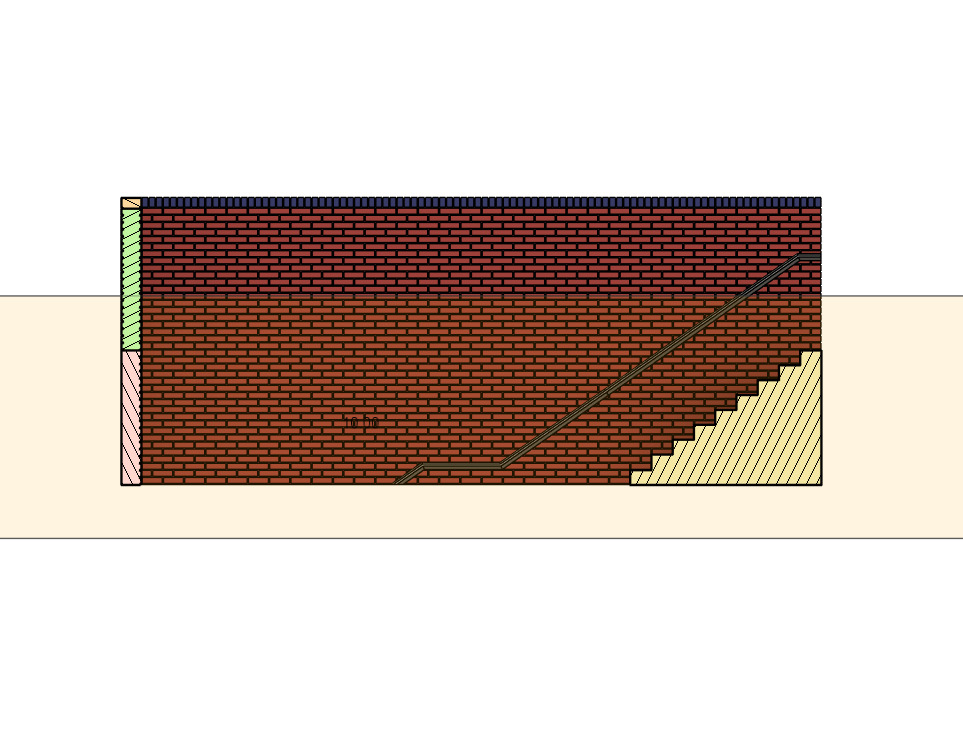

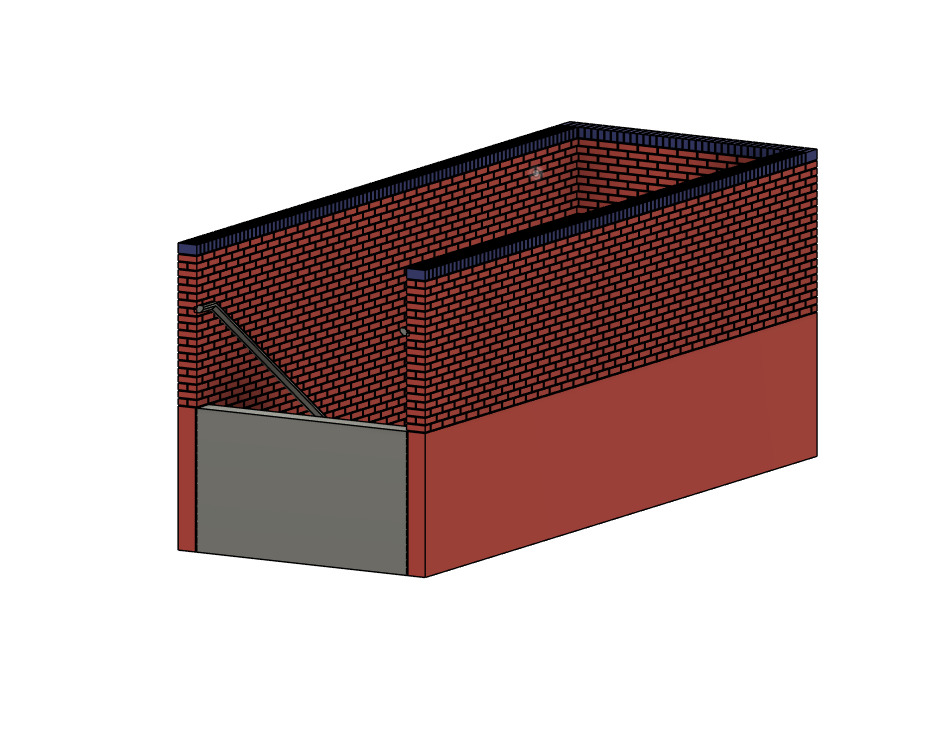

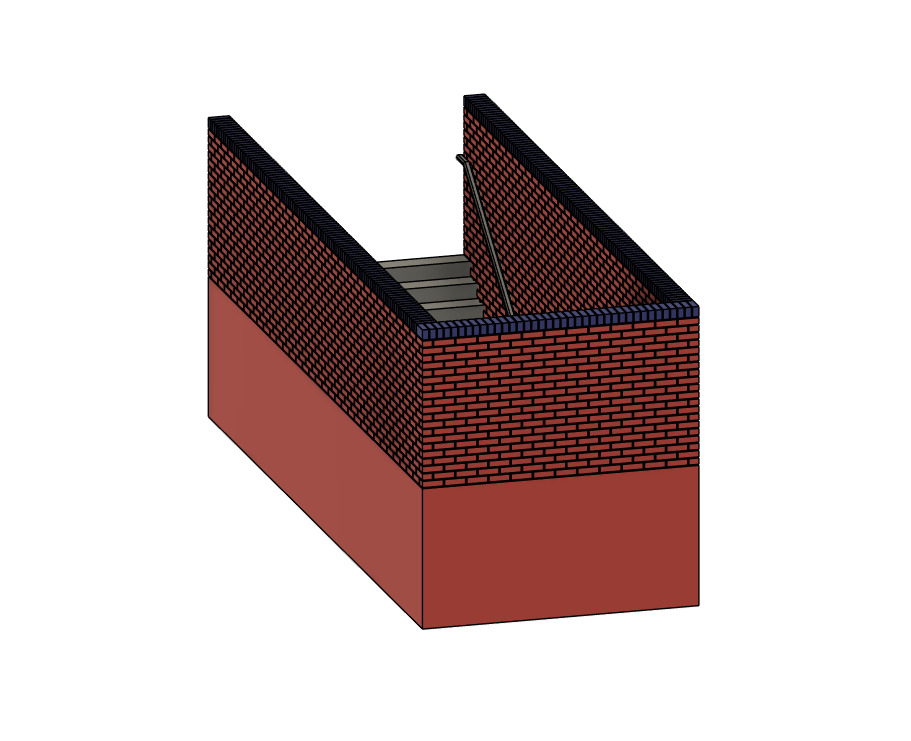

Model Railway Station Platform Brick Subway Steps V1 3D print model

With this design I have got two versions V1 is designed to sit on your baseboard without having to make a hole through and you can build your platform around it.

V2 is a seperate design where you cut a hole in your baseboard and will give the look of the subway fully going under your tracks.

This design is 37.5mm wide by 99mm long and is about 40mm high. The design is for a standard 19mm high platform.

The design has also been designed to be printed on a FDM printer but for smaller scales I would recommend printing on a Resin Printer.

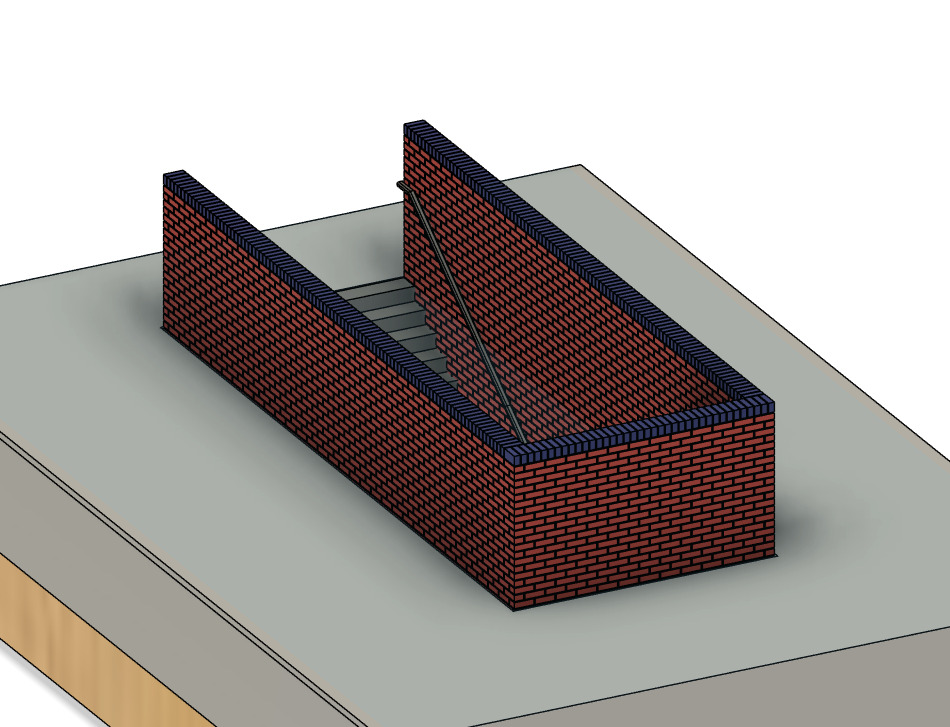

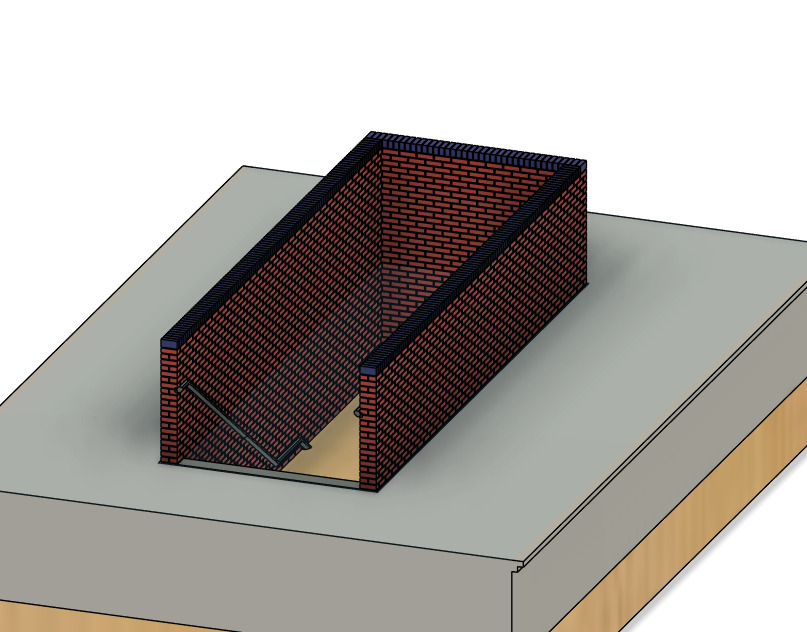

Platform section not included, used as a demonstration only.

designed at OO gauge, 1/76.2 scale but can easily be scaled for other gauges.for HO gauge print at 87%, 1/87 Scale,for O gauge UK at 175%, 1/43.5 Scale,for O gauge International print at 158%, 1/48 Scale,for N gauge print at 51.49%, 1/148 Scale, (Caution: I have not printed this model in N gauge so I can’t guarantee its printability, recomend resin over FDM)

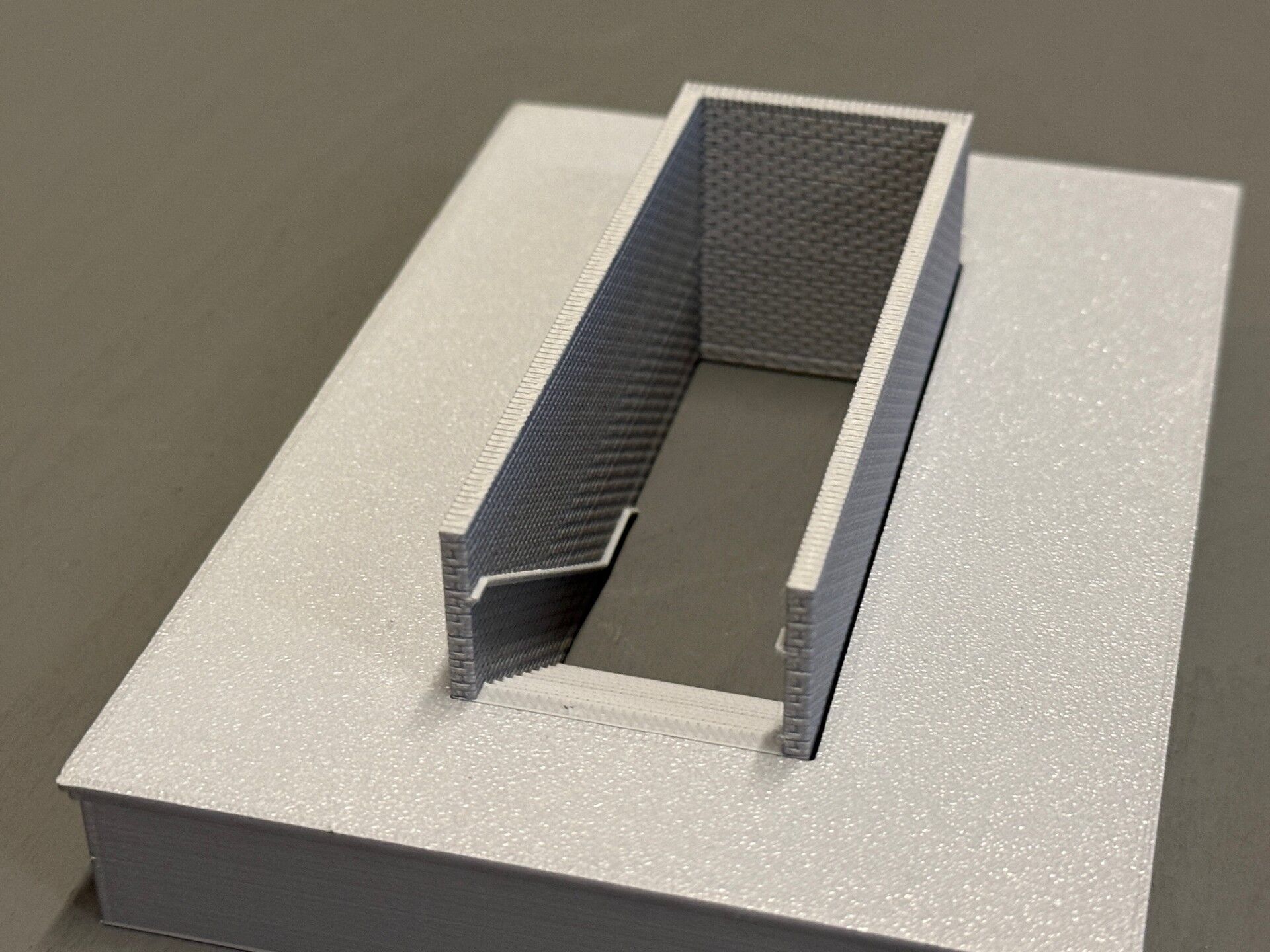

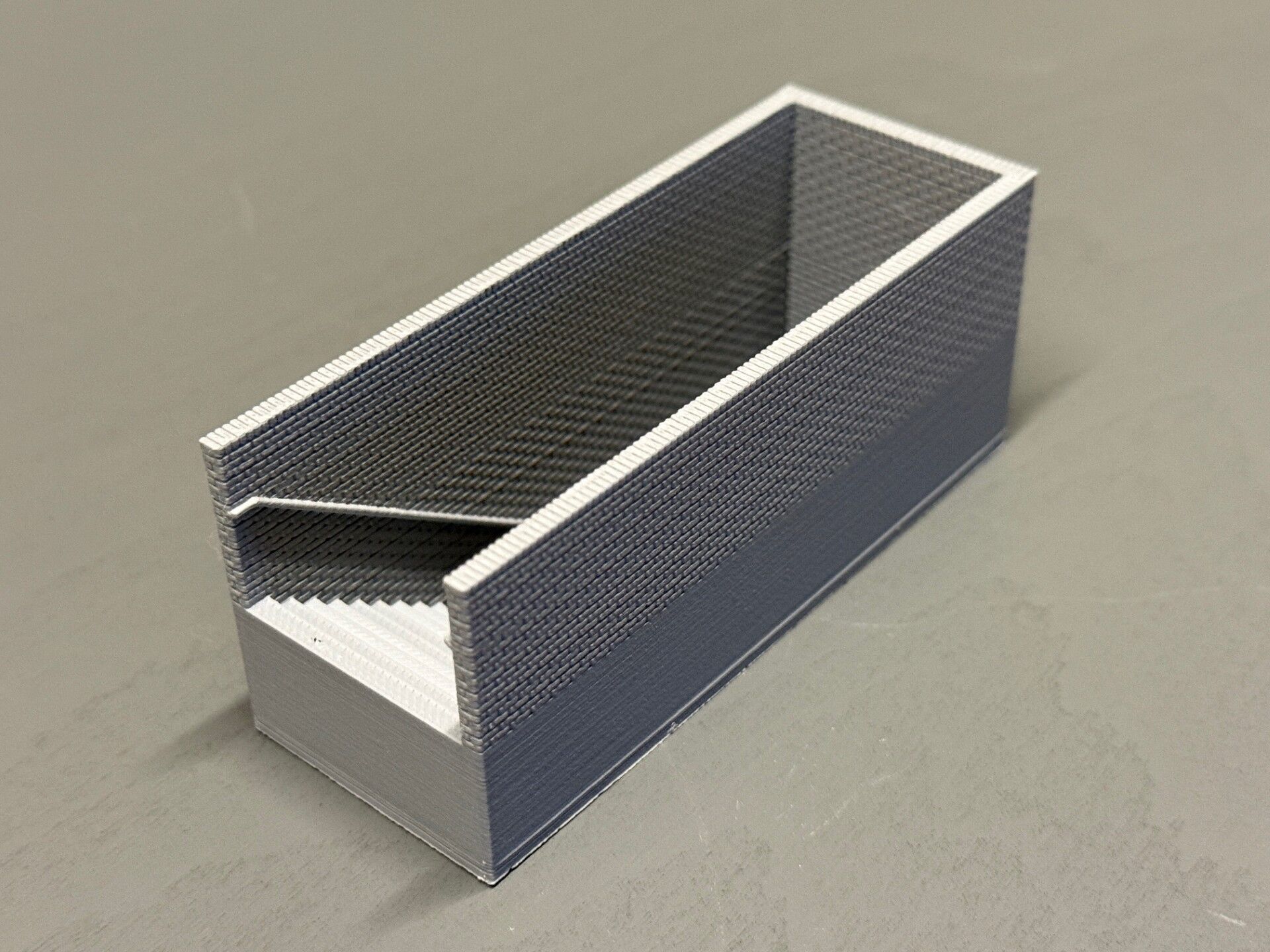

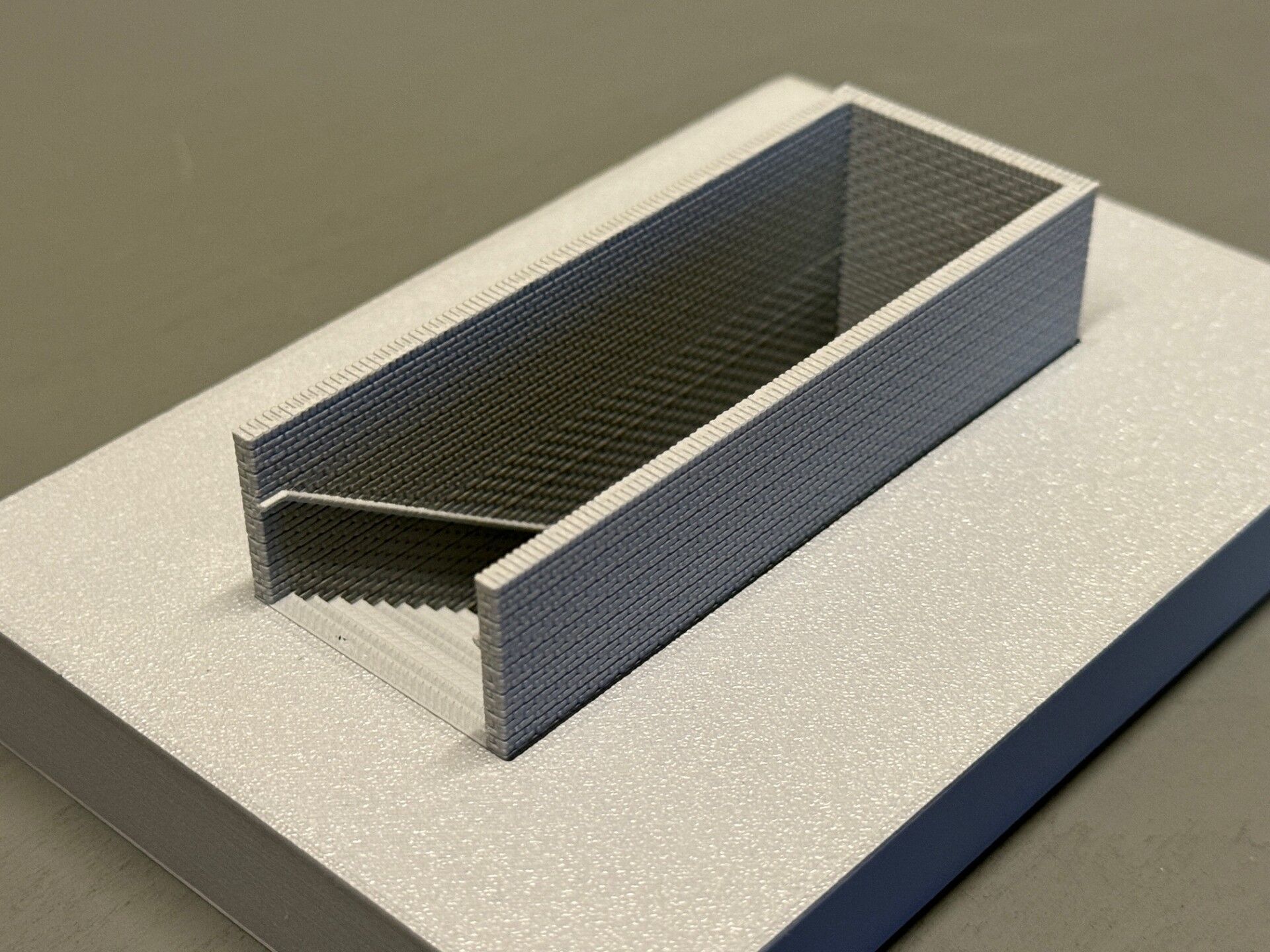

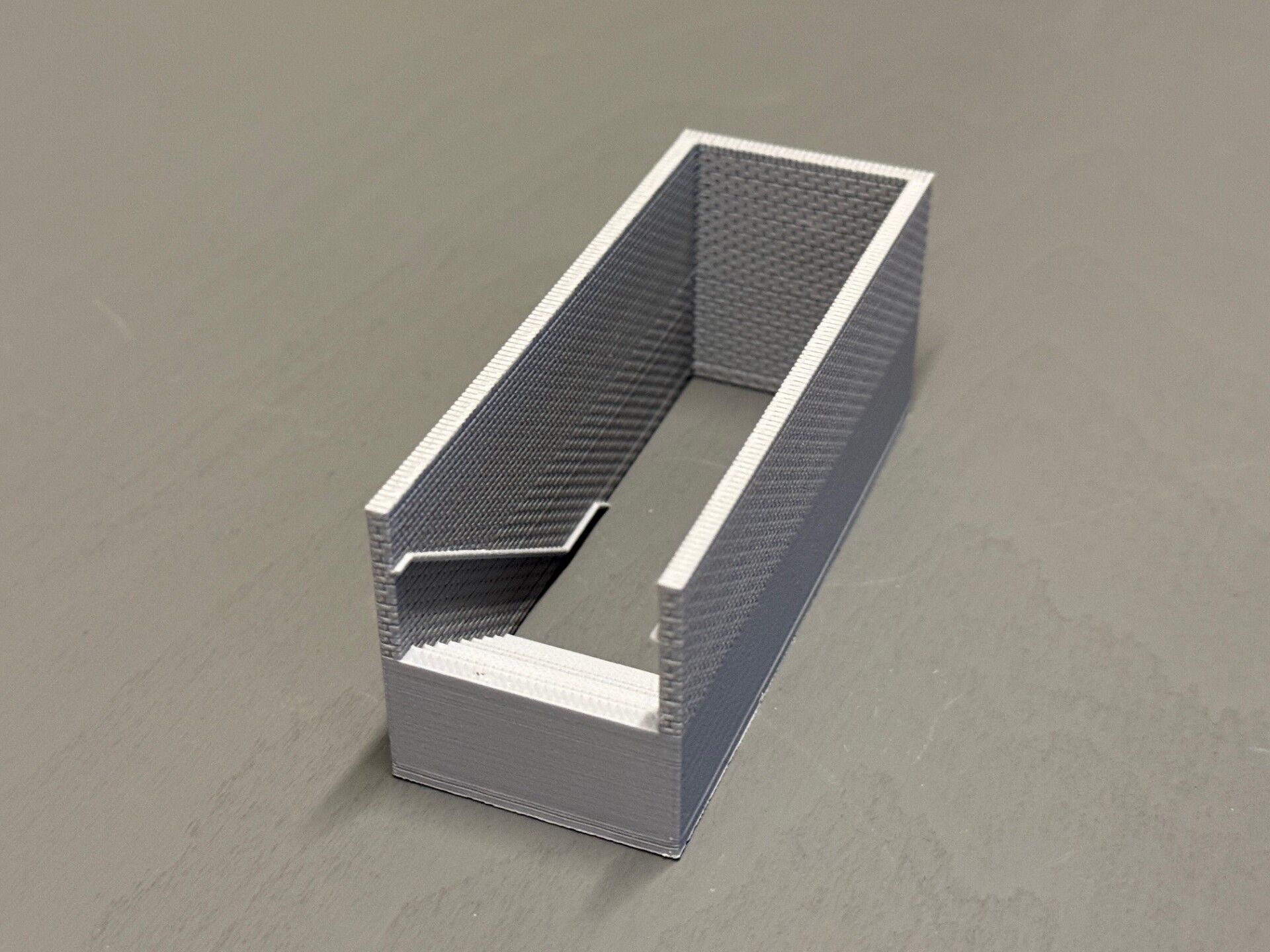

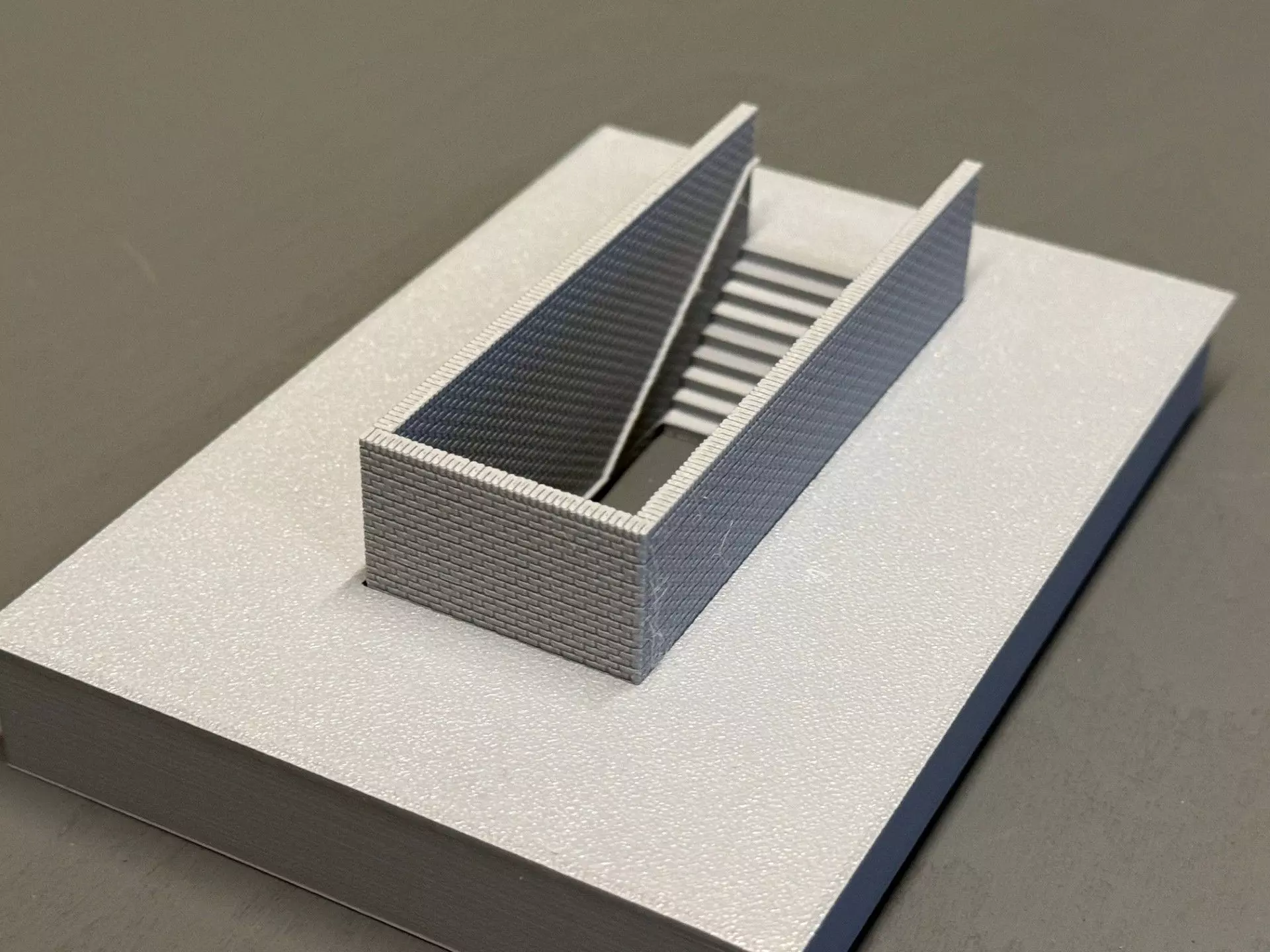

The examples in the pictures were printed on a Bambu Labs A1 FDM Printer.As normal with my designs, there is a balance between accuracy and printability, hopefully not affecting the look of the model too much. This design was especially difficult to get a balance between accuracy and printability.

For FDM printing I used a 0.4mm nozzle and a layer height of 0.12mm using PLA filament.
