Gaugemaster Seep Motor Alignment Mount Bracket and Tool 3D print model

Gaugemaster seep motor alignment bracket to assist with mounting seep motor.Also included is a alignment tool (Used before laying track).

Designed for use with Gaugemaster GMC-PM1, GMC-PM2 and GMC-PM4

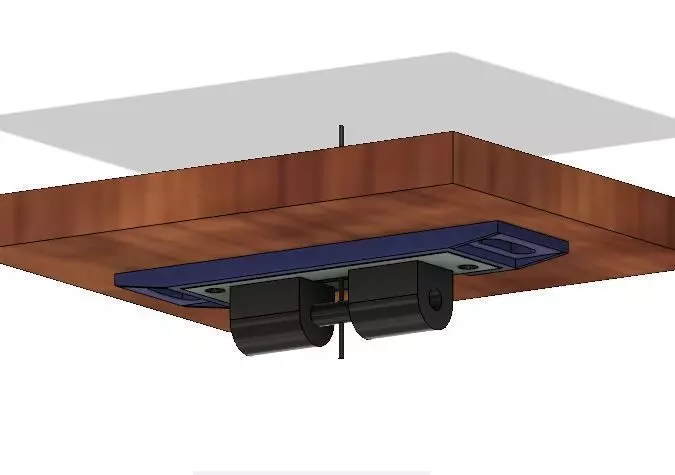

Designed to fit between seep motor and baseboard. Its designed to fit into 10mm hole where seep motor point switching tie bar goes. Designed to fit 6mm thick baseboard and above.

For installation drill 10mm hole in baseboard, roughly place bracket into hole on the underside of the baseboard (use alignment screw holes to hold in position, these allow a 16deg movement). Use the alignment tool to align bracket to the track correctly and then fasten braket securly to baseboard.Finally a attach seep motor to braket with holes in the seep motor.

Please refer to pictures for help.

Designed to be printed on a 3D Resin or filament printer.Bracket will be stronger if printed on a 3D filament printer, example is printed on a 3D resin printer and is strong enough to use.
