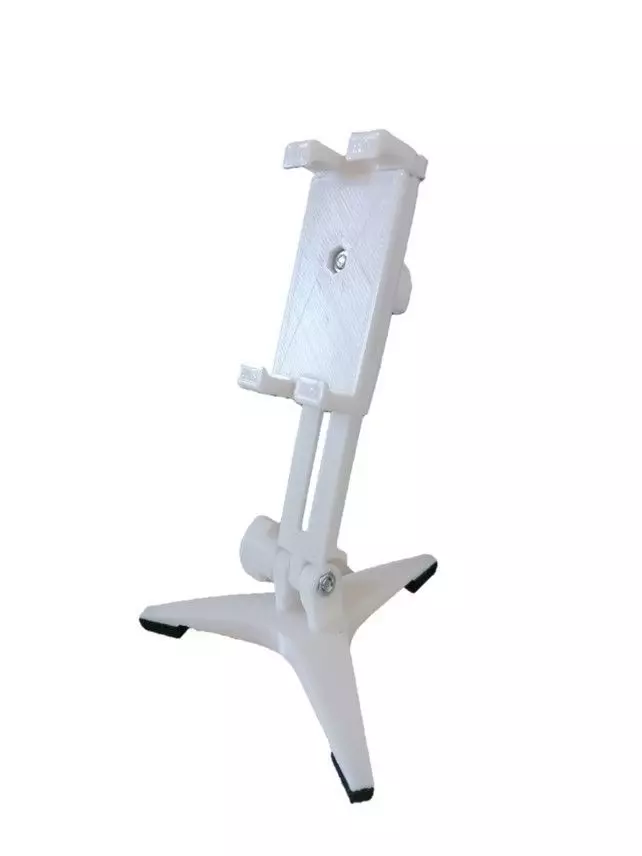

Big desktop smartphone stand 3D print model

This is the big version of Desktop smartphone stand project.This project makes it possible to create a simple and convenient desktop stand for smartphones up to 7 "in size.Thanks to the ability to rotate 360 °, the smartphone can be oriented both horizontally and vertically.Furthermore, thanks to a screw knob it is possible to slide the support and also adjust its height.The arm on which the support is mounted can rotate 180 °, this also allows you to adjust the inclination for a more comfortable viewing of the screen.

The parts to be 3D printed are listed below:

1. Base
2. Base with support
3. Bracket
4. Nob 1
5. Nob 2
6. Phone holder 1
7. Phone holder 2

For a best printer quality the parts should be printed with the settings below:

First layer height: 0.2 mm

Layers height: 0.14 mm

Infill: 15%

Supports: no supports required

To complete the assembly you need these commercial parts:

No.2 - M4 x 20 mm Exagonal screws

No.2 - M4 bolts

No. 1 - Rubber band

No.2 - M3 x 60 screw
