Bf 109 F - G Exhaust 3D print model

Description

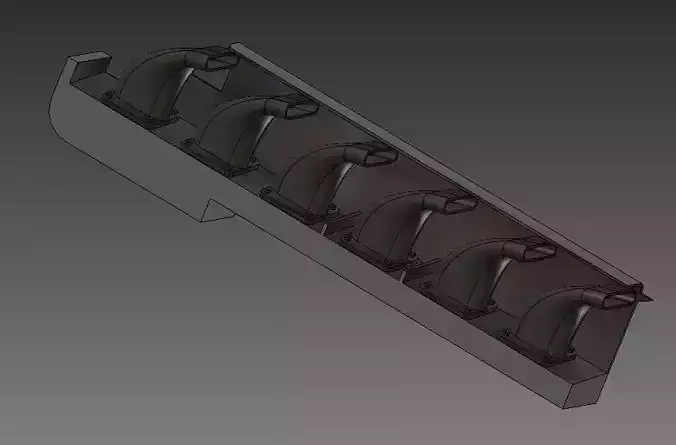

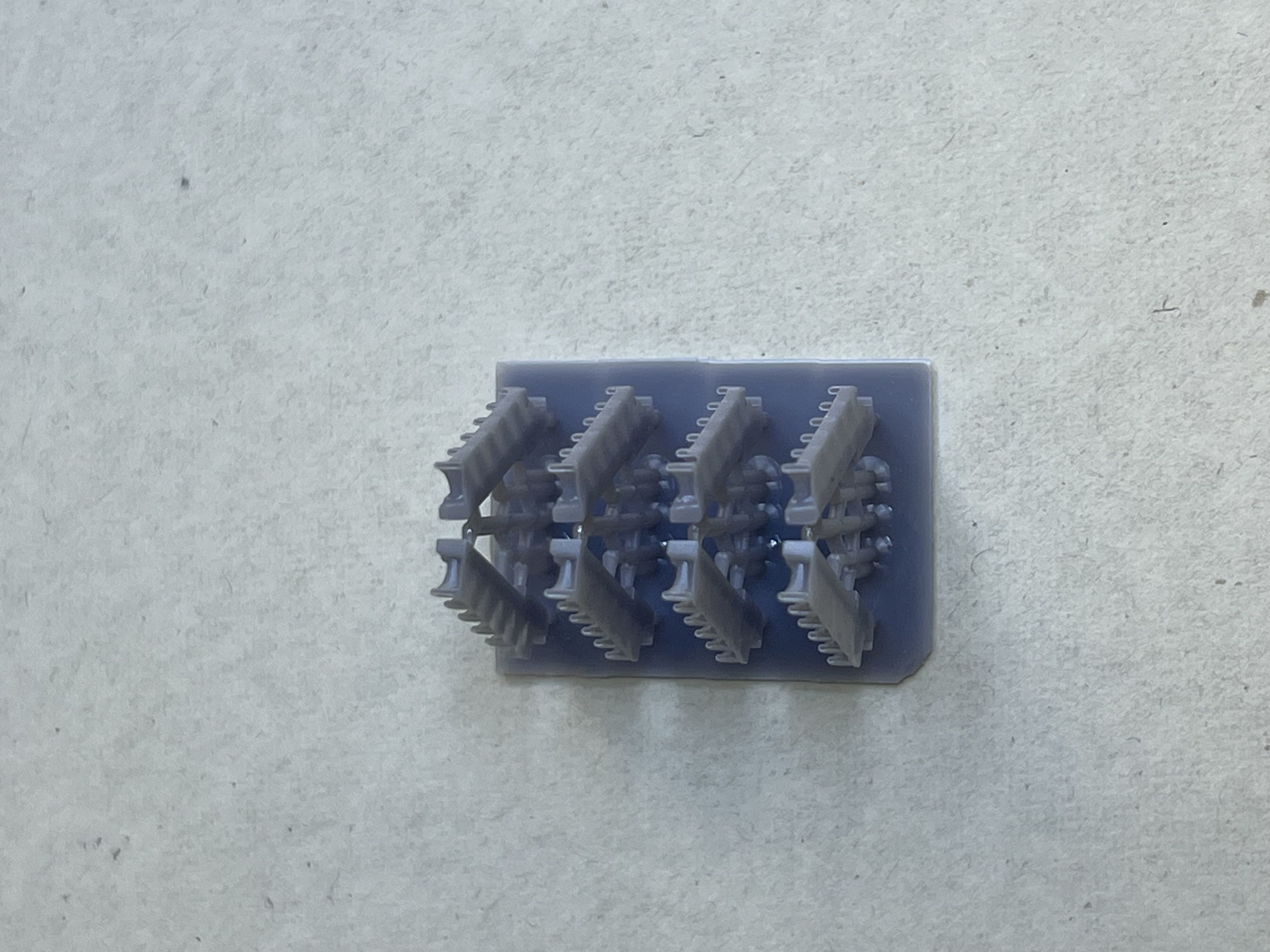

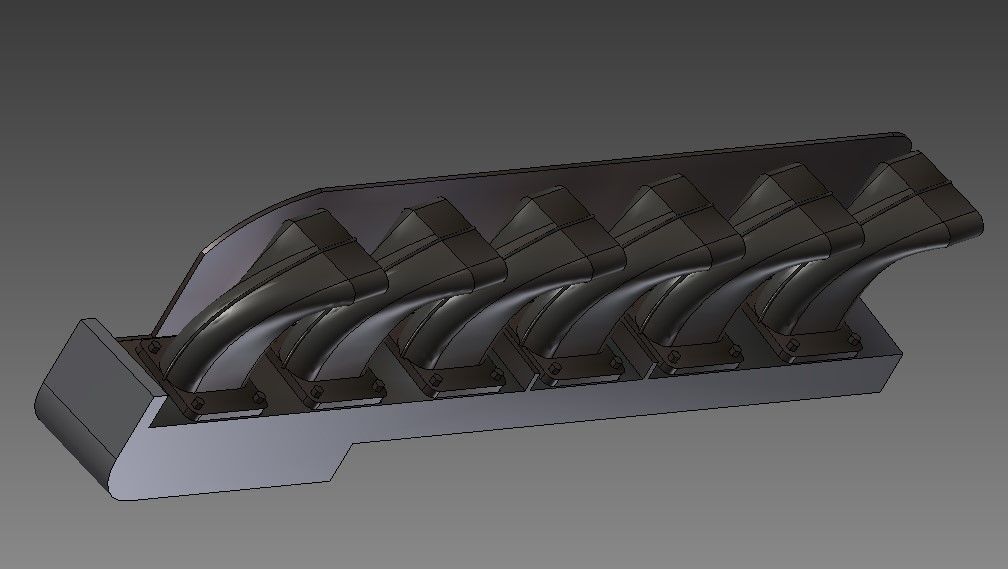

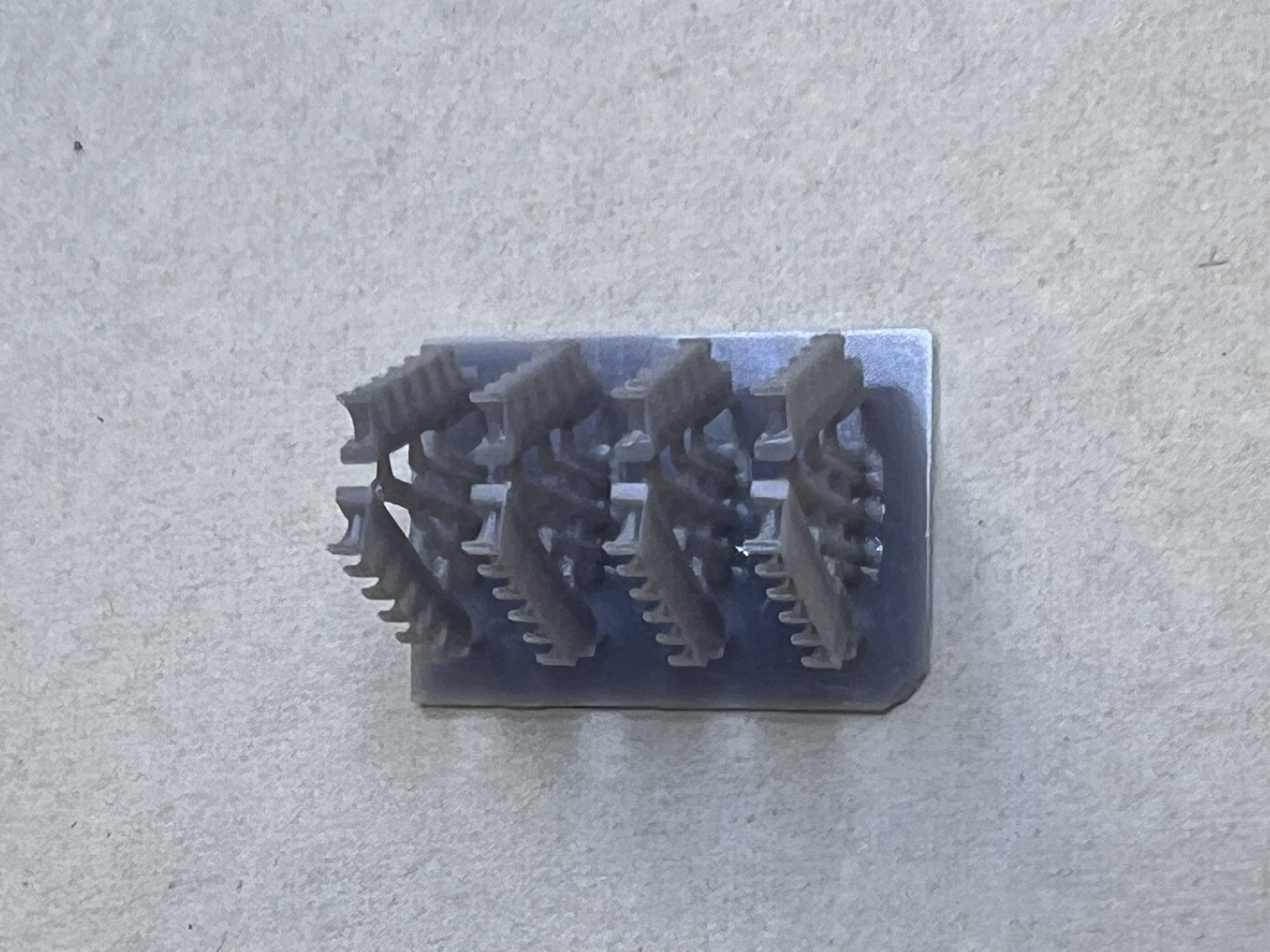

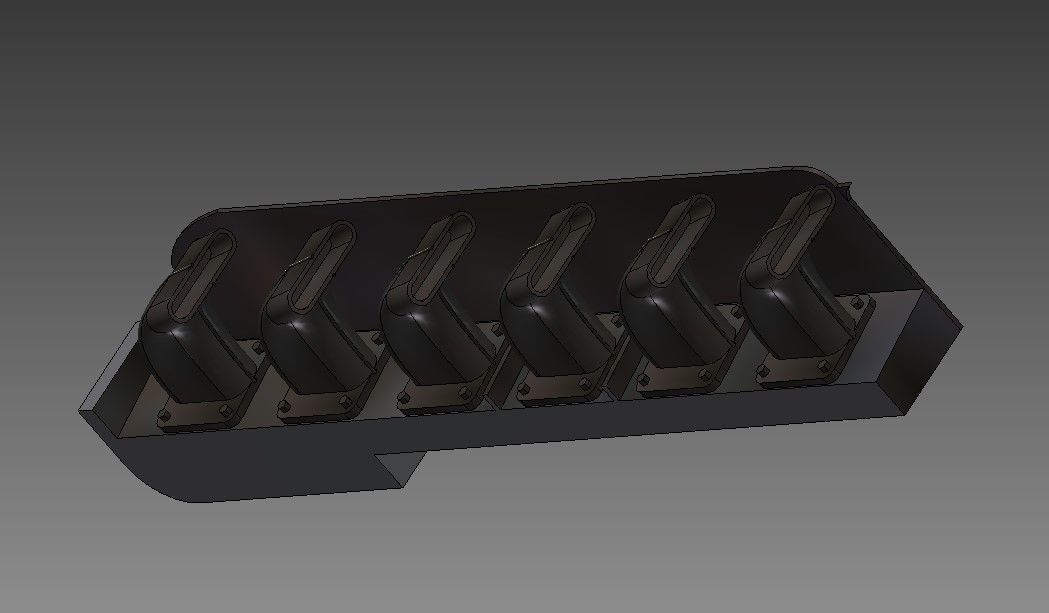

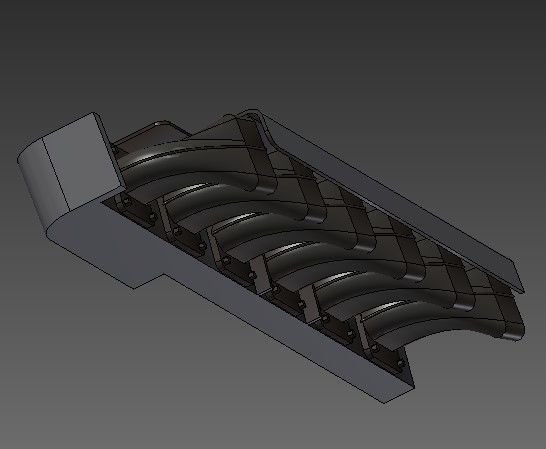

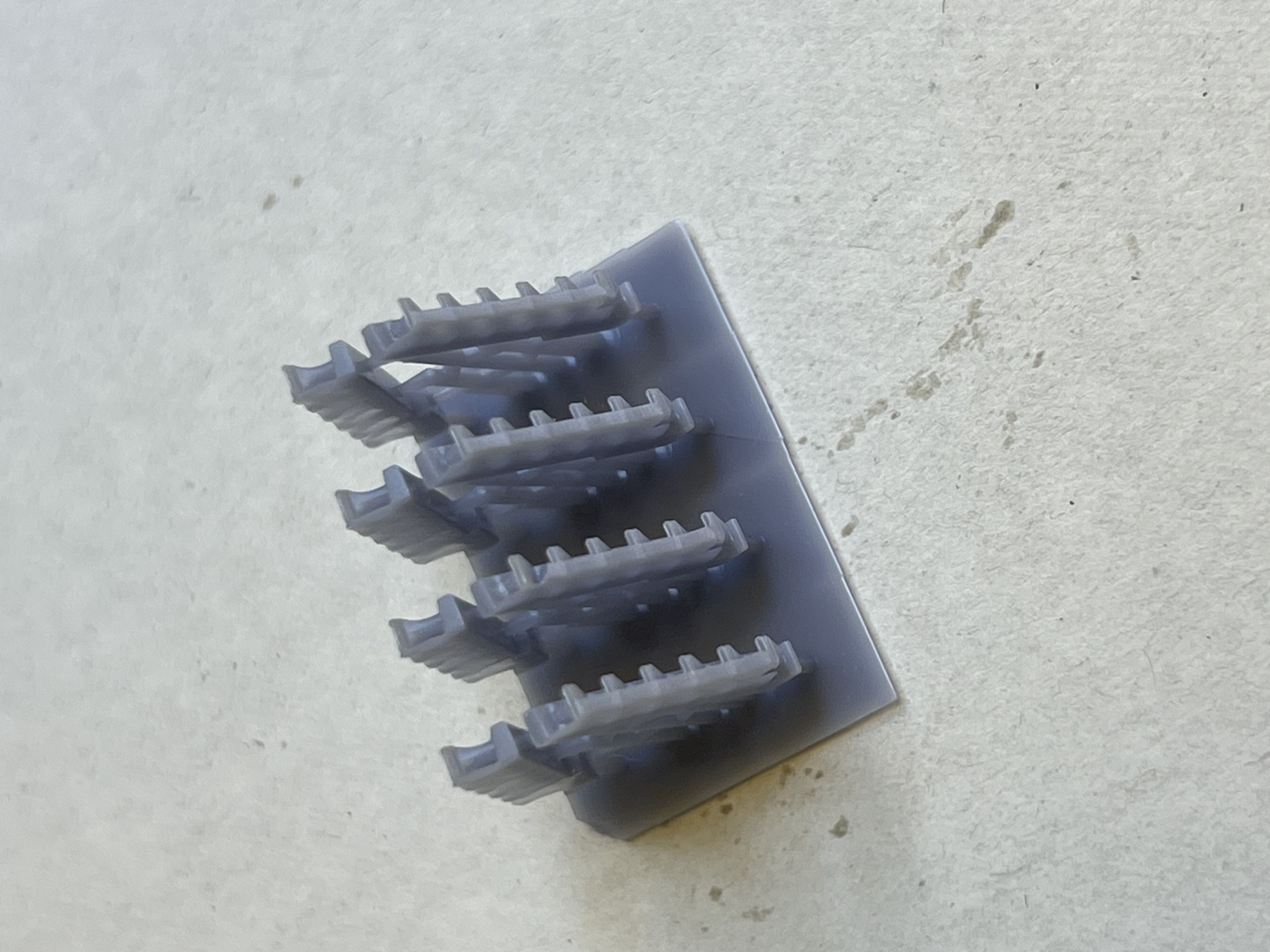

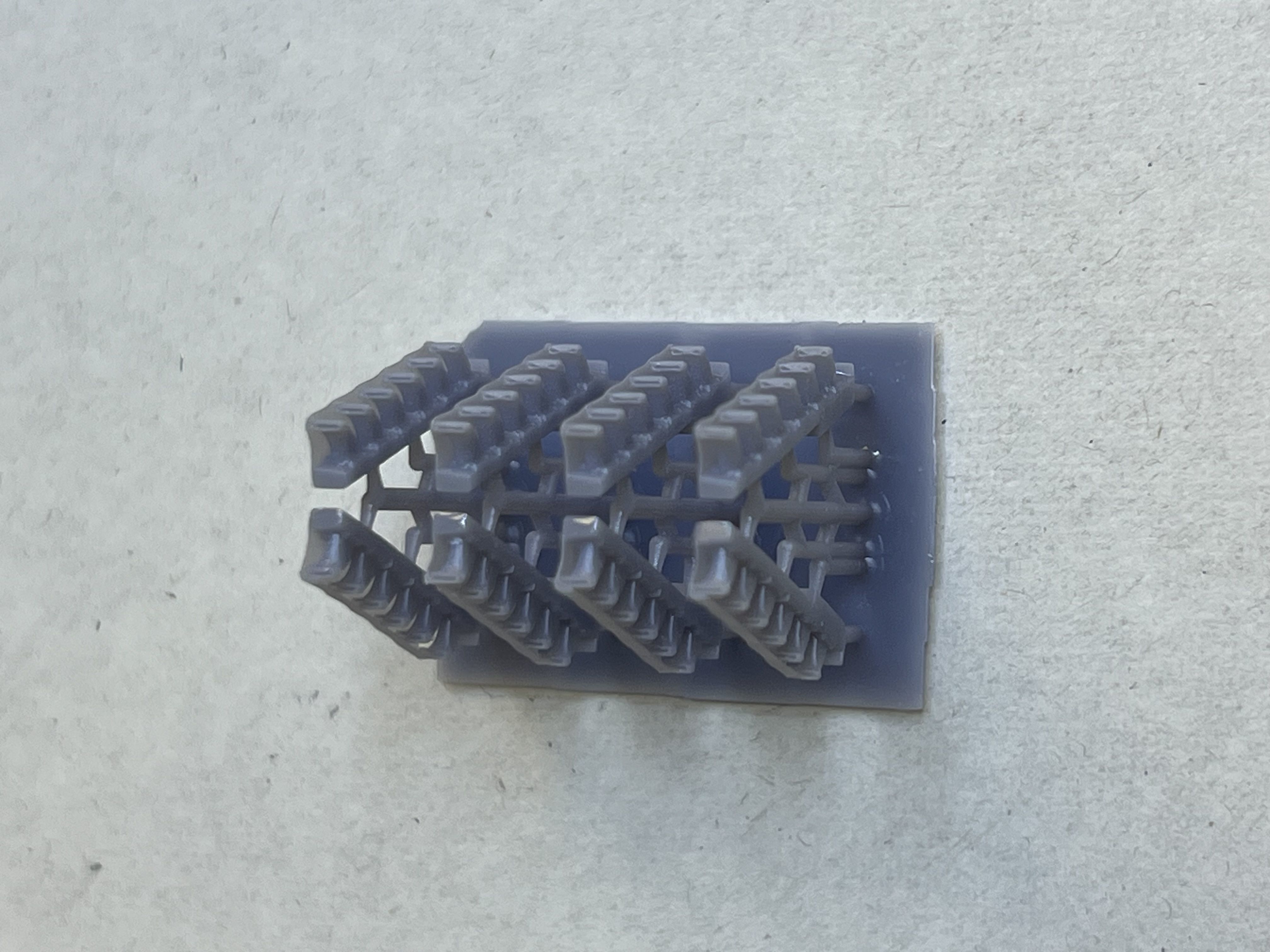

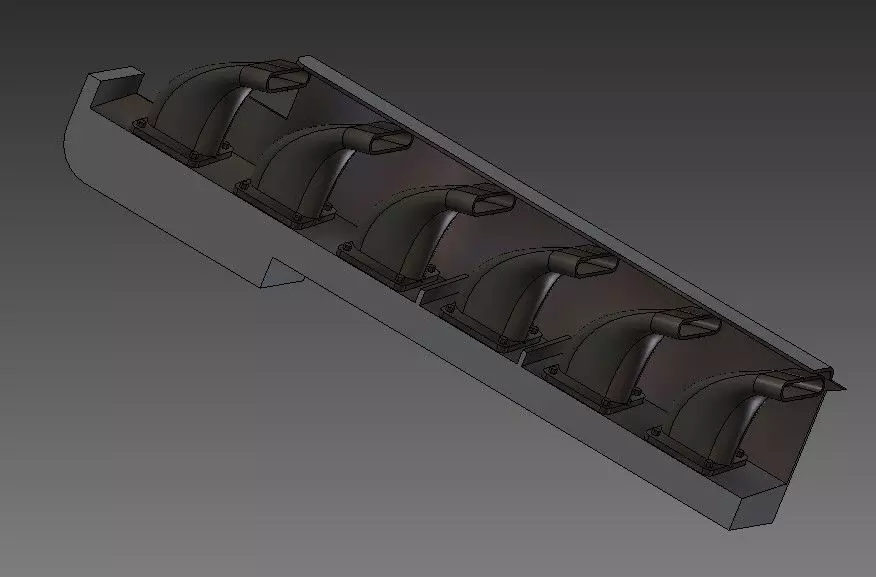

Bf 109 F-GExhaust - both sides of the aircraft.Size 1:72 - 16.22 mm,Up to the size of 1:48, it is necessary to recalculate and adjust.Check the size in the program's slicer.Choose an STL file from Inventor or CorelCad (some new printers will not print the given STL file). Mirror the wheel in the program's slicer.The set is also in the slicer CHITUBOX. I recommend a printer with a higher resolution 10K+ HD Screen.

Write comment
W
wurger41
wurger412024-11-17 13:29:57 UTC
No, you should NOT mirror the file - Port and Starboard exhaust shrouds in the Bf109 differed. The port exhaust shroud bent downwards to direct exhaust gasses away from the Supercharger intake just above and aft of the rear 2 exhaust pipes. The Starboard shroud was straight. If I could post images here to show this, I would.
J
jirkatr
jirkatr2024-11-17 16:58:43 UTC
Hello, thank you for the information. If you have a photo, send it to me at tryznaj@sezna.cz. I will adjust the exhausts.
Item rating
0 0
Bf 109 F - G Exhaust
$5.00

Royalty Free License
Bf 109 F - G Exhaust
$5.00

Royalty Free License
J
jirkatr
(2 reviews)
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl)1.08 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2024-06-17
  • Model ID#5349322
