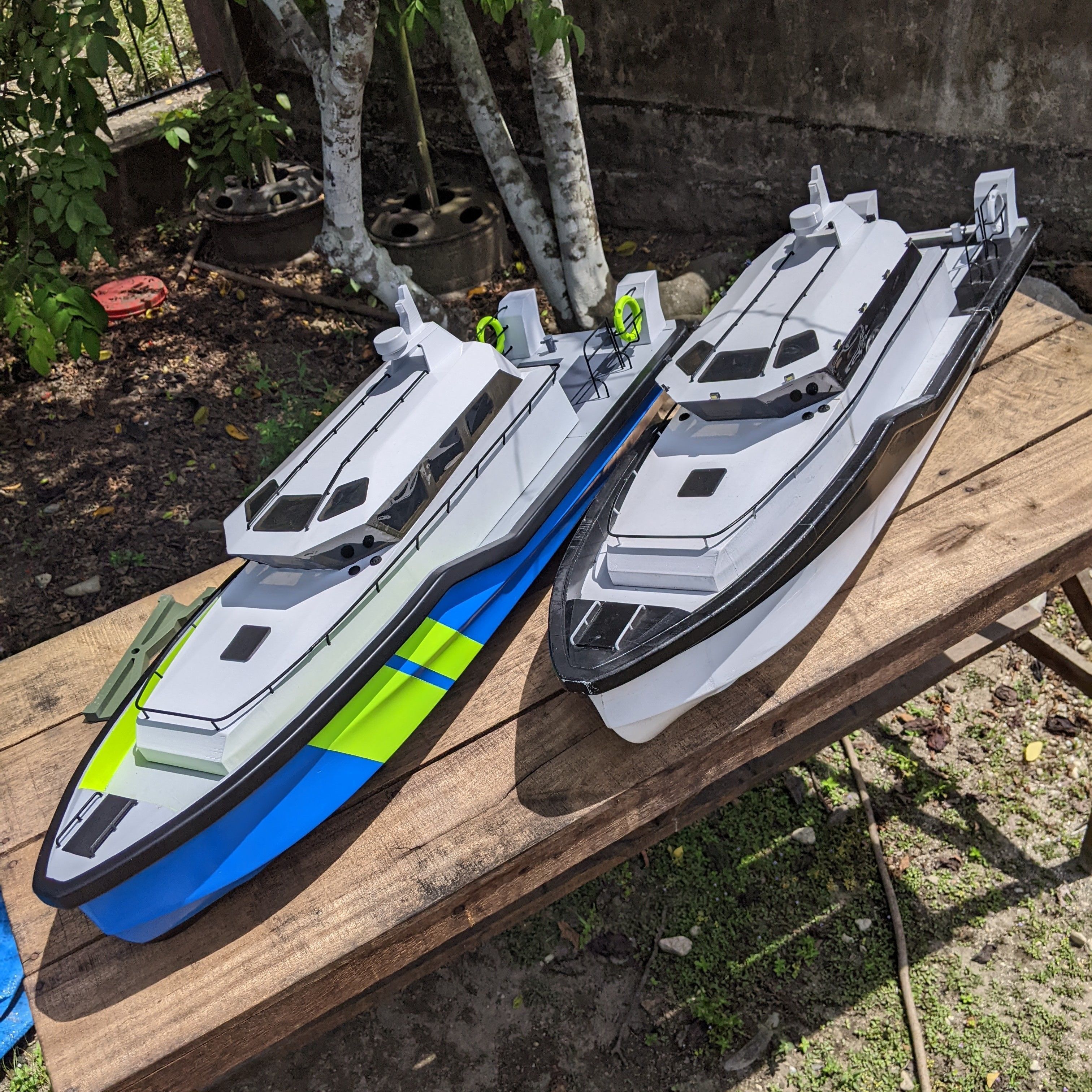

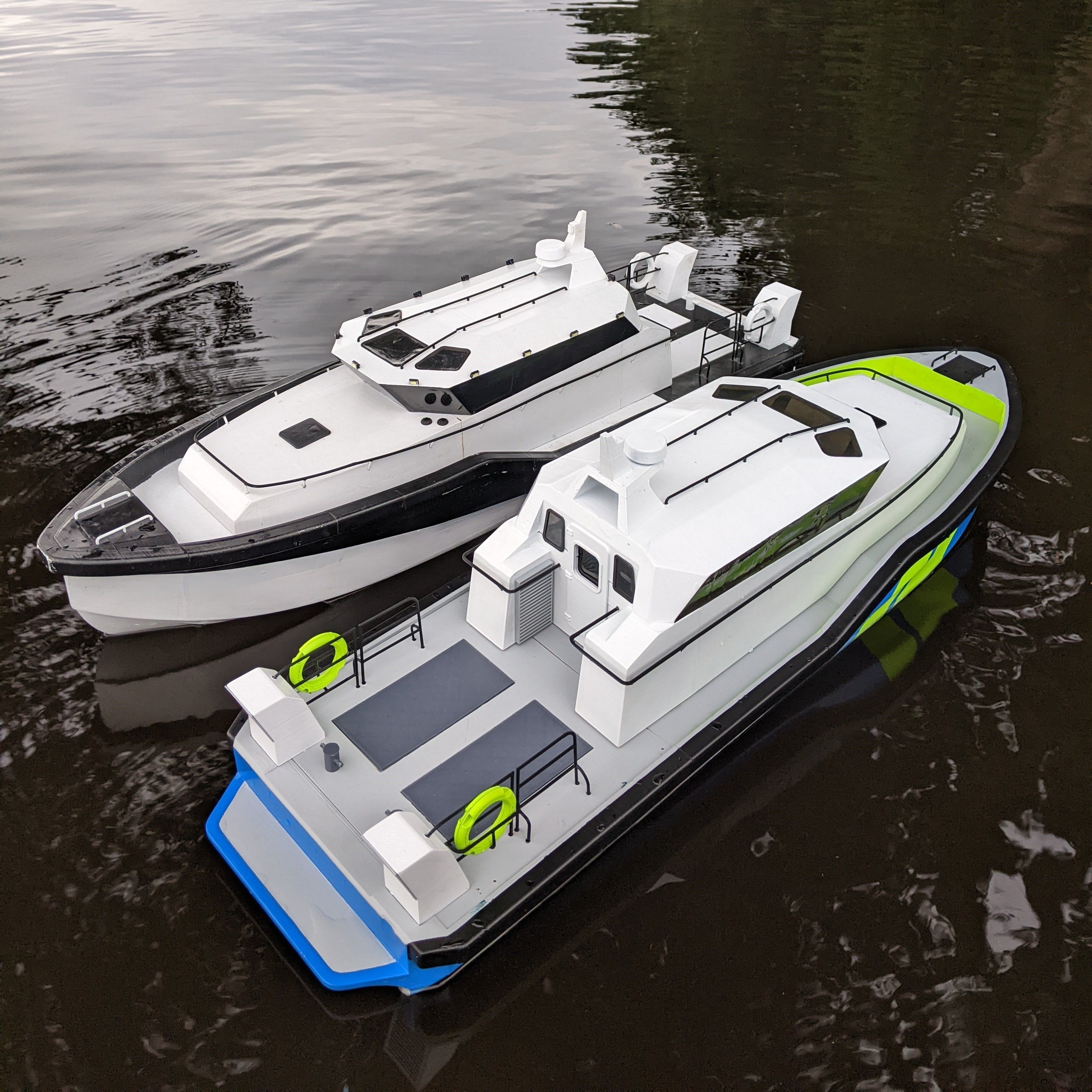

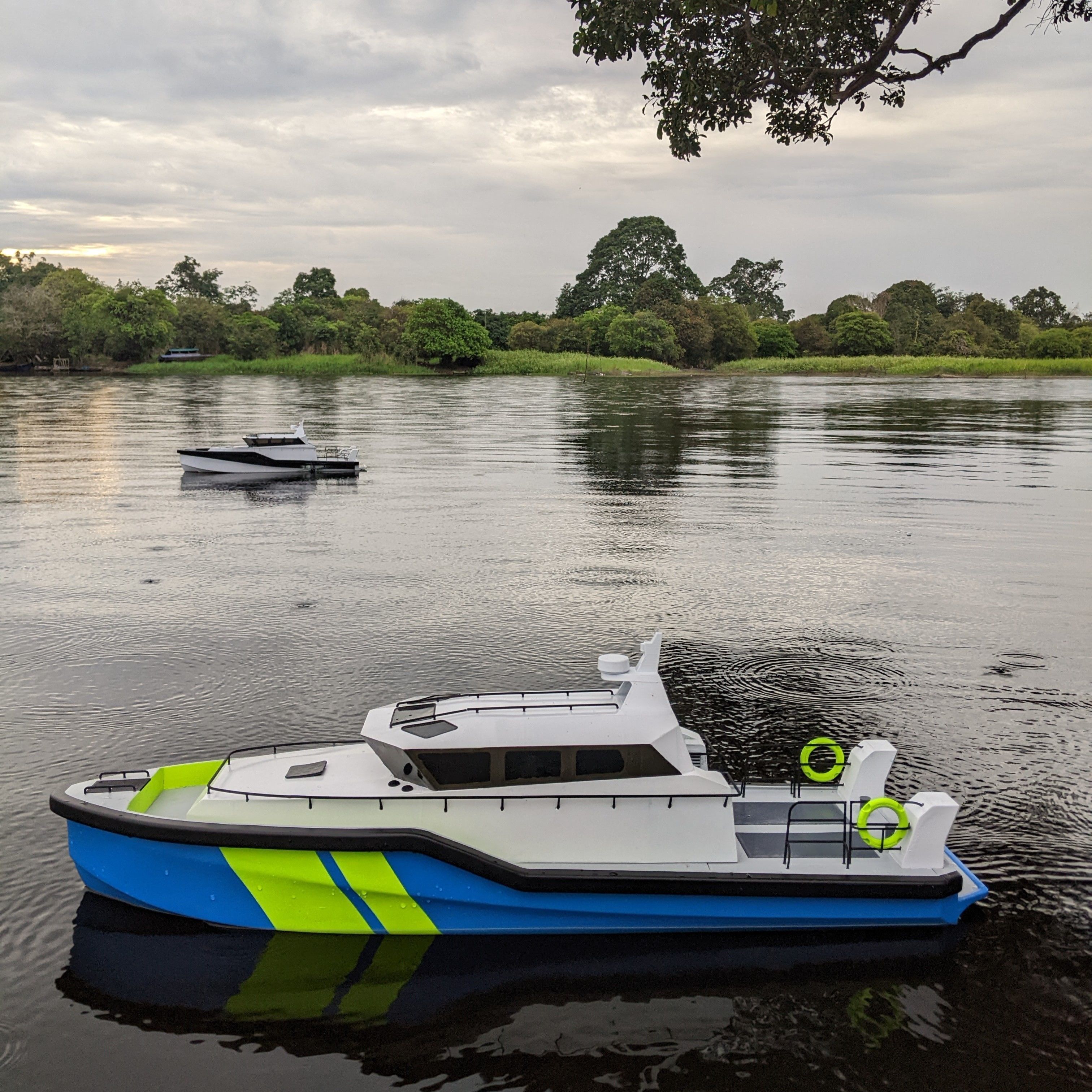

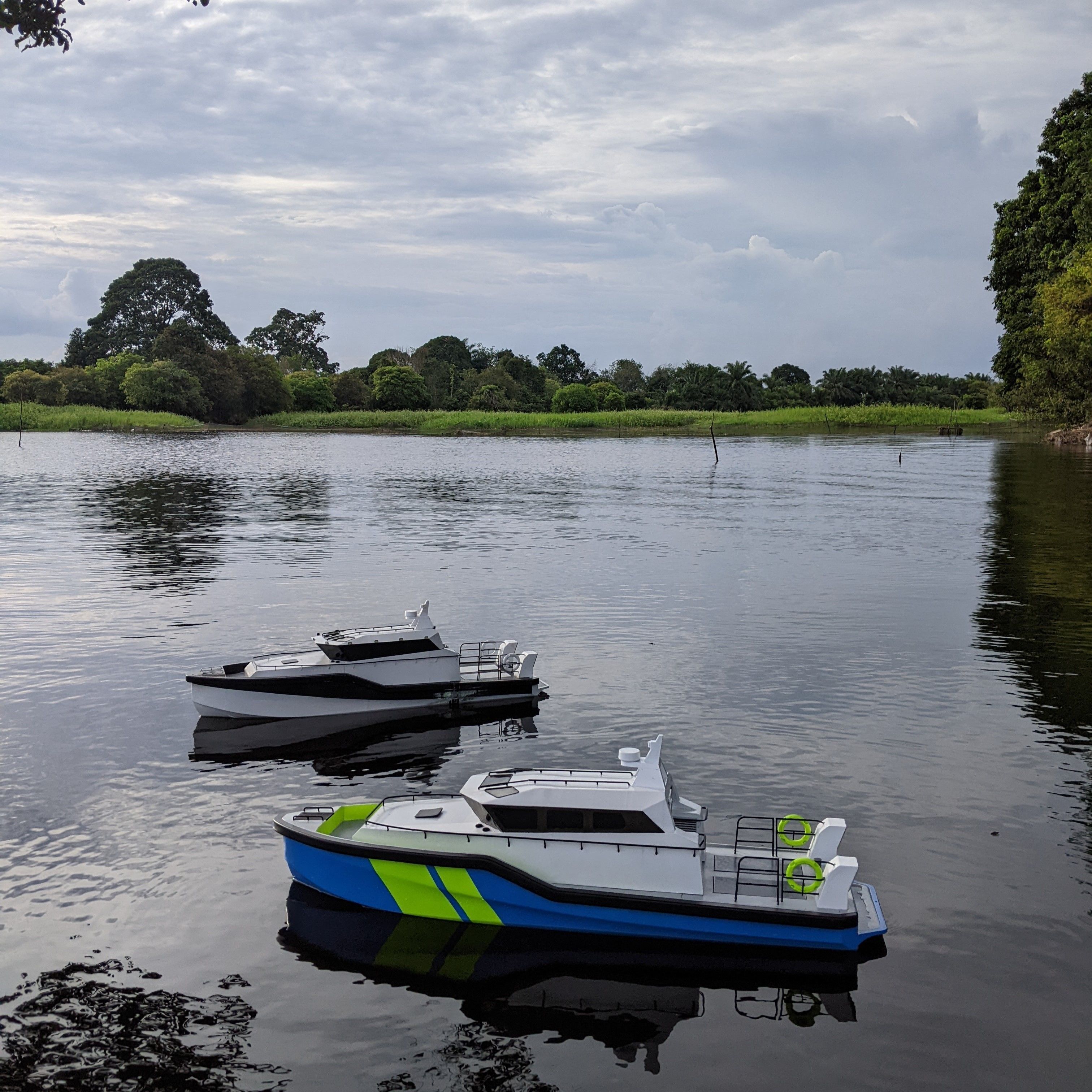

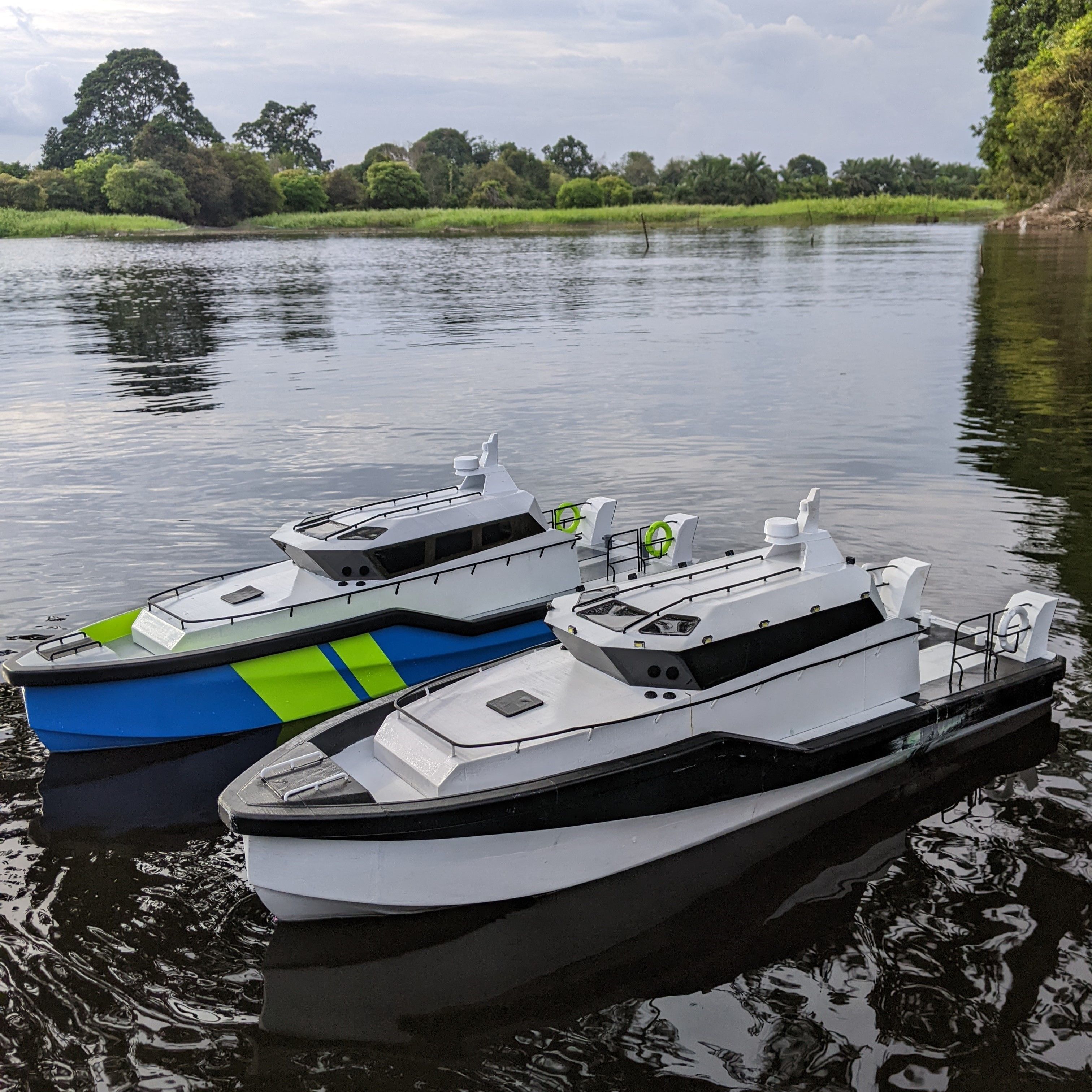

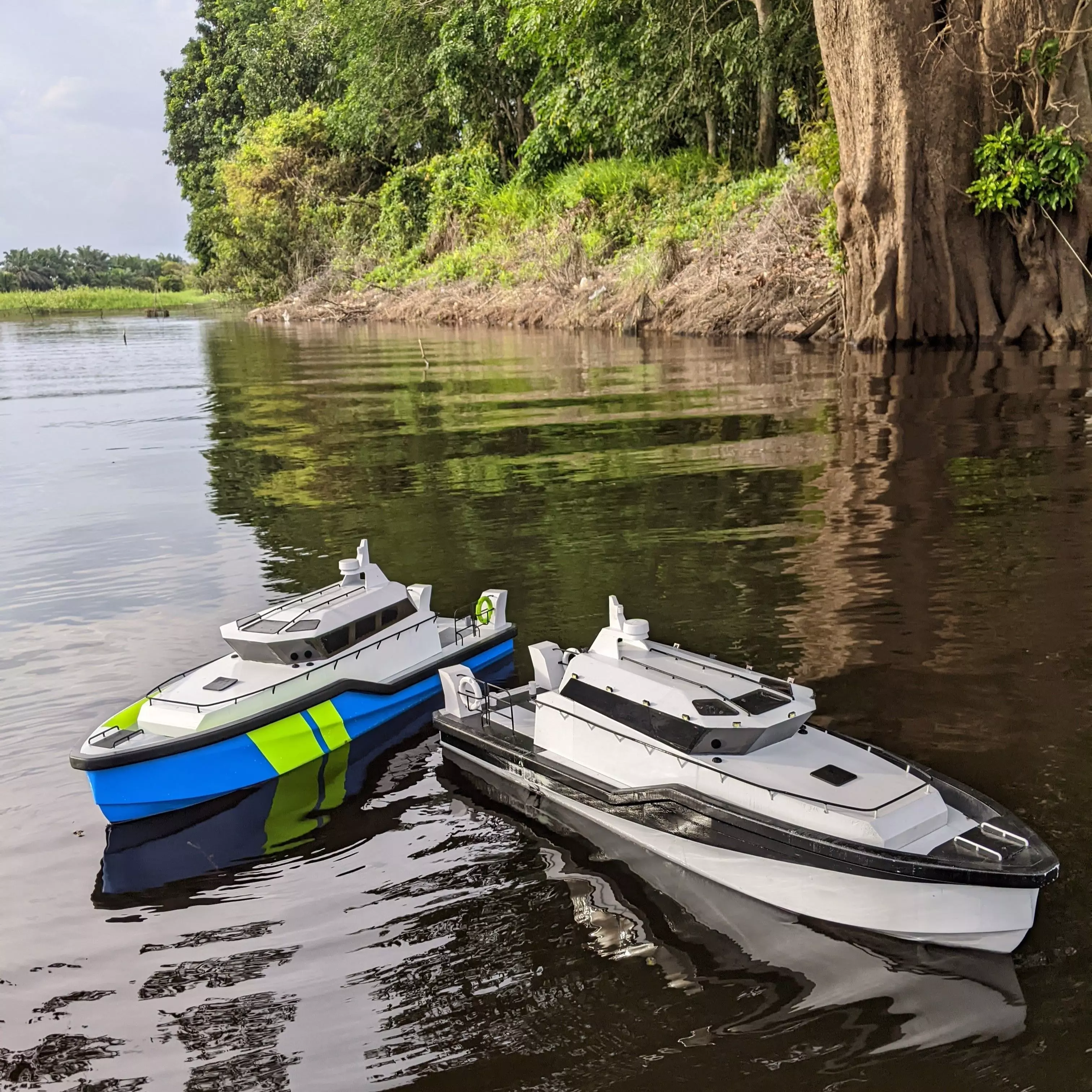

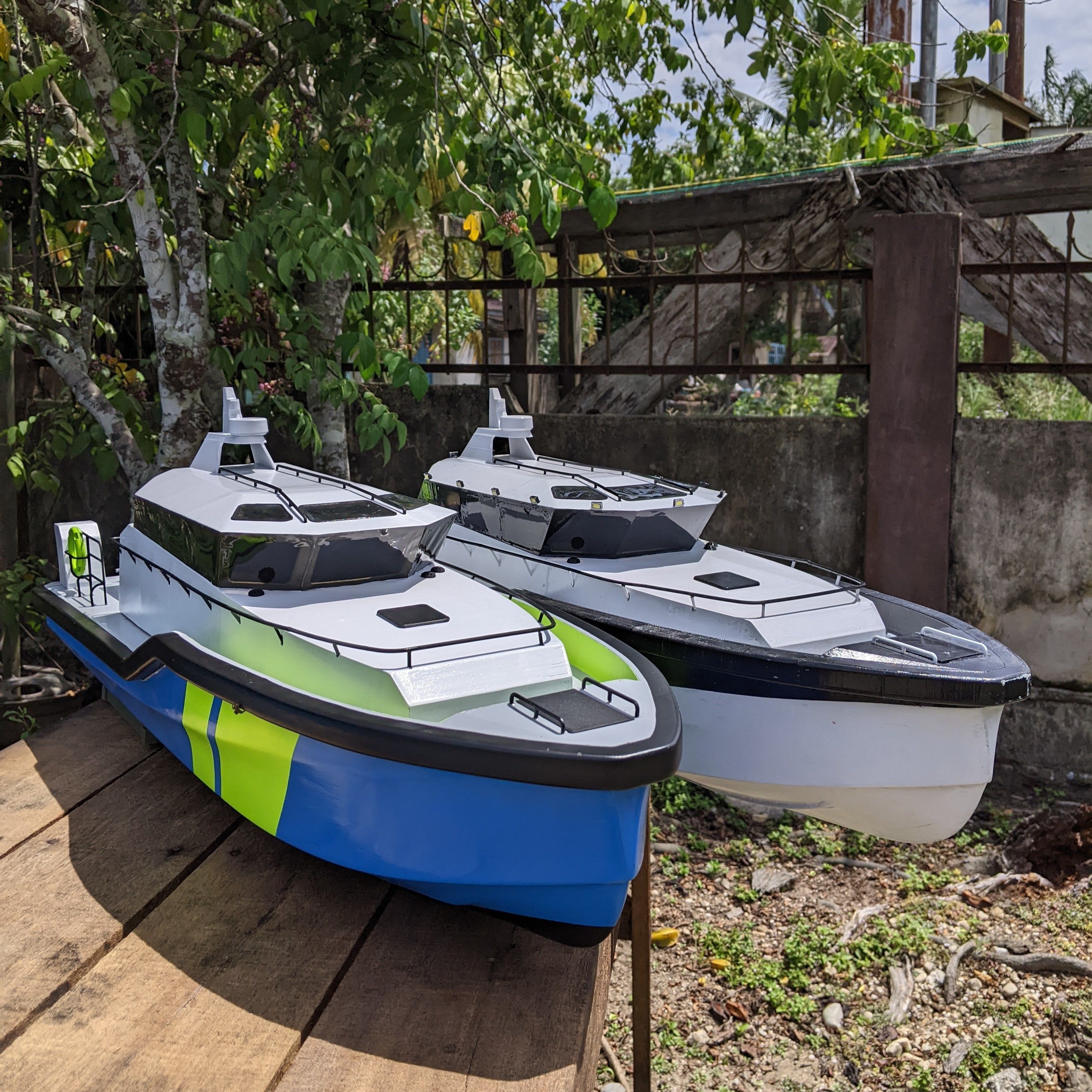

3D PRINTED RC PATROL JET BOAT 3D print model
Description
This rc boat is a boat that can be used as a patrol boat, sar boat and pilot boat,
This boat is a replica of the Palfinger Marine PB 1500 modelInclude :
- List of Materials

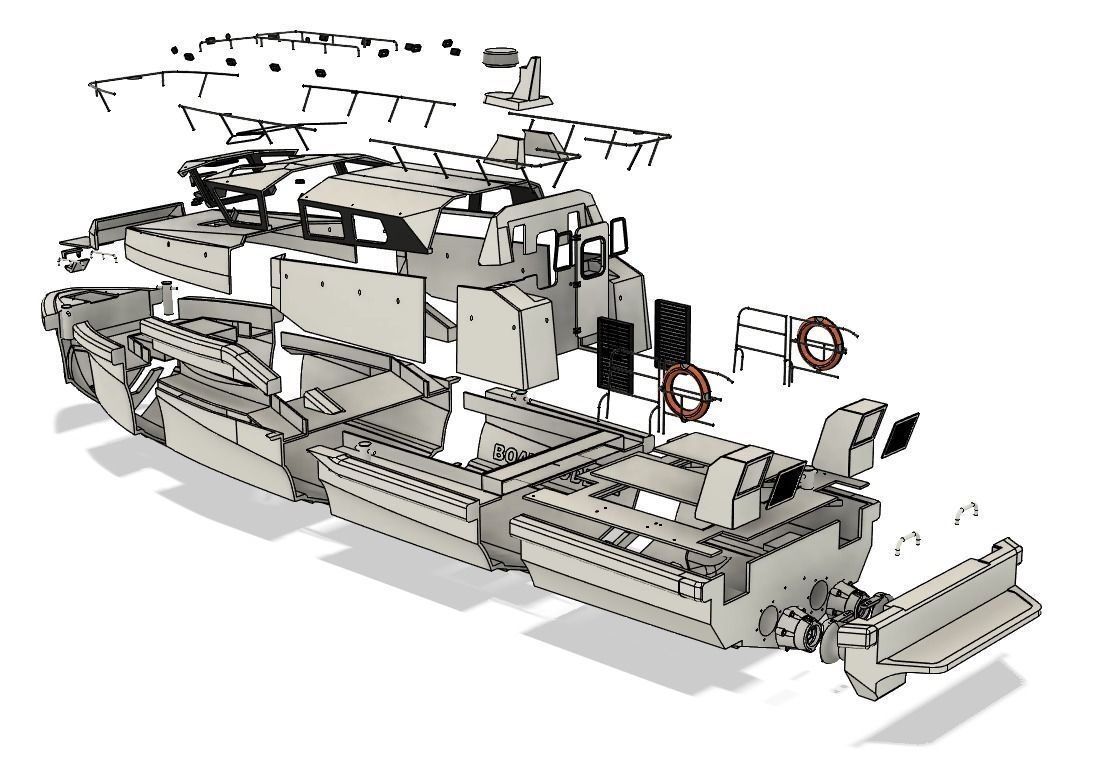

- Assembly instruction :

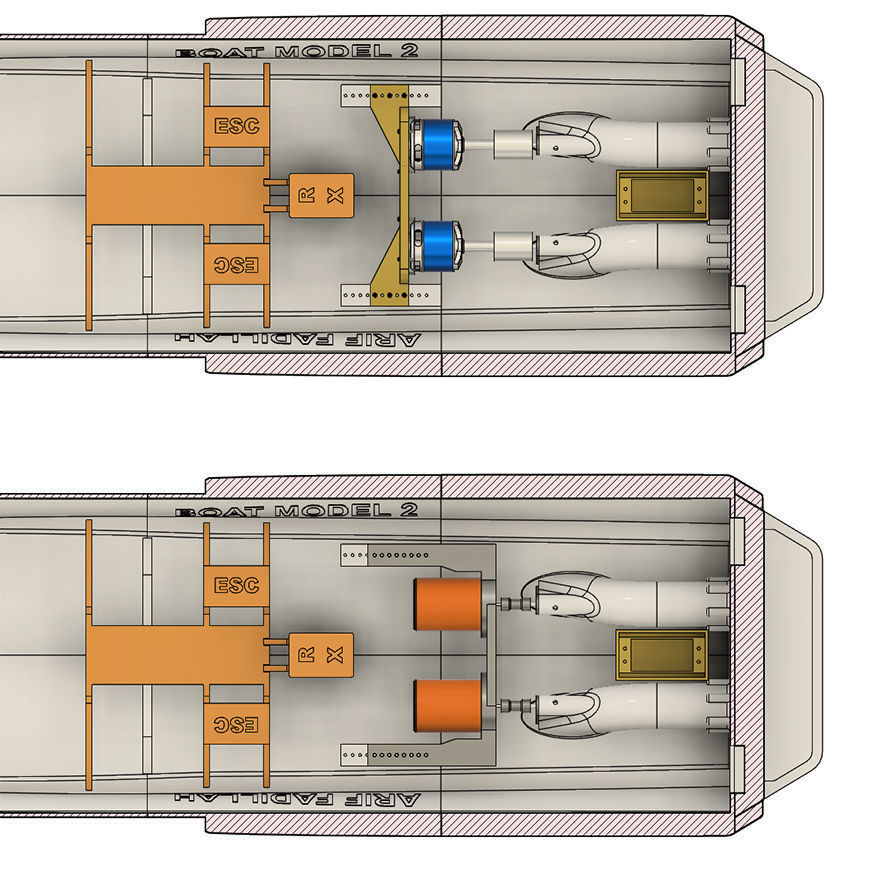

In this boat i use :

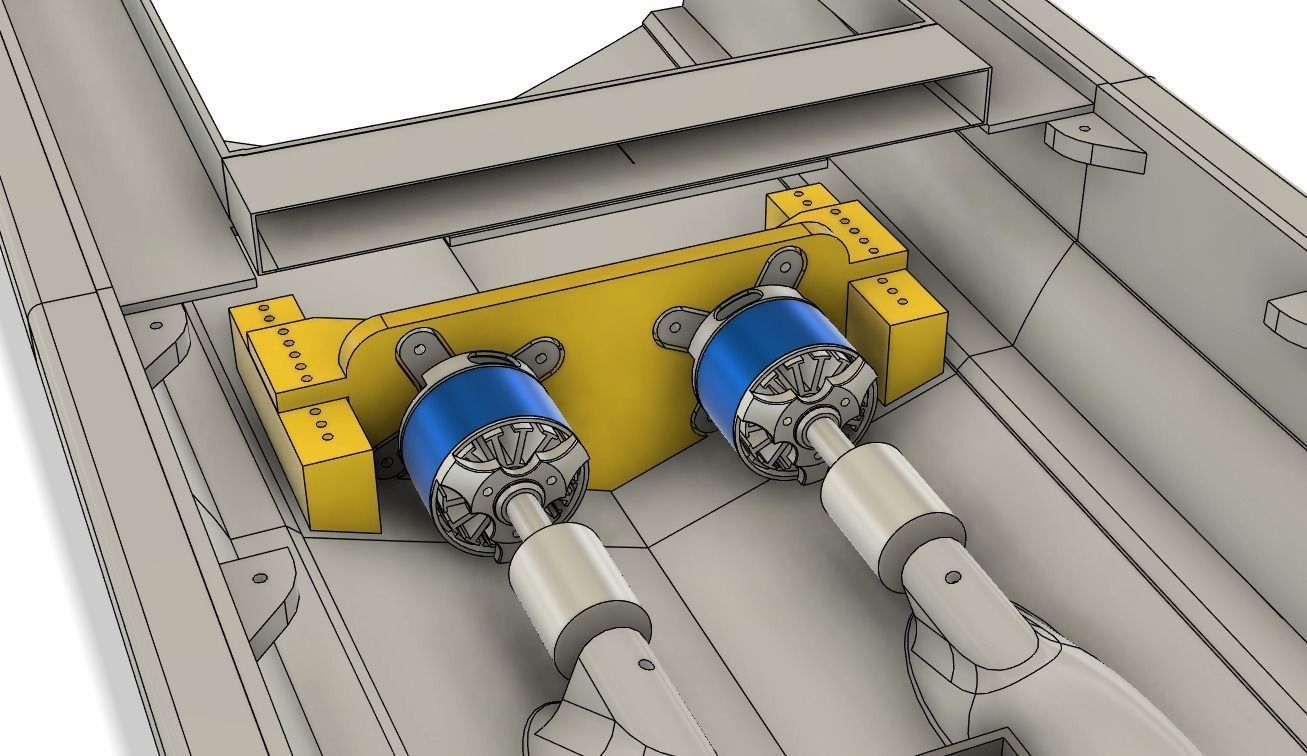

- 3536 1200kv motor brushless (x2)

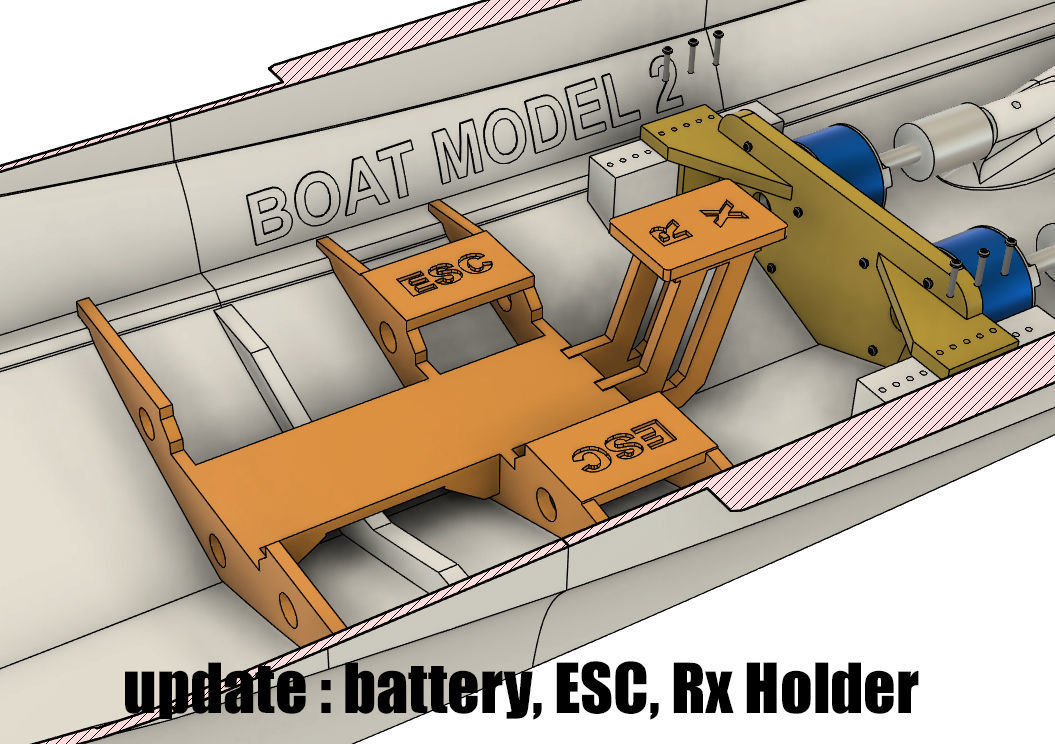

- ESC 50 amp (x2)
- Servo MG 996R (I hope you are using a waterproof servo)
- 3S Lipo battery 3000mAh (bigger capacity would be better)

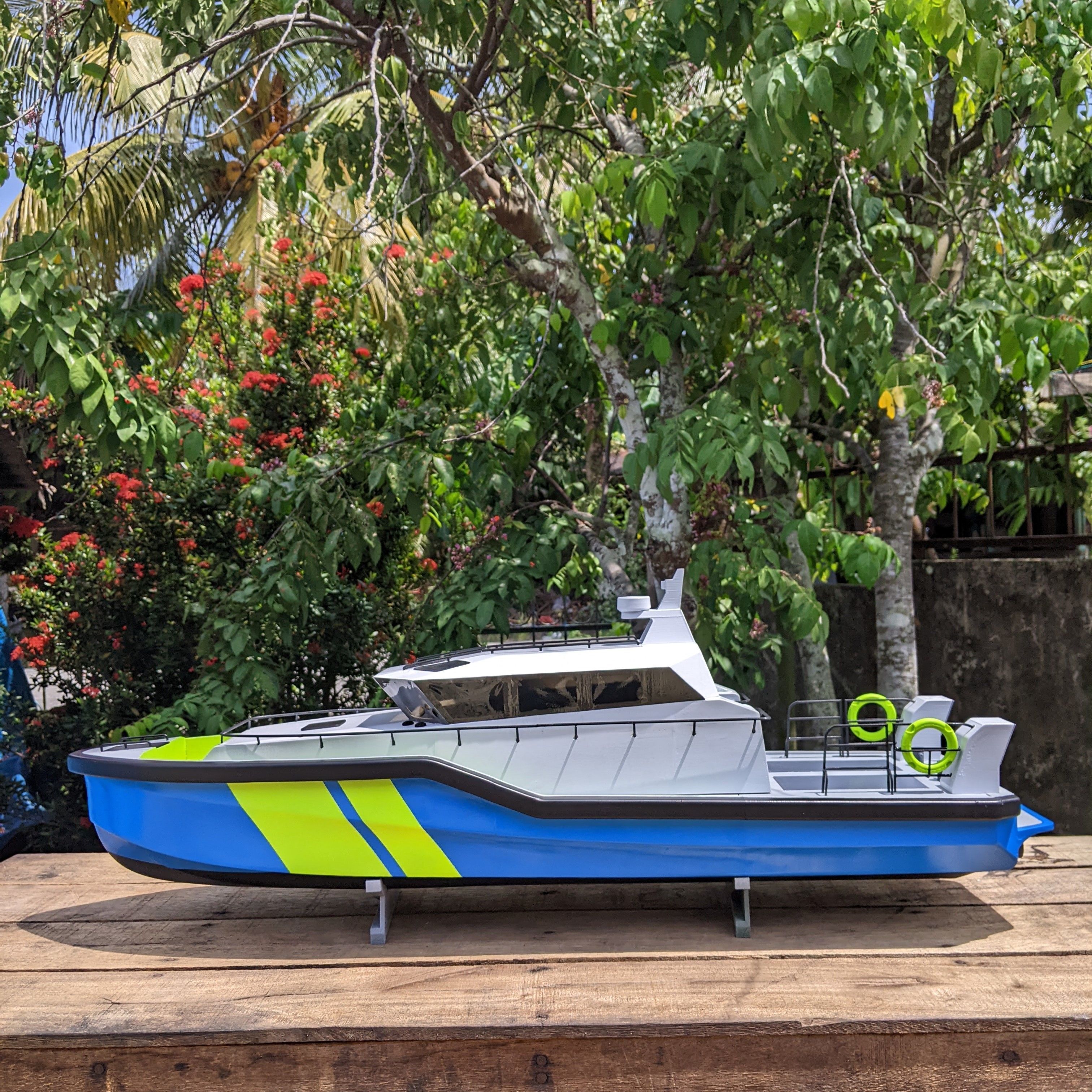

Length hull : 85 cmScale 1:17,65
Demo Video :
Instagram ---------------------------------------------------
https://www.instagram.com/reel/CuTY6laopzv/?igshid=YmM0MjE2YWMzOA==
https://www.instagram.com/reel/CtJizgxILbO/?utm_source=ig_web_copy_link&igshid=MzRlODBiNWFlZA==
https://www.instagram.com/reel/CuFeyHJom7f/?igshid=MzRlODBiNWFlZA==
https://www.instagram.com/reel/CuE3nelIoG2/?igshid=MzRlODBiNWFlZA==
Youtube - ----------------------------------------------------https://youtu.be/rm48V82XIgo
Test File (the large part):
https://drive.google.com/drive/folders/11pkpJx0rwMki7SkRsvI-TlTN-I-YE8kr?usp=sharing
available hulls with jets and without jets are provided for your best jet
You'll need sanding, apply putty, and painting the hull for better results
Happy printing :)
3D PRINTING SETTINGSI use Standard Ender 3 Pro V2 machine
build volume : 235x235x250
if your default printer setting is 220x220x250, we can change it in manage printer - machine settings, change the value from 220x220x250 to 235x235x250
K
2025-03-24 17:12:31 UTCkole-oakden
Ok thank you!
K
2025-03-23 20:06:23 UTCkole-oakden
As well as I put 60% infill on my hull peace's would you recommend that I change that to the 10% percent that you have there or do you think it will be fine.
ariffadillah
will only add a little weight to the hull, maybe 30% is enough
K
2025-03-23 20:03:13 UTCkole-oakden
thank you! I had another question were do I find the files for the rib's for hulls C and D
ariffadillah
For the stomach d there are no ribs because it is filled by a motor
K
2025-03-22 16:11:51 UTCkole-oakden
Hello, another question I have an Ender 3 pro and some of the hull peace's on my printer are cut short. I have a standard bed size and just wondering what you did to make it fit on your printer.
ariffadillah
yes, i do this in cura slicer.
If your default printer setting is 220x220x250, we can change it in manage printer - machine settings, change the value from 220x220x250 to 235x235x250
B
bellstephen8
I had a few print issues but perhaps the upgrade has now fixed these, I will check.
I certainly have done a lot of sanding and filling but will soon be able to finish glueing it together, then painting it all.
Looking forward to slipping her into the water!
M
modelshipattic
Nice design, prints very well. Looking forward to take it out for a ride.
M
marcgeyskens
Nice design
