Toggle Switch Brackets 45 Degree 1-4 holes for switches 3D print model

Description

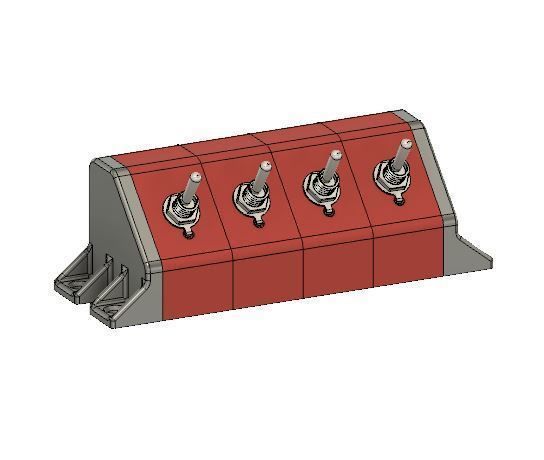

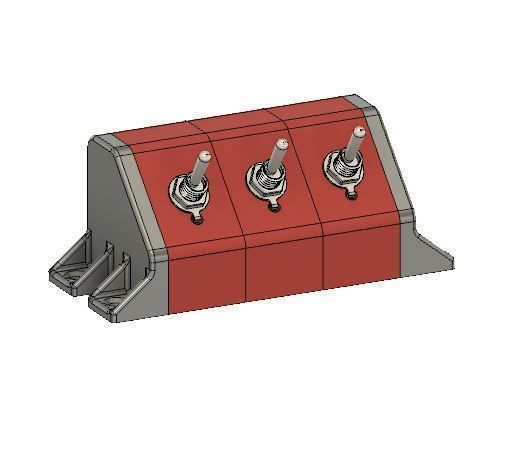

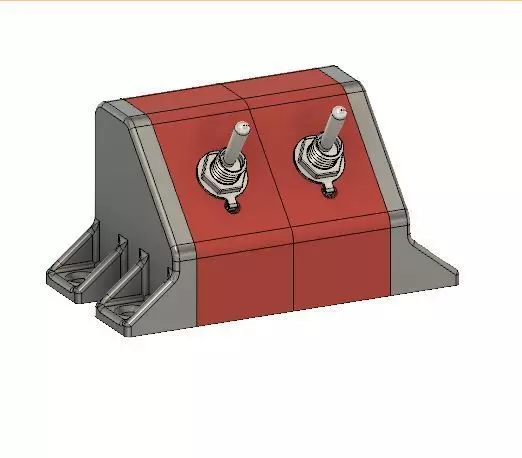

Toggle switch brackets for 1-4 toggle switches.Can be printed with Filament or Resin Printer due to its design.

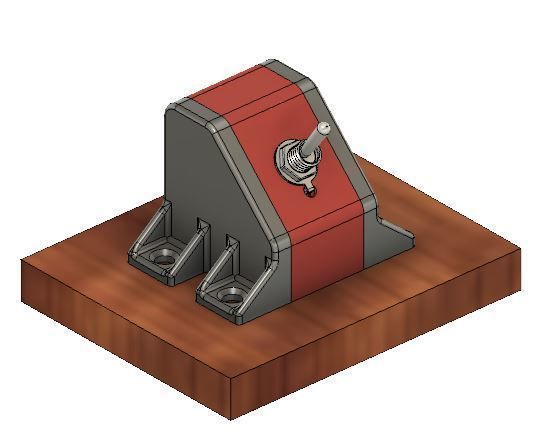

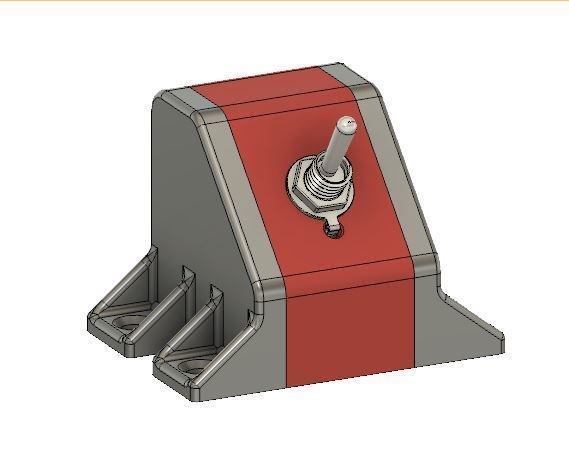

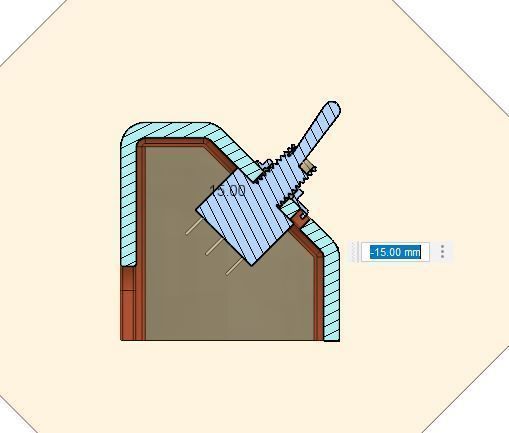

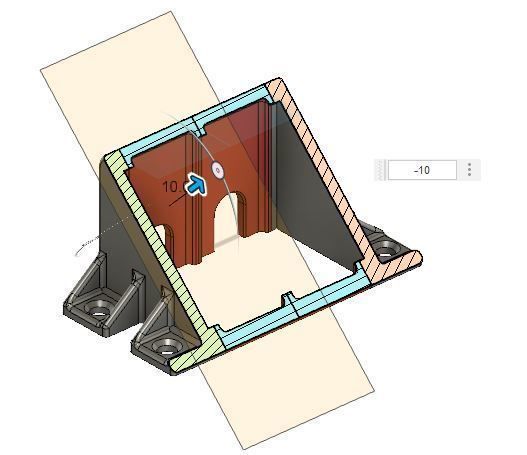

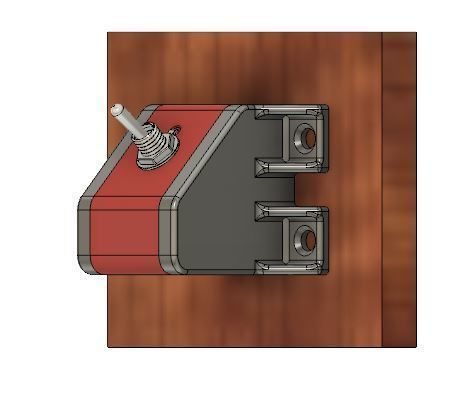

Ideal for mounting toggle switches which can be mounted on top or side surfaces. The bracket has a 45-degree switch mounting angle; this will help with use if sitting or standing.

I have designed this to be used on my model railway but have many uses elsewhere.

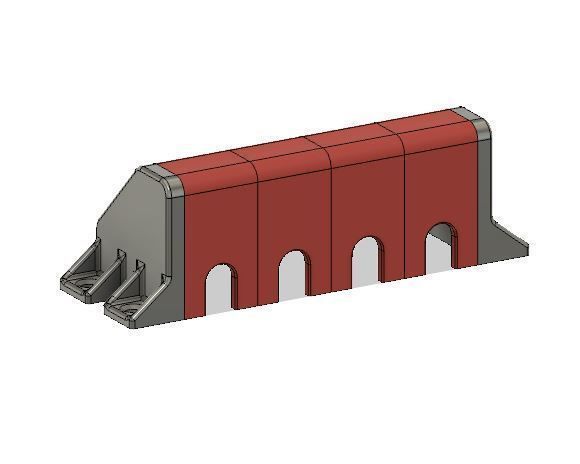

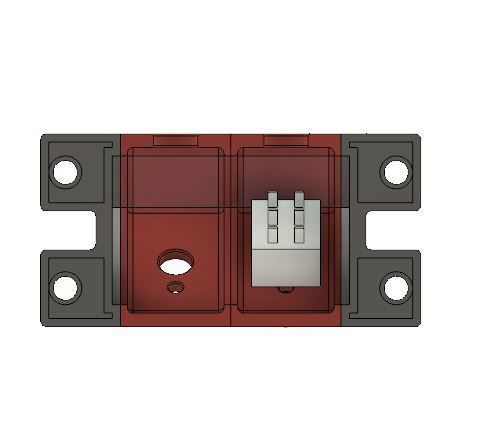

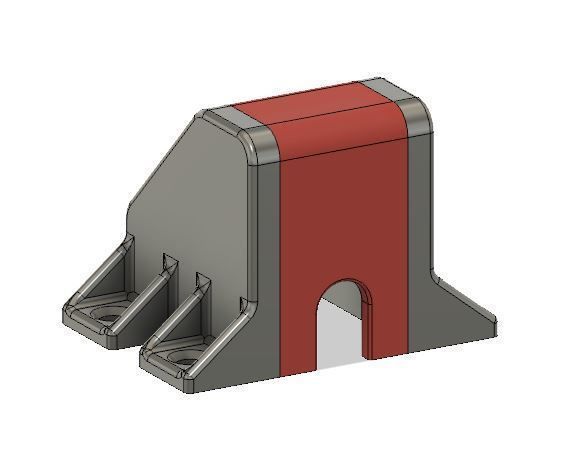

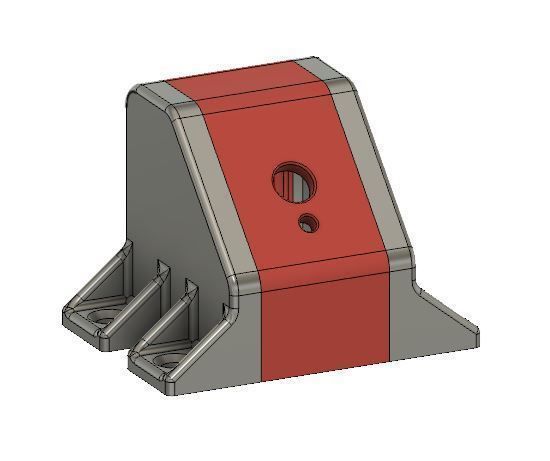

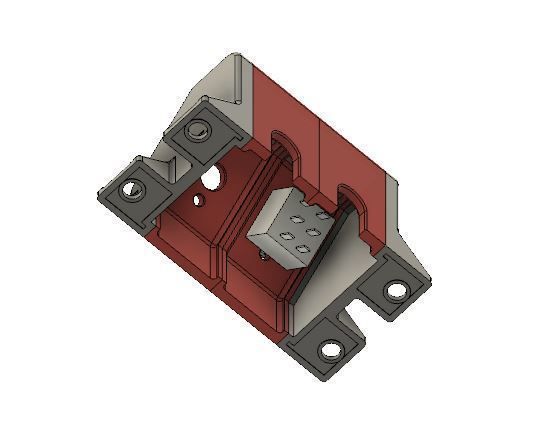

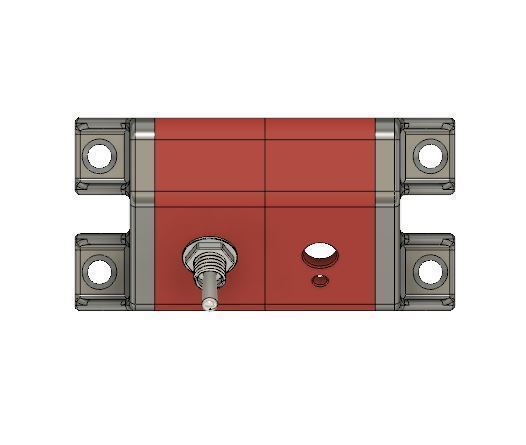

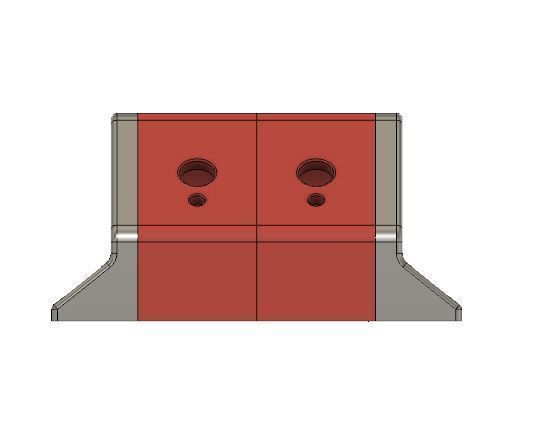

The bracket incorporates a rear cable hole.There are four versions available for 1-4 toggle switches.The toggle switch hole is 6mm in diameter and also has an anti-rotation hole for washers that have tabs.

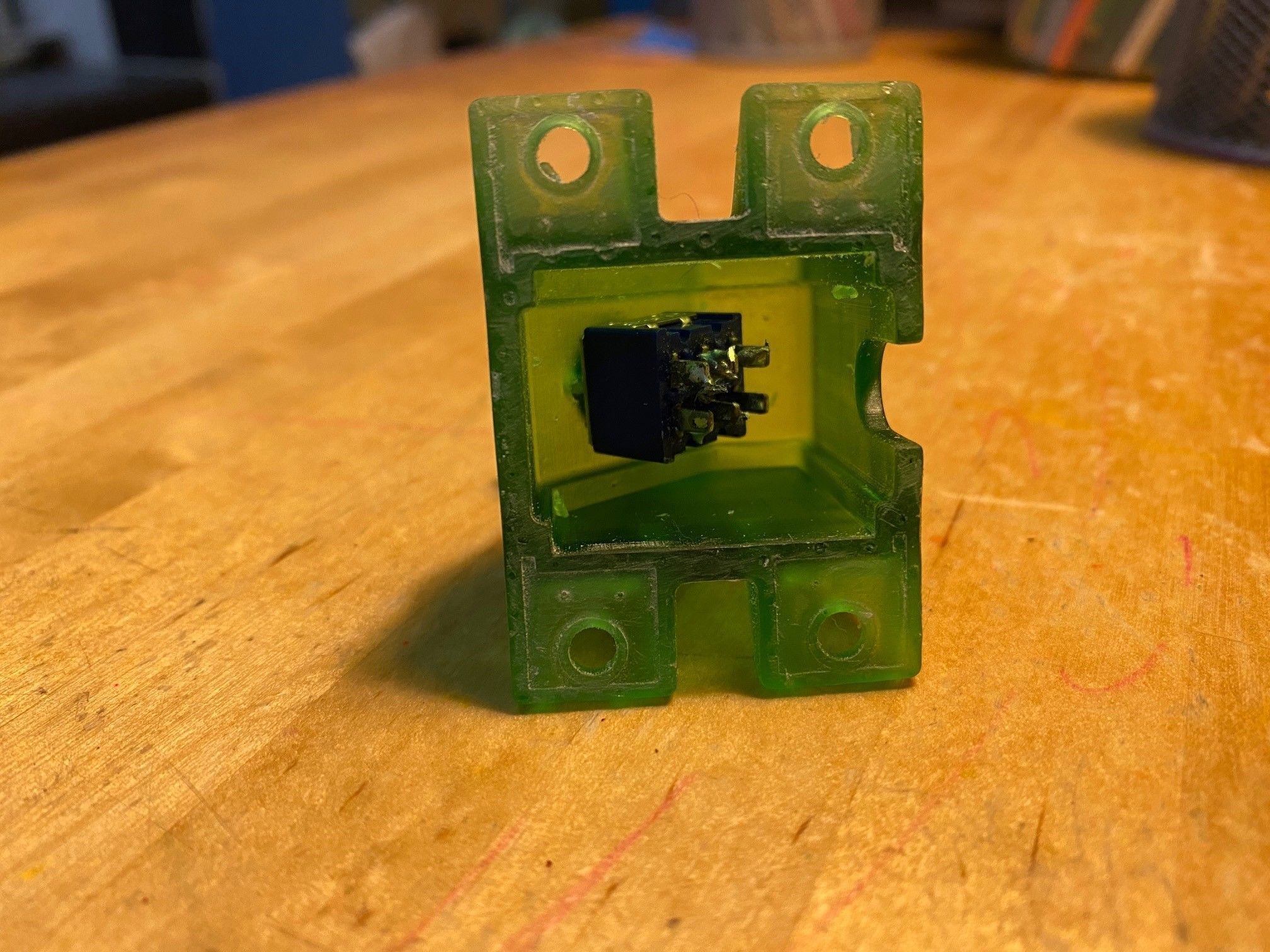

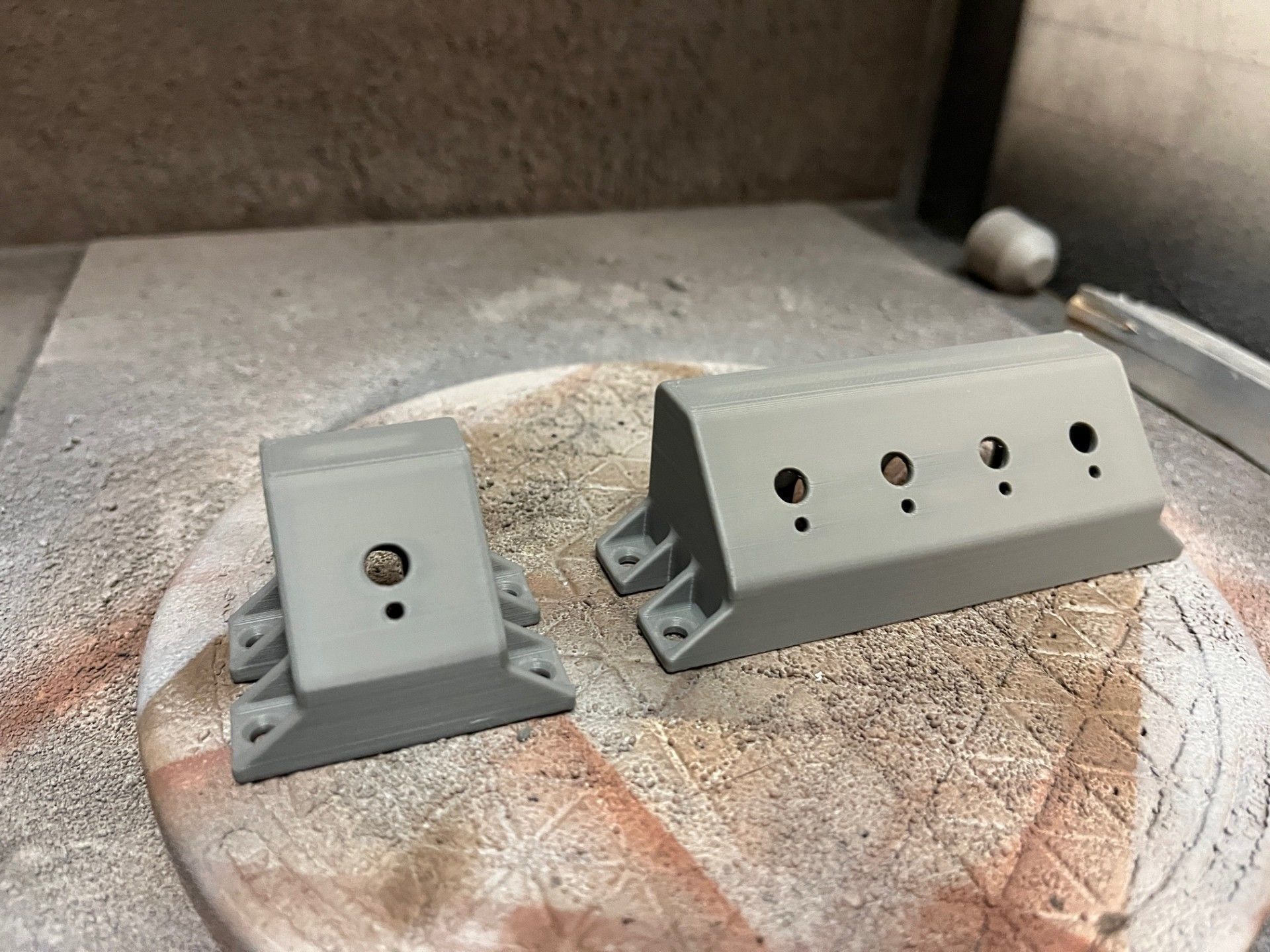

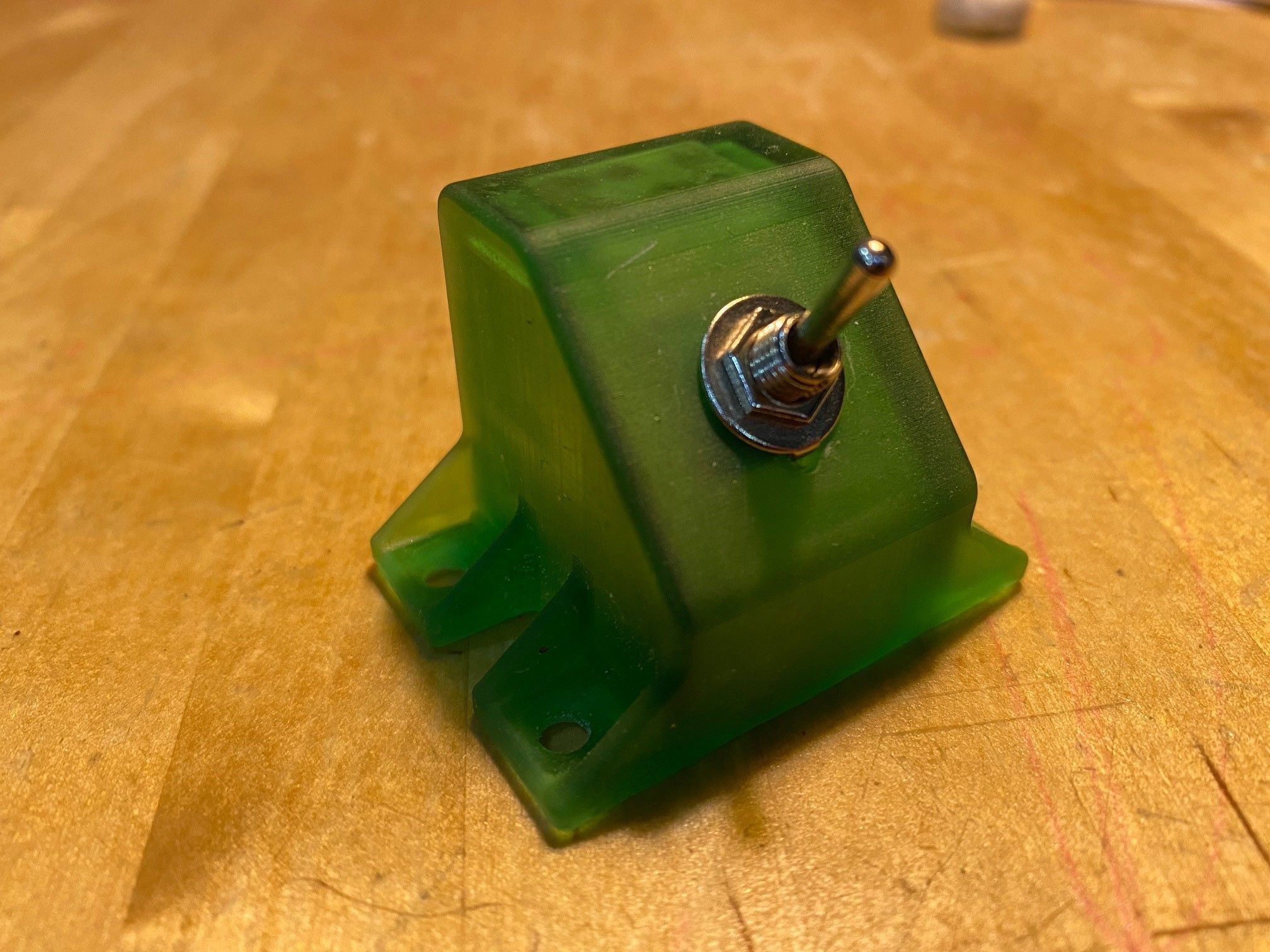

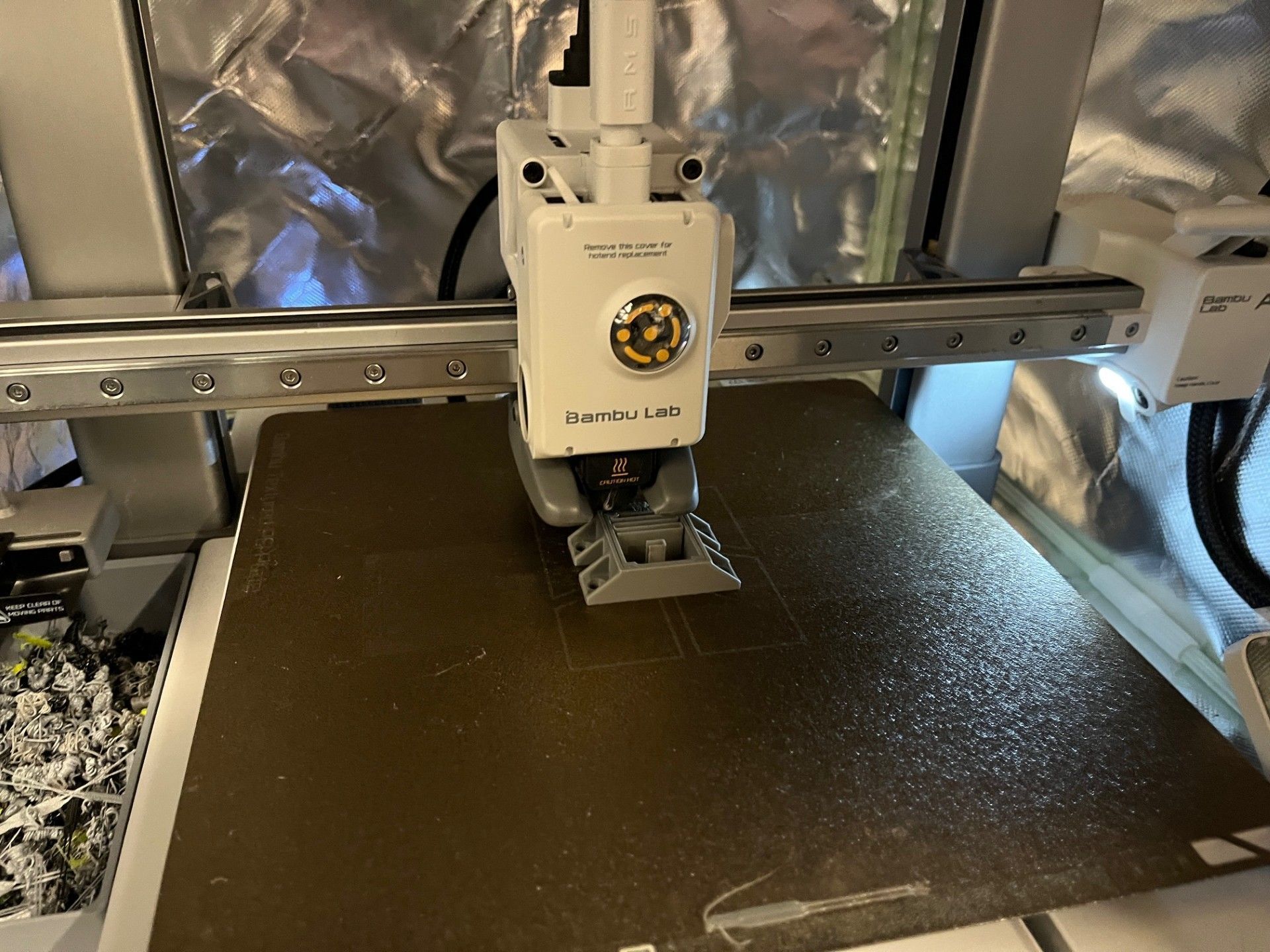

I have tested these on a AnyCubic Photon M3 Resin printer and a Bambu Labs A1 FDM printer

If you like my designs then please would you support me through my Patreon account - https://www.patreon.com/PJD1974, any money raised helps me research, design, and develop new items for me to share. For £1 a month, you will give me basic support and for £4 you will get insight into my new designs and be able to contribute to my future projects.

Please also check out my Website https://sites.google.com/view/pete3dprintinghelp/home
