Thrustmaster T-LCM Pedal Face Height Increaser Mod 3D print model

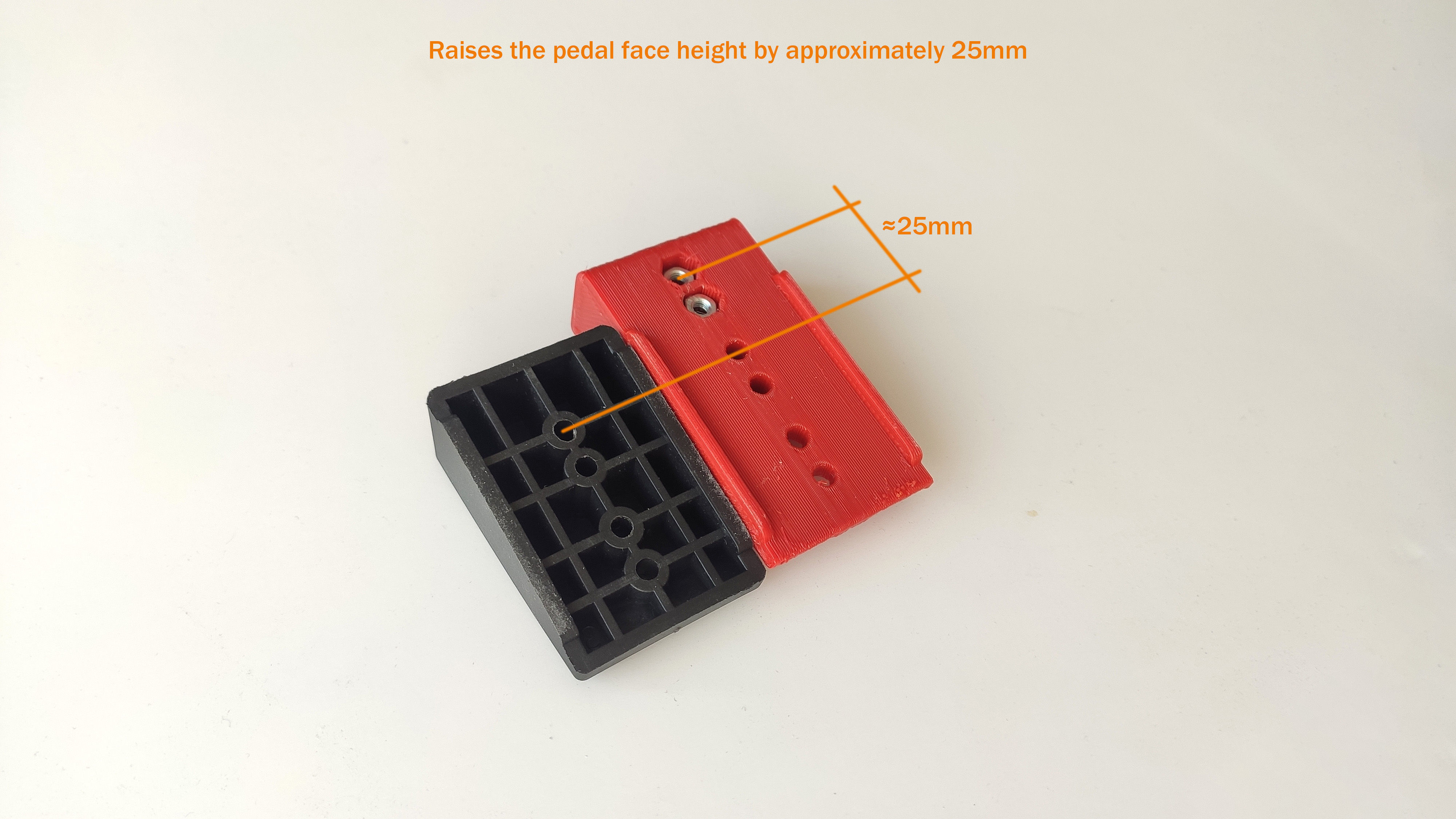

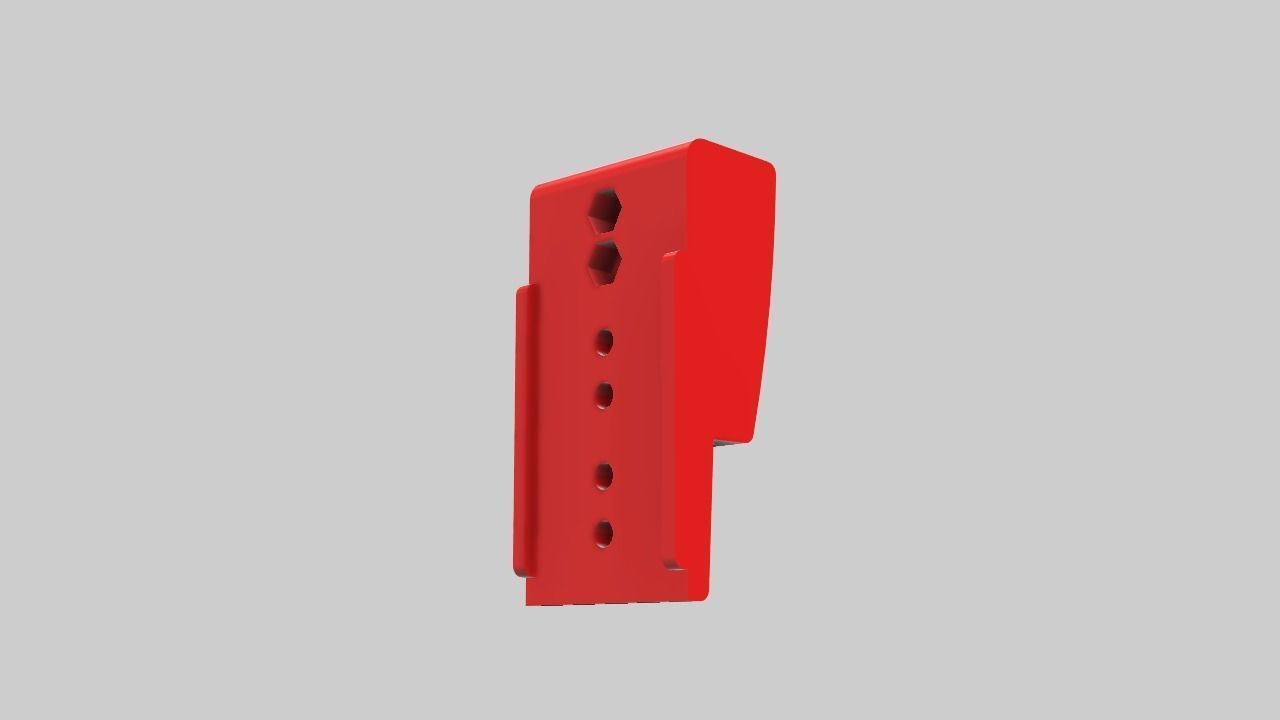

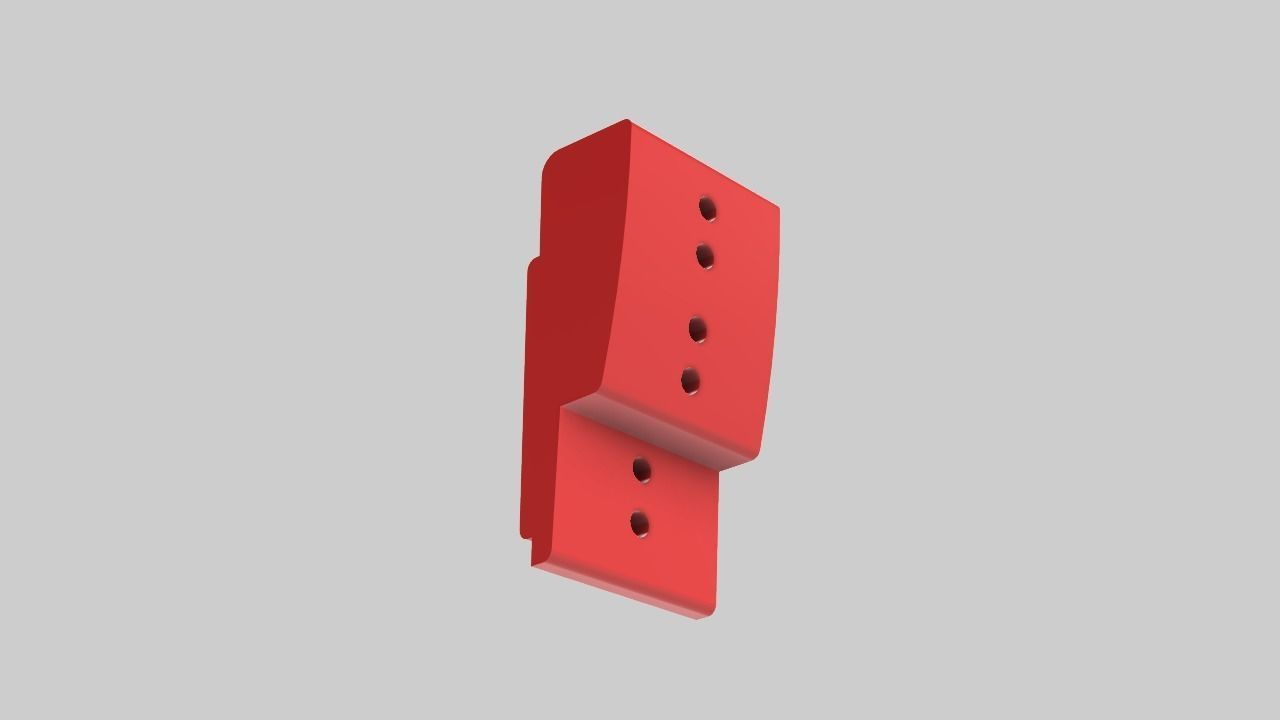

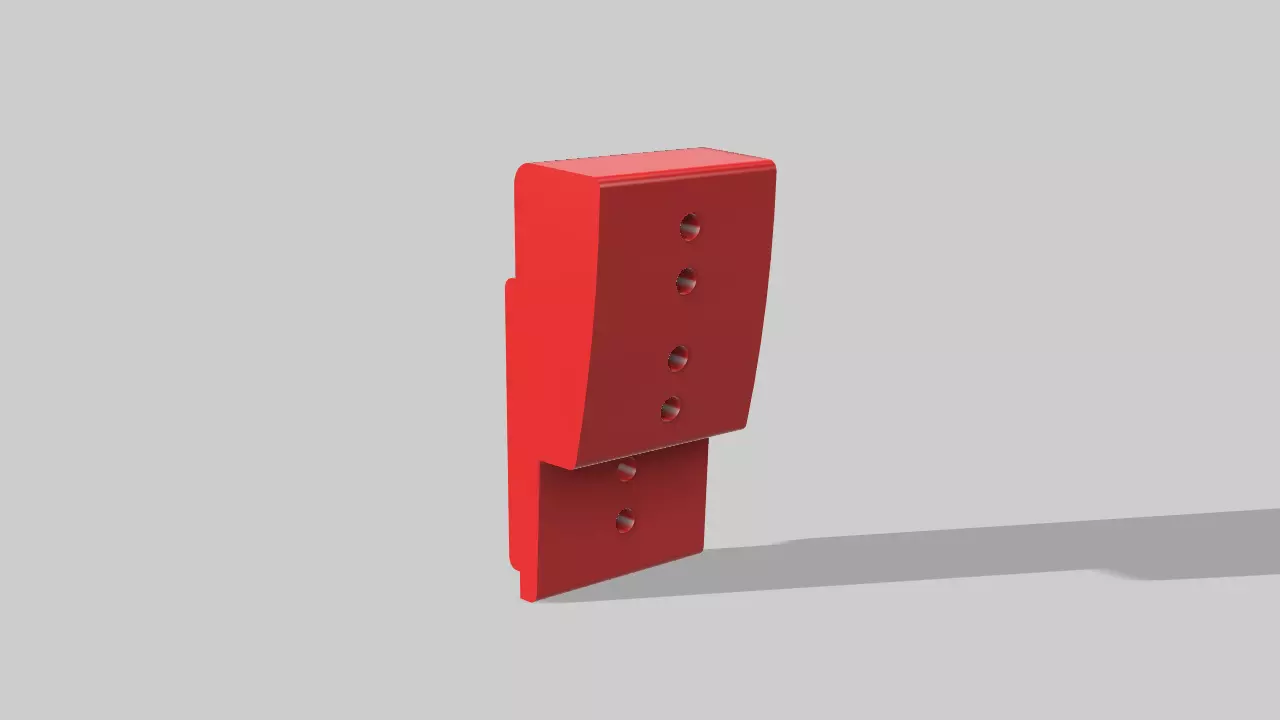

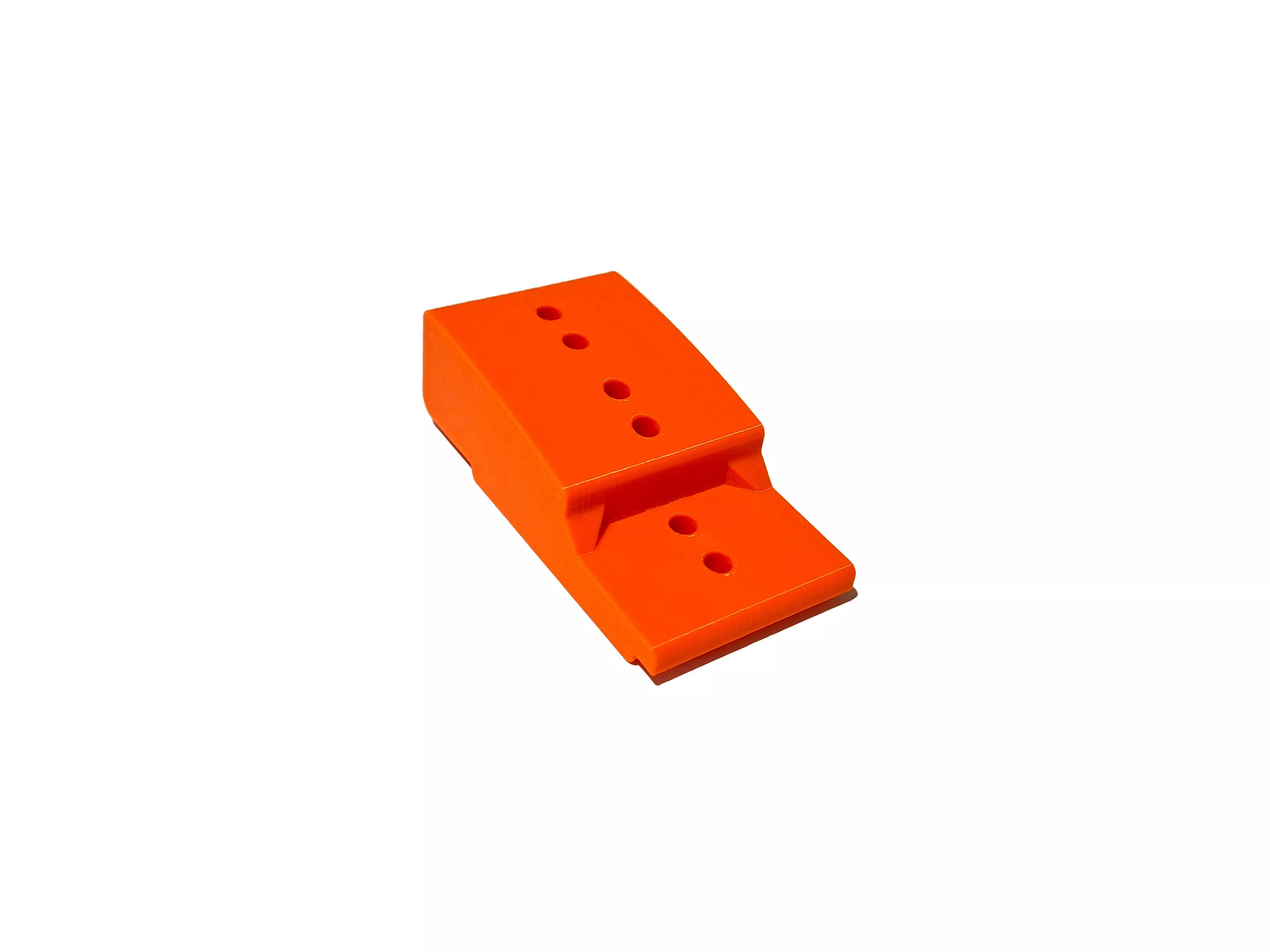

3D Printable mod to increase pedal face heights of tlcm pedals from thrustmasterThis part is designed to be used in place of the original plastic pedal face angle supports and increase the pedal face height by approximately 25mm (1 Inch). It increases the comfort of the pedals by supporting the feet better, similar to higher end pedal sets from brands like Heusinkveld and Asetek.This replacement part maintains the same angle as the Vertical Position angle support piece included with the pedals.

Printing:Should be printed on its side face with 3 or more wall/perimeter lines for strength.

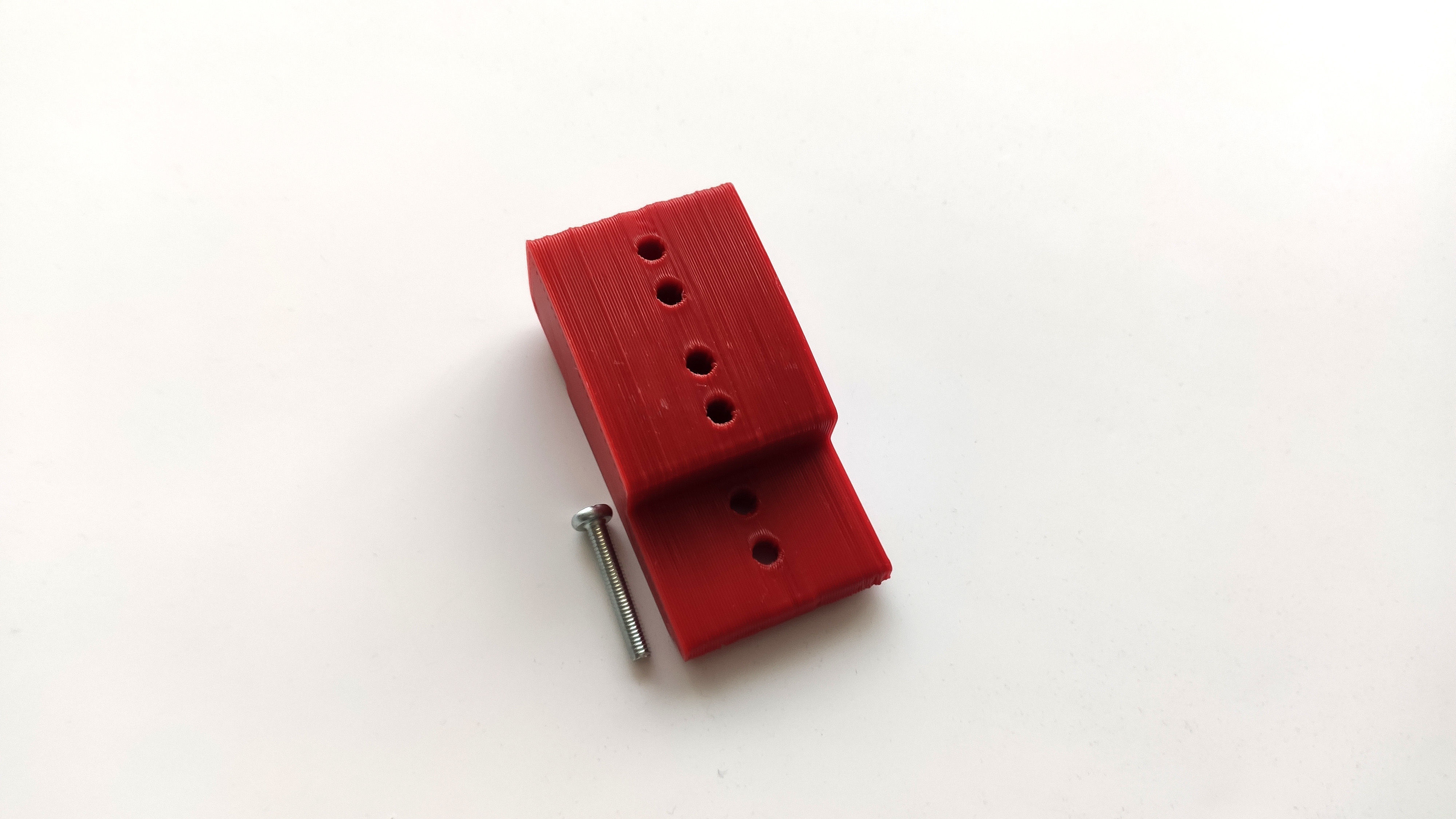

Parts list per pedal:

• 1x M4x30 Screw
• 1x M4 Nut
• 1x M4 Washer

Instalation: 1- Use the additional M4 screw and washer to fasten the piece to the pedal arm at the bottom setof holes.2- Use the original pedal screws to fasten the metal pedal face to the second set of holes, and the newly created third set of holes, using an M4 nut.
