Relay JD1912 12V 40A with connector 3D print model

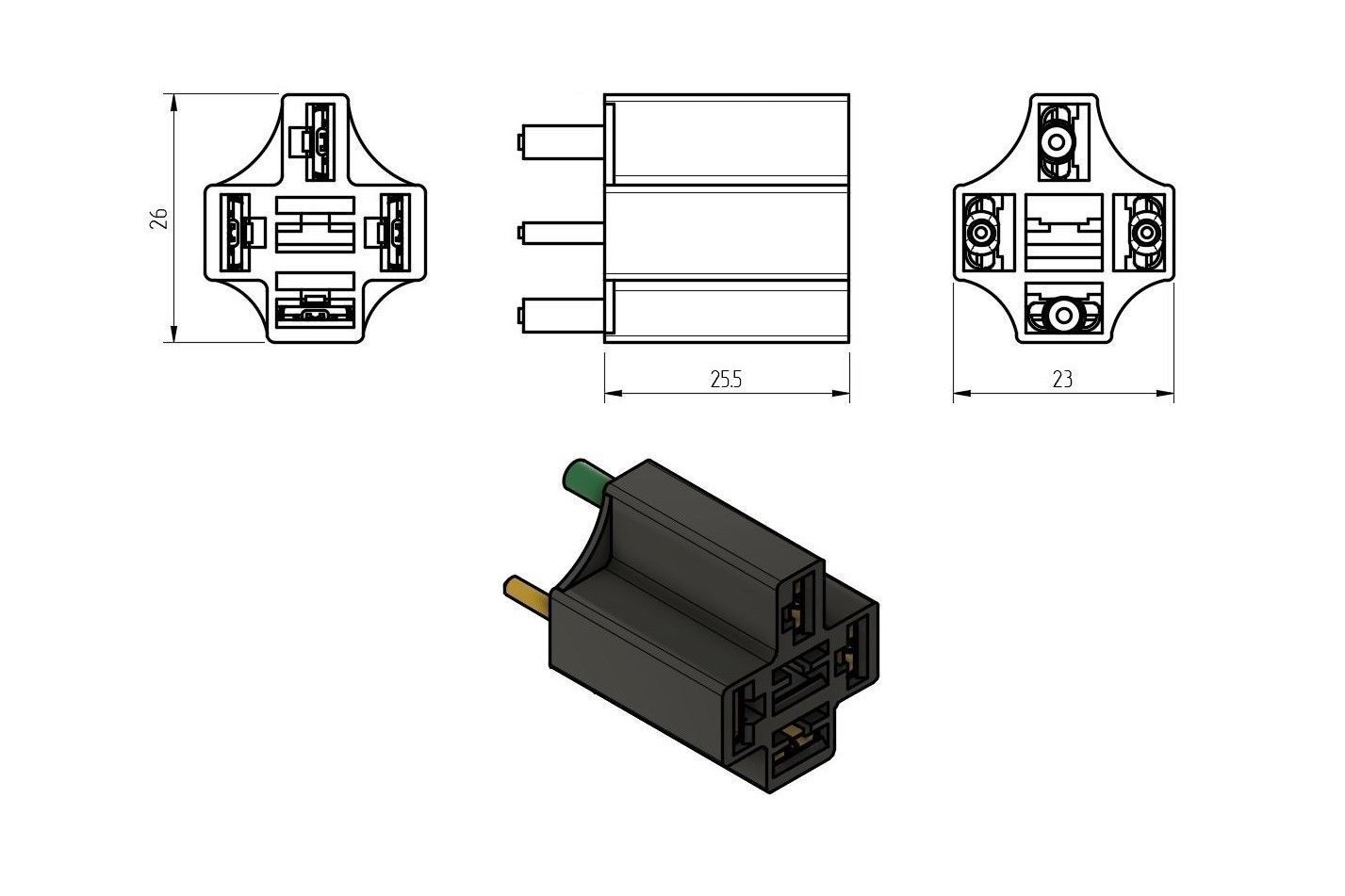

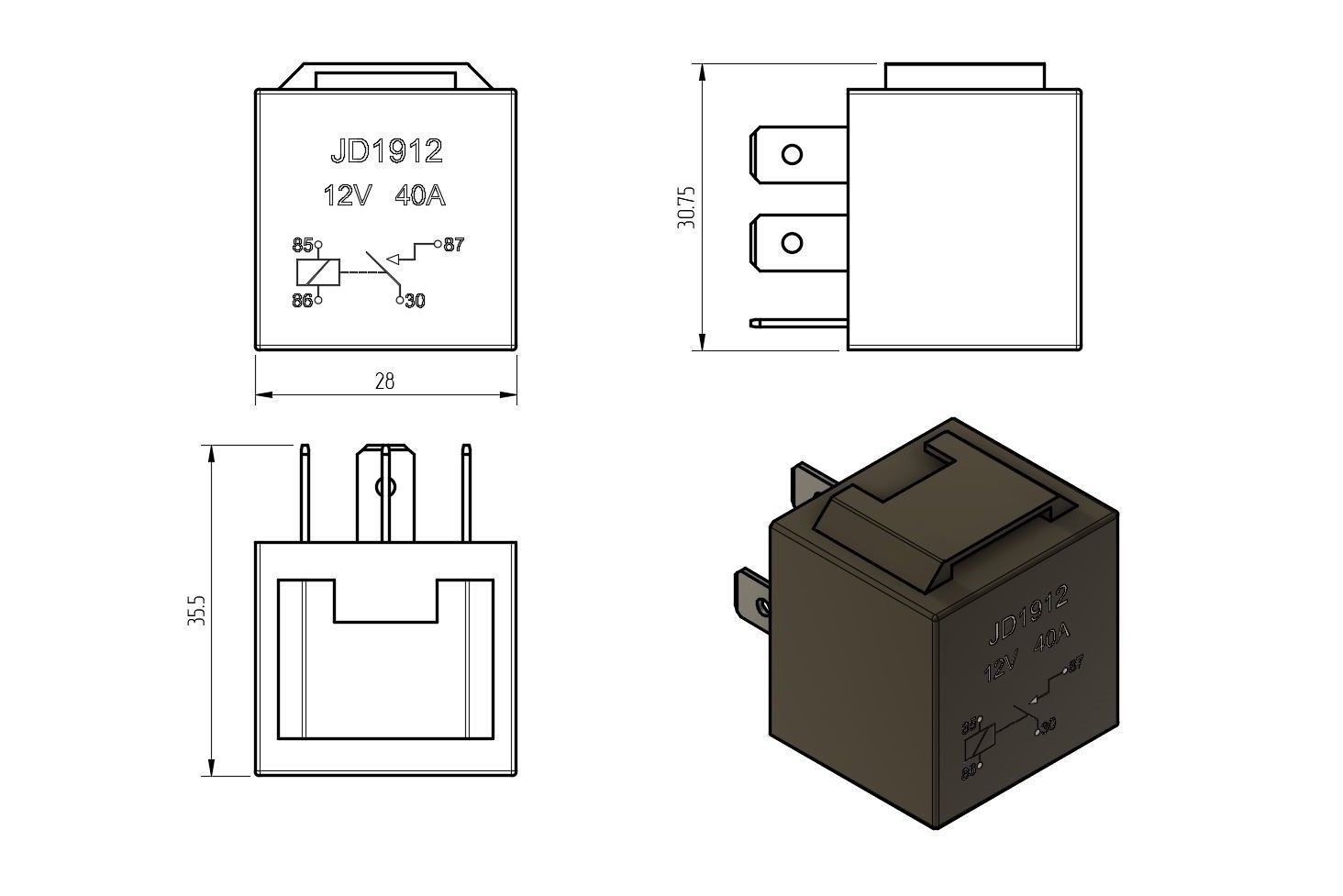

This set of models includes a JD1912 12V 40A power relay and a standard connector with terminals for this and similar relays. The models are designed in a CAD system for their use as part of the assembly of the designed devices.Using this model in the layout of the device being created helps to save design time.This model of power relay is quite common both in autoelectrics and in other fields of technology.This connector is also very popular and versatile.It is suitable for many other relay models.Scale 1:1. Overall dimensions are shown in the drawings.

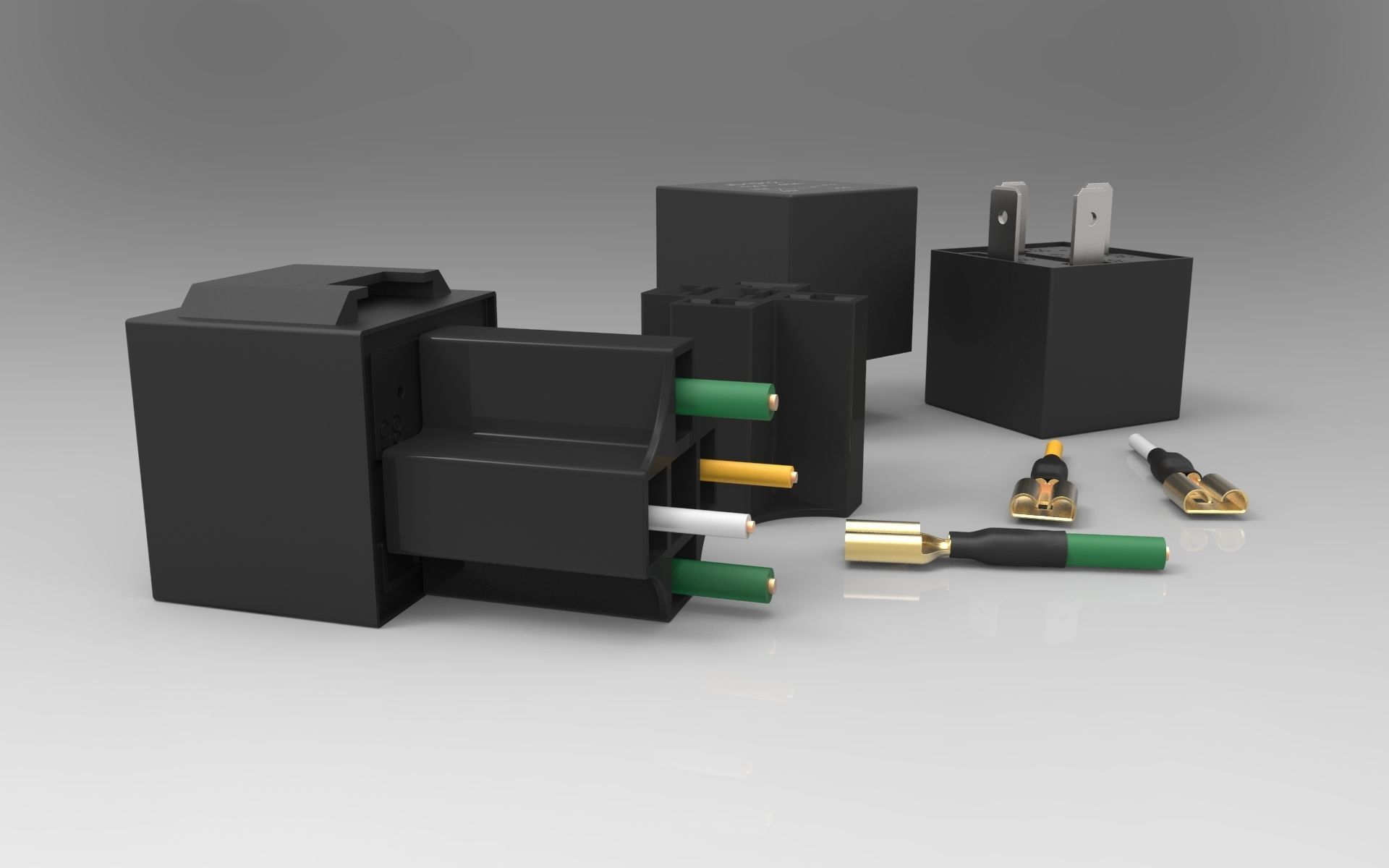

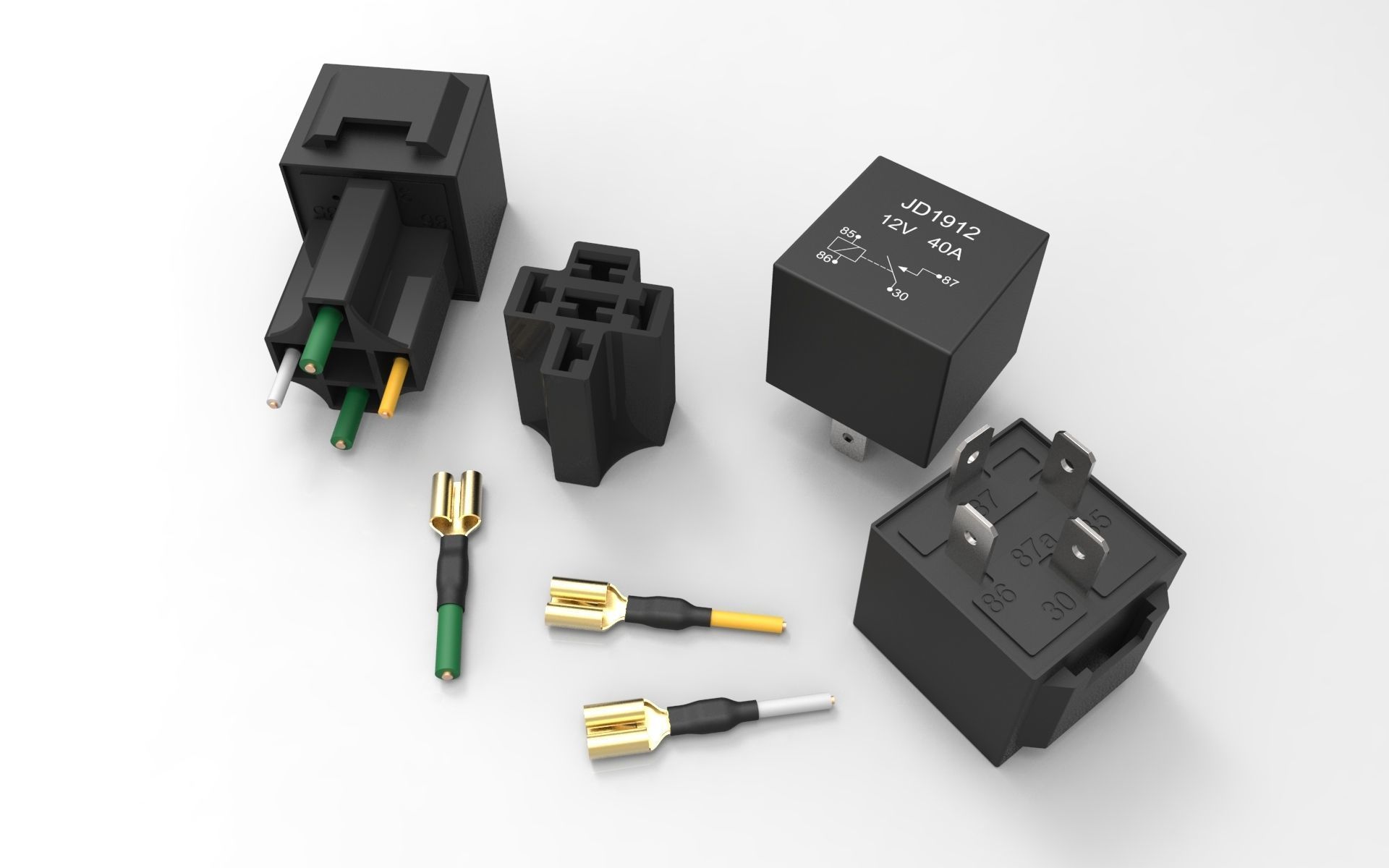

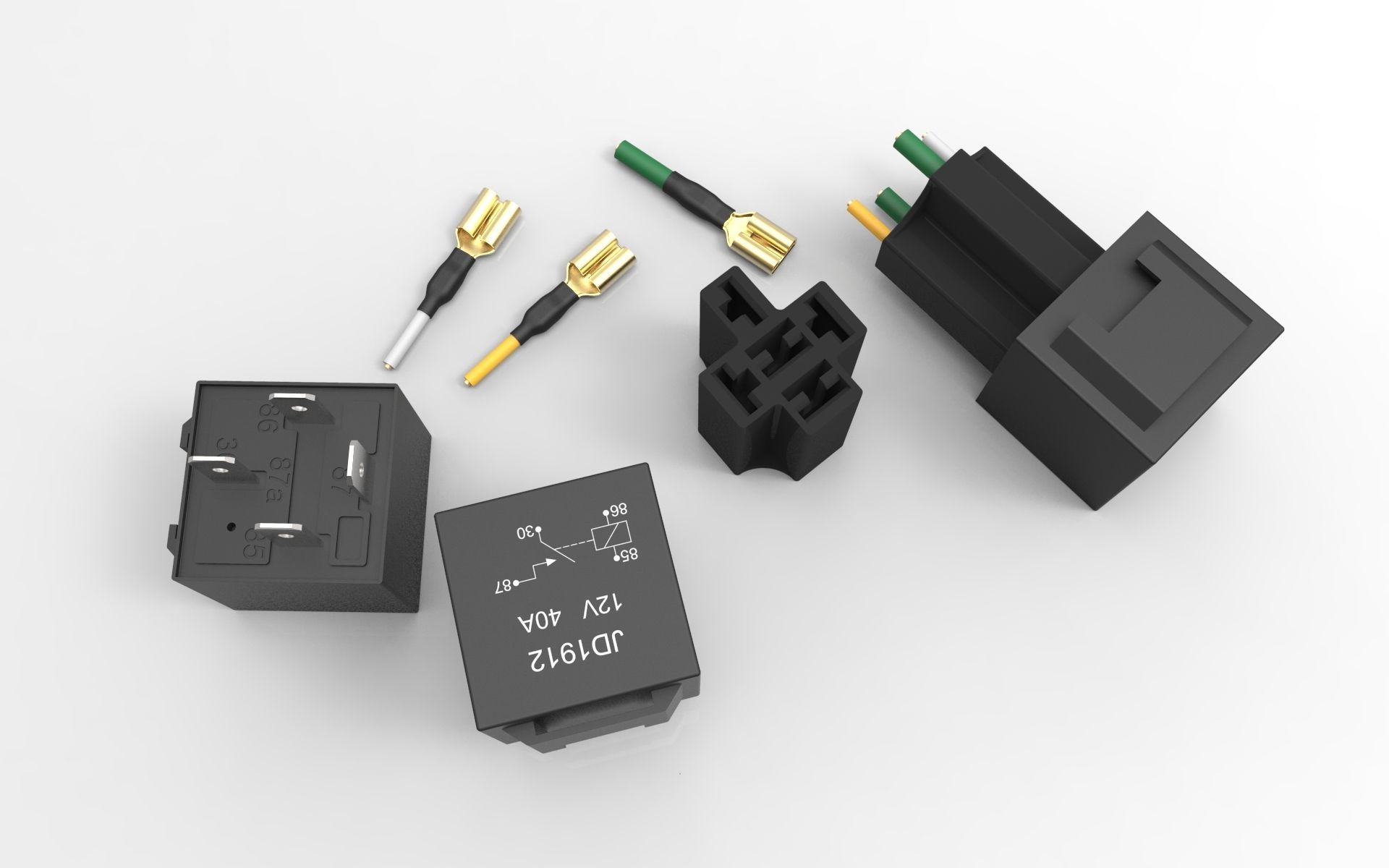

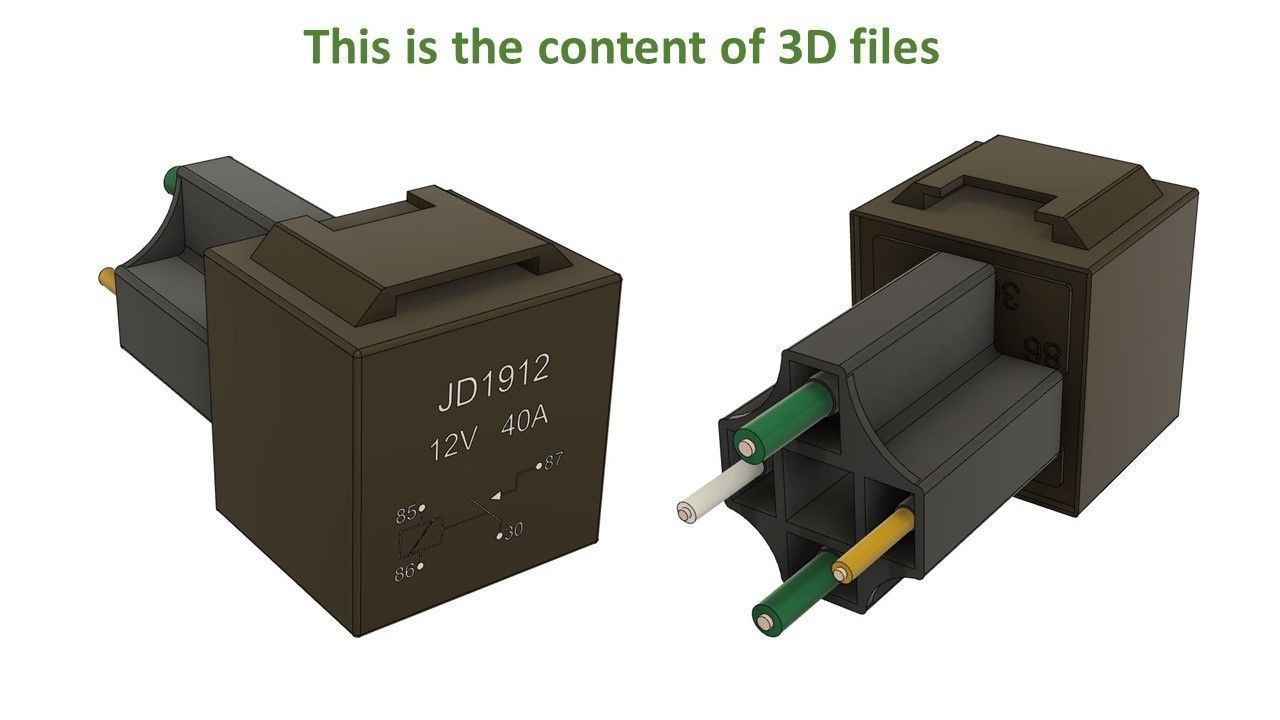

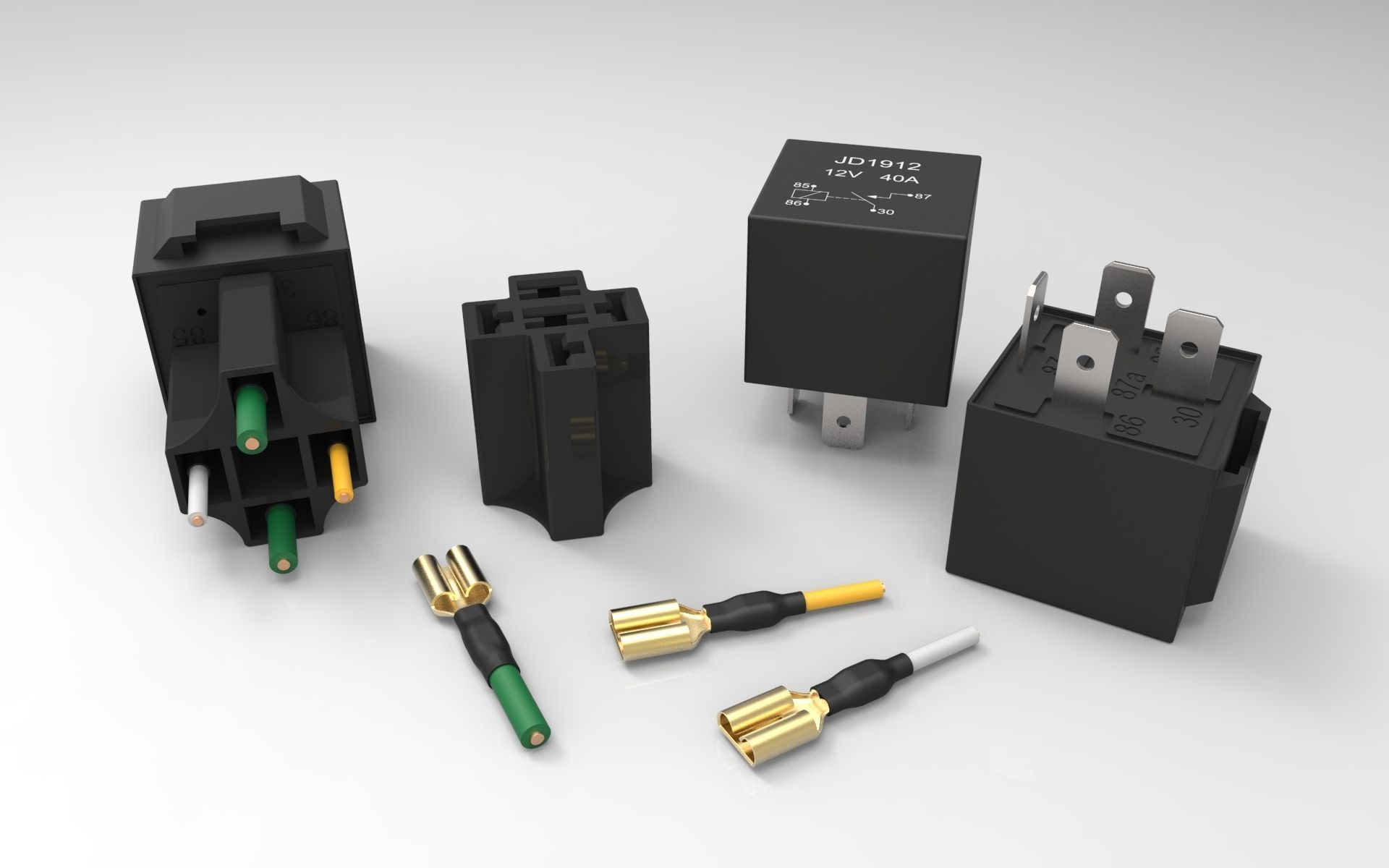

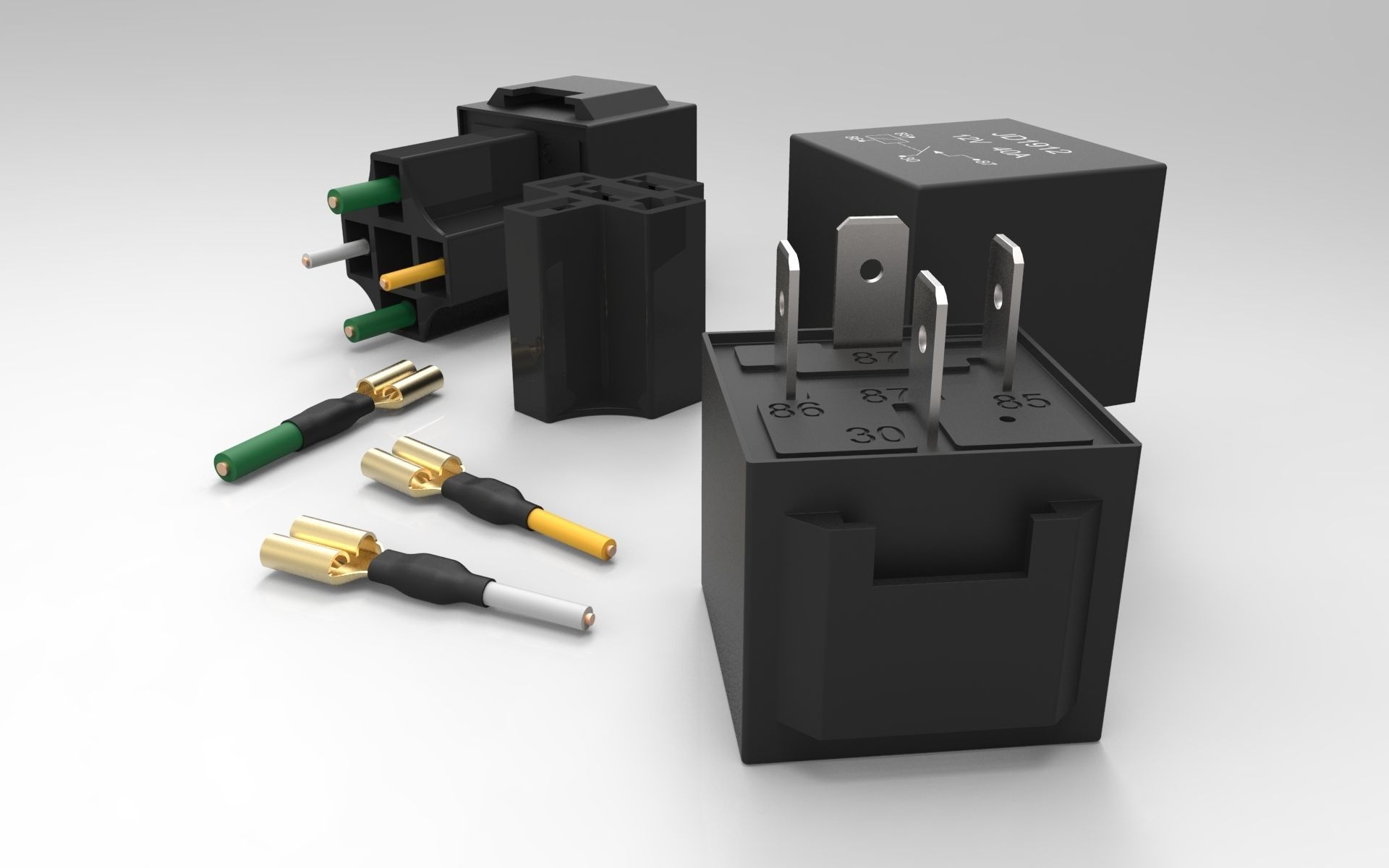

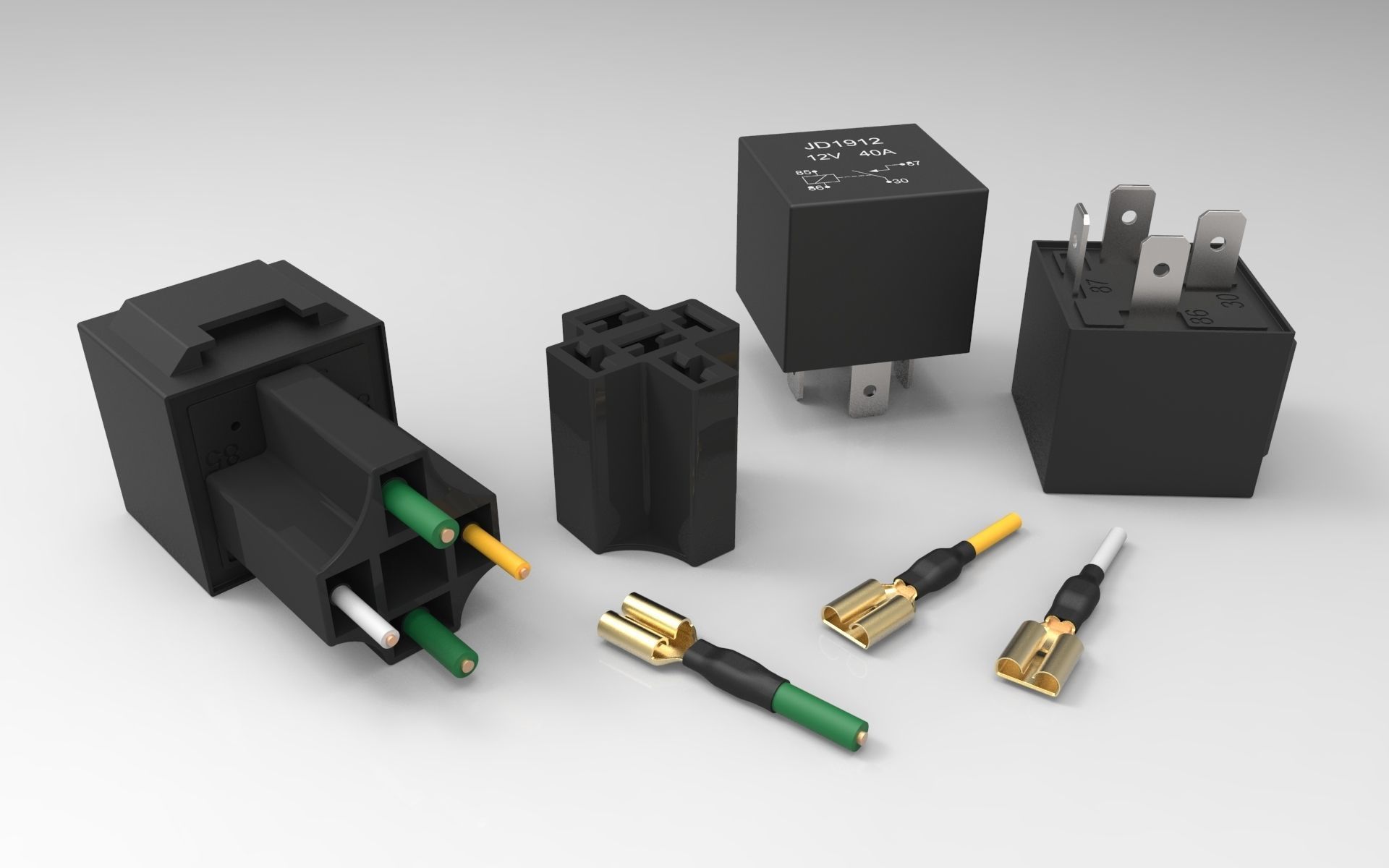

Files with a 3D model contain the following bodies:

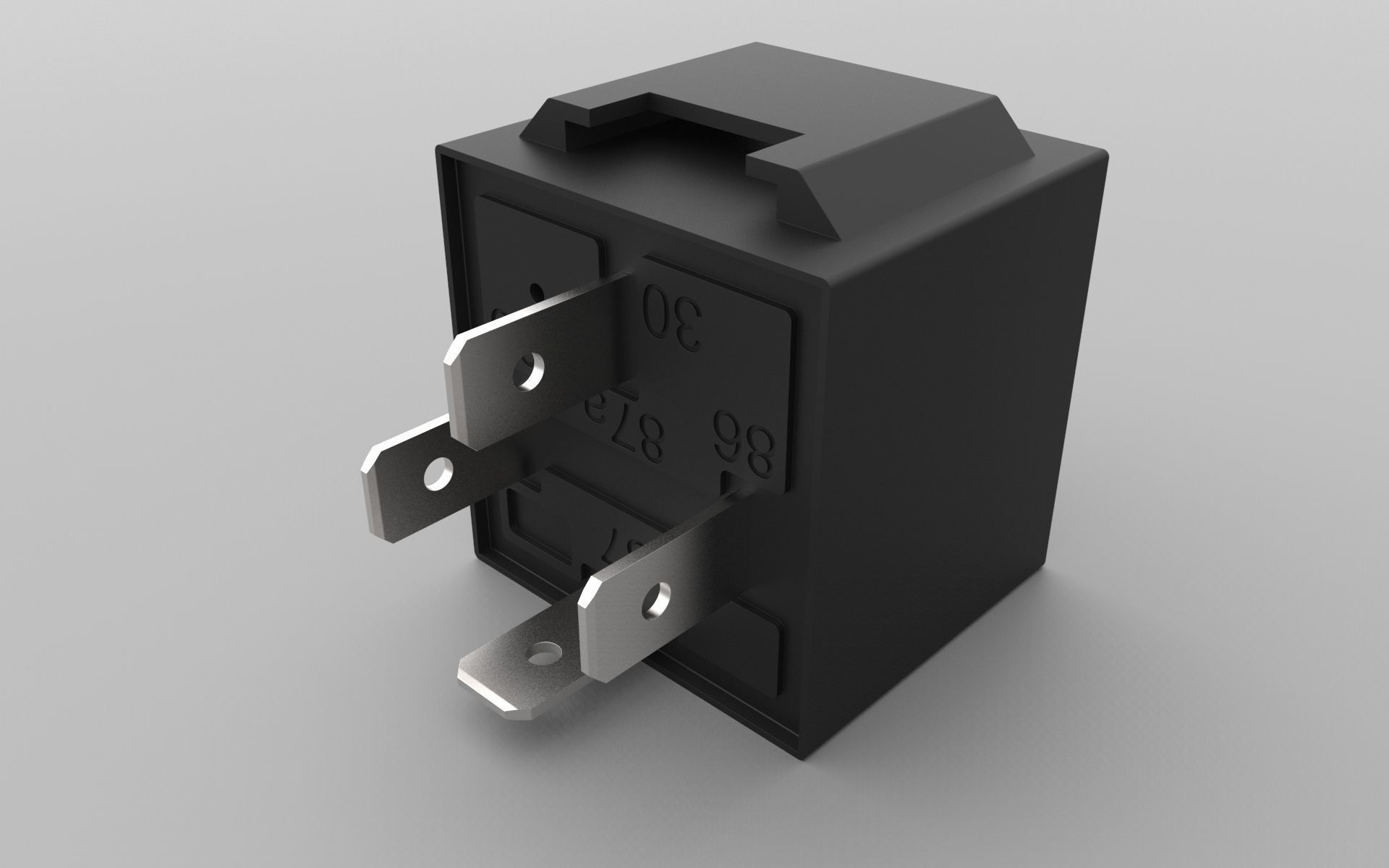

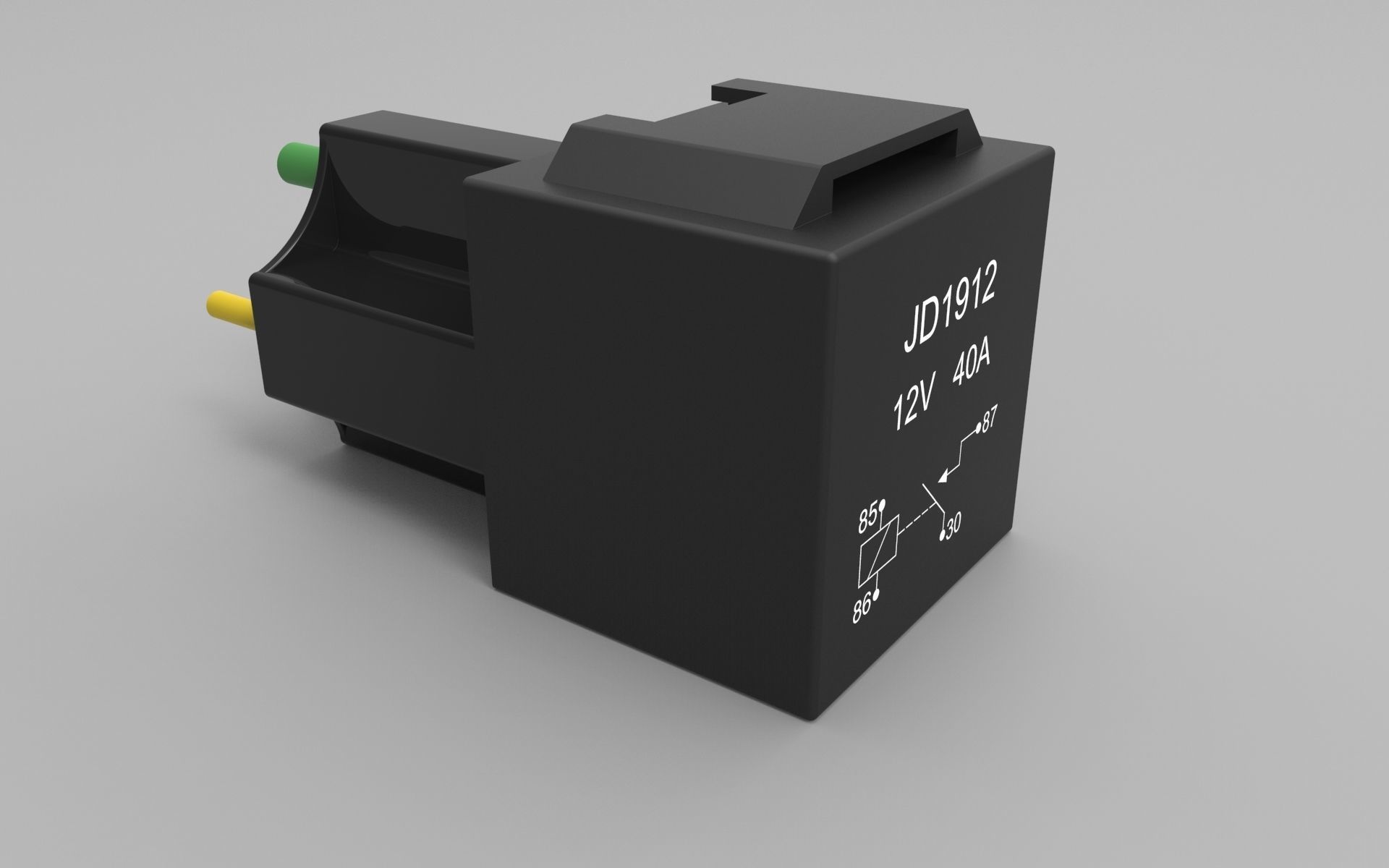

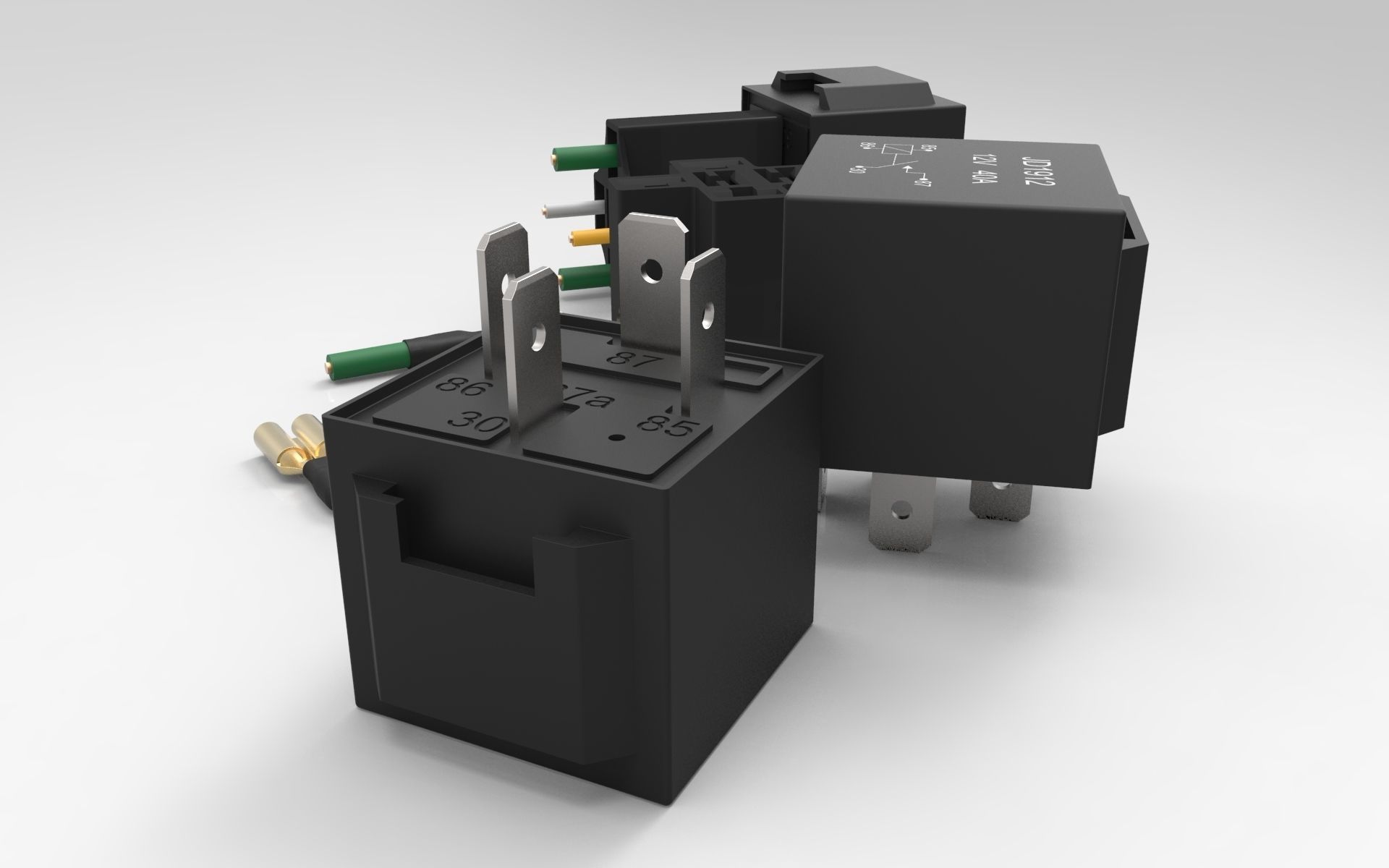

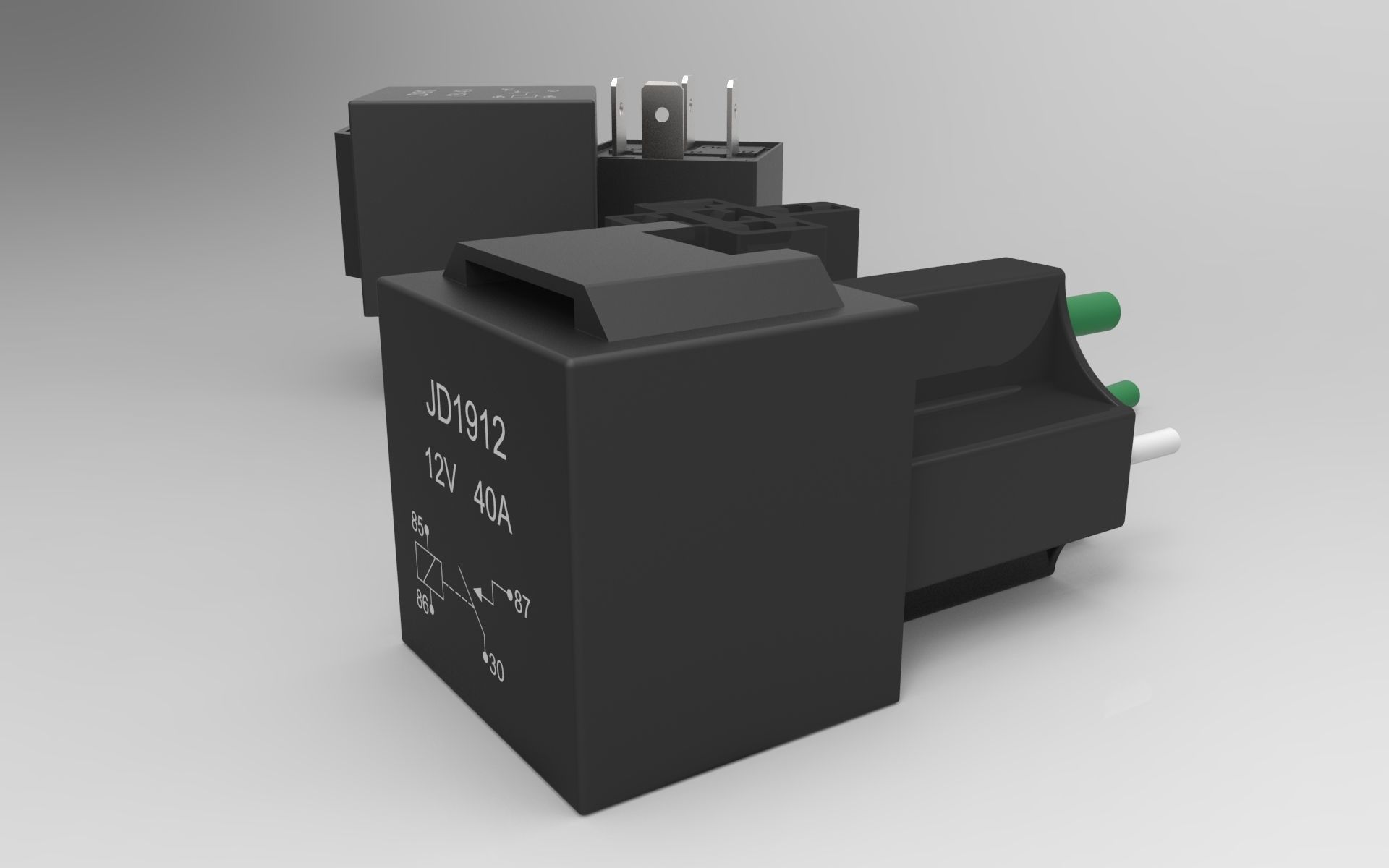

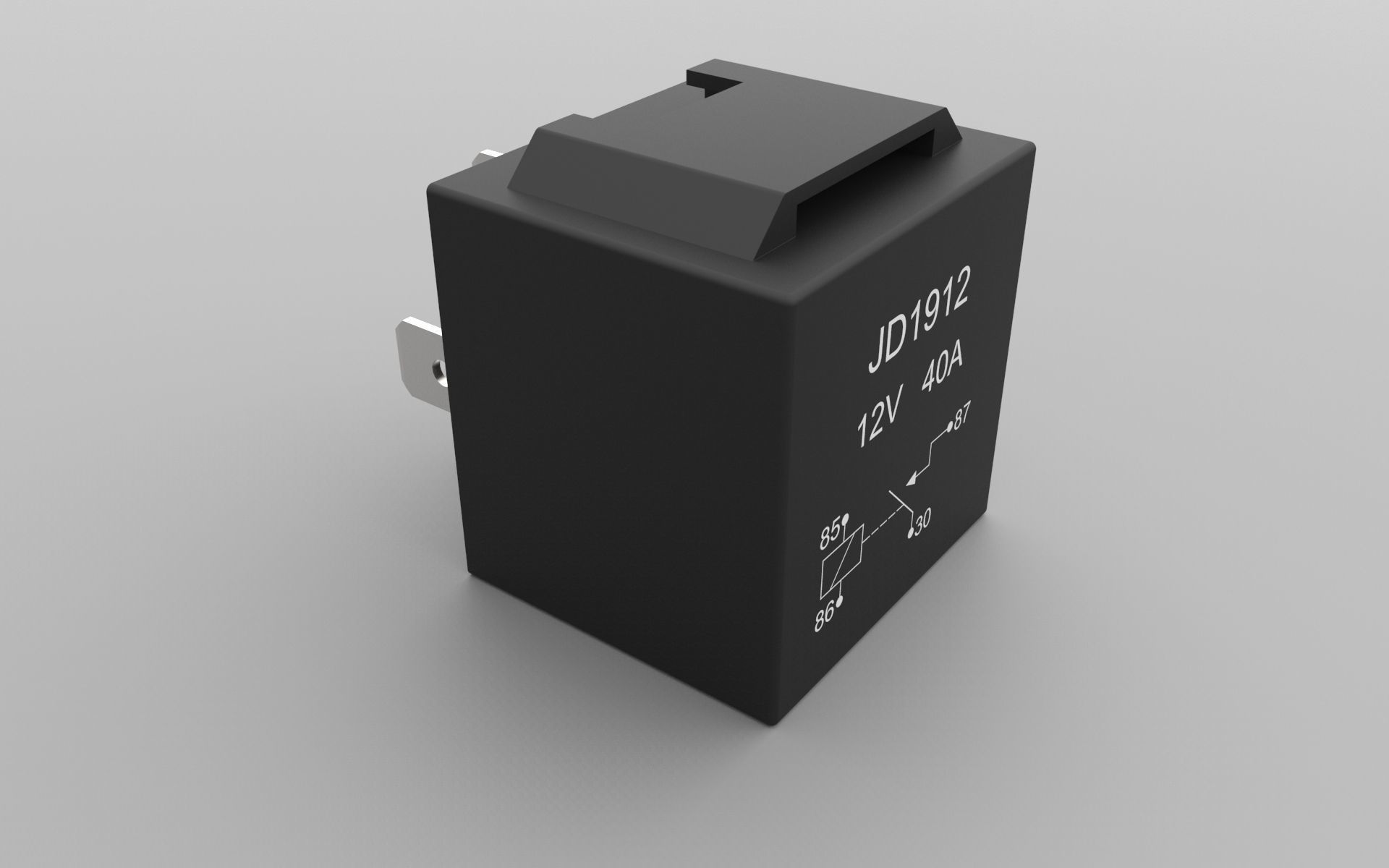

1. Relay JD1912 12V 40A - 1 piece;

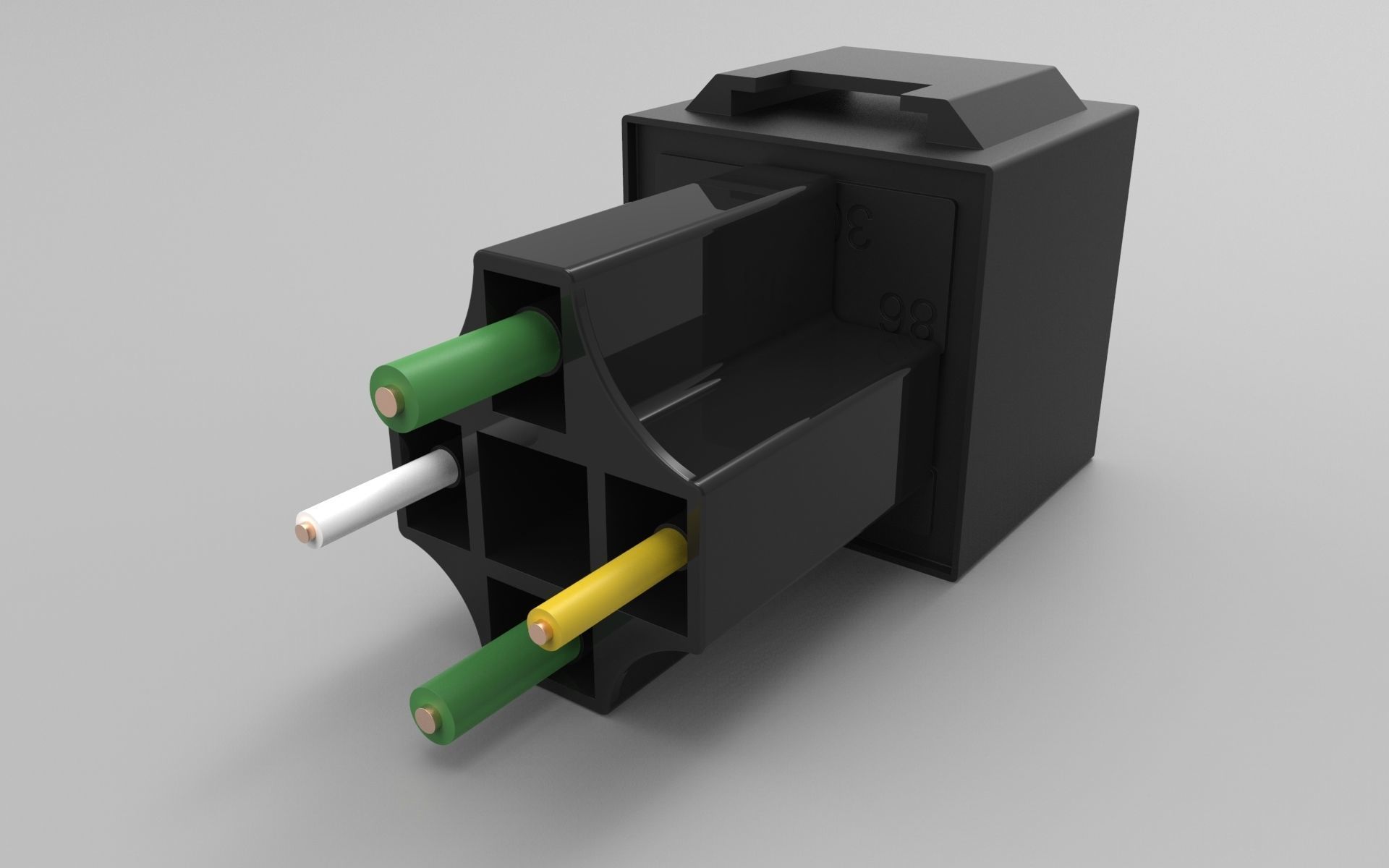

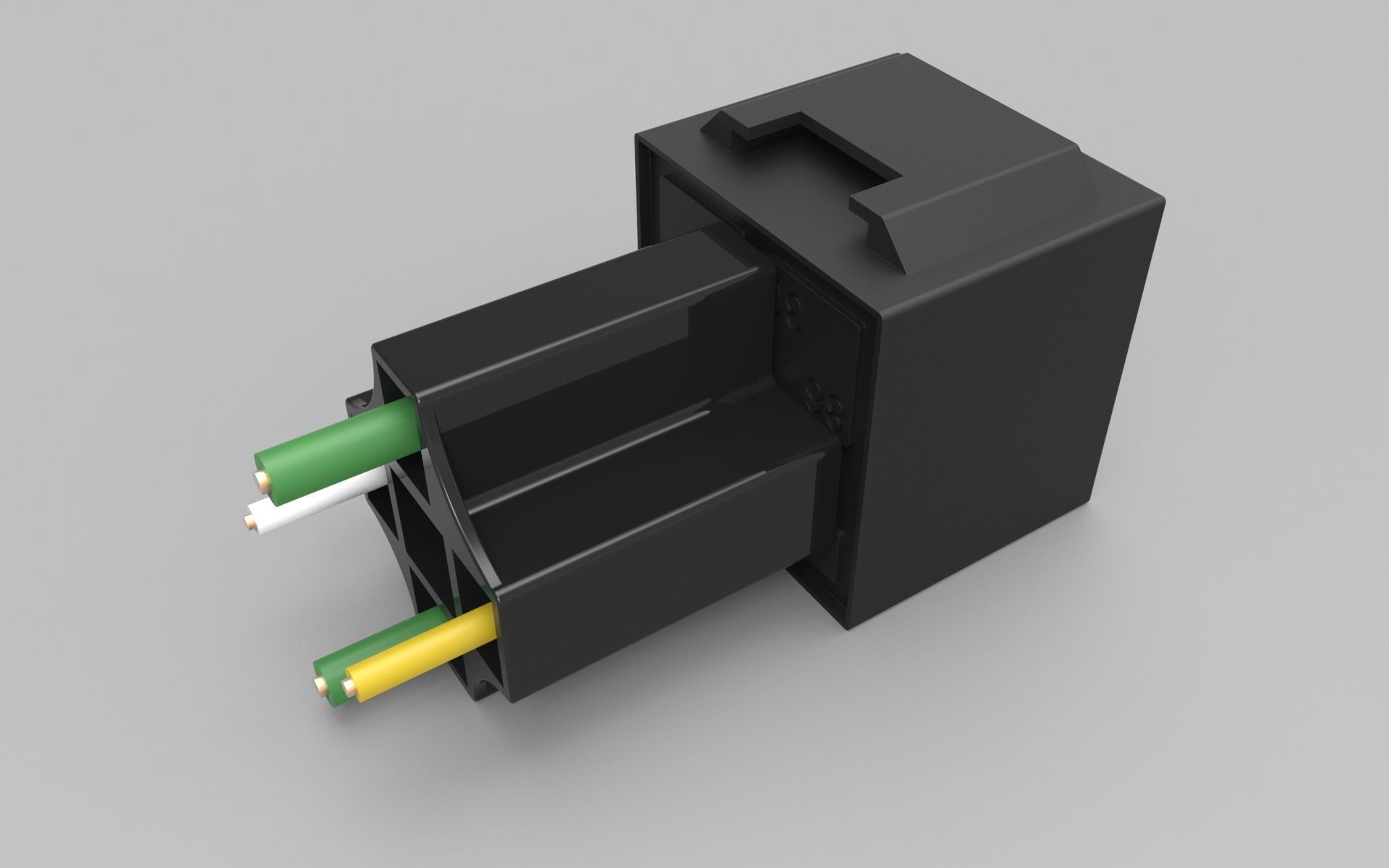

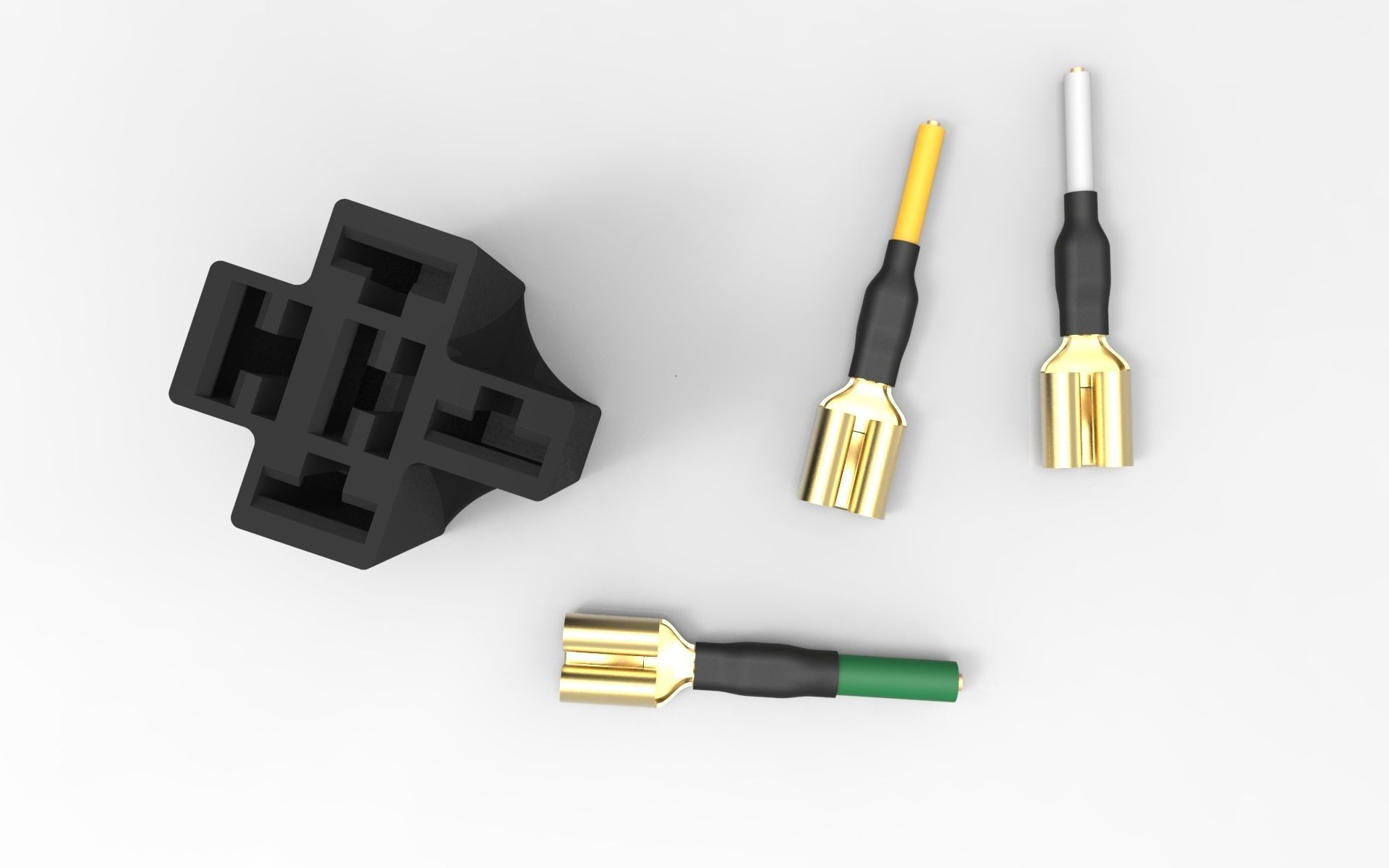

2. Connector housing - 1 piece;

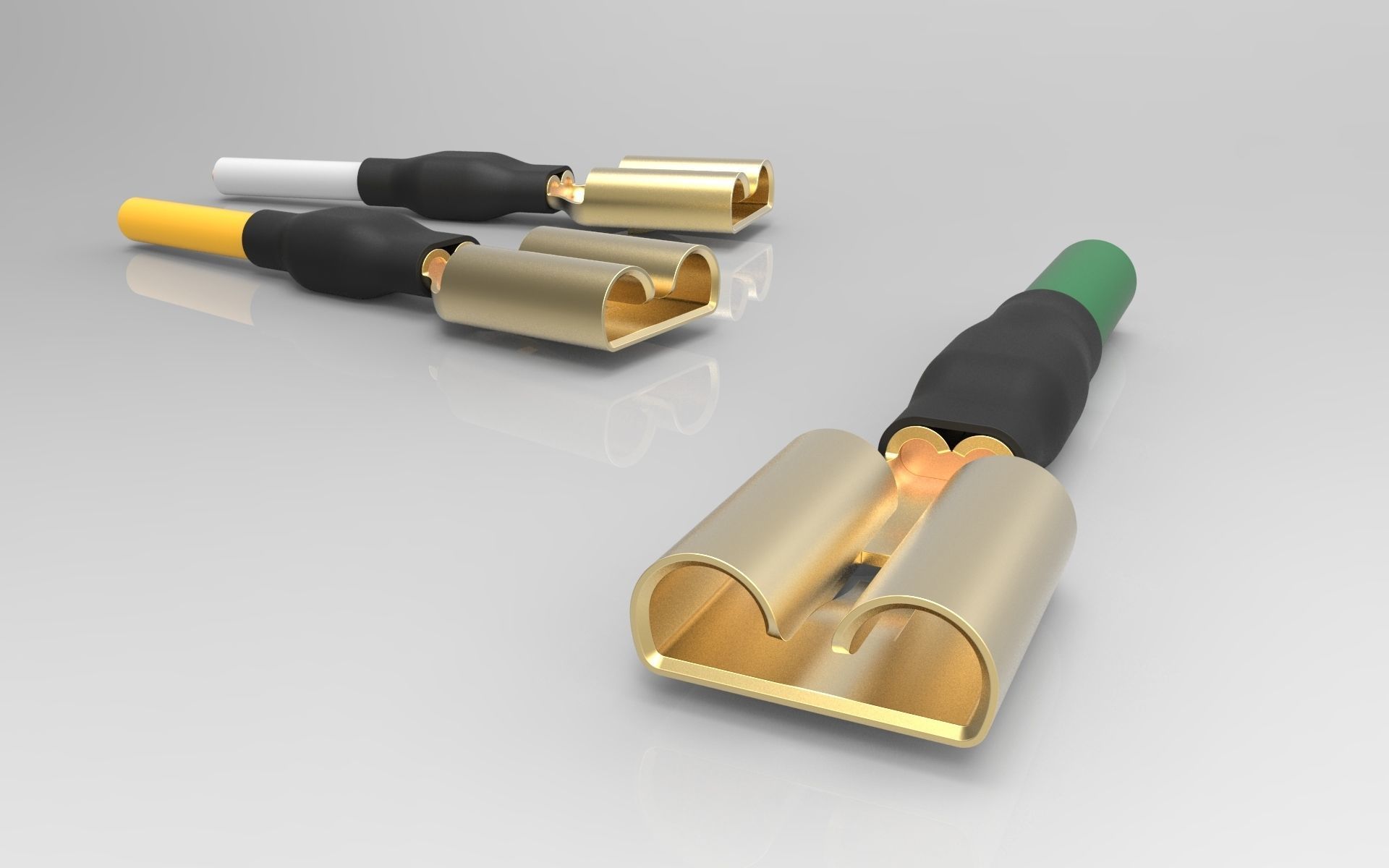

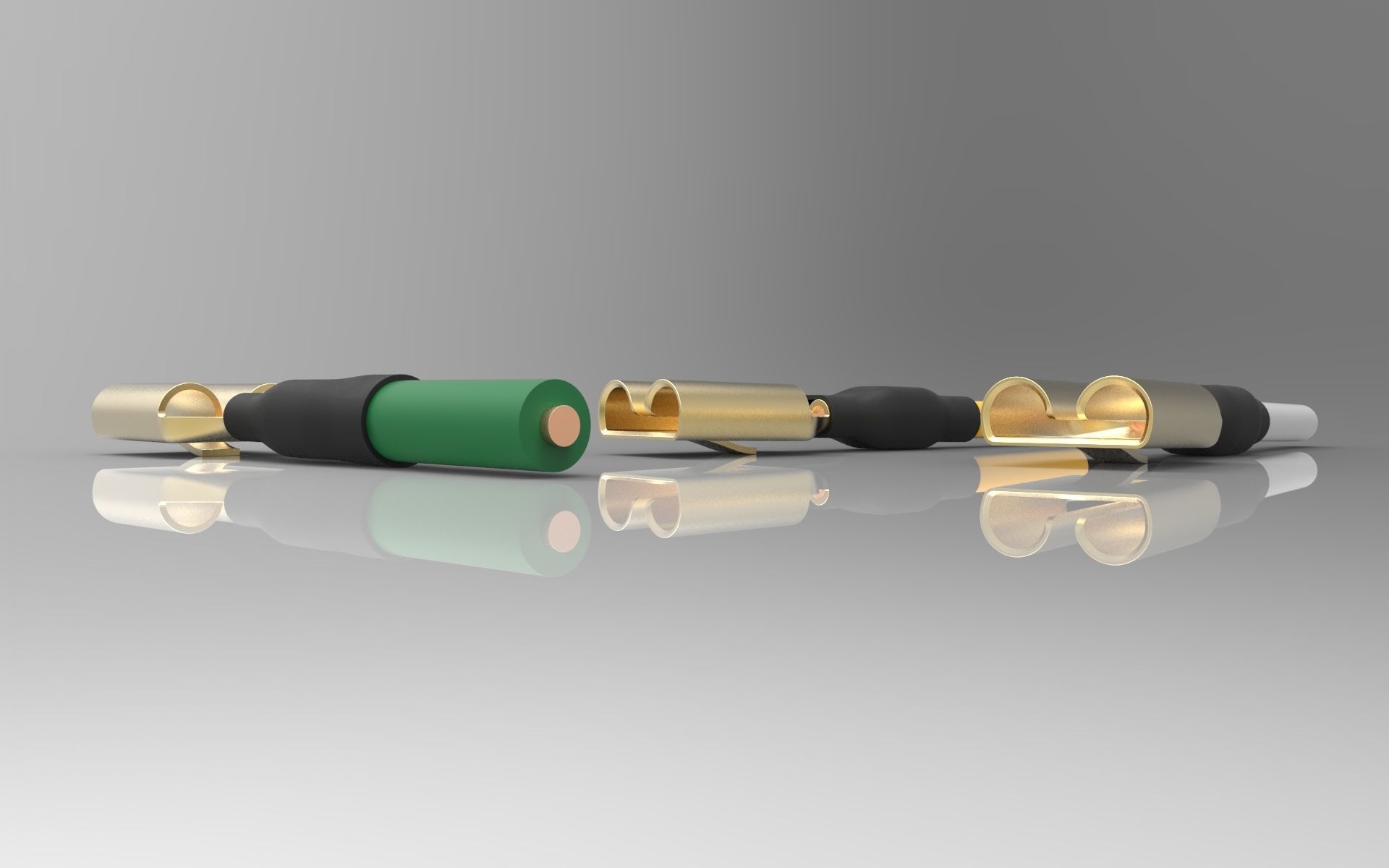

3. Terminal with a part of the wire - 4 pieces.
