NE555 DC 12V Digital Delay Timer Relay Mounting Bracket 3D print model

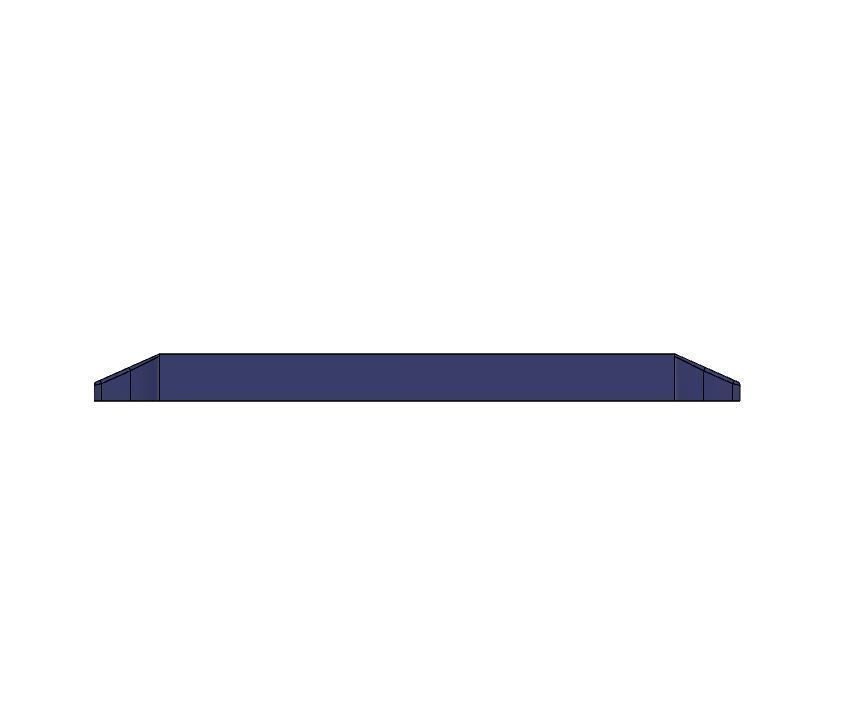

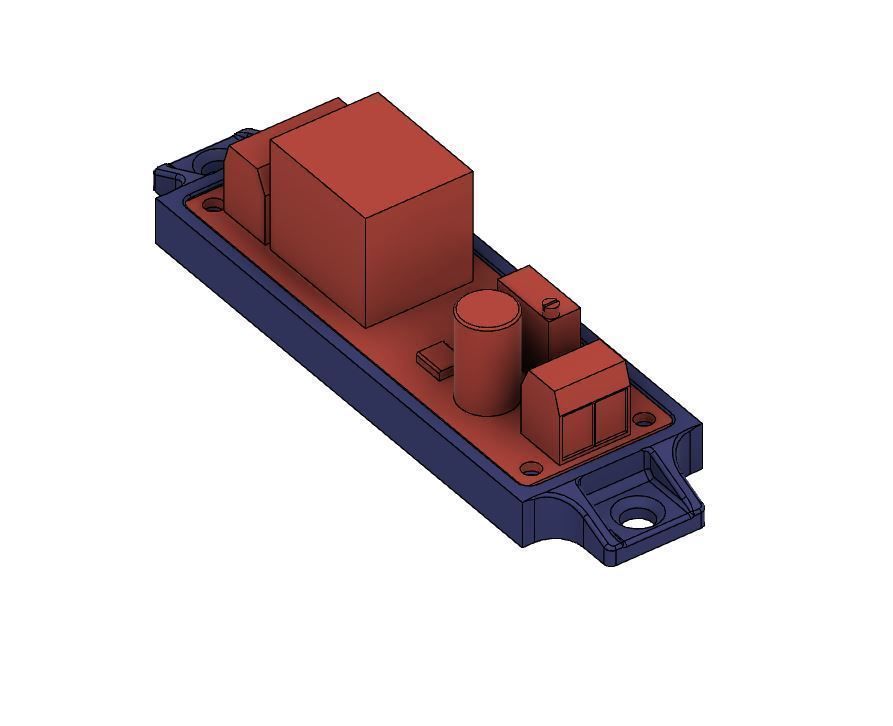

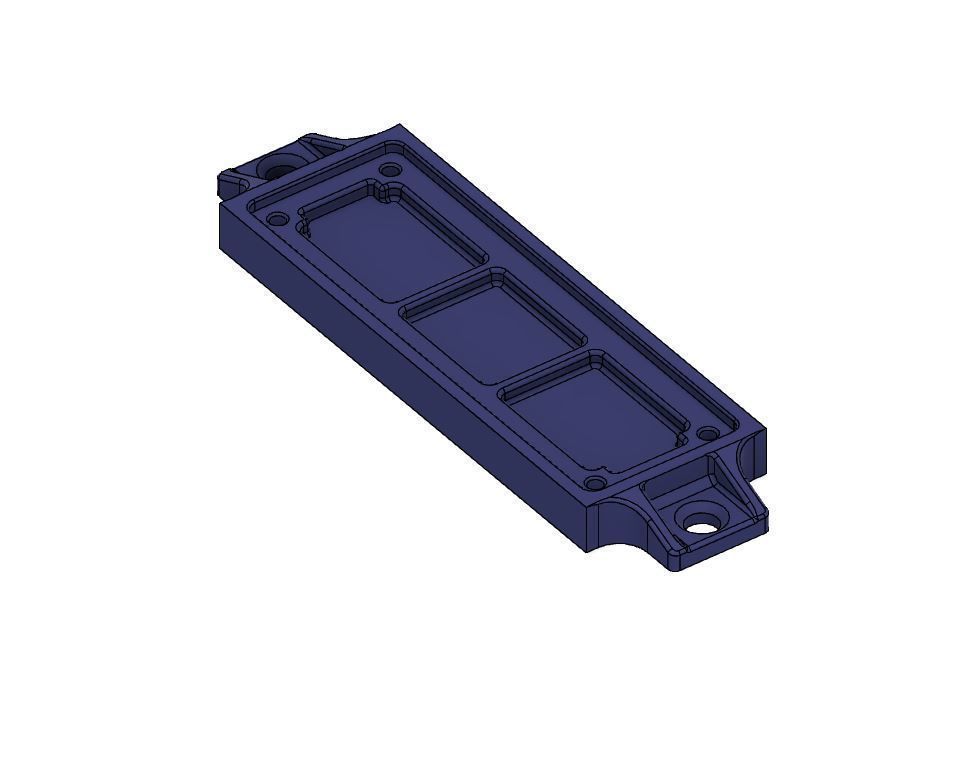

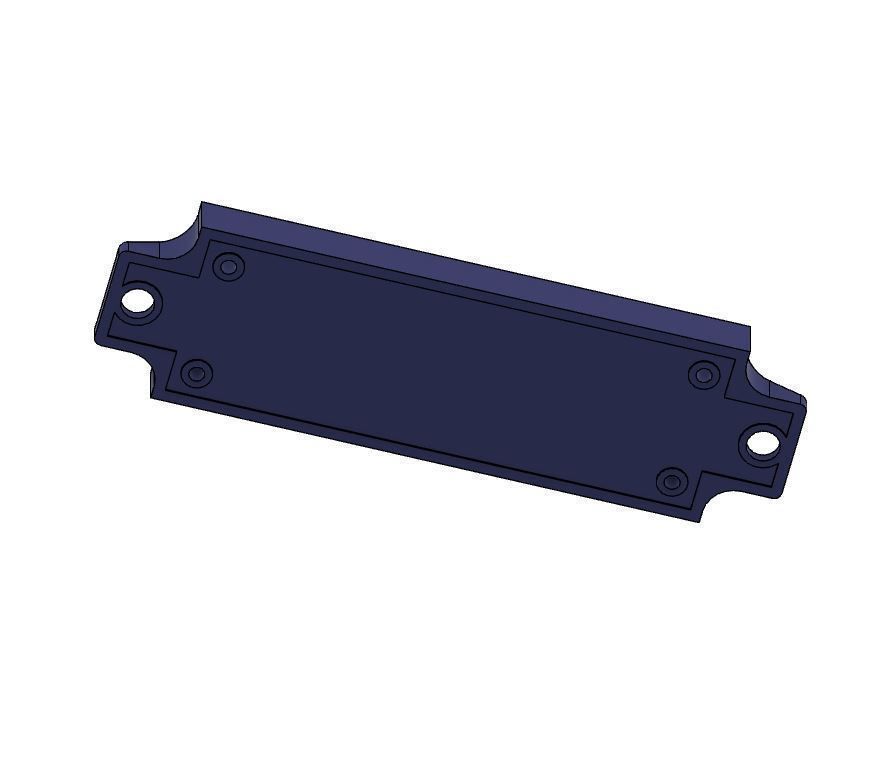

Mounting Bracket designed to fit a NE555 Timer Relay.

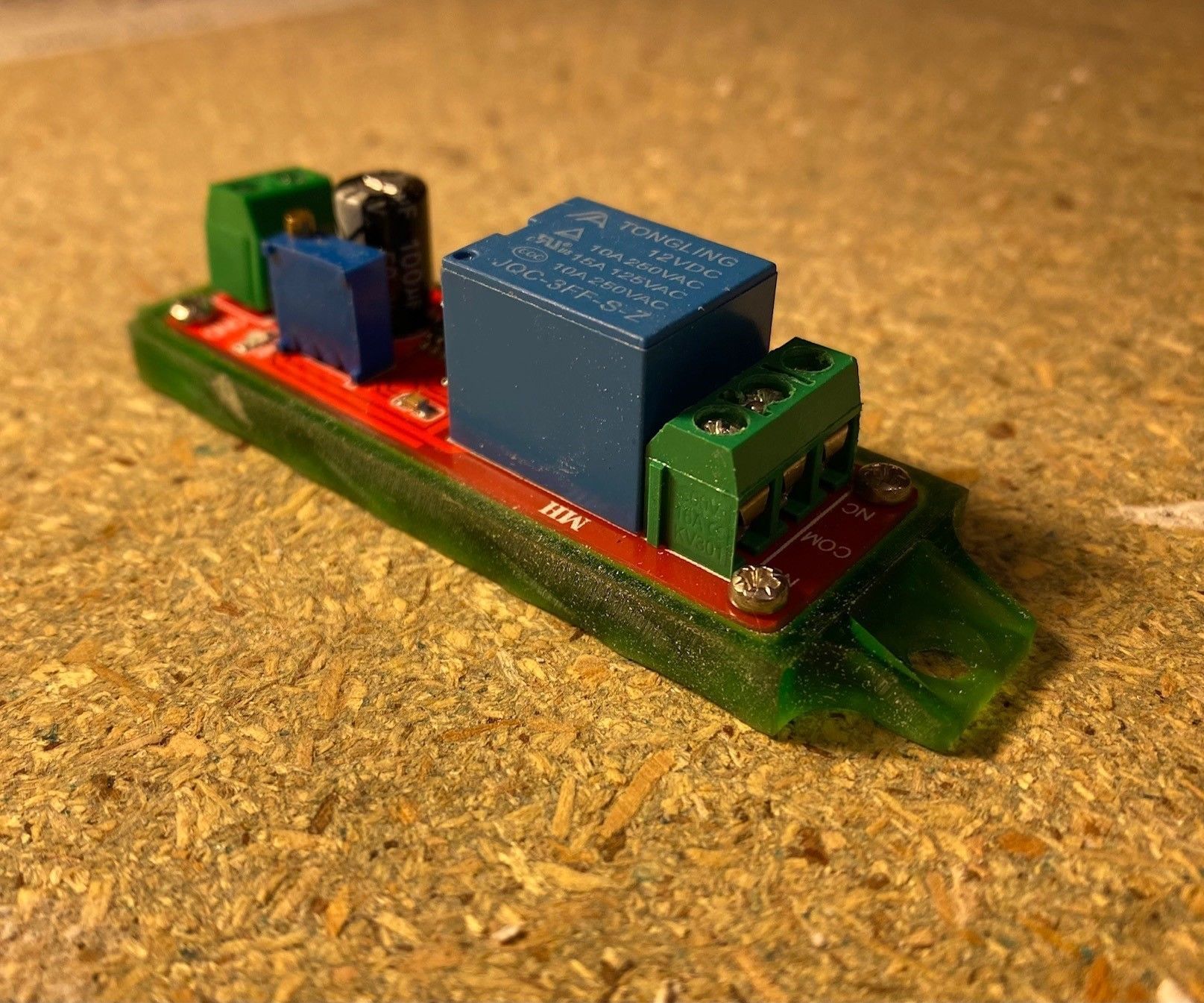

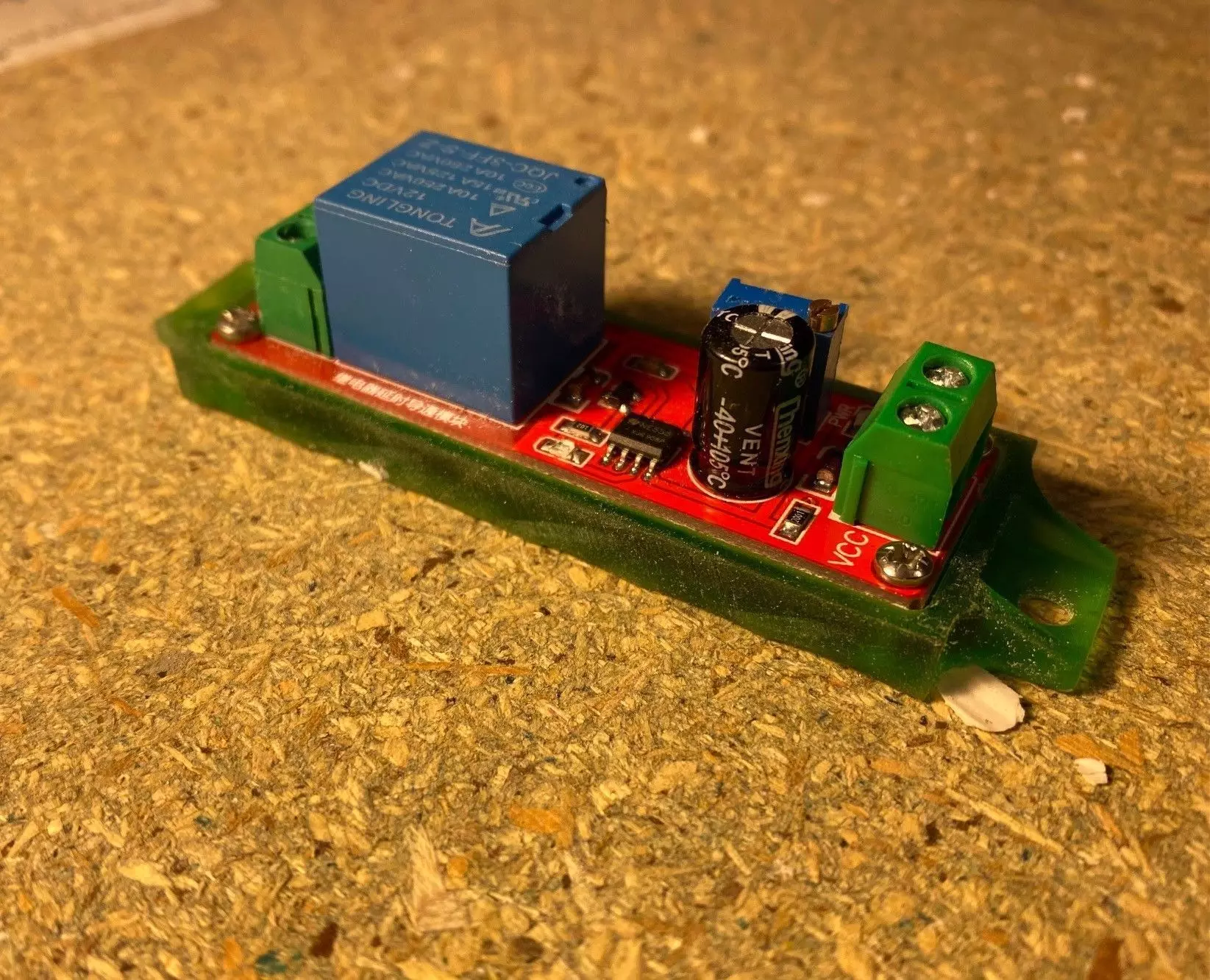

I have several of these on my model railway and mounting isn't easy so I have designed a mounting bracket that can be used with these devices.

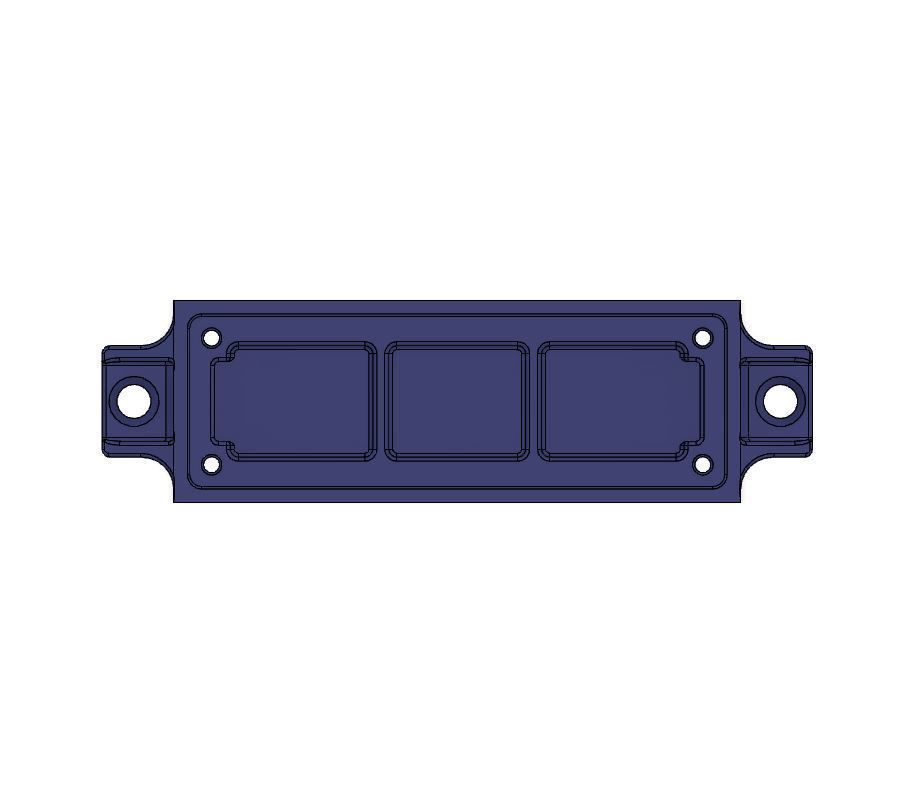

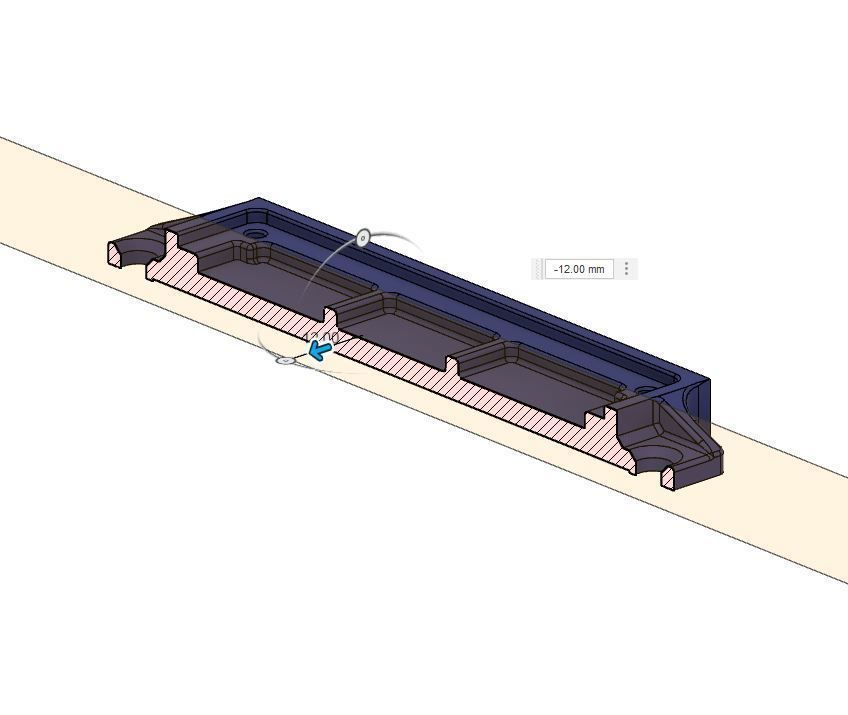

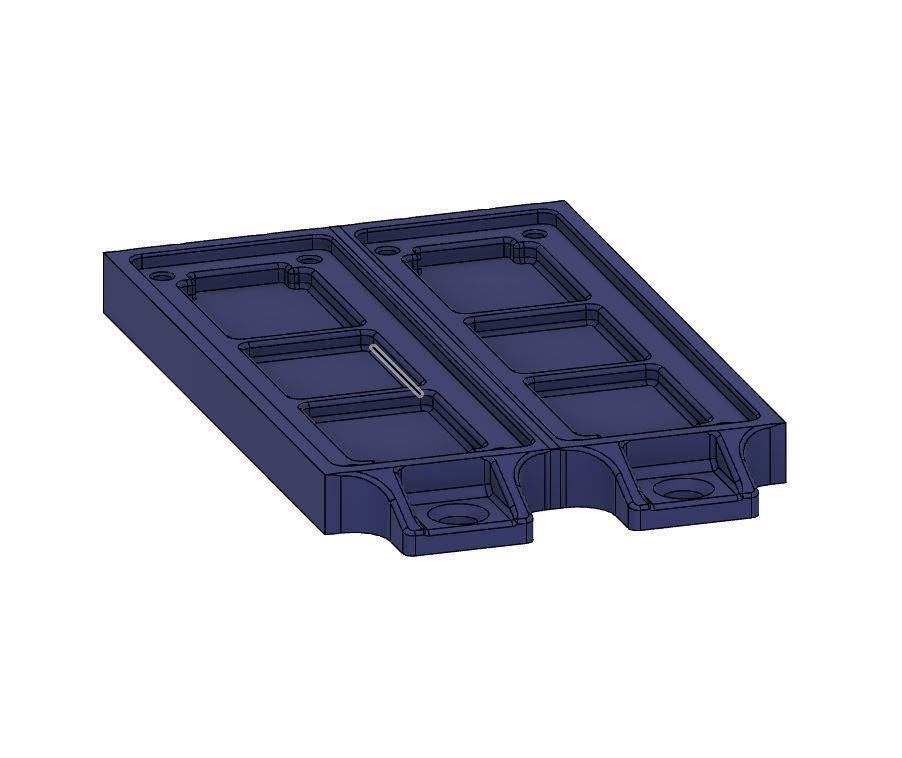

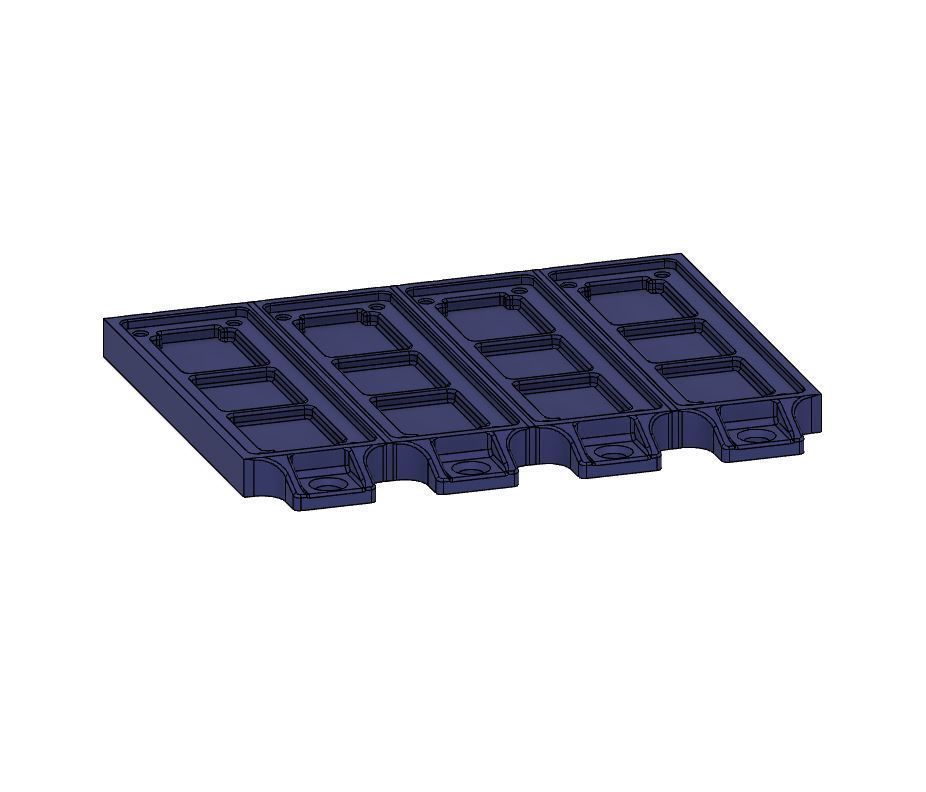

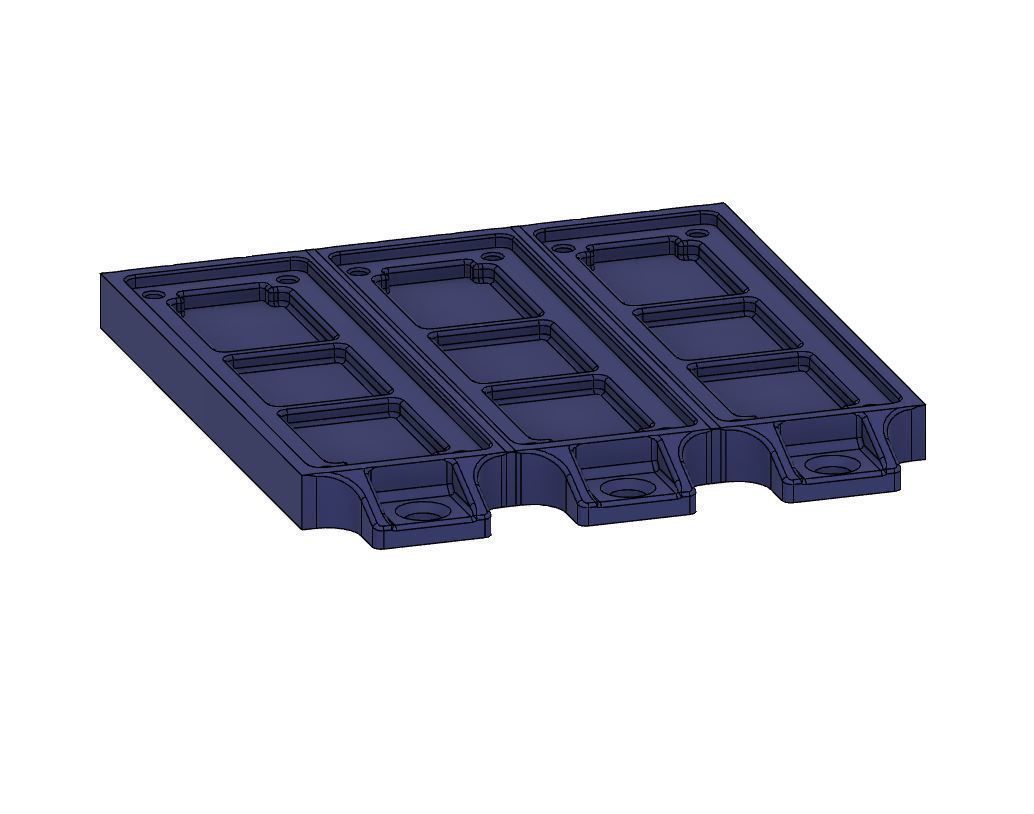

The bracket comes as a single bracket or multiple brackets connected.

Mounting holes in the bracket for attaching NE555 is 2mm in diameter and recommend attaching ne555 with 2.2mm diameter 6mm long self-tapping screw (these can be bought on eBay).Bracket mounting holes are 4.3mm in diameter so standard 4mm screws can be used, alternatively, a nut and bolt could be used.

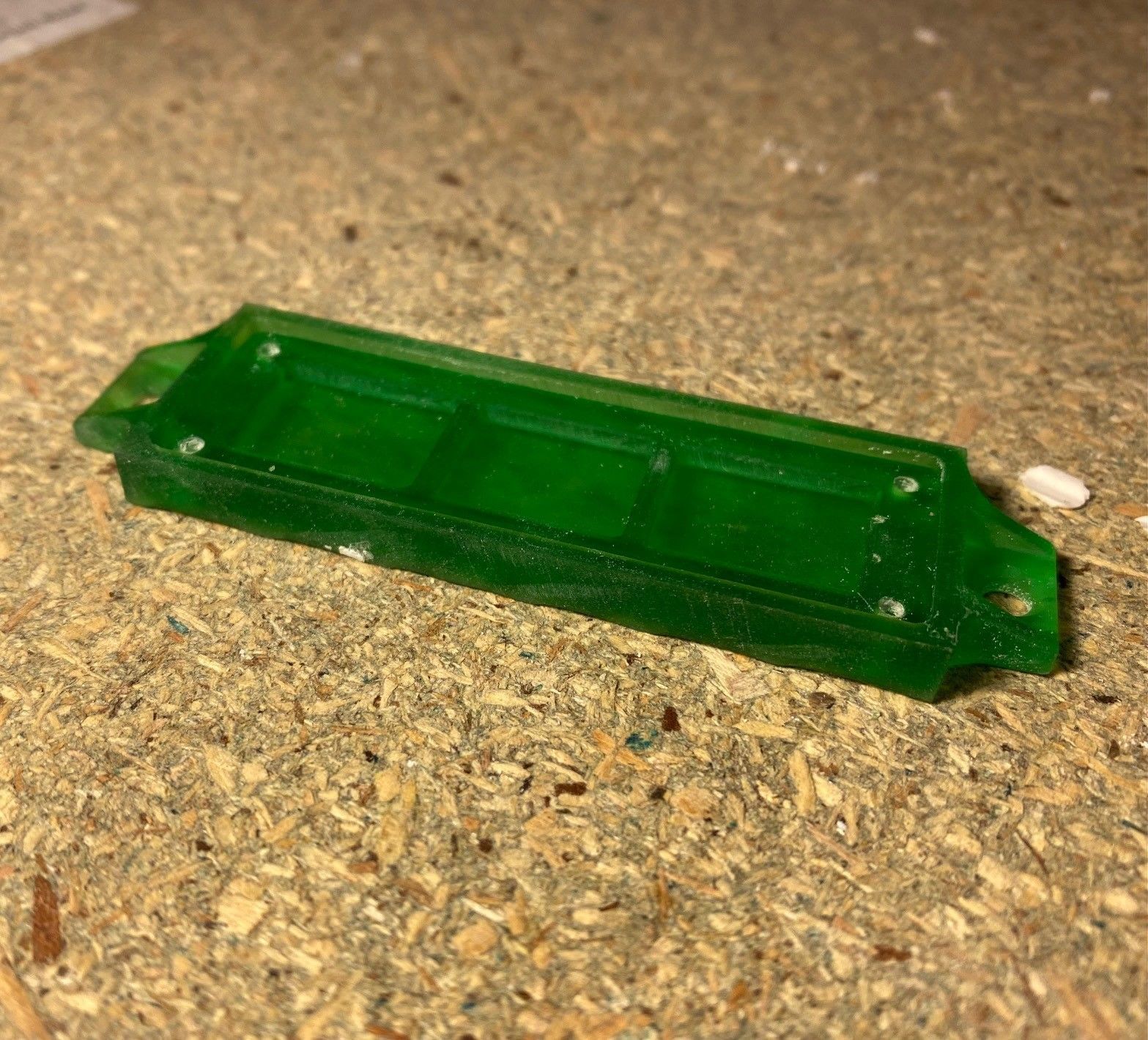

These have been designed to be printed on a Resin or Filament 3D Printer.An example is printed on a AnyCubic Photon Resin Printer

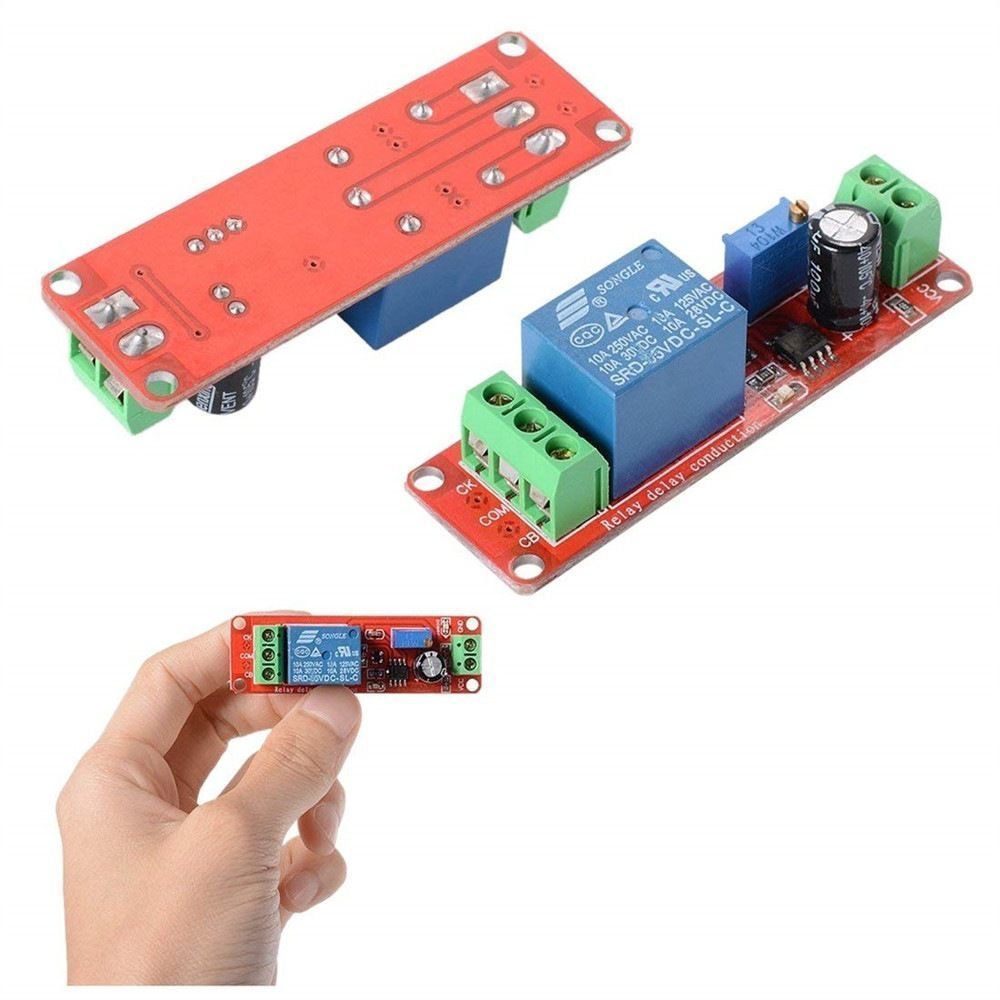

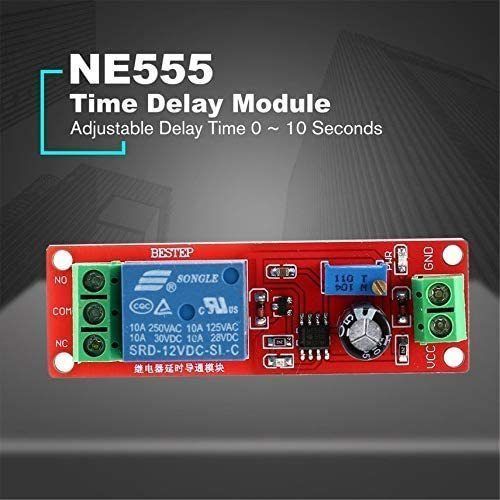

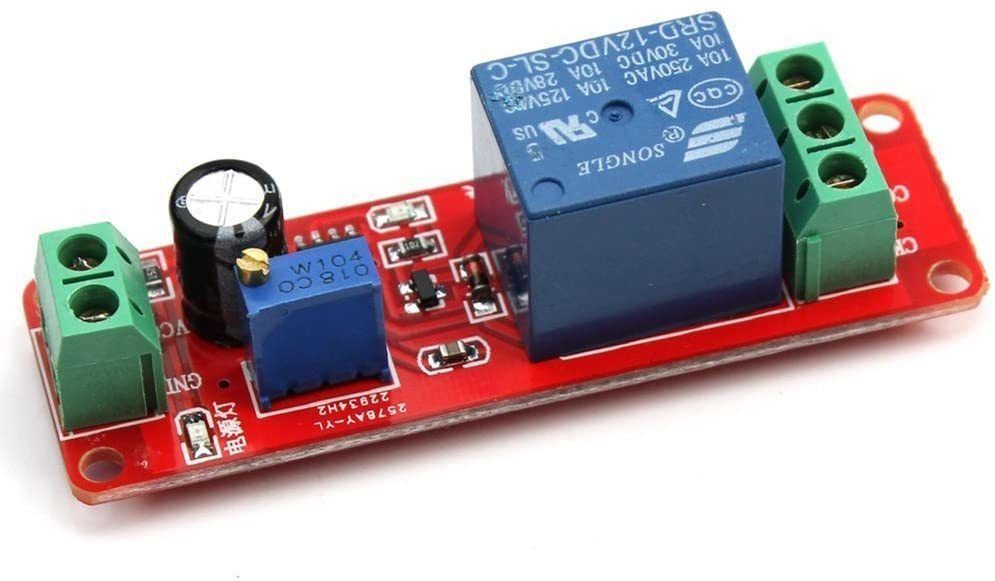

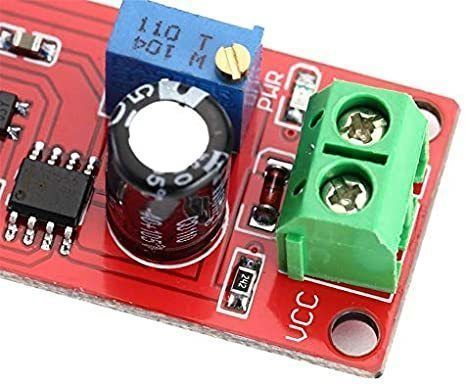

What is a NE555 relay? NE555 12V Delay Timer Monostable Switch Adjustable Relay Module Description:

• Brand new and professional high-quality delay switch module
• With power indicator LED and trigger indication LED
• Output is voltage-free & can be connected up to a 10A load of any voltage rating
• Chrono-potentiometer regulation time delay, adjustable from 0 to 10 seconds by default
• Useful for applications in equipment delay to prevent sudden high currents which can burn components and devices
