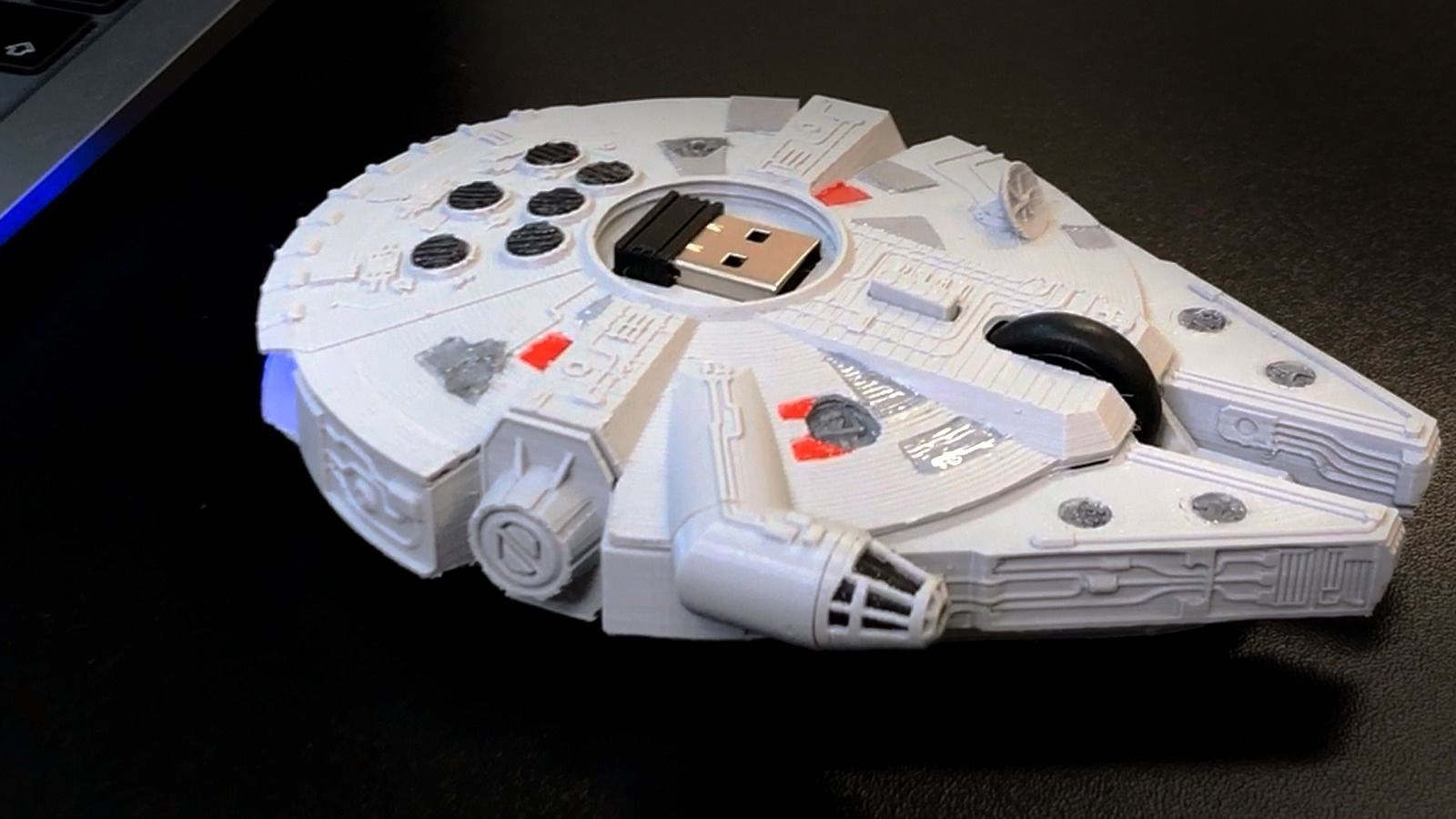

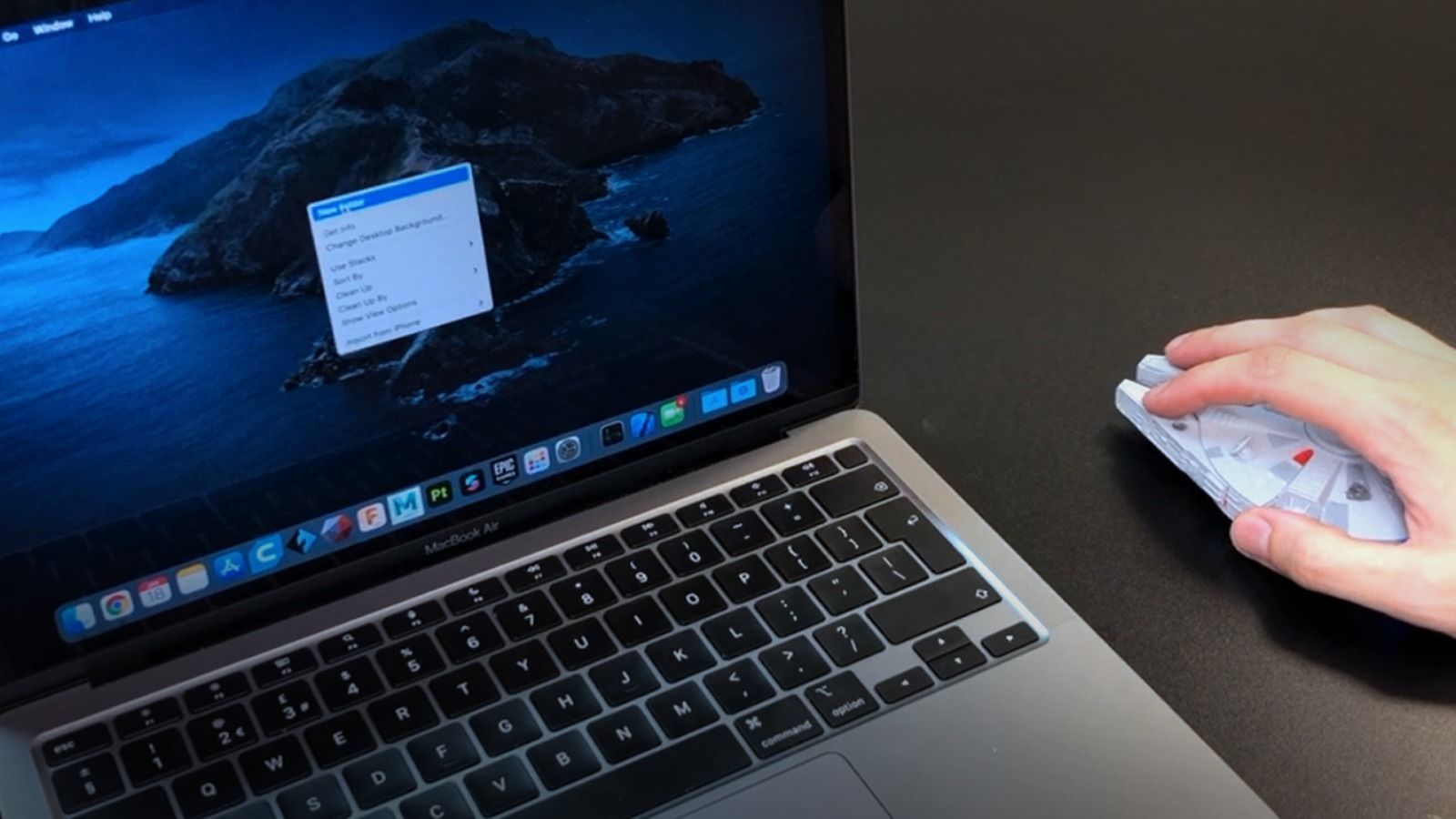

Millennium Falcon Mouse 3D print model

Hello! I'm thrilled to introduce you to the Millennium Falcon mouse, it's truly a gem! This is an easy-to-build device and no advanced skills are required. Below, you can find all the information you need to get this project going.

► Youtube tutorial video: https://www.youtube.com/watch?v=zsmf0Fp8Sbo

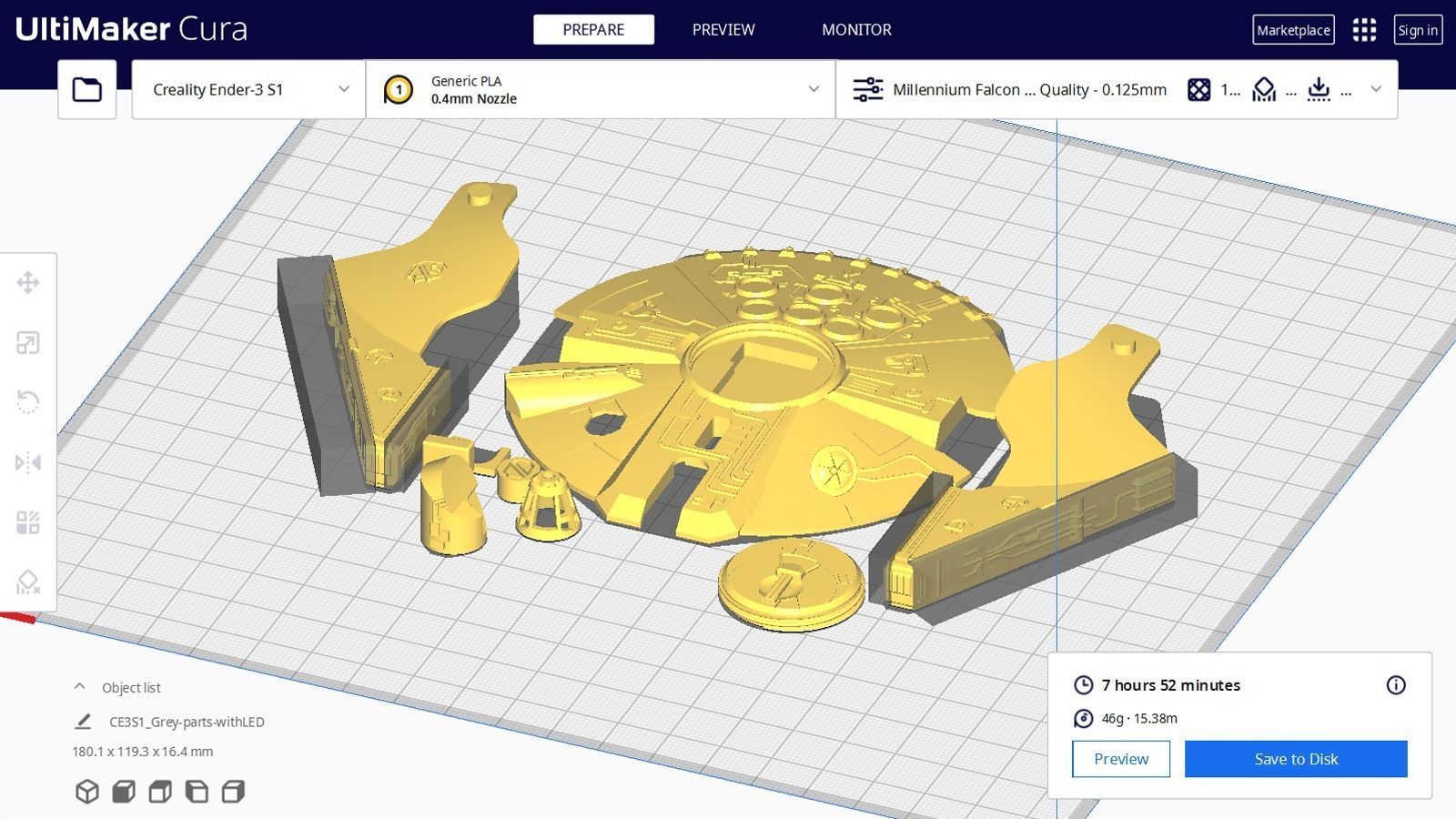

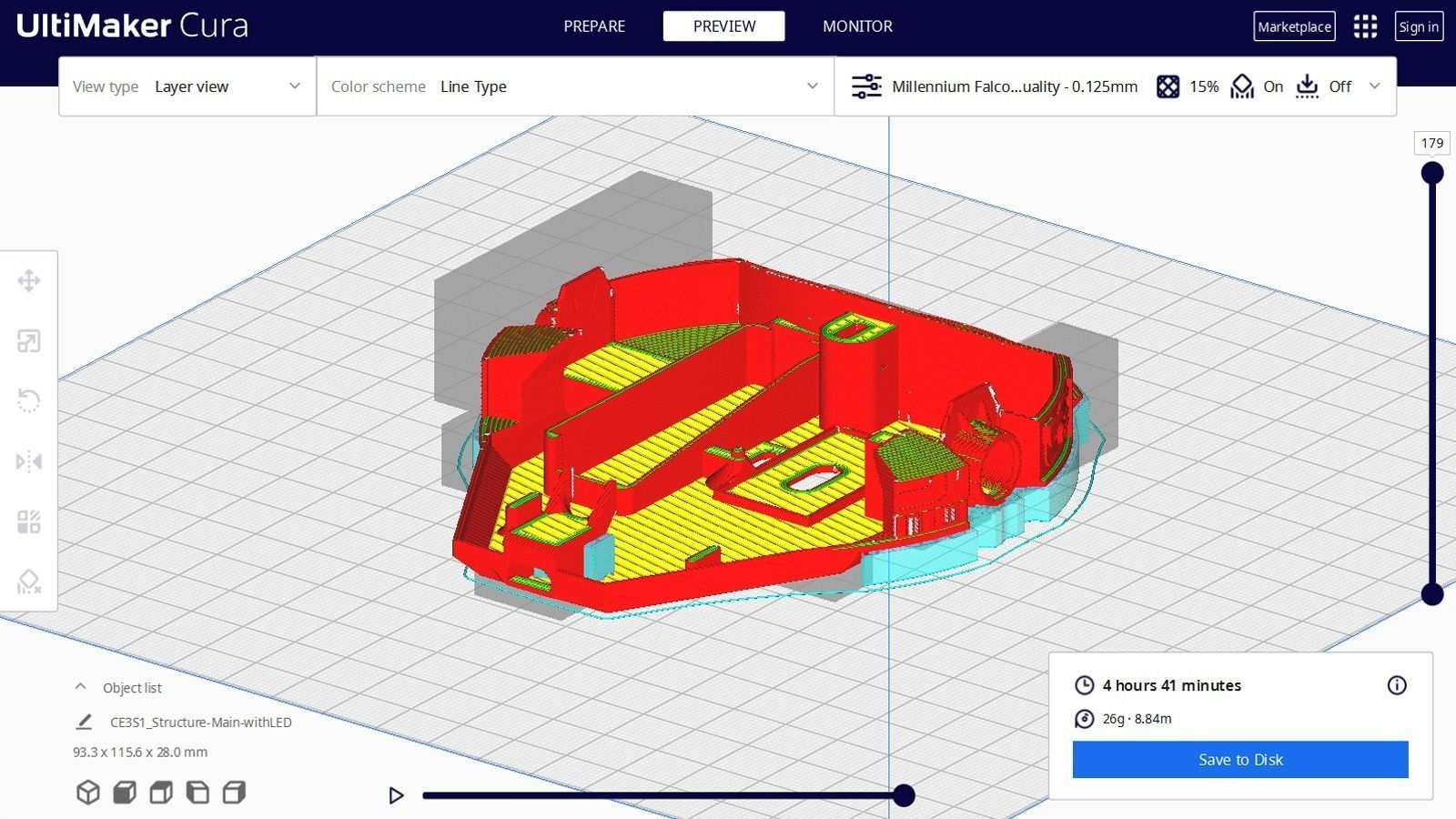

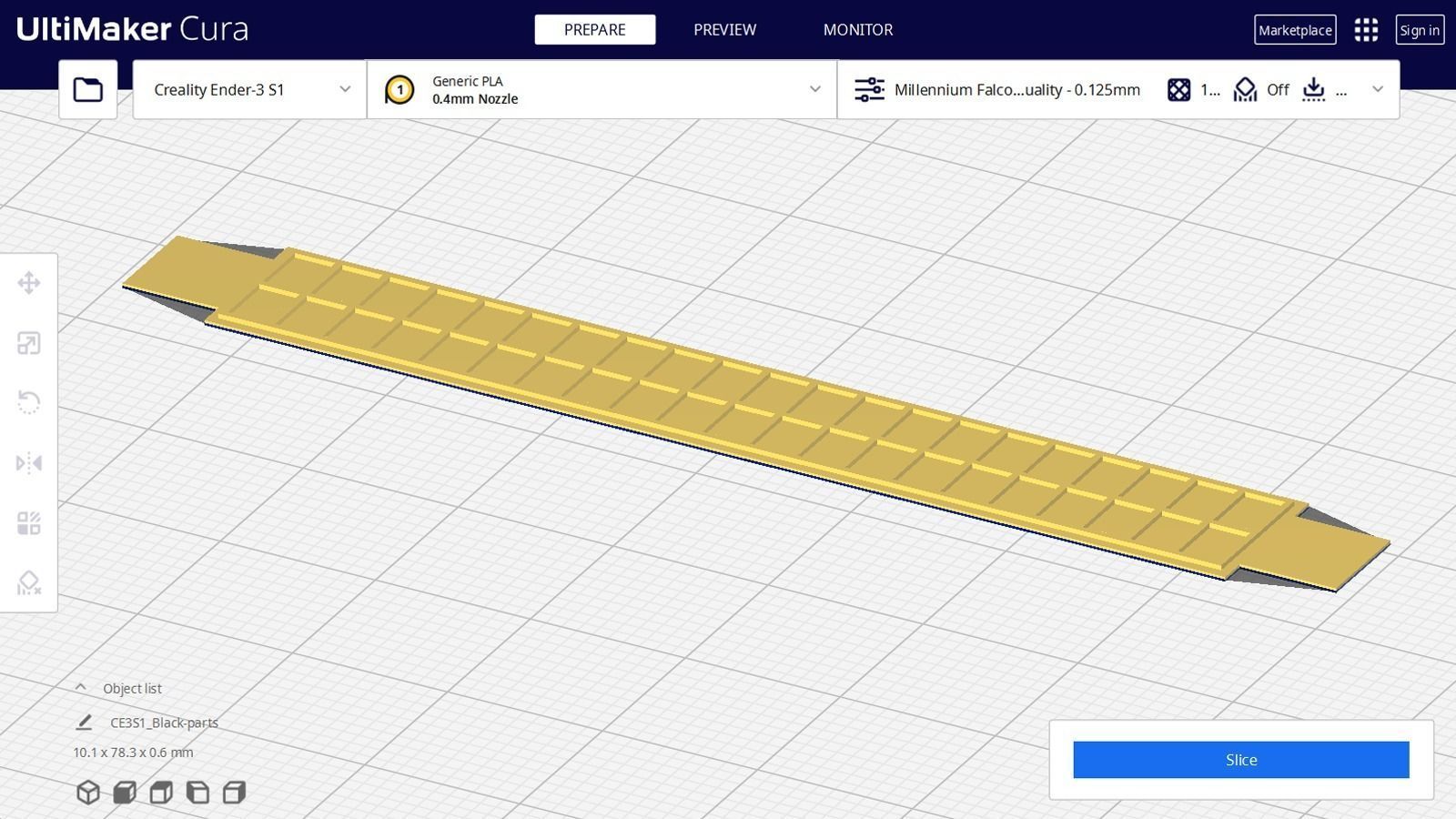

► 3D printing instructions:

https://docs.google.com/document/d/1H7hM2QD2ciLLZKDCPPIsDp09QMWa1jMSrmYxcpX9EkA/edit

► Tools needed:

• Philips screwdriver;
• Plier;
• Super glue;
• Black, white and red inks;
• Fine tip paint brush;
• Glaze or varnish.

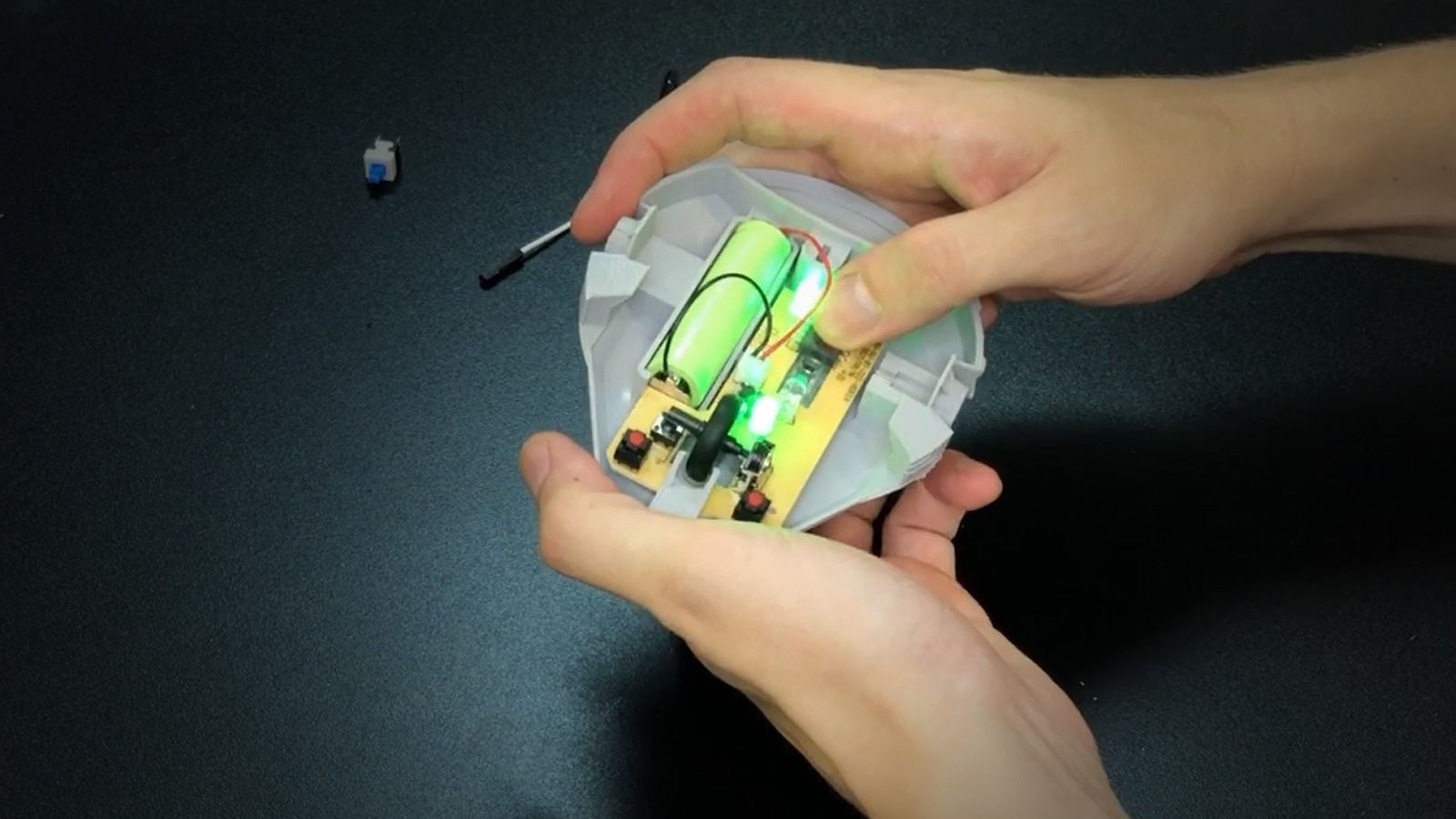

► Electronics:You will need to buy and remove the electronics of the mouse in the following link: https://shorturl.at/efq29

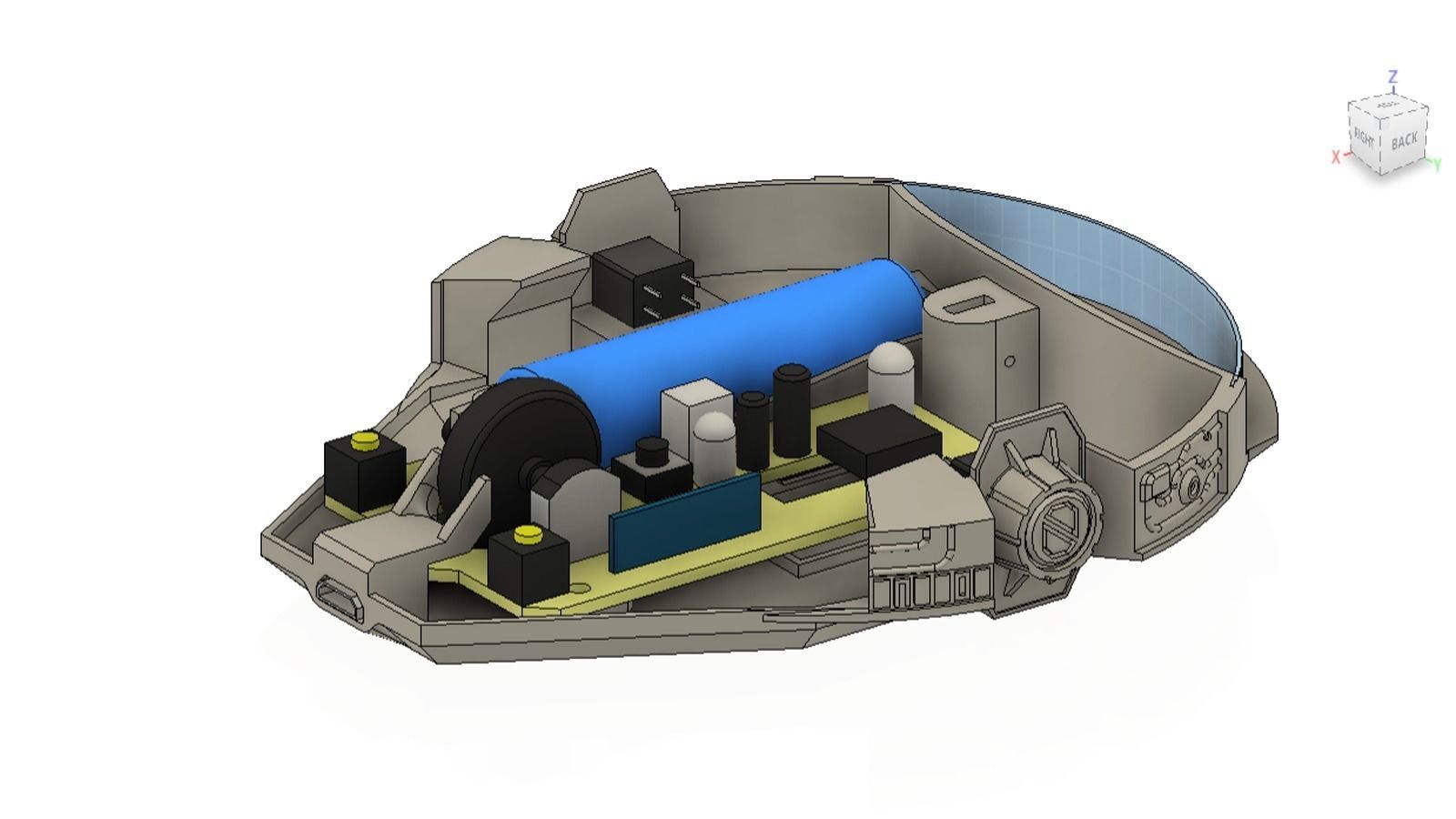

You can buy it from many different sellers in AliExpress, but it's VERY IMPORTANT that you buy the version with both USB and Bluetooth connections so that you get the correct electronic board to fit within the 3d model.

Some of its main features are:

• Rechargeable battery;
• Both wireless USB and Bluetooth connections;
• DPI switch between 800, 1200 and 1600;
• Silent clicking.

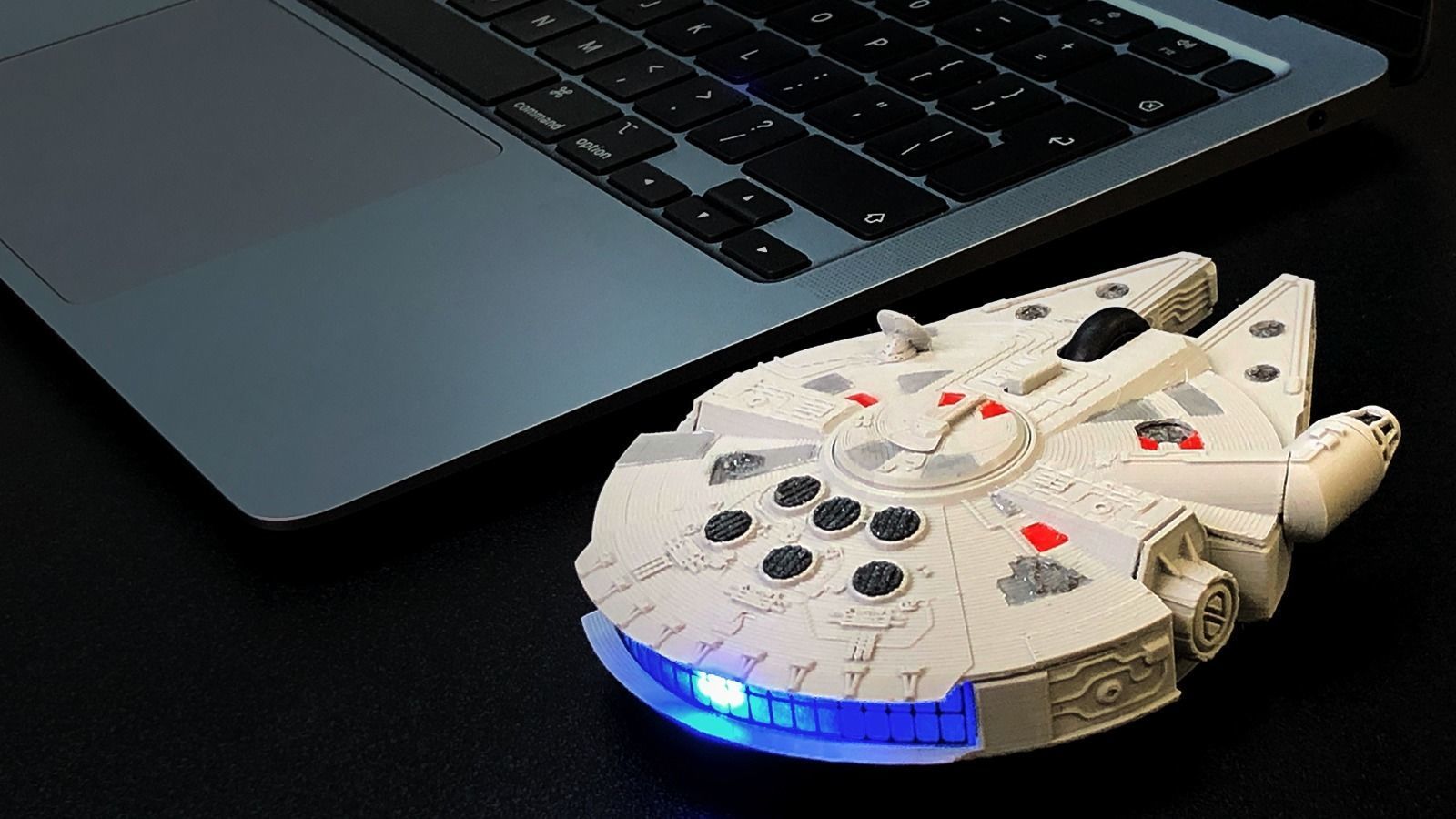

If you are making the version with the blue LED in the back of the mouse, you will need the extra components below. Most, if not all, of these items can be found in any local electronics store, in case you don’t want to buy entire batches of them in AliExpress.

• 1x Blue LED: https://shorturl.at/cmuIQ
• 1x 75Ω Resistor: https://shorturl.at/lsKZ0
• 1x Self-locking On/Off switch (8mm x 8mm): https://shorturl.at/EJNX0
• 1x 10cm male-to-female jumper wire: https://shorturl.at/csv89
• 1x 10cm female-to-female jumper wire: https://shorturl.at/nFN19
