Flight Simulator Autopilot - DIY - MSFS 3D print model

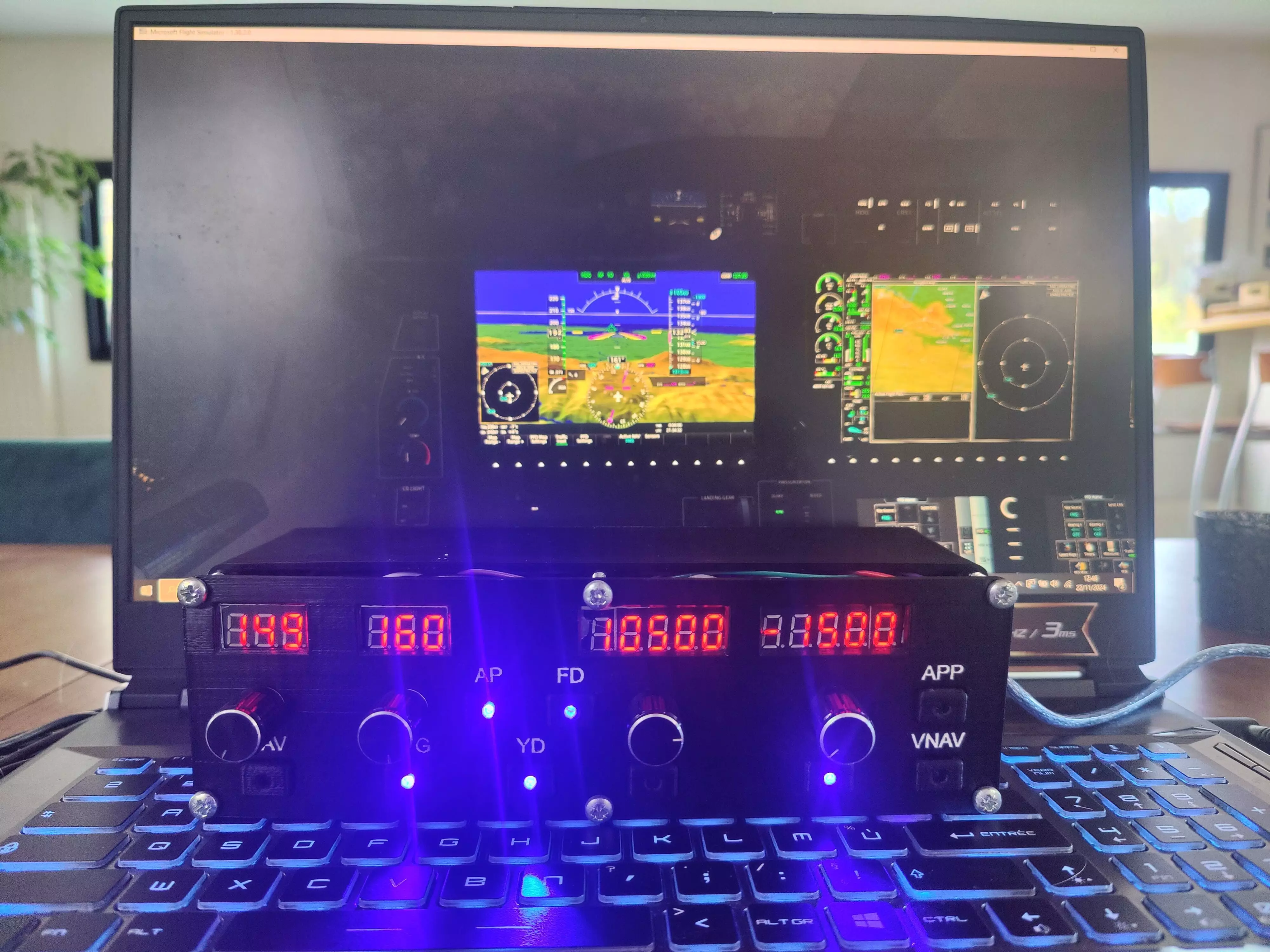

Fully stacked autopilot for MicroSoft Flight Simulator or Xplane.Take your simuation experience to the next level with this DIY autopilot module !

It is very easy to build and interface with the sim, just check the tutorial videos linked below !

Required hardware

• Arduino Pro Micro
• Arduino Wires
• 3x 7-segment displays (I used MAX7219 LED Module TM1637 8 Bit)
• 9x 7*6*6 push button switches (any kit will work)
• 4x rotary switches (I used EC11 5Pin)

Required Software

• MobiFlight (used to interface the autopilot with the simulator, easy setup) link: https://www.mobiflight.com/en/index.html

You can check this video and make small adjustments to fit your setup: https://www.youtube.com/watch?v=YGrNcZI5cK0&t=584sLEDs can also be added as autopilot mode annunciators
