Custom cooling shroud duct for Intel Xeon Phi coprocessor 3D print model

Description

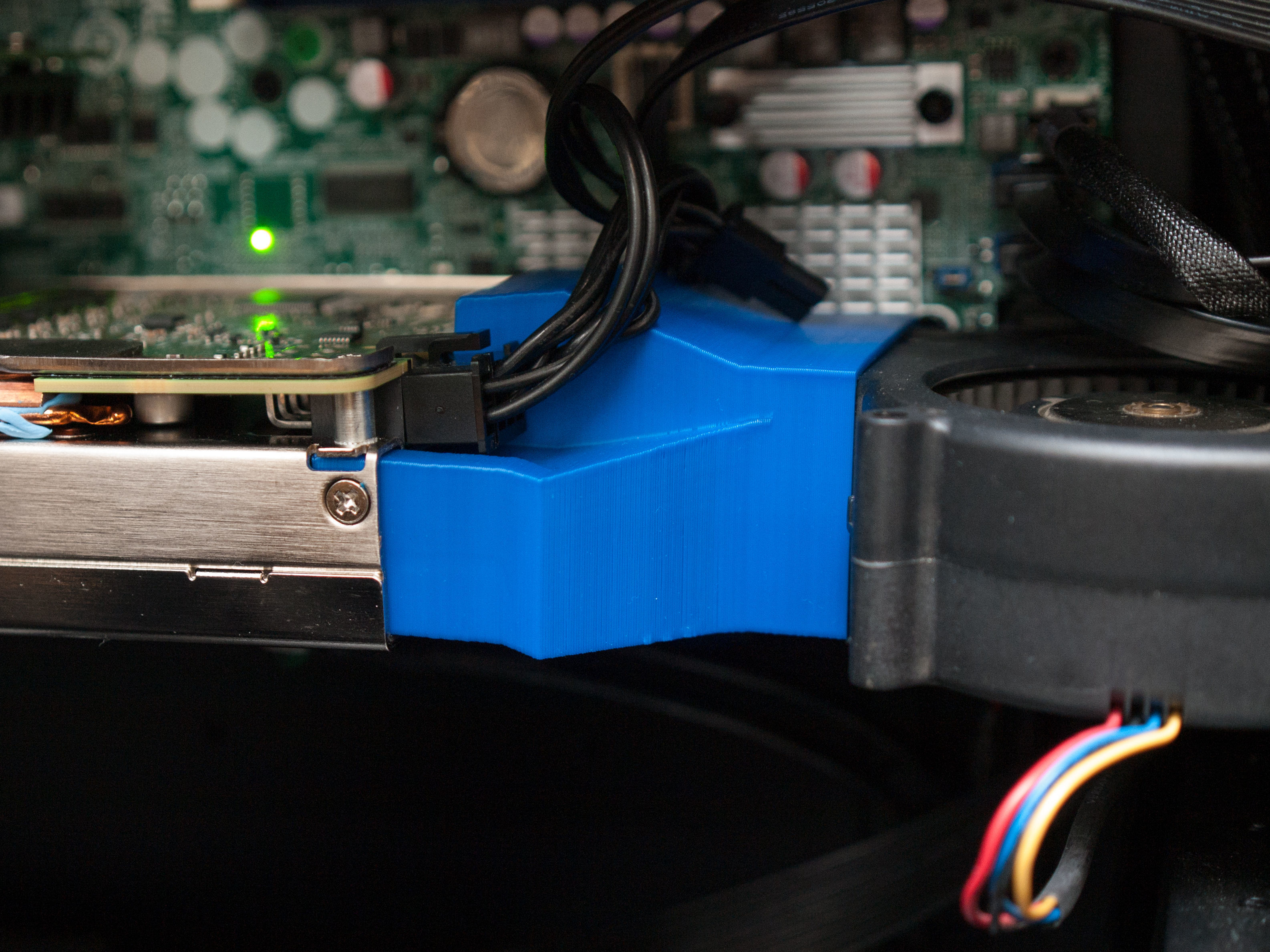

This custom designed shroud is a perfect way of cooling a passive-heatsink Xeon Phi coprocessor (not included) in a desktop case. It fits all Xeon Phi X100-class, Knights Corner cards (https://ark.intel.com/products/codename/57721/Knights-Corner)

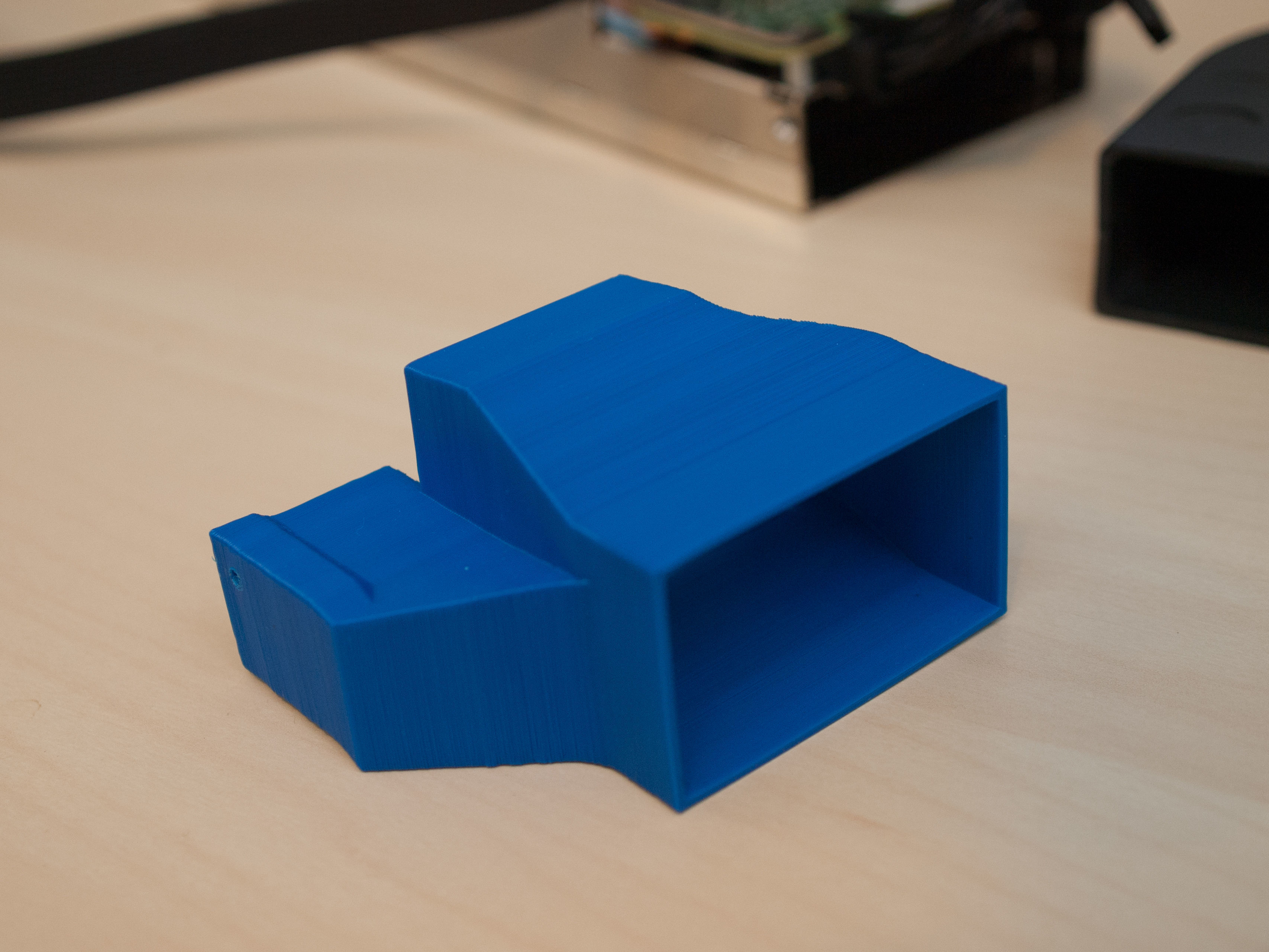

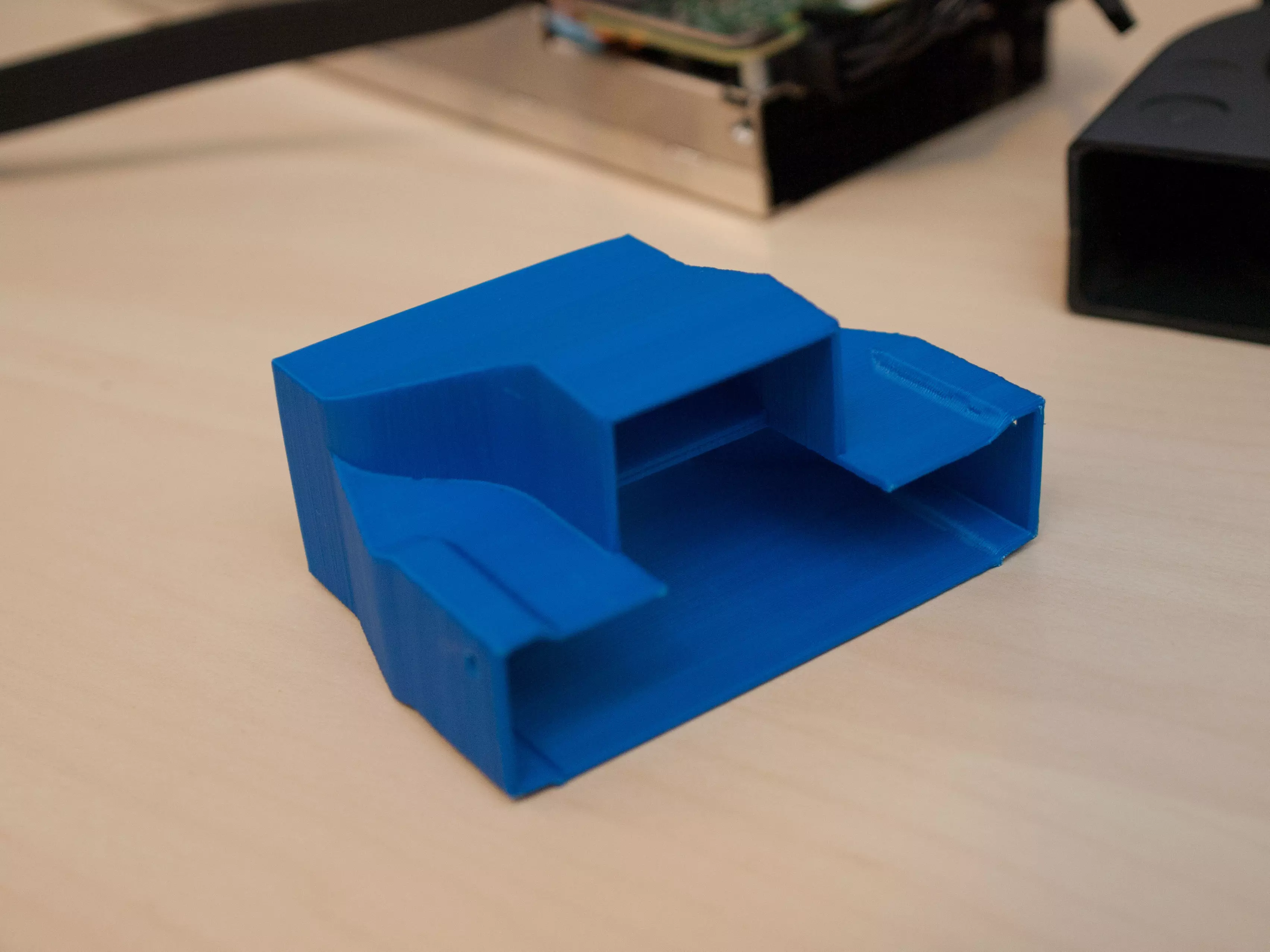

This shroud is engineered to fit precisely to the card, provide ample clearance for power cables, and to meet/exceed Intel's cooling requirements for every Xeon Phi model. It is typically printed using PLA .

Item dimensions: 65mm x 90mm x 45mm When installed, the whole card + shroud + fan assembly is about 40cm long

(Optional) Fan specifications: http://partner.delta-corp.com/products/FanUploads/Specification/BFB1012EH-AF00(REV01).pdf

Write comment
Item rating
1 0
C
crione
crione 2019-09-05 23:03:48 UTC
Recommended
like a glove
Custom cooling shroud duct for Intel Xeon Phi coprocessor
$35.00

Custom License
Custom cooling shroud duct for Intel Xeon Phi coprocessor
$35.00

Custom License
T
t-yankos
(4 reviews)
Response 33% in 48.0h
Hire meView all Designers Models

3D Model formats

Format limitations
  • Stereolithography (.stl)984 KB

3D Model details

  • Publish date2018-03-30
  • Model ID#875500
  • Ready for 3D Printing
